SIM1 XT-B Manuel utilisateur

Firmware 1.0

Add Source

(b)

Learn & Play

(a)

on/off out balanced

out

in 9/12 V

led

interactive

display

USB

MIDI

true bypass down up

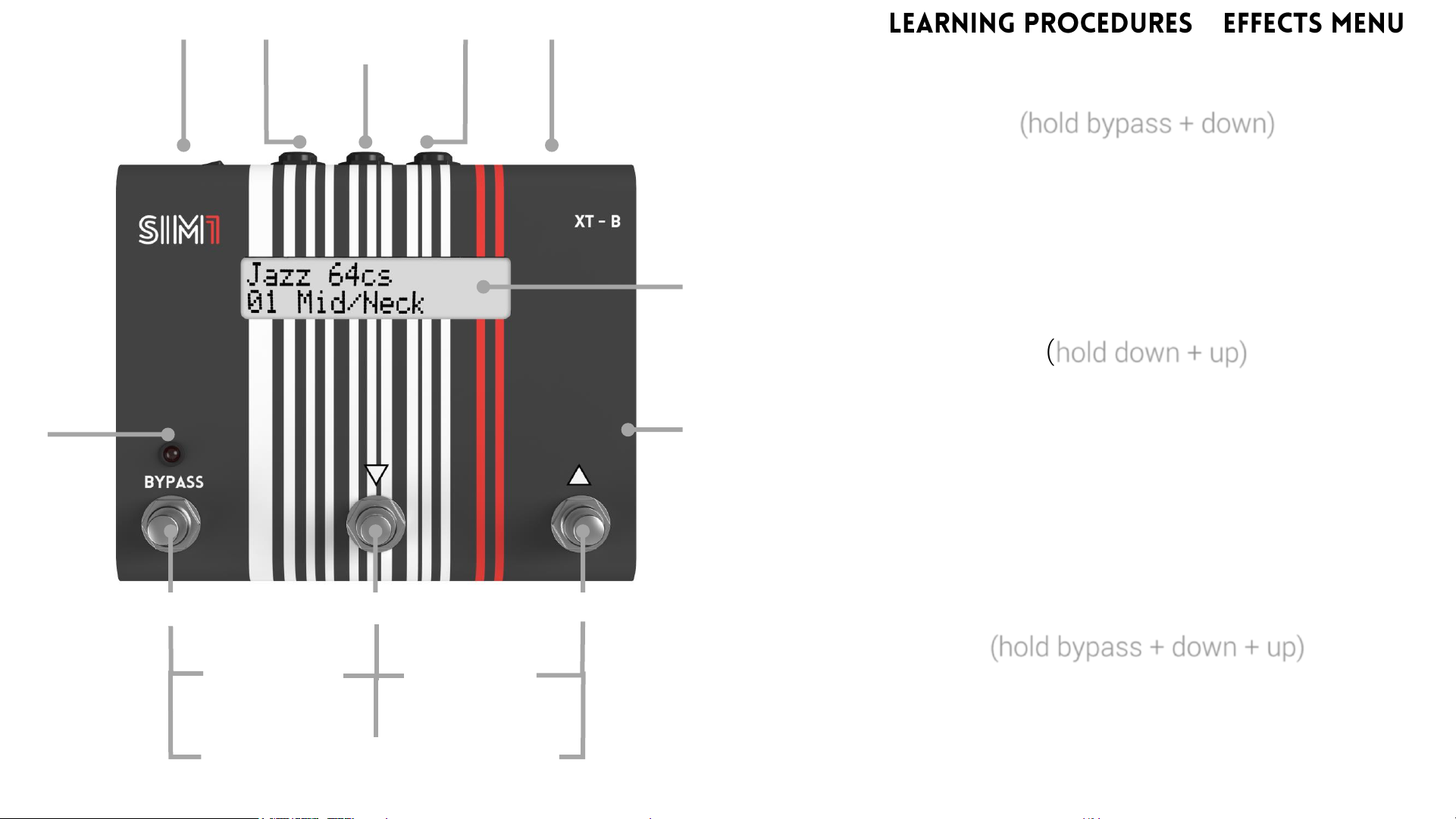

Menu Set: PreAmp, Ir Cab, OD, Reverb

(c)

a. Learn & Play - automatic pickups matching

(hold bypass + down)

Set up your Source Bass by recording Neck, Mid

and Bridge position pickups. The system will

automatically match the Target Bass pickups with

your Source Bass pickups.

b. Add Source - profile one pickup at a time

(hold down + up)

Make the profile and store one pickup at a time as

Source Bass. The matching Source/Target

pickups is not automatic, it requires the use of the

Editor for PC/Mac. Through the Editor you can

turn the new Source Bass into a Target Bass,

using the “Show in Target” button in “My Guitars”.

c. Menu Settings –set cabinets/effects

(hold bypass + down + up)

Surf the Effects Menu. Select and set each effect

you wish to combine to each Target Bass. It

includes: Gain of Target Bass, IR Cabinets,,

Overdrive, Reverb, Tone Control, Master Gain.

bypass

Hold bypass

+ down to start

4. Play an ascending chromatic scale

starting from the E (6 open string),

making a progression of 9 notes per

string (80 seconds, 2 seconds per

note is recommended) –see the tab

beside;

a) & Set-up your source bass (automatic pickups matching).

For a perfect bass guitar emulation the pedal must learn the tone of each

pickup of the Source Bass. With this procedure it will automatically make the

matching between the Target and the Source Bass pickups.

1. Make sure your Source Bass is in tune (440 Hz), with volume/tone open;

2. In case you wish to configure 3 pickup tone positions, adjust the volume

knobs of your Source Bass to get only the Neck pickup sound;

3. Hold simultaneously the BYPASS and DOWN switches on the pedal for 3

seconds. The system will ask you the number of pickups you would like to

configure (1 or 3). Press the DOWN switch to configure only 1 pickup, or UP

switch to configure 3 pickups. When the countdown is finished the device will

start recording (

Hold UP to Abort the procedure);

bypass

Switch Up to end the

Learning procedure

bypass

Select

Down or Up

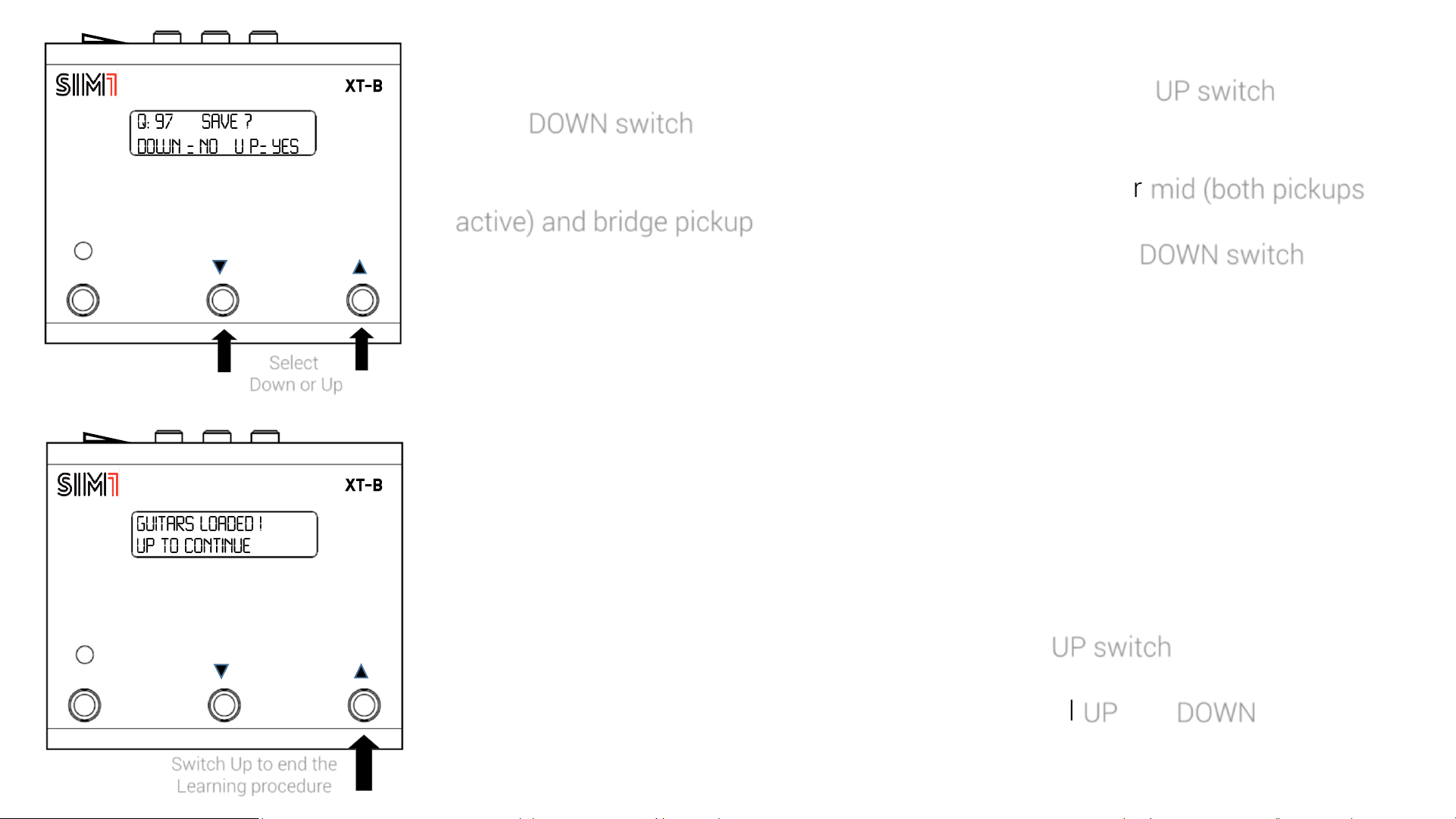

5. If you are satisfied with the quality rating, then press the UP switch, otherwise

press DOWN switch and repeat the last pickup configuration.

6. If you selected the 3-pickup option, repeat steps 4-5 for mid (both pickups

active) and bridge pickup. (For any reason, during individual Pickup configuration,

it is possible to stop the Learning Procedure pressing the DOWN switch for 2

seconds).

7. After you have configured the last pickup (Bridge PU), the system will make a

computing process of the sounds loaded in the XT-B (Display: Computing

Progress 00%...100%).

8. At the end of the Computing Process, press the UP switch again to end the

Learning procedure. At this point the Target Bass profiles included in XT-B will be

associated to the pickups you just configured. Scroll UP and DOWN the Switch

selectors to test the variety of sounds.

Target

Bass

Pickup

Source

Bass

Pickup

Pickup Matching

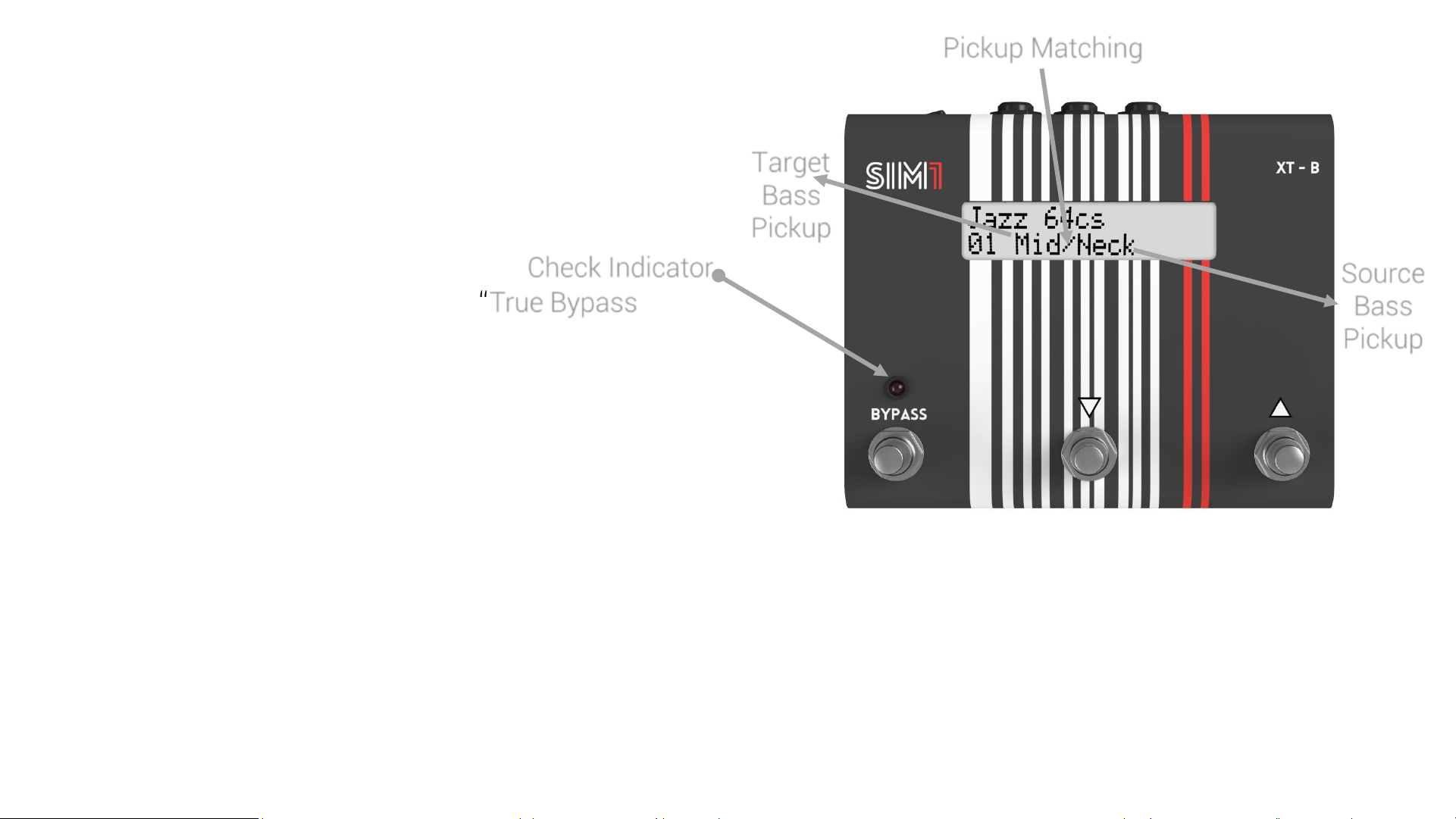

9. For each Bass Profile Preset, while performing, it is

recommended to activate the Pickup of your Source Bass

according to the suggestion of the display. This allows to

reach a sound as close as possible to that one of the

original Target Bass.

When the BYPASS MODE is activated the Check Indicator

shows the red light and the message “True Bypass”

appears on the Display. Now the signal is not processed in

any way, the sound is the original one of the Source Bass,

and the second line of the display shows the bass/pickup

you are supposed to play on the Source Bass (if you edited

the name before with the Software). Pressing the BYPASS

Switch again, the red light of the check indicator turns off

and the sound will shift to that one of the Target Bass in

use.

The BALANCED OUTPUT, connected directly to the mixer of the PA, is useful for instance when playing the sound

of an acoustic bass guitar. In this way the result will be more realistic and accurate.

The STANDARD OUTPUT must be connected to the bass amplifier. Other effects can be connected in cascade,

both through the BALANCED OUTPUT or through the STANDARD OUTPUT.

bypass

Hold Down

+ Up to start

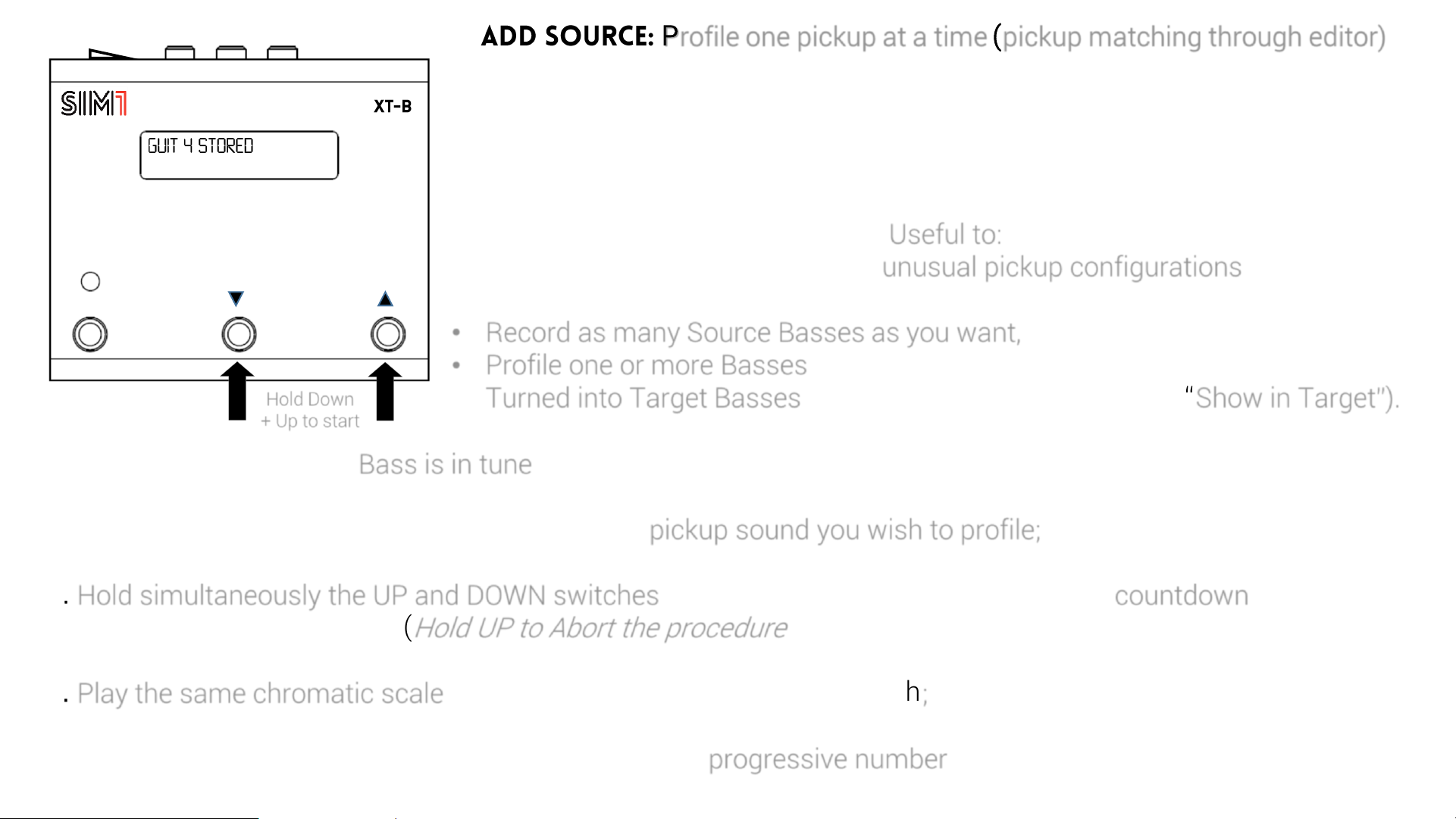

b) Profile one pickup at a time (pickup matching through editor)

This function allows you to record more Source Bass pickups, without modifying

the previous configuration of the pedal. The matching between Target and Source

Bass pickups requires the use of the Editor for PC/Mac.

Useful to:

•Record, as Source Basses, some unusual pickup configurations, different from

Neck, Mid (both pickups activate) or Bridge positions;

•Record as many Source Basses as you want, to use in a different moment;

•Profile one or more Basses to be used as Target Guitars (Source Basses can be

Turned into Target Basses, using the function of the Editor “Show in Target”).

1. Make sure your Source Bass is in tune (440 Hz), with volume/tone open;

2. Adjust the knobs of your Source Bass to get the pickup sound you wish to profile;

3. Hold simultaneously the UP and DOWN switches on the pedal for 3 seconds. When the countdown is finished

the device will start recording (

Hold UP to Abort the procedure

);

4. Play the same chromatic scale explained in the Learn & Play paragraph;

5. The newly created Source Bass will be named with a progressive number (i.e. Guit4, in case Guit1, Guit2, Guit3

were already stored);

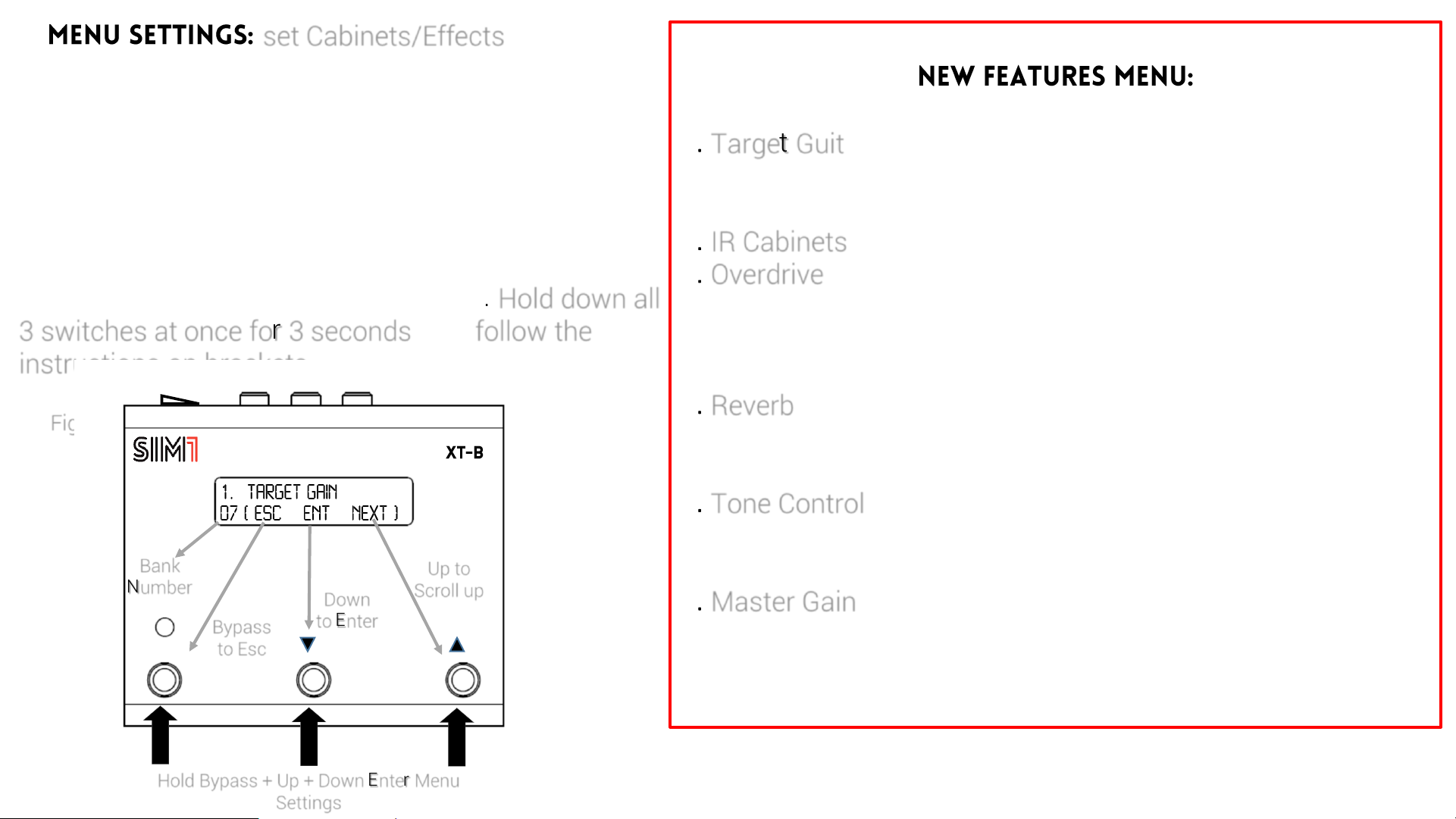

c) set Cabinets/Effects

This menu gives the opportunity to add some

effects/cabinet simulation and make volume settings

to each bass included in the presets. This feature

allows you to connect the XT-B directly to the PA or to

a powered speaker, and use it as a stand alone pedal.

Go to the bass/bank you wish to adjust. Hold down all

3 switches at once for 3 seconds, and follow the

instructions on brackets, to make your settings.

1. Target Guit

1.1 Gain (adjust the volume of each target bass)

1.2 Bypass (set the bank in bypass mode)

2. IR Cabinets (add an Impulse Response Cabinet Emulation)

3. Overdrive

4.1 OD Status (activate the Overdrive)

4.2 OD Drive (set the Overdrive Percentage )

4.3 OD Level (set the Overdrive Volume)

4. Reverb

5.1 Rev Status (activate the Reverb)

5.2 Rev Level (set the Reverb Percentage )

5. Tone Control

6.1 Treble

6.2 Bass

6. Master Gain

7.1 Master Unbal (set the Volume of the Unbalanced Out.)

7.2 Master Bal (set the Volume of the Unbalanced Output)

Fig. 1

bypass

Hold Bypass + Up + Down Enter Menu

Settings

Bank

Number Down

to Enter

Up to

Scroll up

Bypass

to Esc

bypass

Bank

Number Down

to Enter

Up to

Scroll up

options

Bypass

to Esc

bypass

Bank

Number Down

to Enter

Up to

Scroll up

options

Bypass

to Esc

Up to Next

option

bypass

Bank

Number Down to

option

Bypass

to Esc bypass

Bank

Number Down to

option

Up to Next

option

Bypass

to Esc

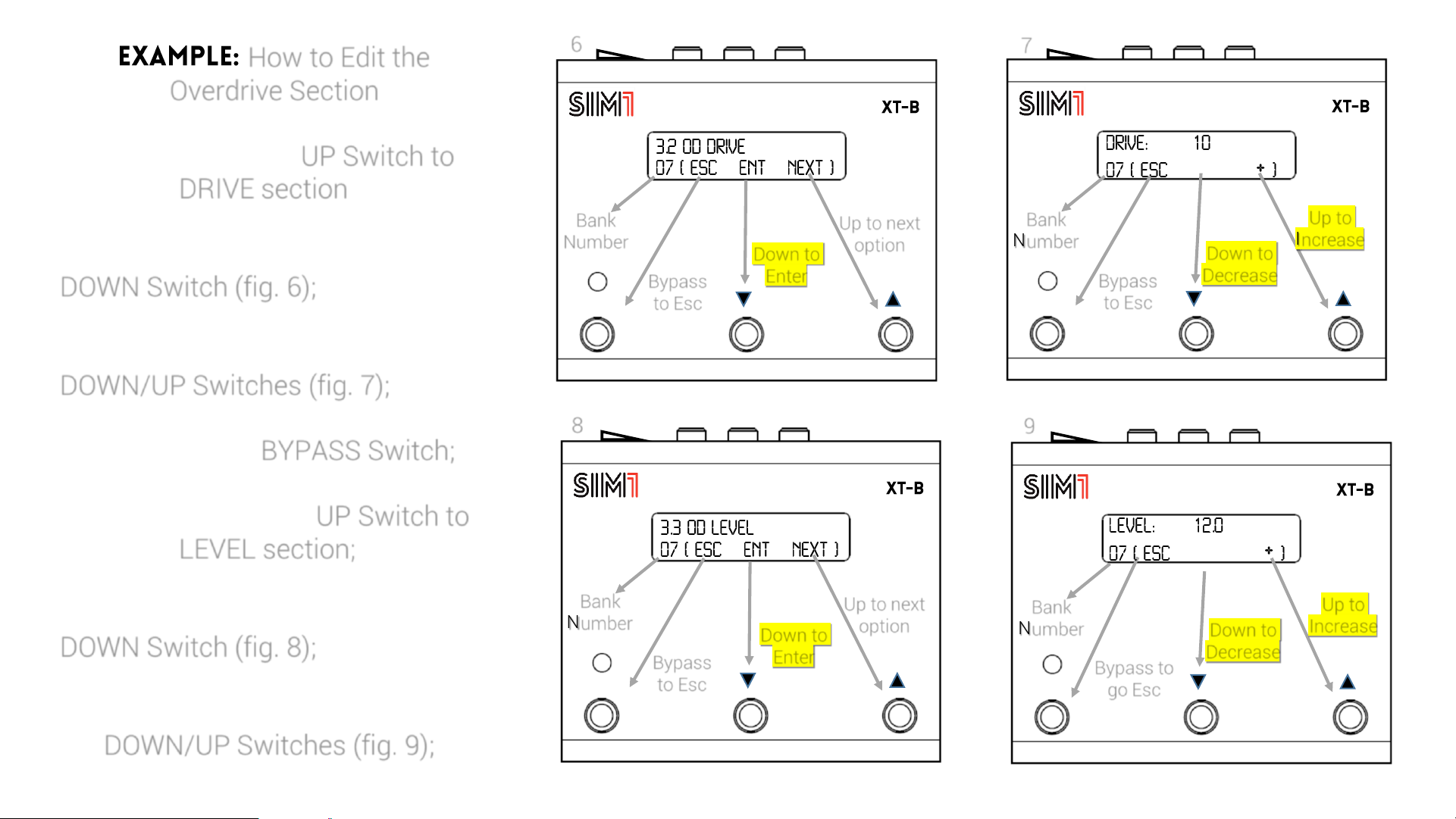

How to Edit the Overdrive Section

1. Scroll up with the UP Switch until you reach “3 – Overdrive” section;

2. Enter this section through the DOWN Switch (fig. 2);

3. Enter the section “3.1 OD Status” (Overdrive Status) through the DOWN Switch

(fig.3);

4. Activate or Deactivate the Overdrive through UP or Down Switches (fig. 4);

5. Esc using the BYPASS Switch (fig. 5);

Up to Next

option

345

bypass

Bank

Number Down to

Enter

Up to next

option

Bypass

to Esc

bypass

Bank

Number Down to

Enter

Up to next

option

Bypass

to Esc

bypass

Bank

Number Down to

Decrease

Up to

Increase

Bypass

to Esc

bypass

Down to

Decrease

Up to

Increase

Bypass to

go Esc

-db

How to Edit the

Overdrive Section

6. Scroll up with the UP Switch to

get to the DRIVE section;

7. Enter this section through the

DOWN Switch (fig. 6);

8. Adjust the Drive level through the

DOWN/UP Switches (fig. 7);

9. Esc using the BYPASS Switch;

10. Scroll up with the UP Switch to

get to the LEVEL section;

11. Enter this section through the

DOWN Switch (fig. 8);

12. Adjust the Drive level through

the DOWN/UP Switches (fig. 9);

Bank

Number

bypass

Down to

Reject

Up to

Confirm

Bypass to

go back

Fig. 10

How to Edit the Overdrive Section

13. When you finish editing your preset, exit by repeatedly pressing the BYPASS

Switch, until you get the SAVE CHANGES page

14. Use UP Switch to save changes (fig. 10), DOWN Switch not to save, BYPASS

Switch to go back to the previous page

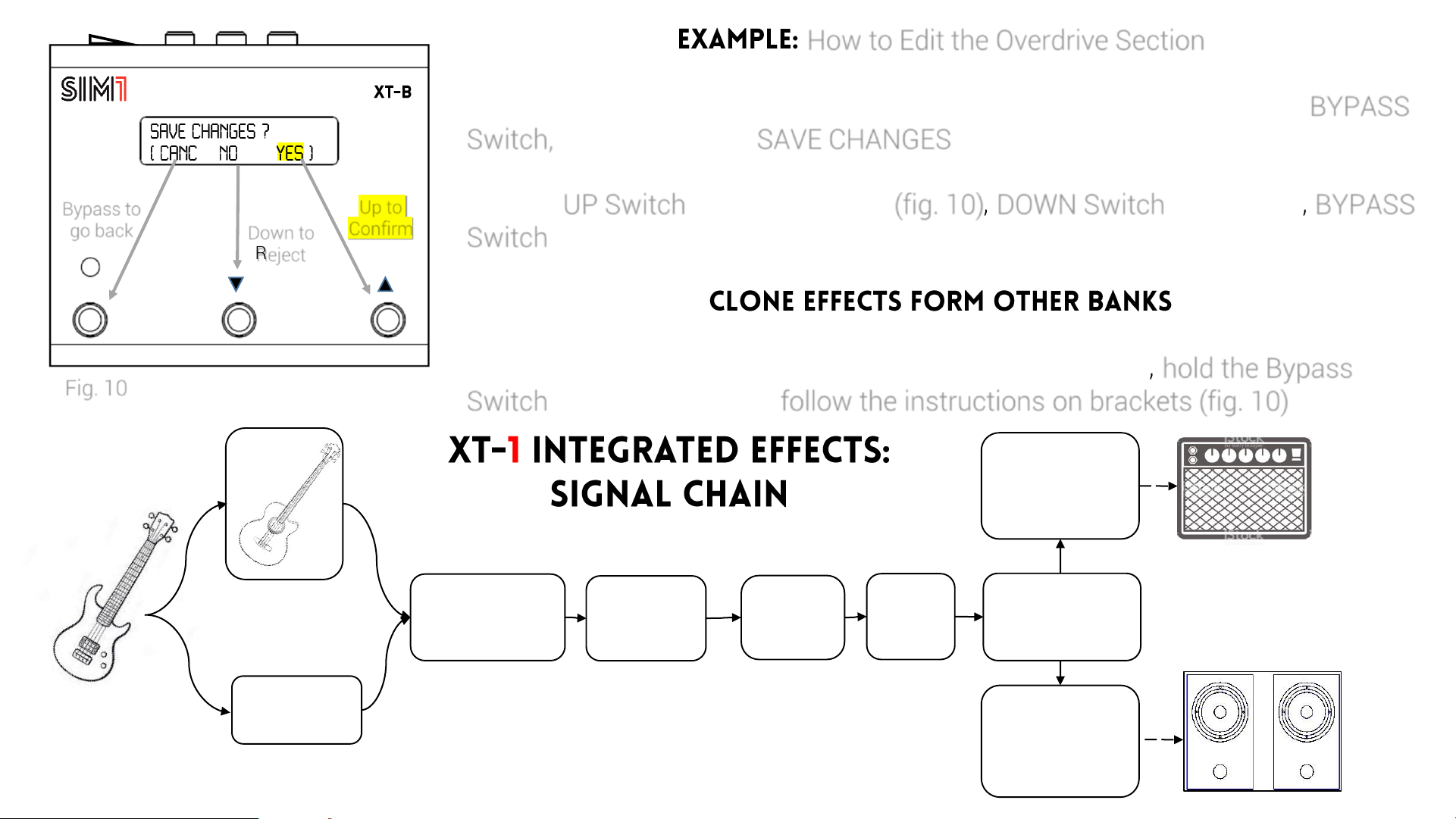

On each bank of XT-1 it is possible to Copy/Paste the PreAmp/Effects settings

from a different preset. Go to the bank you wish to modify, hold the Bypass

Switch for 3 seconds, and follow the instructions on brackets (fig. 10).

1.2.Target

Bypass=ON

3.Overdrive

1.1 Target Gain 5. Tone 2.Cabinet IR

6.1 Master

Gain

BAL Out

6.2 Master

Gain

UNBAL Out

Target Bass Guitar 4.Reverb
