Sim-Lab GRID DDU5 Manuel utilisateur
GRID DDU5
VERSION 1.2
Last updated: 19-06-2023
INSTRUCTION MANUAL
2|2 17
BEFORE YOU START:
Thank you for your purchase. In this manual we will provide you with
the means to get started using your new dash!

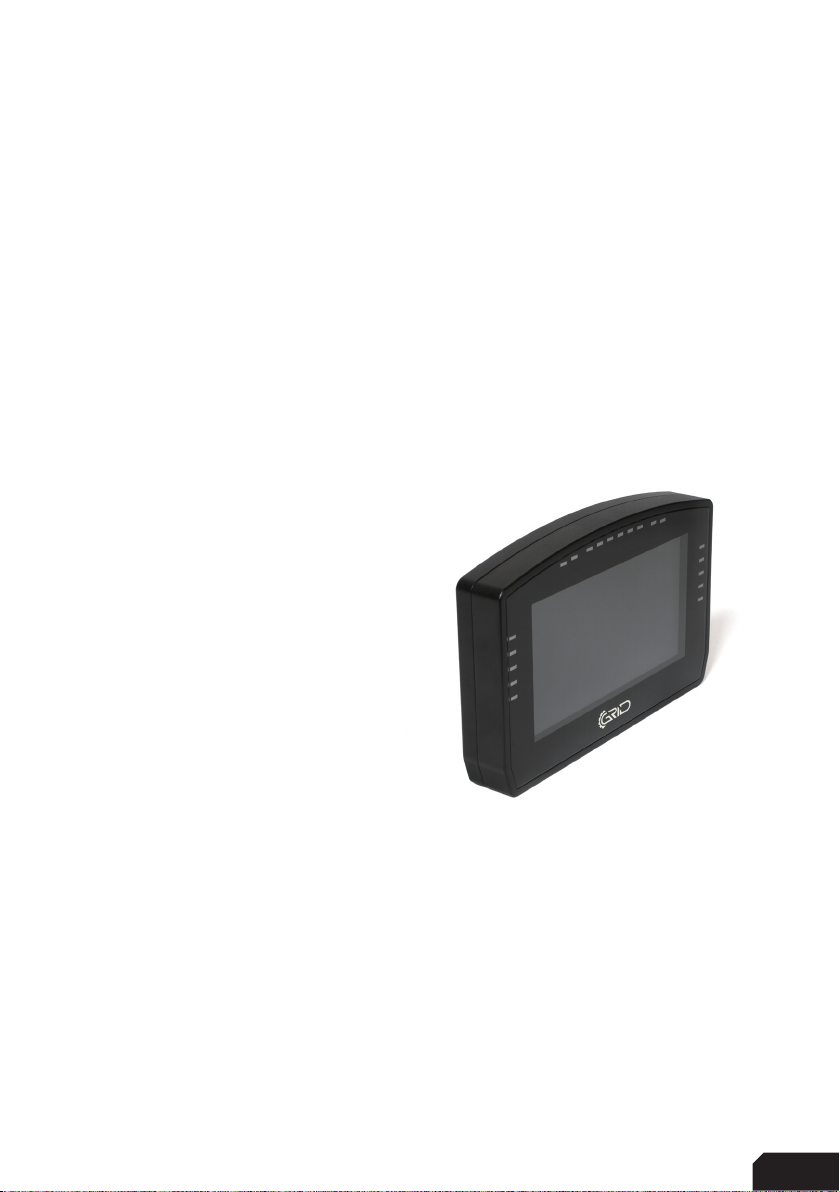

GRID DDU5
Features:
5” 854x480 VOCORE LCD
20 full RGB leds
Up to 30 FPS
24 bit Colors
USB Powered
Multiple software options
Drivers included
Mounting the dash is very easy thanks to the included mounting
brackets. We offer a wide range of support for most popular
hardware. In this manual we only display the two mounting brackets
included with the dash. Please review our website to determine
which mounting bracket fits your hardware.
3
| |317 17
A6
A8
A4

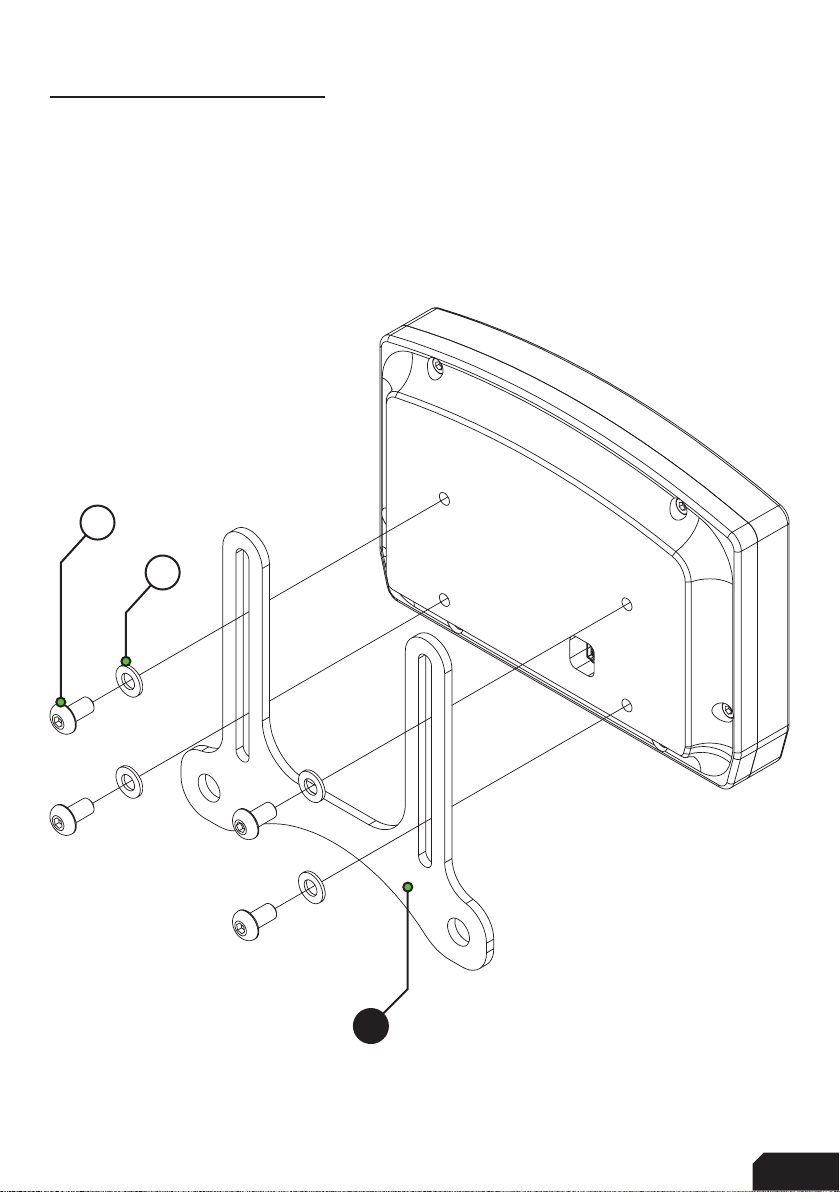

Mounting the dash
To be able to mount the dash on the hardware of your choice, we provide several
mounting brackets. Which ones you have received may depend on your purchase
and may be different from the following ones we show. However, mounting is all
more of the same. With the instructions for the two included brackets, you should be
able to mount any specific ones for your hardware.
4|4 17
A4

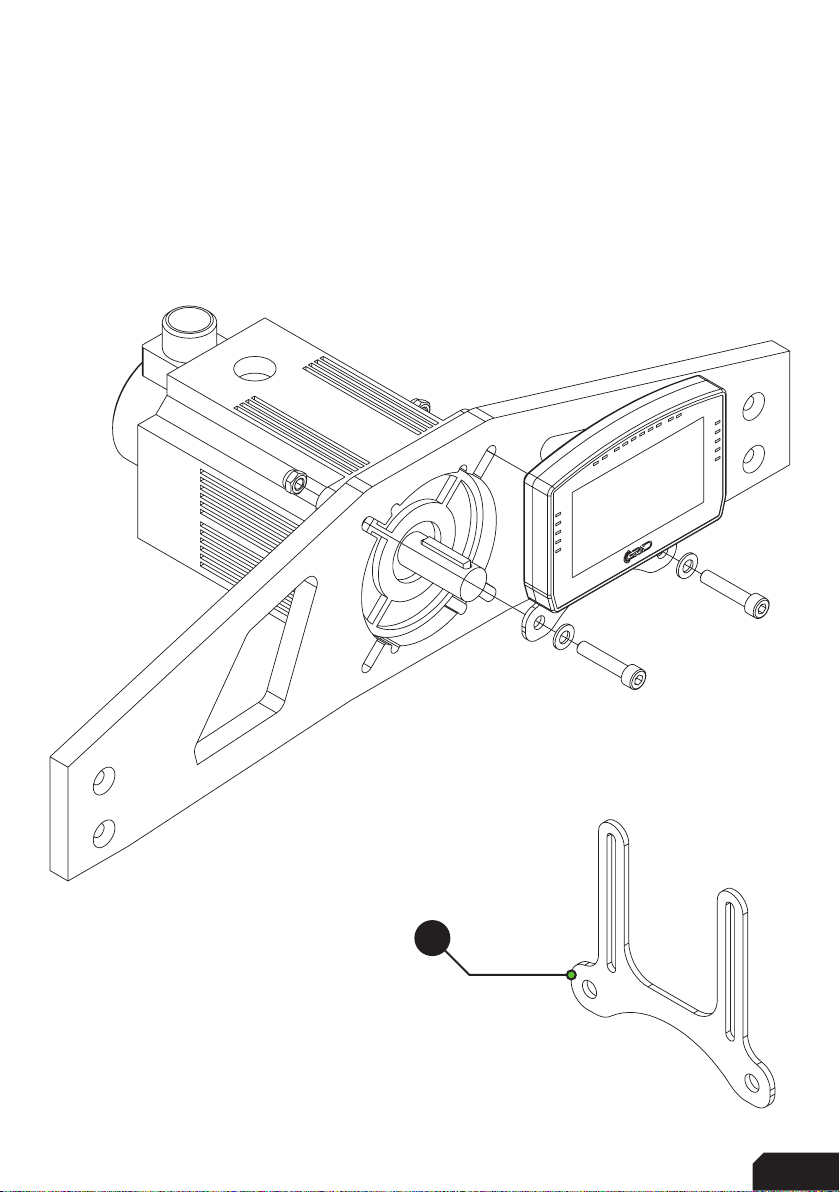

OSW/SC1/VRS
Remove the existing upper bolts which hold the motor in place. Re-use these bolts
and washers to fix the mounting bracket to the front mount.
5
| |517 17
A5
A7

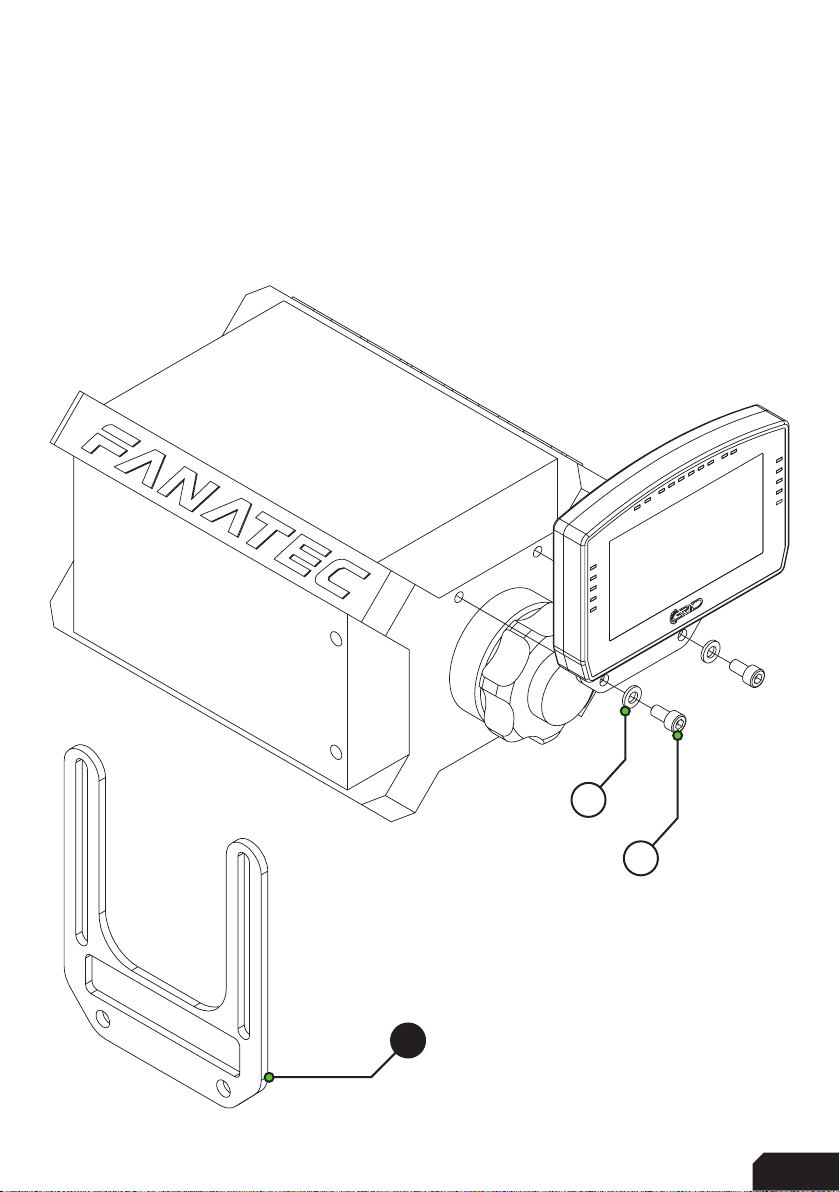

Fanatec DD1/DD2
Locate the accessory mounting holes on your Fanatec hardware and use the two
bolts (A4) and washers (A6) from our supplied hardware kit.
A3
6|6 17
Installing drivers
To make the display part of the dash functional, specific drivers are needed. Drivers
can be downloaded from the product page.

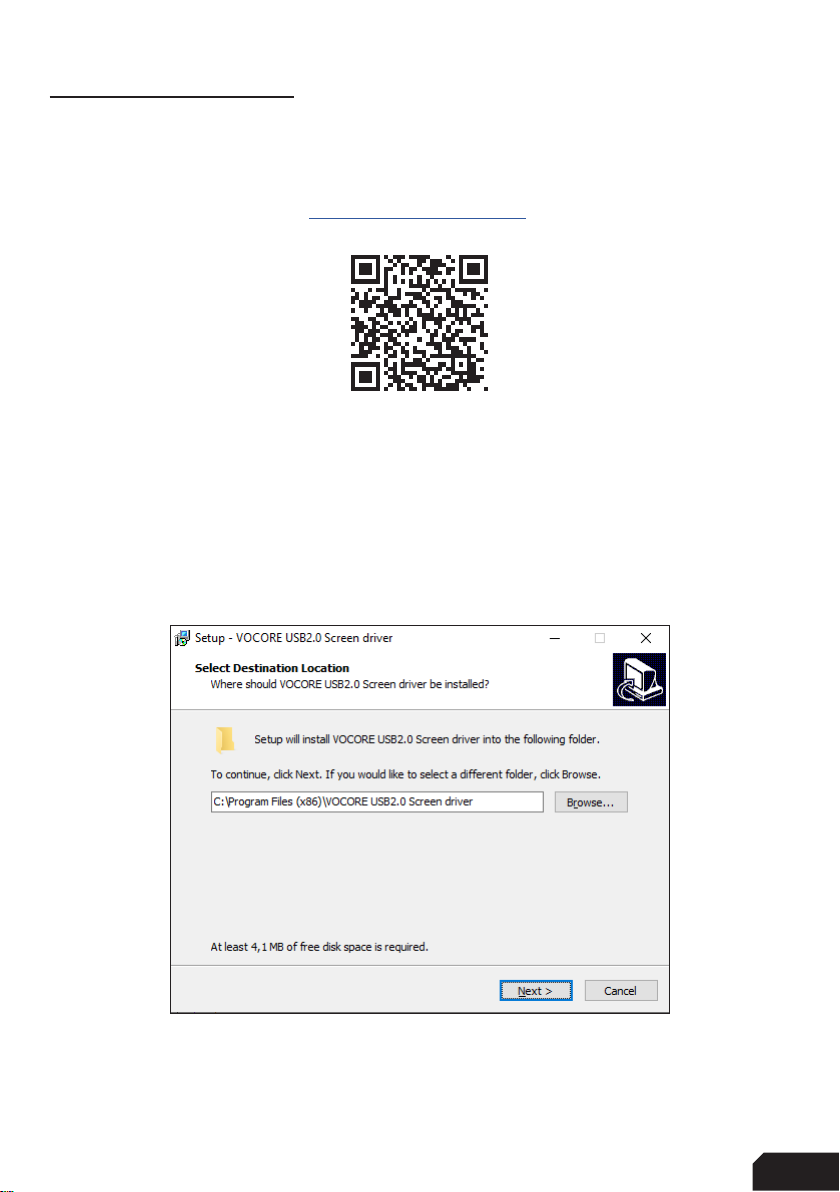

Vocore drivers download:
Installation
To install the display drivers, run the downloaded package and specify the location
where to install the drivers:
Press ‘Next’.
7
| |717 17

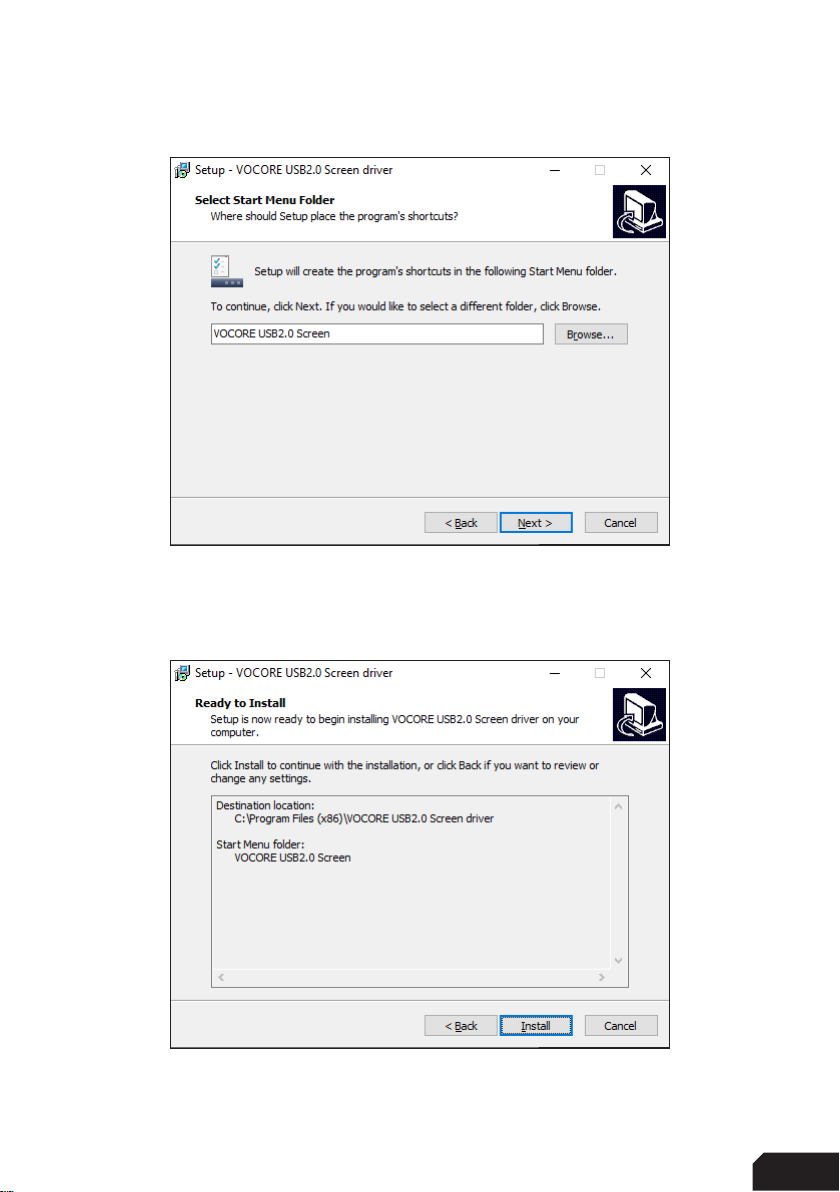

Specify the name of the start menu folder:
Press ‘Next’.
Review the settings before installation:
Press ‘Install’.
8|8 17
The drivers will install now. Sometimes this can take longer than expected. This
usually means a system restore point is being made and should not hinder
installation.
If it does, unplug the USB cable to the Dash in case it is connected and try again.
Make sure you have administrator rights on your system.

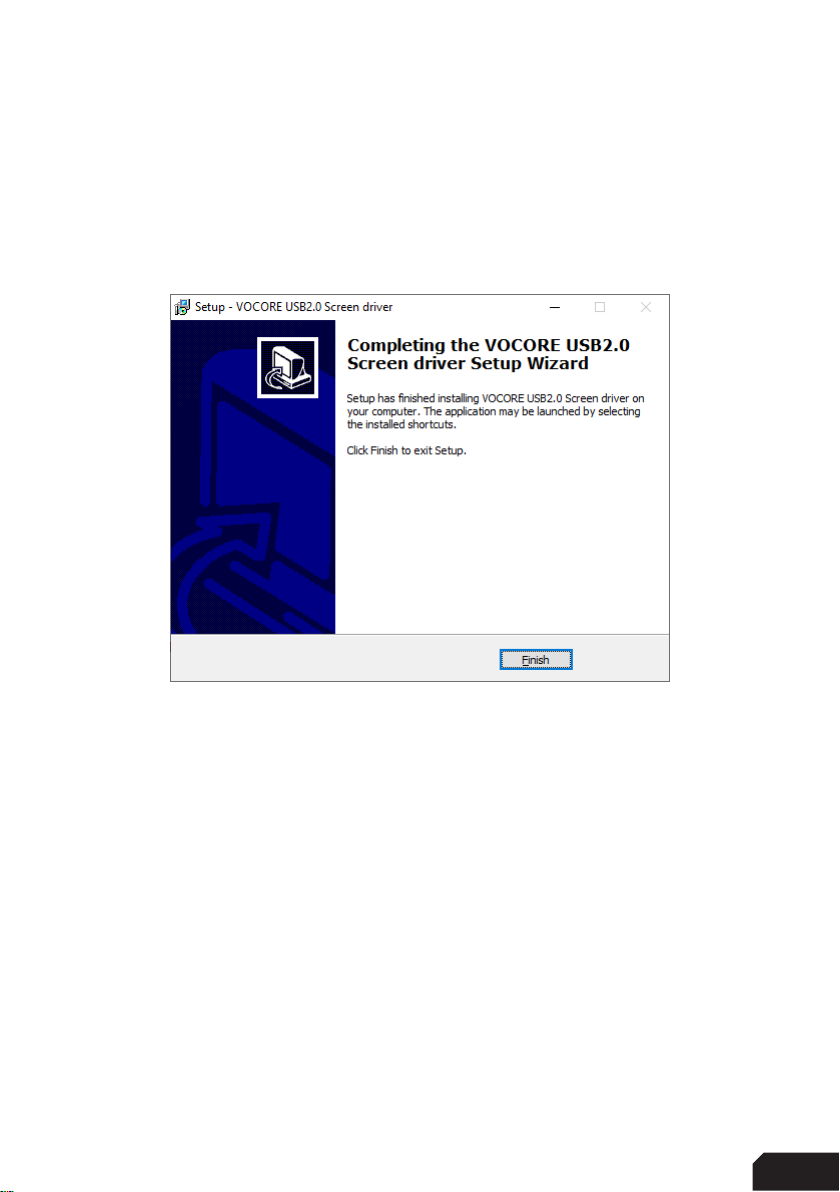

Press ‘Finish’.
9
| |917 17
RaceDirector installation
To control the dash, RaceDirector can be used. This is a simple but effective piece of
software, purpose built for our own hardware.
Download the lastest version of RaceDirector from:
http://www.grid-engineering.com/srd-setup
Please review the manual found at:
http://grid-engineering.com/srd-manual
For more advanced users, SimHub can also be used, but this manual will focus on
our own software.
Download the lastest version of SimHub from https://simhubdash.com
Installation

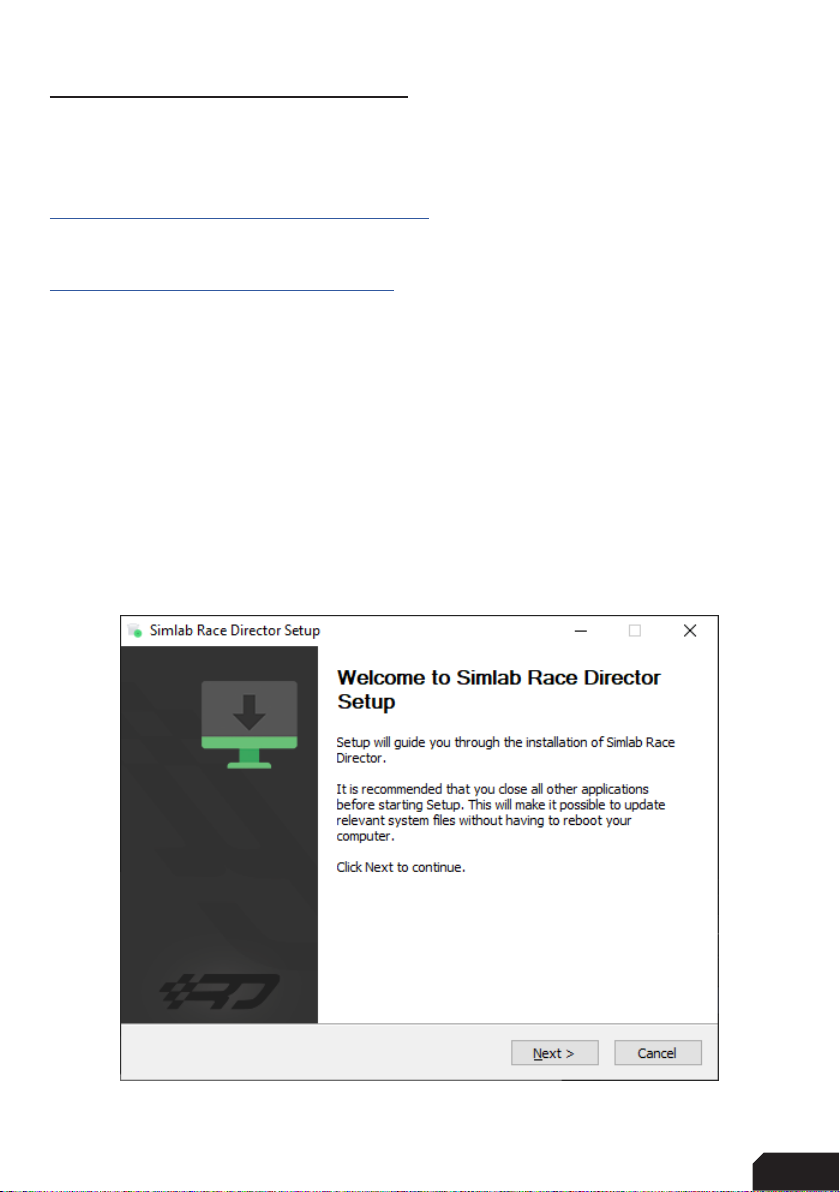

Unzip the downloaded file ‘RaceDirector.zip’ and extract the folder to a location of
your choice, run the installer to start the installation.
If you encounter a Windows Defender/Smart Control screen warning you of only
software of trusted sources, please press ‘Run anyway’. This warning will dissapear
when more and more people startbusing RaceDirector and the software has been
proven safe for use.
Press ‘Next’.
10 |10 17

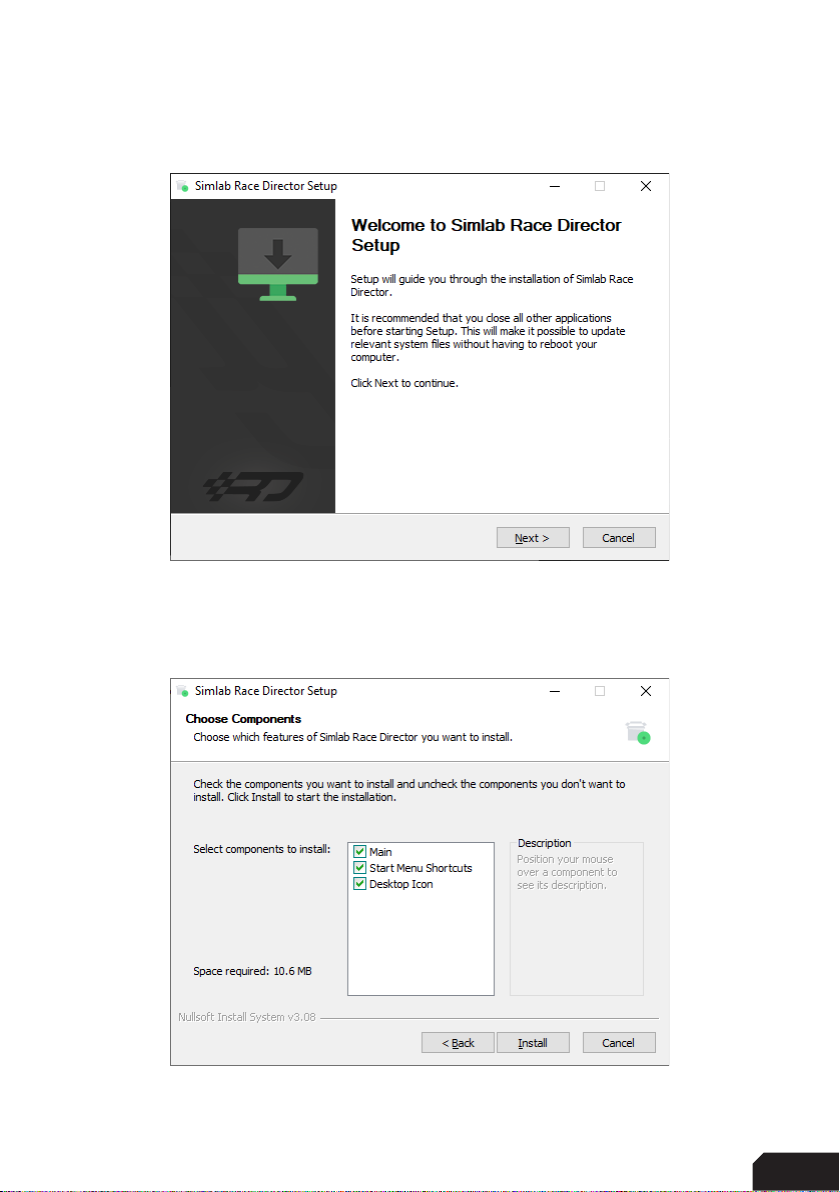

Specify the location where to install the software:
Press ‘Next’.
Make sure all options are checked:
Press ‘Install’.
