Power supply installation (For new system assembly)

Please ensure power supply is not

connected to AC power cable.

Please switch to the correct voltage

for your location. ( For non-PFC power

supplies only)Note: Power supplies

with PFC function can adjust input

power voltage automatically without

user intervention.

Place the power supply in the chassis location

designated for power supply and secure it.

( Please refer to your chassis manual)

Connect ATX 20-pin/EPS 24-pin power

cable to the motherboard's

corresponding connector.

Connect ATX +12V 4-pin / EPS +12V

8-pin power cable to the motherboard's

corresponding connector.

Connect PCI-E 6-pin/8-pin power cable to

PCI-Express video card's corresponding

connector. (If necessary)

PSU product manual

ENGLISH

Power supply installation (for new system assembly)

PSU product manual

ENGLISH

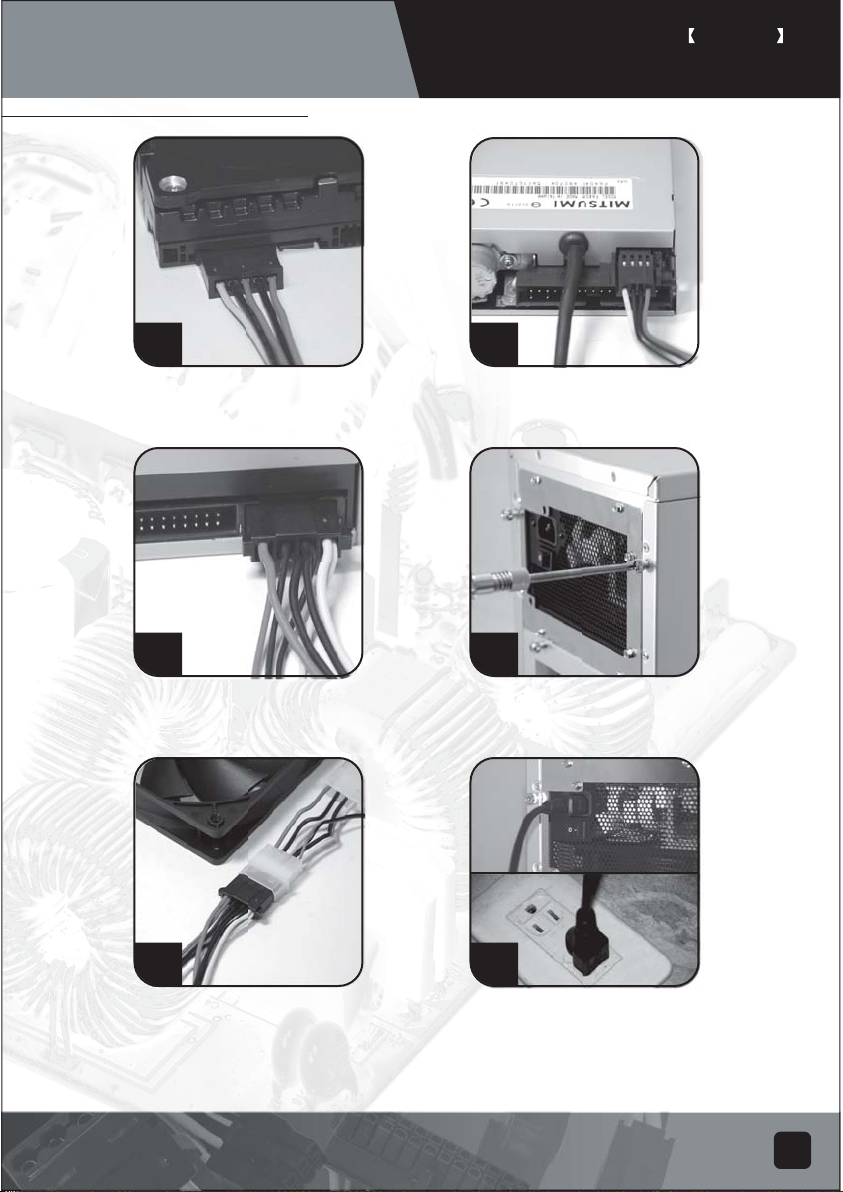

Connect SATA power cables to

SATA hard drives or devices.

Connect 4-pin peripheral power

cables to IDE hard drives, optical

drives or other devices.

Connect 4-pin peripheral power cables

to fans utilizing the peripheral connectors.

(DC +12V variety)

Connect small 4-pin power cable to

floppy drives or other compatible

devices

Reinstall chassis's cover, and secure

it. ( Please refer to the installation

of chassis)

Connect AC power cable to the power

supply. (Caution: please do not use

extension socket, if using extension socket is

necessary, avoid combined usage with

other higher powered household appliances

such as TV, audio amplifier, etc…)

Power supply installation (For new system assembly)

Power supply installation (For replacement)

Turn on the power supply by switching to "I" (I/O) mode.

Caution: The power supply is on standby now. System

on and off is controlled by the motherboard.

(Please refer to the motherboard manual)

After turning off the system, switch the

power supply to "O" position to disable

system standby and make sure the system

is no longer drawing any power.

Remove all power supply cables

connected to the motherboard, video

card, hard drive and other device.

PSU product manual

ENGLISH

Remove AC power cable from the

power supply.

Remove power supply from the chassis.

(Please refer to your chassis's installation manual.)

5. Please refer now to Step 1 of "Power supply

installation (for new system assembly)"

Power supply usage notes and caution

1. The power supply includes dangerous high voltage; please do not open the power supply in

any condition. Once the power supply enclosure is opened, it will no longer be covered

under warranty.

2. Please use power supply in safe and dry surroundings.

3. Please do not obstruct, insert, or put anything into power supply's vents and any other

openings.

4. The AC cable included with the power supply has been stringently examined by the factory

for defects and quality so please use only the AC cable supplied with your power supply.

AC power cable manufactured by a third party may produce incompatible results and

possibly cause damage to your system or power supply.

5. This product is designed for indoor use only.

Troubleshooting

If your power supply is not operating properly, please refer to the following steps:

1. Please make sure the voltage switch is in the correct mode for use in your location

(115V or 230V). (For power supplies without PFC function only)

2. Please ensure AC power cable is connect to the power supply.

3. Please make sure power supply's "I/O" is switched to "I" mode.

4. Please double check to see if all motherboard, video card(s), hard drives, and devices'

cables are connected correctly.

5. Please turn off the power supply by switching the "I/O" to "O" mode. Wait for approximately

5 minutes for the power supply to reset its protection mechanisms, then switch on "I" mode

and reboot the system.

Caution: The power supply includes dangerous high voltage; please do not open the power

supply under any circumstances. Once the power supply enclosure is opened, it will no longer

be covered under warranty.

PSU product manual

ENGLISH

Power supply connectors

PSU product manual

ENGLISH

RED

BLACK

ORANGE

BLACK

ORANGE

YELLOW

PURPLE

GREY

ORANGE

GND

+5V

GND

-12V

GND

PS-ON

+3.3V

BLACK

RED

BLACK

N/C

BLACK

BLUE

BLACK

GREEN

+3.3V

+12V

+3.3V

PS-ON

+5Vsb

GND

+5V

RED

BLACK

ORANGE

BLACK

YELLOW

PURPLE

GREY

ORANGE

GND

+5V

GND

-12V

GND

PS-ON

+3.3V

BLACK

RED

N/C

BLACK

BLUE

BLACK

GREEN

+3.3V

+12V

PS-ON

+5Vsb

GND

+5V

+12V

YELLOW

BLACK

BLACK GND

GND

+12V

YELLOW

BLACK

BLACK GND

GND

+12V

YELLOW

SENSE

BLACK

GND

SENSE

BLACK

GND

BLACK

GND

SENSE

BLACK

YELLOW

YELLOW +12V

+12V

YELLOW +12V

GND

+5V

BLACK

RED

GND

+5V

GND

YELLOW +12V

BLACK

RED

+5V

+3.3V

+12V

GND

RED

BLACK

YELLOW

BLACK

ORANGE

EPS 24-pin motherboard power connector

Support the latest ATX/BTX PC motherboard

Support EEB/CEB server/workstation motherboard

ATX 20-pin motherboard power connector

Support ATX PC motherboard

EPS 8-pin CPU +12V power connector

Support Dual CPU server/ workstation

Support latest single CPU system

ATX 4-pin CPU +12V power connector

Support latest single CPU system.

PCI-E 6-pin power connector

Support high-end PCI-Express video card,

some high-end video cards may require two

PCI-E 6 pin connectors.

PCI-E 8 pin power connector

Support high-end PCI-Express video card,

some high-end video cards may require

another PCI-E 6-pin connector in addition to

PCI-E 8pin connector.

SATA hard disk power connector

Support latest SATA hard drives and devices

Standard 4-pin peripheral power connector

Support IDE/SCSI hard drives, optical drives,

fans, etc...

Small 4-pin floppy power connector

Support standard floppy drives or compatible

devices

5.1

5.2

5.3

5.4

5.5

5.6

5.7

5.8

5.9

Power supply connectors

Warranty

Caution:

1. Please turn off your system and switch to "O" mode on the power supply before attaching or

detaching power connectors.

2. All power connectors are keyed to prevent incorrect connections. If you cannot connect them

easily, please double check to ensure the connector's direction and type before attempting to

connect again. Do not attach the connector by force; incorrect connection will damage power

supply or devices in your system.

3. The converting wire (picture 5.10) can only be attached with EPS 8-pin connector to convert

into ATX 4-pin connecter. Incorrect connection will damage power supply or devices in your

system.

The connectors shown above may differ depending on the model of your

power supply.

Product component defects or damages resulted in defective production is covered under

warranty. Damages resulted with the following conditions will be fixed or replaced under

SilverStone's jurisdiction.

1. Usage in accordance with instructions provided in this manual, with no misuse, overuse,

or other inappropriate actions.

2. Damage not caused by natural disaster (thunder, fire, earthquake, flood, salt, wind,

insects, animals etc...)

3. Product is not disassembled, modified, or fixed. Components not disassembled or replaced.

4. Warranty mark/stickers is not removed or broken.

Loss or damages resulted from conditions other than ones listed above

are not covered under warranty.

PSU product manual

ENGLISH

Converting wire

EPS 8-pin connector to convert into ATX 4-pin connector

5.10

Netzteilinstallation (Bei Neuzusammenbau)

Stellen Sie bitte sicher, dass das Gerät

nicht am Stromnetz hängt.

Bitte stellen Sie die richtige Spannung

für Ihre Region ein. (Betrifft nur Netzteile

ohne PFC!) Bemerkung: Netzteile mit

PFC gleichen die Spannung automatisch

an.

Platzieren Sie das Netzteil im Gehäuse und

sichern es. (Beziehen Sie sich dabei bitte

auf die Gehäuse-Anleitung)

Verbinden Sie das ATX +12V 4-pin /

EPS +12V 8-pin Stromkabel mit der

zugehörigen Motherboardbuchse.

Verbinden Sie das ATX 20-pin/EPS

24-pin Stromkabel mit der zugehörigen

Motherboardbuchse.

Verbinden Sie das PCI-E 6-pin/8-pin

Stromkabel mit der zugehörigen

PCI-Express Grafikkartenbuchse (falls notwendig)

PSU Bedienungsanleitung

DEUTSCH

Netzteilinstallation (Bei Neuzusammenbau)

Verbinden Sie das SATA Stromkabel

mit den SATA Festplatten oder Geräten. Verbinden Sie das kleine 4-pin

Stromkabel mit dem Diskettenlaufwerk

oder anderen kompatiblen Geräten.

Bauen Sie die Chassisabdeckung wieder

zusammen und sichern Sie sie. (Beziehen

Sie sich dabei bitte auf die Chassis Anleitung)

Verbinden Sie das 4-pin Peripherie-

Stromkabel mit den IDE Festplatten,

optische Laufwerke oder anderen Geräte.

Verbinden Sie das 4-pin Peripherie-

Stromkabel zu den Lüftern welche die

peripheren Buchsen benutzen. (DC +12V)

Verbinden sie das AC Stromkabel mit dem Netzteil.

(Achtung: Benutzen sie keine Verteilerleisten. Falls

es doch notwendig ist, kombinieren Sie diese bitte

mit weiteren Hochleistungsgeräten, z.B.: Fernseher,

Verstärker usw. kombinieren Sie sie mit anderen

Hochleistungsgeräten wie Fernseher, Verstärker, usw.…)

PSU Bedienungsanleitung

DEUTSCH

Table des matières

Autres manuels SilverStone Alimentation

SilverStone

SilverStone SFX Series Manuel utilisateur

SilverStone

SilverStone ST70F-ES Manuel utilisateur

SilverStone

SilverStone ST50F-ES Manuel utilisateur

SilverStone

SilverStone GEMINI Series Manuel utilisateur

SilverStone

SilverStone PSU Manuel utilisateur

SilverStone

SilverStone STRIDER SST-ST60F Manuel utilisateur

SilverStone

SilverStone Gemini GM500-G Manuel utilisateur

SilverStone

SilverStone ST50NF Manuel utilisateur

SilverStone

SilverStone Decathlon Series Manuel utilisateur

SilverStone

SilverStone ST400 STRIDER Manuel utilisateur

SilverStone

SilverStone Lascala Series Manuel utilisateur

SilverStone

SilverStone SST-SX500-LG Manuel utilisateur

SilverStone

SilverStone ST55F-G Manuel utilisateur

SilverStone

SilverStone GEMINI GM600-G Manuel utilisateur

SilverStone

SilverStone STRIDER GOLD S Series Manuel utilisateur

SilverStone

SilverStone STRIDER TITANIUM SERIES Manuel utilisateur

SilverStone

SilverStone GEMINI Series Manuel utilisateur

SilverStone

SilverStone GEMINI Series Manuel utilisateur

SilverStone

SilverStone SST-ST1200-G Manuel utilisateur

SilverStone

SilverStone STRIDER PLATINUM SERIES Manuel utilisateur

SilverStone

SilverStone STRIDER ESSENTIAL Series Manuel utilisateur

Manuels Alimentation populaires d'autres marques

Monacor

Monacor PS-12CCD Manuel utilisateur

VOLTIMA

VOLTIMA MagicBox 15 Manuel utilisateur

Agilent Technologies

Agilent Technologies 6032A Manuel utilisateur

Miller

Miller Auto Deltaweld 452 Manuel utilisateur

BCP

BCP PUOUBK Feuille d'instructions

HC 2210 Manuel utilisateur

Puls

Puls CT5.241 Manuel utilisateur

OCZ

OCZ ZX1250W Manuel utilisateur

iseg

iseg ECH 238 Manuel utilisateur

Power

Power XXL A Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 6631B Manuel utilisateur

Renogy

Renogy PHOENIX 300 Manuel utilisateur

HP 6200B Manuel de service

Epson

Epson Stylus Scan 2500 Manuel d'utilisation

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuel utilisateur

Puls

Puls MiniLine ML50.100 Manuel utilisateur

Puls

Puls AS-Interface SLA4.100 Manuel utilisateur

Kenwood

Kenwood PS-60 Manuel utilisateur
