Silver Creation BulletHD - LITE Manuel utilisateur
User Manual
BulletHD -LITE
Wearable Sports Camcorder
Welcome
Thanks for purchasing BulletHD-LITE Wearable Sports
Camcorder. The world’s smallest wearable camcorder with HD
video recording! With our customized mounts in box are ideally
suited for mounting to yoke in goggles, helmet, bike or any place
you can imagine! Aluminum Armored Body - Even any tough
situation and severe weather can’t stop your recording! It’s also
shock, vibration and water resistant.
Contents:
•Camcorder
•360 Mount for Handlebar / Vented Helmet
•Strap Mount for Non-vented Helmet / Goggles
•Universal Mount Adapter
•Camcorder Mount Adapter
•Battery
•Hand Safety Strap
•Adhesive Mounts 2 pcs
•USB Cable
•User Manual

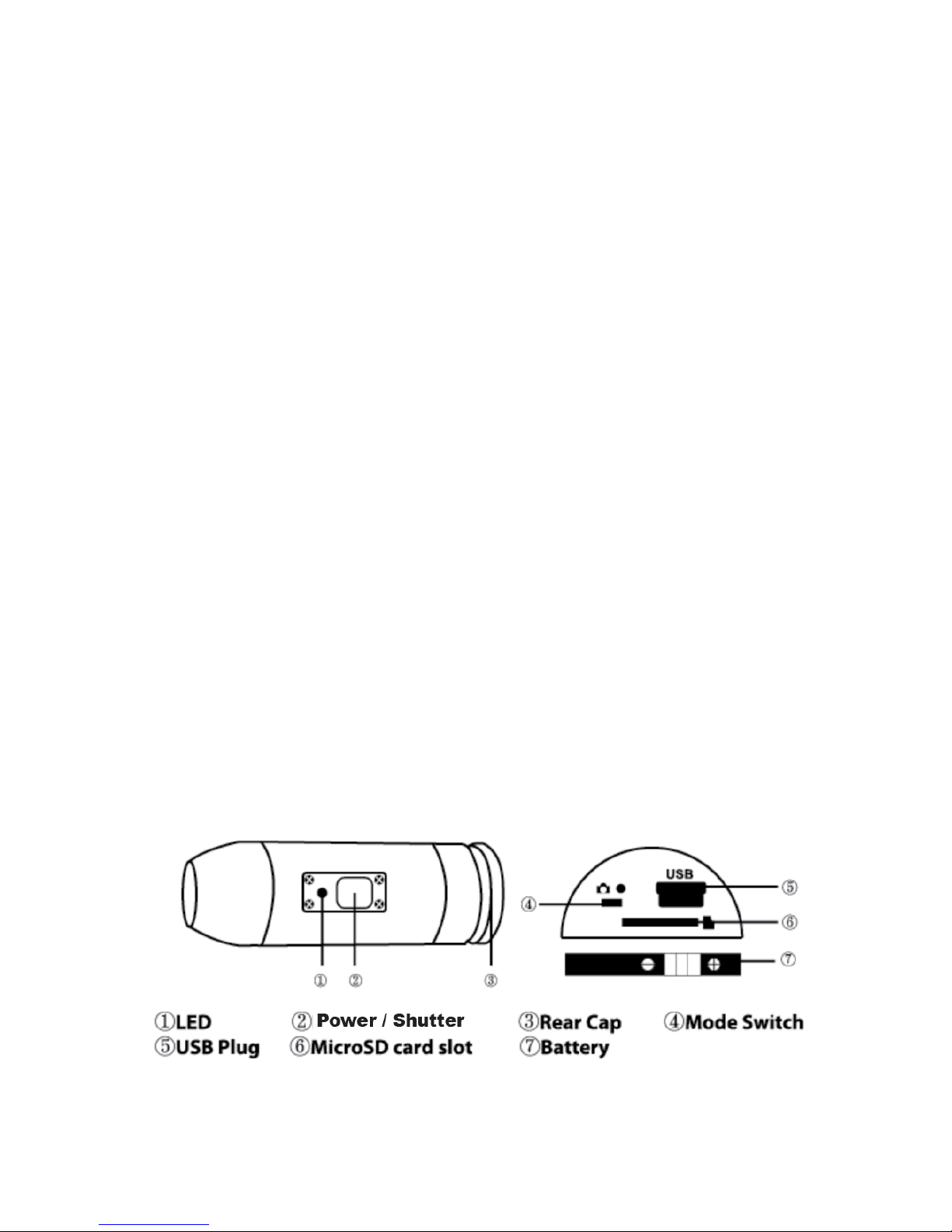

CAMERA OVERVIEW
INITIAL SET UP
1. Make sure the camera is OFF before adding or removing the
memory card!
2. Screw out the rear cap (open) located at the back of the camera
③.
3. Install a Micro SD memory card (max up to 32GB) into the rear
slot. To insert the micro SD card, slide the micro SD card into the
card slot on the back of the camera with the card label facing down.
The SD card will click into place once it is inserted past flush with
the camera. Use your fingernail to do this. Then screw in the rear
cap till is complete lock.
4. If “no” SD Memory card is inserted into the camera, a
Red/Green LED light on top of the camera will blink.
5. The Micro SD memory cards must be clean (no images from
other sources). If you are using the Micro SD memory card from
other cameras, please make sure to format the SD memory card in
your computer prior to use in the camera. New cards are good to
use straight from the package.
Charging the battery:
Screw out the rear cap located at the rear of the camera ③and
Plug the USB charger to the camera. The blue light is on while
charging, goes off when the battery is fully charged. On the first
use charge the battery 10 hours before use! You can record up to
125 minutes with one charge.
Power on/off your BulletHD -LITE
Press and hold the POWER/Shutter button for 2 seconds for power
on, the green led will turn on and the red led will flashes twice,
then comes to standby mode.
Take a Video
Turn on the camera and press the Power/Shutter button quick to
start video recording. The red led will blink and you can hear a
sound.
Press the same button to stop recording.
To confirm the camera is in video mode, Screw out the rear cap ,
and the video/photo switch “” must be to right for video
recording standby mode.
Remember to place an optional MicroSD card before your
recordings!
Storage Chart
HD Video Recording
4GB
8GB
16GB
32GB
40mins
80mins
160mins
320mins
Caution!
BulletHD –LITE is NOT available for Water Sports.
Date & Time Setting
Install the CD driver to your computer! Make sure the MicroSD
card is in the Bullet HD, then connect to PC. Blue light will turn on,
then switch on the camera.
Back to your PC screen, there should be a window to show the
BulletHD -LITE is connected with your PC. Now open the “Date
& Time setting Tool” file, double click on “time”. That’s now
synced with your PC! Now you can take a photo or video to test it!
Playback on you computer
Power off the BulletHD -LITE! Screw the rear cap , connect
with your computer via USB cable from the USB port ,then turn
on the device! The driver would be automatically installed. Or
you can take out the MicroSD card and use your own card reader to
connect with your computer too.
Caution!
The device must be power on while connecting with computer for
data download. Don’t remove the battery!
Watching video at the same time may cause unexpected
consequence!
LED Status Table
Green
LED
Red LED
Blue LED
Standby
On
Off
Off
Battery charging
Off
Off
On
Taking Video
On
Flashing
Off
Low battery
Flashing
Off
Off
No micro SD card
Asynchronous Flashing
Off
Micro SD card fill up
Speedy Synchronous
Flashing
Off
Data transfer
On
Flashing
Off
Mounts & Accessories Description
360 Mount for Handlebar / Vented Helmet
Fit with any standard 29mm handle bar with a 360
degree rotation! You can record at any angle with your
BulletHD Wearable Sports Camcorder. Besides, there
is adjustable silicon strap fix with any kind of vented
helmets. With your Bullet HD, allow you to shoot any
anger you want to!
Strap Mount for Non-vented Helmet / Goggles
Together with adjustable silicon straps to fix with any
kind of non-vented helmets. You can use this mount
with your goggle too! Slide your goggle strap into the
customized mount, Goggle Strap with width below
40mm is compatible!
Universal Mount
It has a “female” ¼"-20 screw on the bottom to fix with any
mounts or tripods that have their own “male” ¼”-20 screw.
Camcorder Mount Adapter
This mount holds the BulletHD in place and with a
360 degree rotation. This mount is compatible with
the strap mount and universal mount.
More options…
Zinc U-Bolt Mount
Zinc U-Bolt Mount is ideally suited for
several versions of handlebar kits.
BulletHD can be quickly and securely
mounted. Designed for rugged outdoor use, ideal accessory for
mountain bike, motorbike, golf carts, and many other round rail
applications.
Rotating Flat Surface Mount
Rotating Flat Surface Mount holds BulletHD securely. Solutions
provided for motorcycles, aeroplanes, or any flat surface you can
think of. Holds BulletHD steady all day long, yet you can easily
remove the unit for safe keeping at the end of the day.
Adhesive Mount
Adhesive Mount for Rotating Flat Surface
Mount.
Adaptor
The adaptor connects directly to the arm and
contains a female 1/4"-20 threaded steel stud that
will connect to any standard male thread. Holds the
BulletHD in place even on fast, bumpy trails. Fits
on and does not slip, slide or move.
Arm
This arm contains a male 1/4"-20 threaded steel
stud which matches with the above adaptor.
