Silicon Image SV-HBA3124-2 Manuel utilisateur

SV-HBA3124-2

SV-HBA3124-4

PCI-X to SATA II (3Gbps)

Host Bus Adapter

User’s Guide

Version 1.0

Document Number: MAN-003124-000

Document Number: MAN-003124-000 Version 1.0

language or computer format, in any form or by any means without prior written permission of:

Silicon Image, Inc.

1060 East Arques Ave.

Sunnyvale CA 94085

Silicon Image, Inc. reserves the right to make changes to the product(s) or specifications to improve performance,

reliability, or manufacturability. Information furnished is believed to be accurate and reliable, but Silicon Image, Inc. shall

not be responsible for any errors that may appear in this document. Silicon Image, Inc. makes no commitment to update

or keep current the information contained in this document. However, no responsibility is assumed for its use; nor any

infringement of patents or other rights of third parties which may result from its use. No liability is assumed as a result of

their use or application. No rights under any patent accompany the sale of any such product(s) or information.

Silicon Image, Inc. products are not designed or intended for use in Life Support Systems. A Life Support System is a

product or system intended to support or sustain life, which if it fails, can be reasonably expected to result in significant

personal injury or death. If Buyer or any of its direct or indirect customers applies any product purchased or licensed from

Silicon Image, Inc. to any such unauthorized use, Buyer shall indemnify and hold Silicon Image, Inc., its affiliates and their

respective suppliers, harmless against all claims, costs, damages and expenses arising directly or indirectly, out of any

such unintended or unauthorized use, even if such claims alleges that Silicon Image, Inc. or any other person or entity

was negligent in designing or manufacturing the product.

Specifications are subject to change without notice.

Document Number: MAN-003124-000 Version 1.0

Contents

1Getting Started ............................................................................................................................... 1

Package Contents ....................................................................................................................................... 1

System Requirements ................................................................................................................................ 1

SV-HBA3124 Specifications ....................................................................................................................... 2

References ................................................................................................................................................... 3

2Installing the SV-HBA3124 ............................................................................................................ 4

Install the SV-HBA Card ............................................................................................................................. 4

Install the Disk Drives/Devices .................................................................................................................. 5

Install Internal Devices on the SV-HBA3124-2 .....................................................................................................5

Install External Devices on the SV-HBA3124-2 & SV-HBA3124-4.....................................................................5

Install the Driver .......................................................................................................................................... 6

Microsoft Windows 2003 Server............................................................................................................................6

To confirm the driver installation....................................................................................................................6

Microsoft Windows XP..........................................................................................................................................7

To complete the driver installation..................................................................................................................7

To confirm the driver installation....................................................................................................................8

Microsoft Windows 2000 .......................................................................................................................................9

To complete the driver installation..................................................................................................................9

To confirm the driver installation..................................................................................................................12

Mac OS X Installation ..........................................................................................................................................13

To complete the driver installation................................................................................................................13

To confirm the driver installation..................................................................................................................16

Regulatory Compliance Statements ....................................................................................................... 17

Federal Communications Commission Radio Frequency Interference Statement............................ 17

European Union Compliance Statement ................................................................................................ 18

Document Number: MAN-003124-000 Version 1.0

SV-HBA3124-2 / SV-HBA3124-4 User's Guide

Page 1

1 Getting Started

This Installation Guide describes how to install the Silicon Image SV-HBA3124-4/SV-HBA3124-2 card, Serial

ATA (SATA) devices, and device drivers.

Package Contents

Your SV-HBA3124-2/SV-HBA3124-4 Serial ATA Host Bus Adapter includes:

• SV-HBA3124-2 or SV-HBA3124-4 PCI-X to Serial ATA Card

• CD-ROM which includes drivers and documentation

• Quick Installation Guide

System Requirements

• An Intel Pentium, Celeron, or Xeon system (or equivalent AMD Opteron or Athlon system)

• Windows 2000, Windows XP, Windows 2003, or Mac OS X

• An available PCI-X 1.0 or PCI 2.3 compliant slot

• An available SATA device

• CD-ROM or DVD-ROM drive

Document Number: MAN-003124-000 Version 1.0

SV-HBA3124-2 / SV-HBA3124-4 User's Guide

Page

SV-HBA3124 Specifications

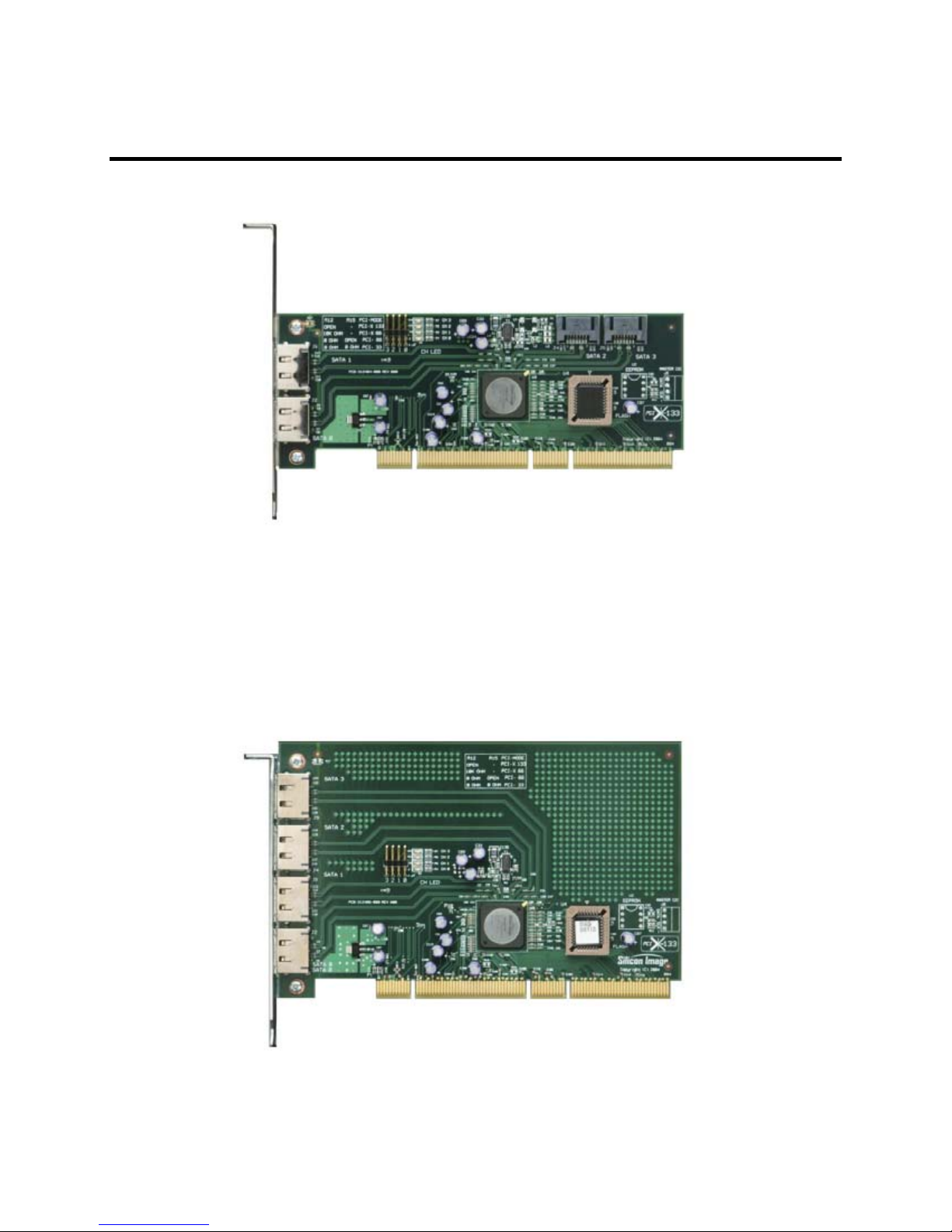

Figure 1 SV-HBA3124-2

Figure 2 SV-HBA3124-4

SV-HBA3124-2

SV-HBA3124-4

Document Number: MAN-003124-000 Version 1.0

SV-HBA3124-2 / SV-HBA3124-4 User's Guide

Page

Specification HBA Description

SV-HBA3124-2 Two external SATA ports and two internal SATA ports.

SV-HBA3124-4 Four internal SATA ports.

Ports

All ports (internal or external) are capable of running 3Gbps to SATA hard disk drives

or Port Multiplier devices.

SV-HBA3124-2

Sockets SV-HBA3124-4 32-pin surface mount socket is used for the FLASH memory.

SV-HBA3124-2  Two SATA external connectors (type C) that are mounted on

the component side along the edge to the PCI bracket.

 Two SATA internal connectors that are mounted on the top side

of the board.

The custom PCI bracket has two openings to accommodate the

SATA external connectors.

SATA

Connectors

SV-HBA3124-4 Four SATA external connectors (type C) that are mounted on the

component side along the edge to the PCI bracket. The custom PCI

bracket has four openings to accommodate these SATA external

connectors.

SV-HBA3124-2

LED

Connector SV-HBA3124-4

2x4 right-angle connector header is mounted on the top edge of the

HBA for access to external LEDs.

SV-HBA3124-2

LEDs SV-HBA3124-4

Four green LEDs corresponding to each SATA Port/ or Channel.

Each channel can drive an LED to indicate channel activity. The

LED is surface mounted to the PCB.

SV-HBA3124-2

Power SV-HBA3124-4

 3.3V - The HBA does not use 5V; it uses the PCI 3.3V from the

PCI edge connector.

 1.8V - A 1.5 amp linear regulator converts the 3.3V to 1.8V.

SV-HBA3124-2

Form Factor SV-HBA3124-4

PCI 64-bit Universal voltage keyed form factor. A custom PCI

bracket is installed on the left side of the board.

SV-HBA3124-2 16.8 cm by 6.4 cm

Dimensions SV-HBA3124-4 16.8 cm by 10.8 cm

References

• PCI Local Bus Specification Revision 2.3

• PCI-X Addendum to the Local PCI Bus Specification Revision 1.0a

• Serial ATA / High Speed Serialized AT Attachment specification, Revision 1.0a

• Serial ATA II/ Extensions to Serial ATA 1.0, Revision 1.0

• Silicon Image SiI3124-2 Design Specification Revision 1.0

Document Number: MAN-003124-000 Version 1.0

SV-HBA3124-2 / SV-HBA3124-4 User's Guide

Page

2 Installing the SV-HBA3124

Install the SV-HBA Card

The SV-HBA3124-2 or SV-HBA3124-4 Serial ATA card fits into any available PCI or PCI-X slot on your PC

or Server motherboard (see Figure 3).

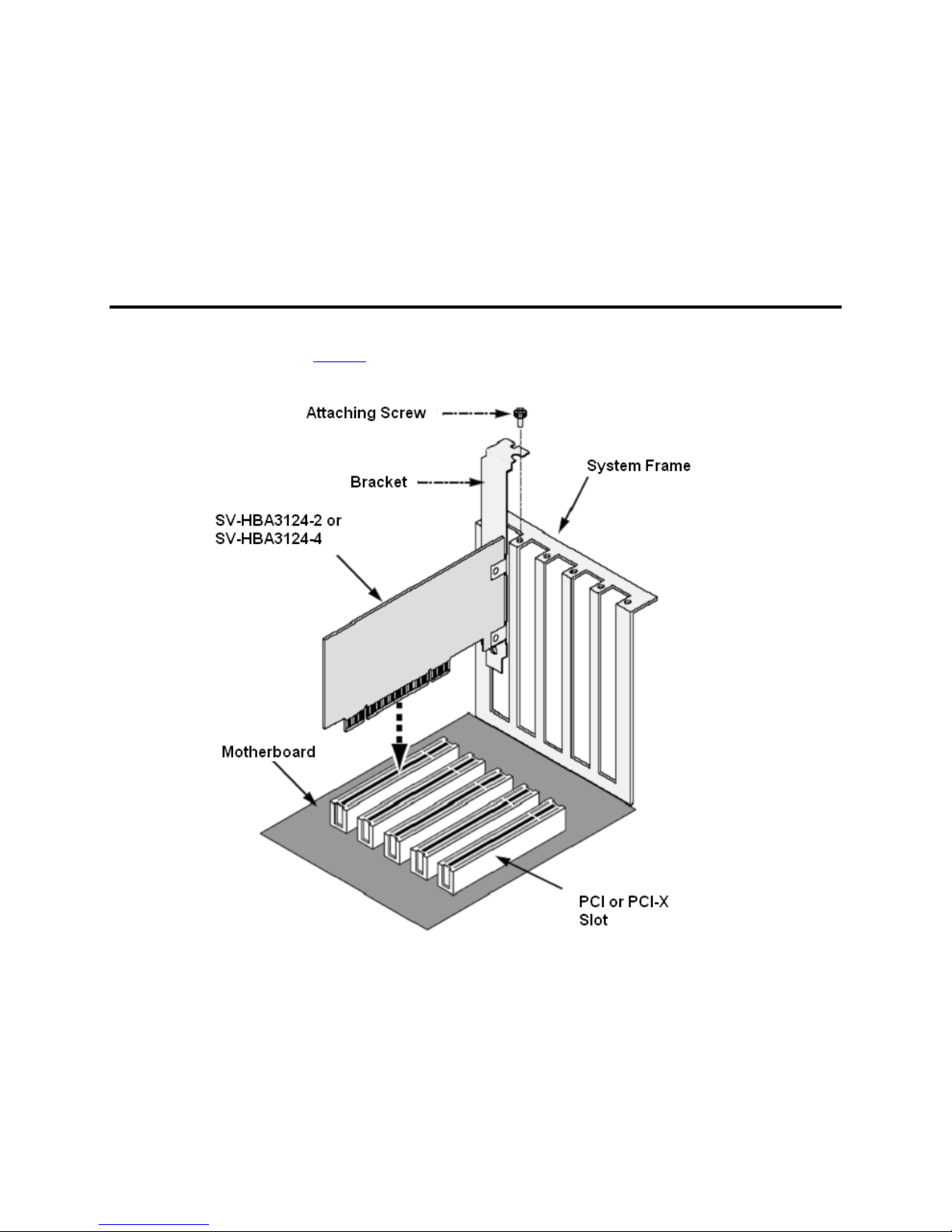

Figure 3 PCI or PCI-X slot on motherboard

1. Turn off your system.

2. Remove the cover of your system.

3. Remove the inside slot cover of an available PCI or PCI-X slot on the motherboard.

4. Install the SV-HBA card into the open PCI or PCI-X slot. Secure the bracket to the system’s frame.

5. Attach the Serial ATA cables to the external or internal ports on the card.

6. Fasten the controller card bracket to the system case.

Document Number: MAN-003124-000 Version 1.0

SV-HBA3124-2 / SV-HBA3124-4 User's Guide

Page

Install the Disk Drives/Devices

The SV-HBA3124-2 card supports up to two external Serial ATA devices and two internal Serial ATA devices.

The SV-HBA3124-4 card supports up to four external devices. For optimal performance, install Serial ATA

drives of the same model and capacity. The drives’ matched performance allows the logical disk to function

better as a single drive.

Install Internal Devices on the SV-HBA3124-2

1. Install the internal disk drives into the drive bays of your system.

2. Attach the power cables to the disk drives.

3. Attach one Serial ATA data cable to each Serial ATA disk drive.

4. Attach the other ends of the cables to the connectors on the SV-HBA card.

5. Put the cover back on the system.

6. Boot up the system.

Install External Devices on the SV-HBA3124-2 & SV-HBA3124-4

1. Attach one Serial ATA data cable to each Serial ATA device (for example, an SV2000).

2. Then attach the other ends of the cables to the connectors on the SV-HBA card.

3. Power on the external SATA device.

4. Put the cover back on the system.

5. Boot up the system.

Document Number: MAN-003124-000 Version 1.0

SV-HBA3124-2 / SV-HBA3124-4 User's Guide

Page

Install the Driver

The procedures in this section assume that the Windows or Mac operating system has already been installed on

your PC or Server.

Note: Drivers for the Silicon Image SiI 3124 SATALink Controller have been fully tested and

certified to work with the SV-HBA3124-2 and SV-HBA3124-4.

Microsoft Windows 2003 Server

Windows 2003 Server comes preloaded with the software drivers necessary to run the SV-HBA3124-2 and SV-

HBA3124-4. You do not have to install the driver.

To confirm the driver installation

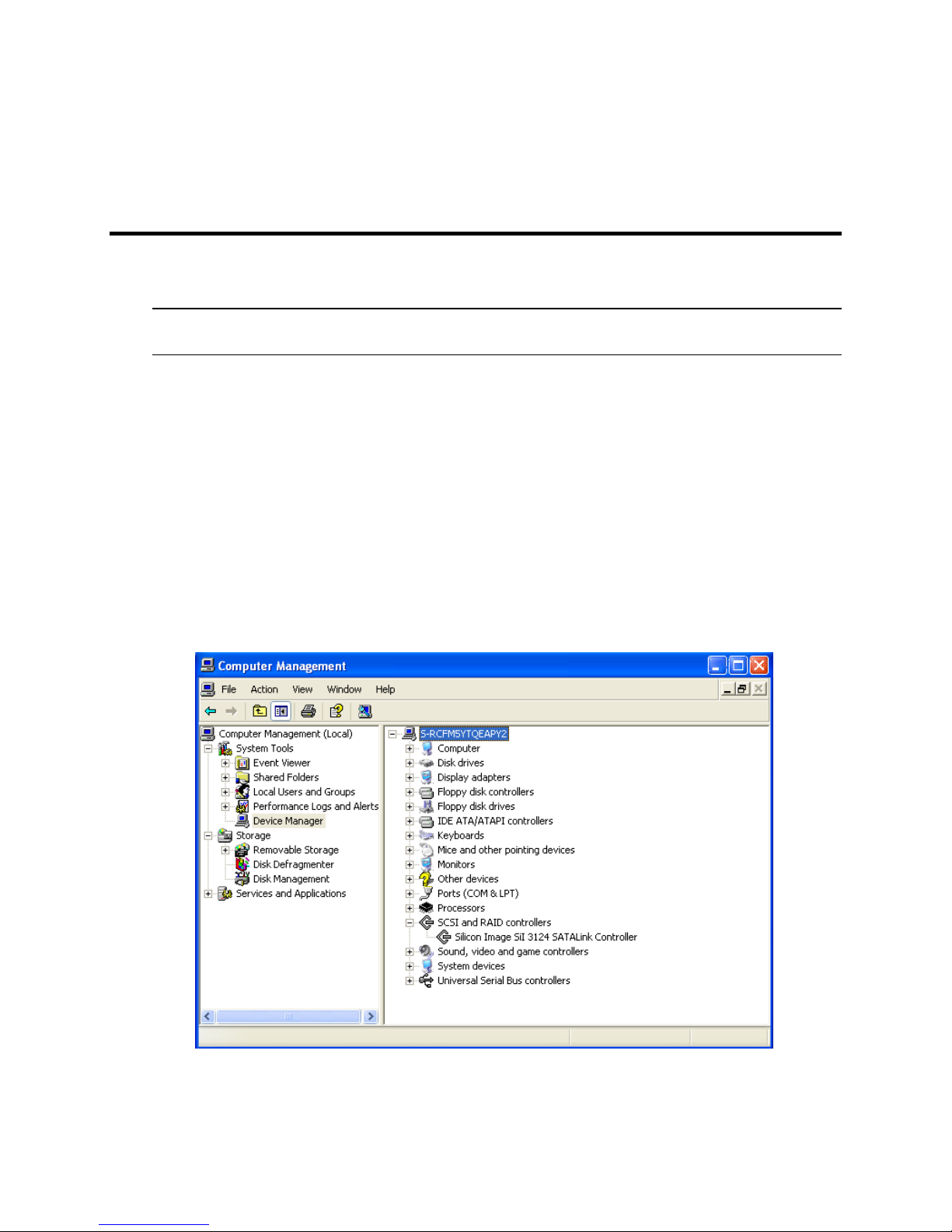

1. Right-mouse click the My Computer icon on your desktop and choose Manage from the pop-up

menu.

2. Double-click Device Manager.

3. Double-click SCSI and RAID controllers.

4. Verify that the Silicon Image SiI 3124 SATALink Controller appears, as shown here.

Document Number: MAN-003124-000 Version 1.0

SV-HBA3124-2 / SV-HBA3124-4 User's Guide

Page

Microsoft Windows XP

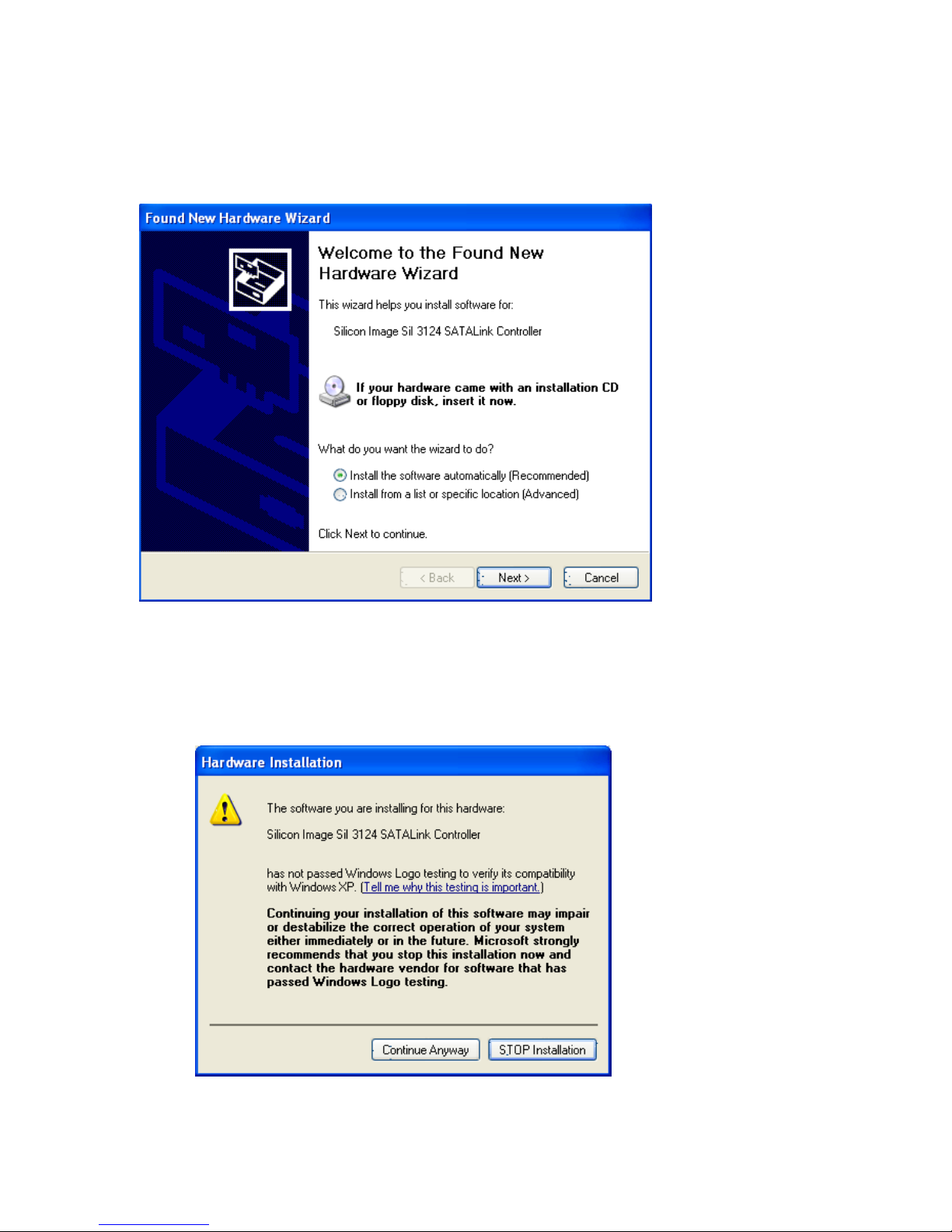

After you install the SV-HBA3124-2 or SV-HBA3124-4 and devices, and then power on your computer, the

Found New Hardware Wizard opens.

To complete the driver installation

1. Insert the SV-HBA3124 CD-ROM.

2. Select Install the software automatically (Recommended) and click Next.

3. If you get the Hardware Installation notice, click Continue Anyway.
