SilentWind Pro 12V Manuel utilisateur

SILENTWIND Pro –User Manual

SILENTWIND

12V / 24V /48V

www.SilentWindgenerator.com

March 2019

Silentwind Pro –User Manual

March 2019

Silentwind Pro –User Manual

March 2019

Index

INDEX ....................................................................................................................................................................3

1. PRECAUTIONS ...............................................................................................................................................6

2. PRESENTATION..............................................................................................................................................7

3. TECHNICAL DATA...........................................................................................................................................8

3.1 SILENTWIND PRO –ELECTRICAL DATA ..........................................................................................................8

3.3 HYBRID BOOST CHARGE CONTROLLER –ELECTRICAL DATA.........................................................................8

3.4 HYBRID BOOST CHARGE CONTROLLER -MECHANICAL DATA.......................................................................8

3.5 POWER CURVE .............................................................................................................................................9

3.6 DIMENSIONS ..............................................................................................................................................10

3.7 PACKAGE CONTENTS..................................................................................................................................11

4. SAFETY PRECAUTIONS .................................................................................................................................12

4.1 MECHANICAL RISCS....................................................................................................................................12

4.2 ELECTRICAL RISKS.......................................................................................................................................12

4.3 INSTALLATION RISKS ..................................................................................................................................13

4.4 WHEN WORKING ON THE SYSTEM .............................................................................................................13

4.5 DISSASEMBLY SEQUENCE...........................................................................................................................13

5. INSTALLATION .............................................................................................................................................14

5.1 RECOMMENDATIONS ................................................................................................................................14

5.1.1 SITE ........................................................................................................................................................14

5.1.2 THE MAST ..............................................................................................................................................15

5.1.3 THE BODY...............................................................................................................................................16

5.1.4 ELECTRICAL INSTALLATION ....................................................................................................................16

5.2 REQUIRED TOOLS AND EQUIPMENT ..........................................................................................................16

5.3 CABLES AND FUSES.....................................................................................................................................17

5.4 MECHANICAL INSTALLATION .....................................................................................................................18

5.4.1 INSTALLATION ON LAND........................................................................................................................18

5.4.2 INSTALLATION ON A VESSEL ..................................................................................................................18

5.4.3 SILENTWIND Pro ASEMBLY ....................................................................................................................20

5.5 ELECTRICAL INSTALLATION ........................................................................................................................22

5.6 CHECK LIST .................................................................................................................................................24

6. OPERATION .................................................................................................................................................25

7. MAINTENANCE ............................................................................................................................................26

7.1 ROTOR BLADES...........................................................................................................................................26

7.2 SCREWS......................................................................................................................................................26

7.3 BEARING AND GASKETS.....................................................................................................................................26

7.4 CORROSION PROTECTION .................................................................................................................................26

7.5 MOUNTING SYSTEM..........................................................................................................................................26

7.6 ELECTRICAL SYSTEM ..........................................................................................................................................26

8. VIDEO LINKS ................................................................................................................................................27

9. FAQ .............................................................................................................................................................27

10. TROUBLESHOTTING.................................................................................................................................29

10.1 SILENTWIND PRO DOES NOT START OR IT’S ROTATING SLOWLY ................................................................29

10.2 BATTERY IS NOT FULLY CHARGED...............................................................................................................30

10.3 SILENTWIND PRO DOES NOT CHARGE.........................................................................................................30

11 WARRANTY .................................................................................................................................................31

11.1 DISCLAIMER OF WARRANTY .......................................................................................................................32

11.2 WARRANTY CARD.......................................................................................................................................33

11.3 AFTER-SALES SERVICE ................................................................................................................................33

12 QUICK INSTALLATION QUICK GUIDE ............................................................................................................34

Silentwind Pro –User Manual

March 2019

Silentwind Pro –User Manual

March 2019

Congratulation! You have just purchased the new generation of wind generators.

SILENTWIND Pro

SAFE –QUIET –EFFICIENT

SILENTWIND Pro is constructed of the highest quality material and has been thoroughly inspected.

The Warranty Terms are described in a chapter of this manual. For traceability under the warranty, please

Registering your SILENTWIND Pro has the following benefits:

-Confirmation of your ownership and safety notifications: by keeping a record of your registration,

we will be able to trace your product and contact you quickly if necessary;

-Product information a new: choose to be among the first to hear about our latest product, helpful

advice or product developments

If you have any questions or comments, do not hesitate contact us:

Rulis Eléctrica Lda

Loteamento Industrial de Linhares, Lote 19

PT-4805-486 Santo Estevão de Briteiros / Guimarães

Portugal

Phone: 00351-253-572763

Fax: 00351-253-572764

E-mail: info@silentwindgenerator.com

Business Hours:

Monday to Friday: from 8h00 to17h00 GMT + 0:00

Welcome to Silentwind family!

The CE marking is a mandatory compliance requirement in EMEA and the UK and although it is self-certified, testing

and evidence to support that testing is preferred from an independent test house.

Machinery Directive 2006/42/EC, Low Voltage Directive 2004/95/EC, Electromagnetic Combability Directive

2004/108/EC. The report and the declaration of conformity are available for inspection on request.

Silentwind Pro –User Manual

March 2019

1. PRECAUTIONS

➢Please note this manual is part of the SILENTWIND Pro and must be read carefully.

➢Please study the information thoroughly before starting the installation.

➢This manual should always be kept near the SILENTWIND Pro.

➢Always download the up-to-date manuals. Manuals may change without prior notice.

In this manual, you will see the following icons:

Pay attention. Very important.

High risk. Injury.

Damage to equipment may result if not heeded.

Electrical warning sign.

Major risk, severe injury or dead.

Silentwind Pro –User Manual

March 2019

2. PRESENTATION

The SILENTWIND Pro features:

Aerodynamic design from aircraft-engineering

Lightweight

Very good start-up performance due to low cogging torque

Low noise

Easy installation

Does not have any inbuilt control electronics, which means that there is hardly any

maintenance work on the generator itself

The Blades are carbon fiber hand laminated, UV-resistant, successfully tested on wind

tunnels at hurricane speed of 122km/h

External Hybrid Boost Charge Controller for wind and solar energy with multi-function display

and integrated electronic stop switch

Durable and low maintenance by external Hybrid Boost Charge Controller and high-quality

components

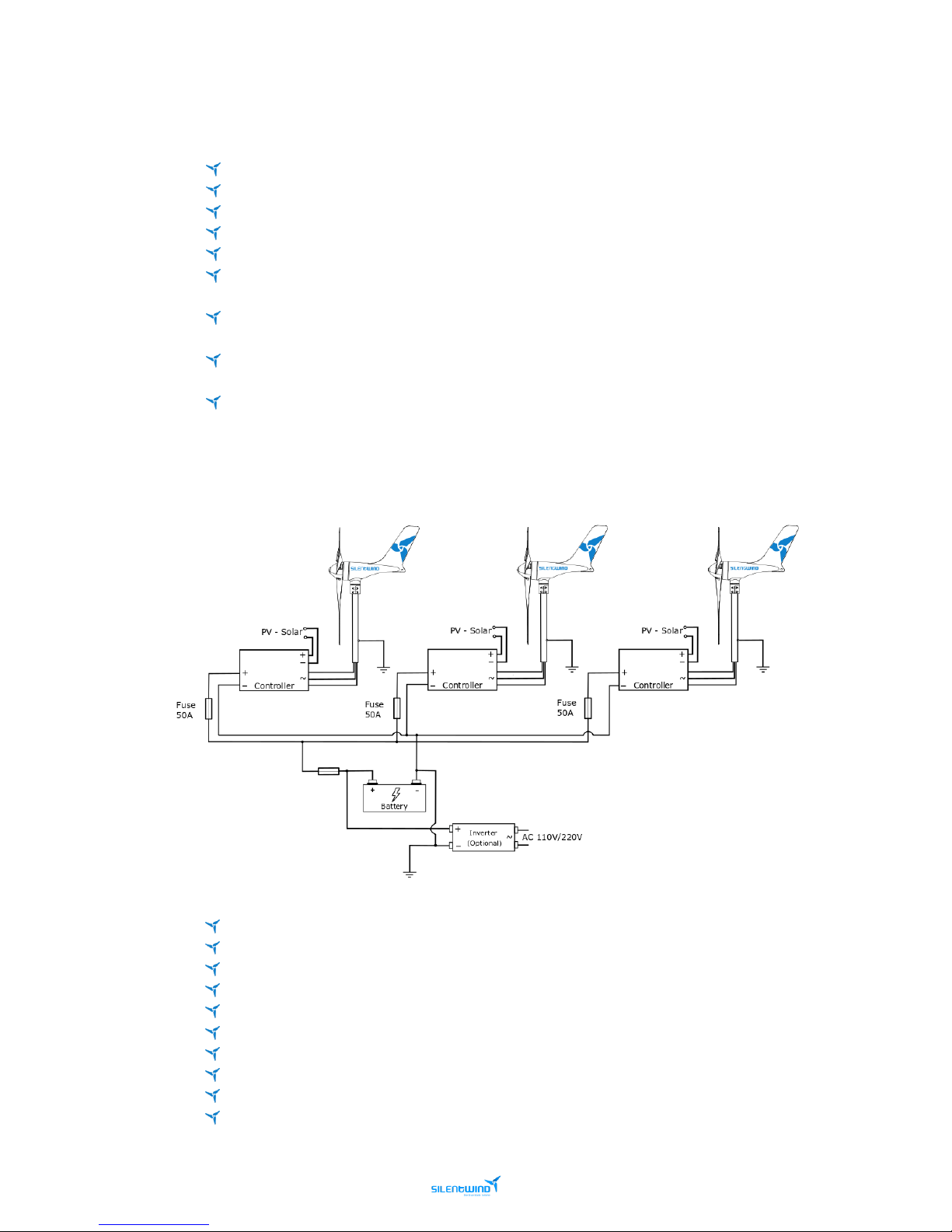

It is possible to connect several SILENTWIND Pro if your demand is high. As noise emission is very low, you

can operate in residential areas and on vessels without annoying your neighbors.

The SILENTWIND Pro can be used in universal applications on low, middle and high winds:

Any location without an electricity grid connection.

Research units.

Traffic management system.

Emergency systems.

Street lamps.

Billboard illumination.

Project in developing countries.

Wireless LAN access points.

Holiday homes with inverters for independent provision of electricity.

Charge the batteries of an electric vehicle.

Silentwind Pro –User Manual

March 2019

3. TECHNICAL DATA

3.1 SILENTWIND Pro –ELECTRICAL DATA

TECHNICAL DATAType of generator

Permanent magnet generator, 3 phases, AC

Rated voltage*

12 VDC / 24 VDC / 48 VDC

Rated power

420 Watt / 450 Watt / 500 Watt

Rated peak power at

14.5 m/s

Start up speed

2 m/s

Start of charging

2.2 m/s

* Your battery set must match the SILENTWIND Pro rated voltage.

3.2 SILENTWIND Pro –MECHANICAL DATA

Safety test in wind tunnel

122km/h without failure

Rotor diameter

1.15 m

Number of blades

Weight of blades

150 g / blade

Material of blades

Carbon fiber, hand laminated

RPM range

550 –1700 rpm

Weight

6.8 kg (Generator)

Package dimensions

780 x 400 x 210 mm

Package weight

10 kg

Color

White RAL 9010, powder coated

3.3 MPPT HYBRID BOOST CHARGE CONTROLLER –ELECTRICAL DATA

System voltage*

12 VDC / 24 VDC / 48 VDC

Max. power input wind generator

600 Watt

Max. current input wind generator

40 A / 30 A / 15 A

Max. power input solar

300 Watt

Max. current input solar

20 A / 10 A / 5 A

Max. open circuit voltage input of the solar panel

48 VDC / 48 VDC / 96 VDC

LCD + LED displays

W, A, V/Ah, kWh, Ah

* Maximum voltage adjustable for acid, gel and AGM batteries

3.4 MPPT HYBRID BOOST CHARGE CONTROLLER - MECHANICAL DATA

Weight

2.30 kg

Package dimensions

220 x 150 x 83 mm

Cover protection class

IP52

Silentwind Pro –User Manual

March 2019

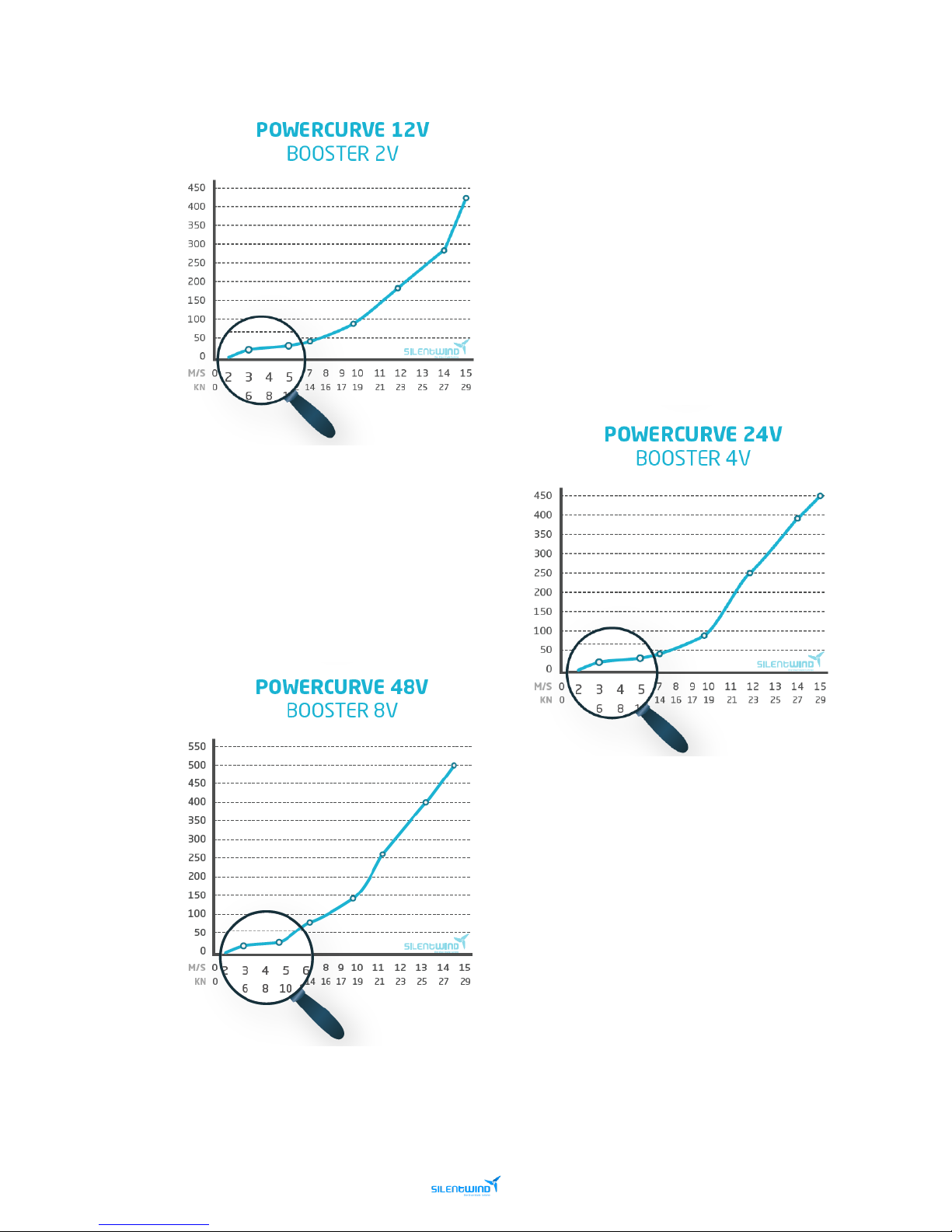

3.5 POWER CURVE

Silentwind Pro –User Manual

March 2019

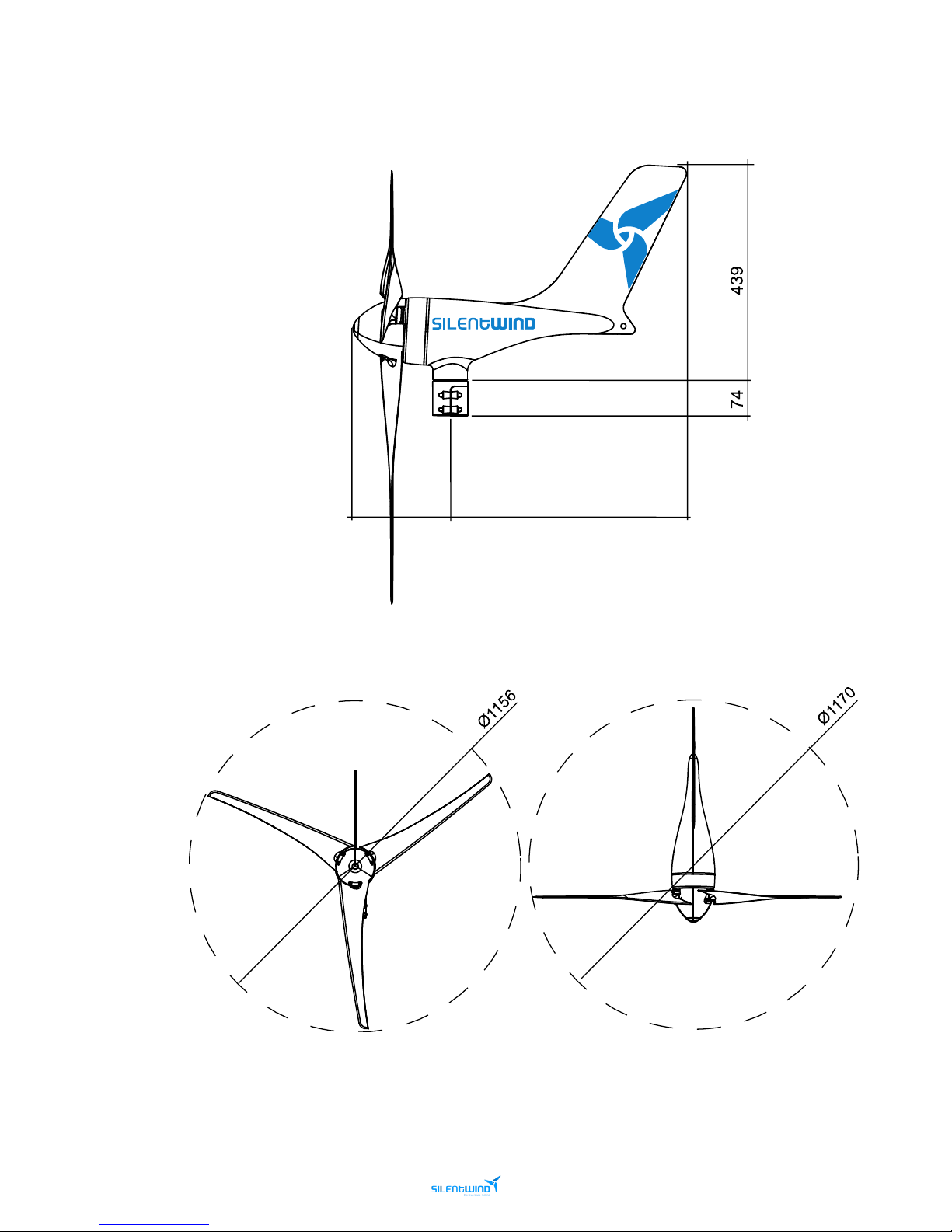

3.6 DIMENSIONS

 
