Communication with green energy...

Communication with green energy...Communication with green energy...

Communication with green energy...

Nowadays it is essential for most people to be online, well informed

and up-to date at any time and on any occasion. No matter how you

spend your weekends and holidays -sailing or camping- you will

appreciate easy access to the net without limitations or

complications.

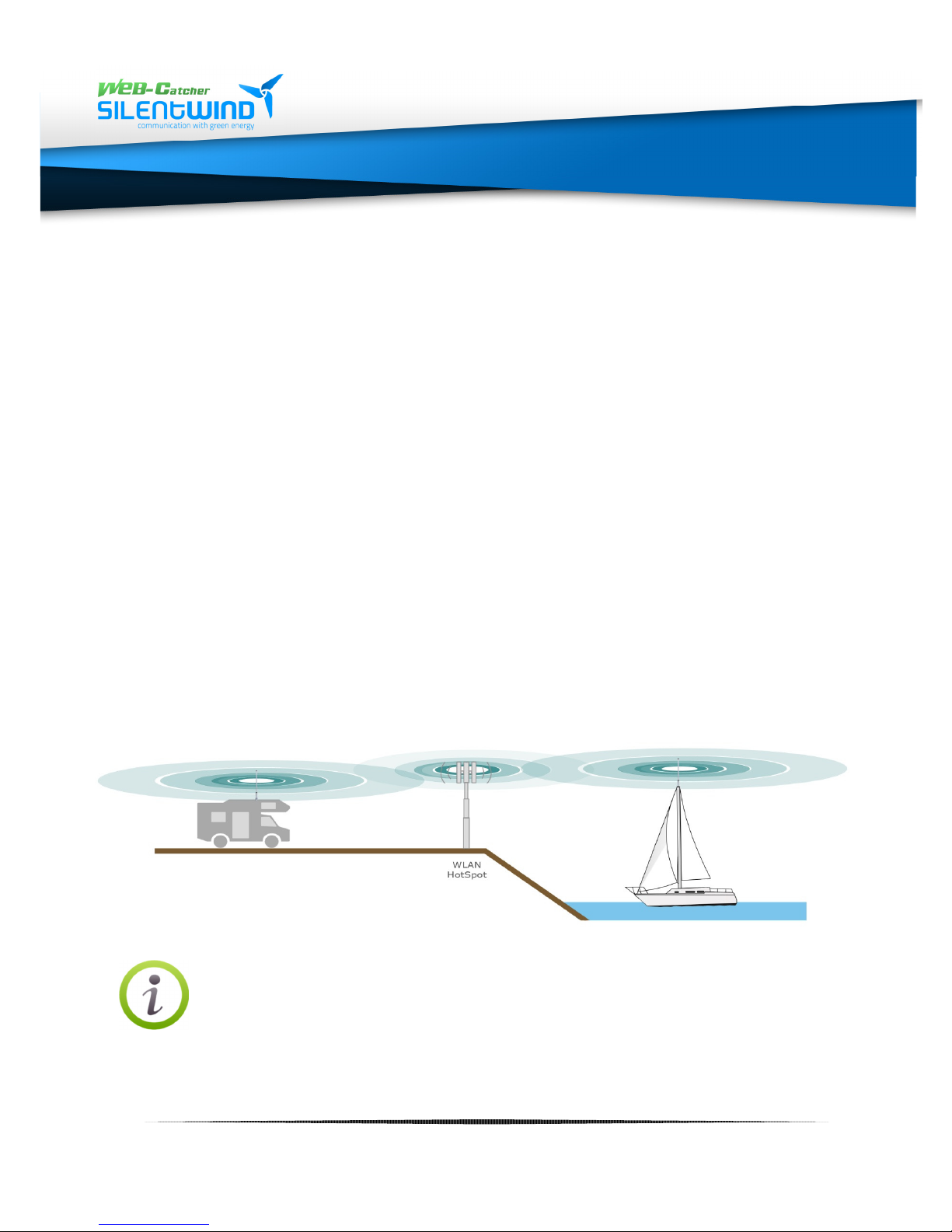

Most marinas, and ports, campsites or hotels offer WLAN service,

either free of charge or on subscription. In order to make use of this

service, also inside a boat under deck or inside a camper the WEB-

Catcher of SILENTWIND is the perfect solution to establish a fast

and reliable WLAN connection. The web catcher antenna set enables

you to receive even distant signals of WLAN hotspots

simultaneously for your notebook, tablet or smartphone on board or

anywhere else without any cable connection.

Thank you for choosing our Web-Catcher. Enjoy stable internet

connection with our Wi-Fi antennas!

Please carefully study the manual before you install the

items and follow the instructions.

SW08WL | SW10WL | W12WL

www.silentwindgenerator.com/en/antennas | info@silentwindgenerator.com

nstallation instructions

Please follow the instructions given for each step of the installation of

the items to ensure the optimal function of the devices.

Legal regulations and legal limits

Please note that legal regulations -especially the ma imum legal

radiation of a WLAN device- depend on national laws varying in

European countries and the US.

Use inside a car

In case you use the device inside the car, don't forget: safety first!

Both hands must control the wheel and you should use the device

only when the engine is switched off.

Hospitals and medical equipment

Please observe the applicable laws and regulations. Please switch off

the device in vicinity of medical equipment.

Temperature and humidity

Please note that the recommended operating temperature must not

be under -15° or above 45°C, humidity should be between 0 and

99%, IP66.

Rain, humidity and Thunderstorms.

The WEB-Catcher is weatherproof and suitable for outdoor use. But

the full submersion of the device in water must be avoided..

Servicing and maintenance

This unit has no parts that require maintenance.

SW08WL | SW10WL | W12WL

www.silentwindgenerator.com/en/antennas | info@silentwindgenerator.com

2. First steps

2. First steps2. First steps

2. First steps

Congratulations to your decision for a WEB-Catcher, the active

Omni antenna from SILENTWIND. Our WEB-Catcher is an efficient

WLAN active Omni antenna generating outstanding WLAN

connections, even at a long distance and in unfavorable conditions.

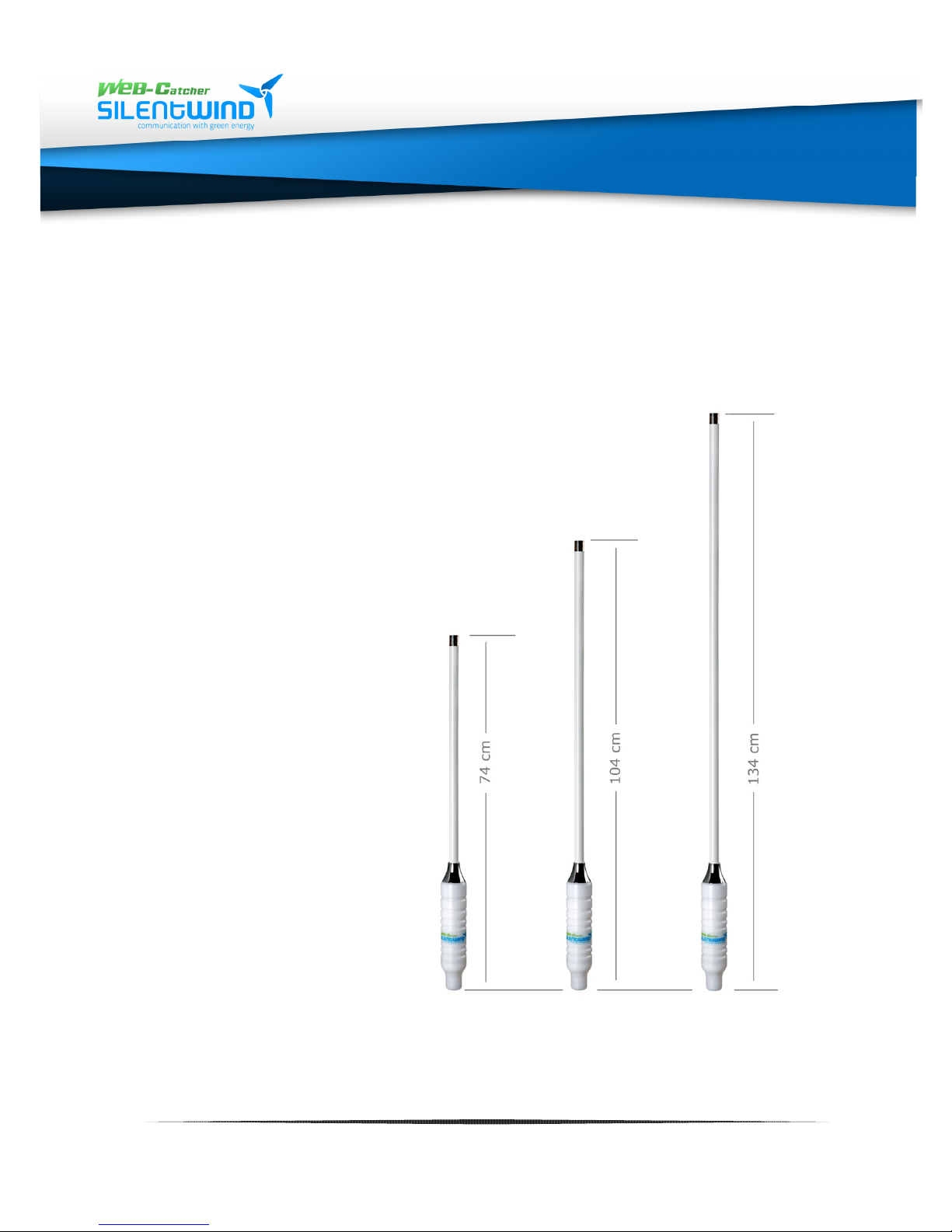

The WLAN set includes the following items:

•2,4Ghz WLAN-active antenna with waterproof frame

•for the following ranges:

o8,5dBi

o10dBi

o12,5dBi

SW08WL | SW10WL | W12WL

www.silentwindgenerator.com/en/antennas | info@silentwindgenerator.com

•LAN-cable with RJ45

adaptors.

Available lengths:

10m | 20m | 30m | on

request

•PoE adaptor

•User manual and

installation instructions

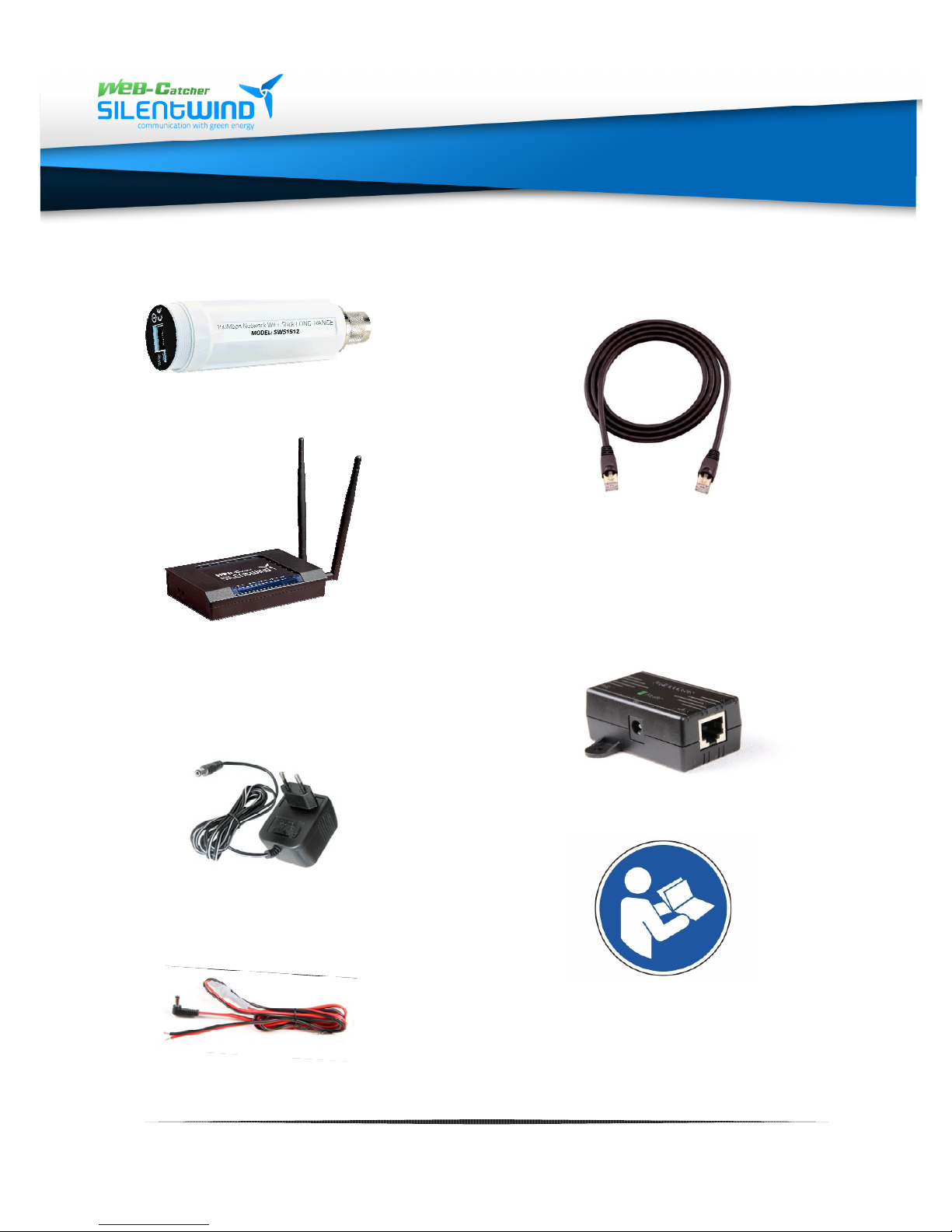

Scope of delivery

•WLAN-antenna electronics

Type: SWS1512

•WLAN-long-range-router

300Mbps Type: SWR3022

•Power adaptor AC: 100V -

240V | DC 12V 1A

•12/24V connecting cable

SW08WL | SW10WL | W12WL

www.silentwindgenerator.com/en/antennas | info@silentwindgenerator.com

3. Installation

3. Installation3. Installation

3. Installation

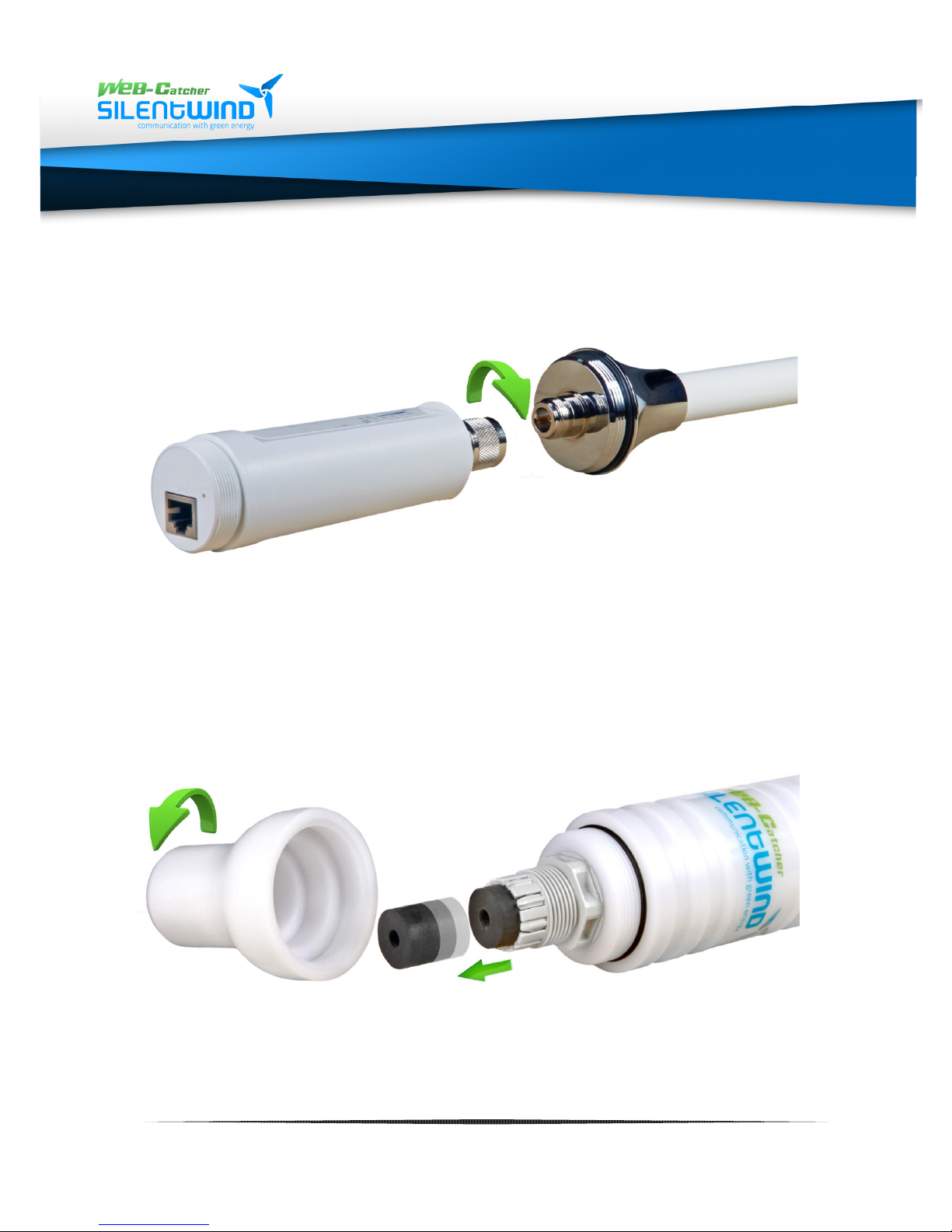

3.1 Connection of antenna electronics with antenna

Connect the antenna with the item containing the electronics.

Fi the screw connection with a pipe wrench to get a reliable

connection.

3.2 nstallation of antenna

Unscrew the sealing cap of the cable inlet and pull out the sealing

ring from the housing.

SW08WL | SW10WL | W12WL

www.silentwindgenerator.com/en/antennas | info@silentwindgenerator.com

3.3 nstallation of antenna cable

Put the Lan network cable through the end cap and the

antenna housing. Connect the cable adaptor with the WLAN

antenna electronics item.

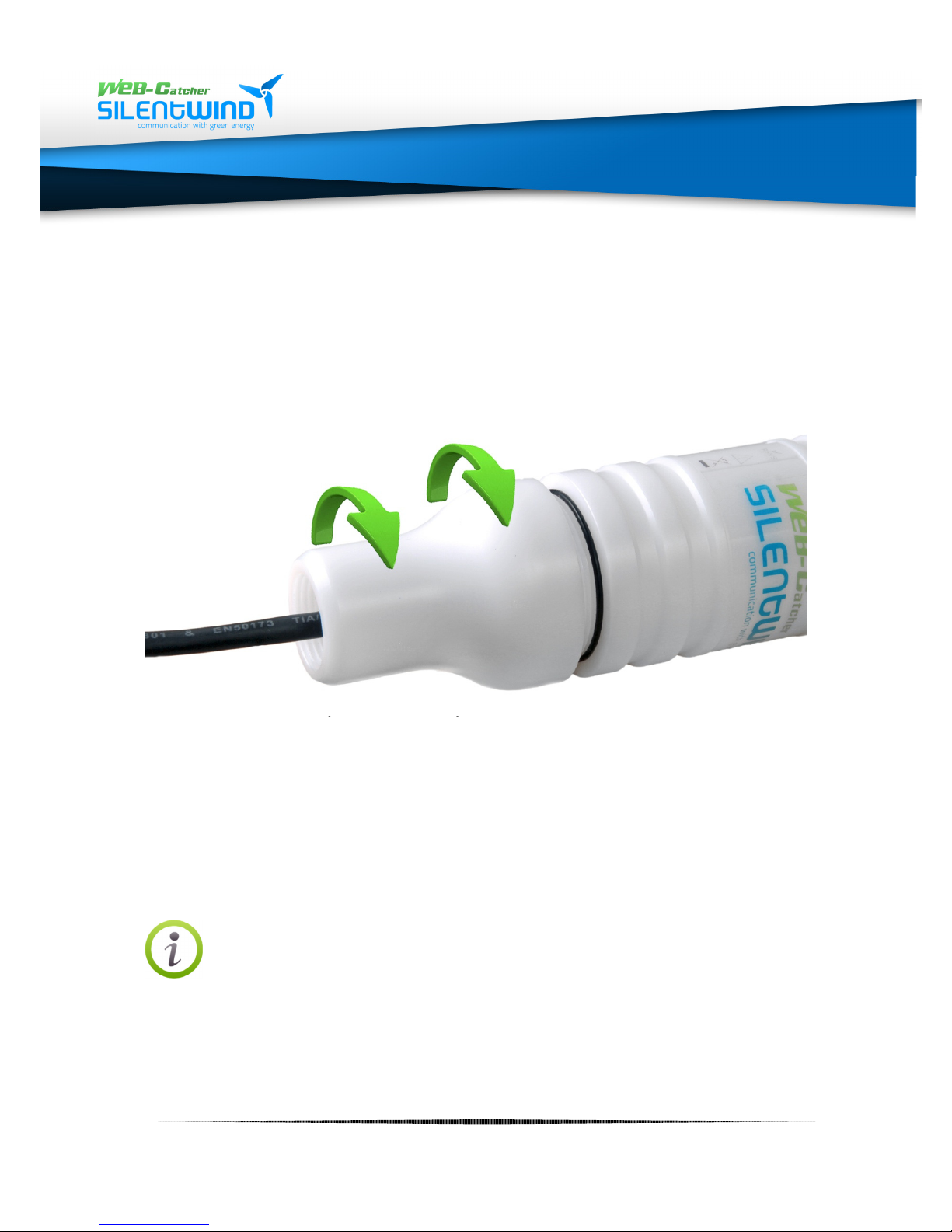

3.4 Closing of housing

Screw the housing to the antenna.

Do not turn the antenna or the cable, they are FIXED!

SW08WL | SW10WL | W12WL

www.silentwindgenerator.com/en/antennas | info@silentwindgenerator.com

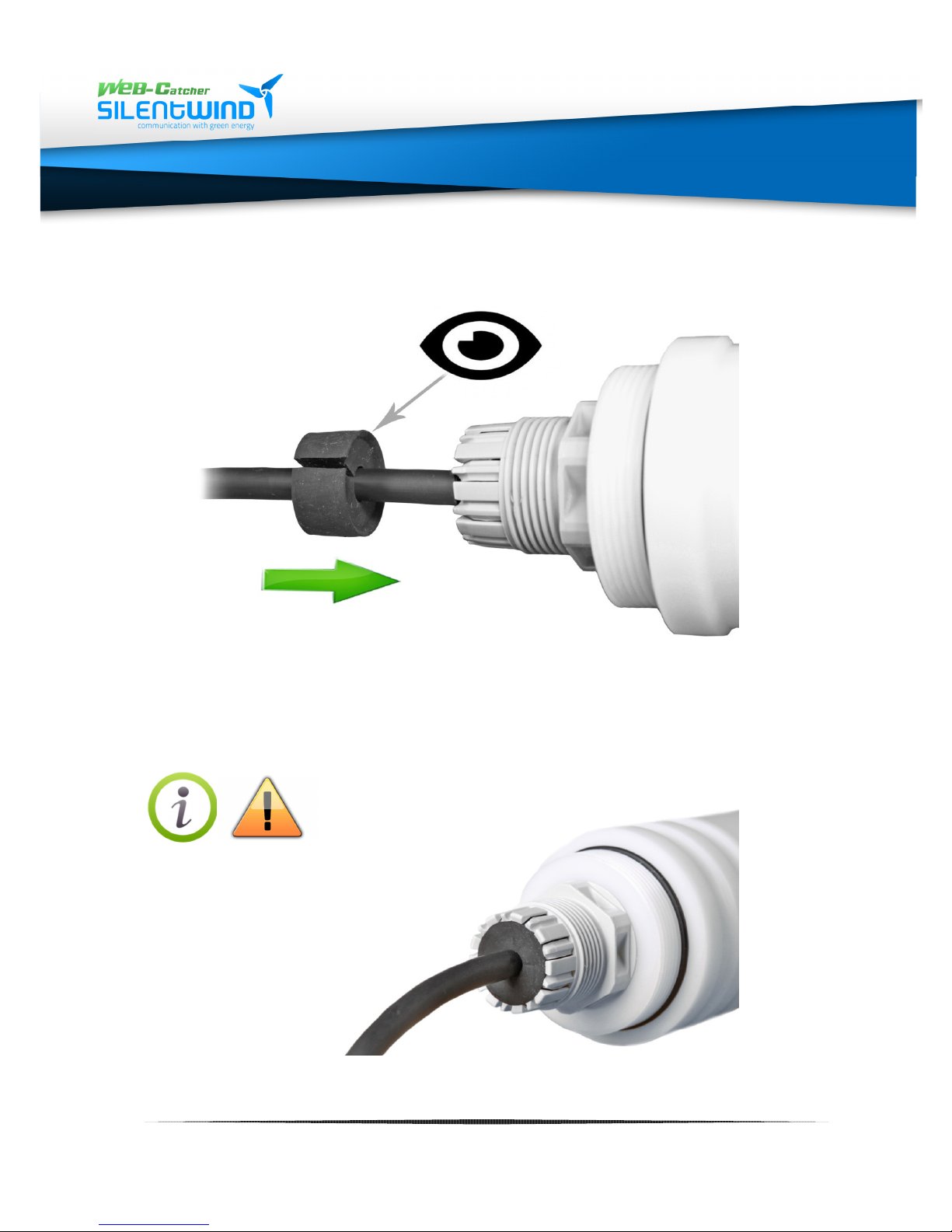

3.5 nstallation of sealing ring

Now push the sealing ring over the cable and slide the

sealing ring into the bottom of the housing.

Make sure that the rubber lip at the sealing

ring must be pushed inside the housing!

SW08WL | SW10WL | W12WL

www.silentwindgenerator.com/en/antennas | info@silentwindgenerator.com

3.6 nstallation of cap

At last firmly twist the cap to the frame.

Now your WLAN active antenna is ready for installation.

The 1"UNF 14 internal thread offers a variety of fi ing

options.

The following fi ing options are available:
