SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

New Silent Alert Fire Safe System

TECHNICAL MANUAL

This manual covers the

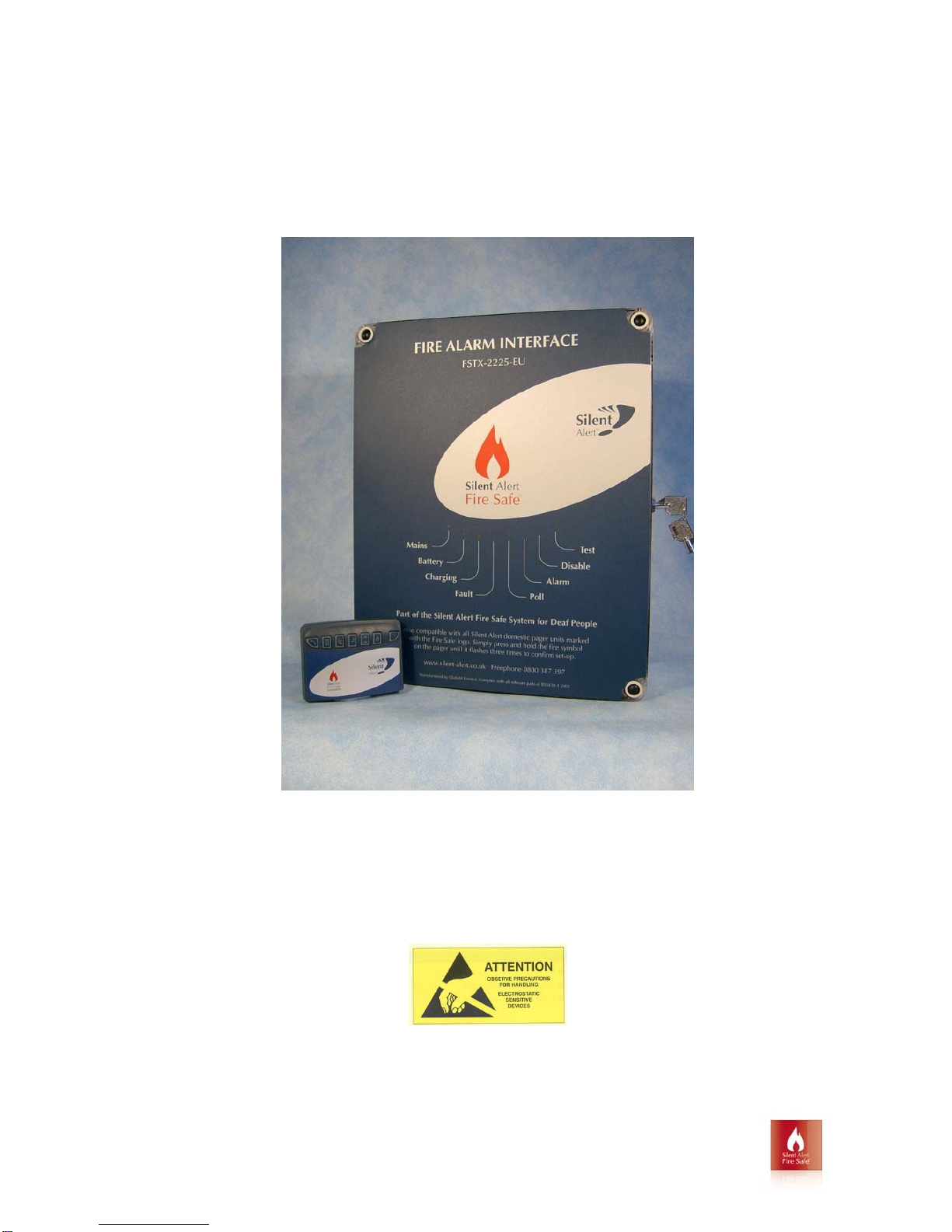

FSTX-2225-EU - Fire Alarm Interface

PG3A-2204-EU - Pager Unit - Fire Safe Compatible

FSCH-2226-IN - Fire Safe Charger or CH3A-2205-IN – Alarm Clock Charger

The Fire Safe Interface Panel contains electrostatic discharge sensitive components.

Observe antistatic precautions whilst ever the cover is removed.

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

TECHNICAL SPECIFICATION

Introduction

The Silent Alert Fire Safe System alerts people who are deaf when a fire alarm is activated; it

comprises a Fire Alarm Interface and one or more vibrating pager units. The Fire Alarm Interface

links to a fire alarm panel via a volt free relay and incorporates a radio transmitter. When the fire

alarm is activated the transmitter within the Fire Alarm Interface sends out a coded radio signal.

When a Pager receives this signal it vibrates and lights a fire key on the pager display. The

system is designed to comply with all relevant parts of BS5839-1 2002 & EN54-2 and MUST be

installed by a competent person as defined in BS5839-1 2002.

Installation Training

Installation training is available; please call us on 01246 450789 for more details.

Fire Safe Interface Panel

Part Number: FSTX-2225-EU

Dimensions: H300mm x W240mm x D100mm

Weight: Without Battery 1.90 KG - With battery 4.5KG

Material: Polycarbonate self-extinguishing enclosure.

Protection: Water resistant

Power Supply: 240v AC 50 Hz

Battery back up: 12volt lead acid 7Ah (Yuasa Type NP7-12) Dimensions (H100mmxW150mmxD65mm)

Alarm Panel feed to Fire Safe Panel: Normal condition 5-30 Volts DC this can be taken from the

leads within the panel. Grounded in alarm mode via an integral OPTO isolated voltage fed relay.

Fault signal to Fire Panel: Via an integral normally open or normally closed volt free relay.

Fault conditions: Mains failure, battery removal or charge failure,

main PCB failure, radio failure

Radio Compliance: In accordance with EN300 220-1.

Radio Licence: Licence Exempt

Range: Up to 1000m in open air

Pager Unit

Part Number: PG3A-2204-EU MKIII

Dimensions: H63mm x W82mm x D26mm (Excluding belt clip)

Weight: 74gms

Material: Impact resistant ABS

Power Supply: Integral NiMH 6Volt rechargeable battery pack.

Charger: Intelligent boost, trickle and maintenance charging.

Fault conditions: Low battery & radio failure.

Radio Compliance: In accordance with EN300 220-1.

Radio Licence: Licence Exempt.

Range: Up to 1000m in open air.

Other: Integral field strength / data validation meter for system commissioning.

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

INSTALLATION

Preliminary Radio Coverage Test

A preliminary radio coverage test is normally conducted prior to installation to ensure total

coverage throughout a building. It is recommended that a further radio coverage test is

performed prior to permanently securing the Fire Safe Panel to a wall in case it needs to be

relocated. The Fire Safe panel should be mounted temporarily to a wall at between 1.5 and 1.75

meters from the ground away from large metal objects and lift shafts. For best results locate the

panel central to the building. In multi-storey buildings penetrations through steel re-enforced

concrete floors may be poor. In these situations coverage would be improved if the panel is

located one floor above ground level to provide coverage over three floors or two levels above

ground level to cover four floors. In-building coverage will vary from building to building

therefore it is essential that a full and thorough radio coverage test is conducted. The range test

procedure detailed later under the heading Site Survey should be followed. If it is found that the

coverage is inadequate then additional Fire Safe Interfaces may need to be added. In this case

it will be necessary to change the signal patterns for each panel to ensure there are no standing

wave problems. This aspect is covered in more detail under the heading The use of more than

one Fire Safe Panel below.

Power Supply

It is necessary to supply the Interface panel with a dedicated mains supply (220-240v AC 50 Hz)

via its own unswitchable fused spur. The mains terminal block is located at the bottom left hand

side of the main PCB and is marked Earth (top) Neutral (middle) Live (bottom). The Panel will also

require a 12 Volt lead acid 7Ah back-up battery (Yuasa Type NP7-12) Dimensions

(H100mmxW150mmxD65mm). It is necessary to connect the battery to the two wires with crimped

connectors, before connecting the mains to avoid a fault condition.

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

Alarm Output from main Fire Alarm Panel

The top terminal block on the main PCB has a RED and BLACK wire secured to the outer two

terminals. The BLACK wire SHOULD NOT BE REMOVED. The RED wire must be removed and

rerouted via a relay in an Input / Output Module. In alarm mode this VOLTAGE needs to be

removed in order to trigger the Fire Safe Interface, therefore a normally closed contact will be

required. The terminal is clearly marked GND (top/ BLACK wire) and V+ (bottom/ RED wire).

It is also possible to trigger the unit by the removal of an external voltage. IF AN EXTERNAL

VOLTAGE IS USED THEN BOTH THE RED AND BLACK WIRES MUST BE REMOVED FROM

THE TOP TERMINAL BLOCK AND INSULTATED OR THE MAIN PCB CAN BE SERIOUSLY

DAMAGED. The Interface Panel requires an external voltage of at least 5v AC or DC the maximum

voltage must not exceed 30v AC or DC.

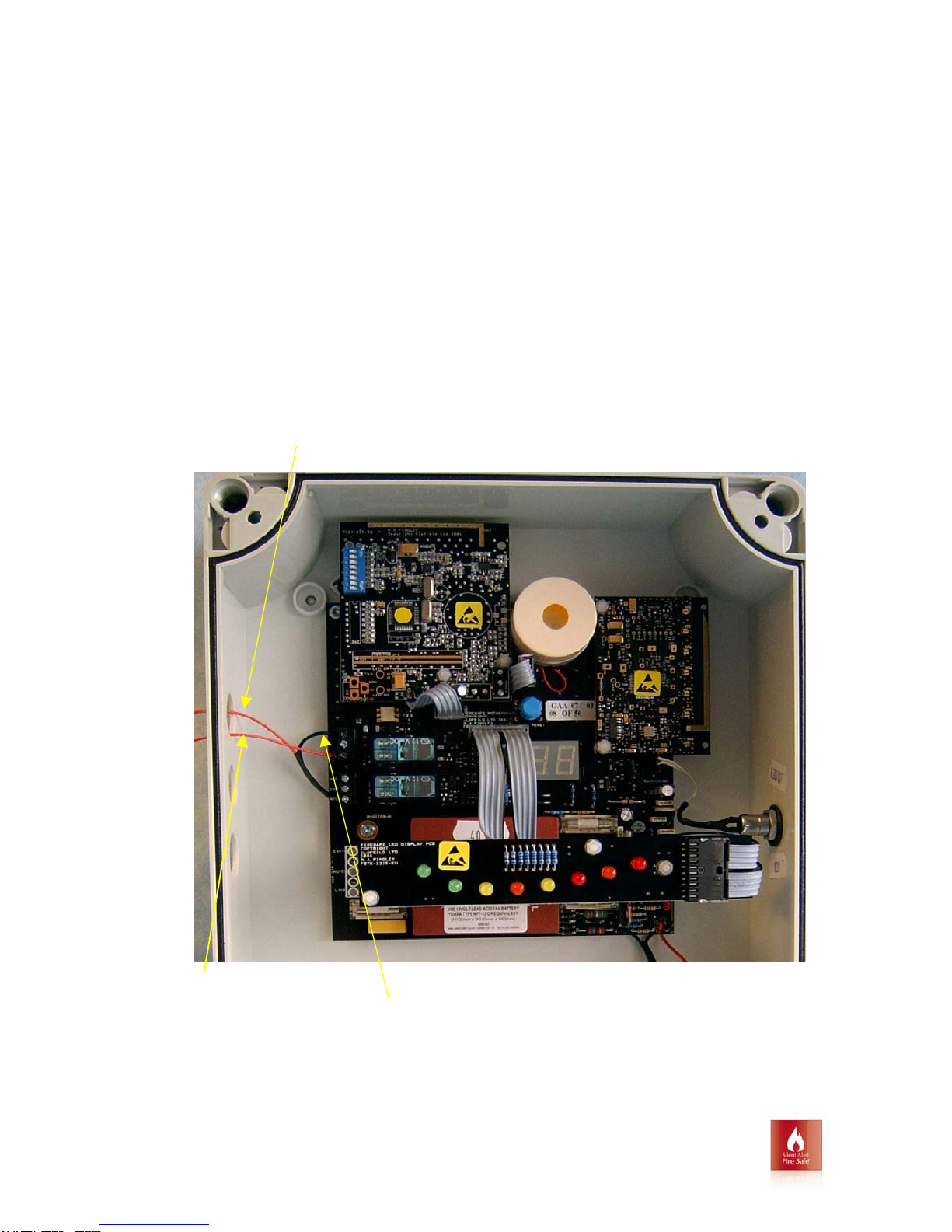

Return from normally

closed relay

RED positive feed from

Main Board to normally

closed relay

BLACK negative feed

from backup battery

DO NOT REMOVE

To a normally

closed relay.

Open on alarm

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

Fault condition from Fire Safe Panel

The Fire Safe panel has a fault output to the main Fire Alarm Panel provided via the middle

terminal block. A fault condition on the Fire Safe Panel will cause a relay to be closed that will

create an open circuit between common and normally closed (N/C) and a closed circuit between

normally open (N/O) and common.

A fault alarm will be given in the following conditions:

 Mains failure

 Battery charge failure or removal

 Loss of radio signal

 Main PCB failure

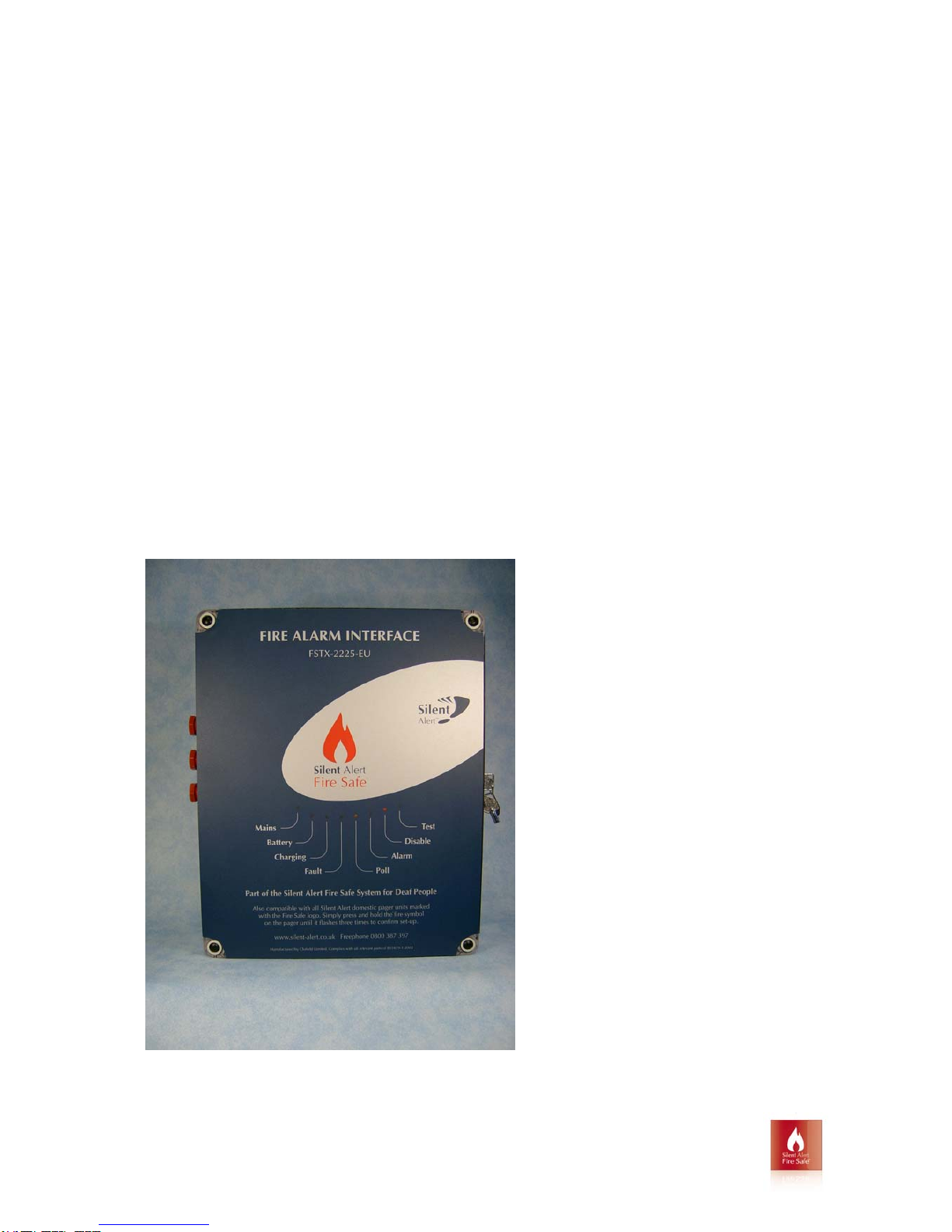

Front Panel Indicator Lights

Mains Green Lit when mains power present

Battery Green Lit when battery present

Charging Yellow Lit whilst battery is charging

Fault Orange Lit when any of the above fault conditions occur

Poll Yellow Lit constantly, goes out when poll signal is sent

Alarm Red Lit when alarm signal received from Fire Panel

Disable Orange Lit when disable key is turned to the off position

Test Red Lit when in range test mode.

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

FIRE SAFE PCB LAYOUT

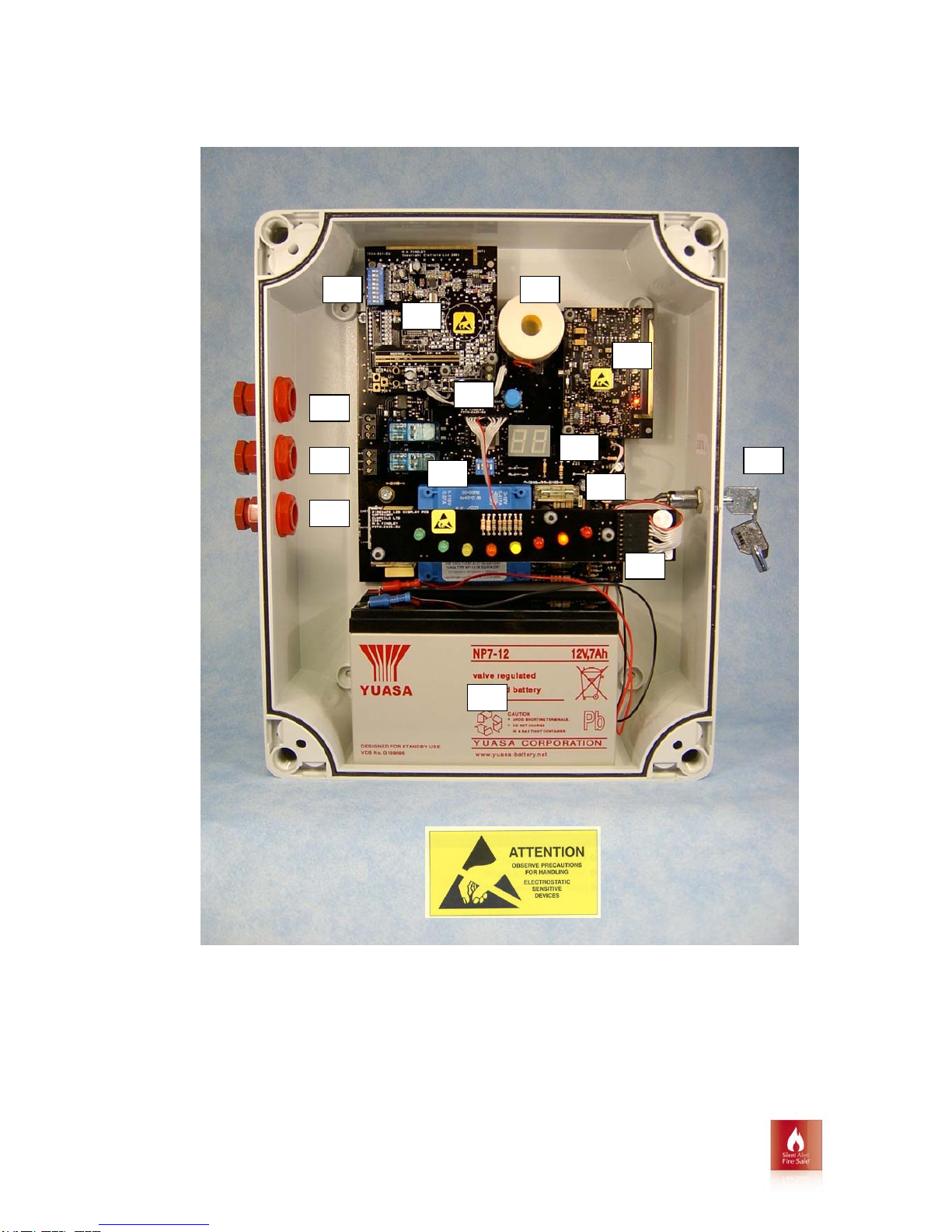

1. Signal In from Alarm Panel 8. Back-up Battery

2. Fault out to Alarm Panel 9. Sounder

3. Mains Input 10. Numeric Display

4. Monitor Keys 11. 3 Amp 20mm Fuse one of three

5. Transmitter PCB 12. Radio receiver

6. Master Reset Button 13. LED Indicator PCB

7. Engineer’s Keys 14. Disable Key

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

OTHER COMPONENTS

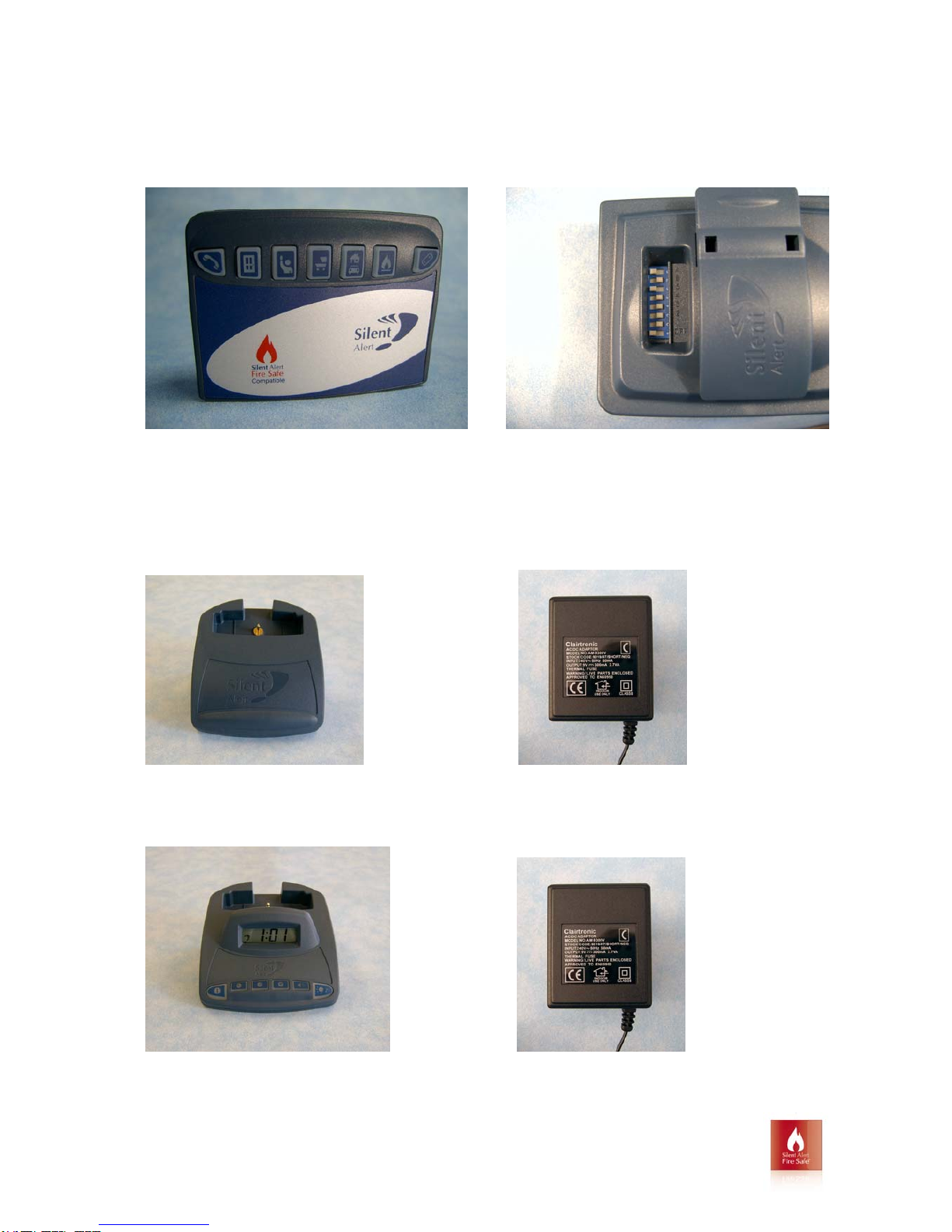

Pager Unit (PG3A-2204-EU MKIII)

Pager front showing key pad Pager back showing key switches

Fire Safe Charger Unit (FSCH-2226-IN) with Power Supply (PS3A-2207-UK)

Alarm Clock Charger (CH3A-2205-IN) with Power Supply (PS3A-2207-UK)

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

SYSTEM SETUP

Setup

Fire Safe Interface Panel

1. Remove the front cover using a flat bladed screwdriver by loosening the four captured

plastic screws in each corner.

2. The Interface contains a number of components that are susceptible to electrostatic

damage. Observe antistatic precautions whilst ever the front cover is removed and avoid

touching the surface of any of the PCB’s.

3. Locate the Interface panel next to the main fire alarm panel at 1.5m –1.75m from the

ground. Avoid locating the panel close to large metal objects and lift shafts.

4. Use the Four mounting holes shown below to secure to a wall. Do not make any additional

holes in the case, as this will affect its IP rating.

5. Attach battery terminals +V Red or Brown, –V Black or Blue to 12 volt lead acid battery 7Ah

(Yuasa Type NP7-12) Dimensions (H100mmxW150mmxD65mm).

6. Fit three cable glands (supplied) to input / output holes on left of case.

7. Connect mains in accordance with BS5839-1 2002 to the bottom terminal block via the

cable gland.

8. Remove the RED wire from the top terminal block (V in + ).

9. Reconnect it via a normally closed relay back in to the (V in +) terminal. The external relay

within an input/output module should be opened in alarm mode to trigger the unit. IF AN

EXTERNAL VOLTAGE IS USED THEN BOTH THE BLACK AND RED WIRES MUST BE

REMOVED FROM THE TOP TERMINAL AND INSULATED. IF THIS IS NOT DONE THE

MAIN PCB CAN BE SERIOUSLY DAMAGED.

10. Connect a fault wire link between the Fire Safe Interface Panel and the Fire Alarm Panel via

the middle terminal block. A fault condition on the Fire Safe Panel will cause a relay to be

closed that will create an open circuit between common and normally closed (N/C) and a

closed circuit between normally open (N/O) and common.

11. Move Engineer’s key numbered 4 to the on position. This will cause the unit to send a

continuous sequence of poll signals to enable a site test as detailed later.

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

Pager Unit

1. Move keys A, B and 5 to the On position away from the belt clip as shown.

2. Switch pager on by moving the miniature key labelled OFF to the left away from the belt

clip. As the Pager is switched on the battery key lights for 2 seconds then the pager should

vibrate and each light on the display will light up four times. If this does not happen it may

be necessary to charge the pager (see below).

3. Immediately after the set up sequence the fire key will light and the pager will vibrate three

times. Thereafter the field strength will be displayed on the keypad each time a poll signal is

received approximately once every four seconds.

Charger Unit

1. Plug the Mains Adaptor into a 13 amp socket and connect the plug to the socket at the back

of the Fire Safe or Alarm Clock Charger.

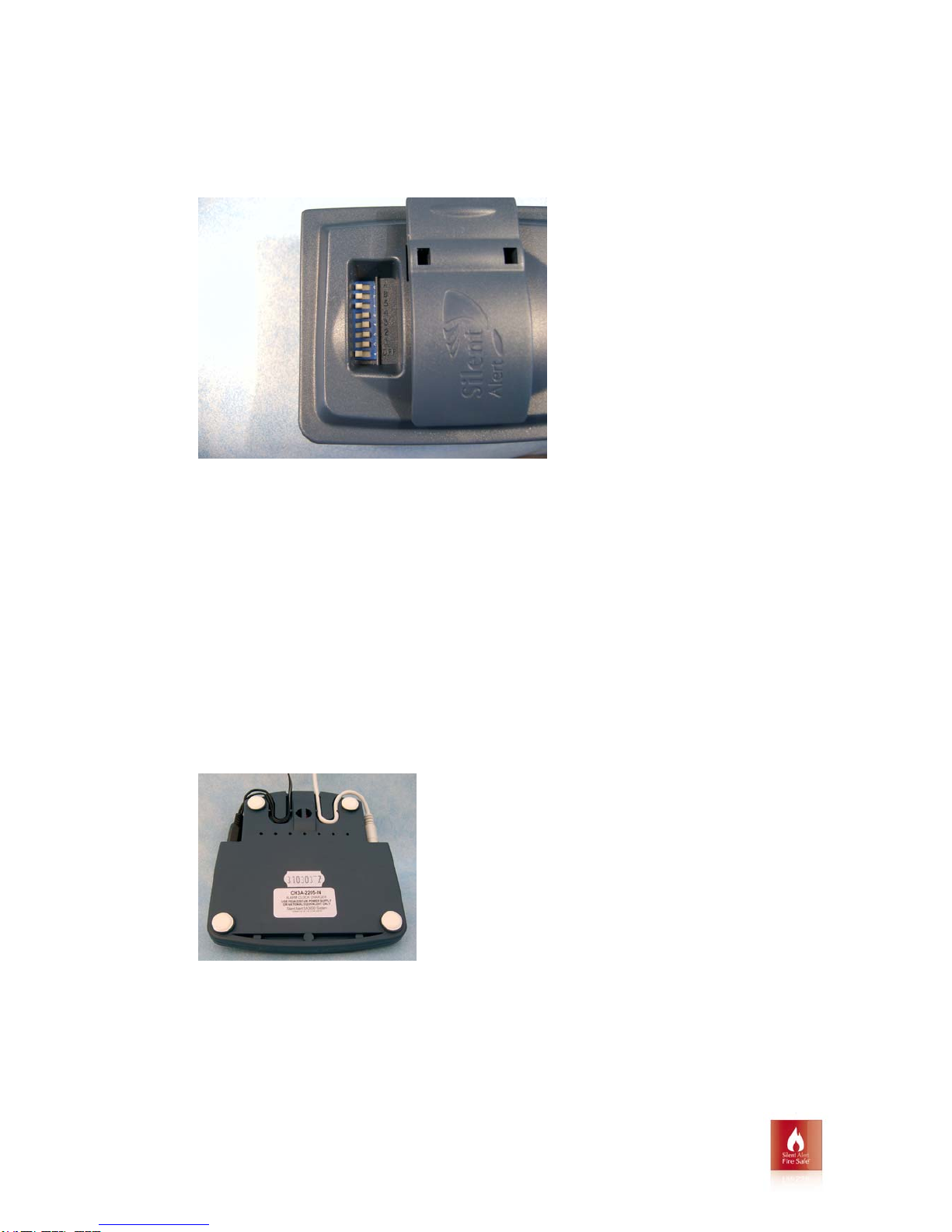

Illustration shows the mains adaptor (left)

and optional Pillow Pad / Strobe plug

(right) connected to the charger using the

strain relief features

SILENT ALERT SA3000 FIRE SAFE MANUAL 06 June 2012

Designed & Manufactured by Clofield Limited

Free Technical Helpline 01246 450789 www.silent -alert.co.uk

2. Place Pager in charging slot to charge.

Entrance Stickers

Entrance stickers for wall and windows are included. These should be displayed at all entrances to

the building.

Autres manuels pour SA3000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Silent Alert Alarme incendie

Silent Alert

Silent Alert SA3000 Manuel utilisateur

Manuels Alarme incendie populaires d'autres marques

Zeta Alarm Systems

Zeta Alarm Systems INFINITY ID2 Manuel utilisateur

System Sensor

System Sensor 22051TLE-RF-26 Manuel utilisateur

Pittway

Pittway Notifier AM2020 Manuel utilisateur

Ampac

Ampac ZoneSense Manuel utilisateur

Kidde

Kidde VM-1 Manuel du produit

LST

LST SIM016-3 Manuel utilisateur

Fireboy- Xintex

Fireboy- Xintex FBD-MZ Instructions originales

bolid

bolid S2000-IP-03 Manuel utilisateur

GST

GST DI-9204 Manuel utilisateur

E2S

E2S BExTBG05D Manuel utilisateur

Notifier

Notifier UZC-256 Manuel utilisateur

Fire-Lite Alarms

Fire-Lite Alarms MS-2 Manuel utilisateur

Siemens

Siemens FDOOT221 Manuel utilisateur

hyfire

hyfire HY5000 Series Manuel utilisateur

FlameStop

FlameStop PFSIFP8 Manuel utilisateur

Radionics

Radionics Radionics 9124 Manuel utilisateur

UniPOS

UniPOS FD 7120 Manuel utilisateur

FIREWOLF

FIREWOLF FW-C01224 Manuel utilisateur
