Introducing the HDMI Extender

The HDMI Extender over 1 CAT5e extends HDMI signals

via 1 CAT5e/6 cable to virtually any HDMI enabled

display. This cost effective solution provides flexibility

forHDMIenableddevicestotransmithighqualityaudio/

video to greater distances at minimal cost.

FeaturesandBenefits

• Extends audio/video transmission from an HDMI

source to an HDMI display over one economical

CAT5e/6 cable

• Minimize cable skew with the adjustable 8-level

equalization knob

• Compatible with DVI monitors

• HDMI 1.2a and HDCP compatible

• Bandwidth: 1.65 Gps

• Supports distances up to 60m/200 ft @ 720P/1080i

or 40m/130 ft @ 1080p

PackageContents

• HDMI transmitter (TX)

• HDMI receiver (RX)

• 2x Power adapter (5V, 4A)

• Quick Installation Guide

04-0502A

HDMIExtenderOver1CAT5e

Quick Installation Guide

Layout

• HDMI-IN: Connect to a HDMI source with a HDMI

M-M cable (not included) here

• RJ45-OUT: Plug in a CAT5e/6 cable, to be linked to

the RJ-45 connector of the HDMI receiver

• +5V DC: connect to 5V DC power supply

• Mode:

0 HDMI mode with 8-channel audio output

1 = HDMI mode with 2-channel audio output

2 = DVI mode

3-5 = Reserved

6 = Use default EDID

7 = Learn EDID from the display.

Note: If no image appears on the HDMI display,

turn the dial to Mode 7 to read the EDID of the

connected HDMI display.

Figure 1: Transmitter (front and back)

• HDMI-OUT: connect to a HDMI display with a

HDMI M-M cable (not included) here

• EQ: adjusts the equilization of the received signal

from 0 (strongest) to 7 (weakest). It is recommended

to try each setting, from 0 to 7 to find the optimal

visual experience

• RJ45-IN: plug in a CAT5e/6 cable that needs to be

linkedtotheRJ-45connectoroftheHDMItransmitter

receiver

• +5V DC: connect to 5V DC power supply

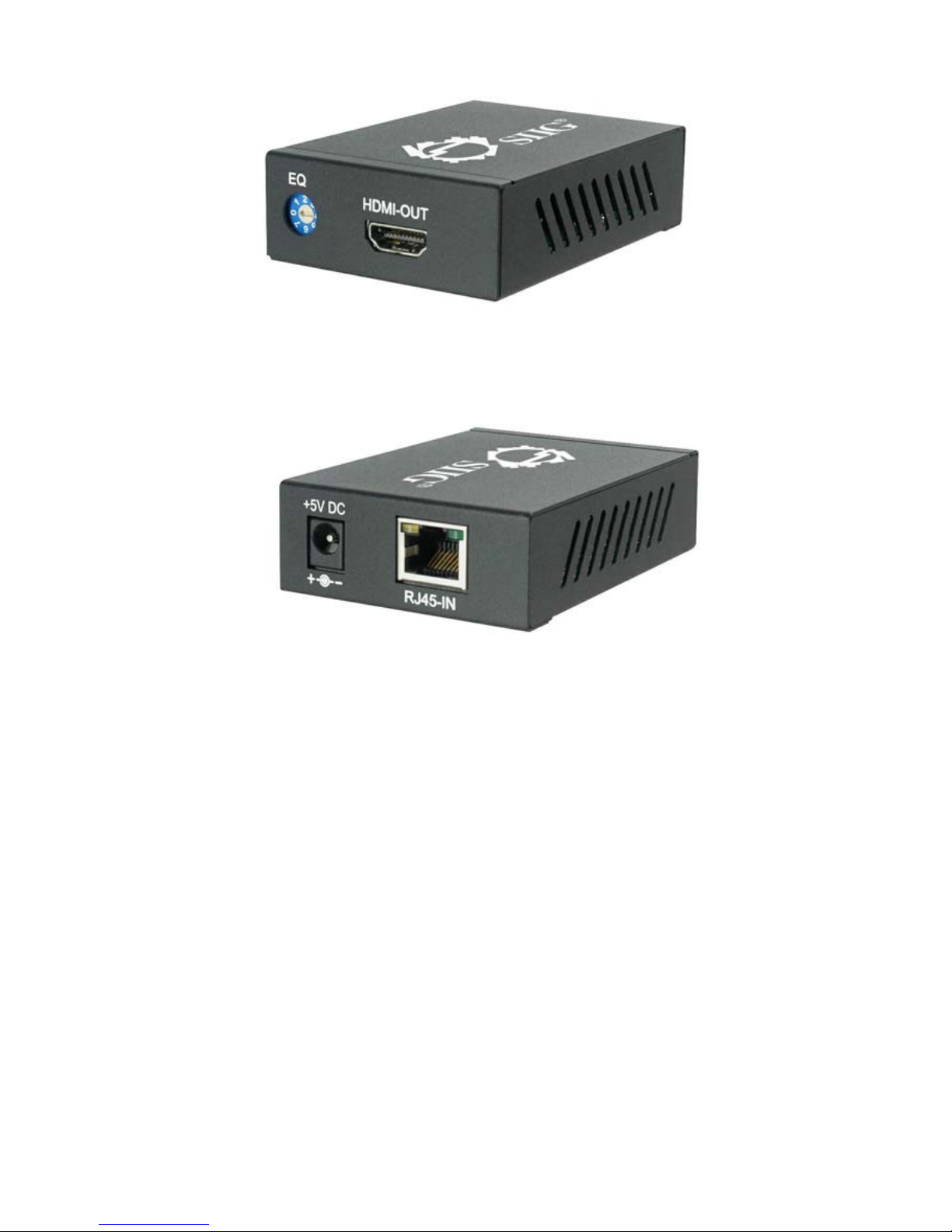

Figure 2: Receiver (front)

Figure 3: Receiver (back)

Hardware Installation

1. Connect your HDMI source to the transmitting unit.

2. Connect your HDMI display to the receiving unit.

3. Connect your CAT5e/6 cable between the

transmitting and receiving units. Make sure the

cable is securely connected and not loose.

4. Plug in the power adapter to each unit, then plug the

power adapters into a reliable power source.

5. If the image is flickering or blinking, try to improve

the cable skew by adjusting the equilization (EQ)

switch from 0 - 7 (strongest - weakest) to find the

optimal visual experience.

Notes

1. If your HDMI/DVI device requires and EDID, you

can use an EDID Reader/Writer to provide HDMI/

DVI EDID information.

2. Alltransmissiondistances referenced in thismanual

are measured using a CAT5e 125MHz cable. The

distance is measure between the HDMI Transmitter

unit and the HDMI display.

3. To reduce interference among the unshielded

twistedpairs of wire in the CAT5ecable,useshielded

CAT5e cables to improve EMI problems which

worsens in longer distances.

4. Transmission length and quality of the received

display depends on the quality of the CAT5e cable.

5. For resolutions greater than 1080i or 1280x1024 a

CAT6 cable is recommended.

Blank Page

Technical Support and Warranty

QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour

web site at www.siig.com and click Support. Our online support

database is updated daily with new drivers and solutions. Answers

toyour questions couldbejust a fewclicksaway. You can alsosubmit

questions online and a technical support analysts will promptly

respond.

SIIGoffers a 2-year manufacturer warranty withthisproduct. Please

see our web site for more warranty details. If you encounter any

problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the

product to the store where you purchased from.

B) Ifyour purchase has passedthestore's return policy period,please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIGwill refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping. Ship the product

to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

HDMI Extender over 1 CAT5e is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered

trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be

trademarksoftheirrespectivecompanies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCIe, PCI & ISA serial and

parallel ports, USB, Serial ATA & UltraATA controllers, FireWire

(1394a/b),networking, sound cards,andother accessories. SIIG is the

premier one-stop source of upgrades.

SIIGproducts offer comprehensiveuser manuals, manyuser-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK, and through e-commerce sites.

PRODUCT NAME

HDMI Extender over 1 CAT5e

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Ph: 510-657-8688
