1
DP USB 3.0 4-Port PCIe i/e
Quick Installation Guide
04-0728B
Introduction
The DP USB 3.0 4-Port PCIe i/e adds four USB 3.0
ports (1 internal & 3 external) to your
PCIe-enabled desktop PC enhancing existing
systems with SuperSpeed USB 3.0 technology.
Key Features and Benefits
• Supports data transfer rate up to 5Gb/s
and backward compatible with previous
versions of USB devices
• Compliant with Universal Serial Bus 3.0
Specification
• Compliant with PCI Express Base
Specification, Revision 2.1
• Supports per port over-current protection
System Requirements
• Desktop PC with an available PCIe slot
2
• Windows®8 (32-/64-bit) / Windows 7 (32-
/64-bit) / Vista (32-/64-bit) / Server 2008
R2 / XP (32-/64-bit) / Server 2003 & 2008
(32-/64-bit)
Package Contents
•DP USB 3.0 4-Port PCIe i/e adapter
• Spare low profile bracket
• Driver CD
• Quick installation guide
3

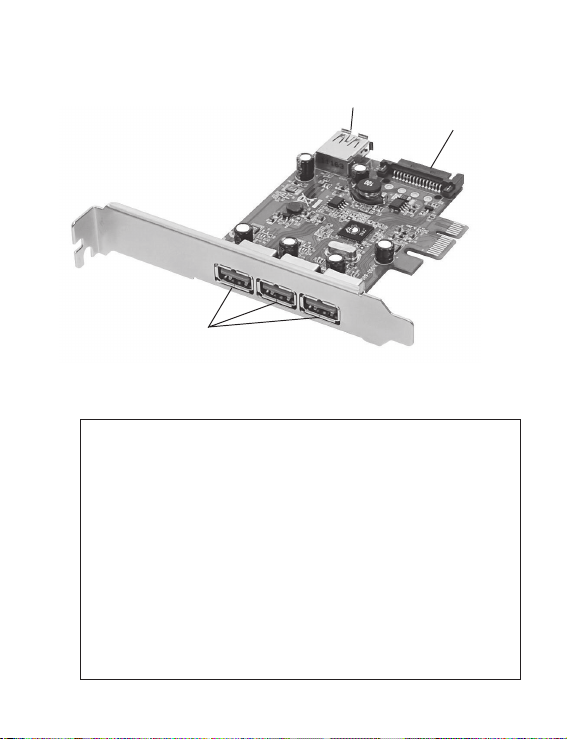

Layout
Figure 1: Board Layout
USB 3.0 Port
*Note: This power connector is designed
to provide additional power to the board
when needed. Connect this power
connector only if one or both of the
following conditions occur:
- Device(s) not being detected
- All ports are used at the same time
Power off your system first before making
this connection.
Power Connector
(optional)*
USB 3.0 Port
4
Hardware Installation
General instructions for installing the card are
provided below. Since the design of computer
cases and motherboards vary, refer to your
computer's reference manual for further
information, if needed.
Static Electricity Discharge may permanently
damage your system. Discharge any static
electricity build up in your body by touching your
computer's case for a few seconds. Avoid any
contact with internal parts and handle cards only
by their external edges.
Note: For low profile systems, remove the
fullheightbracketandinstallthelowprofile
bracket now.
1. Turn OFF the power to your computer and
any other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer cover.
4. Remove the slot bracket from an available
PCIe slot.
5
5. Carefully align the card's bus connector
with the selected PCIe slot on the
motherboard. Push the board down firmly,
but gently, until it is well seated.
6. Replace the slot bracket holding screw to
secure the card.
7. Replace the computer cover and reconnect
the power cord.
Driver Installation
Note: For Windows 8, the driver is already
embedded in the operating system. So no
additional installation steps are needed.
Windows 7 (32-/64-bit) / Server 2008 R2
1. Install the board and boot up Windows.
2. Insert the driver CD, click Open folder to
view files at the AutoPlay box.
3. Double click Setup file.
4. At the User Account Control, click Yes.
For 2008 R2, skip this step.
6
5. At the TI USB3 Host Driver - Installshield
Wizard, click Next.
6. Select I accept the terms of the license
agreement, click Next, then click Finish.
7. Restart the computer.
Windows Vista (32-/64-bit)
1. Install the board and boot up Windows.
2. At the Found New Hardware,click Cancel.
3. Insert the driver CD, close the Windows
Explorer screen when displayed.
4. Click Start, in the Start Search box, type
D:\setup.exe, press Enter. (Change D: to
match your CD/DVD-ROM drive letter)
5. At the User Account Control, click Allow.
6. At the TI USB3 Host Driver - Installshield
Wizard, click Next.
7. Select I accept the terms of the license
agreement, click Next, then click Finish.
8. Restart the computer.
7
Windows XP (32-/64-bit) / Server 2003 &
2008
1. Install the board and boot up Windows.
2. At the Found New Hardware Wizard, click
Cancel.
3. Insert the driver CD. Click Start, Run. Type
D:\Setup.exe, click OK. (Change D: to
match your CD\DVD-ROM drive letter)
4. At the TI USB3 Host Driver - Installshield
Wizard, click Next.
5. Select I accept the terms of the license
agreement, click Next, then click Finish.
6. Restart the computer.
8
To Verify Windows Installation
1. Go to Device Manager to verify installation.
For Windows 8/ Windows 7 / Windows XP /
Server 2008 R2 / Server 2003: Right click
Computer or My Computer, click Manage,
click Device Manager.
For Windows Vista: Right click Computer,
click Manage, click Continue, then click
Device Manager.
For Server 2008: Right click Computer, click
Manage, double click Diagnostics, then
click Device Manager.
2. Double click Universal Serial Bus
controllers. A Texas Instruments USB Root
Hub and a Texas Instruments XHCI
Controller should be displayed.
For Windows 8, a Texas Instruments USB
3.0 eXtensible Host Controller is displayed.
9
