Sigtronics SE-40P Series Manuel utilisateur

…when it counts!

Model SE-40P

Headset Instructions

The SE-40P series headset is adjusted at the factory for immediate use.The head-

set is equipped with a single plug and a coiled cord.

The headband is adjustable through a full range of motion, and the locking nuts

may be tightened to allow you to custom ﬁt the headphone. Place the head-

phone over your head and adjust the slides up until minimum pressure is felt on

the top of your head. For maximum noise attenuation, the clamping pressure of

the headband has been set at the factory. Releasing the clamping pressure by

bending the headband is not advised, because loss of attenuation will result.

The microphone boom is fully adjustable and will rotate 180 degrees for use on

the left or right side of the head.The locking screw that secures the boom to the

ear cup is factory set to insure the correct tension.Turning it will not change the

tension, because the nut on the inside of the cup will turn as well.

Microphone placement should be at the corner of the mouth, approximately

¼” from the lips. The exclusive thumb screw on the mic boom may be used to

assure proper placement.

Your SE-40P headset has a push to talk switch located on the mic side ear cup.The

mic is operative only when the switch is depressed. For intercom and radio func-

tion, depress the switch to talk.

When you ﬁrst connect the headset, turn the volume control on the headset up

to the full clockwise position, then adjust the listening volume with the audio

control of either your radio or intercom as appropriate. If applicable, crew mem-

bers should also turn their individual headset volumes up fully. Doing this allows

for a full range of adjustment for each passenger, since those with the most acute

hearing can turn their headset volume down, if necessary.

continued on back…

The headset parts may be cleaned with mild soap and water using a soft cloth.

Then dry immediately. Caution: Do Not immerse any part of the headset in

water or any other liquid. Be especially careful not to allow the microphone to

become wet! Exposure to moisture may cause internal corrosion and failure and

will void your manufacturers warranty.

Cleaning will help the headset maintain its“like new” condition for many years.

WINDSCREEN

The microphone windscreen will reduce annoying wind noise and breath pops

picked up by headset microphones. It also protects the microphone element

from dirt and moisture. The windscreen should be washed regularly to maintain

hygiene and avoid clogging. Wash in warm water and mild soap. Rinse thor-

oughly and make sure it is completely dry before putting it back on.

To remove the windscreen, take out the screw that holds the microphone on the

boom and grasp the windscreen lightly along its entire length and slip it off.

Put the windscreen on the microphone by gently pulling from the open end. Do

not pull it so tightly that it stretches against the end of the microphone.

WARRANTY

Your headset is covered by a limited one-year parts and labor warranty. Please

see the enclosed warranty card for details.

You may refer to the parts list on the reverse side, if you choose to replace parts

yourself. The parts list describes parts for this particular headset only. Parts lists

for other models are available on our Web Site or can be obtained by contacting

Sigtronics Corporation.

Sigtronics Corporation

178 East Arrow Highway

San Dimas, CA 91773

Phone: 909 305-9399

E-mail: info@sigtronics.com

Web Site: www.sigtronics.com

































































 

















 

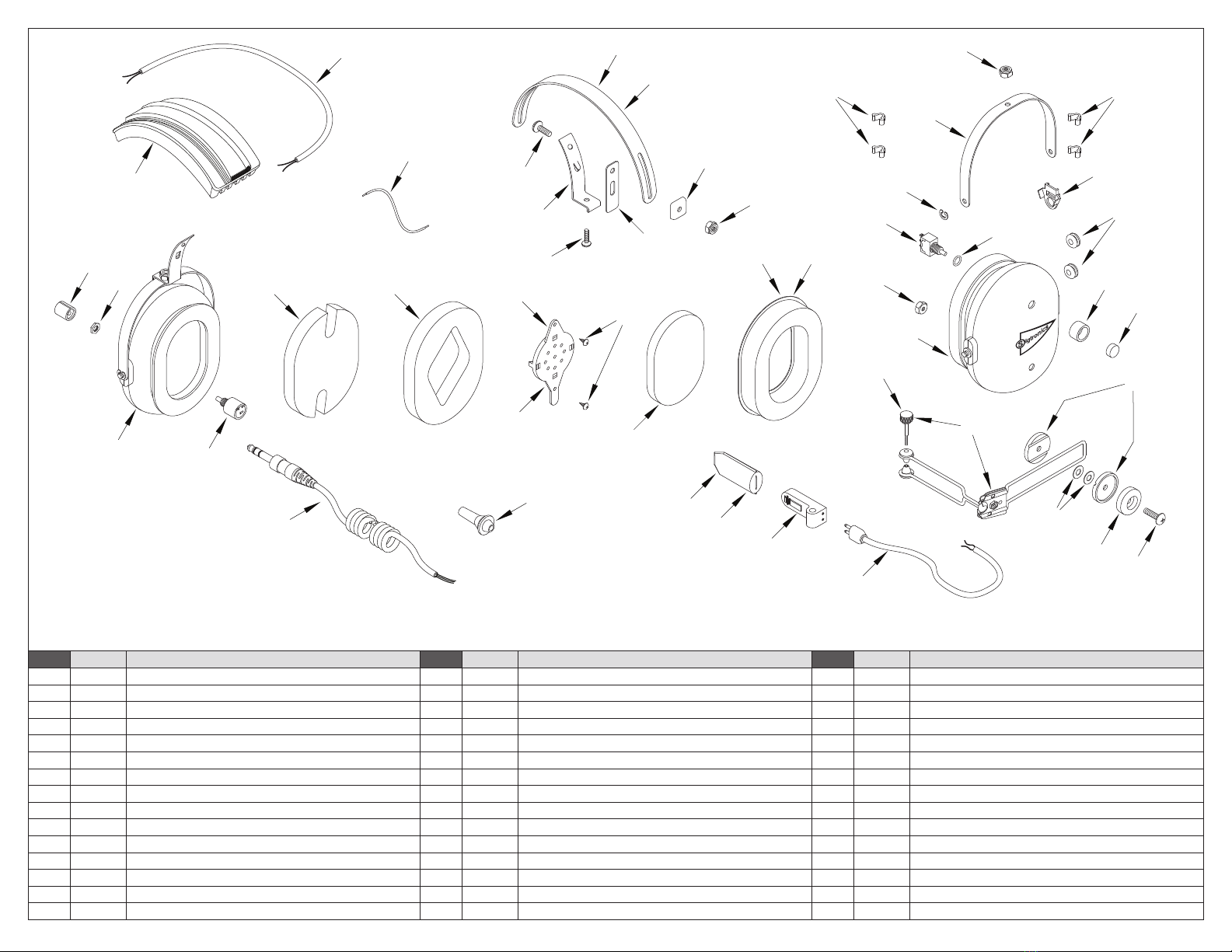

SIGTRONICS SE-40P HEADSET PARTS IDENTIFICATION BREAKDOWN

ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION

1100049 GROMMET, 5/16 INCH, RUBBER 16 100369 EAR SEAL, FOAM FILLED 31 800039 CABLE, MICROPHONE BOOM, 12 INCH

2100063 KNOB, 3/8 INCH, BLACK 17 100370 RECEIVER MOUNT, HEADSET 32 800048 HEADBAND , WITH CUSHION, SE-40

3100077 POTENTIOMETER 18 100221 WIRE, #22, 19 STRAND, 4 INCH 33 800082 MICROPHONE, ELECTRET, M-80

4100079 RECEIVER, 300 OHM, MONO 19 100373 SLIDE, YOKE BRACKET, LONG, NYLON 34 100568 STRAIN RELIEF, CABLE

5100108 SCREW, 4 X 1/4, THREAD FORMING 20 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 35 100156 SCREW, THUMB, MICROPHONE BOOM, 2-56 X 1

6100249 BOOM, ELECTRET MICROPHONE SUPPORT, SWIVEL 21 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 36 900084 WINDSCREEN, MICROPHONE, FOAM, PACKAGED

7100251 E-RING, EAR CUP TO YOKE RETAINER 22 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH 37 100415 WINDSCREEN, MICROPHONE, FOAM, BULK

8100252 NUT, HEX, 8-32, LOCKING 23 100366 WIRE, 2 CONDUCTOR, #24, BLACK, 28 INCHES 38 100232 SWITCH, SPDT, MOMENTARY

9100361 EAR CUP, PRINTED AND DRILLED, MIC & NON MIC SIDE 24 100258 CLIP, HEADBAND GUIDE, PLASTIC 39 100625 O-RING, PTT, HEADSET

10 100362 CLIP, CROSS-OVER, WIRE, PLASTIC 25 100393 CLIP, ANTI-ROTATION, YOKE, PLASTIC 40 100428 SWITCHGUARD, PTT, BLACK

11 100363 SCREW, 8-32 X 1/2, PHILLIPS HEAD 26 100383 HEADBAND, METAL, STANDARD 41 100317 BUTTON, SWITCH, PTT, RED

12 100364 SCREW, 8-32 X 3/8, PHILLIPS HEAD 27 100384 BRACKET, YOKE SUPPORT WITH TANG 42 100257 OPTIONAL – HEADBAND, METAL, LARGE

13 100377 SCREW, 8-32 X 5/8, PHILLIPS HEAD 28 100385 WASHER, SPRING, BOOM ADAPTER 43 100402 OPTIONAL – EAR SEAL, GEL FILLED

14 100367 YOKE, EAR CUP MOUNT, METAL 29 100408 WASHER, GROOVED BOOM

15 100368 KNOB, MICROPHONE BOOM ADAPTER, PLASTIC 30 800035 CABLE, HEADSET, STEREO, COILED

3-18-2009

se-40p.pdf
