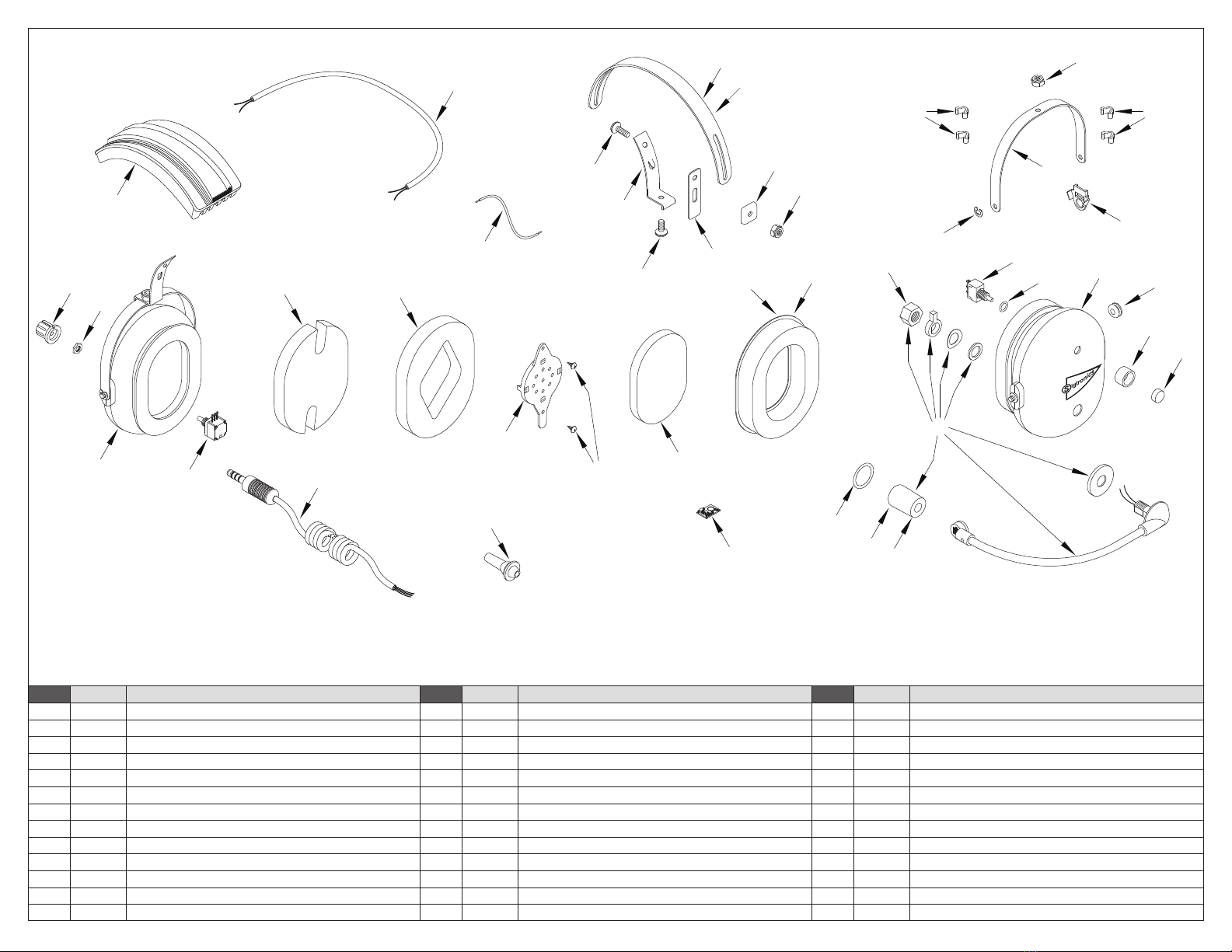

SIGTRONICS ST-48RPTT HEADSET PARTS IDENTIFICATION BREAKDOWN
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1100049 GROMMET, 5/16 INCH, RUBBER 14 100603 YOKE, EAR CUP MOUNT, METAL, BLACK 27 100604 BRACKET, YOKE SUPPORT WITH TANG, BLACK
2100769 KNOB, 1/2 INCH, BLACK, TACTICAL 15 100569 STRAIN RELIEF, CABLE 28 800192 PREAMP
3100077 POTENTIOMETER 16 100369 EAR SEAL, FOAM FILLED 29 800221 HEADBAND , WITH CUSHION, ST-48
4100858 RECEIVER AND MOUNT, 300 OHM, MONO 17 100221 WIRE, #22, 19 STRAND, 4 INCH 30 100597 NUT, HEX, 3/8-24, FLEX BOOM ADAPTER
5100108 SCREW, 4-40 X 1/4, THREAD FORMING 18 800046 CABLE, HEADSET, COILED 31 100232 SWITCH, SPDT, MOMENTARY
6800193 MICROPHONE & FLEX BOOM ASSEMBLY 19 100373 SLIDE, YOKE BRACKET, LONG, NYLON 32 100625 O-RING, PTT, HEADSET
7100743 E-RING, EAR CUP TO YOKE RETAINER, BLACK 20 100374 FOAM, SOUND ATTENUATING. NOTCHED, 1/2 INCH 33 100428 SWITCHGUARD, PTT, BLACK
8100742 NUT, HEX, 8-32, LOCKING, BLACK 21 100376 FOAM, SOUND ATTENUATING. RECEIVER HOLE, 1/2 INCH 34 10 0317 BUTTON, SWITCH, PTT, RED
9100770 EAR CUP, BLACK, PRINTED & DRILLED, MIC & NON MIC SIDE 22 100379 FOAM, SOUND ATTENUATING, RECEIVER COVER, 1/4 INCH 35 90 0111 WINDSCREEN, MICROPHONE, FOAM, PACKAGED
10 100362 CLIP, CROSS-OVER, WIRE, PLASTIC 23 100612 O-RING, WINDSCREEN RETAINER, ST-48 36 10 0 611 WINDSCREEN, MICROPHONE, FOAM, BULK
11 100745 SCREW, 8-32 X 1/2, PHILLIPS HEAD, BLACK 24 100258 CLIP, HEADBAND GUIDE, PLASTIC 37 100613 OPTIONAL – HEADBAND, METAL, LARGE, BLACK
12 100744 SCREW, 8-32 X 3/8, PHILLIPS HEAD, BLACK 25 100393 CLIP, ANTI-ROTATION, YOKE, PLASTIC 38 100402 OPTIONAL – EAR SEAL, GEL FILLED
13 100366 WIRE, 2 CONDUCTOR, #24, BLACK, 28 INCHES 26 100602 HEADBAND, METAL, STANDARD, BLACK
