SignWarehouse EnduraLAM 3 Manuel utilisateur

EnduraLAM 3

User Manual

LMN-ES-C-55-1400E COLD

LMN-ES-C-55-1700E COLD

Please read this manual in detail before operation

10-27-21



CONTENT
Features：.......................................................................................................................................2
INSTALLATION...................................................................................................................3
1 NOTES:.................................................................................................................................3
2 Frame assembly ..................................................................................................................4
3 Machine Installation............................................................................................................5
Safety...............................................................................................................................8
1 Warning Symbols.................................................................................................................8
2 Safety parts .........................................................................................................................9
3 SAFETY NOTICE..................................................................................................................10
Technical parameter...................................................................................................11
PARTS OF LAMINATOR.....................................................................................................12
1Front view ..........................................................................................................................12
2 Back view...........................................................................................................................12
3 Notes.................................................................................................................................13
USAGE OF MACHINE.........................................................................................................18
Laminating process.....................................................................................................23
1 Lamination Principles........................................................................................................23
2 Operation ..........................................................................................................................23
3 Notes for Operation ..........................................................................................................24
Trouble Shooting.........................................................................................................25
Maintenance...................................................................................................................26
1 Maintenance of rollers......................................................................................................27
2 Cleaning..........................................................................................................................28
3 Checking.........................................................................................................................28
3.1 visual checking ....................................................................................................28
3.2 Safety parts checking ..........................................................................................28

















Description：

Thank you for purchasing an EnduraLAM III laminator. In addition to the traditional

function of cold lamination, auto-peeling of liner paper and print take-up, it has the function of

increasing the laminating pressure. The function can effectively improve the output quality.

Besides, smarter and people-oriented innovation in the design concept and details will give you

simple and relaxing lamination experience.

Please read the manual carefully, including the installation, operation and maintenance to

ensure the best output and the service life of the machine. For after sale service, please fill in

the Warranty Card in the manual and fax or mail it to our company.

Features：

Simple Control Panel

Unlimited Speed control

Hand Crank Pressure Adjustment

Removable Working Table

Roll to Roll Lamination

Hands-free Foot Pedal

Emergency Stop button

Supported Applications：

Cold Laminating of digitally printed films, mounting of pressure-sensitive adhesive films to

rigid substrates, transfer tape application.

1. INSTALLATION

1.1 NOTES:

1. Before unpacking, carefully check for signs of apparent shipping damage. If there is any

indication that the product has been damaged, note it on the bill of lading and contact

SIGNWarehouse Product Support or Customer Service at your earliest opportunity.

2. After unpacking, check the contents against the packing list to make sure everything has

been shipped as expected.

3. The area of intended use for the laminator should be spacious enough for personnel to

move around the unit, and free of dust, corrosive fumes, and flammable or combustible

substances. For best results use the equipment in a climate-controlled environment.

4. After installation, adjust each of the casters to ensure that the product is secure and

level. The casters are designed to support the laminator for moving short distances.

NOTE: Take care when installing and moving the laminator. The equipment is heavy and may

require two or more adults to place, position or move the laminator.

1.2 Stand assembly

1) Unpack all the parts for the floor stand and make sure there are no missing pieces.

2) Assemble the two legs and all shafts according to FIG 1 below.

3) Install the casters to the left and right legs（Where two casters with brakes and two without

brakes are supplied, make sure you install one of each kind on each end of the stand.).

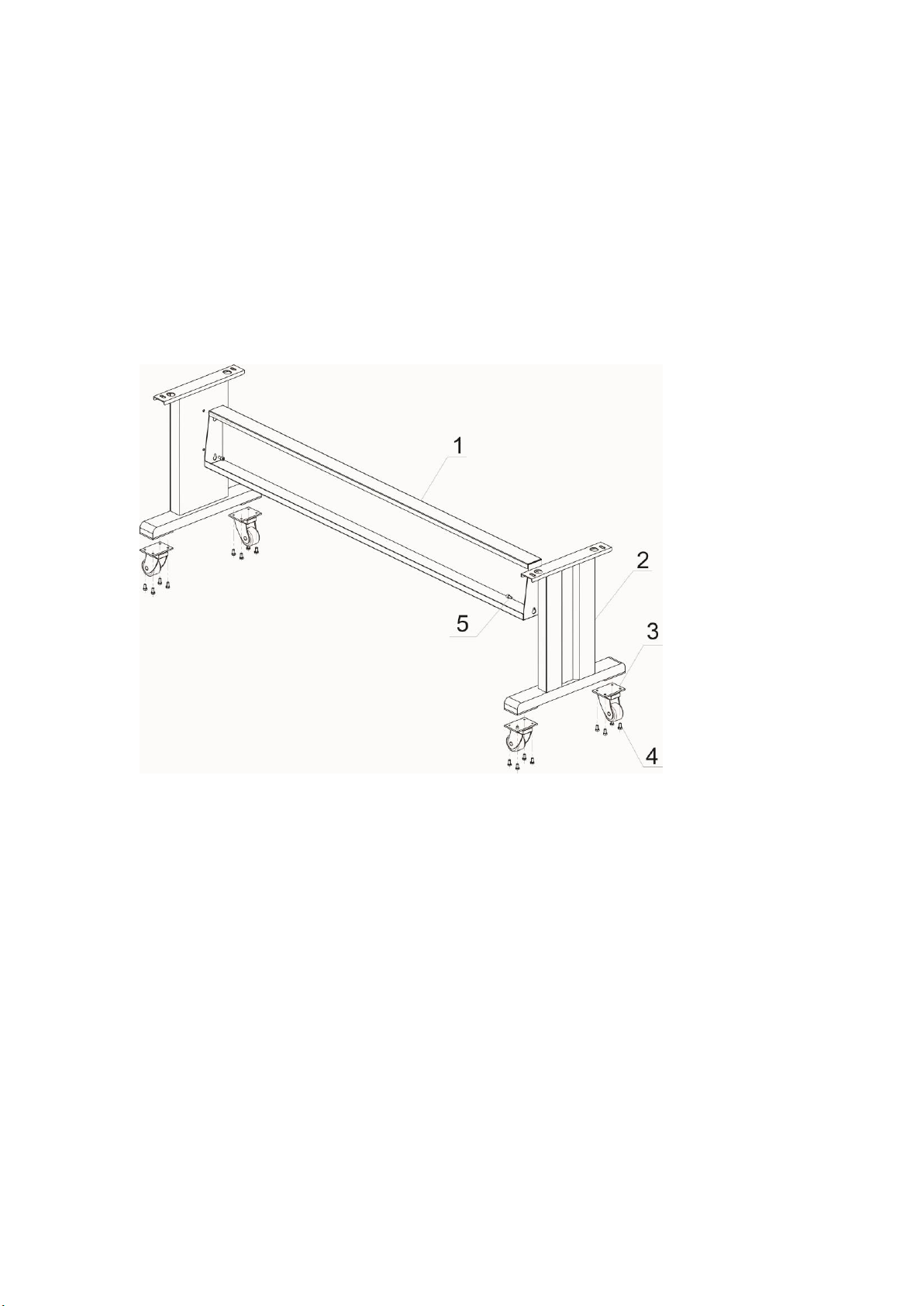

FIG 1) 1. Cross-bar 2. legs 3. Rolling casters. 4. Hex socket（M8*16）5. Hex socket（M8*16）

1.3 Machine Installation

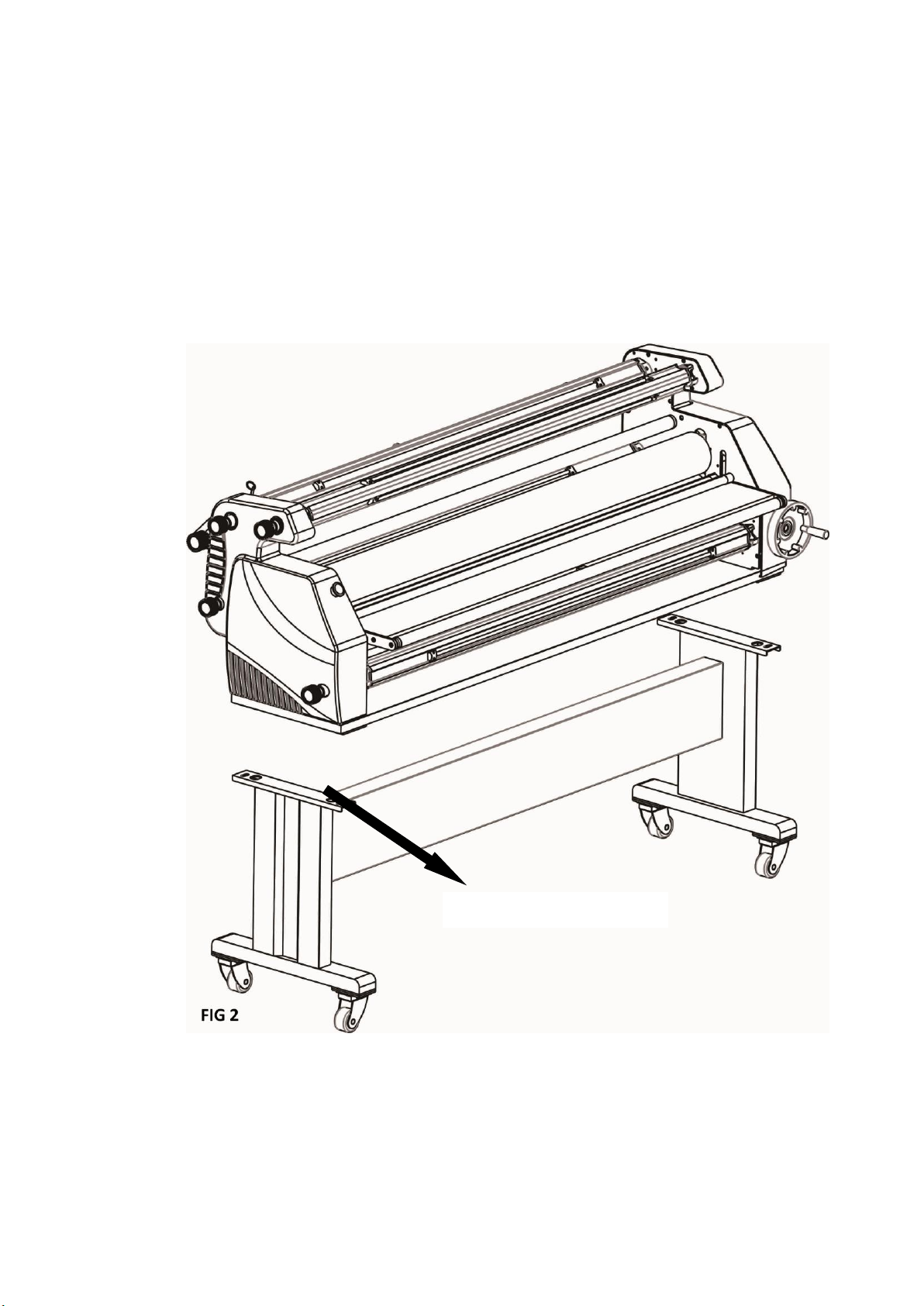

1) Carefully unwrap and remove the laminator from crate. This will require at least two

able-bodied adults. Use 4 of the supplied M10 screws to mount the laminator to the floor stand.

Take care to position the laminator facing the same direction as the front of the cross-bar, as seen

below (FIG2).

NOTE: When installing and moving the laminator, hold it by the frame. Do not use the hand

crank or friction wheel. These may provide an insecure hand-hold and may result in injury or

damage to the equipment.

fixed by M10

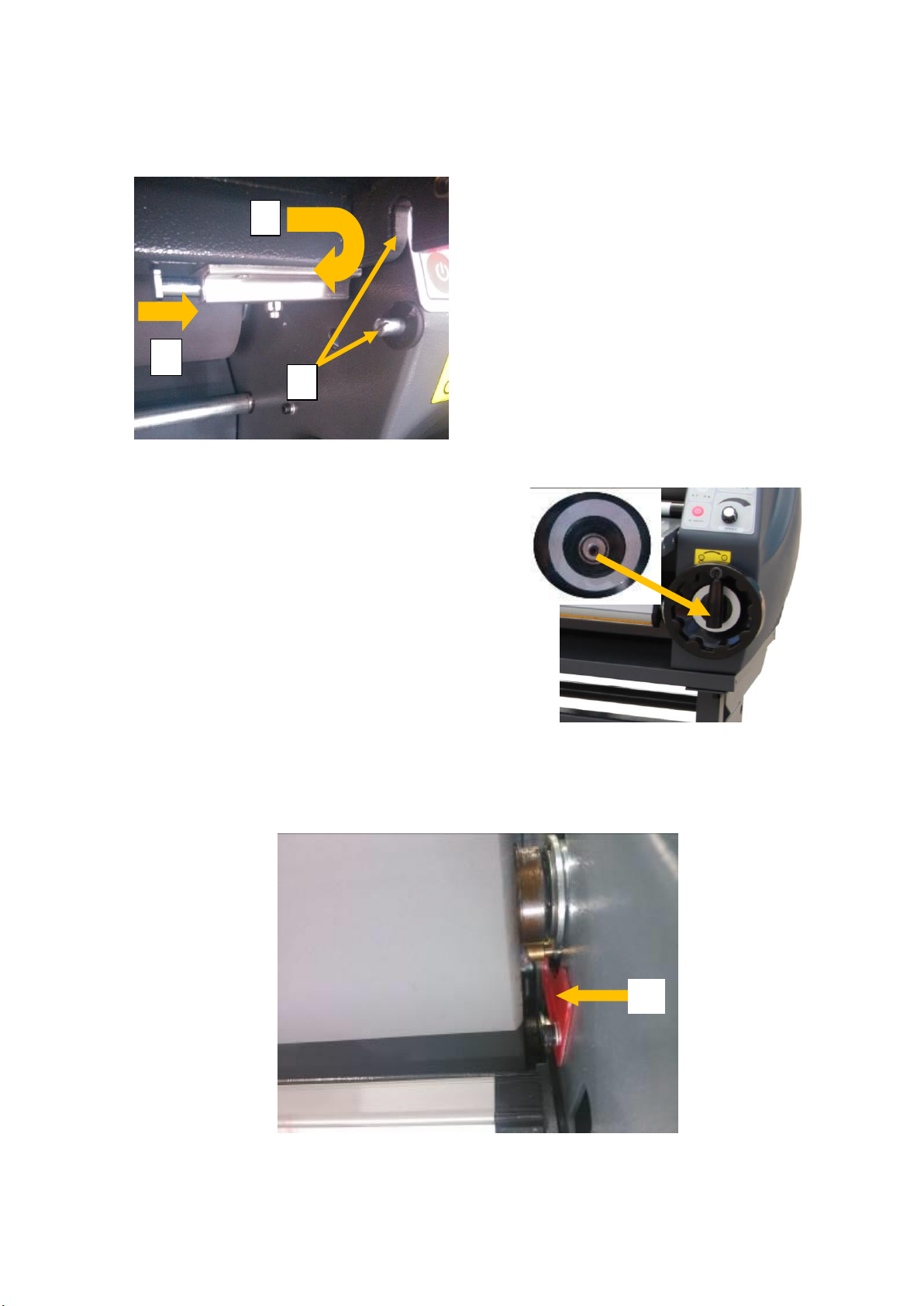

2）Working Table Installation（Refer to Pic）。

1. Hold the media feed table sideways and

place it onto the front of the laminator. Align

the media table opening and screw.

2. Under the feed table(A), at each end, push

the table interlocks towards the side frames to

secure the feed table.

3. Replace the pressure plate.

3）Shaft assembly（Refer to 4.3）。

4）The hand crank on the right front of machine is

used to adjust the roller pressure. Turn the

handle counter-clockwise to lower the main

roller, or to increase the roller pressure. The

Gap/Pressure crank must be installed before

first use. Remove the shaft cap, fix the hand

wheel onto the axle, and then re-install the

shaft cap.

5）Remove the red shipping locks on both ends of roller ( See below).

6）Connect the foot pedal and wiring as following illustration.

Power: Cables and On/Off Switch

A: Power switch

B: Power cable

C: Foot Pedal connector

7）Turn on the machine, roller is rotating. Make trial laminating if everything is well and check the

lamination result.

2 Safety

Read the safety instructions and familiarize yourself with the main structure, performance and

operation measures before starting the machine. When using the equipment, please take note of

the warning labels placed on the surface. These are provided to support safe operation of the

product. All personnel operating the laminator should read this manual and become familiar with

the warning labels and their meaning.

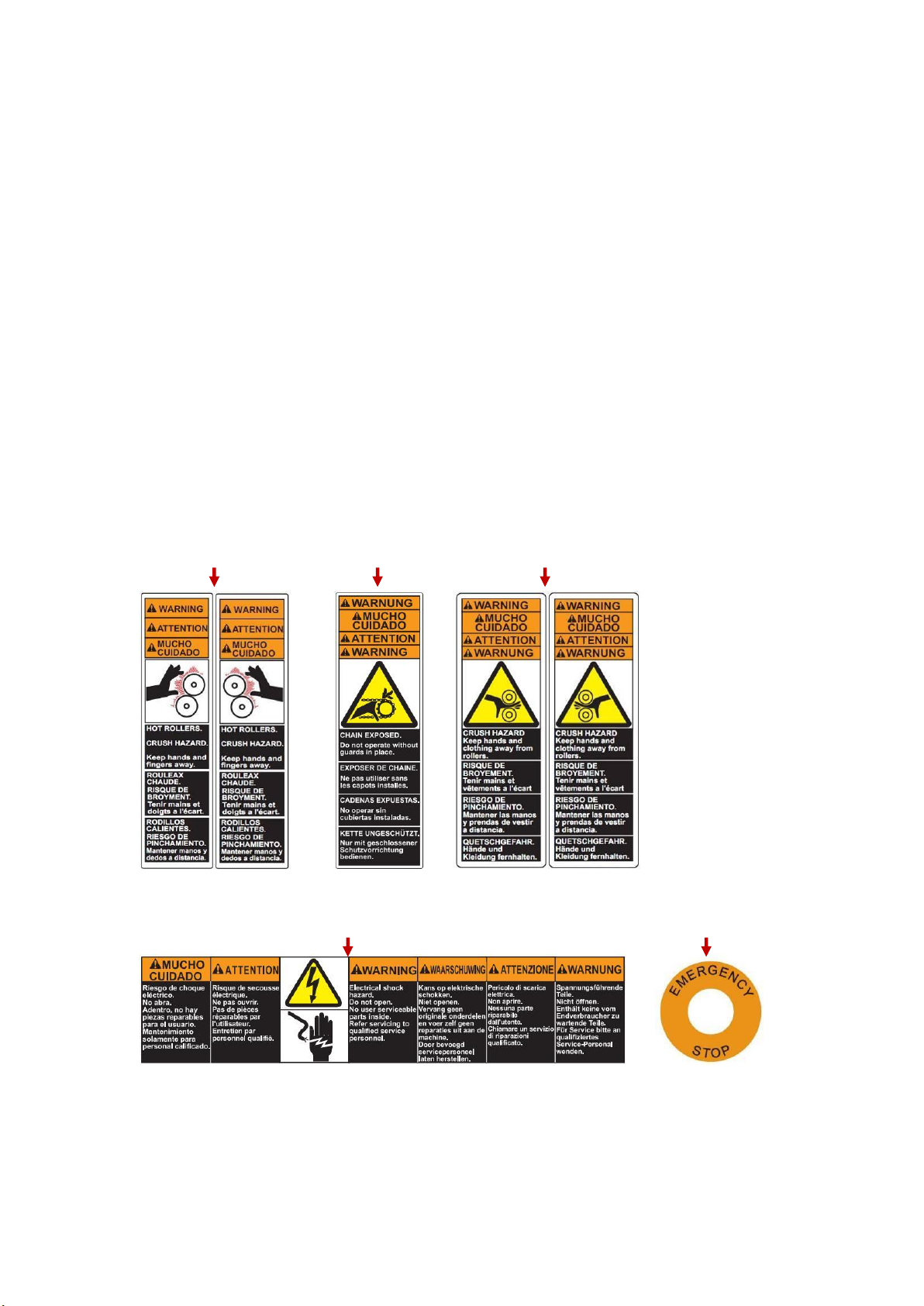

2.1 Warning Labels

A. Crush Hazard: Placing hands or fingers in or near rollers during operation may pose hazard

of injury to hands. Keep hands away from rollers during operation.

B. Chain hazard: Keep hands, hair, and loose clothing away from drive chains and gears.

Hands, hair, or clothing caught in chains or gears may pose risk of injury.

C. Crush Hazard: Placing hands or fingers in or near rollers during operation may pose hazard

of injury to hands. Keep hands away from rollers during operation.

D. Electric shock：Risk of electric shock. Do not touch these components unless the unit is

powered down and unplugged.

E. EMERGENCY STOP：In case of emergency, press the red button to immediately cease

operation.

2.2 Safety Features

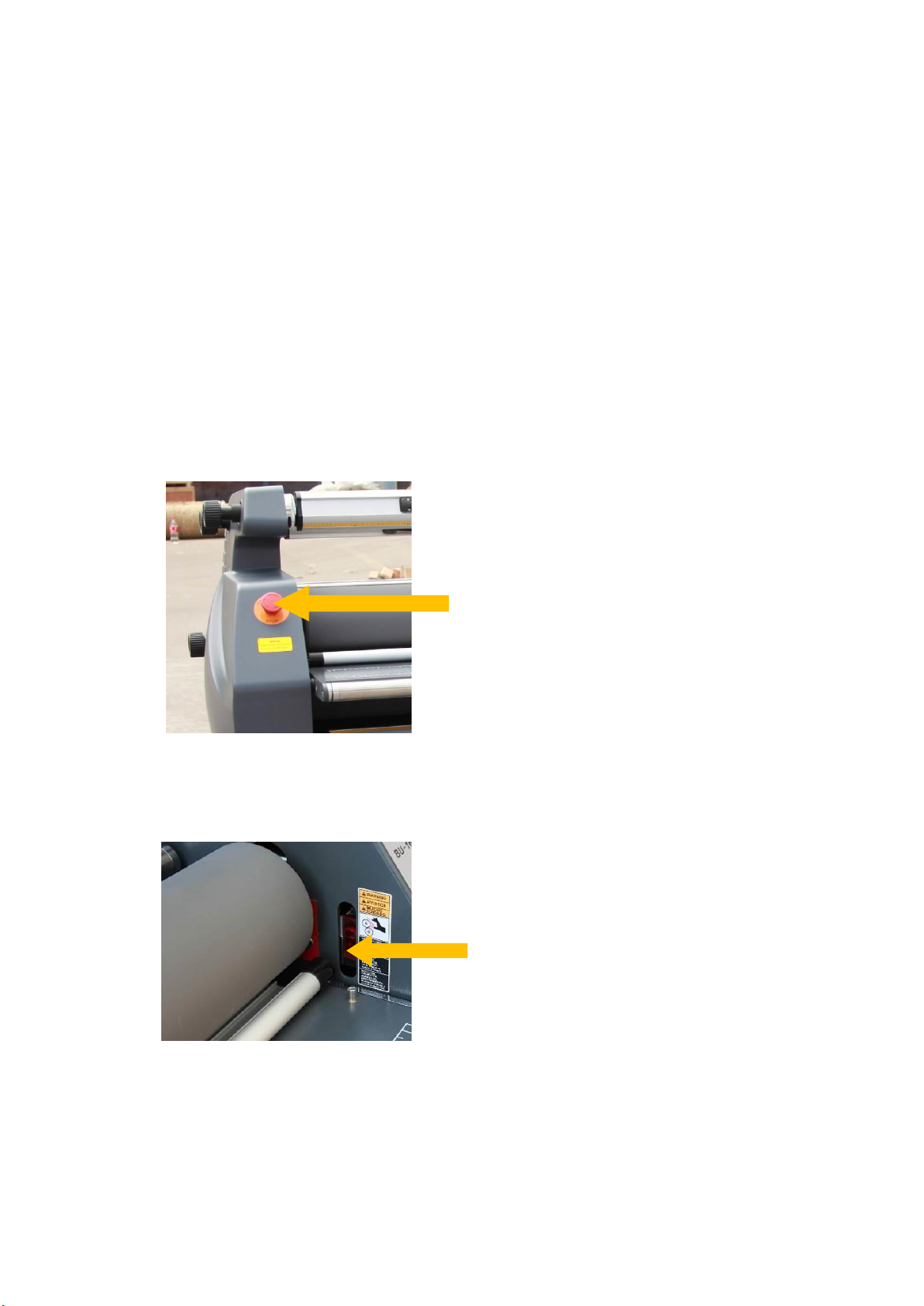

◼Emergency

In case of emergency, press the large, red

Emergency Stop button to shut off the power

and stop the rollers. To resume operation and

release the Estop, turn the button clockwise. It

will rise to its normal position automatically.

Press “on” from control panel to resume

movement of the pressure roller.

NOTE：In case of emergency, press the

Emergency Stop button immediately ！

EMERGENCY SWITCH

◼Safety Sensor

There is a ssafety sensor located in front of

roller and support shaft. When an object

blocks the sensor, the machine detects the

risk of injury and immediately stops the

pressure roller. To resume operation, turn

on the switch on the control panel. To ensure

safe operation, it is recommended that you

test the safety sensor before first use of the

product.

NOTE: Use of the foot pedal deactivates the safety sensor.
