Thank you for purchasing this Signi Fires product. Signi Fires is very safety conscious, we

have taken every care in designing, manufacturing and assembling your Signi Fires Frame

to ensure it operates effectively, efficiently and safely. In return we ask that you exercise

care when using and installing this product and follow the instructions provided. Please

make sure that you have read and understand the Signi Fires Slimline Burner Manual that

you received with the Slimline Burner itself before attempting to install this product. Before

using your Signi Fires Frame, please read all the information contained in this operation

manual carefully. When using this fireplace, basic precautions should always be followed,

including but not limited to the following.

Read all instructions and warnings before using this fireplace.

WARNING

DO NOT OVERFILL THE BURNER’S INTENDED CAPACITY.

DO NOT INSTALL INTO AN AREA WHERE THERE IS A DRAFT WHICH CAN AFFECT THE FLAME.

ESPECIALLY WHEN INSTALLING IN OLD HEARTHS, MAKE SURE HEARTH IS SEALED.

USE ONLY THE FUEL FOR WHICH THE SLIMLINE BURNER IS INTENDED.

DO NOT TOUCH THE EXTERIOR OF THE SLIMLINE BURNER DURING OR AFTER BURNING.

PARTS OF THIS SLIMLINE BURNER CAN REACH HIGH TEMPERATURES.

DO NOT HAVE COMBUSTIBLE OBJECTS IN CLOSE PROXIMITY TO THE BURNER.

NEVER POSITION THE FRAME WITHIN RANGE OF COMBUSTIBLE ITEMS THAT CAN BE

MOVED/BUMPED BY ACCIDENT, OR BLOWN BY THE WIND. e.g CURTAINS & BLANKETS

ONLY USE THE FRAME IN AREAS WITH GOOD VENTILATION.

DO NOT COVER THE FRAME VENT WITH ANY DECORATIVE ITEMS WHETHER THEY ARE

COMBUSTIBLE OR NON COMBUSTIBLE

DO NOT INSTALL THE FRAME ONTO COMBUSTIBLE MATERIAL SUCH AS WOODEN WALLS

AND OTHER FLAMMABLE MATERIALS.

CAUTION

Make sure you have read and understood this manual before using this product.

Do not overfill or spill fuel when refilling.

If fuel is spilled, wipe with a dry cloth and allow the rest to evaporate before introducing

a flame to the burner.

If the burner is accidentally overfilled, follow the steps given in these next pages.

To refill, wait until the burner is at the room temperature after the flame has been turned

off. NOTE: the flame may not be visible to the naked eye in daylight.

Never refill over or near an open flame.

Use the supplied funnel or pump to refill.

Remove all plastic & packaging before using the burner.

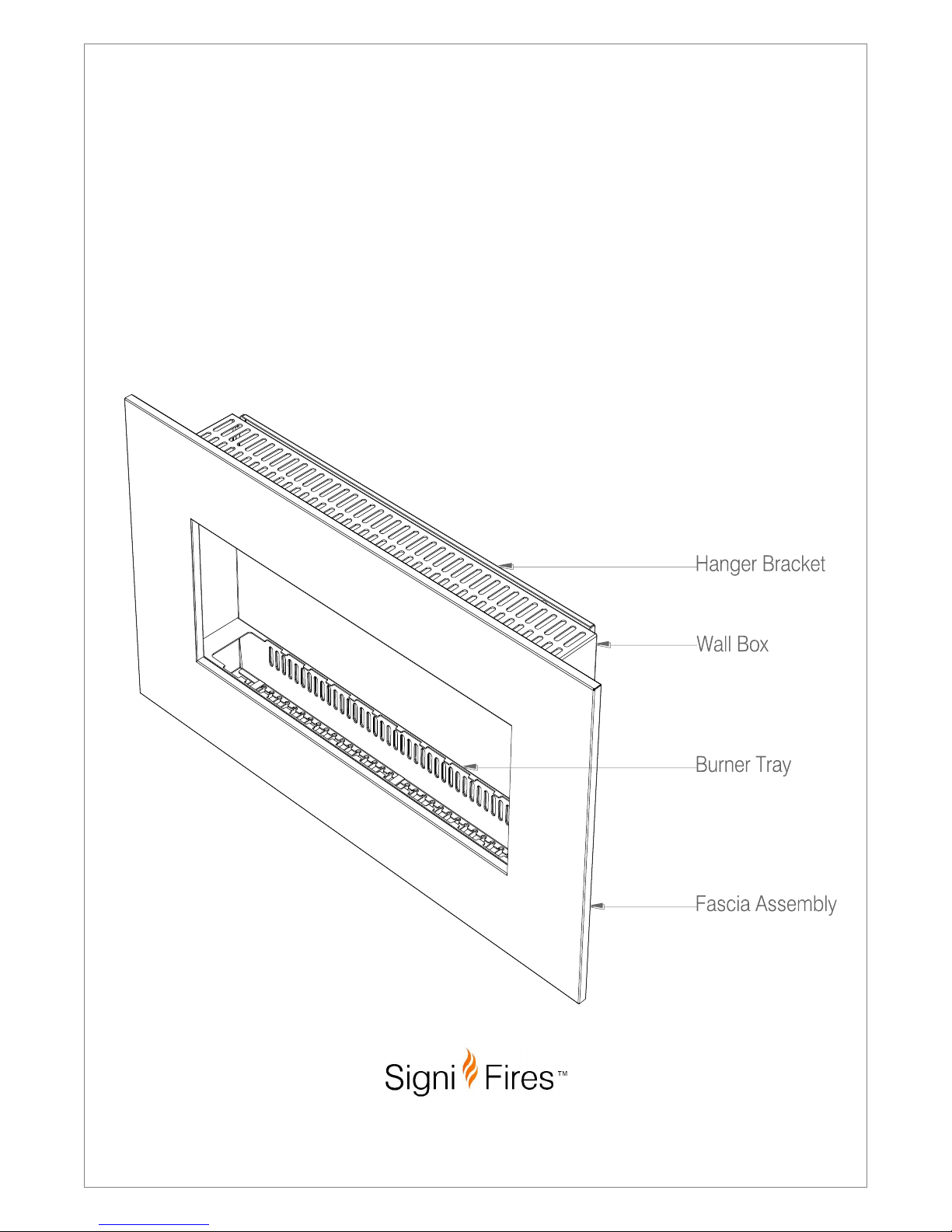

CONTENT OF PACKAGING:

Hanger Bracket - qty 1 (wall screws/fixings not supplied)

Wall Box - qty 1

Burner Tray - qty 1

Fascia - qty 1 (Separately packaged)

Safety Clips - qty 2

Installation Manual - qty 1

NOTE: Signi Fires does not supply the wall fixings for the Hanger Bracket to be fitted to the

wall because these fixings may need to vary depending on the material that the wall is

made of. Please consult your local building regulations or hardware specialist if you are

unsure.

1 - Product Specifications & Sizes

Wall

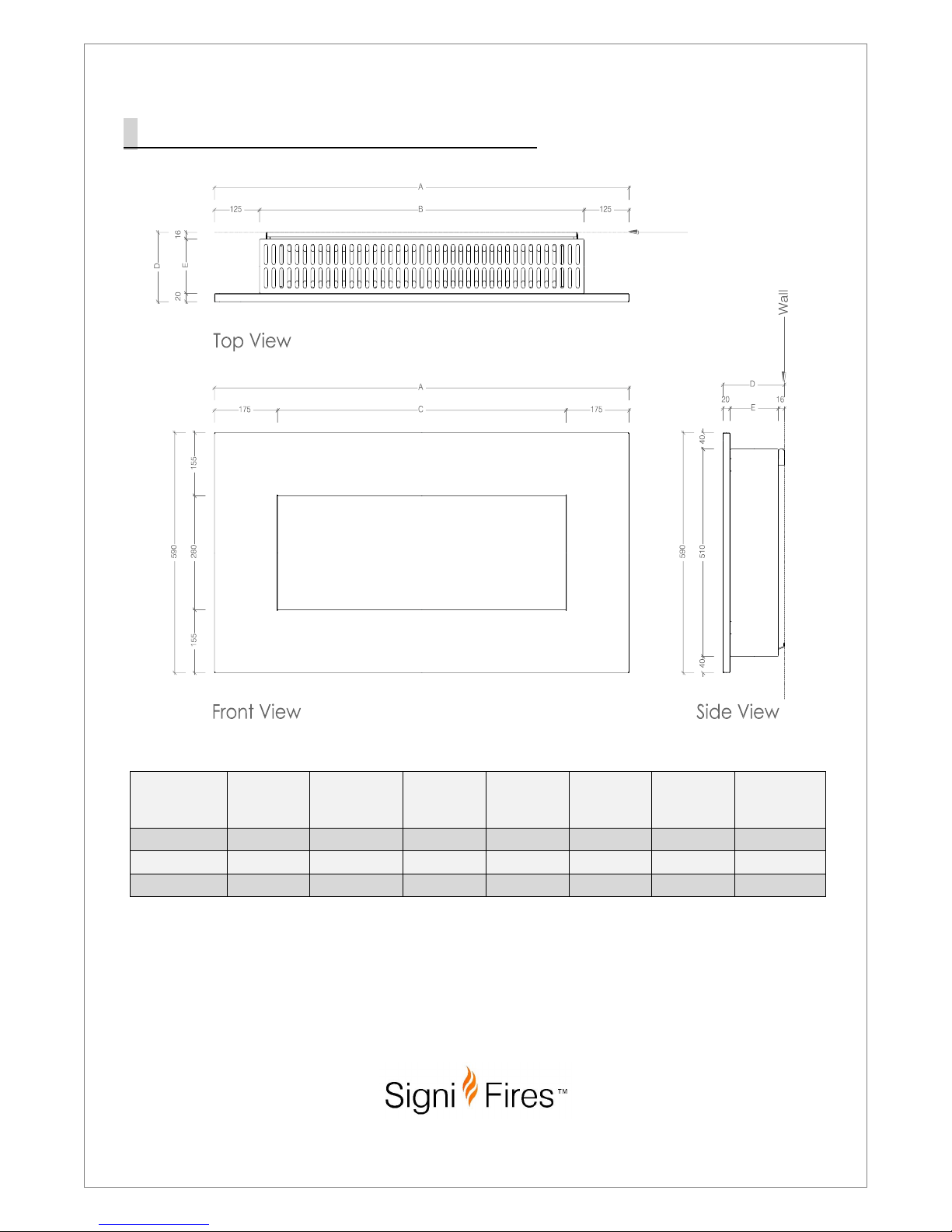

Overall Product Sizes & Weights:

Product

name

A = Fascia

Length

B = Wall Box

Length

C = Fascia

Opening

D = MM

From Wall

E = Wall

Box Depth

Weight

Excluding

Burner

* Weight

Including

Full Burner

Frame 1150

1150mm

900mm

800mm

170mm

134mm

28,5kg

43,25kg

Frame 1450

1450mm

1200mm

1100mm

195mm

159mm

35,5kg

62,25kg

Frame 1750

1750mm

1500mm

1400mm

195mm

159mm

42,0kg

77,25kg

* Please note the weight of the Frame including the Slimline Burner indicated here is the weight of the burner

once filled with fuel. Be sure that the fixings used will compensate for at least this plus, 25% to be safe.

Materials - Powder coated & painted steel, Stainless Steel

Applications - Indoor Only

Compatible Burners - Signi Fires Slimline Burner Range

2 - Wall Hanger Bracket Position

Size Burner

A= Fascia

Length

B= Fascia

Height

C= Fixing

Position

D= Fixing

Position

E= Fixing

Position

F= Fixing

Position

800 mm

1150mm

590mm

265mm

620mm

60mm

530mm

1100 mm

1450mm

590mm

265mm

920mm

60mm

530mm

1400 mm

1750mm

590mm

265mm

1220mm

60mm

530mm

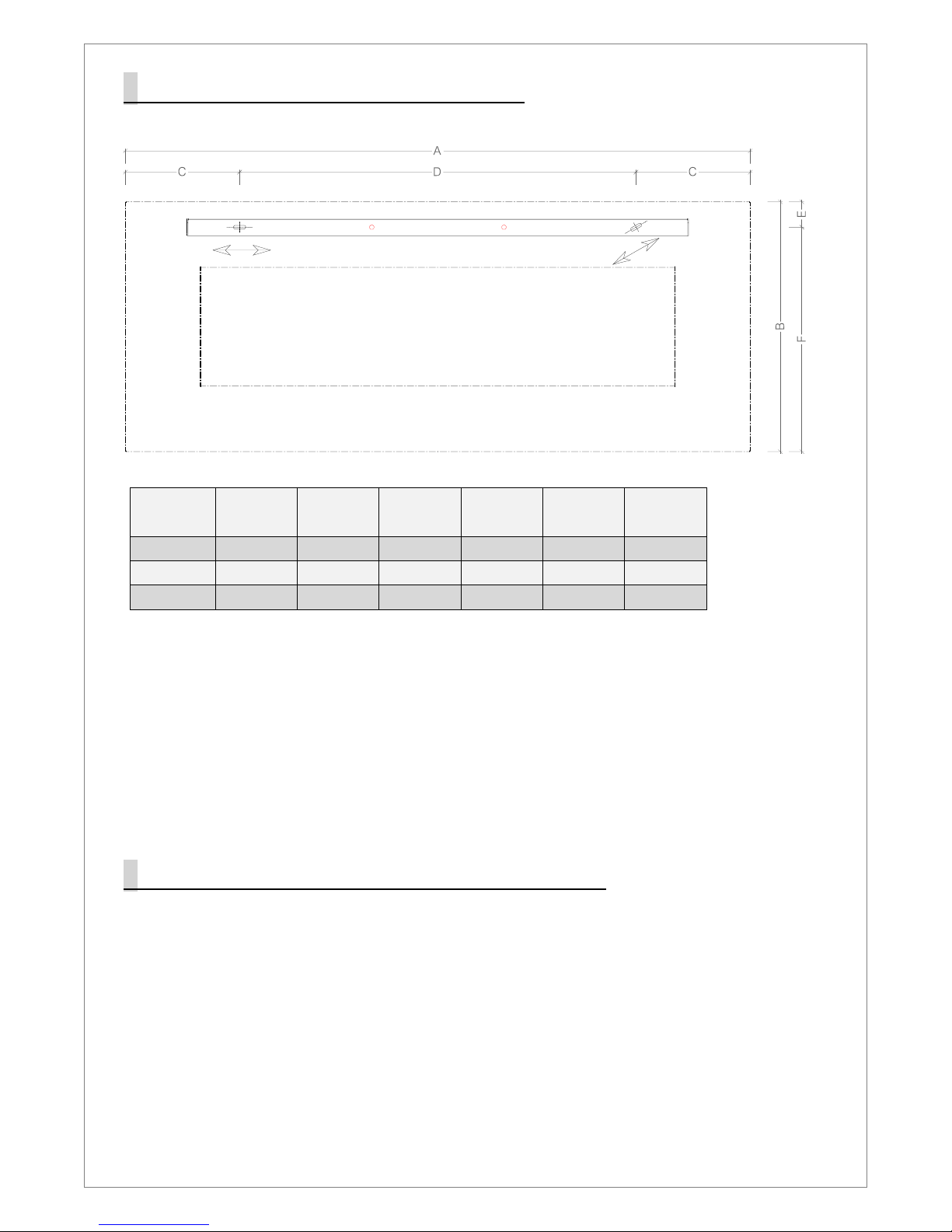

The drawing and table above shows the position of the wall fixings relative to the finished

position of the Fascia once everything is assembled. The Slimline Burner needs to be

mounted 100% level which is why the Hanger Bracket is designed to be slightly adjustable

in case the initial screw positioning is not correct. This is achievable by sliding the Hanger

Bracket from left to right when the fixings are in position (but not yet fastened) and by

using a spirit level to make sure the Hanger Bracket is level. Always fit the outer two screws

first, ensuring the Hanger Bracket is level. The larger models may have additional fixing

holes between the outer two, to support the weight of the unit. Always use all the fixing

holes in the bracket provided.

3 - Location, Positioning & Precautions

Make sure that the Slimline Burner and Frame is installed no closer than 1m (40 inch)

from any combustible items such as furniture, curtains, etc. See image below this

section. No combustible materials are allowed above the Frame at any height.

Do Not Place valuable items such as artwork, electronic devices, etc. above the Frame

as the hot air that rises from the flame may damage such items.

The Frame is not intended to be Built-In, it is designed to be mounted onto a surface as

indicated in this manual. There are other Slimline Burner Products available in the Signi

Fires Product Range intended for Built-In applications.

Always make sure the room in which the Frame is situated in is well ventilated when the

Frame is in use.

Position the Frame where it will not be affected by any breeze or draft, as this may

affect the behaviour of the flame in an unpredictable manner.

The Frame may not be mounted in a room made of a highly combustible material.

Do not cover any of the vents (top, bottom or back) of the Wall Box of the Frame.

Never place anything on top of the Frame.

It is advisable to consider children and pets when selecting a height for mounting of the

Frame. Always make sure it is not within their reach.

Never leave the Frame unattended when it is lit, or if it has just been extinguished.

4 - Installation Procedure

When purchasing Wall Fixings, make sure there are no plastic components. Use only metal

Wall Fixings that will support the weight of the Frame you have purchased... see Product

Specifications & Sizes table in this manual.

When installing this Frame you will require the following:

Appropriate Wall Fixings - qty 2 (or 4 for the larger models)

Corresponding tool for fastening the above mentioned Wall Fixings.

Power drill - and correct bits for Wall Fixings selected.

Spirit Level

Tape Measure

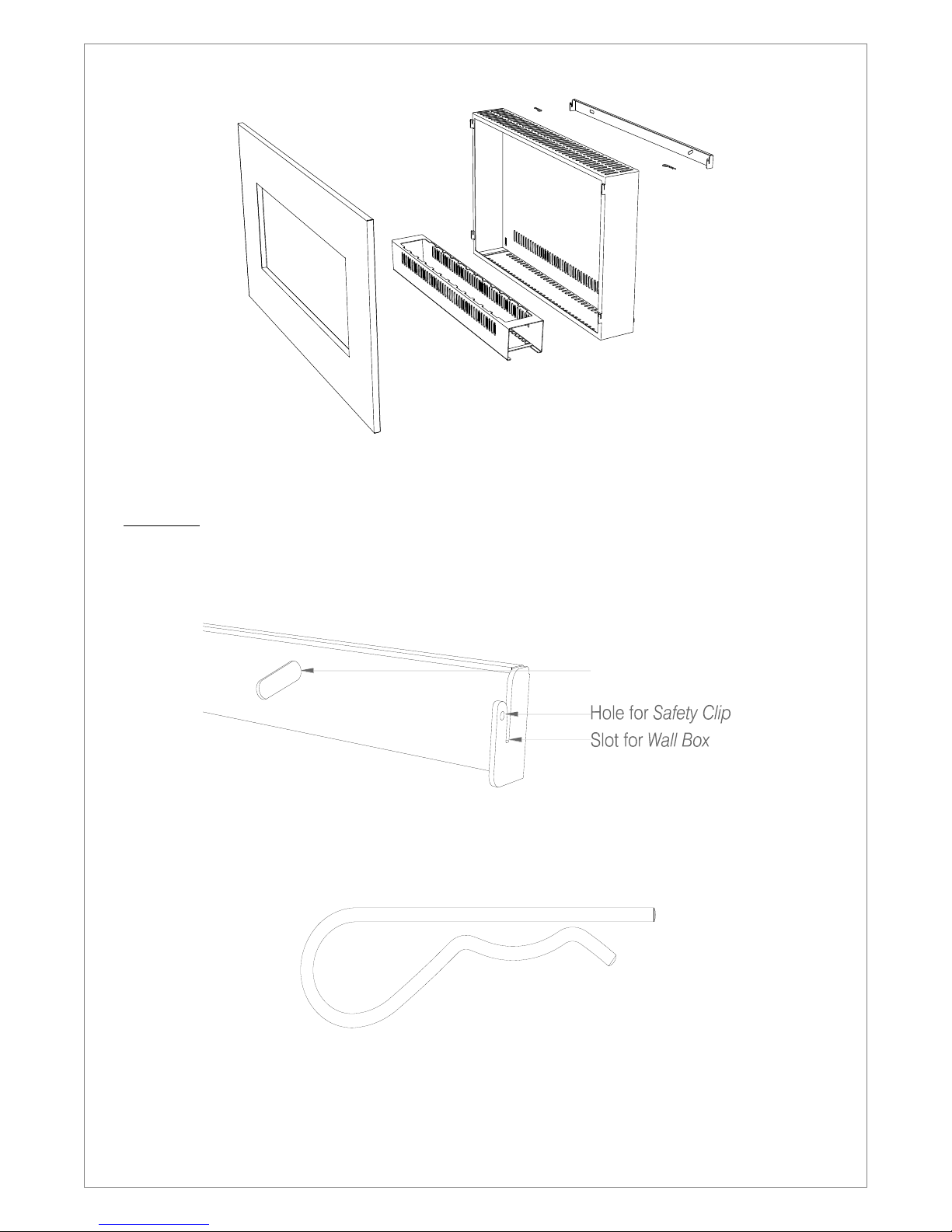

Perspective of Frame Exploded

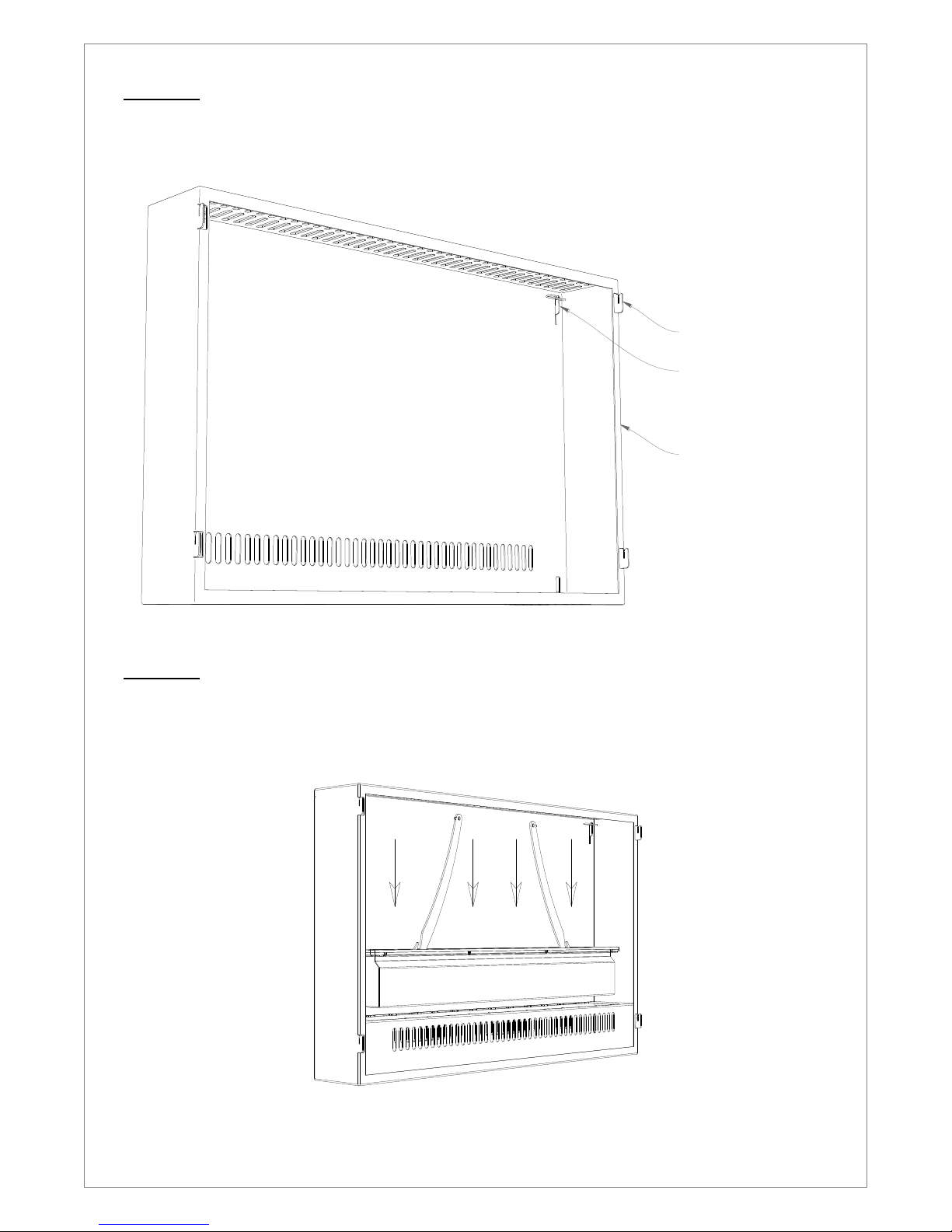

Step 1:

After selecting an appropriate position for the Frame to be located, mark out and fasten

the Wall Hanger Bracket to the wall.

Slot for Wall Fixing

NOTE: After hooking the Wall Box onto the Wall Hanger Bracket (Step 2), make sure that

the Safety Clips (image below) supplied are fitted into the appropriate holes to prevent

the Wall Box from accidentally becoming dislodged when the flame is burning.

NOTE: that the Frame may not be installed or mounted onto any combustible material.

Step 2:

Once the Wall Hanger Bracket is secured to the wall, hook the Wall Box onto the Wall

Hanger Bracket and secure in place with the Safety Clips.

Facia Assembly Clips

Wall Hanger Bracket with

SafetyClips in place

(both ends).

Wall Box

Step 3:

Using the hooks at the back end of the Sliding Lid Handles supplied with the Slimline

Burner, lower the empty Slimline Burner into the Burner Tray cut out as shown below. Do not

do this if the Fuel Tank contains fuel.

Step 4:

All that's left to do now is to hook the Fascia onto the Wall Box by aligning the four holes in

the back of the fascia with the four hooks (Fascia assembly clips)on the front of the wall

box. Fill the Slimline Burner with the appropriate fuel, ignite and enjoy. Please refer to

instructions in the Slimline Burner Manual supplied with the Slimline Burner for the

appropriate manner in which to do this.

ALWAYS KEEP HANDY A CLASS B FIRE EXTINGUISHER:

Class B fire extinguishers are used to put out fires that are caused by combustible liquids.

Class B fire extinguishers quell the flames by expelling a dry chemical powder or foam with

nitrogen propellant. The specific chemical can vary depending on the make or model.

Water may not extinguish this flame.

CLEANING & MAINTENANCE:

The surface of the inner metal sheet at the back of the fireplace can change with time

due to exposure to the heat of the fire which leads to a slight change in colour or

structure. This is to be considered normal wear and tear and does not constitute a product

flaw or fault. We recommend cleaning the back with a dry sheet of kitchen paper tower

followed by a well wrung wet lint‐free cloth. For cleaning the stainless steel burner please

consult the cleaning instructions in the Slimline Burner manual supplied with your burner.

Signi Fires warranty Terms and Conditions:

1. All warranty claims are subject to manufacturer’s review and acceptance.

2. Signi Fires warrants that it uses reasonable care and skill to ensure that its products are of

reasonable quality. Signi Fires will at it's cost and in it's sole discretion: (i) remedy any

defect or fault in any product purchased; or (ii) replace any product in respect of which

there is a defect or fault, during the warranty period, provided that written notice is given

by the Purchaser to Signi Fires of any such defect or fault in the product as soon as the

Purchaser becomes aware of that fault or defect. All warranty claims must be returned to

Signi Fires for assessment with a receipt or other proof of payment. No warranty is given in

respect of any glass contained in any product.

3. Signi Fires has no liability to remedy any defect in a product or replace a

product where the defect or fault is caused or contributed to by (i) the failure of the

Purchaser to install the product according to specific installation instructions either

supplied within each product box or carton or available on the Signi Fires website or

through the retailer representative; or (ii) use of the product in a manner or for a purpose

for which it was not designed.

4. All site application or installation must reflect these procedures otherwise the product

warranty will be considered void or will not take effect.

All products bearing the logo of Signi Fires logo is covered by a 1 year

warranty.

IMPORTANT:

Stone chipping, painting scratches and general scratches are not covered by the

Warranty.

Due to the characteristics of Stainless Steel, over time the finish will mature through

natural processes associated with the use with heat and a flame.

Is it recommended the Stainless Steel Components be polished annually with a non

abrasive polish to bring & restore the finish and also to regularly clean the products from

residue and dirt.
