4 I EOX®REMOTE 500 I Safety notes
Read the safety notes and the manual before putting the EOX®REMOTE 500 into operation! Improper use can cause
damage of the component and/or injuries.
Save the safety notes and the manual for your future reference!
−Make sure not to be distracted by the EOX®REMOTE 500 during the ride! Do not be distracted by the LED indicator.
During the ride you should not perform any operation other than changing the assist mode, changing the light,
and changing the values display on the EOX®VIEW.
−Do not use the EOX®REMOTE 500 as a handle to lift up your E-Bike!
This can lead to irreparable damage of the component.
1.1 Safety notes
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 4SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 4 16.09.2021 15:11:3516.09.2021 15:11:35
EOX®REMOTE 500 I Operation and display elements I 5

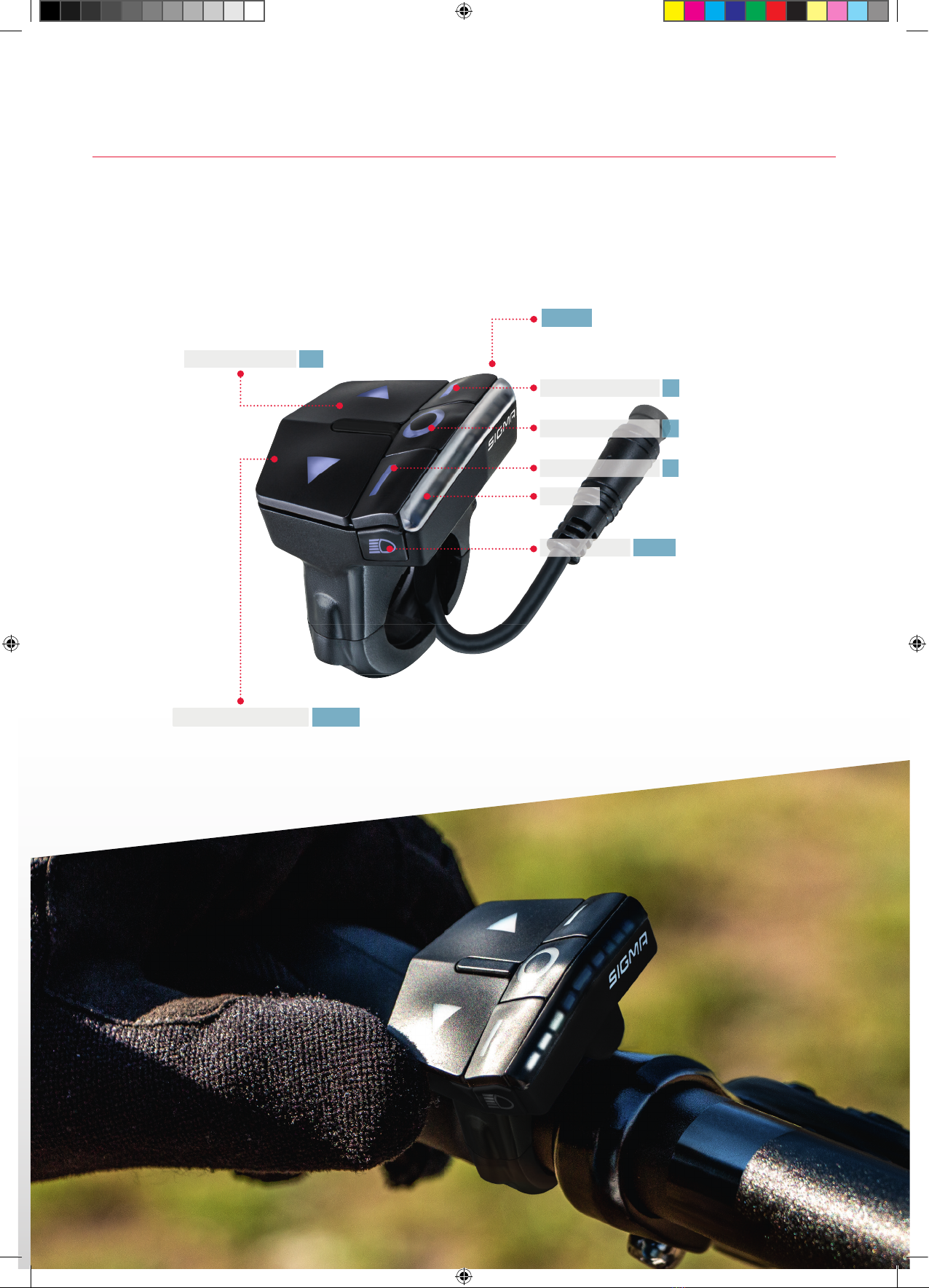

−The EOX®REMOTE 500 has seven ergonomically designed buttons.
−The button backlight will be automatically triggered once the environment becomes dark.
−The LED bar consists of 9 RGB LEDs and provides feedback for different E-Bike specific information.
1.2 Operation and display elements
ASSIST MODE UP
ASSIST MODE DOWN
LIGHT MODES
LED BAR
REMOTE CONTROL
REMOTE CONTROL
REMOTE CONTROL
A
POWER
B
C
UP
DOWN
LIGHT
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 5SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 5 16.09.2021 15:11:3816.09.2021 15:11:38
6 I EOX®REMOTE 500 I Operation and display elements
−The LED bar of the EOX®REMOTE 500 shows the current level of your E-Bike‘s battery.
−Six levels are distinguished.
−Threshold values may vary slightly depending on the system.
= LED flashing
1.2.1 Battery level
Charging Discharging
0 - 19 % 100 - 80 %
20 - 39 % 79 - 60 %
40 - 59 % 59 - 40 %
60 - 79 % 39 - 20 %
80 - 99 % 19 - 10 %
100 % 9 - 0 %
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 6SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 6 16.09.2021 15:11:4716.09.2021 15:11:47
EOX®REMOTE 500 I Operation and display elements I 7
1.2.2 Assist Mode
1.2.3 Error messages
−The EOX®REMOTE 500 indicates currently selected assist mode using the upper four LEDs of the status bar.
−Six assist modes are differentiated by color.
−The EOX®REMOTE 500 shows error messages of your E-System.
−Four severity levels are distinguished.
−In case of any error message please contact your dealer.
= LED flashing
LED bar
Error Severity Level 1 Level 2 Level 3 Level 4
LED
bar
Assist
Mode O ff 1 (Minimum)
Light Blue
2
Blue
3
Green
4
Pink
5 (Maximum)
Red
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 7SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 7 16.09.2021 15:11:5216.09.2021 15:11:52
8 I EOX®REMOTE 500 I Operation
1.3.1 Turn on the E-System
1.3.2 Turn off the E-System
1.3 Operation
−To turn on your E-System long-press the button
of the EOX®REMOTE 500 (>2s).
−The LED bar of the EOX®REMOTE 500 turns on.
−If an EOX®VIEW 1200 is connected the display
turns on automatically.
−To turn off your E-System long-press the button
of the EOX®REMOTE 500 (>2 s).
−If an EOX®VIEW 1200 is connected the display
turns off automatically.
To turn on your E-System long-press the button
POWER
To turn off your E-System long-press the button
POWER
POWER
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 8SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 8 16.09.2021 15:11:5516.09.2021 15:11:55
EOX®REMOTE 500 I Operation I 9
1.3.3 Switch assist mode
−To switch to the next higher assist mode
press the UP button briefly.
−To switch to the next lower assist mode
press the DOWN button briefly.
−The color of the upper four LEDs of the LED bar
changes according to the selected assist mode
(see chapter 1.2.2).
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 9SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 9 16.09.2021 15:12:0016.09.2021 15:12:00
10 I EOX®REMOTE 500 I Operation
1.3.4 Switch light status
−By the integrated ambient light sensor the
EOX®REMOTE 500 can control the light
of your E-System automatically.
−The light status can always be switched manually
by and pressing the LIGHT button.
−If the light is turned on you can press the LIGHT button
to switch between low beam and high beam mode
(in case your E-Bike light supports these modes).
by and pressing the
SINGLE
by and pressing the
LONG
1.3.5 Remote control
−The functionality of the three remote control buttons (A, B, C)
changes whether an EOX®VIEW 1200 is connected or not.
−With EOX®VIEW 1200 connected, the purpose of the
three buttons is to remotely operate the display (see chapter 2)
−If no EOX®VIEW 1200 is connected, the three remote control
buttons can be used to control the EOX®App (see chapter 4).
A
B
C
AUTO
MODE
LONG
SINGLE
SINGLE
LONG
SINGLE
SINGLE
SINGLE
SINGLE
LONG
SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 10SIGMA-SPORT-EOX-Manual-EN-210x297-HZM-V1.indd 10 16.09.2021 15:12:0316.09.2021 15:12:03
