SIGLENT TECHNOLOGIES SDS2000 Series Manuel de l'opérateur

SDS2000X HD

Series

Digital Storage

Oscilloscope

Quick Start

EN01A

SDS2000X HD Quick Start I

Declaration

SIGLENT products are protected by patent law in and outside of P.R.C.

SIGLENT reserves the right to modify or change parts of or all the specifications or

pricing policies at the company’s sole decision.

Information in this publication replaces all previously corresponding material.

Any method of copying, extracting or translating the contents of this manual is not

allowed without the permission of SIGLENT.

Note: SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO.,

LTD

II SDS2000X HD Quick Start

Contents

GENERAL SAFETY SUMMARY ............................................................................ 1

SAFETY TERMS AND SYMBOLS ......................................................................... 2

GENERAL CARE AND CLEANING ....................................................................... 3

GENERAL INSPECTION ....................................................................................... 4

QUICK START ....................................................................................................... 5

FRONT OF OSCILLOSCOPE ................................................................................ 7

BACK OF OSCILLOSCOPE .................................................................................. 8

PROBE COMPENSATION ..................................................................................... 9

USER INTERFACE .............................................................................................. 10

BASIC OPERATIONS .......................................................................................... 17

SDS2000X HD Quick Start 1

General Safety Summary

Carefully read the following safety precautions to avoid any personal injury or

damage to the instrument and any products connected to it. To avoid potential

hazards, please use the instrument as specified.

Use Proper Power Cord

Only the power cord designed for the instrument and authorized by local

government regulations should be used.

Ground the Instrument

The instrument is grounded through the protective earth conductor of the power

cord. To avoid electric shock, please make certain the instrument is grounded

correctly before connecting its input or output terminals.

Connect the Signal Cable Correctly

The potential of the signal cable ground is equal to the earth ground. Do not connect

the signal wire to a high voltage.

Look Over All Terminals’ Ratings

To avoid fire or electric shock, please look over all ratings and sign instructions of

the instrument. Before connecting the instrument, please read the manual carefully

to gain more information about the ratings.

Use Proper Overvoltage Protection

Make sure that no overvoltage (such as that caused by a thunderstorm) can reach

the product, or else the operator might be exposed to the danger of electrical shock.

Electrostatic Prevention

Operate in an electrostatic-protected area environment to avoid damages induced

by static discharge. Always ground both the internal and external conductors of the

cable to release a static charge before connecting.

2SDS2000X HD Quick Start

Maintain Adequate Ventilation

Inadequate ventilation may cause an increase in temperature, which may eventually

damage the instrument. Maintain suitable ventilation and inspect the fan and intake

regularly.

Avoid Exposed Circuits and Components

Do not touch exposed contacts or components when the instrument's power is on.

Use Only the Specified Fuse

Do Not Operate Without Covers

Do not operate the instrument with covers or panels removed.

Safety Terms and Symbols

Terms used in this product. These terms may appear in the product:

DANGER

Indicates direct injury or hazards that may happen.

WARNING

Indicates potential injury or hazards that may happen.

CAUTION

Indicates potential damage to the instrument or other property that

may happen.

Symbols used in this product. These symbols may appear on the product:

Hazardous

Voltage

Protective

Earth Ground

Warning

Earth

Ground

Power

Switch

SDS2000X HD Quick Start 3

General Care and Cleaning

Care

Do not store or leave the instrument in direct sunshine for extended periods of time.

To avoid damages to the instrument or probes, please do not expose them to fog,

liquid, or solvents.

Cleaning

Please perform the following steps to clean the instrument and probes regularly in

accordance with its operating conditions.

1. Disconnect the instrument from all power sources and then clean with a soft

wet cloth.

2. Clean the loose dust on the outside of the instrument and probe with a soft

cloth. When cleaning the LCD, take care to avoid scratching it.

To avoid damage to the surface of the instrument and probe, please do not use any

corrosive liquid or chemical cleansers.

Make sure that the instrument is completely dry before restarting it to avoid potential

short circuits or personal injury.

4SDS2000X HD Quick Start

General Inspection

1. Inspect the shipping container

Keep the damaged shipping container or cushioning material until the contents of

the shipment have been completely checked and the instrument has passed both

electrical and mechanical tests.

The consigner or carrier will be responsible for damages to the instrument resulting

from shipment. SIGLENT would not provide free maintenance or replacement if the

instrument has been damaged in shipment.

2. Inspect the instrument

If there are instruments found damaged, defective or failure in electrical and

mechanical tests, please contact SIGLENT.

3. Check the accessories

Please check the accessories according to the packing list. If the accessories are

incomplete or damaged, please contact your SIGLENT sales representative.

SDS2000X HD Quick Start 5

Quick Start

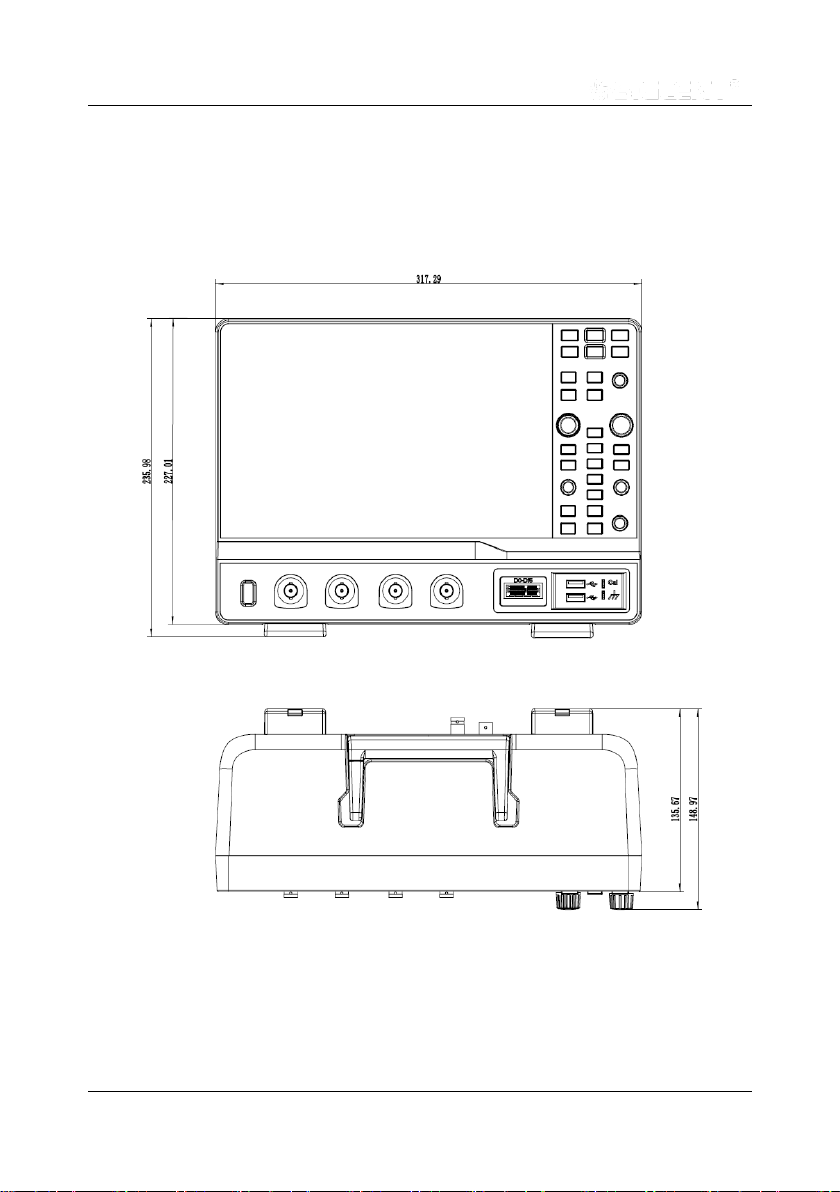

Mechanical Dimension

Front View

Top View

6SDS2000X HD Quick Start

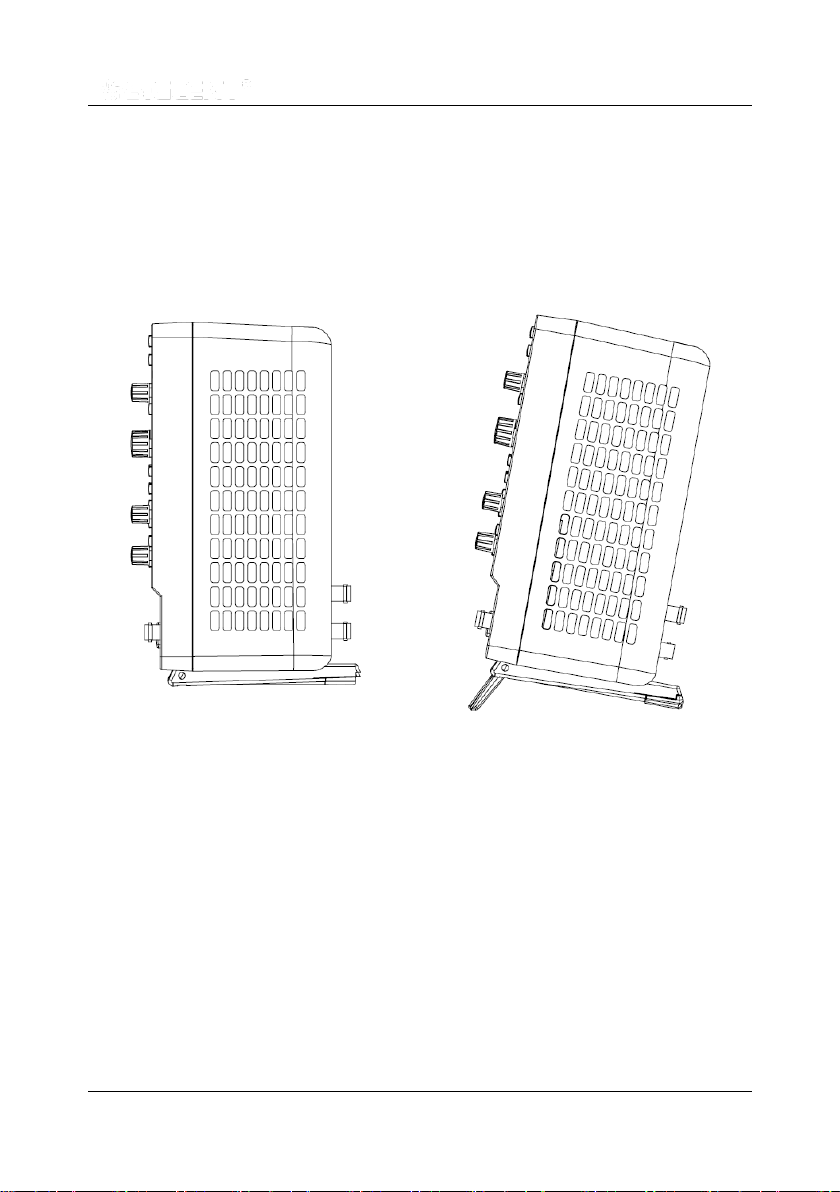

Adjust the Supporting Legs

Adjust the supporting legs properly to use them as stands to tilt the oscilloscope

upwards for stable placement as well as easier operation and observation of the

instrument.

Connecting to Power Supply

The standard power supply for the instrument is 100~240 V, 50/60 Hz. Please use

the power cord provided with the instrument to connect it to AC power.
