SightCare CloverNote Manuel utilisateur

CloverNote

Video Magnifier

User Guide

REV1.0

Contents

Precaution ....................................................................................1

Quick Start ................................................................................... 2

Overview ..............................................................................................................2

Compositions ....................................................................................................... 3

Accessories .......................................................................................................... 4

Device Setting Up ................................................................................................5

Battery Charging ..................................................................................................5

Power LED .......................................................................................................... 6

Battery Replacement ............................................................................................6

Device Folding .....................................................................................................7

External Camera Setting Up and Disconnecting ................................................ 8

Reading & Writing Assist Tray (Optional)......................................................... 9

Operation ................................................................................... 10

Power Button ..................................................................................................... 10

Home/Exit Button ..............................................................................................10

Magnification .....................................................................................................11

Brightness .......................................................................................................... 11

Color Mode ........................................................................................................12

Contrast Control ................................................................................................ 12

Lighting ..............................................................................................................13

Volume ............................................................................................................... 14

Image Freeze ......................................................................................................14

Image Storage .................................................................................................... 14

Line and Mask ................................................................................................... 15

Location Function ..............................................................................................16

Live Panning......................................................................................................17

Focus Control .....................................................................................................18

Toggling System ................................................................................................18

Open Application ...............................................................................................20

Setting Menu ......................................................................................................26

HDMI Output .....................................................................................................28

Hardware Reset ..................................................................................................28

Troubleshooting ........................................................................ 29

Specification .............................................................................. 31

Precaution

Before using CloverNote for the first time, you must

charge its battery. Refer to the Battery Charging

section for more details.

Always operate the unit in a place where the

temperature is between 10°and 35°C (50°and 95°F).

Keep the unit away from wet areas, rain, and other

sources of liquids. Do not submerge the unit.

Do not attempt to repair the unit. Any unauthorized

attempt will void the product warranty. Please contact

with your distributor.

Use the supplied power adapter and battery.

Quick Start

Overview

Thank you for purchasing CloverNote!

CloverNote is a 12.5-inch portable video magnifier which can

satisfy all the daily requirements and work across 3 main market

segments of home, work and education for the low vision people.

The elaborated multi-camera system ensures superior and crisp

images quality with 2.2-50 times continuous and lossless

magnification. The physical buttons operation and touch screen

gesture with audio are both supported so that more convenient

interaction can be chosen by your preference.

The device owns all basic and practical functions, allowing you to

read, change color, capture images. Real-time Navigation,

Reading Line & Mask and Location function are achieved on this

device.

Compositions

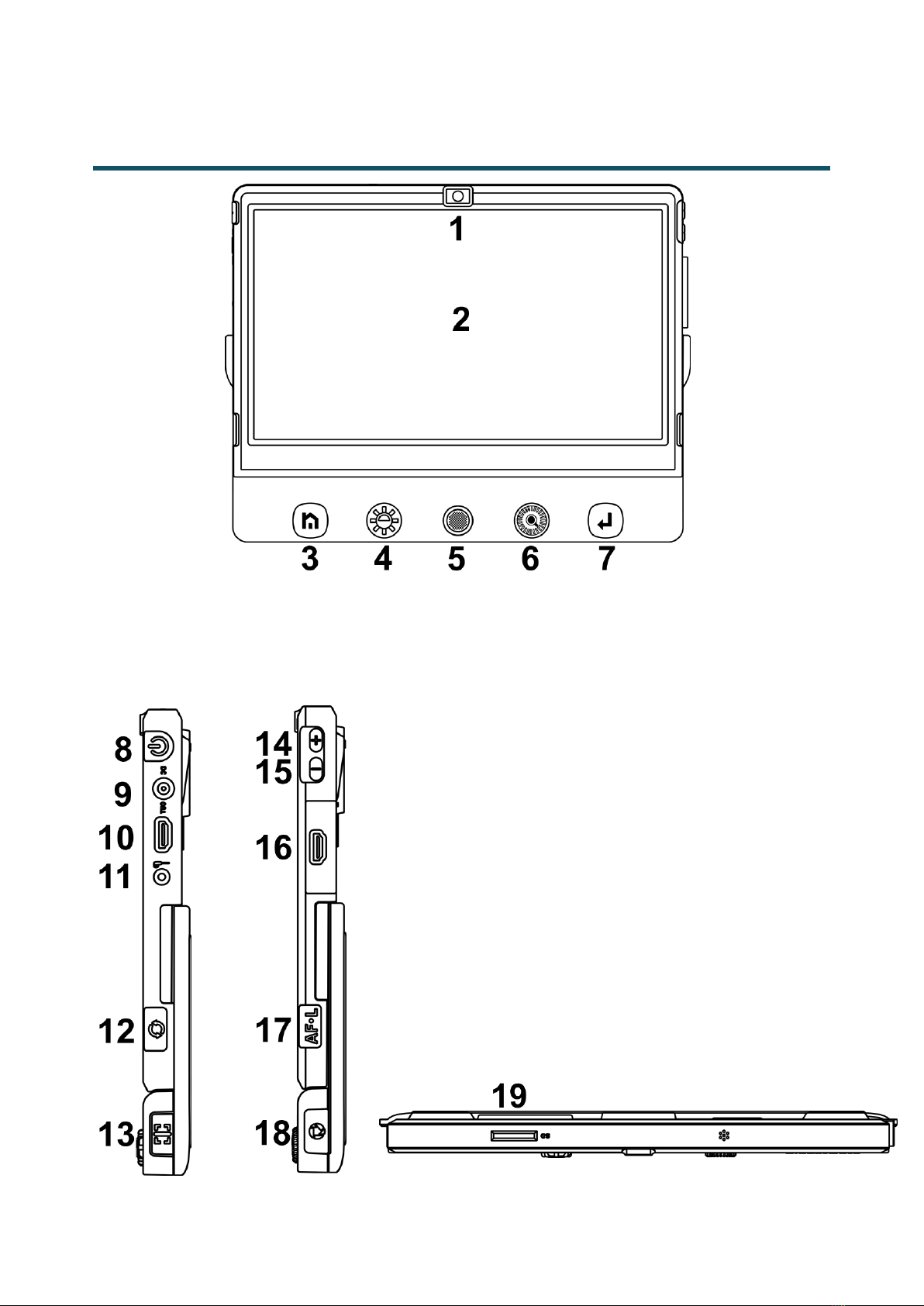

1. Front camera

2.LCD Screen

3. Home/Exit Button

4. Enhanced Color Button

5. Joystick

6. Zoom Button

7. Enter Button

8. Power Button

14. Voice Up Button

9. DC Port

15. Voice Down Button

10. HDMI Out Port

16. Camera Stick Port

11. Earphone Port

17. Focus Control Button

12. Switch Button

18. Freeze Button

13. Line/Mask Button

19 SD Card Slot

20. LED Light

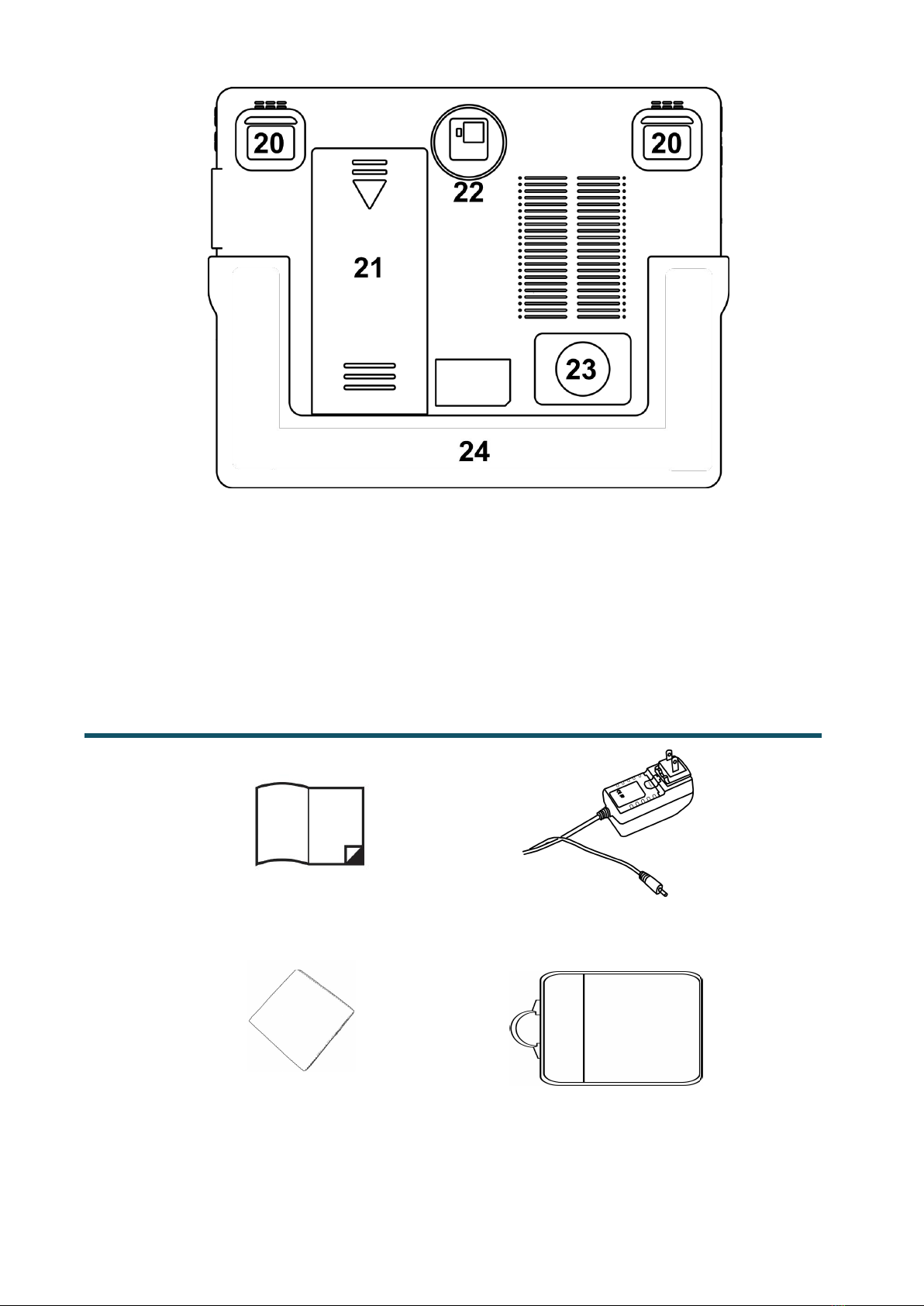

21. Battery

22. Main Camera

23. Speaker

24. Stand

Accessories

User Manual

Power Adapter

Cleaning Cloth

Carrying Case

Device Setting Up

Unfold the stand to set up the device on the flat surface.

Battery Charging

Connect the supplied power cable to the unit’s charging port, then

connect the power adapter into an AC outlet to start charging.

Power LED

Charging when the unit is off, the power LED will be green and

auto turn off when fully charged. A full Charge will take about

2.5 hours and support the unit working for about 4-4.5 hours.

Charging when the unit is on, the power LED will keep green.

When the unit is on without charging, the power LED will be

green when the battery level is high, and will be red when the

battery is dying.

Battery Replacement

The battery can be separated and detachable from the device.,

which is very convenient to be exchangeable.

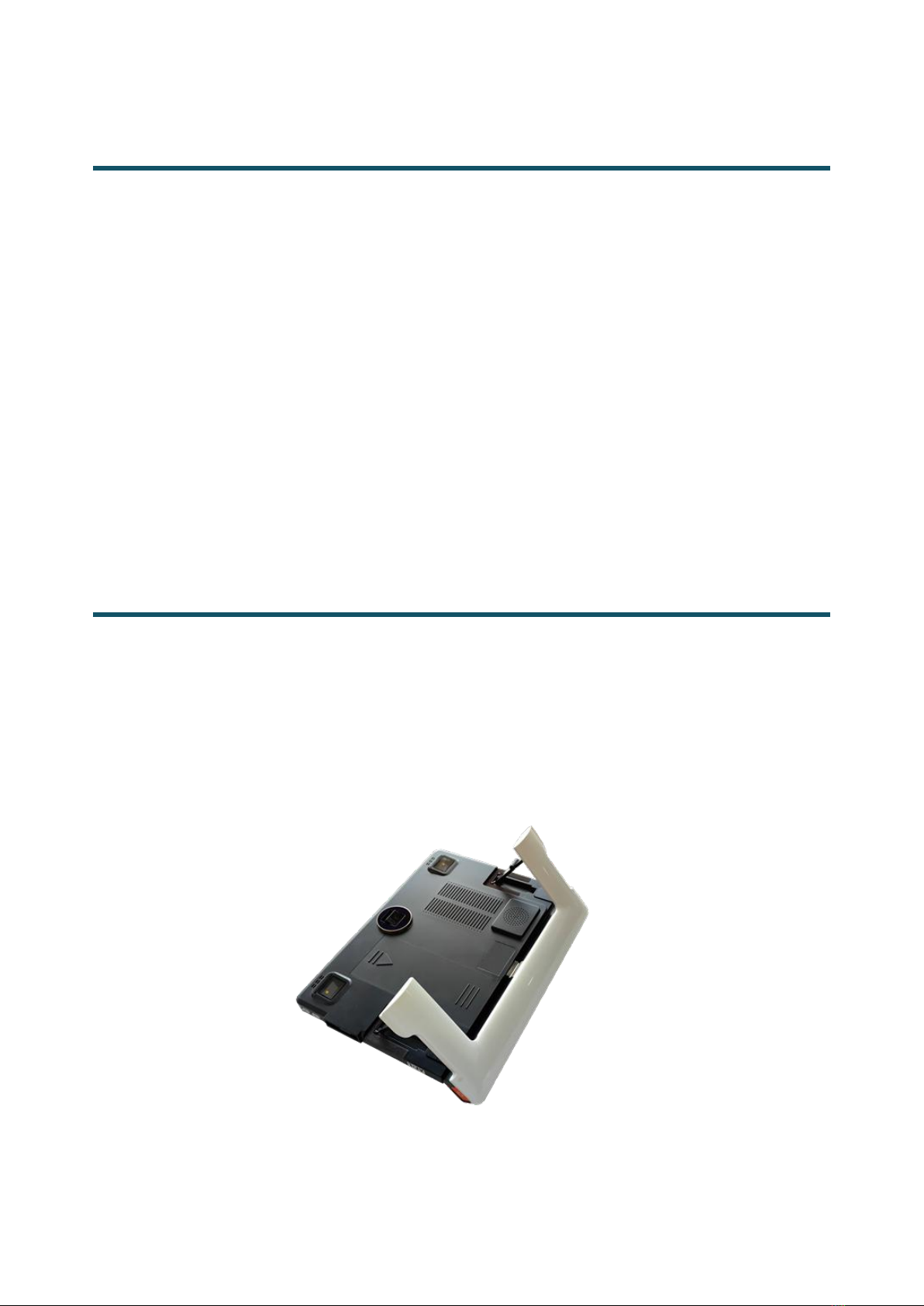

Step 1

With the stand unfold and turn the device around.

Step 2

Slide down the battery cover to expose the battery. Take the

battery out and insert a new one, then slide the cover back.

Device Folding

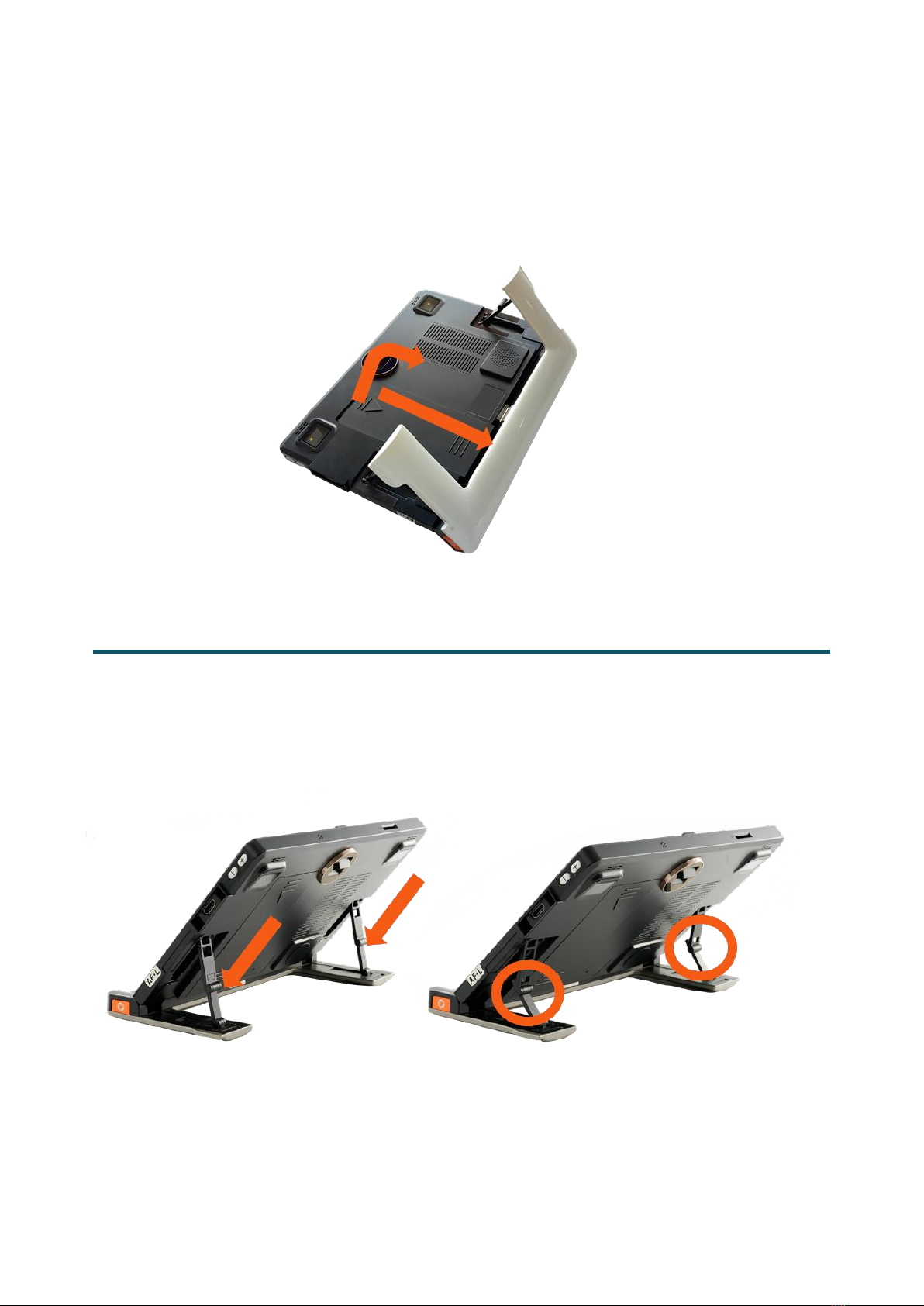

Use the finger to push the stand support until it bends first as the

pictures show, then close the stand.
