UDC-162

Up/Down/Cross Format Converter,

HD/SD-SDI in and out, with Frame Sync

Owner’s Manual

UDC-162-OM

Version: 1.2

Page 2 of 32 UDC-162 Owner’s Manual (V 1.2)

UDC-162 Up/Down/Cross Format Converter, HD/SD-SDI in and out, with Frame

Sync Owner’s Manual

Sierra Part Number: UDC-162-OM

Document Version: 1.2

Printed in the United States.

Last Author: MWB

Printing Date: 11/29/2010 8:14:00 AM

The information contained in this Owner’s Manual is subject to change without notice or obligation.

Contents of this publication may not be reproduced in any form without the written permission of

Sierra Video Systems Reproduction or reverse engineering of copyrighted software is prohibited.

Notice

The material in this manual is furnished for informational use only. It is subject to change without

notice and should not be construed as a commitment by Sierra Video Systems Sierra Video Systems Inc

assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.

Trademarks

is a registered trademark of Ross Video Limited.

is a registered trademark of Sierra Video Systems

All other product names and any registered and unregistered trademarks mentioned in this

manual are used for identification purposes only and remain the exclusive property of

their respective owners.

UDC-162 Owner’s Manual (V 1.2) Page 3 of 32

Important Regulatory and Safety Notices

Before using this product and any associated equipment, refer to the “Important Safety Instructions”

listed below so as to avoid personnel injury and to prevent product damage.

Products may require specific equipment, and /or installation procedures be carried out to satisfy

certain regulatory compliance requirements. Notices have been included in this publication to call

attention to these specific requirements.

Symbol Meanings

This symbol on the equipment refers you to important operating and maintenance

(servicing) instructions within the Product Manual Documentation. Failure to heed

this information may present a major risk of damage or injury to persons or

equipment.

Warning

The symbol with the word “Warning” within the equipment manual indicates a

potentially hazardous situation, which if not avoided, could result in death or serious

injury.

Caution

The symbol with the word “Caution” within the equipment manual indicates a

potentially hazardous situation, which if not avoided, may result in minor or

moderate injury. It may also be used to alert against unsafe practices.

Notice

The symbol with the word “Notice” within the equipment manual indicates a

situation, which if not avoided, may result in major or minor equipment damage or a

situation which could place the equipment in a non-compliant operating state.

ESD

Susceptibility

This symbol is used to alert the user that an electrical or electronic device or

assembly is susceptible to damage from an ESD event.

Important Safety Instructions

Caution

This product is intended to be a component product of the openGearTM frame. Refer

to the openGearTM frame Owner’s Manual for important safety instructions regarding

the proper installation and safe operation of the frame as well as it’s component

products.

Warning

Certain parts of this equipment namely the power supply area still present a safety

hazard, with the power switch in the OFF position. To avoid electrical shock,

disconnect all A/C power cords from the chassis' rear appliance connectors before

servicing this area.

Warning

Service barriers within this product are intended to protect the operator and service

personnel from hazardous voltages. For continued safety, replace all barriers after

any servicing.

This product contains safety critical parts, which if incorrectly replaced may present

a risk of fire or electrical shock. Components contained within the product’s power

supplies and power supply area, are not intended to be customer serviced and should

be returned to the factory for repair.

To reduce the risk of fire, replacement fuses must be the same type and rating.

Only use attachments/accessories specified by the manufacturer.

Page 4 of 32 UDC-162 Owner’s Manual (V 1.2)

Environmental Information

The equipment that you purchased required the extraction and use of natural resources for its

production. It may contain hazardous substances that could impact health and the environment.

To avoid the potential release of those substances into the environment and to diminish the need for the

extraction of natural resources, Sierra Video Systems encourages you to use the appropriate take-back

systems. These systems will reuse or recycle most of the materials from your end-of-life equipment in

an environmentally friendly and health conscious manner.

The crossed-out wheeled bin symbol invites you to use these systems.

If you need more information on the collection, reuse, and recycling systems, please contact your local

or regional waste administration.

You can also contact Sierra Video Systems for more information on the environmental performances of

our products.

UDC-162 Owner’s Manual (V 1.2) Page 5 of 32

Contents

Introduction 6

In This Chapter ..........................................................................................................................6

A Word of Thanks .....................................................................................................................6

Overview....................................................................................................................................6

Functional Block Diagram.........................................................................................................7

Supported Audio and Video Formats.........................................................................................7

Input and Output Video...............................................................................................7

Embedded Audio.........................................................................................................8

Documentation Terms................................................................................................................8

Installation and Setup 9

In This Chapter ..........................................................................................................................9

Static Discharge.........................................................................................................................9

Unpacking..................................................................................................................................9

Rear Module Installation (Optional)........................................................................................10

Board Installation.....................................................................................................................11

Cable Connections...................................................................................................................11

Card Control and Status...........................................................................................................12

Card Status ................................................................................................................12

Menu Navigation.......................................................................................................12

Menu Structure ........................................................................................................................12

Factory Default Settings ............................................................................................19

Remote Control 20

In This Chapter ........................................................................................................................20

DashBoard Control System Software ......................................................................................20

Technical Specifications 25

Service Information 27

In This Chapter ........................................................................................................................27

Troubleshooting Checklist.......................................................................................................27

Warranty and Repair Policy......................................................Error! Bookmark not defined.

Ordering Information 28

UDC-162 and Related Products...............................................................................................30

Notes 31

Contact Sierra Video Systems..................................................................................................32

Visit us at the Sierra Video Systems website...........................................................................32

Page 6 of 32 UDC-162 Owner’s Manual (V 1.2)

Introduction

In This Chapter

This chapter includes the following sections:

A Word of Thanks

Overview

Functional Block Diagram

Supported Audio and Video Formats

Documentation Terms

A Word of Thanks

Congratulations on choosing the openGearTM UDC-162 Up/Down/Cross Format Converter. The

UDC-162 is part of a full line of modular conversion gear for broadcast TV environments. The Sierra

Video Systems openGearTM line includes video decoders and encoders, audio embedders and de-

embedders, distribution amplifiers, format converters, and much more. Sierra openGearTM modular

conversion gear will meet your signal conversion needs now and well into the future.

Should you have questions pertaining to the installation or operation of your UDC-162, please contact

us at the numbers listed on the back cover of this manual. We are happy to help with any questions

regarding this or any other openGearTM card.

Overview

The UDC-162 is a universal input processing card with audio and video support. The video can be up,

down, or cross converted to a different format, and aspect ratio corrected to provide proper output

aspect. The video can be re-timed to a reference signal, and embedded audio will pass through with no

audio glitches, even on frame sync events (drops and duplicates).

The UDC-162 features a scaler card which provides the up, down, and cross conversion using de-

interlacing and motion adaptation for high quality up conversions. The scaler also provides user

adjustable aspect ratio control and zoom control. Separate controls are provided for SD and HD inputs

to allow the card to flexible handle mixed input formats.

The product also provides full color processing control of the output video, with separate controls for

Luma Gain, Luma Lift, Chroma Saturation and Color Phase.

All card configuration is done with a simple front panel menu. There is a four character text display to

view and control parameters, and a toggle switch and two buttons to navigate the menu.

The input and outputs of the UDC-162 are the following:

UDC-162 Owner’s Manual (V 1.2) Page 7 of 32

Input:

One dual-rate HD/SD-SDI video input

Outputs:

Four dual-rate HD/SD-SDI reclocked video inputs

Four dual-rate HD/SD-SDI video outputs

Functional Block Diagram

The UDC-162 has a very flexible signal flow path and feature set that combines several products into

one compact package. This section diagrams the basic signal flow of your UDC-162 product.

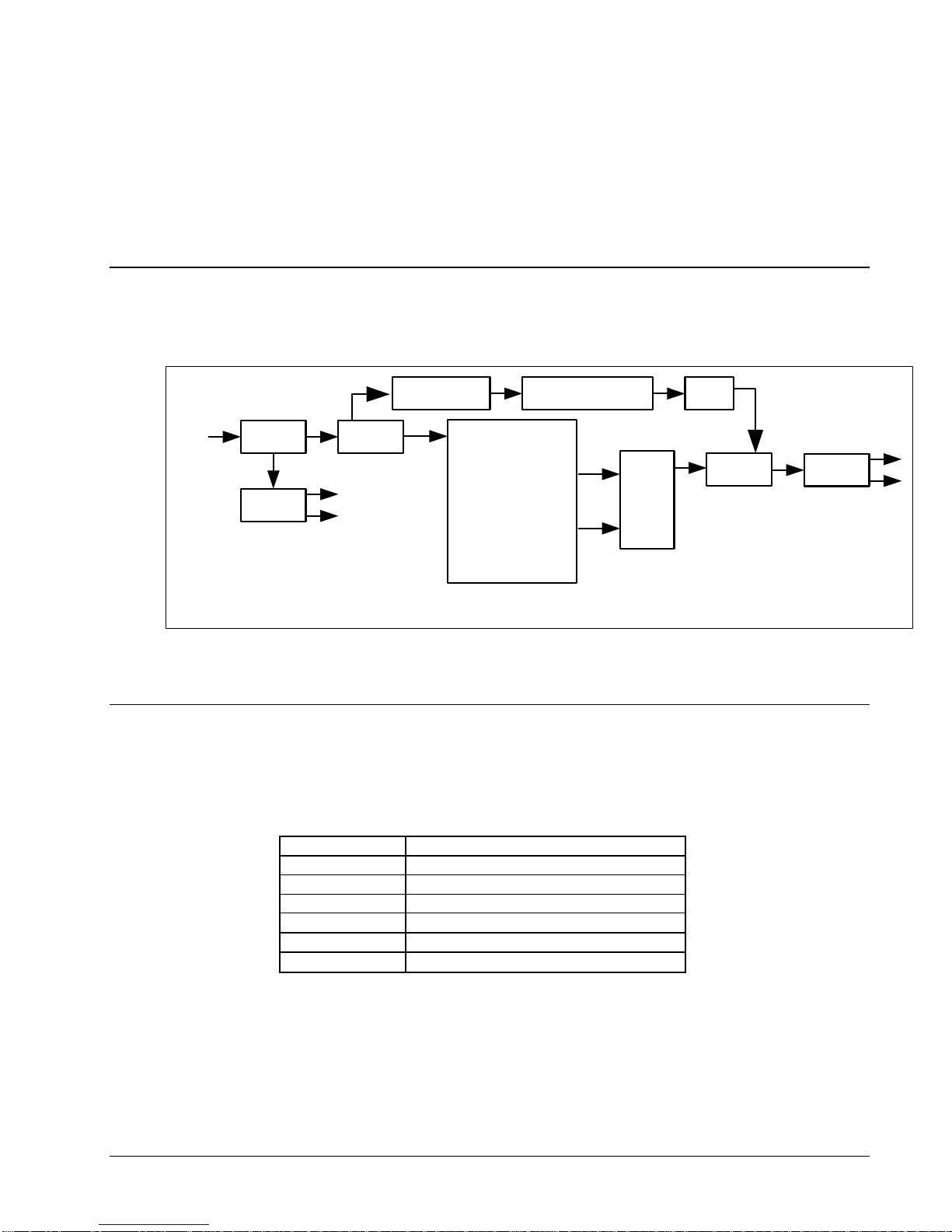

Figure 1. Simplified Block Diagram of UDC-162 Functions

Supported Audio and Video Formats

Input and Output Video

The UDC-162 supports the complete range of modern SMPTE standard SD and HD video formats.

Raster structure

Frame Rate

1080psF

23.98, 24

1080p

23.98, 24

1080i1

25, 29.97, 30

720p

23.98, 24, 25, 29.97, 30, 50, 59.94, 60

486i1

29.97

575i1

Notes:

1. All rates displayed as frame rates, interlaced (“i”) field rates are two times the number shown.

HD/SD

SDI Input EQ and

Deserialize

UDC-162 Block Diagram

Audio Control:

Routing

Gain

Polarity

Audio

De-embed

Audio

Embed

Video Proc:

Gain, Lift, Saturation,

Phase

Video Video

Serializer

and Cable

Driver

Up Down Cross

Format Conversion Frame

Sync

Tracking

Delay +

User

Offset

Reclocker

and Cable

Driver

Page 8 of 32 UDC-162 Owner’s Manual (V 1.2)

Embedded Audio

The UDC-162 supports all four groups (16 channels) of embedded audio at full 24 bit resolution in

both SD (with extended data packets) and HD.

Documentation Terms

The following terms are used throughout this guide:

“Frame” refers to the 8310 frame that houses the UDC-162 card.

“Operator” and “User” both refer to the person who uses the UDC-162.

“Board” and “Card” all refer to the UDC-162 card itself, including all components

and switches.

“System” and “Video system” refers to the mix of interconnected production and

terminal equipment in which the UDC-162 operates.

UDC-162 Owner’s Manual (V 1.2) Page 9 of 32

Installation and Setup

In This Chapter

This chapter includes the following sections:

Static Discharge

Unpacking

Rear Module Installation (Optional)

Board Installation

BNC Connections

Menu Structure

Factory Defaults

Static Discharge

Whenever handling the card and other related equipment, please observe all static discharge

precautions as described in the following note:

ESD

Susceptibility

Static discharge can cause serious damage to sensitive

semiconductor devices. Avoid handling circuit boards in high

static environments such as carpeted areas, and when wearing

synthetic fiber clothing. Always exercise proper grounding

precautions when working on circuit boards and related

equipment.

Unpacking

Unpack each card you received from the shipping container, and check the contents against the packing

list to ensure that all items are included. If any items are missing or damaged, contact your sales

representative or Sierra Video Systems directly.

Page 10 of 32 UDC-162 Owner’s Manual (V 1.2)

Rear Module Installation (Optional)

If you are installing the card in a 8310-C-BNC or 8310-BNC frame (one with a 100 BNC rear module

installed across the entire back plane), skip this section.

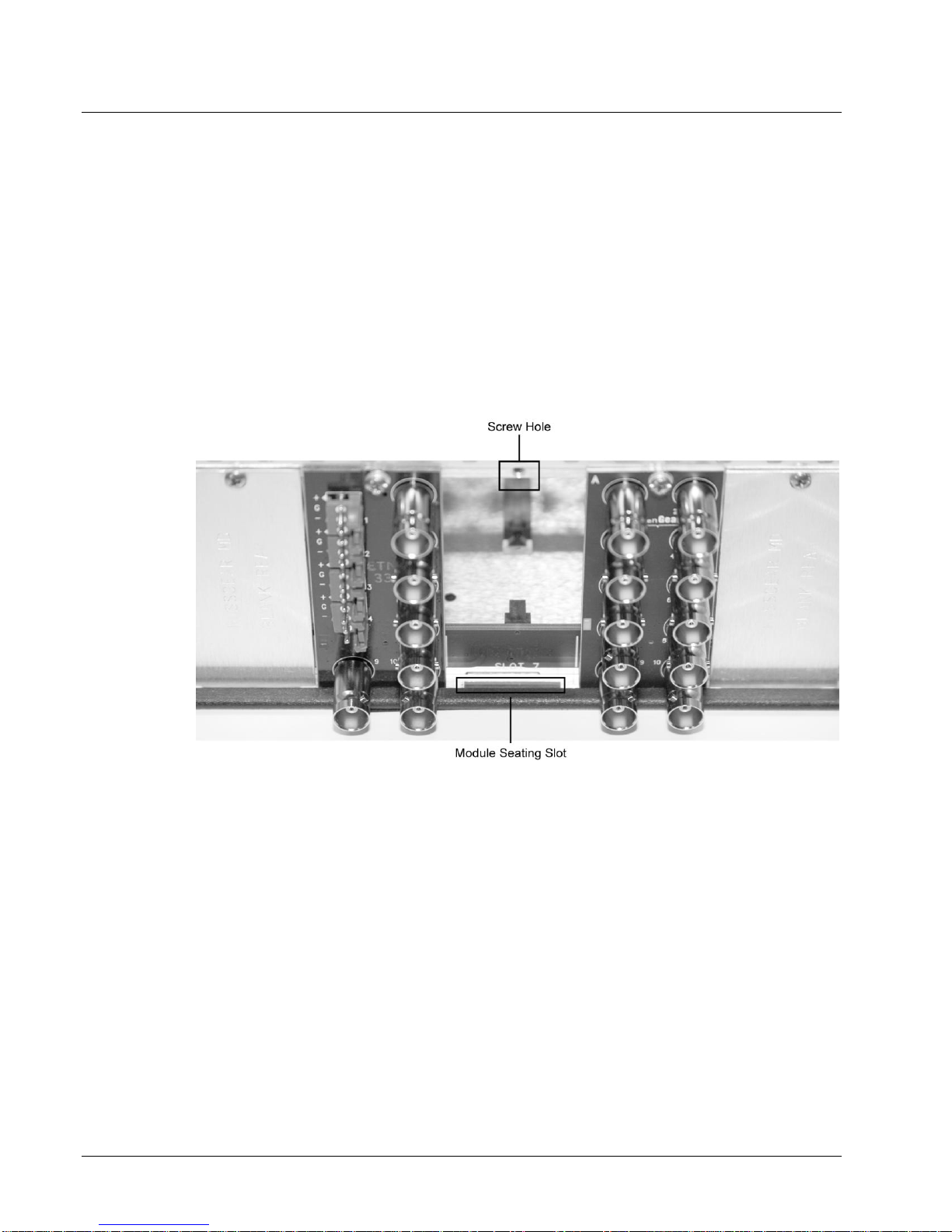

If you are installing the card into a slot with no rear module, you should have ordered and received a

8310-RM-10 Rear Module with your card. You will need to install it in your 8310 frame before you

can connect cables.

Use the following steps to install the 8310-RM-10 in an 8310 openGearTM frame:

1. Refer to the openGearTM 8310 frame Owner’s Manual, to ensure that the frame is

properly installed according to instructions.

2. On the rear of the 8310, locate the card frame slot.

3. As shown in Figure 2, seat the bottom of the 8310-RM-10 in the seating slot at the

base of the frame’s back plane.

Figure 2. Rear Module Installation

4. Align the top hole of the 8310-RM-10 with the screw hole on the top edge of the

8310 back plane.

5. Using a Phillips driver and the supplied screw, fasten the 8310-RM-10 panel to the

8310 back plane. Do not over tighten.

This completes the procedure for installing the 8310-RM-10 in an 8310 openGearTM frame.

Table des matières

Autres manuels Sierra Video Convertisseur de média

Sierra Video

Sierra Video SV-SM-8 Manuel utilisateur

Sierra Video

Sierra Video MADI Series Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
