Siemens Silver 3208XS Manuel utilisateur

WM 3008XS

Silver 3208XS

WM 3008XS

Silver 3208XS

Computer Controlled Slimline Frontloader

Operating and Installation Instructions

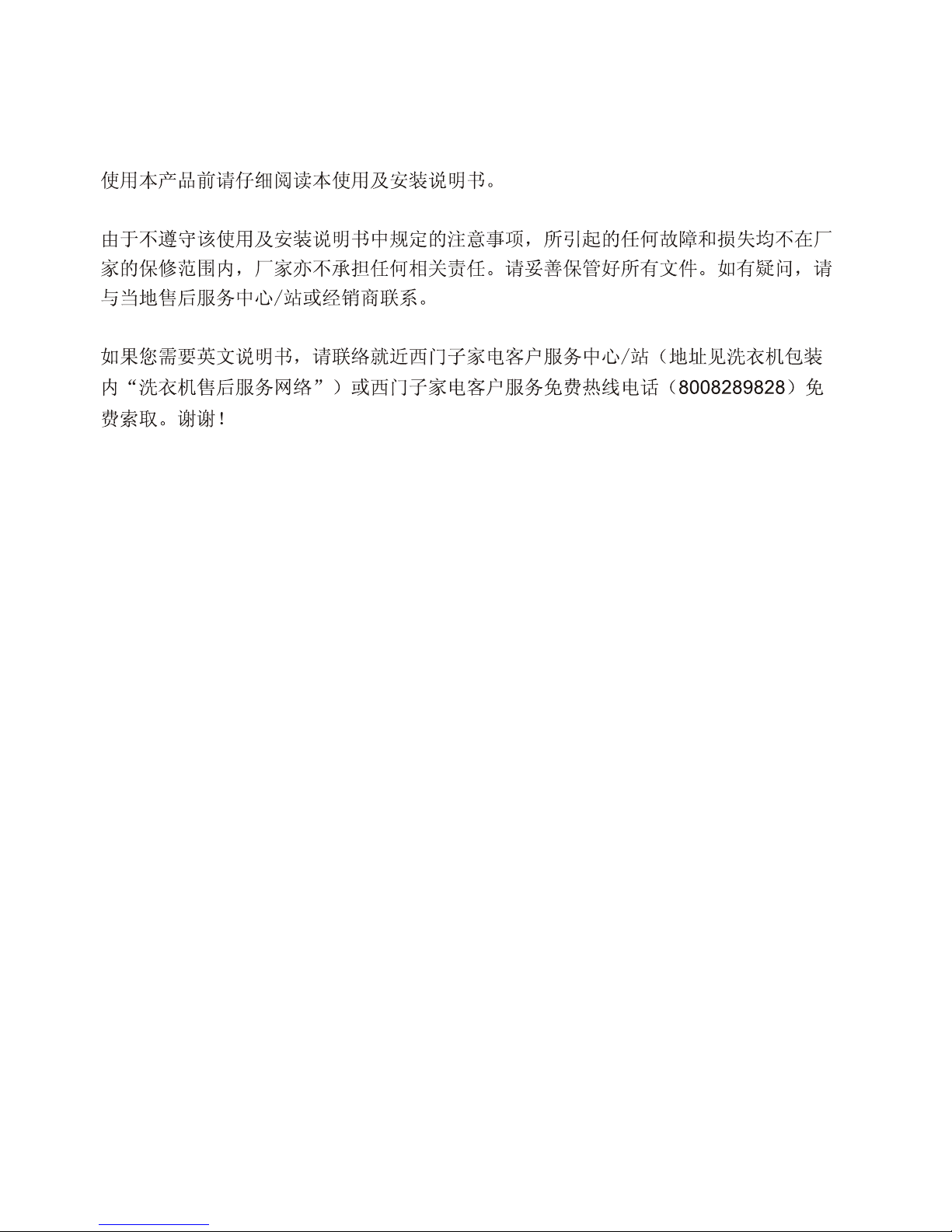

Please read this specification carefully before you use the product.

Any failure and losses caused by ignoring the above mentioned items and cautions

mentioned in the operation and installation instruction are not covered by our warr-

anty and any liability . Please keep all documents in a safe place for future referen-

ce. if you have any doubt, please contact our local service center/depot or dealer.

If you need an English user manual, please contact our local CS center/station

specified in the "Washing Machine CS network" in your washing machine package

or call our customer service free hotline (8008289828) for free supply. Thanks.

http://www.siemens - ha.com.cn

[email protected]

Address:

66. Wang Zhuang Road, Wuxi 214028,

Jiangsu Province, P. R. China

Web site:

Email:

Disposal Information . . . . . . . . . . . . . . . . . . . . . .

Environmental Protection/Conservation Issues . .

Your New Washing Machine . . . . . . . . . . . . . . . .

First Wash Cycle . . . . . . . . . . . . . . . . . . . . . . . . .

Laundry Detergents and Additives . . . . . . . . . . .

Washing with standard settings. . . . . . . . . . . . .

Washing with individual settings . . . . . . . . . . . . .

When the Program has Ended. . . . . . . . . . . .

Special Applications . . . . . . . . . . . . . . . . . . . . . .

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting Minor Faults . . . . . . . . . . . . . .

Customer Service . . . . . . . . . . . . . . . . . . . . . . . .

Program Table . . . . . . . . . . . . . . . . . . . . . . .

Installation, Connection and Transport . . . . . . . .

Adjust the Volume of Buzzer and

audible feedback of Start button. . . . . . . . . .

Audible Feedback of Function Button . . . . . . .

Safety Precautions and Warnings . . . . . . . . . . . .

Preparing, Sorting and Loading the Laundry . . .

．

．．

Operating Instructions

Table of Contents

Installation Instructions

Appendix 50

Disposal Information

Your old machine

Dispose of packing materials in a responsible manner.

Keep packing materials out of the reach of children.

Packing materials are not toys.

Reprocessing and re-using materials saves raw mat-

erials and reduces waste.

All packing materials used are environment friendly

and re-usable.

Cardboard boxes consist of 80% to 100% recycled

paper.

Plastic wrappings are made from polythene(PE), the

tapes are made from polypropylene(PP) and the CC-

free packing is made from foamed polystyrene (PS).

These materials are pure hydrocarbon compounds a-

nd can be recycled.

Render the machine inoperable when it can no long-

er be used. Remove the plug from the socket and

cut off the power cable.

Destroy the catch on the porthole door. Prevent chil-

dren at play from being locked in and risking death

by suffocation.

The old machine contains valuable materials which

should be recycled.

Please make your contribution to the environment by

assisting with proper disposal or recycling.

The new machine s

packaging

Environmental Protection

Conservation Issues

Through the economical use of energy,water and

detergent,your appliance is kind to the environ-

ments as well as your household budget.

You can increase the economy and environm-

ental friendliness of your macnine by washing

maxium loads:

refer to page 39 program table

℃

How to save energy:

For small amounts of laundry,the automatic cont-

rol system reduces the consumption of both water

and energy.

Where possible,use the 60 Cottons/coloureds

program with additional function Intensive Stains

instead of the 90 Cottons/coloureds program.

The extended washing duration means that a cle-

aning result comparable to that of the 90 pro-

gram is achieved using considerably less energy.

How to save water,energy and detergent:

Avoid using the Prewash function when washing

lightly normally soiled laundry.

How to save energy and time:

For lightly soiled laundry,select the short program

appropriate to the type of textile.

How to save detergent:

Add detergent according to the degree of soiling,

amount of laundry and water hardness, and obs-

erve the detergent manufacture s instructions.

Safety Precautions and Warnings

The washing machine must be installed and op-

erated in a room with the drain.

Install the machine in accordance with the instru-

ctions(page 41-49). Remove the transit bolts and

keep them in a safe place.

Please keep all documents in a safe place for fu-

ture reference.

The manufacturer does not accept liability if these

instructions are not followed.

Please contact an authorized technician to install

the machine and instruct the using method.

Please read the enclosed documents carefully

before using the washing machine for the first

time. They contain important information on the

installation, use and safety of the machine.

Before using for the

first time:

This machine complies with all relevant safety

regulations.

When heating, the maximum current of the was-

hing machine is 10A,so please make sure that

the power supply system(voltage; current and

the cable) is applicable to the load of the applied

appliance.

In order to ensure your safety, you must plug the

cable into a socket which connected to earth. And

please check your socket to make sure that it is

connected with reliable earthcorrectly.

If the washing machine is visibly damaged,do not

connect it up. If you are in doubt,contact your

customer service representative or dealer.

This machine use thread connection water inlet

hose, connect it to the water tap together with

the machine according to the require of page 44.

(carry out by an authorized technician)

Taking care of your

machine:

When the program

has ended:

When transporting

the machine:

Do not lean against the door.

Do not climb onto the washing machine.

After the program has ended, please cut the su-

pply of power and water immediately.

When the program has ended:

The End is indicated(If you select no final spin

function,see page 27).The buzzer of machine s-

ounds(the duration is 10 minutes) to remind the

user that the washing program has ended.Open

the loading door after cutting the power of machine.

Exercise caution when pumping out hot detergent

solution.

Keep pets away from the washing machine.

Never let children play with the washing machine.

Never wash the carpet in the washing machine.

Your washing machine is designed for domestic

use only, i.e. for washing machine-washable tex-

tiles in a detergent solution.

Never use flammable; explosible and/or poison-

ous solvents, such as gasoline; alcohol etc. As

the washing lotion. Please only use the lotions

suitable for using in washing machine available

in the market.

Do not expose the machine in the place with cau-

sticity or explosibility gas.(e.g. dust, steam and

gas, etc.)

Do not install the washing machine in a bathroom

or a room very wet.

Insert the transit bolts by technician.

Drain any water left in the machine.

Take care when moving the machine.

Do not lift the machine by any of the protruding

parts,and the loading door.

Operate the machine with cold tap water only.

When washing:

Your New Washing Machine

Filling laundry detergent

and/or additive dispensers.

Chamber I:

Detergent for pre-wash,starch,

or pre-soaking agent.

Chamber II:

Detergent for main washing period,

water softener, blench and stain-

removing salt.

Chamber :

Additives, e.g. fabric softener or

former(Do not exceed Max )

Open the loading door and close it Drain washing solution

if necessary.

Control Panel

For starting the wash cycle

(program must have been selectd).

Program selector

For switching the machine on and off and

for selecting the program.Can be rotated

in either direction.If rotate it during the

washing,the program will be stoped.The

program sequence is electronically controlled.

Start button

Display panel

Indicates the settings which have

been selected(e.g. Spin speed,

Time delay,Childproof lock,

Maximum load)

Button

Selects the spin speed or no final spin.

Button

Selects the the start time(delays the

start of the program).

Buttons for additional options

(In addition to the program if required)

Intensive Stains:extend the washing

duration

Extra Rinse: additional rinsing cycle

Less Ironing: gentle spin

Prewash: actuate prewash

Additional options can be combined.

The indicator lights of the buttons

come on if the additional options

are active.

Switching off the additional option:

Press the button again.Indicator

light goes out.

Z

q

－－－

Display panel

Display Notes

Prewash On if selected

Washing Not on if rinse,spin or

drain additional program

was selected

Rinse Not on if spin or drain

additional program was

selected

Final spin/Empty Not on if a program with

the --- setting(without

final spin)

Progress bar For the program status

Overdosage On if too much detergent

dispensed

Childproof lock On if selected

Maximum load Not on if rinse,spin or

drain additional program

was selected

Spin speed or

no final spin

Maximum spin speed of the

program or selected speed

Program duration Expected program duration

Other displays at this location:

Start time

End of program or

end of program

without final spin or

Fault displays

Selected start time

See page 36

* Examples of the display, it will be changed

according to your selected program.

Program status

display

2.0KG*

800*

---*

1:00*

1 h*

F02*

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siemens Rondelle

Siemens

Siemens WI14W542ES Manuel utilisateur

Siemens

Siemens WM16XMH9GB Manuel utilisateur

Siemens

Siemens WM10E262GR Series Manuel utilisateur

Siemens

Siemens WM14W447DN Fiche technique

Siemens

Siemens WG44G10EDN Manuel utilisateur

Siemens

Siemens WM14N290IL Manuel utilisateur

Siemens

Siemens WG44G2ACDN Manuel utilisateur

Siemens

Siemens WM14Y890GB Fiche technique

Siemens

Siemens WM14S7B0EU Manuel utilisateur

Siemens

Siemens WM14Y790EU Fiche technique

Siemens

Siemens WM16W560GC Fiche technique

Siemens

Siemens ultraSense WFXD5202UC Guide d'installation

Siemens

Siemens WM14VMH0NL Manuel utilisateur

Siemens

Siemens Serie IQ Fiche technique

Siemens

Siemens WM6HXE0PDN Manuel utilisateur

Siemens

Siemens WM08E161ME Manuel utilisateur

Siemens

Siemens WM14VG44 Manuel utilisateur

Siemens

Siemens WM12N279EP Manuel utilisateur

Siemens

Siemens WM6HXK76NL Manuel utilisateur

Siemens

Siemens WM10E277EE Series Manuel utilisateur

Siemens

Siemens WM14UP89GB Manuel utilisateur

Siemens

Siemens WM14NK09GB Manuel utilisateur

Siemens

Siemens WM16XK02EU Manuel utilisateur

Siemens

Siemens EXTRAKLASSE 1300 Fiche technique

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Electrolux

Electrolux EWF1284EDW Manuel utilisateur

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur
