INTRODUCTION The Model NRC Network Ring card from Siemens Industry,

Inc. is a card that networks multiple FireFinder-XLS systems

together in a Class X (Style 7) ring. The NRC can also be

configured for Class B (Style 4) operation in systems where

a ring is not required, as an alternative to the NIC-C card.

It provides communication between its host FireFinder-XLS

system and other FireFinder-XLS systems on an XNET network.

It replaces the NIC-C when a ring connection is needed.

The NRC can also be used to connect an NCCNT-G to the

XNET network. In this configuration, all events occurring on

the FireFinder-XLS network are displayed at the NCCNT-G.

One NRC is required in each FireFinder-XLS system on the

network.This NRC must reside in the same enclosure as the

PMI/PMI-2.

The NRC supervises the network to ensure proper opera-

tion. Any faults that are detected by the NRC are reported to

the PMI/PMI-2 for annunciation. In addition, the NRC has

diagnostic LEDs that indicate which faults have been found.

The NRC performs ground fault detection on its outgoing

ring port.

Features The NRC isolates faults to the individual link in trouble. When

wired for Class X (Style 7), network ring communication

continues unaffected.

An RJ-12 monitor jack is included for connection of XNET

diagnostic tools. In addition, RJ-45 and USB jacks are

included for firmware download. These jacks are located on

the front bezel.

Network Ring Card

Installation Instructions

Model NRC

NRC

RESET

POWER

CARD FAIL

TROUBLE

MONITOR

PORT

ETHERNET

USB

Figure 1

NRC Network Ring Card

A6V10322639_b_en_--

Siemens Industry, Inc.

Building Technologies Division

2 A6V10322639_b_en_--

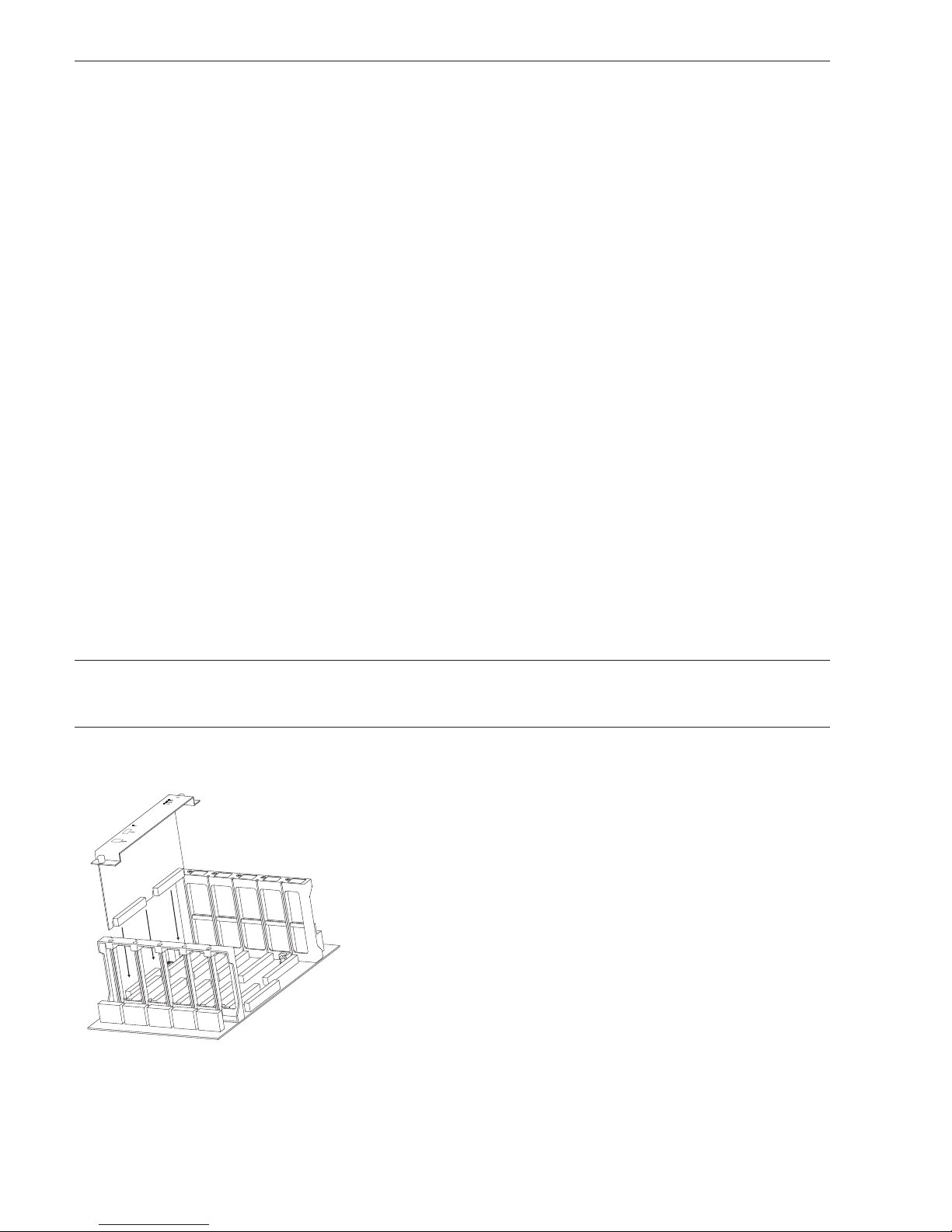

Figure 2

Installing the NRC

OPERATION The NRC continuously monitors the network for activity and reports any problems to

the PMI/PMI-2. In some cases, a reset at the PMI/PMI-2 is required to clear network

troubles.

Controls and Indicators The front panel of the NRC contains one reset switch, three

LEDs, one Monitor port, one USB port, and one Ethernet port as shown in

Figure 1.

A reset switch is located on the top of the front panel. Pushing the reset switch

reinitializes the NRC.

The LEDs follow the reset switch and their functions are defined as follows:

POWER (Green) Normally ON. When illuminated, indi-

cates that power for the NRC is applied

to the card.

CARD FAIL (Yellow) Normally OFF. When illuminated, indicates

that the card microprocessor has failed.

TROUBLE (Yellow) Normally OFF. When illuminated, indi-

cates trouble in the Network such as

wire faults or module failure. The Trouble

LED will illuminate under the following

conditions:

1. Wire faults (open or short) in either

Port 1 (In) or Port 2 (Out)—See Figure 5.

2. Ground fault on outgoing port (Port 2).

3. XNET communications problems

between the PMI/PMI-2 and the NRC.

PRE-INSTALLATION The NRC does not have a network address but it does need to be included in the

Zeus configuration.

INSTALLATION The NRC plugs perpendicularly into one slot in the CC-2 or CC-5 card-cage via two

96-pin DIN connectors (only 64-pins are used) and can occupy any slot in the card

cage. (Refer to Figure 2.)

Slide the NRC card into the card guides front bezel up (lettering on the

front panel is legible) until the card cage connectors contact the

motherboard receptacles.

Verify that the card edge connectors align properly with the

motherboard receptacles. There is only one correct way to plug in the

card. If it does not align, DO NOT FORCE the card.

Place thumbs on the front panel adjacent to the captive screws and

gently apply even pressure on the card until the connectors plug firmly

into the motherboard receptacles. Secure the NRC to the card cage with

the captive screws.

Siemens Industry, Inc.

Building Technologies Division

3 A6V10322639_b_en_--

FIRMWARE UPGRADES From time to time, modules used in XLS systems are upgraded to improve their

operation or to add to their capabilities with new features. Firmware in the NRC is

field upgradable. Refer to the Zeus Quickstart Manual, P/N 315-033875, and Zeus

Help for additional details.

Find NRC Software Version To check for the current version of NRC software in an installed NRC, go to the PMI/

PMI-2 and press the Menu button, select Report, press the More Info button and

select the PMI. Press the Configuration soft key and “Touch” Appl Rev for the

Application Version.The NRC software version will be shown with the PMI software

version. Refer to Figure 3 for an example of a display.

Figure 3

Typical PMI Display of NRC Software Version

Menu:Report:Configuration:Appl.Rev:View

PHY:MultiXNet, FireFinder, PMI-C@253

Application Rev Report

Cancel Print

10:53

Category text information

Address Entity Software Version 100%

/1:253 PMI-C 07.00.0034

/1:253^1 NRC 01.00.0008

GoTo

Siemens Industry, Inc.

Building Technologies Division

4 A6V10322639_b_en_--

WIRING Remove all system power before installation, first battery then AC. (To power up,

connect the AC first, then the battery.)

All field wiring to the NRC is connected to the terminal blocks of the CC-2 or CC-5

card cage slot in which it is installed.

To connect the field wiring:

1. Loosen the screw of the terminal by turning it counterclockwise.

2. Insert the wire into the side of the terminal block.

3. Tighten the screw of the terminal block by turning it clockwise.

The screw terminals can accommodate one 12 - 22 AWG.

12345678

910111213141516

17 18 19 20 21 22 23 24

DO NOT USE

ONE SLOT OF CC-5

FIRST NRC

12345678

910111213141516

17 18 19 20 21 22 23 24

DO NOT USE

ONE SLOT OF CC-5

12345678

910111213141516

17 18 19 20 21 22 23 24

DO NOT USE

ONE SLOT OF CC-5

LAST NRC

DO NOT USE

DO NOT USE DO NOT USE DO NOT USE

DO NOT USE

Figure 5

NRC Network Wiring Style 7

Figure 4

NRC Wiring

TOP HEADER OF

TERMINAL BLOCK

ON THE CC-5/CC-2

PORT 1

PORT 2

B2 A2 B1 A1

NOTES:

1. No EOLR required.

2. 22 AWG min., 12 AWG max.

3. 3300 feet max. per pair

between NRCs.

Shielded or Unshielded

twisted pair with a minimum

of 3 twists per ft.

Refer to Table 1 for NRC

cable specifications.

4. Terminate shields at one end

only.

5. Power limited to NFPA 70.

6. All wires supervised.

7. Ground fault detected at

8.5K ohms or less.

1ELBAT snoitacificepSelbaCCRN

.elbacehtnotnemeriuqermuminimehtswohswolebelbatehT

zHK001tanoitaunettAxamBd

zHM1tanoitaunettAxamBd03

:stnemeriuqeresehtteemsepytelbacgniwollofehT E5-TACA2297nedleB

GWA81LU0235nedleB

Siemens Industry, Inc.

Building Technologies Division

5 A6V10322639_b_en_--

WIRING OF NRCTO FIBER MODULES FN2006 AND FN2007

NRC Class B (Style 4) Wiring

12345678

910111213141516

17 18 19 20 21 22 23 24

DO NOT USE

DO NOT USE DO NOT USE

ONE SLOT OF CC-5

FIRST NRC

12345678

910111213141516

17 18 19 20 21 22 23 24

DO NOT USE

ONE SLOT OF CC-5

12345678

910111213141516

17 18 19 20 21 22 23 24

DO NOT USE

ONE SLOT OF CC-5

LAST NRC

NOTES:

1. No EOLR required.

2. 22 AWG min., 12 AWG max.

3. 3300 feet max. per pair

between NRCs.

Shielded or Unshielded

twisted pair with a minimum

of 3 twists per ft.

Refer to Table 1 for NRC

cable specifications.

4. Terminate shields at one end

only.

5. Power limited to NFPA 70.

6. All wires supervised.

7. Ground fault detected at

8.5K ohms or less.

Figure 6

NRC Class B (Style 4) Network Wiring

Power B connections to the fiber module and monitoring of its trouble contacts are

not required, as the fiber modules must be installed in the same enclosure as the

power supplies that provide them power.

NRC with NCC

See the NCC-WAN IOM manual, P/N 315-049679, for information on connecting a

NCC Network Command Station to the NRC network.

See the FN2006/FN2007 Installation Instructions, P/N A6V10315048, for wiring and

fiber connections. Installation of the fiber modules in the XLS system requires one

bracket, model COM-BRK, per fiber module.The bracket is installed as described in

the installation instructions, P/N A6V10406085.

Each bracket takes up the same space as a CC-2 card cage.

The module mounting flange of the bracket is intentionally angled. Do notDo not

Do notDo not

Do not try to

straighten the mounting flange.

Siemens Industry, Inc.

Building Technologies Division

6 A6V10322639_b_en_--

FOM = Fiber Optic Module, Model FN2006 (Single mode) or FN2007 (Multi-mode).

NC NC

NRC

In Node 1 NRC

In Node 2 NRC

In Node n

PORT 2 PORT 1 PORT 2 PORT 1 PORT 2 PORT 1

NRC

In Node 1 NRC

In Node 2 NRC

In Node n

PORT 2 PORT 1 PORT 2 PORT 1 PORT 2 PORT 1

Figure 7

Typical Class B (Style 4) Installation with wire only

Figure 8

Typical Class X (Style 7) Installation with wire only

NRC

In Node 1 NRC

In Node 2 NRC

In Node n

FOM:

FN2006/

FN2007

NC NC

FOM:

FN2006/

FN2007

OPTICAL

FIBER PAIR OPTICAL

FIBER PAIR

FOM:

FN2006/FN2007

PORT 2 PORT 1 PORT 2 PORT 1 PORT 2 PORT 1

WIRE

CONNECTION WIRE

CONNECTION

NRC

In Node 1 NRC

In Node 2 NRC

In Node n

FOM:

FN2006/FN2007

OPTICAL

FIBER PAIR OPTICAL

FIBER PAIR

FOM:

FN2006/FN2007

OPTICAL

FIBER PAIR

WIRE

CONNECTION

WIRE

CONNECTION

FOM:

FN2006/FN2007

PORT 2 PORT 1 PORT 2 PORT 1 PORT 2 PORT 1

WIRE

CONNECTION WIRE

CONNECTION

Figure 9

Typical Class B (Style 4) Installation with optical fiber only

Figure 10

Typical Class X (Style 7) Installation with optical fiber only

The XLS network can be wired using copper wire, single-mode fiber, multi-mode

fiber or a combination of the three. The block diagrams below show the possible

configurations.

WIRING CONFIGURATIONS

Siemens Industry, Inc.

Building Technologies Division

7 A6V10322639_b_en_--

NRC

In Node 1 NRC

In Node 2 NRC

In Node n

FOM:

FN2006/

FN2007

FOM:

FN2006/

FN2007

NC NC

OPTICAL

FIBER PAIR

WIRE

CONNECTION

PORT 2 PORT 1 PORT 2 PORT 1 PORT 2 PORT 1

WIRE

CONNECTION WIRE

CONNECTION

Figure 11

Typical Class B (Style 4) Installation with optical fiber and wire

NRC

In Node 1 NRC

In Node 2 NRC

In Node n

FOM:

FN2006/

FN2007

OPTICAL

FIBER PAIR

FOM:

FN2006/

FN2007

OPTICAL

FIBER PAIR

WIRE

CONNECTION

WIRE

CONNECTION

WIRE

CONNECTION

FOM:

FN2006/FN2007

WIRE

CONNECTION WIRE

CONNECTION

PORT 2 PORT 1 PORT 2 PORT 1 PORT 2 PORT 1

rewoPtupnI

tnerruCenalPkcaBV42Am041

tnerruCV42lanimreTwercS0

tnerruCenalPkcaBV2.6Am02

tnerruCybdnatSV42Am541

ELECTRICAL RATINGS

Figure 12

Typical Class X (Style 7) Installation with optical fiber and wire

FOM = Fiber Optic Module, Model FN2006

(Single mode) or FN2007 (Multi-mode)

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Canada Limited

Building Technologies Division

2 Kenview Boulevard

Brampton, Ontario L6T 5E4 Canada

Document ID A6V10322639_b_en_--P/N A5Q00059298

This page has been left intentionally blank.

Table des matières

Autres manuels Siemens Carte réseau

Siemens

Siemens TIWAY I TI505 Manuel utilisateur

Siemens

Siemens SIMATIC NET CP 1623 Manuel utilisateur

Siemens

Siemens SIMATIC PCS 7 Manuel de référence

Siemens

Siemens DTU3005-B Manuel utilisateur

Siemens

Siemens SIMATIC NET Series Manuel utilisateur

Siemens

Siemens SIMATIC NET CP 343-1 Manuel utilisateur

Siemens

Siemens S5-135U/155U Guide de l'utilisateur

Siemens

Siemens AFI5100 Manuel utilisateur

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Cisco

Cisco MC16E Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel d'utilisation

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur
