Using Your Telephone

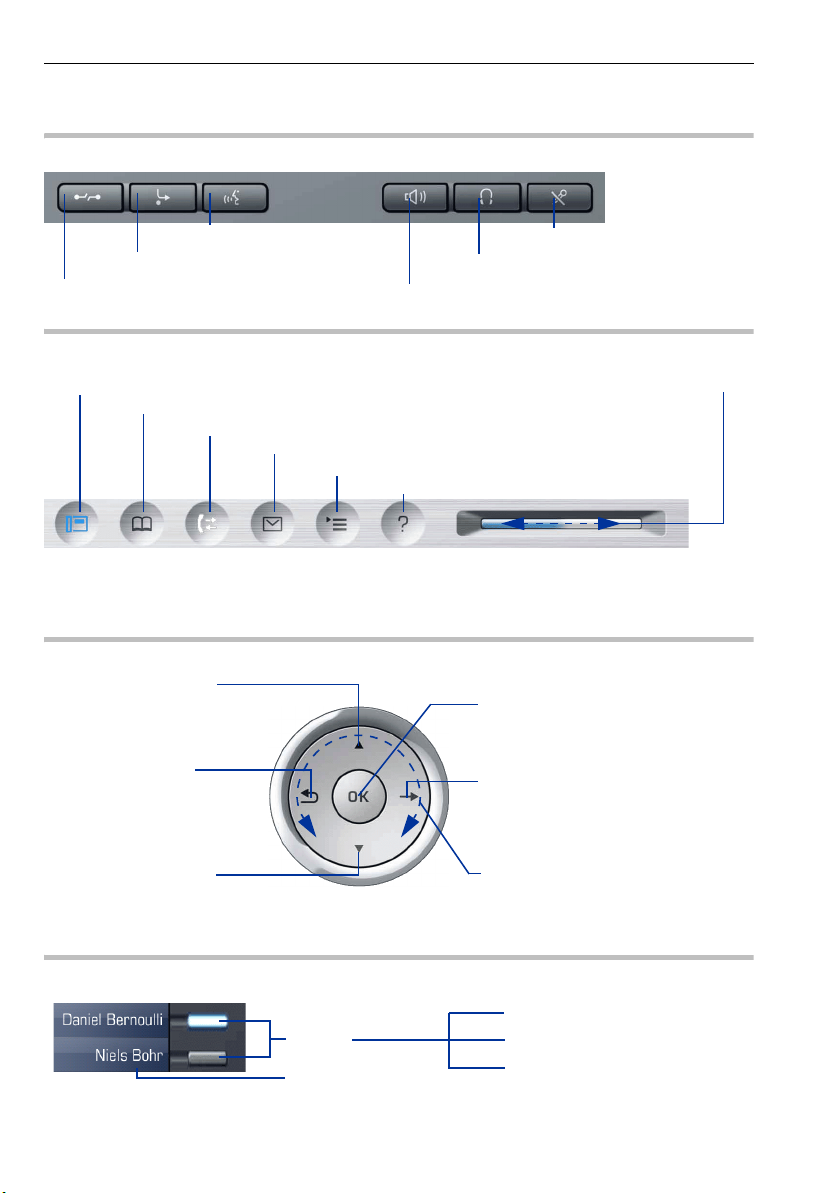

Function Keys and Audio Keys

Mode keys and TouchSlider

Shining blue: mode is active

Shining white:

for call lists: new entry in call list

for voicemails: new voicemail

To u c h g u i d e

Programmable sensor keys on the display

qStart voice dialing

rActivate/deactivate forwarding

sEnd (disconnect) call

pTurn microphone on/off

oTurn headset on/off

nTurn speaker on/off

tTelephony interface

uPhonebooks

wCall lists

xVoicemails

vService/Applications menu

yHelp function

Run finger over TouchSlider:

Depending on situation, set

volumes for ringer or

speaker

Press mkey:

- Scroll upwards

Hold down:

- Scroll to beginning of list

Press lkey:

- Scroll downwards

Hold down:

- Scroll to end of list

Press gkey:

- Call up the context menu

- Go down a level

Press hkey:

- Cancel function

- Delete character

left of cursor

- Go up a level

Press ikey:

- Confirm input

- Perform action

Run finger over inner edge of ring W:

- Scroll through lists and menus

- Adjust volume

Keys

Label

S inactive

R lit

T flashing

oi.book Seite 2 Mittwoch, 20. Juli 2011 12:08 12

Using Your Telephone

Entering Phone Numbers and Text

Keypad

In situations where text entry is possible, you can use the dial keys to enter text, punctua-

tion and special characters. To do this, press the numerical keys repeatedly.

Extra asterisk and pound key functions:

Display keyboard

Depending on the context, the display keyboard is displayed with different elements.

Using the display keyboard:

WShift focus to other element

gShift focus to "OK"

iSelect element

Key Function during text input Function when held down

*Write special characters Deactivate the ring tone.

#Switch between upper/lower case and digit entry. Activate telephone lock.

Element with focus

Letters, digits, punctuation or special characters

Changes

Switch to number input

Switch to upper/lower case

Insert clipboard contents at cursor position

Move cursor left/right

Switch to punctuation and special characters

Copy content of active field to the clipboard

oi.book Seite 3 Mittwoch, 20. Juli 2011 12:08 12

Using Your Telephone

Display

Components

Symbols

Application tab

Telephony interface

Phonebooks

Call lists

Voicemail

Help function

Status bar

The ring tone is deactivated

The "Do not disturb" function is activated

The phone lock is activated

One or more callback requests are active

The Bluetooth function is activated

A mobile user is logged on to the telephone[1]

Message icons

You have received one or more new messages

One or more new entries have been added to the call lists

Call forwarding is active

Status bar

Ta b ( a c t i ve )

Selected entry

(e.g. call lists)

Context menu

Selected entry

in context menu

Missed Dialled

10:23 Mon 10/23/06 54321

Dial

Details

Delete

List options

Marie Curie

Einstein, A

Joseph von Fr.

oi.book Seite 4 Mittwoch, 20. Juli 2011 12:08 12

Using Your Telephone

Frequent call states

The call is active

The call has been disconnected

You have placed the call on hold (e.g. consultation hold)

Your call partner has placed the call on hold

{The voice connection is secure

}The voice connection is not secure.

Multi-line

Call for the corresponding line

Call for a line with suppressed ring tone

"Hold reminder" is activated

The line is currently not available

The line is busy

Phonebook icons

Primary business number

Secondary business number

Mobile phone number

Private phone number

[1] This function is not yet available.

oi.book Seite 5 Mittwoch, 20. Juli 2011 12:08 12

Important Operating Procedures

In Idle State

Answering a call with the handset

ZZ^

Answering a call in speakerphone mode

ZZn

Rejecting a call

ZZf"Reject" i

Deflecting a call

ZZf"Deflect" iZj destination phone number i

Dialing from the caller list

w("Missed" tab, press repeatedly for "Dialled", "Received", "Forwarded")

Zf desired entry i

Activating callback

j destination phone number iZif no answer or busy: f"Call back" i

Saving a phone number to a key

SHold down programmable key Zf"Normal" or "Shifted" Zf"Selected dialling" i

Zf"Label" iZjEnter name, e.g. Peter Zf"Setting" i

Zjdestination phone number Zf"Save & Exit" iZt

Dialing a saved number

Ssaved phone number Z^

^Lift handset jEnter text or number

\Replace handset fSelect entry

[Conduct call gOpen context menu

ZRing tone/call waiting tone ZNext step in procedure

oi.book Seite 6 Mittwoch, 20. Juli 2011 12:08 12

Important Operating Procedures

Saving a function to a key

SHold down programmable key Zf"Normal" or "Shifted" i

Zfselect function i(for functions with phone number: Zf"Setting" i

Zjenter the phone number) Zf"Save & Exit" i Zt

Redialing a number

iZf"Redial" ZiZ^

Programming call forwarding

rZf"Edit call forwarding" iZf"Destination" (e. g. under "All calls") i

Z"Edit favourites" iZf"Destination 1" iZjphone number i

Zf"Option: Save & Exit" i Zf"All calls" iZf"On" iZf"Save & Exit" i Zt

Turning call forwarding on/off for all calls

oi.book Seite 7 Mittwoch, 20. Juli 2011 12:08 12

Important Operating Procedures

During Calls with a Party A

Switching to speakerphone mode

Hold down nZ\(US only: nZ\)

Consultation

gZ"Consultation" iZ

phone number for party B iZ[party B Zg

Z"Disconnect & return" iZ[party A

Accepting call waiting

ZCall waiting tone Zf"Accept" iZ[party B Zfparty B Zg

Zf"Disconnect & return" iZ[party A

Deflect call on call waiting

ZCall waiting tone Zf"Deflect" iZ

phone number for party

iZ[party A

Start conference

gZ"Consultation" iZ

phone number for party B iZ[party B Zg

Zf"Conference" iZ[party A and B

Start conference on call waiting

ZCall waiting tone Zf"Accept" iZ[party B ZgZf"Conference" i

Z[party A and B

Blind transfer to party B

gZf"Consultation" iZjdestination phone number iZ\

Transfer after consultation

gZf"Consultation" iZ

phone number for party B iZ[party B Z\

oi.book Seite 8 Mittwoch, 20. Juli 2011 12:08 12
