FC2005/FC901

System installation instruction

Wiring diagram

Software clearance declaration

Fire Safety & Security Products

Building Technologies

FC901 FC2005

Accessories and separate parts

Accessory

items Content Installation instruction Qty

1.1

1.2

2.2

2.1

2.3

3.1

3.2

3.3

4.1

4.2

5.1

5.2

Cable between batteries, refer to figure 1 1

Cable between batteries and main board, refer to figure 1,figure 2 1

Cable between City tie board and main board, refer to figure 2 1

Earth cable between enclosure and main board, refer to figure 1 and

figure 2 1

Grounding cable for front door and power supply,

refer to figure 1 2

Battery bracket left, refer to figure 1 1

Battery bracket right, refer to figure 1 1

Cable ties 10

No.8 screws, refer to figure 1 12

No.4 screws, refer to figure 2 2

Spacer for City tie board, refer to figure 2 2

Battery cell, refer to figure 1 2

Power supply, refer to power supply installation instruction sheet

delivered with power supply 1

Assembling notes

1. Mount the batteries with battery brackets.

2. Mount the power supply MOV, then mount the power supply to the enclosure.

3. Mount the City tie module onto the main board according to the Figure 2 (City tie module is optional).

4. Connect the cables to the corresponding position marked on the drawing

(The power supply input cable and output cable are not included in the FC901 and FC2005 package).

4. Tie the cables to the enclosure with cable tie, refer to the Figure 1(Cable tie features).

5. Mount the Main board assembly onto the Enclosure according to Figure 3.

6. Mount the Lock pin to the Front door axis(Both are included in the Enclosure package)

S3 Front door hinge axis lock pin, refer to Detail A 2

S4 Front door hinge axis, refer to Detail A 2

Document ID: A5Q00039713A

Page 1/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

S5 2

EOL for NAC, refer to Detail C

Note: Item 3,6,7,11,S1and S2 are not delivered with the FC901 and FC2005.And should be ordered separately.

FC2005/FC901 installation instruction

12 Power supply MOV(Metal Oxide Varistor), refer to figure 2 1

Battery, Power supply and City tie PCB assembly installation instruction

FC2005/FC901 installation instruction

Pay attention to the battery polarity at 2.1 and 2.2

Brownout

GNDGND +26

Figure 1 Installation instruction(Front view with front door open)

1.1 1.22.1 2.2

4.1 and 5.1(1)

5.1(2)

5.2(1)

5.2(2)

Power supply

DC output

Cable tie feature

Detail A

Detail A Front door hinge and lock pin installation instruction

Figure 2 Installation instruction(Main board assembly back view)

3.2

3.3

3.1

4.2

2.3

Power supply DC input

City tie

module

Detail B

Document ID: A5Q00039713A

Page 2/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

Detail B City tie cabling

X2 Output 2

Connect to 3.2

X3 Output 1

Connect to 3.3

From left to right:

TP1295,TP1294,TP1293,TP1292

3.1

From 1 to 4

TP1295,TP1294,TP1293,TP1292

1234

City tie cable,Main board and EOL installation instruction

FC2005/FC901 installation instruction

Figure 3 Main board assembly installation instruction

Detail C

Detail C NAC EOL installation instruction

N_BN

N_BP

N_AN

N_AP

Document ID: A5Q00039713A

Page 3/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

Power supply MOV(Metal Oxide Varistor) Installation instruction

Step 1: Bend the MOV connector pin

refer to the picture for an example

Step 2: Fix or weld the MOV onto the power input

connector.Take the picture as reference

Step 3: Fix the AC input cable and screws on

the connector. Take the picture as reference

FC2005/FC901 installation instruction

Document ID: A5Q00039713A

Page 4/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

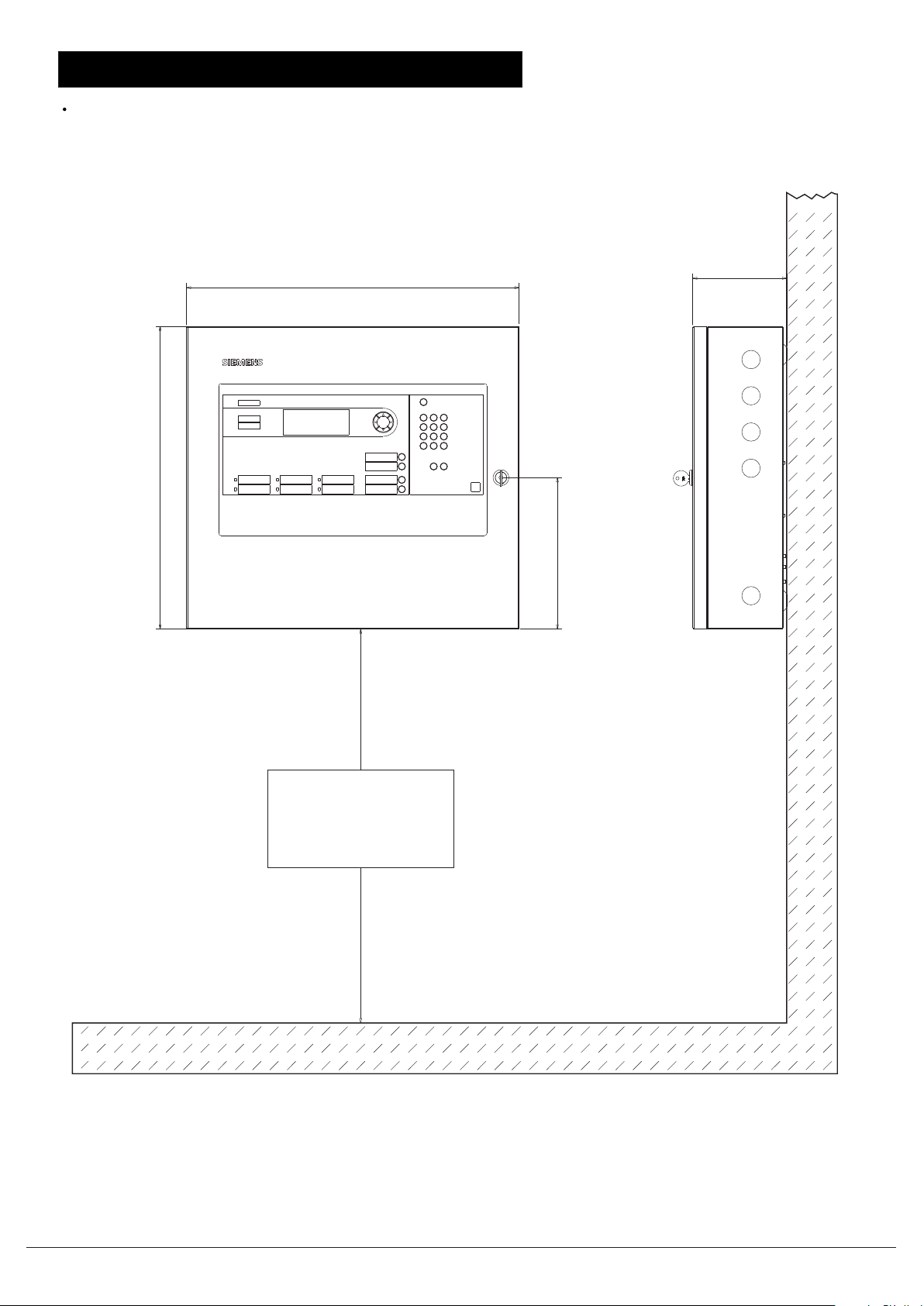

Installation instruction without Trim kit

18 1/8” 5 7/64”

16 ½”

8 1/4”

Mount Control Unit at

a convenient height

for access to display

and controls

CerberusTM

FC2005/FC901 installation instruction

Document ID: A5Q00039713A

Page 5/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

Installation instruction with Trim kit

21 1/4”

4 1/4” MAX

19 5/8”

8 1/4”

Mount Control Unit at

a convenient height

for access to display

and controls

CerberusTM

FC2005/FC901 installation instruction

Document ID: A5Q00039713A

Page 6/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

FC2005/FC901 SYSTEM CONNECTION DIAGRAM

Environm ental SLC Addressable Device Circuits

Operating temperature - 32 - 120°F (0 - 49°C) 32 VDC Max

Relative humidity - Up to 93% @ 90°F (32°C) Pow er limited

To be installed in a indoor dry protected environment only Supervised

Max. current: 0.07A(RMS)

Prim ary Pow er Supply Maximum w ire loop resistance: 50Ω

Input: 120VAC, 60 Hz or 220 VAC, 50 Hz Tw o Style 4 Class B or one Style 6 Class A circuit

@ 2.0A Max. Max. 50 addressable devices

Supervised City Tie Circuits

Output: 26VDC @ 6.5A Max. Supply Input:

Max current: 6.5A (2 hours Max.) Voltage: 26 VDC

Filtered and Regulated 18 – 28 VDC for battery

Current: Max. 0.4A

Secondary Pow er Supply Supervised

24V lead-acid battery set Output:

Max. charged voltage: 27.8 VDC City Tie-Output 1

Automatic low battery disconnect voltage: 19.2±0.1VDC Normal output voltage: 19-28VDC (open circuit condition)

Max. charge current: 0.45A Supervisory current: 1mA

Battery capacity:12AH to 18AH Maximum trip current: 400mA

Supervised Maximum coil plus w ire resistance: 22.5Ω

Auxiliary Pow er Outputs Leased line-Output 1

- Non-resettable pow er output Normal output voltage:19-28VDC (open circuit condition)

Pow er limited Trouble output voltage: 0V

Alarm status: 0.75A

Alarm output voltage:-(19-28)VDC (open circuit condition)

Normal stand by: 0.05A Maximum w ire resistance: 2-5KΩ

Voltage: 19 to 28VDC Maximum short circuit current: 25mA

Ripple: 0.1 VAC

Special Application Leased line-Output 2

Normal output voltage: 19-28VDC (open circuit condition)

- Resettable pow er output Supervisory output voltage: -(19-28)VDC (open circuit condition)

Pow er limited Maximum w ire resistance: 2-5KΩ

Alarm status: 0.75A Maximum short circuit current: 25mA

Normal stand by: 0.05A

Voltage: 19 to 28VDC DACT Circuits

Ripple: 0.1 VAC Pow er limited

Special Application Supervised for short or open circuit conditions

Compliance to FCC part 68

Status Relays Support RJ31X connection

Non-pow er limited Compatible Digital Alarm Communication Receiver (DACR) list,

One programmable relay

Three non-programmable relays: Trouble, Supervisory, Alarm

Contact rating: 2A, 30VDC maximum

Form C contact

Notification Appliance Circuits

Pow er limited

Supervised

Current Draw Maximum Line Resistance

2.5A 3.2Ω

2.0A 4.0Ω

1.5A 5.3Ω

1.0A 8.0Ω

0.5A 16.0Ω

Alarm voltage: 16 to 32VDC

Maximum ripple: 0.1VAC

Used for special application only

Tw o Style Y/Class B or one Style Z/Class A

Total Max. Current: 2.5A

Device m odule Manufacture

MX8000 Honeyw ell

DACT compatibility list

CAUTION – To reduce the risk of fire, use only No. 26 AWG

or larger telecommunication line cord.

FC2005/FC901 SYSTEM GENERAL SPECIFICATION

Document ID: A5Q00039713A

Page 7/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

FC2005/FC901 SYSTEM CONNECTION DIAGRAM

EARTH

S_BN

S_BP

EARTH

S_AN

S_AP

X2_P

X2_N

X1_P

X1_N

EARTH

SE_B

SE_A

GND1

EARTH

PR_B

PR_A

GND1

CT_P

CT_N

LL_SP

LL_SN

N_BP

N_BN

N_AP

N_AN

DACT

PORT1

DACT

PORT2

S_NO

S_CO

S_NC

U_NO

U_CO

U_NC

A_NO

A_CO

A_NC

T_NC

T_CO

T_NO

Battery connector

12AH - 18AH@24VDC

Supervised, Non power limited

USB type B plug

DC power input

6.5A@26VDC

SLC loop Auxiliary power Series interface circuit

City tie or

lease line

Notification Application

Circuits(NAC) DACT Relays

Note: All the wiring must be in according with local codes and National Electric Code.

Document ID: A5Q00039713A

Page 8/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

FC2005/FC901 SYSTEM CONNECTION DIAGRAM

SLC loop connections

Supervised and power limited, detail device compatibility list refer to user manual Appendix B

Auxiliary power

Non supervised and power limited

Class A

...

50 max devices

0.07A@6-32 VDC

Note: The earth gets connected to the

shield (if used)

EARTH

S_BN

S_BP

EARTH

S_AN

S_AP

EARTH

S_BN

S_BP

EARTH

S_AN

S_AP 0.07A@6-32 VDC

50 max devices

...

0.07A@6-32 VDC

Class B

Note: The earth gets connected

to the shield (if used)

X2_P

X2_N

X1_P

X1_N

Conventional detectors

Alarm 0.75A @19-28VDC

Normal 0.05A @19-28VDC

Auxiliary power output 2

(Resettable, power limited)

Power -

Power +

Alarm 0.75A @19-28VDC

Normal 0.05A @19-28VDC

Auxiliary power output 1

(Non-resettable, power limited)

+-+-

Max. current= 0.75A

24V

applicance

Document ID: A5Q00039713A

Page 9/12 02.2012

Fire Safety & Security Products

Building Technologies FC2005/FC901 installation instruction

Autres manuels pour FC901

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siemens Panneau de contrôle

Siemens

Siemens SXL-EX Mode d’emploi

Siemens

Siemens Apogee P1 Manuel utilisateur

Siemens

Siemens SIMATIC WinCC flexible 2008 SP4 Guide de l'utilisateur

Siemens

Siemens SINAMICS BOP-2 Manuel utilisateur

Siemens

Siemens FC361-ZZ Manuel utilisateur

Siemens

Siemens SUT50 Manuel utilisateur

Siemens

Siemens SIMATIC HMI SICALIS PMC 7 Document technique

Siemens

Siemens MTP700 Unified Comfort Guide de l'administrateur

Siemens

Siemens LED-3 Manuel utilisateur

Siemens

Siemens SIMATIC PP7 Document technique

Siemens

Siemens SIMATIC HMI ITC1200 V3 PRO Manuel utilisateur

Siemens

Siemens OP1S Manuel utilisateur

Siemens

Siemens SIMATIC 277 IWLAN Manuel utilisateur

Siemens

Siemens FC123-ZA Manuel utilisateur

Siemens

Siemens SIMATIC HMI series Manuel utilisateur

Siemens

Siemens FC2005 Manuel utilisateur

Siemens

Siemens SIMATIC TP700 Comfort Outdoor Manuel utilisateur

Siemens

Siemens SINAMICS IOP-2 Manuel utilisateur

Siemens

Siemens SINUMERIK 802D sl Manuel utilisateur

Siemens

Siemens IC60W-10 Manuel utilisateur

Siemens

Siemens Multi Panel MP270 SIMATIC HMI Document technique

Siemens

Siemens SIMATIC HMI KTP700F Mobile Manuel utilisateur

Siemens

Siemens CERBERUS PYROTRONICS PXL Manuel utilisateur

Siemens

Siemens SIMATIC TD 200 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques
