Local Service Organization Service Manual

BE INSPIRED

V1.1

Version Date Department Notes to change

1.0 ICM MP CCQ SLI RHQ New Document

1.1 08.09.2004 ICM MP CCQ GRM T SW update section

changed,

other minor changes

Our innovation shapes the future

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 2 of 2 Internal Use Only

Table of Contents

1 GPRS (GENERAL PACKET RADIO SERVICE)……….3

2 K JAVA APPLICATION……………………………………………………………….4

3 KEY FEATURES……………………………………………………………………….5

4 COMPARISON WITH PERVIOUS PRODUCT...……………………………………8

5 ACCESSORIES……………………………………………………………………......9

6 UNIT DESCRIPTION SL65....................................................................................11

7 DISASSEMBLY OF SL65......…………………………………………..…………..13

8 REASSEMBLY OF SL65….………………………………………………………...19

9 MOBILE SOFTWARE PROGRAMMING…………………………………………..20

10 SIEMENS SERVICE EQUIPMENT USER MANUAL……………………………..23

11 JPICS INTERNET.……………………………………………………………………24

12 INTERNATIONAL MOBILE EQUIPMENT IDENTITY, IMEI…….………………..30

13 GENERAL TESTING INFORMATION……………………………….……………..31

Annex 1……………………………………………………………………………….……….36

Annex 2…………………………………………………………………………….………….37

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 3 of 3 Internal Use Only

1 GPRS (General Packet Radio Service)

GPRS is a new non-voice value added services that allows information to be sent

and received across a GSM mobile telephone network. It supplements today’s Circuit

Switched Data (CSD) and Short Message Services (SMS). GPRS involves overlaying

a packet based air interface on the existing circuit switched GSM network. This gives

the option to use a packet-based data service. The information is split into separated

but related “packets” before being transmitted and reassembled at the receiving end.

Theoretically, maximum speeds of up to 171.2 kilobits per second (kbps) are

achievable with GPRS using all eight timeslots at the same time. This is about 3

times as fast as the data transmission speed possible over today’s fixed

telecommunications networks and 10 times as fast as current Circuit Switched Data

services on GSM networks.

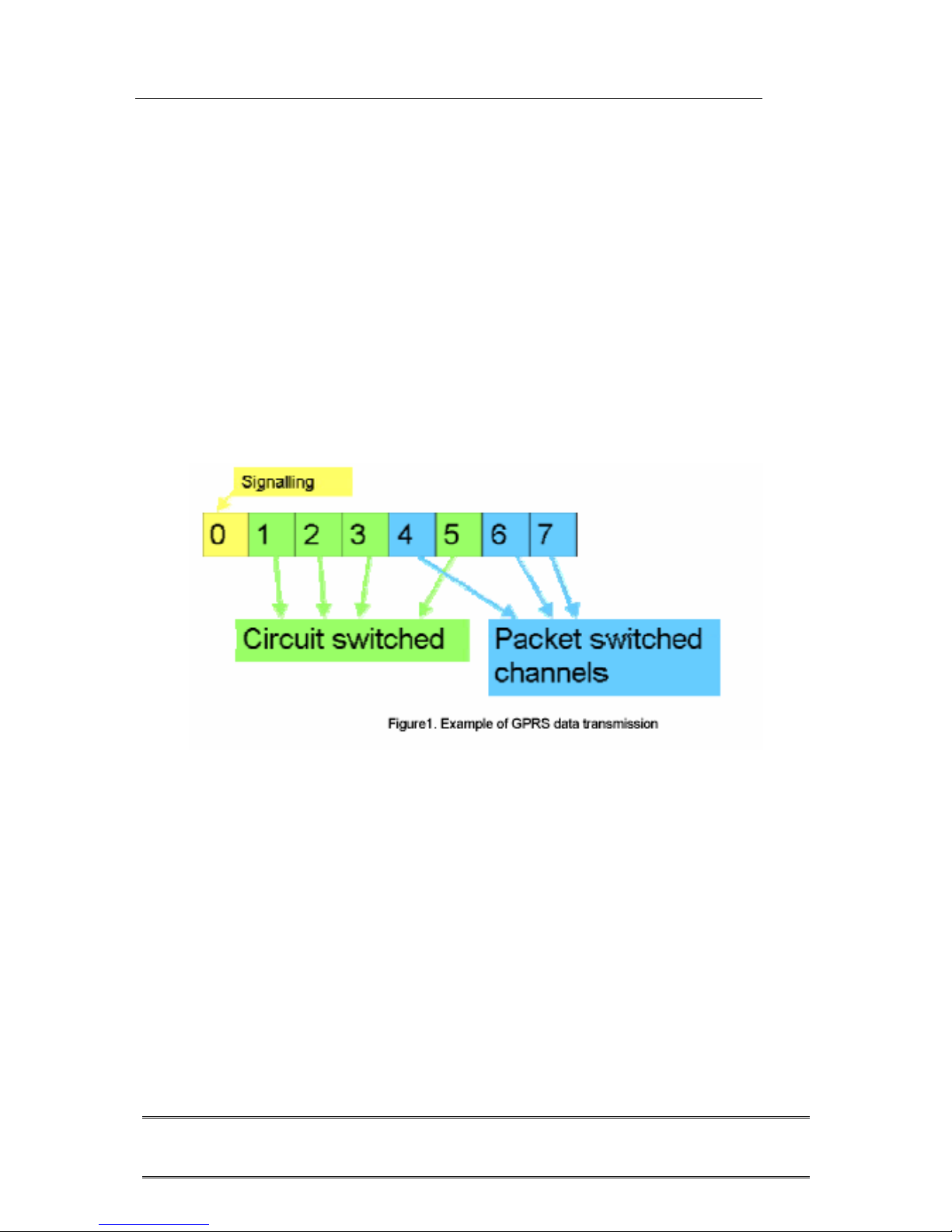

Example: Cell with 1 Frequency channel:

1 physical channel for signaling, 4 physical channels for Circuit switched and 3 physical

channels for Packet switched.

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 4 of 4 Internal Use Only

2 K-Java Application

Java-based game system

Java Application Manager

(JAM)

Application launcher and

download manager.

Supports HTTP-based OTA

download of applications over

GPRS and CSD.

yes

RAM for Java applications Available RAM for Java

applications (i.e. Program code

and data) during application

runtime:

Minimum 100 Kbytes (Has to be

taken as working assumption

for application development).

Goal: 145 Kbytes as SL45i (not

committed)

yes

MIDP 1.0, CLDC 1.0 As SL45i, including

performance optimizations from

SL45i-Infusio.

yes

‘OEM extensions’ Proprietary API extension as

SL45i. Including ‘Siemens

Game API’

yes

HTTP API over GPRS Sl45i: only CSD yes

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 5 of 5 Internal Use Only

3 Key Features

Bands •Triple Band E-GSM 900 / GSM 1800 / GSM 1900

•EGSM Phase 2 / phase 2+

•GPRS Multi Class 10

•JavaTM Wireless Technology, MIDP 2.0

Battery •Li-Ion Battery Pack

•Nominal Voltage : 3.7V

•Nominal Capacity : 700 mAh

•GSM Capacity : 670 mAh

Stand-by Time •up to 230 h (standard battery)

Talk Time •up to 270 min (standard battery)

SIM Card

•Small (”Plug In”) 1.8 V or 3V SIM card (Phase II)

•To insert the SIM card, the battery pack must be

removed.

GSM Antenna •Integrated triple band antenna for EMEA/APAC.

Dimensions •90.2 x 47.6 x 20.9 mm (L x W x H)

Volume •78 cm³

Weight •99 g

Charging time •< 2 h for 100%

Storage •Up to 11 MByte

Receiver Sensitivity •GSM 900: -102dBm (Specification, static & with fading)

•GSM 1800/1900: -102 dBm (Specification, static & with

fading)

Receiver sensitivity must comply with the corresponding GSM

recommendations in all operating conditions (temperature,

battery level, etc)

Transmitter Power •GSM 900: nominal 2W (Specification: Class 4 Mobile

phone)

•GSM 1800/1900: nominal 1W (Specification: Class 1

Mobile phone)

Transmitter output characteristics is according to GSM 11.10

specification implying all specified operating conditions

(temperature, battery level ...).

Transmitter set points will be specified for GSM and PCN when

typical values and statistical values become available.

Speech Codec

•Triple Rate (HR/FR/EFR) and Adaptive Multi Rate are

available as standard

Temperature

Range

•-100C to +550C (Normal operation)

•-300C to +850C (Storage capability)

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 6 of 6 Internal Use Only

Display •Type: Full Graphic

•Resolution: 130 x 130 Pixel

•No. of colours: 65K

•Technology: TFT (Epson)

•Active area: 30.03mm x 30.03mm

•Pixel size: 0.077mm x 0.231mm. (1 Pixel consists of 3

sub-pixels in red, green and blue)

•Illumination: White LED (3 LEDs integrated)

•Contrast: Adjustable

•Frame rate: 15 frames/seconds

•No. of lines: 5 / 7

12-Block Keypad •12-digit block (0-9, #, *)

•Bridgeless keypad

•Front side painted technology

•Tactile finder on key “5”

•White as illumination colour

•4 white LEDs for keypad

6-Block Keypad •Front side painted technology

•5-way joystick with design-cap (soft material)

•2 soft-keys for different SW-enabled functions

•2 function keys (SEND, END)

•ON/OFF key combined with the END key; the symbol ¢(I

inside O) is used as a symbol for ON/OFF.

•1 separate Operator Key (non-illumination Operator Key)

•White as illumination colour

•4 white LEDs for keypad

Side Key •Front side painted technology

•Loudness / Voice Memo (as SL55)

Acoustics

•Three-in-one-loudspeaker for handset, handsfree and

ringing tones

•Uni-directional microphone

•Loud signal emitter (sound ringer)

•Polyphonic ringer tones (parallel to GPRS: 16 voices; all

other Use Cases: 32 voices)

•Hands free mode

•Different selectable volume levels for handsfree, handset

and ringer mode (for the amount see SW product

description)

Camera •Integrated VGA camera

•5x digital zoom

•Video recording

•Resolution: Still images: 640 x 480 pixel

Video clips: 128 x 96 SubQCIF, H.263 &

MPEG4

Video capture: 128 x 96 SubQCIF, 3GPP

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 7 of 7 Internal Use Only

H.263 + AMR for audio encoding

•Frames: 8 fps

Connectivity •USB, Serial (RS 232), and IrDA

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 8 of 8 Internal Use Only

4 Comparison with Previous Product

Feature CX65 SL55/56 SL65/66

Supported Systems Triple Band

(EMEA, APAC)

GSM 900/GSM1800/

GSM1900

(NAM)

GSM 850/GSM1800/

GSM1900

Triple/ Dual band

(EMEA, APAC)

GSM 900/GSM1800/

GSM1900

(NAM)

GSM 850/GSM1900

Triple Band

(EMEA, APAC)

GSM900/GSM1800/GSM1

900

(NAM)

GSM 850/GSM1800/

GSM1900

Stand-by Time ≥220h

(approx. 3mA quiescent

current)

SL55: 200h

SL56: 180h (DTX2)

SL65: 230h

SL66: 120h (DRX2)

Talk Time ≥4,5 h

(approx. 150mA average

current for lowest TX-

power level)

SL55: 200min

SL56: 110min(DTX5)

SL65: 270min

SL66: 130min (GSM850

PowerLevel 5 DTX OFF)

Battery Technology

Battery Capacity

Li-Ion Battery Pack

NOMINAL CAP.: 700

MAH

Li-Ion Battery Pack

NOMINAL CAP.: 500

MAH

Li-Ion Battery Pack

NOMINAL CAP.: 700

MAH

Weight Approx. 90 g Approx. 75g Approx. 85g

Volume Approx. 78 cm3Approx. 63 cm3Approx. 78 cm3

Length 108 mm 81,6mm 90,2mm

Width 44…47 mm 44.5mm 47,6mm

Thickness 17…18 mm 21,9mm 20,9mm

SIM Plug-In 1.8V/3V Plug-In 1.8V/3V Plug-In 1.8V/3V

Antenna Integrated Integrated Integrated

Antenna Performance

in comparison to S35

CX65:

-0,8 dB @ 900 MHz

-0,5 dB @ 1800 MHz

CX66

SL55

28,3dBm@900MHz

26,1dBm@1800MHz

25,2dBm@1900MHz

SL56

27,0dBm@850MHz

26,2dBm@1900MHz

SL65

28,6dBm@900MHz

26,4dBm@1800MHz

25,2dBm@1900MHz

SL66

27,3dBm@850MHz

25,0dBm@1800MHz

27,0dBm@1900MHz

Antenna Performance

in comparison to C56

-1,5 dB @ 1900MHz

Half Rate Yes Yes Yes

Enhanced Full Rate Yes Yes Yes

AMR Yes Yes Yes

Fax/Data Yes Yes Yes

GPRS Yes (Class 10) Yes (Class 8) Yes (Class 10)

Keypad Illumination Yes (white) Yes (white) Yes (white)

DISPLAY /

DISPLAY

ILLUMINATION

TFT/TFD

65k colour

STN

4k colour

TFT

65k colour

CAMERA Yes

(integrated camera)

No Yes

(integrated camera)

Ringer volume level Min. 95 dB(A) @ 5cm

Typ. ≥98dB(A) @ 5cm

(for dedicated Siemens-

standard melodies)

Min. 100dB(A) @ 5cm

(only for rectangular

sound signals)

Typ. ≥95dB(A) @ 5cm

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 9 of 9 Internal Use Only

5 Accessories

For SL65, the following accessories will be available.

Description Part number

Car Charger Plus ECC-600 L36880-N7101-A109

Car Data Adapter HKO-690 L36880-N7101-A800

Car Kit Comfort HKC-650 L36880-N7701-A300

Car Kit Easy HKP-620 L36880-N7701-A100

Car Kit Portable HKP-500 L36880-N5601-A109

Data Cable DCA-500 L36880-N5601-A110

Data Cable USB DCA-510 L36880-N5601-A111

Data Cable USB DCA-540 L36880-N6501-A102

Flash IFL-600 L36880-N7101-A400

Headset HHS-500 L36880-N5601-A107

Headset with PTT HHS-510 L36880-N5601-A108

Headset Purestyle HHS-610 L36880-N7101-A500

Li-Ion Battery 700mAh EBA-650 L36880-N7701-A600

Mobile Holder Antenna HMH-655 L36880-N7701-A210

Mobile Holder HMH-650 L36880-N7701-A200

SyncStation DSC-600 L36880-N7101-A113

Textile Case FCT-600 L36880-N6051-A700

Travel Charger ETC-500 EU L36880-N5601-A104

Travel Charger ETC-510 UK L36880-N5601-A105

Upgrade Kit HKO-620 L36880-N7101-A103

Note: Visit the Communication Market for updated accessories:

https://communication-market.siemens.de/

SIEMENS PTE LTD

SL65 Level 2 Service Manual

ICM MP CCQ SLI RHQ Page 10 of 10 Internal Use Only

5.1 SL65 Interface to accessories

The phone has got a full compatible interface to accessories. The I/O-Connector

(Lumberg-(slim)-connector) shall be in the same position as in the 55 series.

All shown interfaces are for car-cradle. Interfaces for Belt-Clip will not be necessary.

Slim Lumberg I/O Connector

Autres manuels pour SL65

Table des matières

Autres manuels Siemens Téléphone portable

Siemens

Siemens A70 Manuel utilisateur

Siemens

Siemens SL42 Manuel utilisateur

Siemens

Siemens AF51 Manuel utilisateur

Siemens

Siemens Gigaset SL55 Manuel utilisateur

Siemens

Siemens CT56 Manuel utilisateur

Siemens

Siemens S75 Manuel utilisateur

Siemens

Siemens PEGASUS-DTC AX72 Manuel utilisateur

Siemens

Siemens optiPoint WL1 professional Manuel utilisateur

Siemens

Siemens SK65 Guide de sécurité

Siemens

Siemens SX1 Manuel utilisateur

Siemens

Siemens C75 Manuel utilisateur

Siemens

Siemens SX66 Manuel utilisateur

Siemens

Siemens CF75 Manuel utilisateur

Siemens

Siemens S40 Manuel utilisateur

Siemens

Siemens A31 Manuel utilisateur

Siemens

Siemens C65 Manuel utilisateur

Siemens

Siemens A52 Manuel utilisateur

Siemens

Siemens Gigaset SL75 WLAN Manuel utilisateur

Siemens

Siemens SOMATOM Sensation Cardiac Version A60 Manuel utilisateur

Siemens

Siemens C70 Manuel utilisateur

Siemens

Siemens A35 Manuel de l'opérateur

Siemens

Siemens A75 Manuel utilisateur

Siemens

Siemens AX75 Guide de configuration

Siemens

Siemens SL65 Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
