Siddons Solarstream MAHRWS025ZA/P Manuel utilisateur

Owner s ManualOwner s Manual

Cooling and Heating Energy-efficient Equipment Co., LtdCooling and Heating Energy-efficient Equipment Co., Ltd

HIGH TEMPERATURE 2IN1

AIR TO WATER HEAT PUMP

Hydronic Space Heating & Hot Water

HIGH TEMPERATURE 2IN1

AIR TO WATER HEAT PUMP

Hydronic Space Heating & Hot Water

MAHRW025ZB/P(H2)

MAHRW030ZB/P(H2)

MAHRW040ZB/P(H2)

MAHRW050ZB/P(H2)

CONTENTS

I. Introduction.......................................................................................

1. Notice...........................................................................................

2. Work principle and function introduction......................................

II. Specification.....................................................................................

1. .....................................................................

2. Parameter .....................................................................................

3. Product appearance and installation dimension............................

III. Installation.......................................................................................

1. Heat Pump Out Unit Installation.....................................................

2. Installation requirement................................................................

3. Domestic Hot Water(DHW) Storage Tank and Buffer Tank

Installation......................................................................................

4.Installtion of indoor heating and cooling equipment......................

5. Pipe connection.............................................................................

6. Installation of the tank temperature sensor probe..........................

7. Electrical wiring ............................................................................

8. Electrical wire selection ................................................................

9. Trial operation by qualified installer .............................................

IV. Use........................................................................... ...... ...............

1. Remote controller interface displays .............................................

2. The use of wire controller...............................................................

3. System state parameter checking...................................................

4. System parameter setting...............................................................

5. Maintenance time requirement.......................................................

6. Date/time/timing on and off settings...............................................

7. Lock button/Ddfrost status/Fahrenheit and Celsius change............

8. Fault code display..........................................................................

9. Parameter Table..............................................................................

V. Installation sketch.................................................... ...... ................

1. Water system installation drawing.................................................

VI. Maintenance and repair............................................. ...... ...............

1. Note...............................................................................................

2. Malfunction Indicating table..........................................................

3. Judgement and solution of malfunction.........................................

VII. Wiring diagram .....................

1. Mk5020 PCB input and output port definition...............................

2. Power phase sequence protecttion board setting ..........................

3. Wiring diagram .............................................................................

4. The working description and installation of electric three-way

valve..............................................................................................

Model Nomenclature

.. ..

...

..........................................................

1. Notice

1.1 Save this manual for future reference.

1.2 In order to use this product better and more safely, please read this manual carefully before

installation and initial operation.

1.3 Children or persons with physical, sensory or mental disability should not play with nor operate

this appliance.

1.4 This appliance must be installed by qualified and experienced technicians/tradespeople.

Improper installation of this appliance may cause damage and danger.

1.5 This appliance must be installed in accordance with Australian wiring regulations including an

isolating switch from the supply mains and grounded power supply consistent with the power

requirements of this appliance earthed in accordance with electrical regulations and Australian

StandardAS/NZS3000.

1.6 The installation of this appliance must complywith the model's wiring chart in this manual and its

power requirements as stated on the specification label on the side of the heat pump.

1.7 Do not install this appliance close to flammable or explosive materials, or naked flames.

1.8 A filter in the mains water supply inlet is recommended and should be checked/cleaned periodically.

1.9 Checking and cleaning of the evaporator fin coil is recommended for good air flow to ensure

good heat transfer with the ambient air for efficient operation.

1.10 The battery should be removed from this appliance's controller at the end of its operating life and

disposed of safely.

1. Notice

I.IntroductionI.Introduction

HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

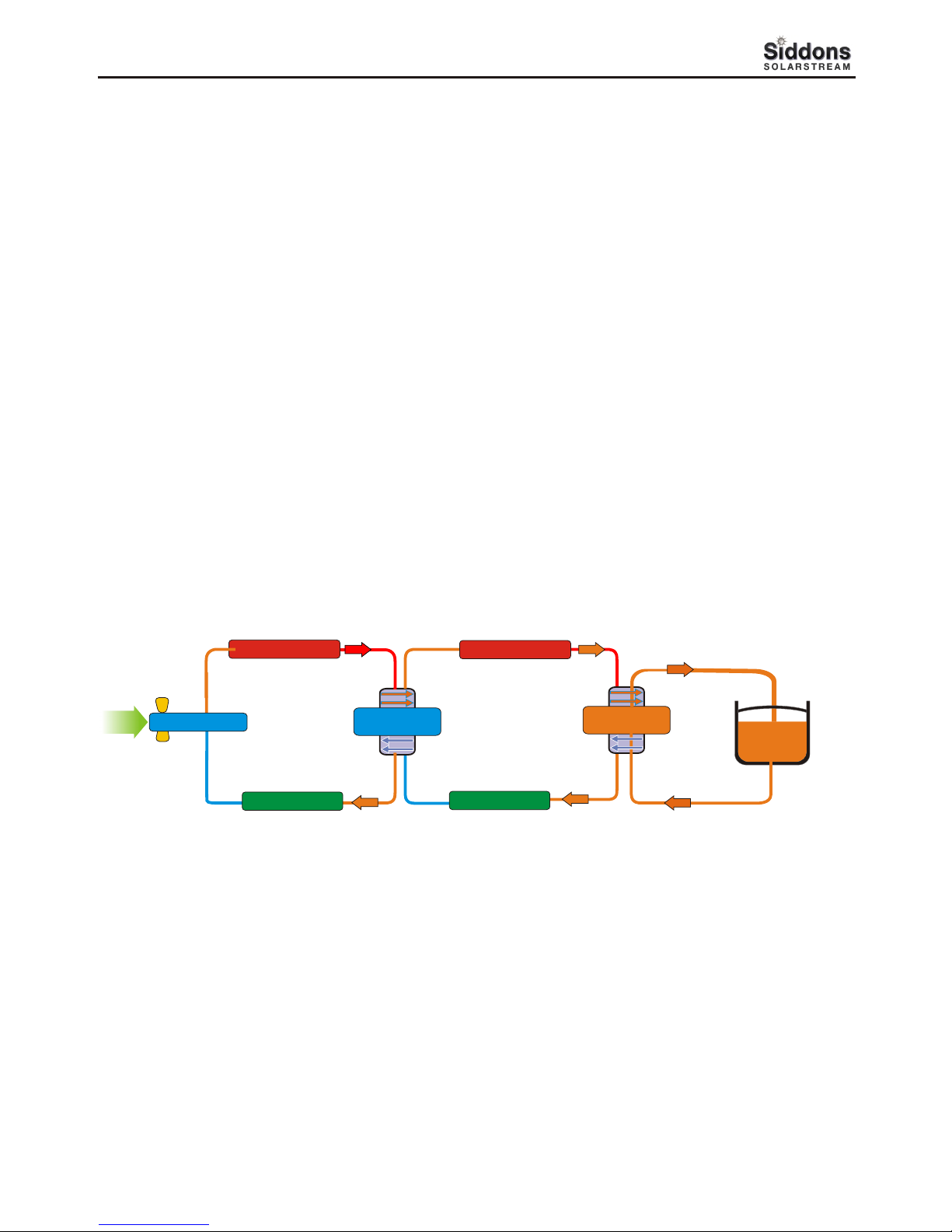

2. Working principle and function introduction

Compressor

heat exchange

Air heat exchange

hot water

tank

Compressor

expansion valve

First heating system

(R410A refrigerant/ EVI series )

First heating system

(R410A refrigerant/ EVI series )

Second heating system

(R134A refrigerant )

Second heating system

(R134A refrigerant )

expansion valve

heat exchange

This heat pump unit is designed with two-stage heating system. The first heating system uses

R410A refrigerant, which works effectively in low ambient air temperatures, with EVI technology

available for sub zero air temperatures as low -15 degrees. The second heating system uses

R134A high heat refrigerant, which can take the water temperature up to as high as 80 degrees,

designed for wall radiators. Both refrigerants are non-flammable, ozone friendly and widely

available in Australia.

The evaporator side of the second heating system is also the condensing side first heating

system so the thermal performance of the heat pump system can be greatly improved in sub

zero ambient air taking the water to high temperatures. Of course, in temperatures above zero,

the heat pump will work more efficiently with less or no need for defrosting the evaporator coil.

II.SpecificationII.Specification

2.Parameter

1.Model Nomenclature

MA CHR W S WA / PS(B E DH2)

Source medium

MA: Airsource

MW: Ground source

MD: Double soruce

Function of the unit

C: Aircooling

R: Airheating

CH: Air cooling and hot water

CR: Air cooling and heating

CHR: Air (heating+cooling) and hot water

Energy exchange medium

A: Refrigerant

W: Water

Z: Integrated type

W: Split type(indoor unit )

A: Horizontal fan direction

B: Upward fan direction

(Omit the split type unit model)

B: DC Inverter

(Without inverter omitted)

The figure represents the horse power of unit

eg:010 means 1 horse power

P:With built in pump

(Without built in pump omitted)

S:3phase (single phase omitted)

S:with solar

(Without solar omitted)

D:With electrical heating

(Without electrical heating omitted)

E: EVI

(Without EVI omitted)

HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

H1: Signal-stage heating high

temperature heat pump

H2: Two-stage heating high

temperature heat pump

MMooddeellMMAAHHRRWWSS002255ZZAA//PP((HH22))MMAAHHRRWWSS003300ZZBB//PP((HH22))MMAAHHRRWWSS004400ZZBB//PP((HH22))MMAAHHRRWWSS005500ZZBB//PP((HH22))

SSiizziinnggGGuuiiddeeffoorr66ssttaarrhhoommee((mm22))**117700222255330000337755

SSiizziinnggffoorr66ssttaarrhhoommeess

&&hhyyddrroonniiccrraaddiiaattoorrss((mm22))****9900111100115500118855

RRaatteeddHHeeaattiinnggCCaappaacciittyy((kkWW))8.08.0 1100..111133..881177..33

RRaatteeddIInnppuuttPPoowweerr((kkWW))33..1144..4466..0077..55

RRaatteeddIInnppuuttCCuurrrreenntt((AA))1144..001199..992277..333344..00

PPeerrffoorrmmaanncceeCCOOPP((WW//WW))22..6622..331122..330022..3322

RRaatteeddHHeeaattiinnggCCaappaacciittyy((kkWW))5.655.65 88..001100..881133..77

RRaatteeddIInnppuuttPPoowweerr((kkWW))2.92.9 44..2255..6677..00

RRaatteeddIInnppuuttCCuurrrreenntt((AA))13.313.3 1188..992255..333322..00

PPeerrffoorrmmaanncceeCCOOPP((WW//WW))11..993311..992211..994411..9955

PPoowweerrSSuuppppllyy((VV//PPhh//HHzz))220-240220-240//11//5500220-240220-240//11//5500220-240220-240//11//5500220-240220-240//11//5500

MMaaxxwwaatteerroouuttppuutttteemmpp(())8800880088008800

SSoouunnddlleevveell((ddBBaa))5522552255445544

CCoommpprreessssoorrttyyppeeSSccrroollll//ssccrroollllSSccrroollll//ssccrroollllSSccrroollll//ssccrroollllSSccrroollll//ssccrroollll

CCoommpprreessssoorrQQttyy22222222

WWaatteerriinnlleett//oouuttlleettppiippeeddiiaamm..((iinncchh))11""11""11""11""

WWaatteerrFFlloowwVVoolluummee((lliittrreess//mmiinn))3300335544666600

RReeffrriiggeerraannttttyyppeeRR441100aa//RR113344aaRR441100aa//RR113344aaRR441100aa//RR113344aaRR441100aa//RR113344aa

NNeettDDiimmeennssiioonnss((LL//WW//HHmmmm))890/750/1076890/750/1076

SShhiippppiinnggDDiimmeennssiioonnss((LL//WW//HHmmmm))11002200//990000//1111770011002200//990000//1111770011002200//990000//1111770011002200//990000//11117700

NNeettWWeeiigghhtt((kkgg))111155112200114400114455

SShhiippppiinnggWWeeiigghhtt((kkgg))113300113355115500115555

AASSSSUUMMPPTTIIOONNSSOOuuttddoooorraaiirrtteemmpp77//66,,IInnlleettwwaatteerrtteemmpp6600,,OOuuttlleettwwaatteerrtteemmpp6655((HHeeaattiinnggmmooddee))

OOuuttddoooorraaiirrtteemmpp--77,,IInnlleettwwaatteerrtteemmpp6600,,OOuuttlleettwwaatteerrtteemmpp6655((HHeeaattiinnggssuubbzzeerrooaaiirr))

**UUssiinngghhyyddrroonniiccrraaddiiaannttsskkiirrttiinnggbbooaarrddss,,nnootteeuunnddeerrfflloooorrhheeaattiinnggssiizziinnggddeeppeennddssoonntthheefflloooorrccoovveerriinngg,,ttiilleessaarreemmoorreeeeffffiicciieenntt,,ccaarrppeettlleeaasstteeffffiicciieenntt..

****UUssiinngghhyyddrroonniiccrraaddiiaattoorrsswwiitthh22..55mmcceeiilliinngghheeiigghhtt..

890/750/1076890/750/1076890/750/1076890/750/1076 980/870/1175980/870/1175

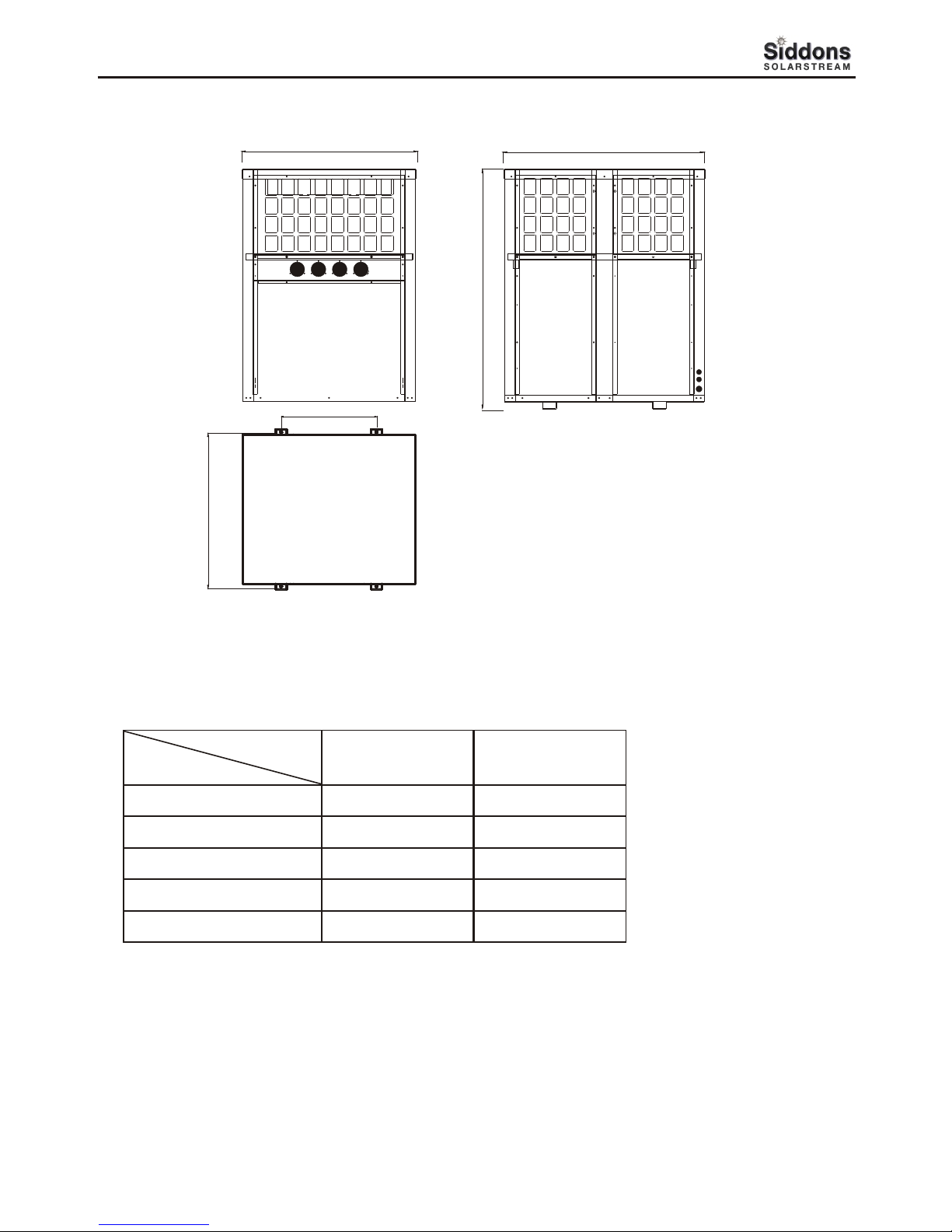

3. Product appearance and installation dimension

HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

MAHRW

Unit: mm

025ZB/P(H2)

750

890

1076

720

520

Sign

030ZB/P(H2)

040ZB/P(H2)

980

870

1175

840

520

050ZB/P(H2)

III. Installation

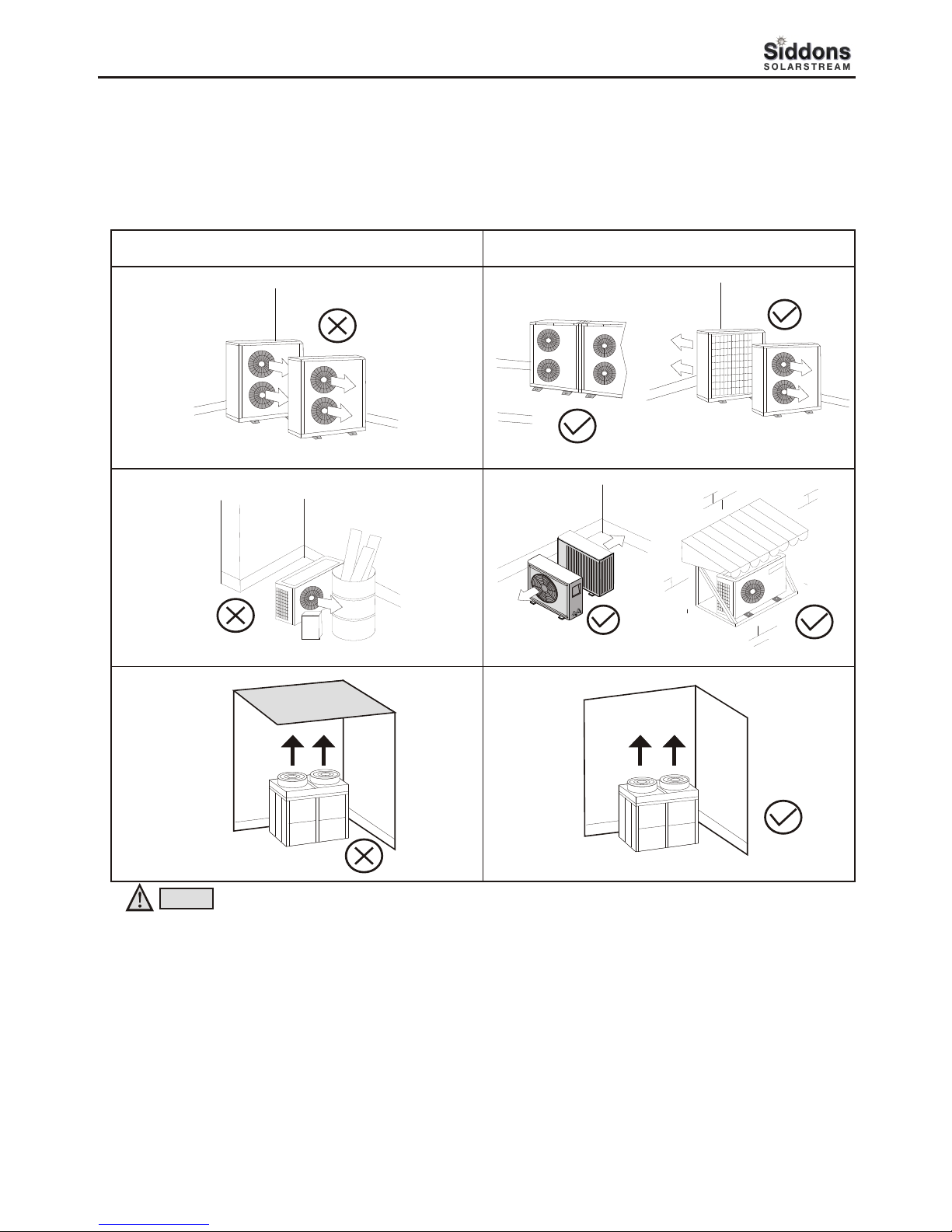

1 Heat Pump Outdoor Unit Installation

Install the heat pump outdoor unit with good air flow both into and out from the unit. Ensure there

is sufficient space around the unit for maintenance and good operation, refer to the schematics and

points below.

Wrong Right

1. To get enough air for ventilation of the unit, the installation position should have good

air flow.

2. The installation position

4. The water from rain and defrosting should be discharged from the installation position.

5. The unit

6. The discharged air should

8. The installation position should not be affected by garbage, oil or flammable materials.

should not reflect noise from the air outlet or transfer vibration

from the feet. Consider installing rubber pads under the heat pump feet.

Protection from direct sunlight is advisable.

Ensure the condensate water from the heat pump is taken to a drain.

should be protected by an awning from snow in Alpine areas.

not blow into a prevailing wind.

Do not face the air outlet directly at a neighbour's fence.

Notice:

Installation notice:

HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

9.The installation position should not be affected by sea salt spray or sulphides near a

thermal spring.

10.The unit can be installed on a balcony, roof or other convenient place if there is a

suitable load bearing structure to support its weight.

11.The control panel should not be installed in a bathroom due to high humidity and

moisture.

12.Leave enough space around the unit for good operation and servicing.

13.Use expansion bolts to fix the feet of the outdoor unit to the ground.

75mm

200mm

1500mm

600mm

Air outlet

500mm

200mm

600mm

Bolt

fix

500mm

200mm

600mm

700mm

400mm

600mm

1000mm

700mm

400mm

1000mm

2000mm

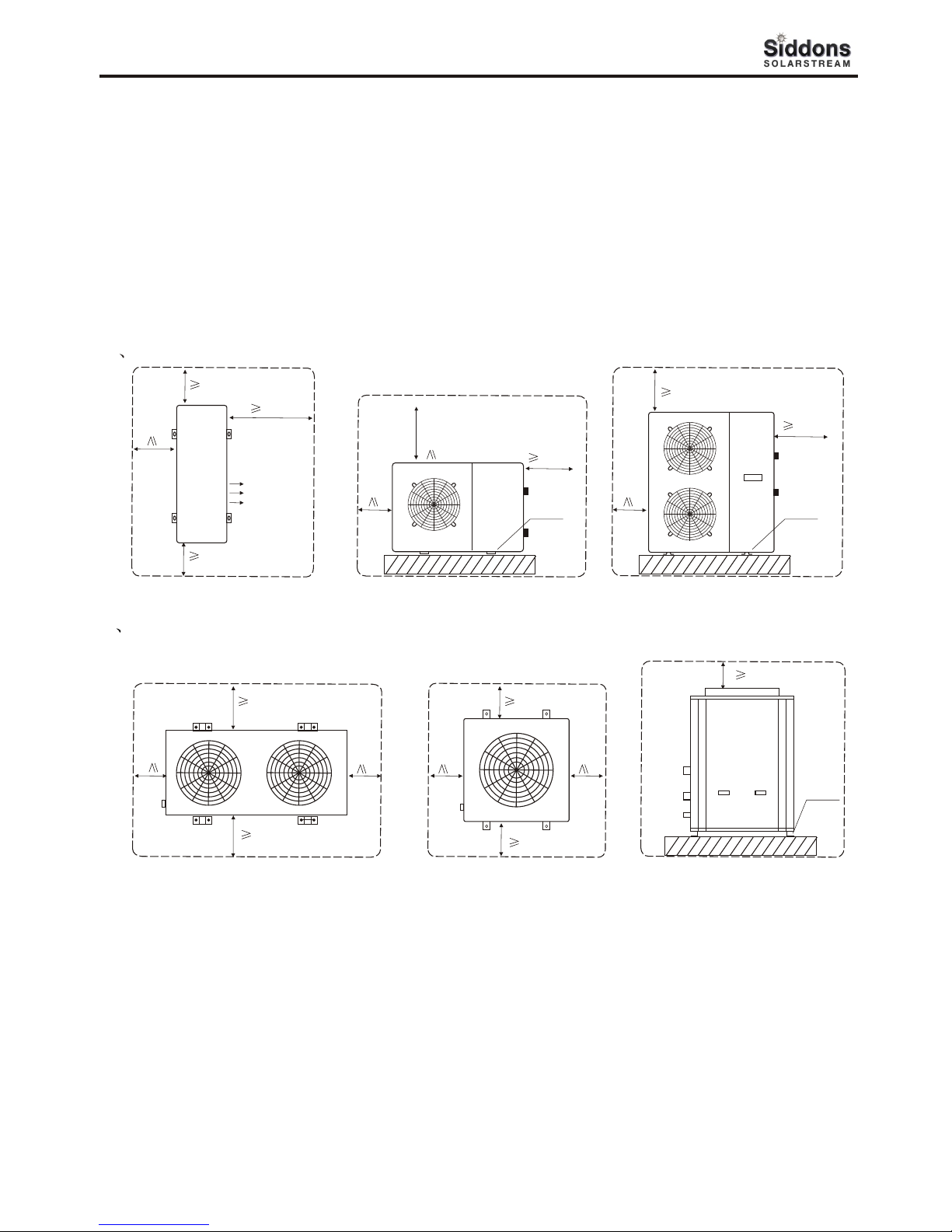

2. Installation requirement

B Top fan type installation space requirements:

Air intlet

Bolt

fix

Unit

Bolt

fix

A Side fan type installation space requirements:

HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

3.Domestic Hot Water (DHW) Storage Tank and Buffer Tank Installation

3.1 The DHW and Buffer tanks may be installed inside or outside.

3.2 Both tanks must stand vertically on a concrete plinth or firm structure that will support

its weight when full of water and not lean or be prone to fall over during its service life.

3.3 The DHW tank should be installed in accordance with Australian Standard

AS/NZS3500.4 and any local or other relevant Government regulations. It is best to install

the DHW tank as close as possible to the hot water outlet that has the greatest usage,

such as the kitchen.

3.4 Some building codes require a seismic restraint. Consider using stainless steel bands

to secure the tank against the wall.

3.5 When filling the DHW tank, open the hot water taps in the laundry and kitchen to purge

air from the water lines.

3.Domestic Hot Water (DHW) Storage Tank and Buffer Tank Installation

HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

3.6 When filling the Buffer Tank, use pure rain water with mould inhibitor, add Glycol if prone

to freezing conditions, and water pH should ideally be at 7.0.

3.7 An expansion tank must be included in the hydronic closed loop to allow the heated

water to expand.

5.1 Water pipe material should be heat resistant and rust-proof. This can be stainless steel,

copper, aluminium, hot water PPR pipes, etc according to relevant standards.

5.2 The choice of pipe size should match the heat pump inlet and outlet with the pipework

of the system, and follow the relevant standards.

5.3 The hot water storage and buffer tank drain port and pressure and temperature relief

valve should be installed to allow for proper drainage according to relevant standards.

5.4 The hot water storage and buffer tank must be installed with an isolating valve to allow

for maintenance.

5.5 The water pipes should be arranged with smooth bends to reduce pressure loss in the

system.

5.6 The water inlet should be fitted with a one-way valve and isolating valve, or duo valve.

5.7 The water inlet should be fitted with a water filter (note the duo valve may have a water

filter).

5.8 The hot water outlet of the outdoor unit should be connected to the solar return port on

the storage tank.

5.9 The air-conditioning side buffer tank should be installed in series on the outlet of the

main pipe.

5.10 After the water flow and return pipes are connected to the hot water side and

air-conditioning side, the system should be tested at water supply pressure for 24 hours to

ensure that the system does not leak. Then insulate relevant hot water and air-conditioning

pipes, and plumbing fittings.

5.11 In order to discharge all air from the water pipeline, the water supply return pipe should

have an automatic exhaust valve installed at the highest point.

5.12 An expansion tank and automatic stop valve should be installed into the water system,

and located indoors in areas with sub zero temperatures to prevent possible cracking of the

water pipes and valves when not in use in the winter.

5.13 The water flow and return lines to the outdoor unit should have a thermometer and

water pressure gauge installed to enable monitoring of key operational parameters.

5.Pipe connections

4. Installation of indoor heating and cooling equipment

5.1 Indoor heating and cooling equipment such as fan coils, radiator heating or floor

heating, should be installed in accordance with relevant regulatory requirements,

engineering design drawings, and the manufacturer's installation instructions.

5.2 Use soft connectors to connect the outdoor unit and indoor heating and cooling

equipment.

5.3 Install condensate water drain pipes to the indoor fan coil units with smooth drainage

lines for the condensate water to flow easily.

HIGH TEMPERATURE AIR TO WATER HEAT PUMPHIGH TEMPERATURE AIR TO WATER HEAT PUMP

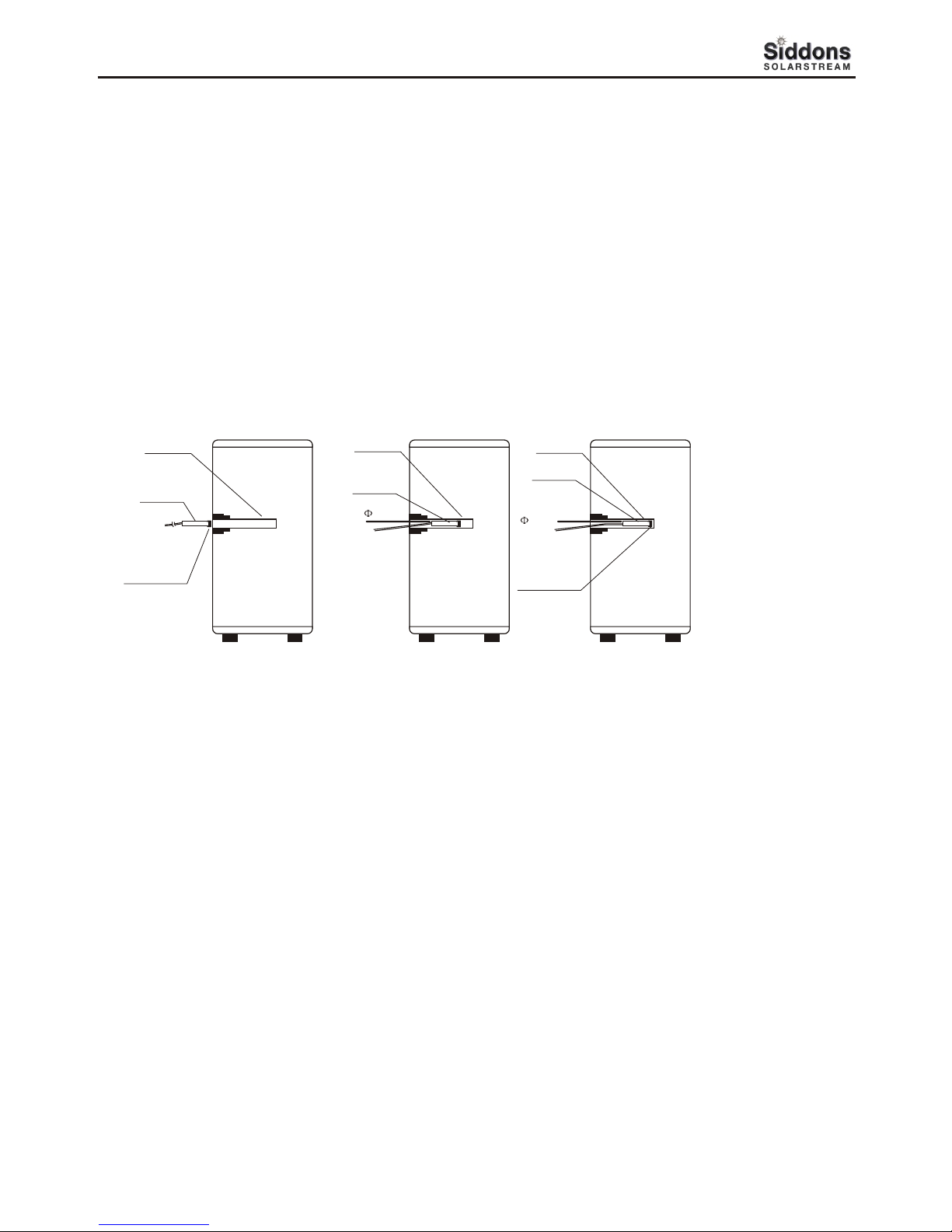

6.Installation of the tank temperature sensor probe

The head

of sensor

The heat

conduction

silica gel

Detector

Tank

The first step The second step The third step

Tank Tank

< 5 pin

The head

of sensor

Detector Detector

The head

of sensor

The heat

conduction

silica gel

< 5 pin

6.1 Firstly, daub heat conductive silicone onto the front of the temperature sensor, then

insert it

into the temperature detector.

6.2 Next, pull the pin out and check that the position of mark is at the same level as the inlet

of the temperature detector and check whether the sensor is inserted into the pipe terminal.

6.3 Finally, seal the inlet of the temperature detector with silicone.

Note:

(1)

(2)

(3)

(4)

(5)

(6)

The water pipes should be subjected to a pressure test before operation of the water

system.

The water system allows for water pressure range: 200 - 700kPa.

The outdoor unit allows for water temperature range: 5-80 C.

Water should drain from the pressure and temperature relief valve to a drainage pipe.

The pressure and temperature relief valve should be periodically exercised by gently

pulling the lever up. This will help to remove possible accumulation of calcium carbonate,

and ensure that the valve is working properly.

Install one-way valves, filters, pressure and temperature relief valves, and any other

plumbing fittings consistently with the marked flow direction and in accord with relevant

standards.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siddons Solarstream Pompe à chaleur

Siddons Solarstream

Siddons Solarstream MACHRW020ZA/(B01) Manuel de service

Siddons Solarstream

Siddons Solarstream MACHRW020ZA/P Manuel utilisateur

Siddons Solarstream

Siddons Solarstream MAHRW015WAA Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
