OPERATING INSTRUCTIONS

WLD4F

Miniature photoelectric sensors

OPERATING INSTRUCTIONS

WLD4F

Miniature photoelectric sensors

Described product

W4F

WLD4F

Manufacturer

SICK AG

Erwin-Sick-Str. 1

79183 Waldkirch

Germany

Legal information

This work is protected by copyright. Any rights derived from the copyright shall be

reserved for SICK AG. Reproduction of this document or parts of this document is

only permissible within the limits of the legal determination of Copyright Law. Any modi‐

fication, abridgment or translation of this document is prohibited without the express

written permission of SICK AG.

The trademarks stated in this document are the property of their respective owner.

Original document

This document is an original document of SICK AG.

2006/42/EC

SAFETY

8025303.1BBX / 2021-04-27 | SICK

Subject to change without notice 3

Contents

1 General safety notes......................................................................... 5

2 Notes on UL approval........................................................................ 5

3 Intended use...................................................................................... 5

4 Operating elements and status indicators.................................... 5

5 Mounting............................................................................................. 6

6 Electrical installation........................................................................ 6

7 Commissioning.................................................................................. 8

7.1 Alignment.................................................................................................. 8

7.2 Check the application conditions:........................................................... 9

7.3 Setting....................................................................................................... 11

7.4 Process data structure............................................................................. 12

8 Troubleshooting................................................................................. 13

9 Disassembly and disposal............................................................... 14

10 Maintenance...................................................................................... 14

11 Technical specifications................................................................... 14

11.1 Dimensional drawings.............................................................................. 15

CONTENTS

48025303.1BBX / 2021-04-27 | SICK

Subject to change without notice

1 General safety notes

■Read the operating instructions before commissioning.

■

Connection, mounting, and configuration may only be performed by trained

specialists.

■

2006/42/EC

SAFETY

Not a safety component in accordance with the EU Machinery Directive.

■

Do not install the sensor at locations that are exposed to direct UV radiation

(sunlight) or other weather influences, unless this is expressly permitted in the

operating instructions.

■When commissioning, protect the device from moisture and contamination.

■These operating instructions contain information required during the life cycle of

the sensor.

2 Notes on UL approval

The device shall be supplied from an isolating transformer having a secondary overcur‐

rent protective device that complies with UL 248 to be installed in the field rated either:

a) max 5 amps for voltages 0 ~ 20 V (0 ~ 28.3 V peak), or

b) 100 / Vp for voltages of 20 ~ 30 V (28.3 ~ 42.4 V peak).

Alternatively, they can be supplied from a Class 2 power supply.

UL Environmental Rating: Enclosure type 1

3 Intended use

The WLD4F is an opto-electronic photoelectric retro-reflective sensor (referred to as

“sensor” in the following) for the optical, non-contact detection of objects, animals, and

persons. A reflector is required for it to function. If the product is used for any other

purpose or modified in any way, any warranty claim against SICK AG shall become void.

4 Operating elements and status indicators

Table 1: Operating elements and status indicators

WLD4FP- xxxxxx30A00 xxxxxx00A00 xxxxxxA0Zxx

Teach-in button No possibility of setting No possibility of setting

4 3

GENERAL SAFETY NOTES 1

8025303.1BBX / 2021-04-27 | SICK

Subject to change without notice 5

1BluePilot blue: alignment aid

2Teach-Button: adjusting the sensitivity

3LED indicator yellow: status of received light beam

4LED indicator green: supply voltage active

5 Mounting

Mount the sensor and the reflector using suitable mounting brackets (see the SICK

range of accessories). Align the sensor and reflector with each other.

Note the sensor’s maximum permissible tightening torque of < 0,4 Nm.

6 Electrical installation

Operation in standard I/O mode:

The sensors must be connected in a voltage-free state. The following information must

be observed, depending on the connection type:

– Male connector connection: Pin assignment

– Cable: Wire color

Only apply voltage/switch on the voltage supply once all electrical connections have

been established.

Operation in IO-Link mode: Connect the device to a suitable IO-Link master and inte‐

grate in the master or control via IODD/function block. The green LED flashes on the

sensor. IODD and function block are available to download from www.sick.com under

the part number.

Explanations on connection diagram.

BN = brown

WH = white

BU = blue

BK = black

MF (pin 2 configuration) = external input, teach-in, switching signal

QL1/C = switching output, IO-Link communication

Test = Test input

UB: 10 ... 30 V DC

Table 2: Electrical connection

WLD4Fx- x4 x2 xH x1 -xG

1 = BN

2 = WH

3 = BU

4 = BK

4 3

0.14 mm2

AWG26

0.14 mm2

AWG26

5 MOUNTING

68025303.1BBX / 2021-04-27 | SICK

Subject to change without notice

Table 3: DC

WLD4Fx-

Push-pull xx162x30x00 xx161x30x00 xx16Ax30x00 xx16Nx30x00 xx16xx30A01-

A99

PNP xx862x30x00 xx861x30x00 xx86Ax30x00 xx86Nx30x00 xx86xx30A01-

A99

1 = BN + (L+)

2 = WH MF

3 = BU - (M)

4 = BK QL1/C

Default: MF QQ no function no function www.sick.com

8025303

Default:

QL1/C

QQQQwww.sick.com

8025303

Table 4: DC

WLD4Fx- xx112xA0Zxx xx111xA0Zxx

1 = BN + (L+)

2 = WH QQ

3 = BU - (M)

4 = BK QQ

Table 5: DC

WLD4Fx- xx312xA0Zxx xx311xA0Zxx

1 = BN + (L+)

3 = BU - (M)

4 = BK QQ

ELECTRICAL INSTALLATION 6

8025303.1BBX / 2021-04-27 | SICK

Subject to change without notice 7

Table 6: Push-pull, PNP, NPN

Push-pull

PNP

NPN

+ (L+)

Q ≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q ≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q≤ 100 mA

‒ (M)

Push-pull

PNP

NPN

+ (L+)

Q≤ 100 mA

‒ (M)

7 Commissioning

7.1 Alignment

Align the sensor with a suitable reflector. Select the position so that the red emitted

light beam hits the center of the reflector. The sensor must have a clear view of the

reflector, with no object in the path of the beam [see figure 1]. You must ensure that the

optical openings of the sensor and reflector are completely clear.

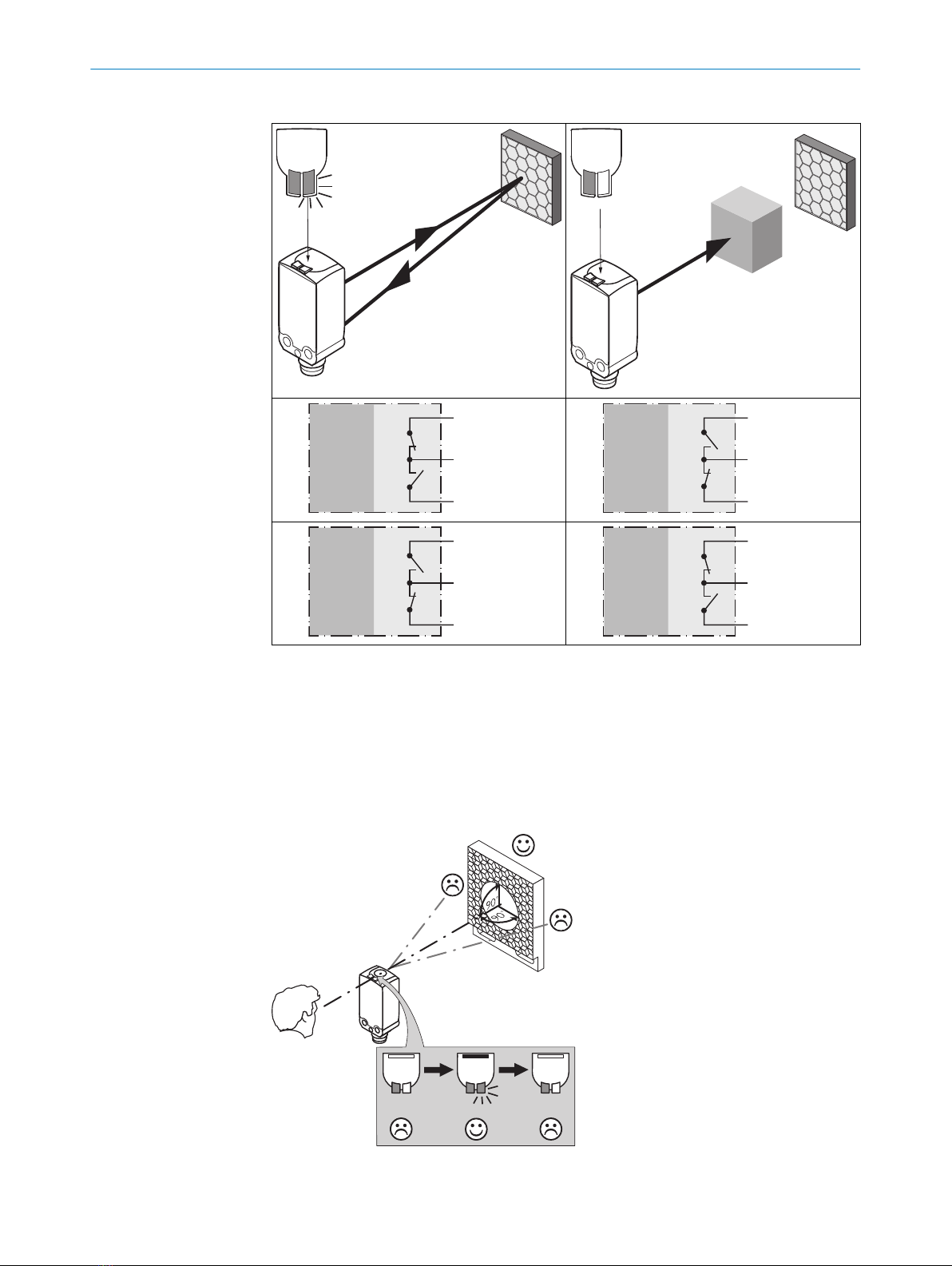

Figure 1: Alignment

7 COMMISSIONING

88025303.1BBX / 2021-04-27 | SICK

Subject to change without notice

Figure 2: Alignment aid BluePilot

7.2 Check the application conditions:

Sensing range

Adjust the distance between the sensor and the reflector according to the correspond‐

ing diagram [figure 3] (x = sensing range, y = operating reserve).

After alignment, place a non-transparent object into the path of the beam. Check the

function as described in figure X. If the switching output fails to behave as described in

figure X, check the application conditions.

Standard reflectors:

Operating reserve

Distance in m (feet)

(6.56)

(3.28)

(9.84)

(13.12)

(16.40)

(19.69)

Figure 3: Characteristic curve for standard

reflectors

1Reflector PL22

2Reflector PL20A

3Reflector PL30A

4Reflector PL40A

5Reflector PL80A

6Reflector C110A

7Reflector P250

Distance in m (feet)

3.02.00.02

0.015 2.51.9

0.015 4.53.1

0.015

5.0

5.5

4.5

4.0

4.5

3.9

(6.56)

(3.28)

(9.84)

(13.12)

(16.40)

(19.69)

A = Sensing range min. in m

B = Sensing range max. in m

C = Maximum distance range from reflector to sensor (operating reserve 1)

D = Recommended distance range from reflector to sensor (operating reserve 3.75)

Recommended sensing range for the best performance

A B

Figure 4: Bar graph for standard reflectors

Fine triple reflectors:

COMMISSIONING 7

8025303.1BBX / 2021-04-27 | SICK

Subject to change without notice 9

Operating reserve

Distance in m (feet)

(6.56)

(3.28)

(9.84)

(13.12)

(16.40)

(19.69)

Figure 5: Characteristic curve for fine triple

reflectors

1Reflector PL10FH

2Reflector PL10F

3Reflector PL20F

4Reflector P250F

Distance in m (feet)

1.6 2.50.02

0.02 2.31.5

2.4 3.20.04

3.5 4.50.015

(6.56)

(3.28)

(9.84)

(13.12)

(16.40)

A = Sensing range min. in m

B = Sensing range max. in m

C = Maximum distance range from reflector to sensor (operating reserve 1)

D = Recommended distance range from reflector to sensor (operating reserve 3.75)

Recommended sensing range for the best performance

A B

Figure 6: Bar graph for fine triple reflectors

Chemically-resistant reflectors:

Operating reserve

Distance in m (feet)

(6.56)

(3.28)

(9.84)

(13.12)

(16.40)

(19.69)

Recommended sensing range for the best performance

Figure 7: Characteristic curve for chemi‐

cally-resistant reflectors

1Reflector PL10F CHEM

2Reflector PL20 CHEM

3Reflector P250 CHEM

4Reflector P250H

Distance in m (feet)

0.02

0.015

1.20.8

2.01.3

2.52.0

3.12.6

(6.56)

(3.28)

(9.84)

(13.12)

A = Sensing range min. in m

B = Sensing range max. in m

C = Maximum distance range from reflector to sensor (operating reserve 1)

D = Recommended distance range from reflector to sensor (operating reserve 3.75)

Recommended sensing range for the best performance

A B

Figure 8: Bar graph for chemically-resistant

reflectors

Reflective tapes:

7 COMMISSIONING

10 8025303.1BBX / 2021-04-27 | SICK

Subject to change without notice
