User manual GC600-GC600Mains 1

The manual must always be kept in a safe place where it is readily available for quick

reference.

The manual should be read carefully, and every paragraph understood by the

operators and technicians doing routine and periodic maintenance.

If the manual is lost or damaged, ask the installer/manufacturer for a copy, quoting

the model, code, serial number and year of manufacture.

Many accidents are caused by poor knowledge and the non-observance of safety

regulations, which must be observed when operating and/or servicing the machine.

To prevent accidents, before using or servicing the machine you should read, understand

and observe the precautions and warnings in this manual.

The following indications have been used to identify the safety messages in this manual:

WARNING! This indication is used in the safety messages for risks which, unless

avoided, can cause malfunction or damage to property or persons.

INFORMATION! This term implies the message provides information useful for

performing the current operation, or explanations or clarifications for procedures.

The maintenance of this device must be carried out by qualified personnel, in observance of

the law in force, to prevent from damages to persons or things.

The cleaning of the front panel can be carried out exclusively with a soft cloth. Do not use

abrasive products, detergents or solvents.

INFORMATION! On the disposal of old electrical and electronic equipment (applicable in

European countries that have adopted separate waste collection systems).

Products bearing the barred wheeled waste container symbol cannot be disposed of with

normal urban waste. Old electrical and electronic equipment should be recycled in a facility

authorized to process these items and dispose of the components. Contact your local authority

for information on where and how to deliver such products to the authorized site nearest you.

Proper recycling and disposal help conserve resources and prevents detrimental effects for

health and the environment.

2User manual GC600-GC600Mains

The purpose of this manual is to describe boards GC600, GC600Mains.

LOCKOUT - is used to indicate a fault that prevents the generator from operating and causes automatic

and immediate emergency engine shut-down.

POWER-OFF - is used to indicate a fault that prevents the generator from operating and causes the

standard automatic engine shutoff (including a cooling phase).

WARNING - is used to indicate a fault that requires the intervention of the operator without engine

shutoff.

MAINS –Public power supply line.

LOAD/BUS –Electrical power supply line of the loads. It can be connected to more gensets

GENERATOR –Electricity line that is connected to the alternator of the Generator set

LOAD –Electrical power supply line of the loads. This can be connected to the Mains or to the

Generator

MCB - Switch or component to manage the switching between the Mains line and the Load line.

GCB –Switch or component to manage the switching between the Generator line and the Load line.

CANBUS - Interface for the control and diagnostics of engines equipped with SAE J1939 or Can Bus

MTU interface.

ISLAND - Type of plant where one or more gensets supply the Load without being in parallel with the

Mains.

MPM –Type of plant working in Island mode and gensets working in parallel among them.

SSB + SSTP (Single Stand By + Single Short Time Parallel) - Type of plant where the genset starts and

supplies the Load in case of Mains failure; once back to normal conditions, it carries out a short time

parallel with the Mains, it disconnects from the Mains and from Load and it stops in stand-by. Depending

on the configuration of the plant, it is also possible to synchronize the Genset with the Mains before

disconnecting it in order not to leave the Load without supply.

User manual GC600-GC600Mains 3

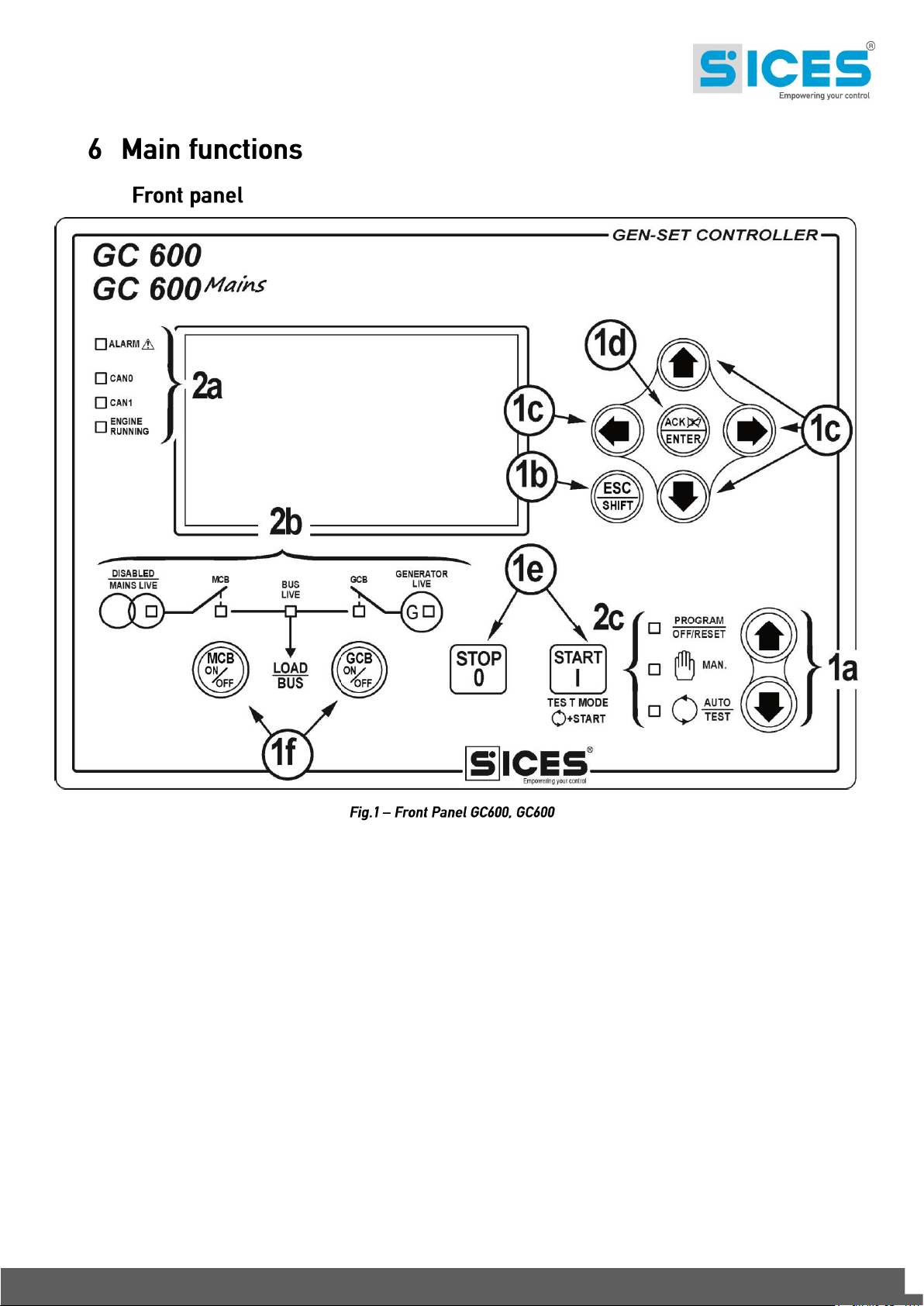

6.1

Link

KEY

1 - Buttons

2 - Indicators

The controls consist of 12 buttons (1a, 1b, 1c, 1d, 1e, 1f).

The front panel also has some luminous indicators (2a, 2b, 2c).

4User manual GC600-GC600Mains

6.2

Pushbuttons

Function

MODE UP

MODE

DOWN

Ref. 1a

OFF/RESET

PROGRAM

The genset is disabled; all anomaly signals are disabled. All possible alarms

are reset. It is possible to access to the parameter’s configuration.

MAN

(Manual)

The Gen-set control module is set for manual gen-set control.

Press the START button to start the engine.

Press the STOP button to stop the engine.

With the engine running and up to speed:

GC600

Press and hold down the ESC/SHIFT button , and press the GCB

button for the manual open/close command of MCB circuit breaker

with possible synchronisation if configured in the plant.

Press the GCB button for the manual open/close command of GCB

circuit breaker with possible synchronisation if configured in the plant.

GC600Mains

Press the MCB button for the manual open/close command of MCB

circuit breaker with possible synchronisation if configured in the plant.

Press the GCB button for the manual open/close command of GCB

circuit breaker with possible synchronisation if configured in the plant.

INFORMATION! For some types of plants, the sequences depend on

the Software and Hardware configuration of the plant during the installation

activity.

In case of voltage on BUS, the synchronization is required.

AUTO

(Automatic)

TEST

The controller automatically manages the genset operation, so it will be

started if required by the operating conditions.

By pressing the START button it is possible to activate/deactivate the

TEST mode. If not differently configured, it does not cause the GCB circuit

breaker closure (with eventual opening of MCB).

WARNING! The STOP button, causes the stop of the Generator

if running and the activation of a lockout unless configured otherwise.

User manual GC600-GC600Mains 5

Pushbuttons

Function

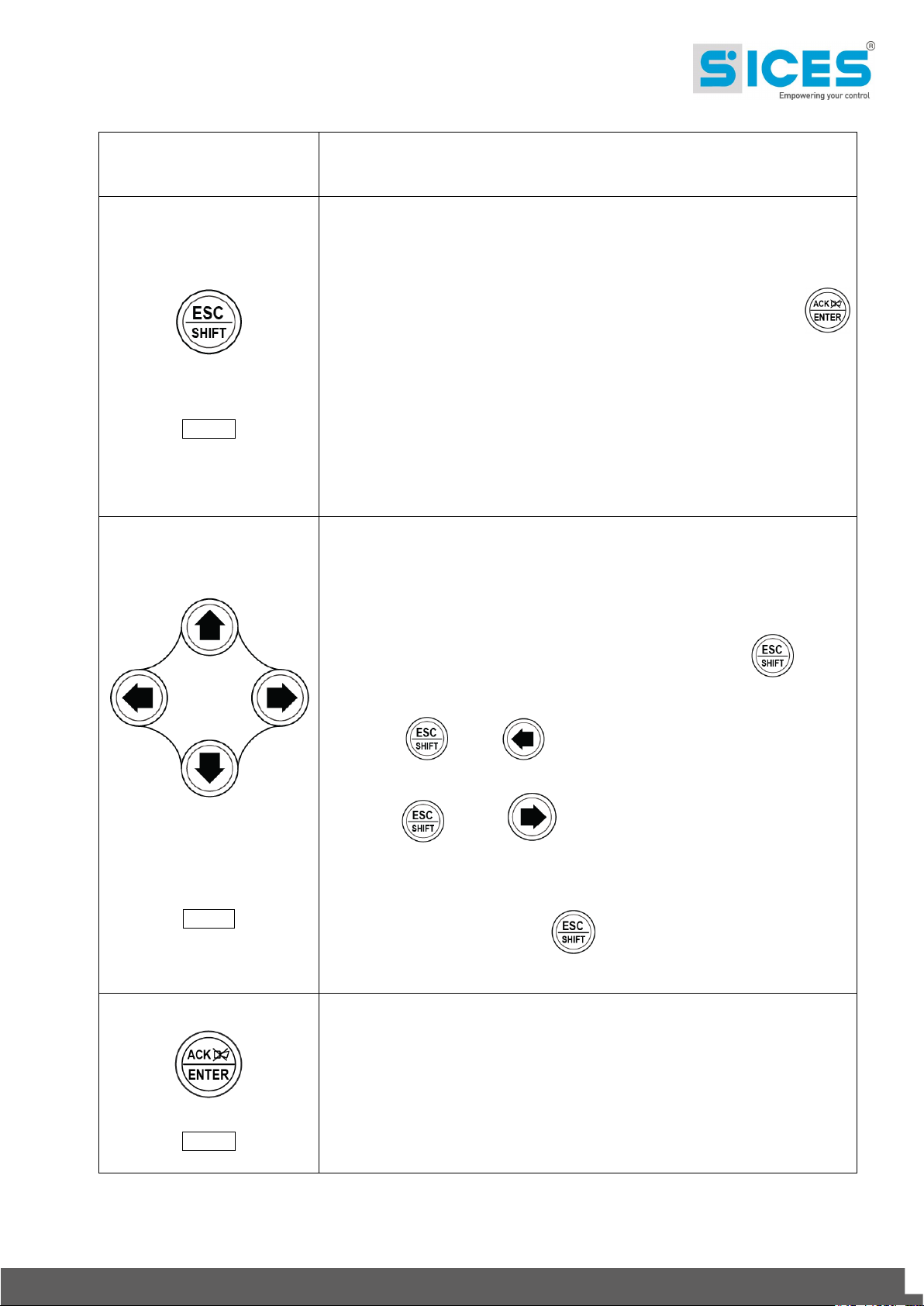

Esc/SHIFT

Ref. 1b

In programming mode, it cancels the changes made to a variable value, brings

up the previous menu level, or exits programming mode. If it is pressed for at

least two seconds in any menu, you exit the programming mode retaining the

current menu position for further programming access.

Depending on the selected page, if pressed together with the ENTER

button for at least 5 seconds while in OFF/RESET mode, it can reset counters

to zero, reload default values of the programming parameters or cancel history

logs (in addition, the CANBUS equipped model allows to force exit from BUS

OFF mode). When used during the keyboard regulation function, it aborts the

function.

If it is pressed in any window, it displays the status information on the upper

line (displaying them cyclically).

When the HELP information is available in the display pages, the HELP

message will be displayed on the bottom bar, by pressing the button and hold.

UP/DOWN

LEFT/RIGHT

Ref. 1c

Navigation buttons of the multifunction display. They allow selecting previous

and following pages of the LCD display (except for PROGRAM and

HISTORY LOG mode).

Horizontal navigation buttons: In the PROGRAM mode, they are used to

place the cursor during the string insertion phase.

The horizontal buttons, combined with the button EXIT/SHIFT allow

to regulate the contrast.

To decrease the contrast (lighten), press the combination of buttons

Esc/SHIFT + LEFT .

To increase the contrast (darken), press the combination of buttons

Esc/SHIFT + RIGHT .

Vertical navigation buttons: In PROGRAM and HISTORY LOGS mode

you can scroll the menus and the variables/settings. You can

increase/decrease the value of the variable to change the settings. Used in

combination with the Esc/SHIFT button you can scroll through the

menu ten entries at a time or increase/decrease the variables ten units at a

time.

ENTER/ACK

Ref. 1d

In the PROGRAM menu, you can enter the programming mode and open a

submenu, change a variable or parameter, and confirm the operation.

In the LOG menu, you can activate the HISTORY LOG function and open the

selected log, “acknowledge” any EEPROM errors at power-up.

Upon the occurrence of an alarm or lockout, the pressing of the button

recognizes the presence of an error and turns off the siren. A further press of

the button resets any alarm signals if the operating conditions have returned

to normal. Lockout signals can only be reset by activating the "OFF/RESET"

mode.

6User manual GC600-GC600Mains

Pushbuttons

Function

MCB

Ref. 1f

GC600Mains

The button is disabled in the “OFF/RESET”, “AUTO” and “TEST” modes.

In “MAN” it is used to open and/or close the Mains contactor to the Load

line.

To open the Mains switch MCB, with the engine idle, press and hold the

“MCB” button for at least 5 seconds.

GC600

This button is not present on the devices GC600. Use the buttons

combination Esc/SHIFT and the button GCB for the manual

open/close command of the MCB circuit breaker with possible

synchronisation.

INFORMATION! For some types of plants, the sequences depend on

the Software and Hardware configuration of the plant during the installation

activity.

In case of voltage on BUS, the synchronization is required.

GCB

Ref. 1f

It is used to command the General Circuit Breaker (GCB) or the changeover

switch.

The button is disabled in the “OFF/RESET”, “AUTO” and “TEST” modes.

In “MAN” it is used to open and/or close the Generator contactor to the

Load line. The closure of the Load line to the Generator is only possible if

the relative electrical measures are within tolerance range.

The button function depends on the plant configuration. In parallel mode with

at least one other source powering the BUS, if the button is pressed it

activates the fast unload ramp before the circuit breaker opens.

In case no ramp is needed, simply keep it pressed for a few seconds until

the GCB is opened.

INFORMATION! For some types of plants, the sequences depend on

the Software and Hardware configuration of the plant during the installation

activity.

START

Ref. 1e

In MAN mode it can be used to start the engine. The button can be

configured in two ways:

1. Fully manual (the starter motor is engaged all the time the button is

pressed or until the engine running is detected).

2. Fully automatic (simply press and release the “START” button to

activate an automatic start sequence. If the start is not successful,

start failure anomalies will not be reported. The “START” button

must be pressed and released again to perform a new start attempt.

In AUTO mode, it enables/disables the TEST status. When the Gen-set

control module is activated, keeping it pressed at the same time as the

STOP button allows access to the special functions.

User manual GC600-GC600Mains 7

Pushbuttons

Function

STOP

Ref. 1e

Used to control the stop of the engine in “MAN” mode.

The button can be configured in two ways:

1. Stop of the engine in AUTO, TEST or REMOTE START mode with

the activation of a lockout.

2. No function. The enabling of the button in AUTO, TEST or REMOTE

START is irrelevant.

Pressed with the Gen-set control module in OFF/RESET mode, runs the

LAMP TEST on all the indicator lights. When the Gen-set control module is

activated, keeping it pressed at the same time as the START button

allows access to the special functions.

6.3

It is possible to modify the brightness of the indicators (all together) using parameter P.0496: the higher the

parameter value, the higher the brightness of the indicators. The value can be set between 1 and 10 (default

value= 5).

Led off

LED steady ON

LED flashing







Signalling

Function

Ref. 2c

PROGRAM

OFF/RESET



Indicates that the operation mode is OFF/RESET



Indicates that you are accessing the PROGRAMMING menu



The Gen-set control module is in another operating mode.

Ref. 2c

MANUAL



Indicates that the operation mode is MANUAL



The Gen-set control module is in another operating mode.

Ref. 2c

AUTO

TEST



Indicates that the operation mode is AUTOMATIC



Flashing at 50% indicates that the operating mode is TEST

Flashing at 90% indicates that the operating mode is REMOTE

START.



The Gen-set control module is in another operating mode.

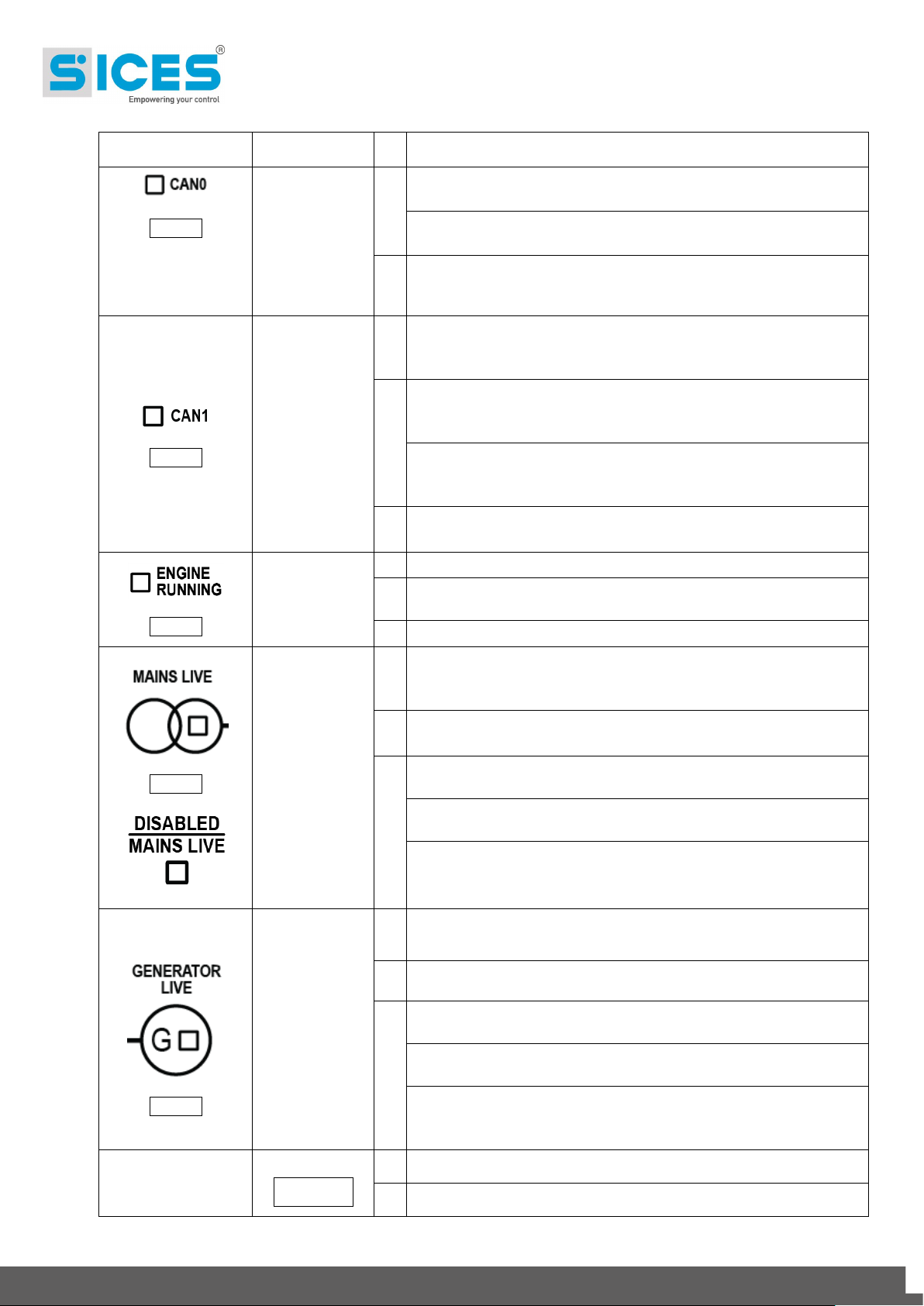

Ref. 2a

ALARM



Indicates the presence of at least one lockout or power-off.



Signals at least one warning which has not yet been

acknowledged with the “ACK/ENTER” button.



No warnings.

INTERFACE

ECU STATUS



Indicates that the CAN-BUS interface is ON and in ERROR-

ACTIVE mode. (J1939 o MTU).

8User manual GC600-GC600Mains

Signalling

Function

Ref. 2a



Flashing at 25% ON signals a COM error (J1939 or MTU): the

port is in ERROR-PASSIVE mode.

Flashing at 75% ON signals a COM error (J1939 or MTU): the

port is in BUS-OFF mode.



Indicates that the CAN-BUS has been disabled or that it is

enabled and operating, but no messages are received from the

engine and/or the expansion modules since at least 2 seconds.

Ref. 2a

PMCBus

STATUS



Indicates that the CAN-BUS interface is ON and in ERROR-

ACTIVE mode.

Power Management Communication Bus (PMCB).



Flashing at 25% ON signals a COM error (J1939 or MTU): the

port is in ERROR-PASSIVE mode.

Power Management Communication Bus (PMCB).

Flashing at 75% ON signals a COM error (J1939 or MTU): the

port is in BUS-OFF mode.

Power Management Communication Bus (PMCB).



Indicates that the CAN-BUS has been disabled.

Power Management Communication Bus (PMCB).

Ref. 2a

ENGINE

RUNNING



It indicates that the engine is running.



Flashing at 50% indicates that the engine is running, and the

cooling cycle is ongoing.



It indicates that the engine is idle.

Ref. 2b

MAINS LIVE



Mains power is ON and stable in the tolerance range.

The MAINS SIMULATION digital input is enabled from the set

time.



The Mains power is OFF.

The MAINS SIMULATION digital input is disabled.



Flashes at 50% during transition between the previous two

states.

Flashing at 25% the Mains power is on but below the tolerance

range.

Flashing at 75% the Mains power is on but over the tolerance

range.

Ref. 2b

GENERATOR

LIVE



Generator voltage and frequency are present and stead within

the tolerance range.



Generator voltage and frequency are not present.



Flashes at 50% during transition between the previous two

states.

Flashing at 25% the Mains power and frequency are on but

below the tolerance range.

Flashing at 75% the Mains power and frequency are on but over

the tolerance range.

MCB

GC600Mains



The MCB switch is opened.



The MCB switch is closed.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sices Panneau de contrôle

Sices

Sices ATS LOGICA Manuel utilisateur

Sices

Sices ATS115 Manuel utilisateur

Sices

Sices DST2600 Manuel utilisateur

Sices

Sices GC310 Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques
