Moab
Quick Start Guide
INSTALLERS: PLEASE LEAVE THIS MANUAL WITH THE OWNER.
400199 |v. 1.3 |March 2023
Detailed Moab Commissioning and Integration Guide:
Scan the QR code or use the link below to access:
https://les.screeninnovations.com/Downloads/Installation+Instructions/Connectivity/moab-
installation-instructions.pdf
NOTE: Moab Quick-Start Instructions; Your MOAB should come paired to the motor from the factory with all limits
already set. You can conrm your Moab board is paired by connecting it to your screen and looking at the 485
pairing LED located just to the left of the RJ45 Motor Port on the top of Moab. If this LED is off then Moab has
already been paired, if this LED is ON then you need to pair the motor.
400199 Ι v. 1.3 Ι March 2023

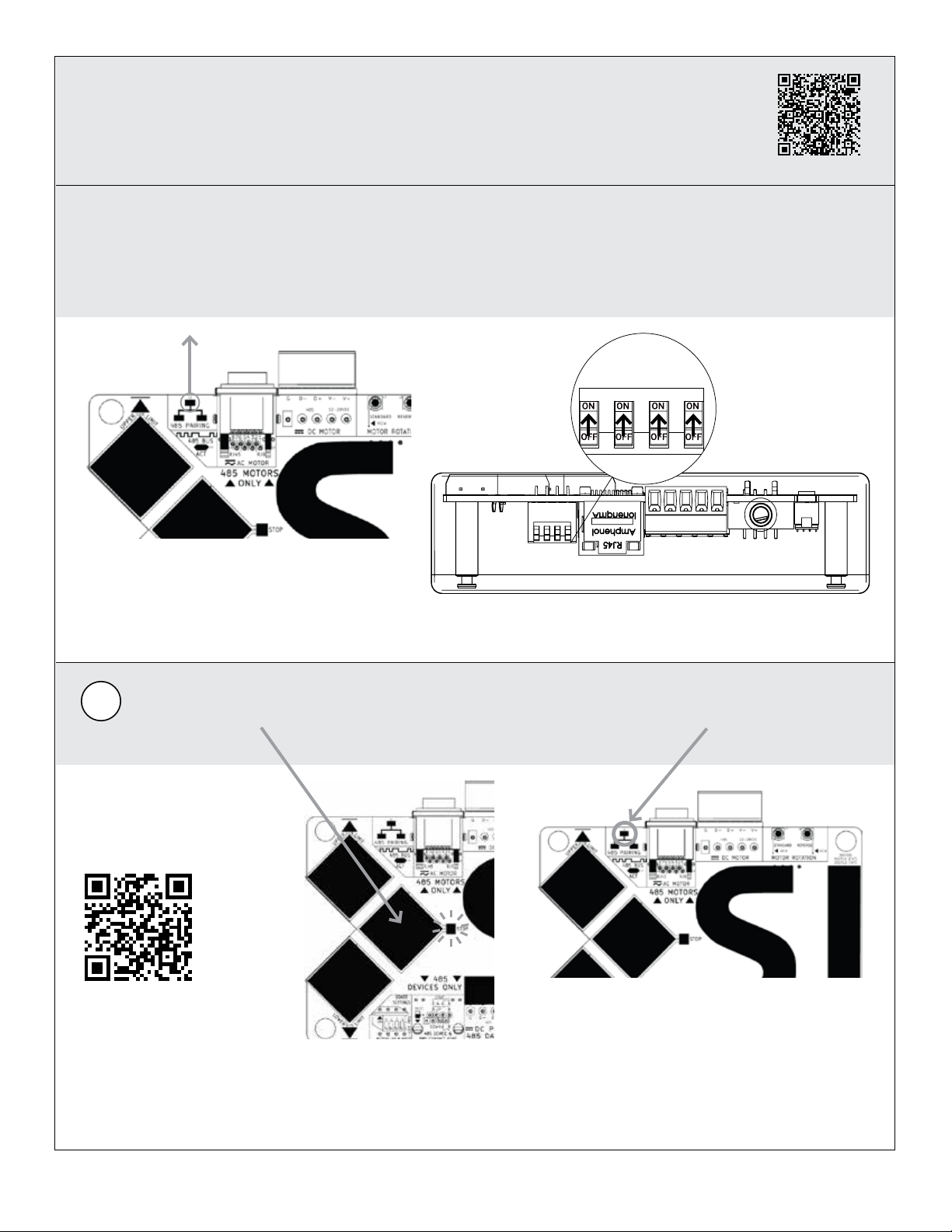

Step 1
Conrm your motor is Paired, if it is then skip to Step 2, if it is not, ensure all Dip Switches are in the ON
or up position, Press and hold the Green Button until the Green LED ashes and the 485 Pairing LED turns
off.
QR code for 1 min video on
Pairing Moab to the motor
1
400199 Ι v. 1.3 Ι March 2023
Step 2
Setting the Limits: Ensure all Dip switches in the ON position.
Setting the Upper Limit:
1. Move the screen to your desired Upper Limit
position using the RED/UP and BLUE/DOWN buttons.
2. Press and hold both the RED and GREEN buttons
until the Red and Green LED’s ash. Release the
buttons to save your new upper limit at the current
position.
Setting the Lower Limit:
1. Move the screen to your desired Lower Limit
position using the RED/UP and BLUE/DOWN buttons.
2. Press and hold both the BLUE and GREEN buttons
until the Blue and Green LED’s ash. Release the
buttons to save your new lower limit at the current
position.
QR code for 2 min video on
Pairing Moab to the motor
2
***If this is an AC motor, Tapping the RED/UP or BLUE/DOWN buttons will give you a Fine adjustment, pushing and
holding will move the screen until you let go.
***If this is an LV motor, ne adjustments are not available, pushing and holding RED/UP or BLUE/DOWN buttons,
will move the screen until you let go.
400199 Ι v. 1.3 Ι March 2023
Step 3
Switching to USER mode.
Move the #1 Dip Switch into the OFF position.
In User mode a single press on RED/UP will move the screen upper limit and a single press on BLUE/DOWN will
move the screen to lower limit.
3
Screen Innovations
9715-B Burnet Rd, Suite 400 Austin, TX 78758
512.832.6939
www.screeninnovations.com
RED/UP
BLUE/DOWN
