Shuttle XPC slim DL10J Series Manuel utilisateur

For the : DL10J Series

XPC BIOS User Guide

Shuttle®

XPC Installation Guide

No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means such as electronic,

mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior

written permission from Shuttle® Inc.

Other brands and product names used herein are for identification purposes only and may

be trademarks of their respective owners.

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from

the performance or use of this product.

Shuttle® Inc. makes no representation or warranty regarding the contents of this ma-

nual. Information in this manual had been carefully checked for accuracy;however, no

guarantee is given as to the correctness of the contents. For continuing product improve-

ment, Shuttle® Inc. reserves the right to revise the manual or make changes to the speci-

fications of this product at any time without notice and obligation to any person or entity

regarding such change. The information contained in this manual is provided for general

use by customers.

This device complies to Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. This device may not cause harmful interference.

2. This device must withstand any background interference including those that may

cause undesired operation.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 is a registered trademark of IBM Corporation.

AWARD is a registered trademark of Award Software Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice

Other brand and product names used herein are for identification purposes only and

may be trademarks of their respective owners.

Safety Information

Read the following precautions before setting up a Shuttle XPC.

Installation Notices

Do not place this device underneath heavy loads or in an

unstable position.

Do not expose this device to high levels of direct sunlight,

high-humidity or wet conditions.

Do not use or expose this device around magnetic elds

as magnetic interference may affect the performance of the

device.

Do not block the air vents to this device or impede the airow

in any way.

CAUTION

Incorrectly replacing the battery may damage this computer. Replace only

with the same or equivalent as recommended by Shuttle. Disposal of used

batteries according to the manufacturer's instructions.

TABLE OF CONTENTS

Driver and Software Installation........................................................1

Motherboard Driver DVD ...........................................................1

User Manuals.............................................................................2

Appendix...........................................................................................3

Starting BIOS.............................................................................3

BIOS Setup Menu......................................................................3

Main Setup..........................................................................5

Advanced............................................................................6

TPM Con󰘰guration .......................................................7

Power Management Con󰘰guration ..............................8

Hardware Health Con󰘰guration..................................10

CPU Con󰘰guration .....................................................11

USB Con󰘰guration .....................................................13

OnBoard Device Con󰘰guration ..................................14

SATA Con󰘰guration ...................................................16

Security.............................................................................17

Boot...................................................................................19

Exit....................................................................................21

English

Driver and Software Installation

Motherboard Driver DVD

The Motherboard Driver DVD contains all the motherboard drivers necessary to

optimize the performance of this Shuttle Xvision in a Windows®OS. Install these

drivers after installing Microsoft®Windows®.

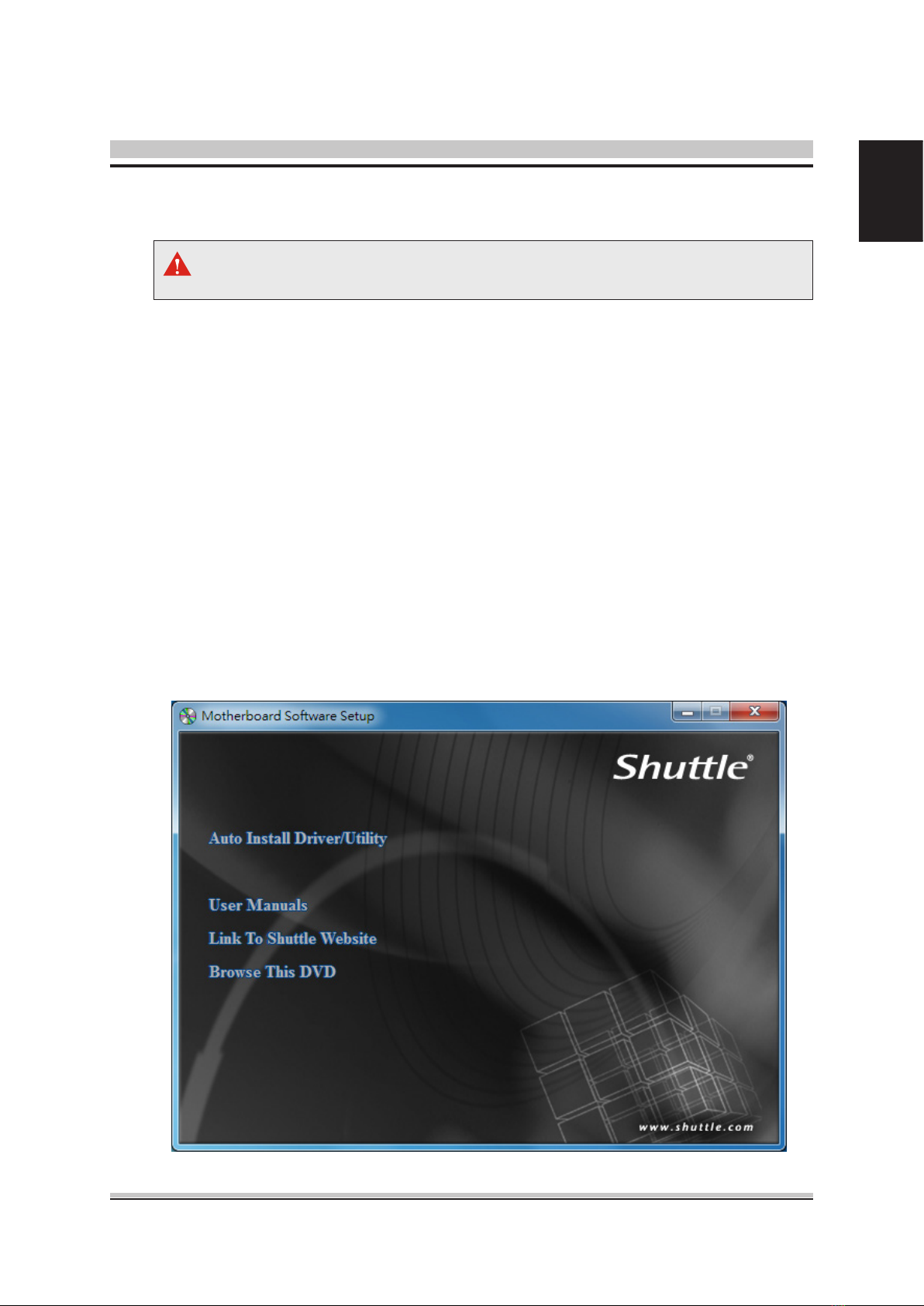

Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen

should appear. If the AutoRun screen does not appear, double click on Autorun

icon in My Computer to bring up Shuttle Mainboard Software Setup screen.

Navigation Bar Description :



Auto Install Driver/Utility.



User Manuals - Motherboard Manual, Quick Guide.



Link To Shuttle Website - Link to shuttle website homepage.



Browse This DVD - Allows you to see contents of this DVD.

The DVD contents attached in DL10J Series motherboard are subject to

change without notice.

English

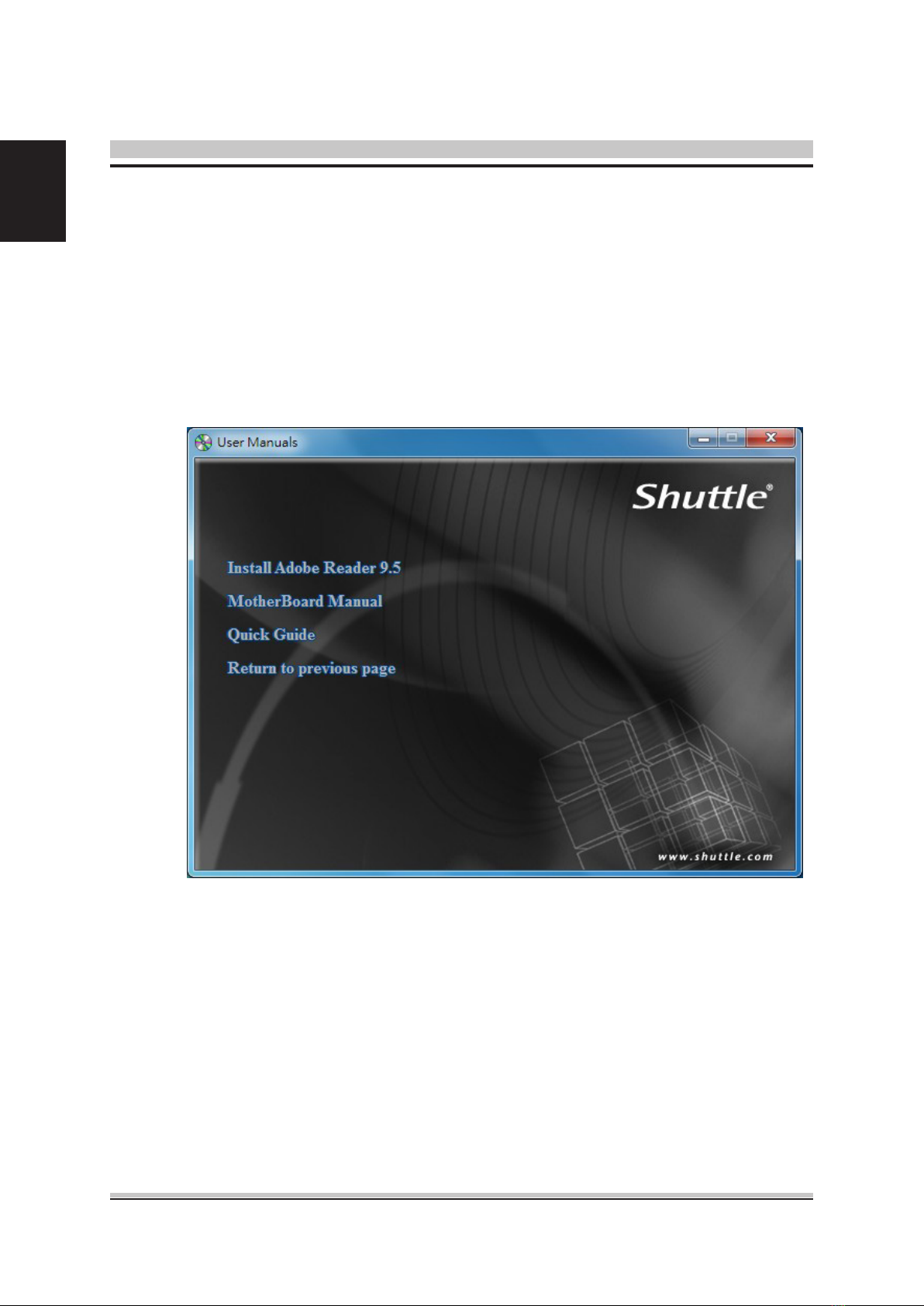

Install Adobe Reader 9.5

MotherBoard Manual

Quick Guide

User Manuals

English

AMIBIOS has been integrated into many motherboards for over a decade. In the past,

people often referred to the AMIBIOS setup menu as BIOS, BIOS setup, or CMOS

setup.

American Megatrends refers to this setup as BIOS. Specically, it is the name of the

AMIBIOS8 BIOS setup utility. This chapter describes the basic navigation of the BIOS

setup screens.

Enter the BIOS

To enter the BIOS setup screens, follow the steps below:

Step1. Power on the motherboard.

Step2. Press the <Delete> key on your keyboard when you see the following

text prompt: Press DEL to run Setup.

Step3. After you press the <Delete> key, the main BIOS setup menu displays.

You can access the other setup screens from the main BIOS setup menu,

such as the Chipset and Power menus.

Appendix

The main BIOS setup menu is the rst screen that you can navigate. Each main

BIOS setup menu option is described in this user’s guide.

The Main BIOS setup menu screen has two main frames. The left frame displays all

the options that can be congured. “Grayed-out” options cannot be congured.

Options is blue can be.

The right frame displays the key legend. Above the key legend is an area reserved for

a text message. When an option is selected in the left frame, it is highlighted in white.

Often a text message will accompany it.

This manual describes the standard look of the BIOS setup screen.

The motherboard manufacturer has the ability to change any and all of the

settings described in this manual. This means that some of the options

described in this manual do not exist in your motherboard's AMIBIOS.

In most cases, the <Delete> key is used to invoke the BIOS setup screen.

There are a few cases that other keys are used, such as <F1>,<F2>, and

so on.

Starting BIOS

BIOS Setup Menu

English

The BIOS setup/utility uses a key-based navigation system called hot keys. Most of

the BIOS setup utility hot keys can be used at any time during the setup navigation

process. These keys include <F1>, <F4>, <Enter>, <ESC>, <Arrow> keys, and so

on.

Hot Key Description

→ Left

← Right

The Left and Right <Arrow> keys allow you to select a BIOS setup screen.

For example: Main screen, Advanced screen, Chipset screen, and so on.

↑ Up

↓ Down

The Up and Down <Arrow> keys allow you to select an BIOS setup item or sub-

screen.

+- Plus/Minus The Plus and Minus <Arrow> keys allow you to change the field value of a

particular setup item. For example: Date and Time.

Tab The <Tab> key allows you to select BIOS setup elds.

F1 The <F1> key allows you to display the General Help screen.

Press the <F1> key to open the General Help screen.

The <F4> key allows you to save any changes you have made and exit BIOS

Setup. Press the <F4> key to save your changes. Press the <Enter> key to save

the conguration and exit. You can also use the <Arrow> key to select Cancel and

then press the <Enter> key to abort this function and return to the previous screen.

ESC

The <Esc> key allows you to discard any changes you have made and exit the

BIOS Setup. Press the <Esc> key to exit the BIOS setup without saving your

changes. Press the <Enter> key to discard changes and exit. You can also use the

<Arrow> key to select Cancel and then press the <Enter> key to abort this function

and return to the previous screen.

Enter

The <Enter> key allows you to display or change the setup option listed for a

particular setup item. The <Enter> key can also allow you to display the setup sub-

screens.

AMIBIOS8 has default text messages built into it. The motherboard manufacture

retains the option to include, leave out, or change any of these text messages.

They can also add their own text messages. Because of this, many screen shots

in this manual are different from your BIOS setup screen.

There is a hot key legend located in the right frame on most BIOS setup screens.

English

When you rst enter the BIOS Setup Utility, you will enter the Main setup screen.

You can always return to the Main setup screen by selecting the Main tab. There are

two Main Setup options. They are described in this section. The Main BIOS Setup

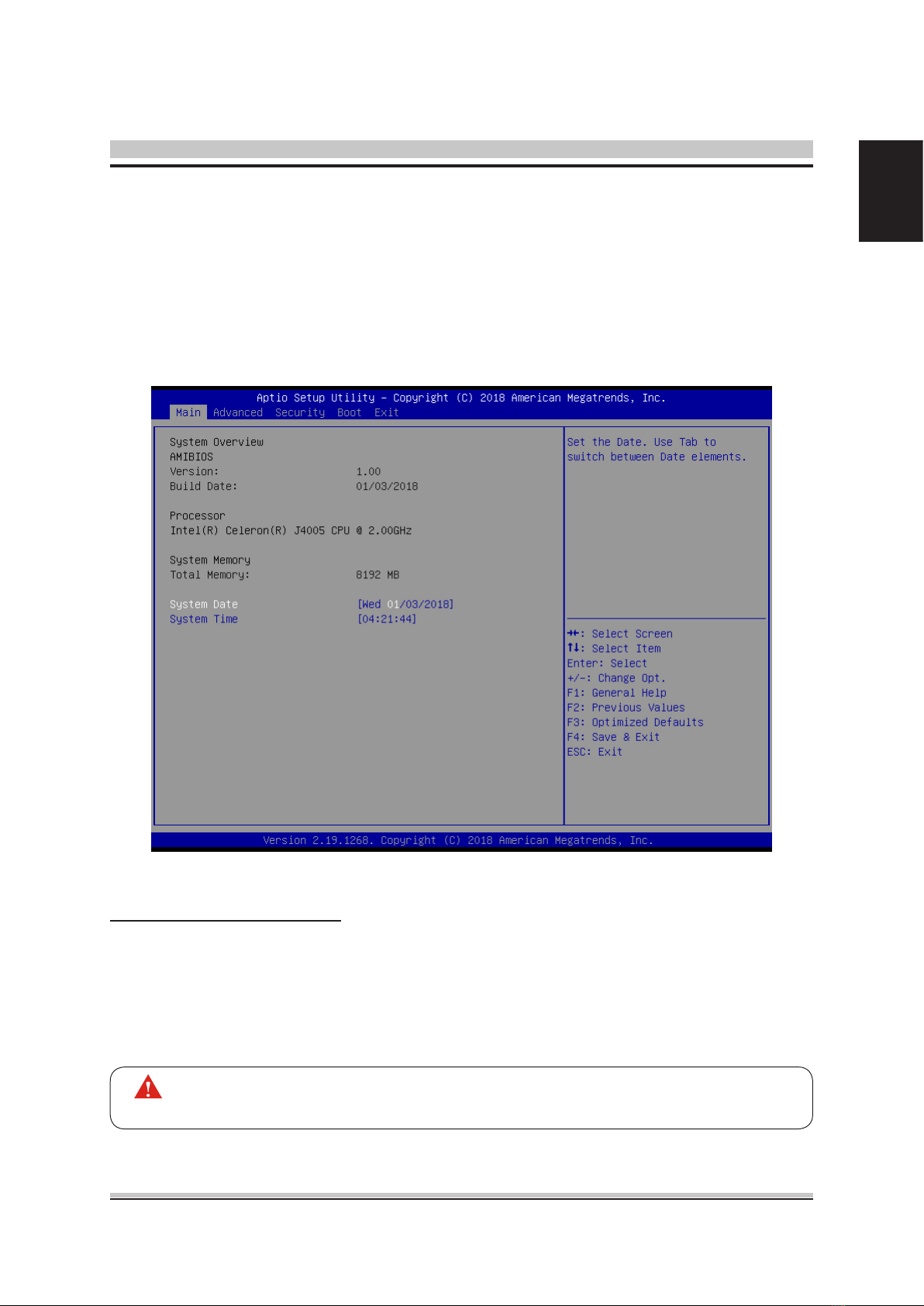

screen is shown below.

System Time/System Date

Use this option to change the system time and date. Highlight System Time or Sys-

tem Date using the <Arrow> keys. Enter new values through the keyboard. Press the

<Tab> key or the <Arrow> keys to move between elds. The date must be entered in

MM/DD/YY format. The time is entered in HH:MM:SS format.

The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00,

and 5:30 P.M. as 17:30:00.

Main Setup

English

Select the Advanced tab from the BIOS setup screen to enter the Advanced BIOS

Setup screen. You can select any of the items in the left frame of the screen, such as

CPU Conguration, to go to the sub menu for that item.

You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>

keys. All Advanced BIOS Setup options are described in this section.

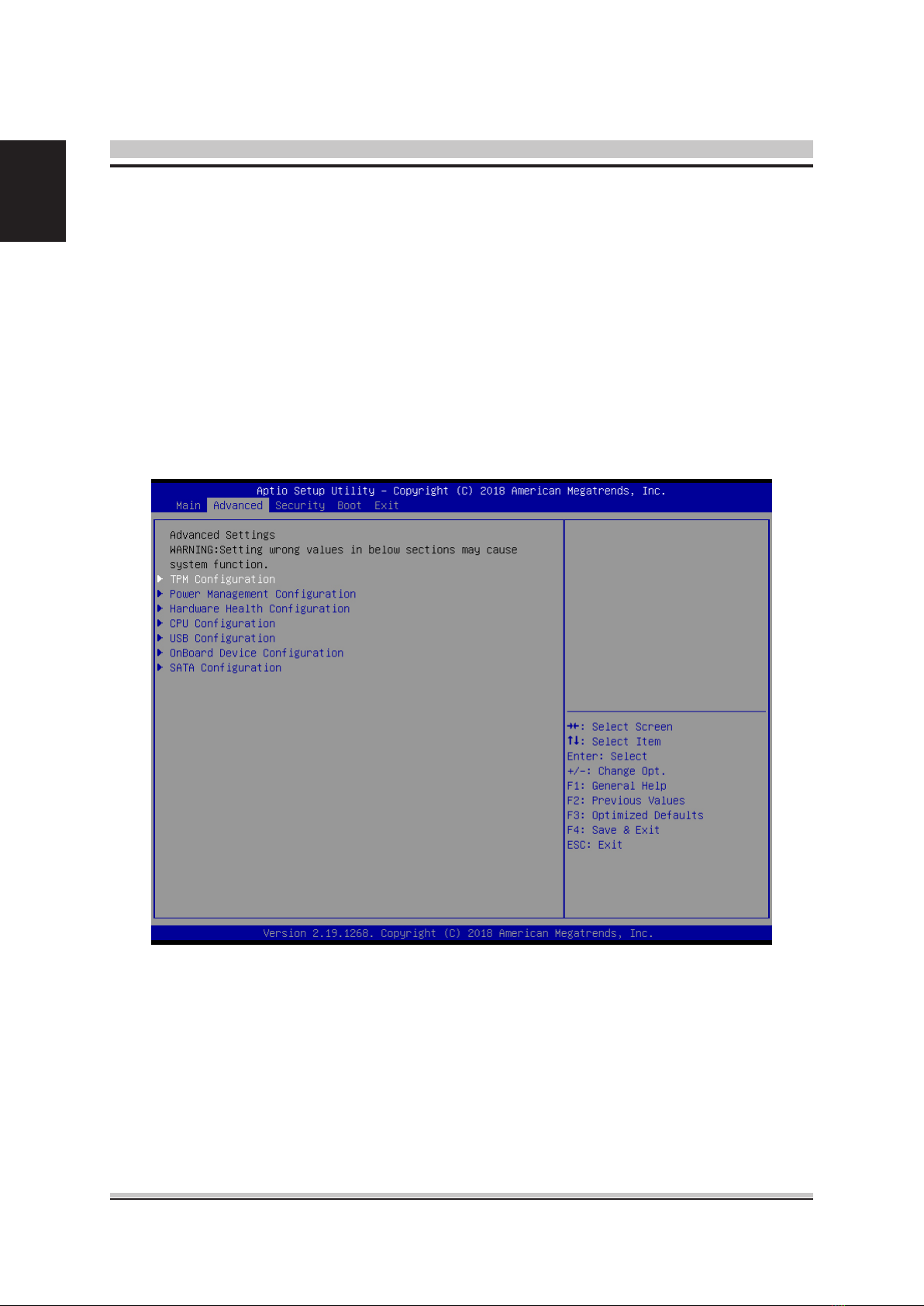

The Advanced BIOS Setup screen is shown below. The sub menus are described on

the following pages.

Advanced
