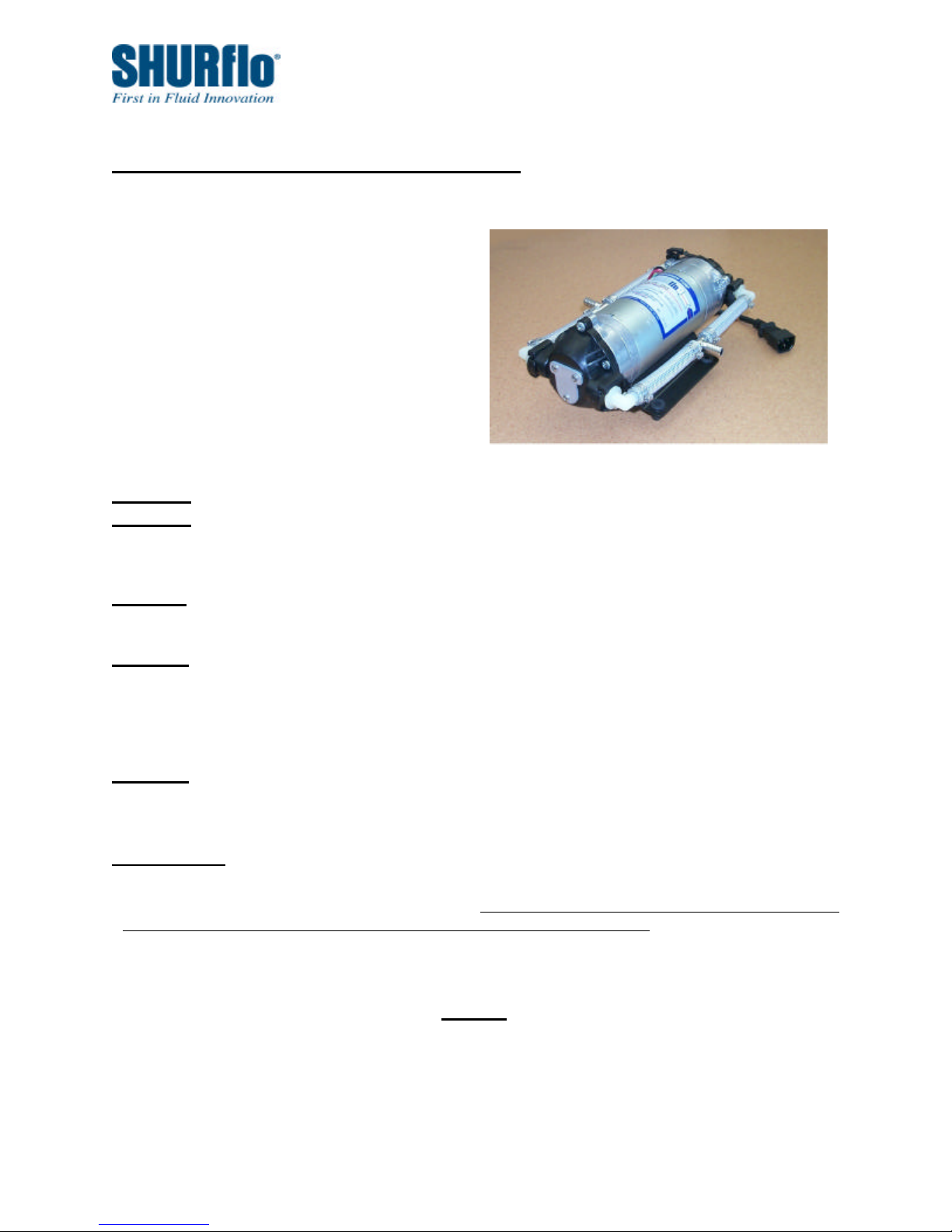

911-608 REV. NC 9/02 Page 1of 4
94-053-00 Carbonator Pump
Installation & Operation Manual
SHURflo offers various pump models for
different applications. The information
outlined by this manual is specific to
carbonator applications. The 8000 series
pumps are intended for intermittent duty.
These pumps feature a DC motor
(rectified to AC) of low amp draw, which
allow wide voltage fluctuations without
burning-out
CAUTION: This pump has been evaluated for use with water only!
CAUTION: "Intermittent Duty" is defined as; operated and/or frequently started within a period of time
that would cause the motor to reach its maximum thermal limits. This pump is designed for a duty cycle
of 30% on, 70% off. Once the maximum thermal limit is obtained, the motor must be allowed to return
to ambient temperature before resuming operation.
CAUTION: Never operate the pump in an explosive environment. Never pump flammable or explosive
liquids! Arcing from the motor brushes, switch or excessive heat from an improperly cycled motor may
cause an explosion.
CAUTION: DO NOT operate the pump at pressures, which cause the motor to exceed the
amperes rating indicated on the nameplate. This pump is equipped with a thermal breaker to
interrupt operation due to excessive heat. Once the temperature of the motor is within proper
limits it will automatically reset, and the pump will start operation without warning. This
pump is also protected by a fuse. This is a one-time fuse that must be changed by a qualified
electrician or sent back to SHURflo for replacement.
CAUTION: Risk of electric shock-this pump is supplied with a grounding conductor and
grounding type attachment plug. To reduce the risk of electric shock, be certain that it is
connected only to a properly grounded, grounding type receptacle.
MOUNTING
•The 8000 series pumps are self priming.
•The pump may be mounted in any position. However, it is not recommended mounting the
pump vertically in the unlikely event of a leak, fluid will enter the motor.
•The pump should be located in an area that is dry and provides adequate ventilation. If mounted
within an enclosure, provisions to cool the motor may be necessary. Heat sinks which attach to
the motor are available from SHURflo if increased heat dissipation is necessary.
•Secure the rubber feet with #8 hardware. DO NOT compress the feet, doing so will reduce their
ability to isolate vibration/noise.
911-608 REV. NC 9/02 Page 2of 4
PLUMBING
•Snap-Lock Ports:The slide fittings are open when the slide is moved out toward the end of the
pump head. Fittings should be inserted flush against housing port before the slide is moved to the
locked position. Fittings of Nylon or Polypropylene are available in various sizes.
•Use flexible high pressure tubing compatible with the fluid to connect the inlet/outlet ports.
Tubing should be either 3/8" or 1/2" [10 or 13 mm] I.D., and at least 18 in. [46 cm] length is
suggested to minimize stress on the fitting/ports and reduce noise. Allow for the shortest possible
tubing route and avoid sharp bends that may kink over time.
•Installation of a 50 mesh strainer is recommended to prevent foreign debris from entering the
system. Failures due to foreign debris is not covered under the limited warranty.
•Provision should be made to avoid high municipal inlet pressures. A regulator should be used to
maintain an inlet pressure of 30 PSI [2.1 bar].
NOTE: Restrictions on the inlet may cause vacuum levels to reach the fluid vapor pressure, causing
cavitation, degassing, vapor lock and a loss in performance. Inlet pressure must not exceed 30 psi
[2.1 bar]
If a check valve is installed in the plumbing it must have a cracking pressure of no more than 2 psi
[.14 bar].
CAUTION: After installation, system should be completely flushed and sanitized. Use a sanitizer
suitable for food service equipment. If a sanitizer is not available, use one cap of household bleach
to one gallon of clean water.
ELECTRICAL
CAUTION: a qualified electrician, in accordance with all local electrical codes should perform
electrical wiring.
•Improper duty cycle and/or rapid start & stop conditions may cause the internal thermal
breaker (if equipped) to trip, or the fuse to blow. This can result in premature motor failure
due to excessive heat. Refer to the pumps Product Data Sheet.
•The pump should be on a dedicated (individual) circuit, controlled with a double pole switch
(UL/C-UL certified) rated at or above the fuse ampere indicated by the pump motor label.
Depending on distance of the power source from the pump and ampere load on the circuit, wire
may need to be heavier than indicated by the chart.
CAUTION: the pump motors and systems, MUST be ground per local and state electrical codes.
•For the pump to meet UL/C-UL requirements the circuit MUST be protected with a slow-blow
fuse (UL/C-UL certified) or equivalent circuit breaker as indicated on the motor label. Use an
approved wire of the size specified or heavier.
CAUTION: Circuit protection is dependent on the individual application requirements. Failure to
provide proper overload / thermal devices may result in a motor failure, which will not be covered
under the limited warranty.
SERVICE KITS
Kits are readily available to repair the 8000 series pumps. Repair kits include simple illustrated
instructions allowing easy installation. To insure that the correct kit is received the model
numbered and all name plate data must be included with the order. Contact a SHURflo distributor
or SHURflo directly to order the necessary repair kit.
911-608 REV. NC 9/02 Page 3of 4

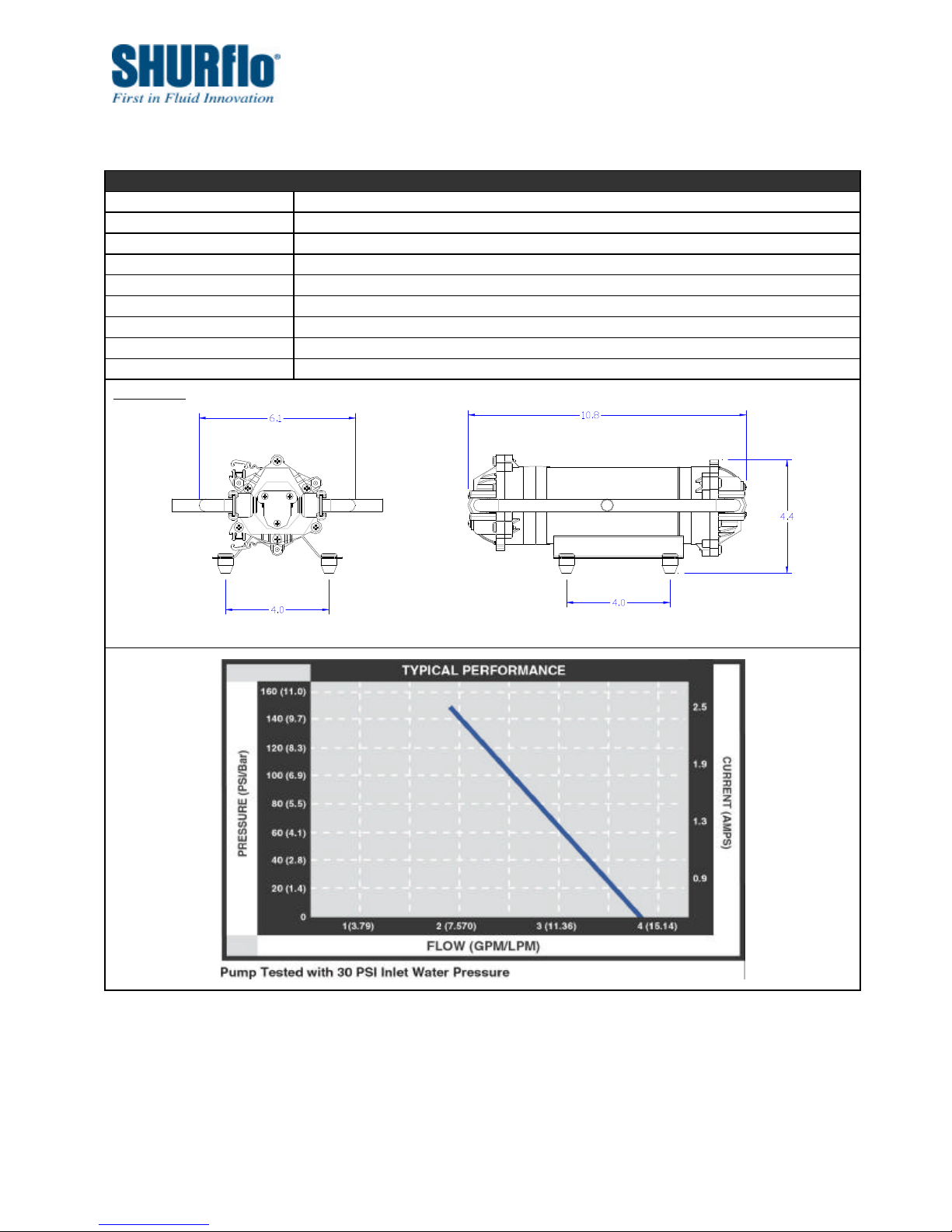

Technical Specifications
Model Number 94-053-00
Design Positive Displacement, Two - 3 Chamber Diaphragm Pump
Motor Permanent Magnet, Thermally Protected, Fused to 4 amps
Fittings 3/8" barb
Voltage 115 VAC Nominal (50 or 60 Hz.)
Fluid Path Materials Nylon, EPDM, Santoprene
Net Weight 8.3 lbs.
Duty Cycle Intermittent
Approvals ETL/NSF listed, UL/CSA Recognized Components
Dimensions
911-608 REV. NC 9/02 Page 4of 4
TROUBLE-SHOOTING
PUMP WILL NOT START- check for:
üFuse or breaker
üFor correct voltage (±10%) and electrical
connections
üPressure switch operation and correct voltage
at switch or motor wires (as equipped).
üRectifier or motor for open or grounded circuit
üFor locked drive assembly
WILL NOT PRIME (No discharge/motor runs) - check for:
üOut of product
üStrainer for debris
üInlet tubing/plumbing; severe vacuum leak
üInlet/Outlet tube severely restricted (kinked)
üDebris in pump inlet/outlet valves
üProper voltage with the pump operating (±10%)
üPump housing for cracks
LEAKS FROM PUMP HEAD - check for:
üFor loose screws at pump head.
üSwitch diaphragm ruptured or pinched
üFor punctured diaphragm if fluid is present at
bottom drain holes.
NOISY / ROUGH OPERATION- check for:
üMounting feet that are compressed to tight
üFor loose pump head or drive screws
üDoes the mounting surface multiply noise
(flexible)
üIs the pump plumbed with rigid pipe causing noise to
transmit
Carbonator Pump LIMITED WARRANTY
SHURflo 8000 series pumps and products are warranted to be free of defects in material and workmanship under
normal use, for a period of one (1) year from the date of manufacture, or one (1) year of use, with proof of
purchase. This limited warranty will not exceed two (2) years, in any event.
The limited warranty will not apply to pumps/products that were improperly installed, misapplied, damaged,
altered, incompatible with fluids or components not manufactured by SHURflo.
All pumps/products must be flush of any chemicals before shipping². All warranty considerations are governed
by SHURflo's written Return Policy.
Returns are to be shipped postage prepaid to either service center; SHURflo Cypress, CA or Elkhart, IN. SHURflo shall
not be liable for freight damage incurred during shipping. Package returns carefully.
SHURflo's obligation under this warranty policy is limited to the repair or replacement of the pump/ product. All
returns will be tested per SHURflo factory criteria. Products found not defective (under the terms of this limited
warranty) are subject to charges paid by the returnee for the testing and packaging of "tested good" non-warranty
returns.
No credit or labor allowances will be given for pumps or products returned as defective. Warranty replacements will be
shipped on a freight allowed basis. SHURflo reserves the right to choose the method of transportation.
This limited warranty is in lieu of all other warranties, expressed or implied, and no other person is authorized to give any
other warranty or assume obligation or liability on SHURflo's behalf. SHURflo shall not be liable for any labor, damage or
other expense, nor shall SHURflo be liable for any indirect, incidental or consequential damages of any kind incurred by
the reason of the use or sale of any defective product or part. This limited warranty covers industrial products distributed
within the United States of America. Other world market areas should consult with the actual distributor for any deviation
from this document.
RETURN POLICY
All pumps/products must be flushed of any chemical (ref. OSHA Section 1910.1200 (d)(e)(f)(g)(h))and
hazardous chemicals must be labeled / tagged before being shipped²to SHURflo for service or warranty
consideration. SHURflo reserves the right to request a Material Safety Data Sheet from the returnee for any
pump/product it deems necessary. SHURflo reserves the right to "disposition as scrap" pumps/products
returned which contain unknown fluids. SHURflo reserves the right to charge the returnee for any and all costs
incurred for chemical testing, and proper disposal of components containing unknown fluids. SHURflo request
this in order to protect the environment and personnel from the hazards of handling unknown fluids.
²Carriers, including U.S.P.S., airlines, UPS, ground freight, etc., require specific identification of any hazardous materials
to be shipped. Failure to do so may result in a substantial fine and/or prison term. Check with your shipping company
for specific instructions.
For complete warranty details consult S/B #1049.
«ISO Certified Facility
SHURflo reserves the right to update specifications, prices, or make substitutions
SHURflo «
5900 Katella Ave.
Cypress, CA 90630
(800) 854-3218 (562) 795-5200
FAX (562) 795-7564
SHURflo East
52748 Park Six Court,
Elkhart, IN 46514-5427
((800) 762-8094 / (219) 262-0478
FAX (219) 264-2169
© 2002 Printed in USA
SHURflo Ltd.
Unit 5 Sterling Park, Gatwick Road,
Crawley, West Sussex, RH10 2QT
United Kingdom
+44 1293 424000
FAX +44 1293 421880
