Shure ANIUSB-Matrix Manuel utilisateur

ANIUSB-Matrix

Audio Network Interface

Complete user guide for the ANIUSB-MATRIX. Includes system diagrams, specifications, installation instructions, command strings, and

more.

Version: 7.9 (2022-J)

Shure Incorporated
2/33
Table of Contents
ANIUSB-Matrix   Audio Network Interface 4
Getting Started 4
Step 1: Connect to a Network and Discover in Designer 4
Step 2: Route Audio and Apply DSP 4
Step 3: Configure Audio 5
Get More Information 5
General Description 5
Hardware and Installation 5
Rear Panel 6
Power Over Ethernet (PoE) 7
Installation and Rack Mounting 8
Device Identification 10
What's in the Box 10
Controlling Devices with Shure Designer Software 10
Use Designer's Optimize Workflow 10
How to Update Firmware Using Designer 11
Firmware Versioning 11
Differences Between 3.x and 4.x Firmware 11
Connections and Signal Flow 12
Connecting the ANIUSB-MATRIX to a Computer 13
USB Device Type Settings 14
Mute Sync 14
Setting Up Mute Sync on the MXA310 and ANIUSB-MA-
TRIX 15
Overview of Shure Conferencing Devices 15
Audio Settings 16
Schematic View 17
Mute and Fader Groups 18
Adjusting Input levels 18
Adjusting Output Levels 18
Parametric Equalizer 19
Custom Presets 21
Matrix Mixer 22
Crosspoint Gain 22
Routing Channels 22
ANIUSB-MATRIX Default Routes 22
Using Call Status 22
Encryption 23
Networking and Dante 23
Switch and Cable Recommendations for Dante Network-
ing 23
Dante Flows for Shure Devices 24
Pushing Device Names to the Dante Network 24
Compatibility with Dante Domain Manager 24
Configuring IP Settings 25
Setting Latency 25
IP Ports and Protocols 25
Using Command Strings 26
Reset 26
Software Reset Options 27
Troubleshooting 27
Event Log 28
Contact Customer Support 29
Specifications 29
Optional Accessories and Replacement Parts 31

Shure Incorporated

3/33

Safety Information 31

IMPORTANT SAFETY INSTRUCTIONS 31

Important Product Information 32

Information to the user 33

Shure Incorporated

4/33

•

◦

ANIUSB-Matrix

Audio Network Interface

Getting Started

To control the ANIUSB-MATRIX, use Shure Designer software. After completing this basic setup process, you should be able

to:

Control the ANIUSB-MATRIX in Designer

Route audio to the ANIUSB-MATRIX in Designer

Use the matrix mixer to route audio signals

Before you get started, you'll need:

Cat5e (or better) Ethernet cable

Network switch that provides Power over Ethernet (PoE)

Shure Designer software installed on a computer. Download at www.shure.com.

Step 1: Connect to a Network and Discover in Designer

Connect the ANIUSB-MATRIX to a PoE port on the network switch using Cat5e (or better) cable.

Connect your computer running Designer to the network switch.

Open Designer, and check that you’re connected to the correct network in Settings.

Click Online devices. A list of online devices appears.

To identify devices, click the product icon to flash the lights on a device.

Step 2: Route Audio and Apply DSP

The easiest way to route audio and apply DSP is with Designer's Optimize workflow. Optimize automatically routes audio sig-

nals, applies DSP settings, turns on mute synchronization, and enables LED logic control for connected devices.

For this example, we’ll connect an MXA310 table array microphone.

Go to My projects > New to create a new project.

Select New > Room (live) to create a new room. Any online devices appear in the list. Drag and drop the ANIUSB-

MATRIX and MXA310 to add them to your room.

Select Optimize.

Check the audio routes and settings to make sure they fit your needs. You might need to:

Delete unnecessary routes.

Fine-tune DSP blocks as needed.

Test and adjust microphone coverage.

You can also route audio manually in Designer outside of the Optimize workflow, or use Dante Controller.

Shure Incorporated

5/33

Step 3: Configure Audio

The final configuration steps vary depending on what other devices you connect to the ANIUSB-MATRIX.

Connect other analog and USB devices to the ANIUSB-MATRIX. If you have a computer with videoconferencing soft-

ware, connect it to the USB port.

Go to Matrix mixer to route audio between ANIUSB-MATRIX inputs and outputs. You can send a single input to many

outputs or vice versa. To send audio from the MXA310 to the computer, check the box where Dante Input 1 and USB

Output intersect.

Perform a sound check and adjust input and output levels in Designer.

Apply equalization (EQ) as needed to improve speech clarity.

Get More Information

Learn more about the ANIUSB-MATRIX in the Designer Help section or in the complete user guide at pubs.shure.com/guide/

ANIUSB-Matrix.

General Description

The ANIUSB-MATRIX Audio Network Interface provides connections for USB, Dante , and analog audio sources. Collaborate

and connect with all audio devices on a single network, with support for wireless microphones, computers, mobile devices,

video codecs, and loudspeaker systems. Connect with a single network cable to receive audio and power through Power over

Ethernet (PoE). Use Shure Designer software to control audio and network settings from any computer connected to the same

network.

™

Shure Incorporated

6/33

Hardware and Installation

Rear Panel

①Level Indicators (Signal/Clip)

Tri-color LEDs indicate the audio signal level for the analog channels and connectivity status for the USB channel. Adjust out-

put levels in Shure Designer software to avoid clipping.

Analog Input/Output

LED State Audio Signal Level

Off less than -60 dBFS

Green -59 dBFS to -24 dBFS

Yellow -23 dBFS to -1 dBFS

Red 0 dBFS or more

Note: The input and output LEDs stay off when metering is set to Post-gain.

USB Audio

LED State Status

Off No USB device connected

Green USB device operating successfully

Red (flashing) Problem detected with connected USB audio device

②Audio Input (Block Connector)

Block Pin Assignments:

Audio +

Audio -

Audio ground

Shure Incorporated

7/33

③Chassis Ground Screw

Provides an optional connection for microphone shield wire to chassis ground.

④Audio Output (Block Connector)

Balanced audio output connects to an analog device. Set the output level in Shure Designer software to match the input

sensitivity of the analog device.

Note: See front panel labels for block connector assignments.

⑤USB Port

Connects to a computer to send and receive any combination of input and output audio channels.

⑥LED Indicators

Power: Power over Ethernet (PoE) present

Note: Use a PoE injector if your network switch does not supply PoE.

Network: Network connection active

Network Audio: Dante audio present on the network

Note: Error details are available in the event log in Shure Designer software.

Network Audio LED Behavior

LED Status Activity

Off No active signal

Green Device is operating successfully

Red Error has occurred. See event log for details.

Encryption:

LED Status Activity

Off Audio not encrypted

Green Successful encrypted audio connection with another device

Red

Encryption error. Possible causes:

Encryption is enabled on one device and not on another

Passphrase mismatch

⑦Dante Network Port

Connects to a network switch to receive Dante audio, Power over Ethernet (PoE), and data from the control software.

⑧Reset Button

Resets the device settings back to the factory default.

Power Over Ethernet (PoE)

This device requires PoE to operate. It is compatible with both Class 0 and Class 3 PoE sources.

Shure Incorporated

8/33

•

Power over Ethernet is delivered in one of the following ways:

A network switch that provides PoE

A PoE injector device

Installation and Rack Mounting

Two mounting solutions are available for installing the Audio Network Interface:

CRT1 19" Rack Tray (optional accessory): Supports up to 3 devices; mountable in a rack or under a table

Single-unit Mounting Tray (included accessory): Supports a single device for mounting under a table

Securing the Devices

Use the included screws from the mounting hardware kit to secure the Audio Network Interfaces. Audio Network Interfaces can

be mounted to face either direction. Insert the screws from the bottom in the appropriate holes, according to the following dia-

grams:

Align the holes as shown for securing a single device in the single-unit mounting tray

Align the holes as shown for securing up to 3 devices in the 19" rack tray.

Rack Ear Configuration

A combination of up to 3 Audio Network Interfaces can be mounted in a single 19-inch rack space. The adjustable rack ears

support mounting in a standard equipment rack or underneath a table.

Standard 19" Rack Mount

Align the ears with the mounting holes pointed forward.

Install the 3 screws that hold the ear to the tray as shown.

Shure Incorporated

9/33

Under-Table Mounting

Align the ears with the mounting holes pointed upward.

Install the 3 screws that hold the ear to the tray as shown.

Installing Underneath a Table

Hold the tray in the desired location under a table.

Use a pencil to mark the location of the mounting holes on the table.

Drill 4 holes for the screws. The diameter of the holes in the tray are 7.1 mm.

Shure Incorporated

10/33

•

Install the components into the tray.

Install with 4 screws to secure the tray underneath the table.

Device Identification

To identify the hardware by flashing the lights, select the Identify button in the device options section.

What's in the Box

KIT, HARDWARE, ANIUSB-MATRIX 90A33522

Mounting Bracket (1/3 rack unit) 53A27742

Note: USB cable not included.

Controlling Devices with Shure Designer Software

To control this device's settings, use Shure Designer software. Designer enables integrators and system planners to design au-

dio coverage for installations using MXA microphones and other Shure networked devices.

To access your device in Designer:

Download and install Designer on a computer connected to the same network as your device.

Open Designer, and check that you’re connected to the correct network in Settings.

Click Online devices. A list of online devices appears.

To identify devices, click the product icon to flash the lights on a device. Select your device in the list and click Config-

ure to control device settings.

Learn more at shure.com/designer.

You can also access device settings using Shure Web Device Discovery.

Use Designer's Optimize Workflow

Designer's optimize workflow speeds up the process of connecting systems with at least 1 microphone and 1 audio processor.

Optimize also creates mute control routes in rooms with MXA network mute buttons. When you select Optimize in a room, De-

signer does the following:

Creates audio routes and mute control routes

Adjusts audio settings

Turns on mute synchronization

Enables LED logic control for applicable devices

The settings are optimized for your particular combination of devices. You can customize settings further, but the optimize

workflow gives you a good starting point.

Compatible devices:

MXA920

MXA910

Autres manuels pour ANIUSB-Matrix

Table des matières

Autres manuels Shure Équipement d'enregistrement

Shure

Shure ML140HE Manuel utilisateur

Shure

Shure ANI22 Manuel utilisateur

Shure

Shure ANI4IN Series Manuel utilisateur

Shure

Shure ANIUSB-Matrix Manuel utilisateur

Shure

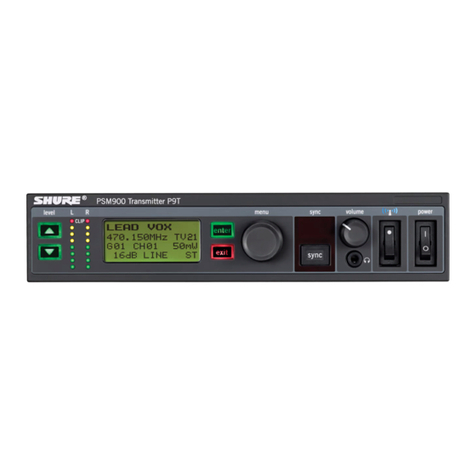

Shure PSM 900 Manuel utilisateur

Shure

Shure 44 Series Manuel utilisateur

Shure

Shure A15TG Manuel utilisateur

Shure

Shure DFR11EQ Version 5 Manuel utilisateur

Shure

Shure LEGENDARY PERFOMANCE MVi Manuel utilisateur

Shure

Shure DFR11EQ Version 5 Manuel de la liste des pièces

Shure

Shure PSM1000 Manuel utilisateur

Shure

Shure ANI22 Manuel utilisateur

Shure

Shure M75ECS Manuel utilisateur

Shure

Shure PSM 300 Manuel utilisateur

Shure

Shure PSM1000 Guide de démarrage rapide

Shure

Shure PS9 Manuel utilisateur

Shure

Shure MVI Manuel utilisateur

Shure

Shure PSM 900 Manuel de programmation

Shure

Shure Microphone Level Tone Generator A15TG Manuel utilisateur

Shure

Shure R180 Manuel utilisateur

Shure

Shure PSM 600 Manuel utilisateur

Shure

Shure ANI22 Manuel utilisateur

Shure

Shure PSM700 Manuel utilisateur

Shure

Shure M625 Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
