Shure Microflex MX395W/O Manuel utilisateur

WIRED MICROPHONE

MX395

USER GUIDE

Le Guide de l’Utilisateur

Guia del Usuario

Guida dell’Utente

Руководство пользователя

Bedienungsanleitung

日本語

繁體中文

Manual do Usuário

사용자 가이드

27A3237 (Rev. 7)

Printed in U.S.A.

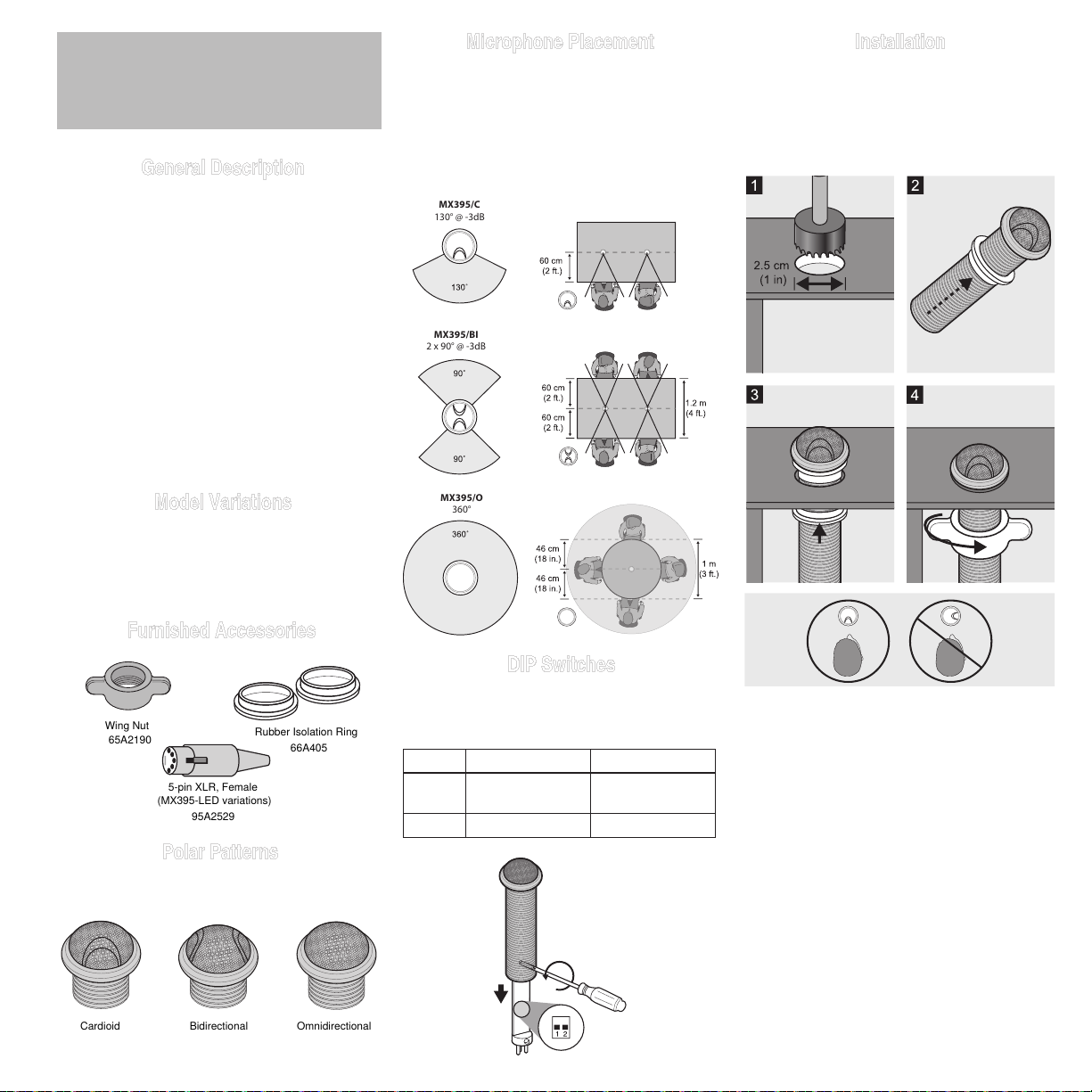

Low-Profile Boundary

Microphone

General Description

Shure®MX395 low-profile microphones are for

use in boardrooms and other sites where aesthet-

ics are important. The MX395 is only 2.5 cm (1

in.) in diameter, and extends just 2 cm above the

mounting surface when installed. Despite its small

size, the MX395 delivers clear, high quality sound.

Features

• Low profile, aesthetic design

• Wide dynamic range and smooth frequency

response

• RF filtering with CommShield®technology

• Available with logic-controlled bi-color status

indicator

Model Variations

The MX395 is available in cardioid, omnidirection-

al, and bidirectional polar patterns, with or without

an LED status indicator, with a black, white, or

aluminum finish.

Furnished Accessories

Wing Nut

Rubber Isolation Ring

5-pin XLR, Female

(MX395-LED variations)

65A2190

66A405

95A2529

Polar Patterns

The polar pattern is indicated by the molded grille.

Cardioid

Omnidirectional

Bidirectional

Microphone Placement

For best low-frequency response and rejection

of background noise, place the microphone on

a large, flat surface, such as a floor, table, or

lectern.

To reduce reverberance, avoid reflective surfaces

above or to the side of the microphone, such as

beveled sides of pulpits or overhanging shelves.

MX395/C

130° @ -3dB

MX395/BI

2 x 90° @ -3dB

MX395/O

360°

Installation

Install the microphone into a tabletop as shown.

Important:

• Align indentation toward talker

• Do not over tighten the wing nut, as this

reduces shock isolation

DIP Switches

Set DIP Switch 1 up to engage the low cut filter,

which attenuates frequencies by 6 dB per octave

below 150 Hz.

Switch Down (default) Up

1 Full frequency

response

Low cut filter

2 -- --

Pin Assignments

Audio −

Audio +

3-Pin XLR

Specifications

All measurements taken with microphone mounted on a wooden

surface (76 x 76 cm)

Cartridge Type

Electret Condenser

Frequency Response

50–17000 Hz

Polar Pattern

MX395/O Omnidirectional

MX395/C Cardioid

MX395/BI Bidirectional

Output Impedance

170Ω

Output Configuration

Active Balanced

Sensitivity

@ 1 kHz, open circuit voltage

Cardioid −35dBV/Pa(18mV)

Omnidirectional −28dBV/Pa(42mV)

Bidirectional −37dBV/Pa(14mV)

1Pa=94dBSPL

Maximum SPL

1kHzat1%THD,1kΩload

Cardioid 121 dB

Omnidirectional 114dB

Bidirectional 123 dB

Equivalent Output Noise

A-weighted

Cardioid 28dBSPL

Omnidirectional 21 dB SPL

Bidirectional 29 dB SPL

Signal-to-Noise Ratio

Ref.94dBSPLat1kHz

Cardioid 66 dB

Omnidirectional 73 dB

Bidirectional 65 dB

Dynamic Range

1kΩload,@1kHz

Cardioid 93 dB

Omnidirectional 93 dB

Bidirectional 94dB

Common Mode Rejection

10 to 100,000 kHz

45dB,minimum

Preamplifier Output Clipping Level

at 1% THD

−8dBV(0.4V)

Logic Connections

LED IN Activelow(≤1.0V),TTL

compatible. Absolute

maximumvoltage:-0.7V

to50V.

Net Weight

136 g (0.30 lbs)

Environmental Conditions

Operating

Temperature

–18–57°C(0–135°F)

Storage

Temperature

–29–74°C(–20–165°F)

Relative Humidity 0–95%

Power Requirements

MX395 11–52VDC,2.0mA

MX395-LED 48–52VDC,8.0mA

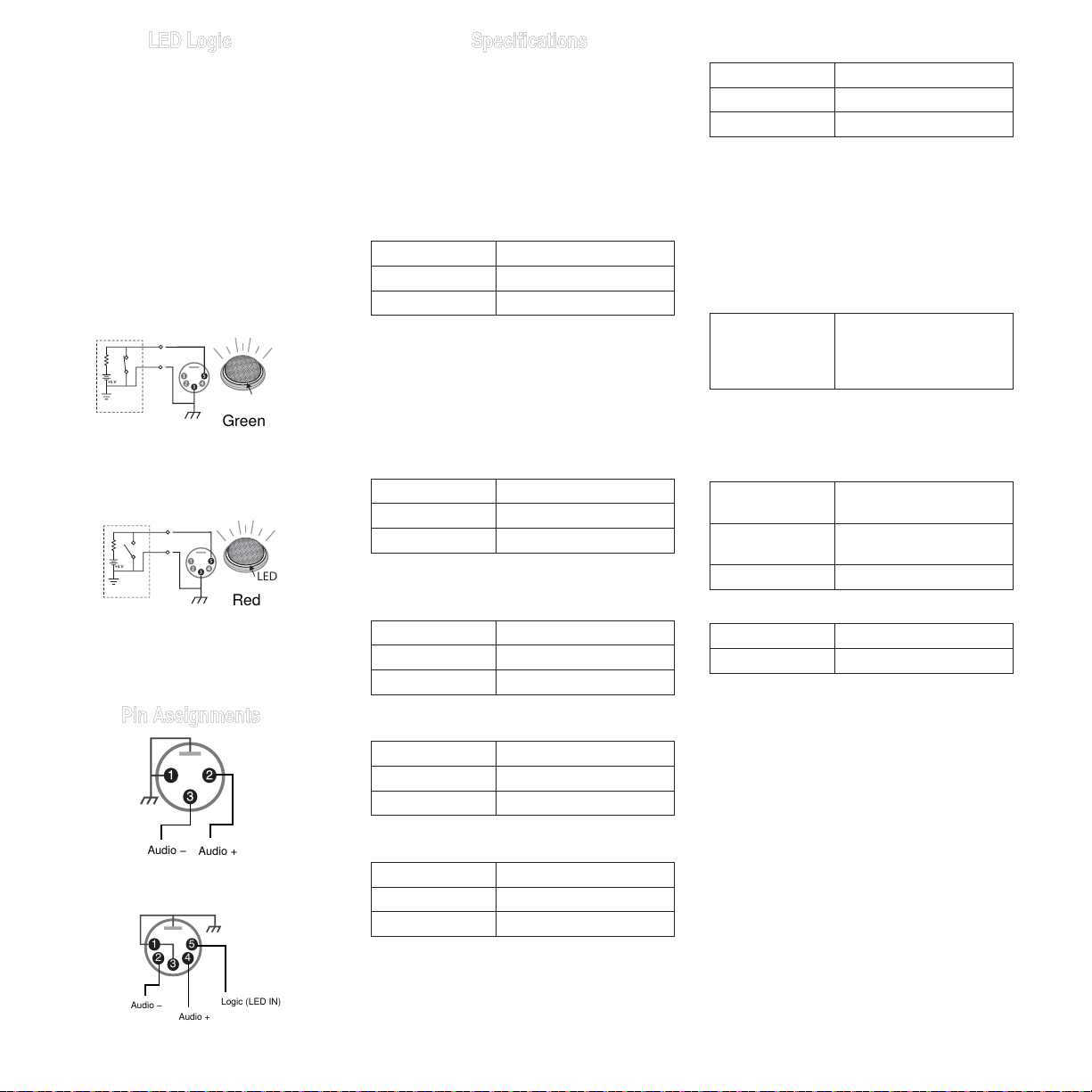

LED Logic

For models equipped with an LED, use the includ-

ed 5-pin XLR connector to wire the microphone to

an automatic mixer or other logic device.

Note: Connect the LED IN to the gate output to il-

luminate the LED when the channel is gated on.

Do not use the relay ports on Crestron and AMX

devices. Use the I/O logic ports instead.

The LED logic may not function when connect-

ing to devices that do not have internal "pull-up

resistor" logic circuits, such as ClearOne DSP

products. External pull-up resistor circuits can be

addedforeachmicrophone.Vistitwww.shure.

com/FAQ for detailed instructions.

Audio −

Audio +

Logic (LED IN)

5-Pin XLR

+5 V

Green

LED

0 V c.c.

5 V c.c.

+5 V

Red

LED

MX395/C

MX395/BI

MX395/O

3 3/8 in

(86 mm)

4 in

(101 mm)

7/8 in

(22 mm)

1 1/4 in

(32 mm)

7/16 in

(12 mm)

前置放大器增益

可以根据需要，将前置放大器增益降低12dB。有关详细信息，请与Shure的授权服务

中心联系。

프리앰프 게인

필요하면,프리앰프게인을12dB만큼줄일수있습니다.안내를원하시면Shure공인서

비스센터에연락하십시오.

プリアンプゲイン

必要であれば、プリアンプのゲインを12 dB下げることができます。詳しくは、Shure認可サービス

センターまでお問い合わせください。

Коэффициент усиления предусилителя

Еслипотребуется,коэффициентусиленияпредусилителяможноснизитьна12дБ.

Заинформациейобращайтесьвофициальныйсервис-центркомпанииShure.

Guadagno del preamplicatore

Se necessario, il guadagno del preamplificatore può essere ridotto di 12 dB. Per ulteriori

informazioni, rivolgetevi a un centro di assistenza Shure autorizzato.

Ganancia del preamplicador

De ser necesario, la ganancia del preamplificador puede reducirse por 12 dB. Co-

muníquese con un centro de servicio autorizado de Shure para más información.

Verstärkung des Vorverstärkers

BeiBedarfkanndieVorverstärkungum12dBverringertwerden.Informationensind

vomShure-Vertragskundendienstzuerhalten.

Gain du préampli

Si nécessaire, il est possible de réduire de 12 dB le gain du préamplificateur. Contacter

un centre de réparations Shure agréé pour plus de détails.

Preamp Gain

If necessary, the preamplifier gain can be reduced by 12 dB. Contact an authorized

Shure service center for information.

Ganho do Pré-amplicador

Se necessário, o ganho do pré-am-plificador pode ser reduzido em 12 db. Entre em

contato com um centro de serviços autorizados Shure para informações.

-30

-25

-20

-15

-10

-5

20 100 1k 10k 20k

0,6 m (2 ft.) from sound source

-30

-25

-20

-15

-10

-5

20 100 1k 10k 20k

0,6 m (2 ft.) from sound source

-30

-25

-20

-15

-10

-5

20 100 1k 10k 20k

0,6 m (2 ft.) from sound source
