Shure Centraverse Series Manuel utilisateur

27A20377 (Rev. 2)

Printed in China

Model Variations

CVB-B/C: Black, Cardioid

CVB-B/O: Black, Omnidirectional

CVB-W/C: White, Cardioid

CVB-W/O: White, Omnidirectional

Note: Model availability depends on region. See your

local Shure dealer or distributor for details.

Centraverse Boundary

Microphone

The Shure Centraverse CVB is a professional boundary

electret condenser microphone for use in desktop installed

sound reinforcement applications. Available in cardioid and

omnidirectional polar patterns and black or white color op-

tions, its low-profile design fits seamlessly within any design

aesthetic.

Features

• Superior Shure design and rugged, dependable

construction

• Available in cardioid or omnidirectional polar patterns

• Attached 12 ft XLR cable

• Mounting holes for secure installation

• Commshield® technology guards against unwanted

RF interference from portable wireless devices

(smartphones, etc.)

Installation

1. Install two screws into the mounting surface, exactly 24 mm

(15/16 in.) apart. Leave a 5 mm (3/16 in.) gap between the

screw head and the mounting surface. Only use screws with

a flat-bottom head.

2. Place the microphone onto the screws and slide backwards

to lock into place.

3. Connect the XLR cable to a mixer or P.A. system.

Note: This microphone requires +48V phantom power to

operate.

5 mm

(3/16 in.)

24 mm

(15/16 in.)

Microphone Placement

Use the following information to achieve the best results for

each model variation.

① Cardioid

The cardioid model captures sound in front of the microphone

and rejects off-axis sounds. It is best suited to capture one

person or a small group in close proximity to one another.

② Omnidirectional

The omnidirectional model captures sound from all angles. It

is ideal for capturing larger groups and sounds coming from

multiple directions.

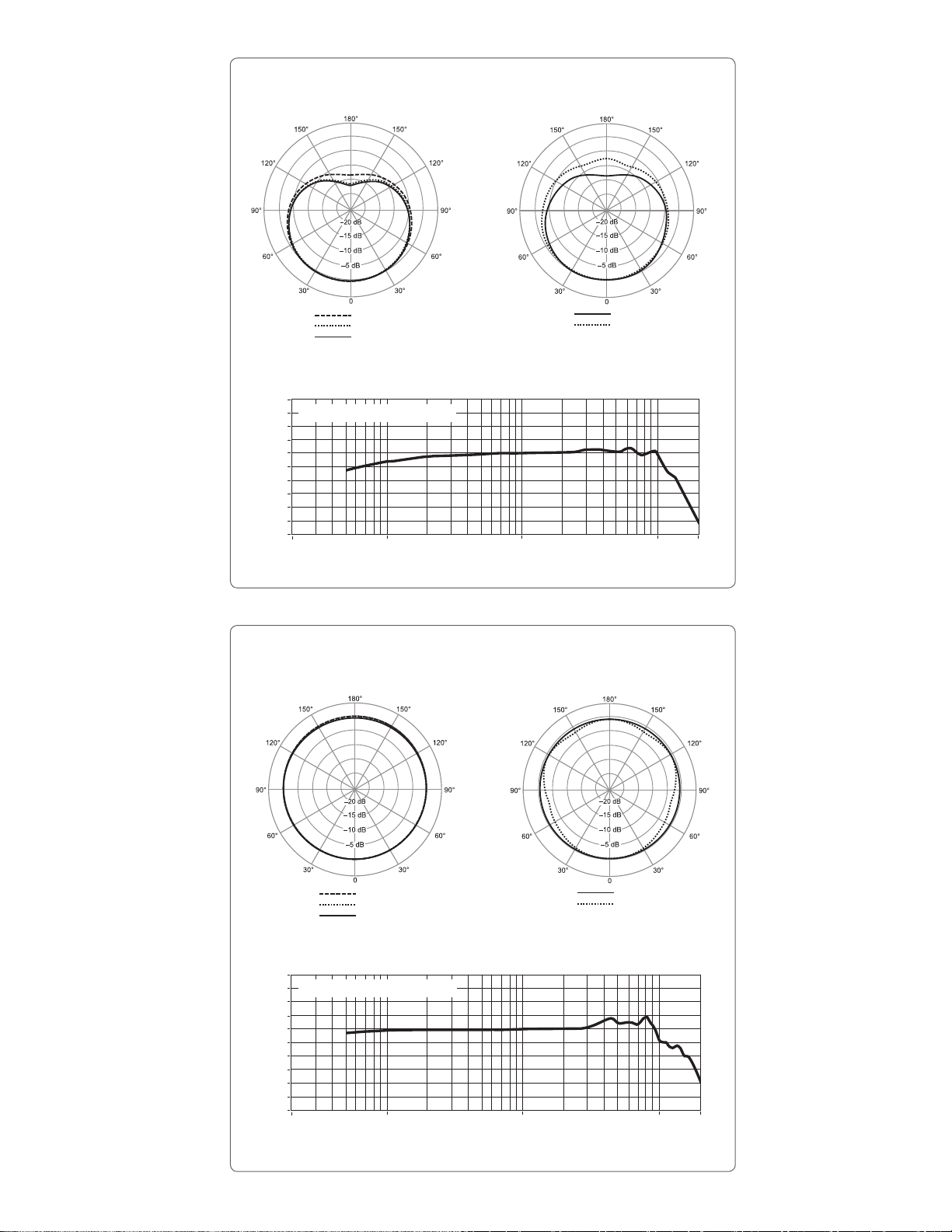

Centraverse™ Series

Installed Sound Microphones

CVB

500 Hz

250 Hz

1,000 Hz

4,000 Hz

2,000 Hz

-30

-25

-20

-15

-10

-5

20 100 1k 10k 20k

2 ft. (0.6 m) from sound source

500 Hz

250 Hz

1,000 Hz

4,000 Hz

2,000 Hz

-30

-25

-20

-15

-10

-5

20 100 1k 10k 20k

2 ft. (0.6 m) from sound source

CVB / C

CVB / O

Cartridge Type

Electret Condenser

Polar Pattern

CVB/O Omnidirectional

CVB/C Cardioid

Frequency Response

70–16000 Hz

Output Impedance

180Ω

Sensitivity

open circuit voltage, @ 1 kHz, typical

CVB/O –28 dBV/Pa[1] (40 mV)

CVB/C –32.5 dBV/Pa[1] (23 mV)

Maximum SPL[2]

1 kHz at 1% THD

CVB/O 117 dB SPL

CVB/C 120 dB SPL

Signal-to-Noise Ratio[3]

Ref. 94 dB SPL at 1 kHz

CVB/O 74 dB

CVB/C 67 dB

Dynamic Range

CVB/O 97 dB

CVB/C 93 dB

Self Noise

equivalent SPL, A-weighted, typical

CVB/O 20 dB SPL

CVB/C 27 dB SPL

Preamplifier Output Clipping Level

@ 1 kHz, at 1% THD

CVB/O -6 dBV

CVB/C -7 dBV

Common Mode Rejection

10 Hz to 100 kHz

>45 dB

Specifications

Polarity

Positive pressure on diaphragm pro-

duces positive voltage on pin 2 with

respect to pin 3

Environmental Conditions

Operating

Temperature

–18 to 57°C (0

to 135°F)

Storage

Temperature

–29 to 74°C

(–20 to 165°F)

Relative

Humidity

0 to 95%

Power Requirements

11–52 V DC[4], 2.0 mA

Weight

8 oz. (227 g)

[1] 1 Pa=94 dB SPL

[2] THD of microphone preampli-

fier when applied input signal level

is equivalent to cartridge output at

specified SPL

[3] S/N ratio is the difference be-

tween 94 dB SPL and equivalent

SPL of self noise, A-weighted

[4] All specifications measured with

a 48 Vdc phantom power supply.

The microphone operates at lower

voltages, but with slightly decreased

headroom and sensitivity.

3.5 in.

(88 mm)

2.5 in.

(63 mm)

0.9 in.

(24 mm)
