SPARKULAR PRO
USER MANUAL
Showven Technologies Co.,Ltd.
1
SPARKULAR PRO
USER MANUAL
★ Please read this manual carefully before operating this product.
★ Warranty card attached in the manual, please keep it well.
Safety Considerations
》Unauthorized repair are prohibited, it may cause serious incident.
》Do NOT soak the machine in water.
》Make sure lid of feeding hopper are well covered when use SPARKULAR PRO. Accidentally burning of Composite Ti
can only use sands to extinguish. Composite Ti should keep away from moisture and stored in a dry sealed environ
ment.
》Keep audience, animals or flammable objects at a minimum distance of 3m from SPARKULAR PRO. Make sure
sparks shoot out from SPARKULAR PRO can NOT touch any objects in the air.
》Clear material is necessary both before and after the show. Please check nozzle of SPARKULAR PRO after each show,
if there are consumable agglomerated in the nozzle, please clear it with screwdriver, otherwise it will affect the spark
effects and even damage the machine.
》Maximum cascade of SPARKULAR PRO is 5 units (110V version no more than 3units) with one standard power cable.
Otherwise it may damage the machine and even cause fire.
》For better heat dissipation, block the air intake and air outlet is prohibited.
》Cover of nozzle of SPARKULAR PRO is prohibited. Please check the nozzle before each show ensure the nozzle not
blocked by foreign body.
》Never touch the sparks which shooting out from the nozzle. Never touch the nozzle of SPARKULAR PRO, danger of
getting burnt.
》Ensure that children, animals and unauthorized persons don’t have access to the SPARKULAR PRO!
》please be noted that there may sparks or remains fall to the ground when use HC8200 LARGE and LARGEⅠ.
Features
SPARKULAR PRO is derived from SHOWVEN original SPARKULAR technology platform for outdoor installations and
professional outdoor show market. IP55 rated weatherproof enclosure design allows SPARKULAR PRO works even in
heavy rainfall. 1200g huge hopper design ensure long effects time after each filling up. It is an ideal choice for outdoor
events, theme parks, projects installations etc.
2
Technical Specifications
Product name SPARKULAR PRO
Model BT71/BT72
Dimension 315x290x285mm
Weight 16.5Kg
Input AC 220VAC-240VAC,50/60HZ; 600W Max.cascade: 5PCS;
AC 100VAC-120VAC,50/60HZ; 700W Max.cascade: 3PCS;
Work Temp. -20°C~50°C
Effect height HC8200 LARGE / HC8200 LARGEⅠ: 5~5.5m
Height adjstable Yes
Effect direction Straight up
Hopper capacity 1200g
Height adjustable Yes
HC8200 consumption rate 20g/min
Interface NEUTRIK POWERCON TRUE1, 3-pin waterproof DMX connectors
Control DMX
Operation Panel

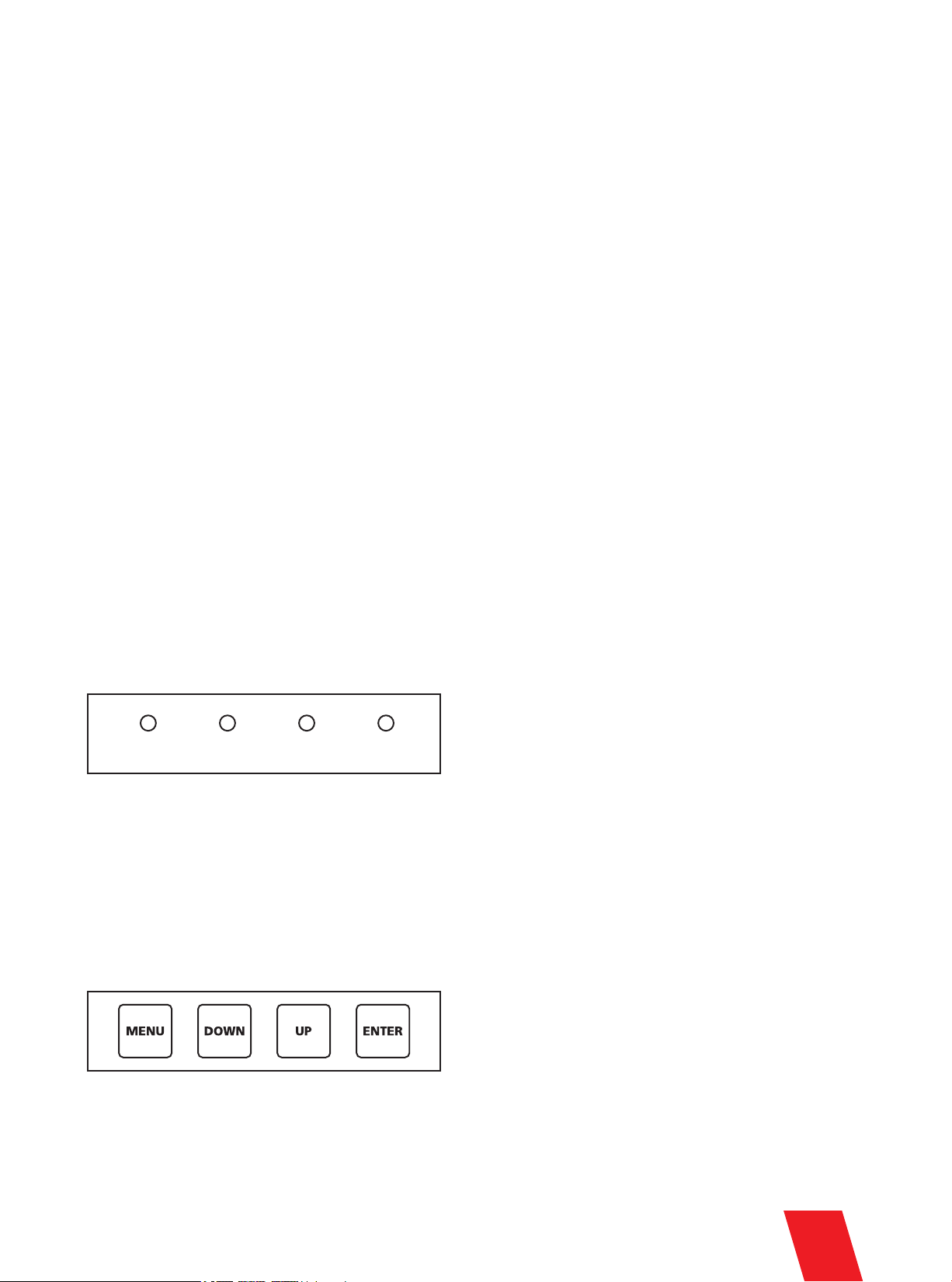

LED display area:
READY: Flashing means heating up, about 5min. Turns from flashing into long on, indicates that the machine is ready
to work.
DMX: Flashing shows that DMX signal is connected, light OFF means there is no DMX signal
FAULT: Light ON when error occurs
HEAT: Light ON when system is heating up
READY DMX FAULT HEAT
Control Button Area:
MENU: switch through setup menu. Press 3s switch to advanced interface
DOWN: parameter down
UP: parameter up
ENTER: confirm and save parameters
3
Interface
Main interface:
Error information:
DMX Address 1
210

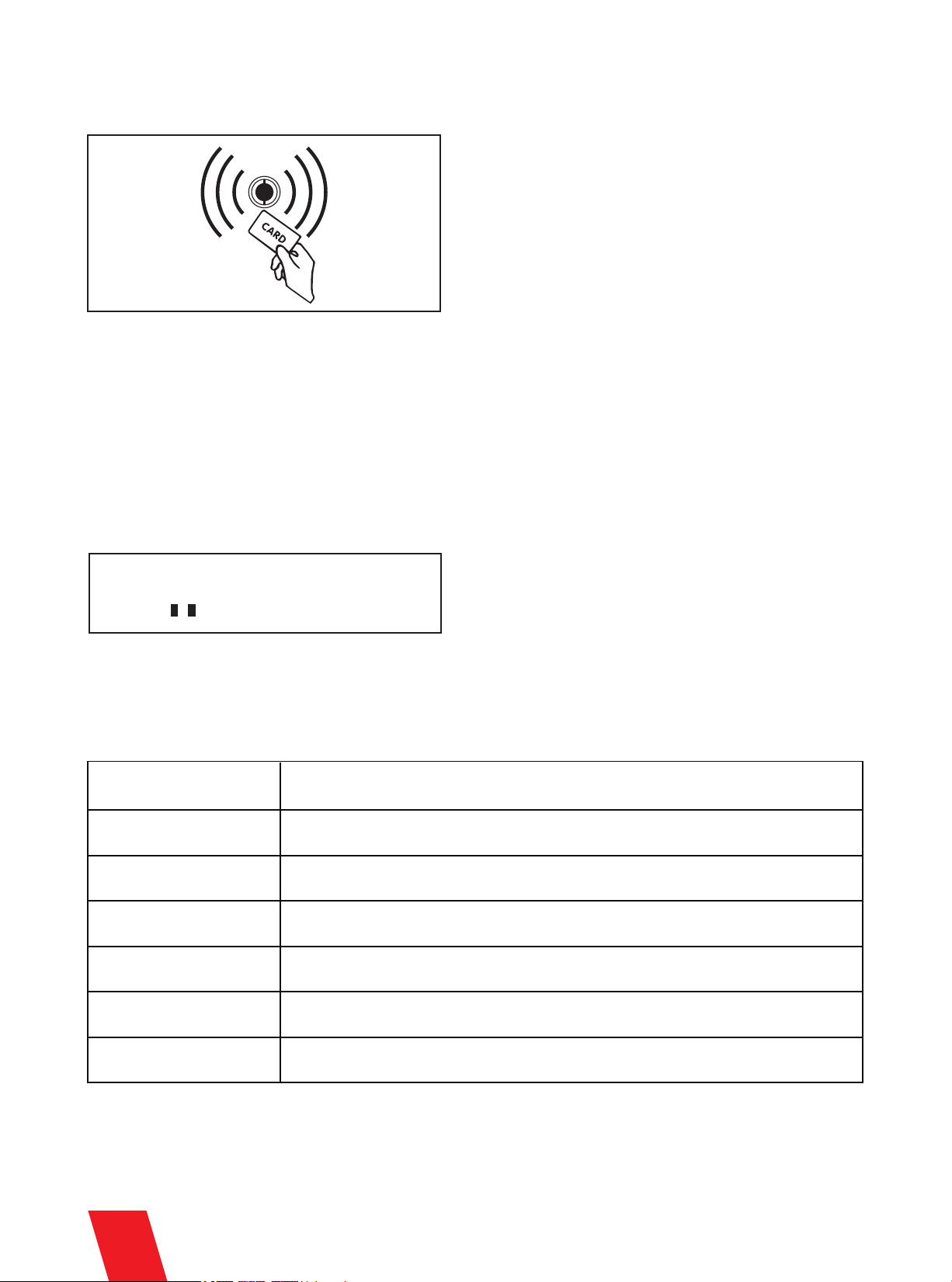

RFID area:
RFID card comes together with HC8200. It is a safety design, allows machine to identify the parameter and types of
consumable.
Please note that granules RFID card can increase the single machine specific working time. The card is disposable, can
only use once.
First line: shows DMX address
Second Line: shows inner temp. and temp. bar, as well as error info if available
Error Informations Explanation
E0 System IC Systematic error
E2 Temp. Sensor Temperature sensor is not connected or damage
E3 P Temp. Over Chassis over-temperature
E4 Time Remain Activated time for machine is not enough, need to swip RFID card
E5 K Temp. Over Inner core over-temperature
E6 Heat Fail Heating Fail
4
Setting Menu:
Press “MENU”switch through setup menu.
Set DMX Address
Fountain Height
Manual Heat
Manual Fountain
1-512
1-10
ON/OFF
ON/OFF
Set DMX address If controlled by Host Controller, please set DMX address as
1, 3, 5, 7,…2n-1, otherwise it may leads to signal interference
Manual firing height setup, for test only
Auto heating up ON/OFF
Manual firing, for test only
Auto Clear Delay 0.1-0.9s Auto clear material time after each firing
Advanced Menu:
Press “MENU” 3 seconds to enter the advanced setup interface, press MENU key to enter different options
wait 3 seconds to return to the main interface.
Options
Set Temperature
LCD Backlight
Density
Range
580-620
ON/OFF
70-100
Explanation
Options Range Explanation
Default is 580. Please don't change default value without engineer's
suggestion from SHOWVEN.
LCD screen backlight ON/OFF
Sparks density
Mode Selection Factory Mode
User Mode
Factory mode is for engineer only. When in Factory mode machine can’t
controlled by DMX console/host controller
Motor Protect ON/OFF Motor protect function, default setting is Off
Standby Switch ON/OFF When ON, the machine can firing only when heating up was finished
5
SPARKULAR PRO occupy 2 channels when use DMX.
First channel Function
0-15 Fountain OFF
16-39 Fountain Height 1
40-63 Fountain Height 2
64-87 Fountain Height 3
88-111 Fountain Height 4
112-135 Fountain Height 5
136-159 Fountain Height 6
160-183 Fountain Height 7
184-207 Fountain Height 8
208-231 Fountain Height 9
232-255 Fountain Height 10
Second channel Function
60-80 Clear Material (perform after each show)
20-40 Emergency Stop
0-10 Pre-heat OFF (disabled when auto-heat ON)
240-255 Pre-heat ON (disabled when auto-heat ON)
6
Fixed Installation
Please follow belowing rules to set DMX address when use SHOWVEN Host Controller, otherwise it may leads to signal
interference.
Do not soak the machine in water, install on holder if necessary. Install in below way:

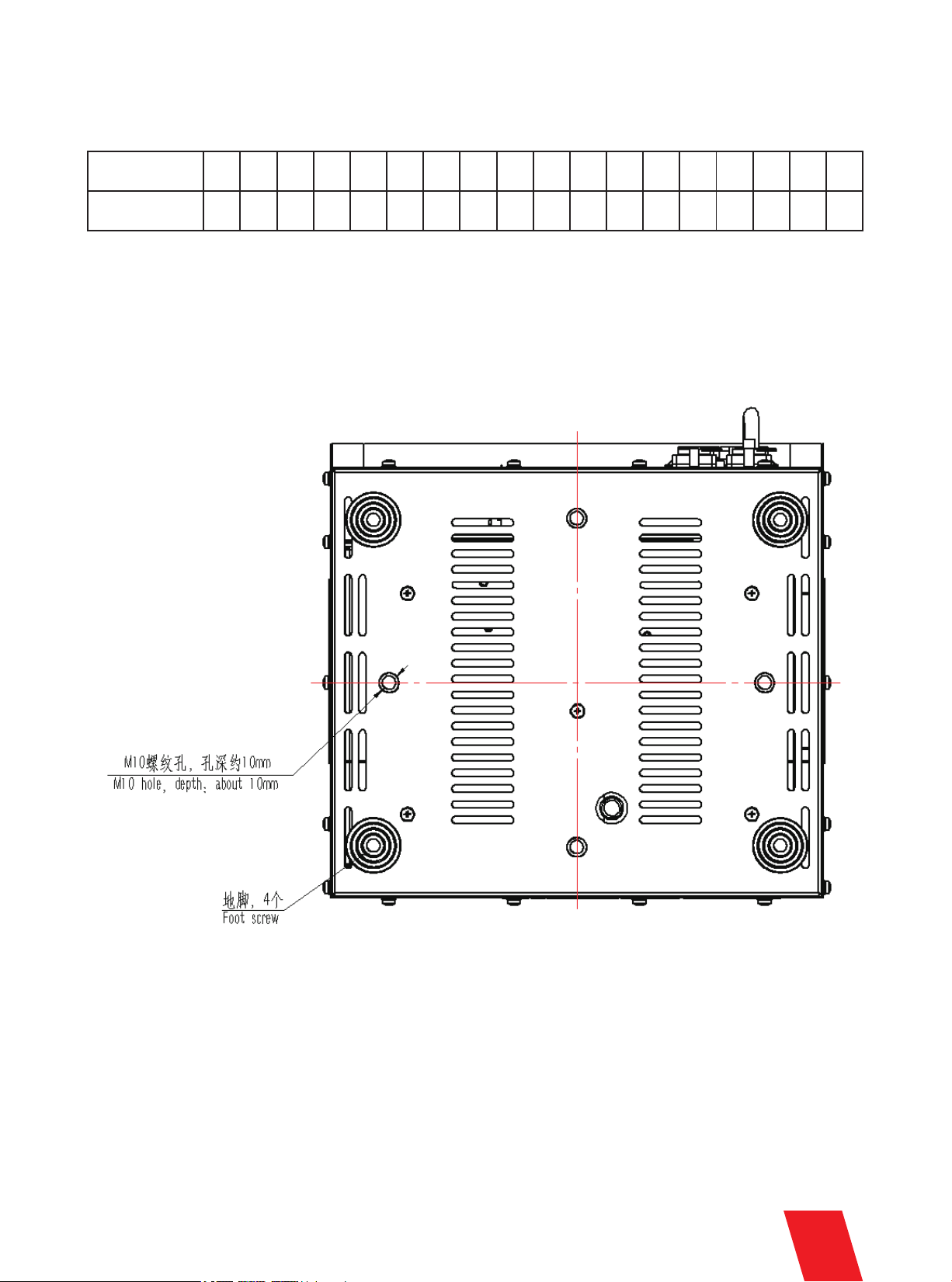

Unload the 4 foot screw, install SPARKULAR PRO via 4 M10 hole.
DMX Address
Sparkular No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35
7
Tel:
Warranty Instructions
Warranty Card
★ Below situations NOT included in warranty service:
★ Invoice and warranty card are necessary when applying for maintenance service from
SHOWVEN.
▲ Sincere thanks for your choosing SPARKULAR PRO, you will receive quality service from us.
▲ The product warranty period is one year. If there are any quality problems within 7 days after shipping out from our
factory, we can exchange a brand new same model machine for you.
▲ We will offer free of charge maintenance service for machines which with hardware malfunction (except for the
instrument damage caused by human factors)in warranty period. Please don't repair machine without factory
permission.
1. Damage caused by improper transportation, usage, management, and maintenance, or damage caused by human
factors;
2. Disassemble, modify or repair products without Showven’s permission;
3. Damage caused by external reasons (lightning strike, power supply etc);
4. Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Product Name:
Purchase Date:
Address:
Problem Feedback:
Maintenance Detail:
Service Engineer:
Actual Problem:
Serial No.
Service Date:
Showven Technologies Co., Ltd.
Add: BuildingB1,ChangshaECenterNo.18,XiangtaiRoad,LiuyangEconomicDevelopment
Zone,ChangshaCity,410300,HunanProvince,P.R.China.
Tel: +86-731-83833068
Web: www.showven.cn
E-mail: [email protected]
