1200Hz,2000Hz, 4000Hz, 6000Hz, 25000Hz.
Note: with refresh rate increased, gray rate of dimmer will be
reduced, (high refresh rate, low gray rate), when set to 4000Hz,
CV3 is invalid, at 25000Hz, CV1, CV2, CV3 are invalid, so please
lower PWM rate to increase gray rate in necessary.
•

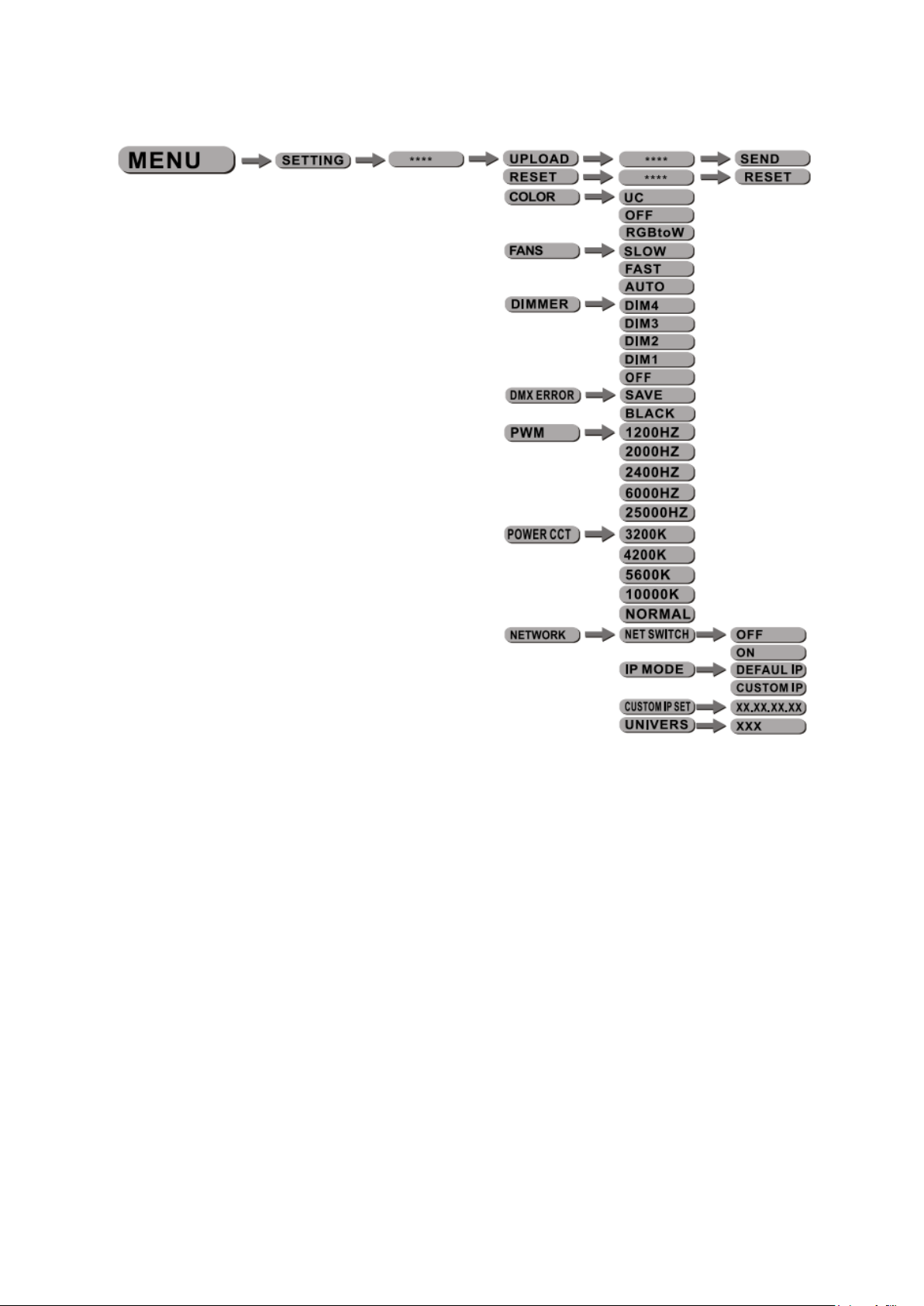

FULLPOWER CCT sets the color temperature, press UP/DOWN to
choose,under full power, 3200K, 4200K, 5600K, 10000K can be
chosen, When COLOR is selected, 3200K, 4200K, 5600K, 10000K
will not work.
•
NET SWTCH is net switch, whenOFF, adheres to 2.XX.XX.XX, ON
adheres to 2.XX.XX.XX. IP MODE is IPmode setting,DEFAULT IP is
default IP, CUSTOM IP is user IP, CUSTOM IP SET is customer IP
setting, UNIVERS is data bulk setting, output series 0-255
•

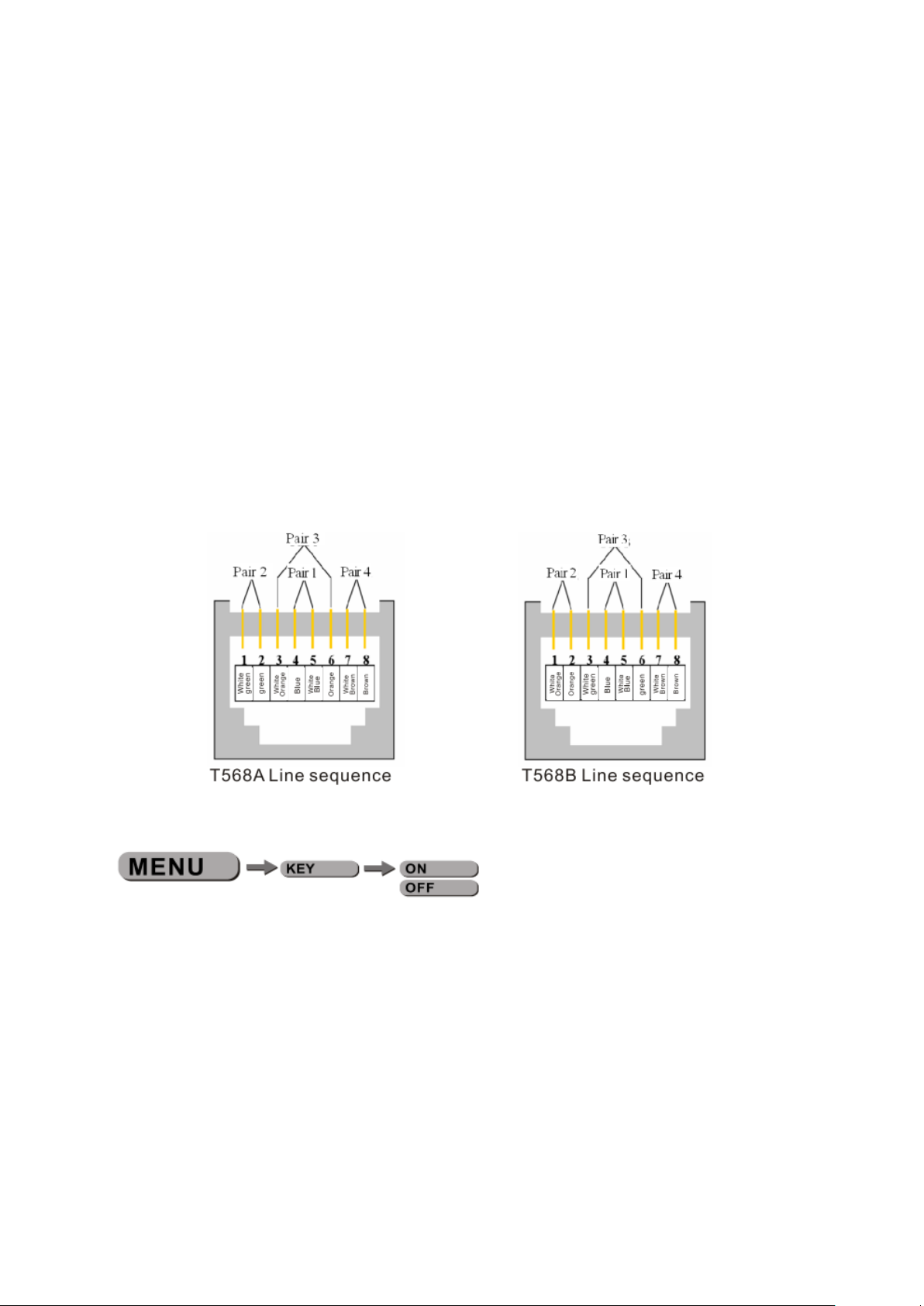

Net wire: Straight-through cable is recommended between T568B
wire order, the computer connected to the switch with a straight-
through cable, the connection between the switch and the lamp
used T568A line order with a straight-through cable crossover
cable at one end and the other end with T568B wire order. Lamps
directly connected computer should use a crossover cable
3.9 ACTIVATE THE PASSWORD
o
Enter the KEY
mode to select whether password is on or off.
o
When the fixture is set as PASS ON, after 30 seconds or when the
fixture isnextturned on,the fixture will need an access password to
enter the display menu control.
o
Note:
The factory access password is UP + DOWN +
UP
+ DOWN
then press ENTER
to confirm the access.
