Showlite LTS-100 Manuel utilisateur

English

Thank you for purchasing the Showlite LTS-100 Lightbar/Truss. Please read this instructions carefully before starting to assemble the light bar.

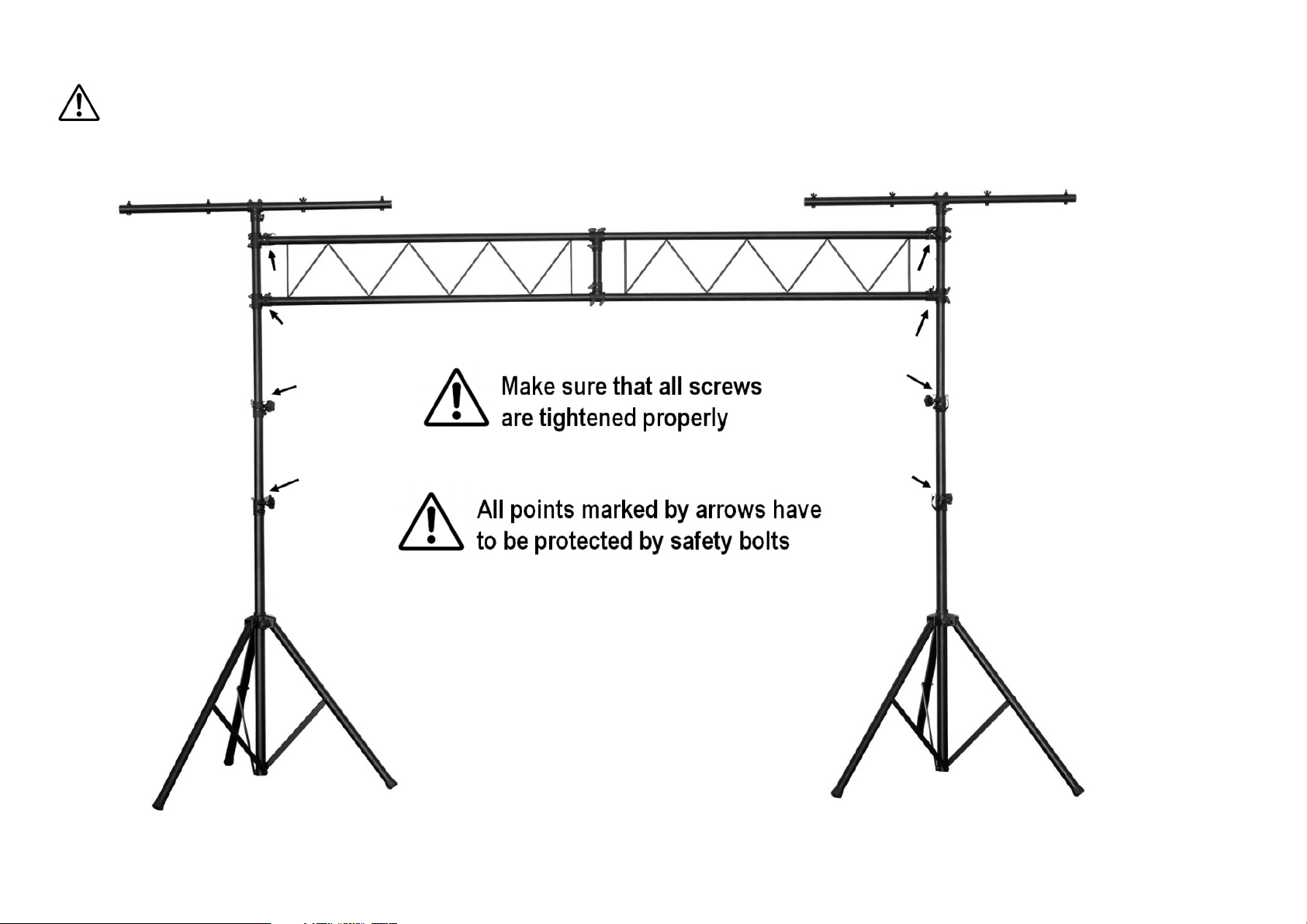

Important! Overhead rigging must only be done by authorized and experienced operators. Always install an appropriate safety bond. You must only use safety bonds and quick links complying with DIN 56927, shakles

complying with DIN EN 1677-1 and BGV C1 carabiners. All devices must be sufficiently dimensioned and used correctly in accordance to the latest industrial safety regulations. Make sure that all fixing screws are

tightened very well. Make sure that all safety bolts are inserted.

Unpacking: Please check all parts if they are not damaged. If parts are missing or damaged it is not allowed to use the light bar. Assembly is much easier for two people (Steps 3 and 4).

Content of pack:

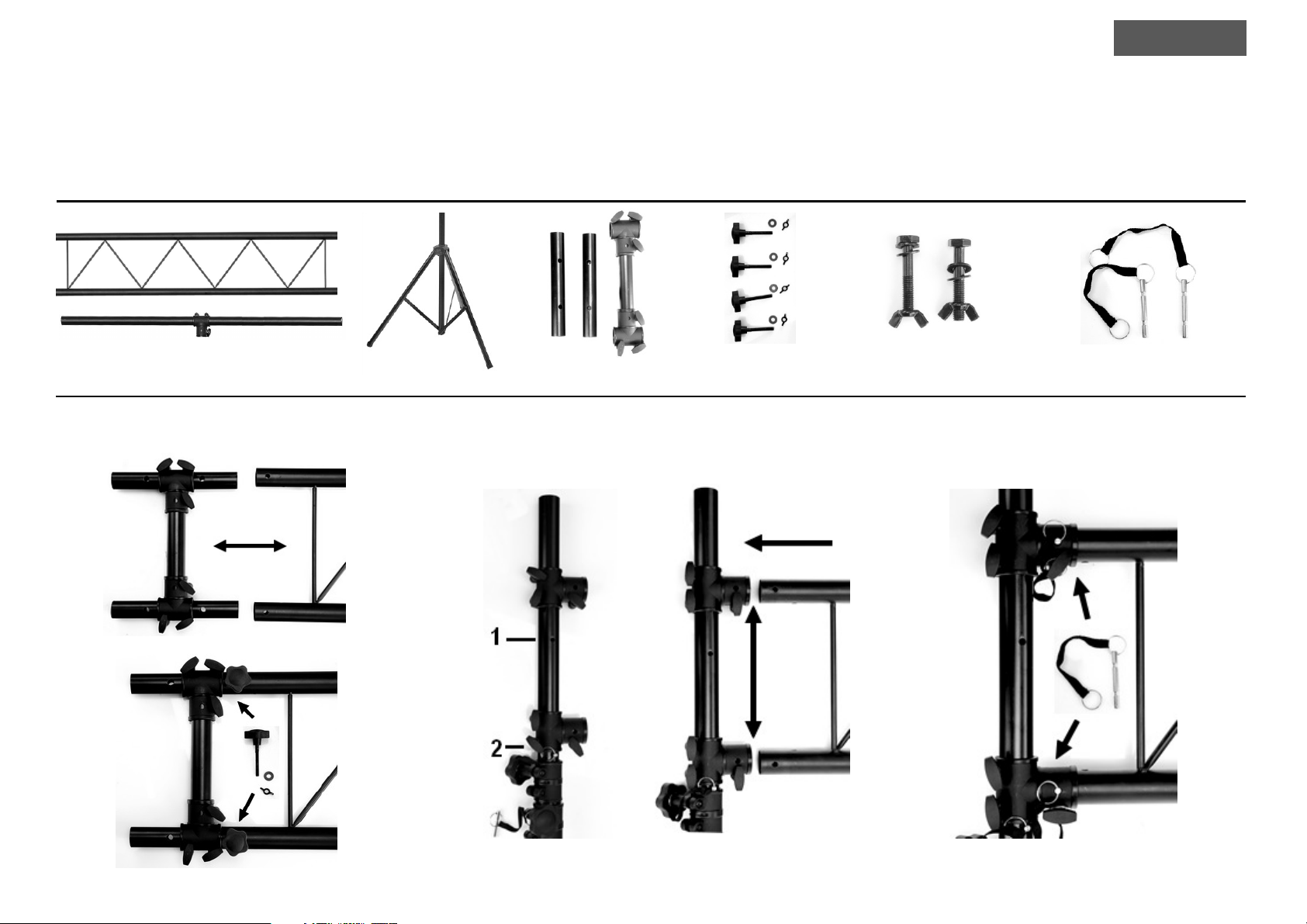

Truss (2 pcs) Stand (2 pcs) middle joint (1 pcs) Fixing screws (4 pcs) Screws for light effects (8 pcs) Safety bolts (8 pcs)

Light top bar (2 pcs) incl. T-bar incl. 2 telescope poles incl. 2 inner tubes incl. washers and nuts incl. washers and nuts

Step 1: Connect the 2 truss pieces with middle joint. Use Step 2: Place the stands on flat, solid surface and draw out Step 3: Set in the truss and and prefix with safety bolts.

the inner tubes and fixing screws - tighten them properly. the higher telescope pole to adjust height. Place safety bolt Tighten the fixing screws properly.

to 2nd hole from top. Adjust the T-joints like shown on picture

below to fit to truss.

Step 4: Assemble the top bars and adjust overall height with the telescope pipes (on both sides left/right). Use the safety bolts to protect the truss from moving back down. Tighten all fixing screws.
