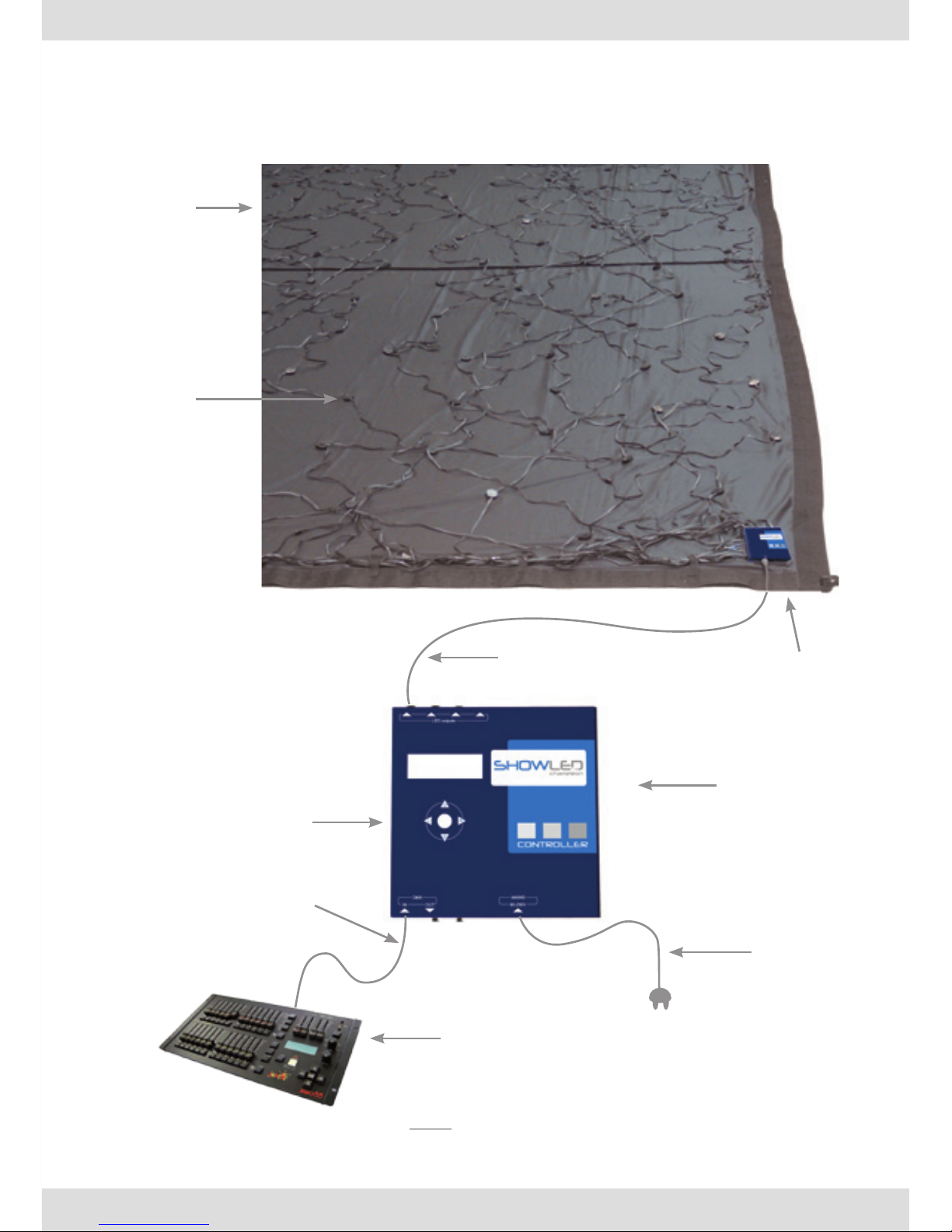

OPERATOR CONSOLE
The operator console consists of an LCD display and a keypad with five push buttons.
This console is the physical interface that lets you access the menu structure.
The menu structure lets you modify the parameters of the controller.
Use the buttons (Up, Down, Left and Right) to scroll through the menu structure.
The UP button lets you scroll up in the menu structure or increase a parameter.
The DOWN button lets you scroll down or decrease a parameter.
The LEFT button lets you go back in the menu structure.
The RIGHT button lets you select or confirm a menu item.
HOW TO SE TUP THE CONTROLLER
Press the UP button and then the DOWN button to unlock the keypad.
After unlocking the controller, [Choose operat. Mode] will appear.
• Choose“Standalone”ifyoudon’twanttouseaDMXsource.
• Choose“DMXmode”ifyouwanttouseaDMXsource.

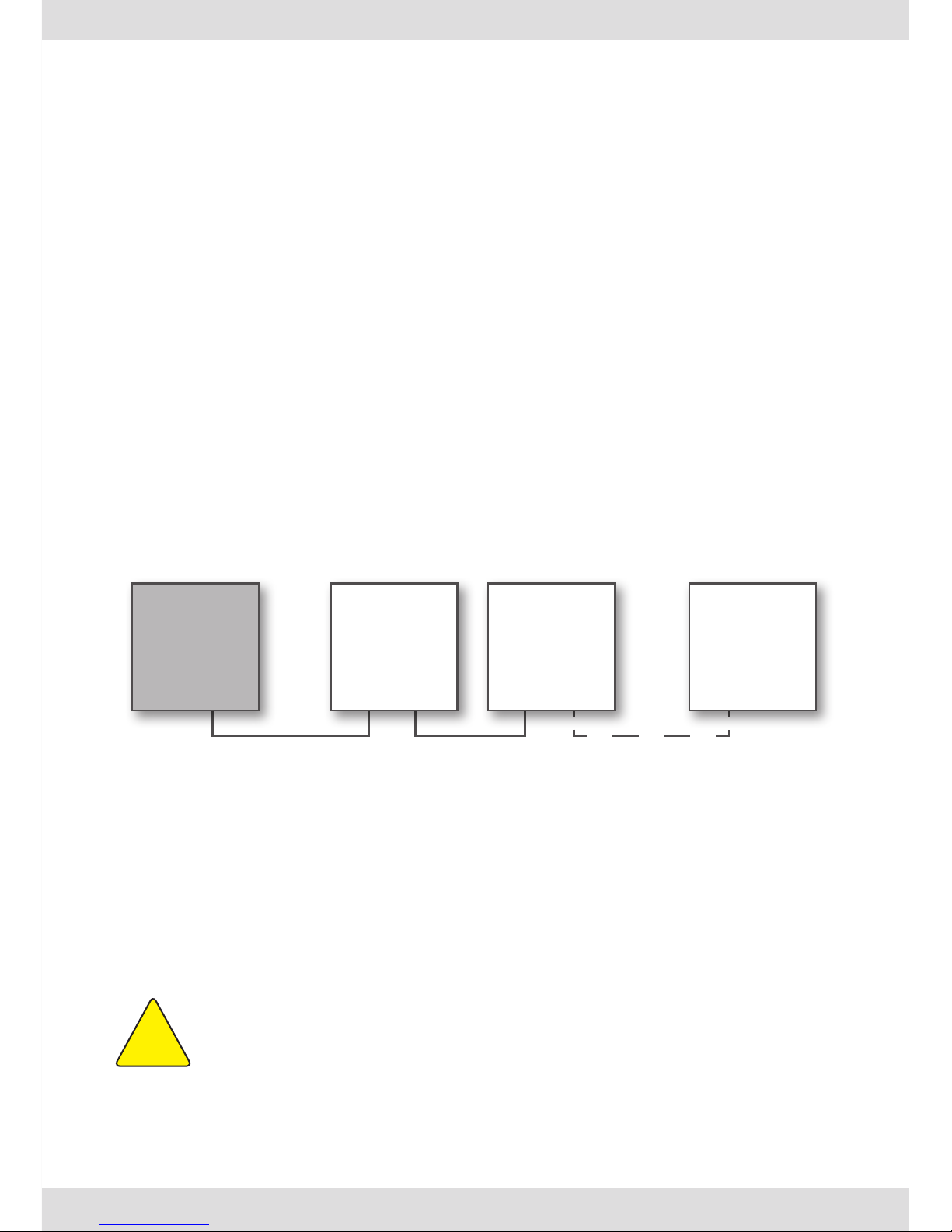

If you choose “Stand alone”, [Select type] will appear. Choose whether you want
to set the controller as“master” or as “slave”.
• Ifyouchoose“Setasmaster”,[Parametersource]willappear.Hereyoucansetallthe
parameters of the controller.
- Select“Set parameters”if you want to set and modify the parameters.
[Parameter list] will appear; select which parameter you want to modify.
[Modify parameter] will appear; modify the parameter and confirm.
[Choose an action] will appear; select if you want to set another parameter or
want to store your settings.
•Ifyouchoose“setotherparameter”,[Parameterlist]willappear.
•Ifyouchoose“storesetting“,[Choosealocation]willappear.
Select in which“user memory”you want to store your settings.
- Select“Recall a preset”if you want to use a previously saved“user memory”.
[Select a preset] will appear, select a previously saved“user memory”.
[Exit!] will appear. Choose if you want to“Discard” or “Save” your“changes”.

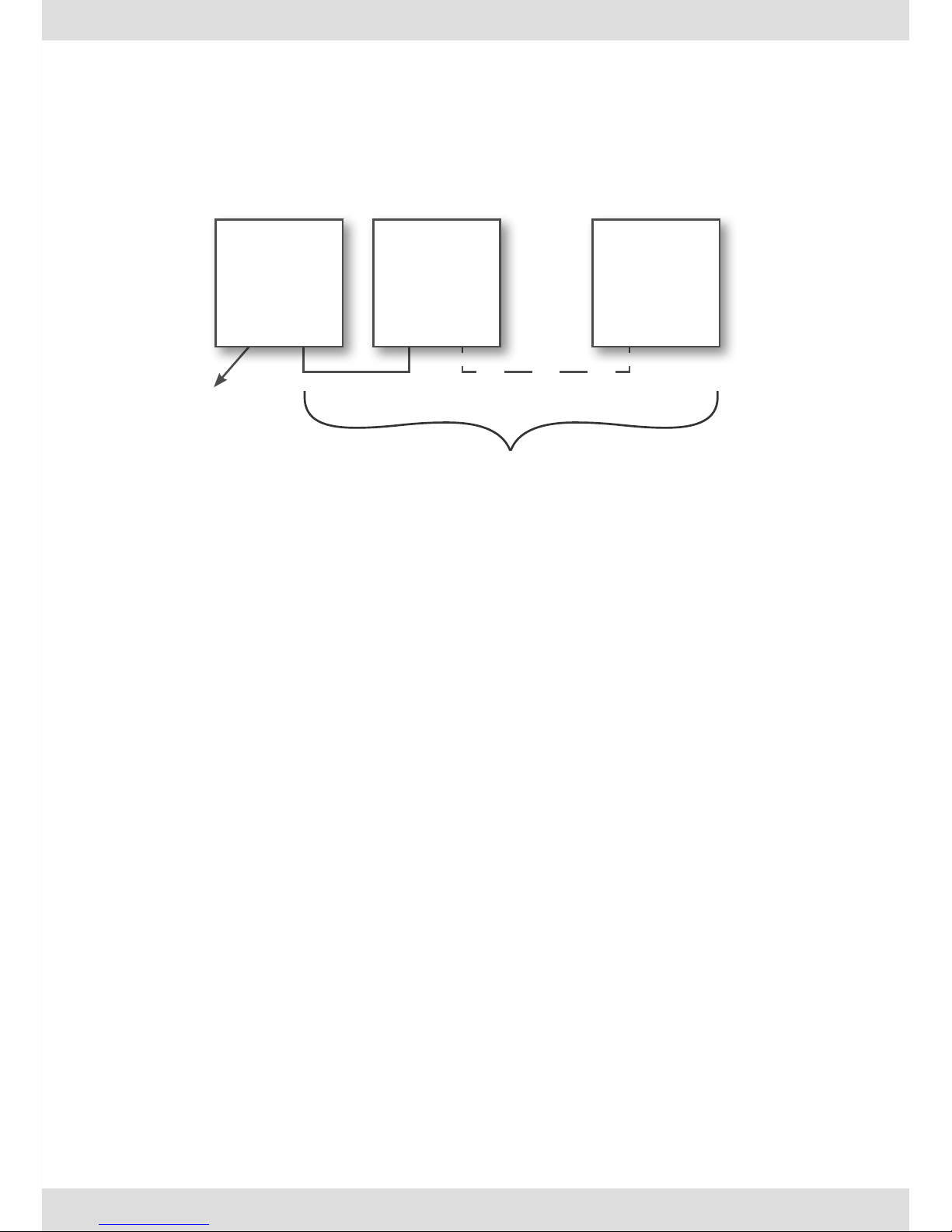

• Ifyouchoose“Setasslave”,[Exit!]willappear.Chooseifyouwantto“Discard”
or“Save”your“changes”.
