Showerbuddy SB3T Manuel utilisateur

elimination through innovation

SB3T

Roll-Inbuddy + Tilt

Owners Manual

page0_SB3T_owners_manual_front_cover.indd 1 24/11/2009 1:32:47 p.m.

page1_SB3T_owners_manual_blank1.indd 2 24/11/2009 1:34:53 p.m.

contents

page 2

Exploded Parts ............................................................... 3

Parts List ........................................................................ 4

Securing Clip Sizes ......................................................... 4

Roll-InBuddy + Tilt Assembly .......................................... 5

Roll-InBuddy + Tilt Operation .......................................... 13

Cleaning + Maintenance ................................................. 16

Safety Instructions ......................................................... 17

Warranty Information ...................................................... 20

Registration Form ........................................................... 22

SB3T Roll-InBuddy + Tilt

page2_SB3T_owners_manual_contents.indd 2 24/11/2009 1:36:52 p.m.

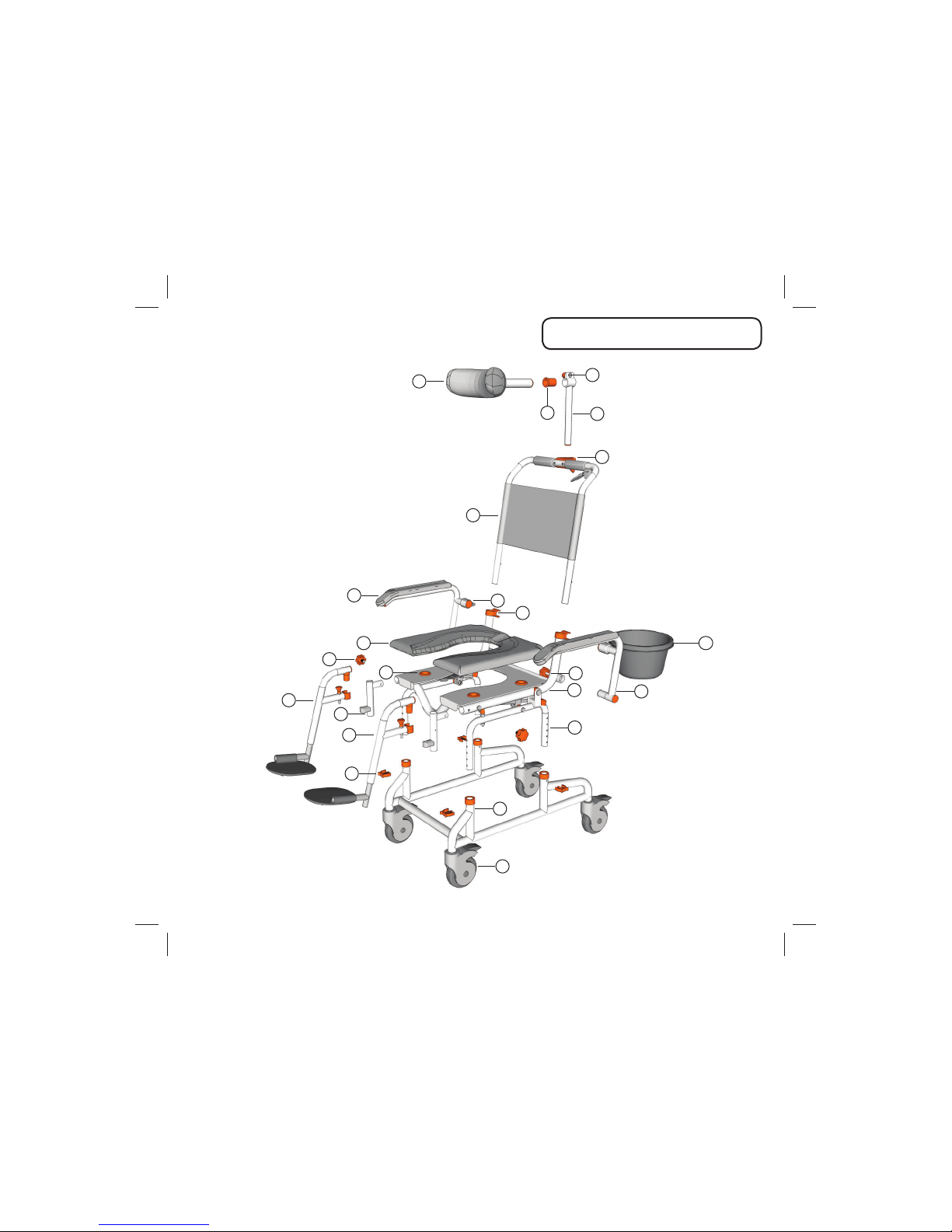

exploded parts

page 3

17 16

SB3T Roll-InBuddy + Tilt

page3_SB3T_owners_manual_exploded_parts.indd 2 24/11/2009 1:38:41 p.m.

parts list

page 4

15” Castor Wheel

2Height Adjustment Tube

Base Legs

Securing Clip (Large)4

Back Rest5

Seat Base6

Arm Rest (Right)

Arm Rest (Left)8

Arm Rest Knob9

Arm Rest Clip10

11 Arm Rest Lock

12 Cushion

Cushion Connector

Neck Rest Height Adjustment Tube14

15 Neck Rest Attachment

16 Neck Rest Handle

Neck Rest

Neck Rest Sleeve18

Foot Rest Connectors19

Foot Rest Knob20

Foot Rest (Right)

Foot Rest (Left)22

Commode Bucket23

See the exploded chair image for the location of parts.

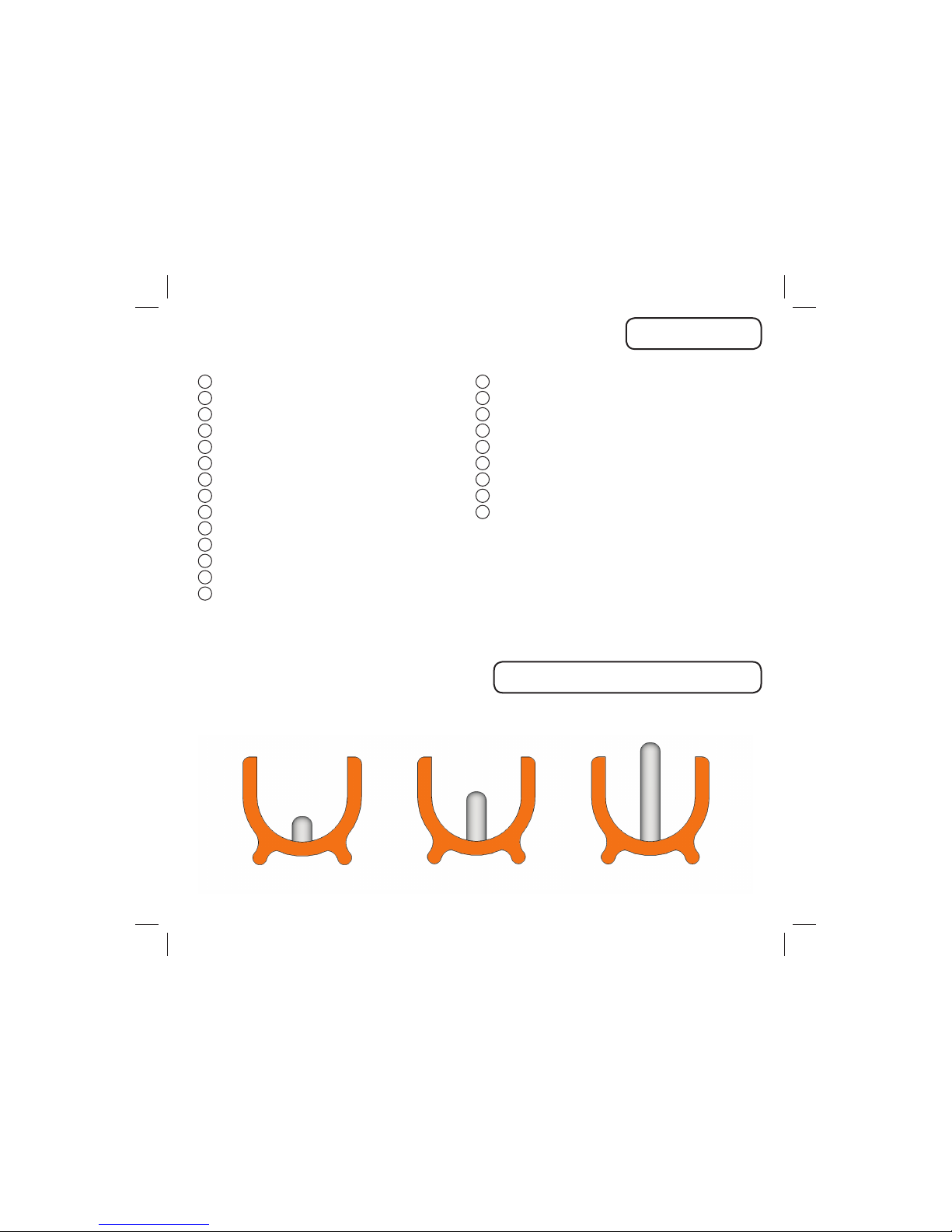

securing clip sizes

Use the images below as a reference to check the provided securing clips to ensure that

the correct size is used where required.

Small Medium Large

SB3T Roll-InBuddy + Tilt

page4_SB3T_owners_manual_parts+clips.indd 2 24/11/2009 1:39:30 p.m.

step 2

SB3T Roll-InBuddy + Tilt

page 5

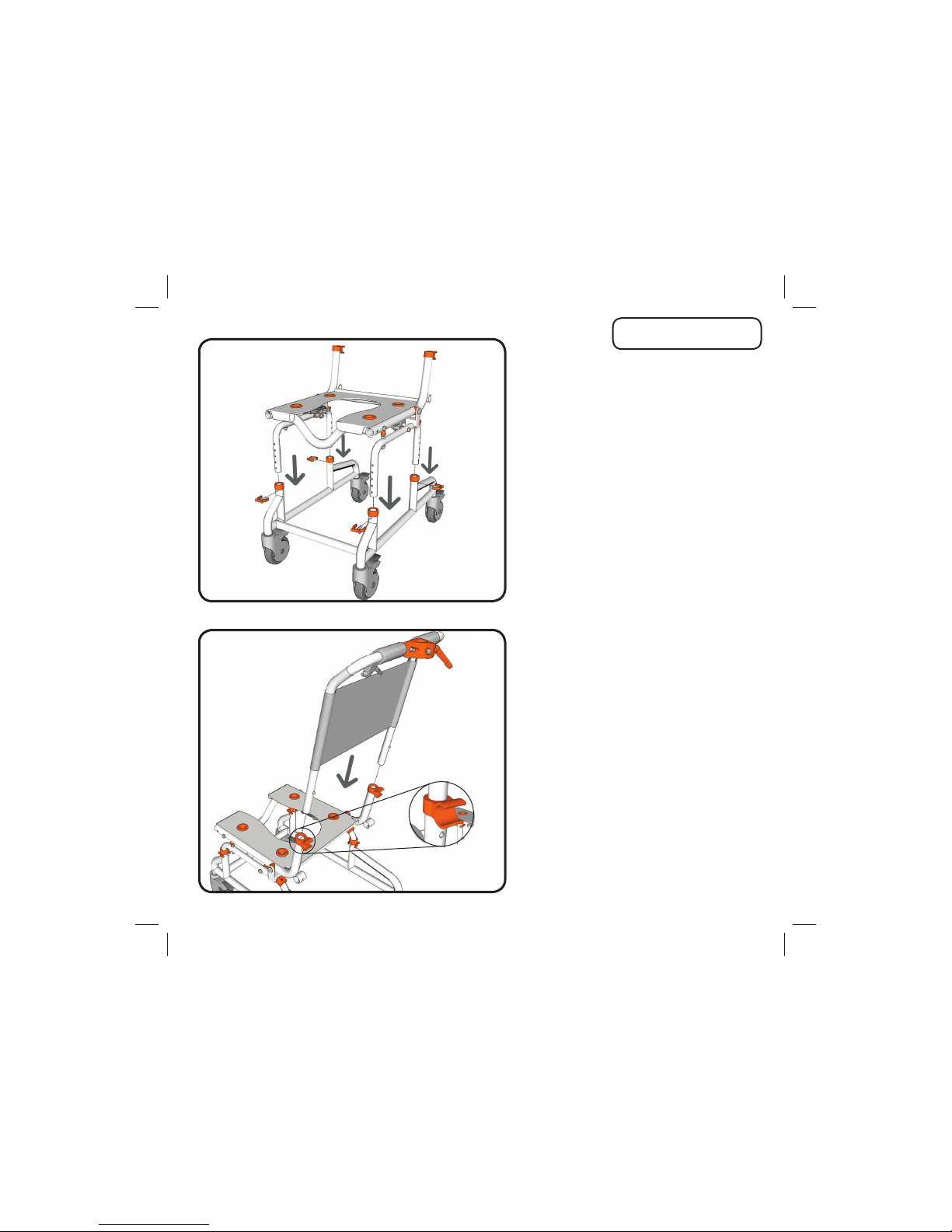

Insert both height adjustment tubes into

the base legs.

Secure both height adjustment tubes at

the required height using 1 large securing

clip on each base leg.

NOTE

- Each height adjustment hole raises the

seat base 1”.

- Check to ensure all securing clips are

fully inserted.

- Ensure both height adjustment tubes are

aligned at the same height.

step 1 assembly

Insert the back rest frame into the seat

base.

Slide the back rest frame into the seat

base until the clip pins click into the holes

on the seat base.

The clip pins secure the chair back frame

in position.

NOTE

- To remove the seat back press the clip

pins in and slide the seat back out of the

seat base.

page5_SB3T_owners_manual_assembly1+2.indd 2 24/11/2009 1:41:16 p.m.

step 4

SB3T Roll-InBuddy + Tilt

page 6

step 3

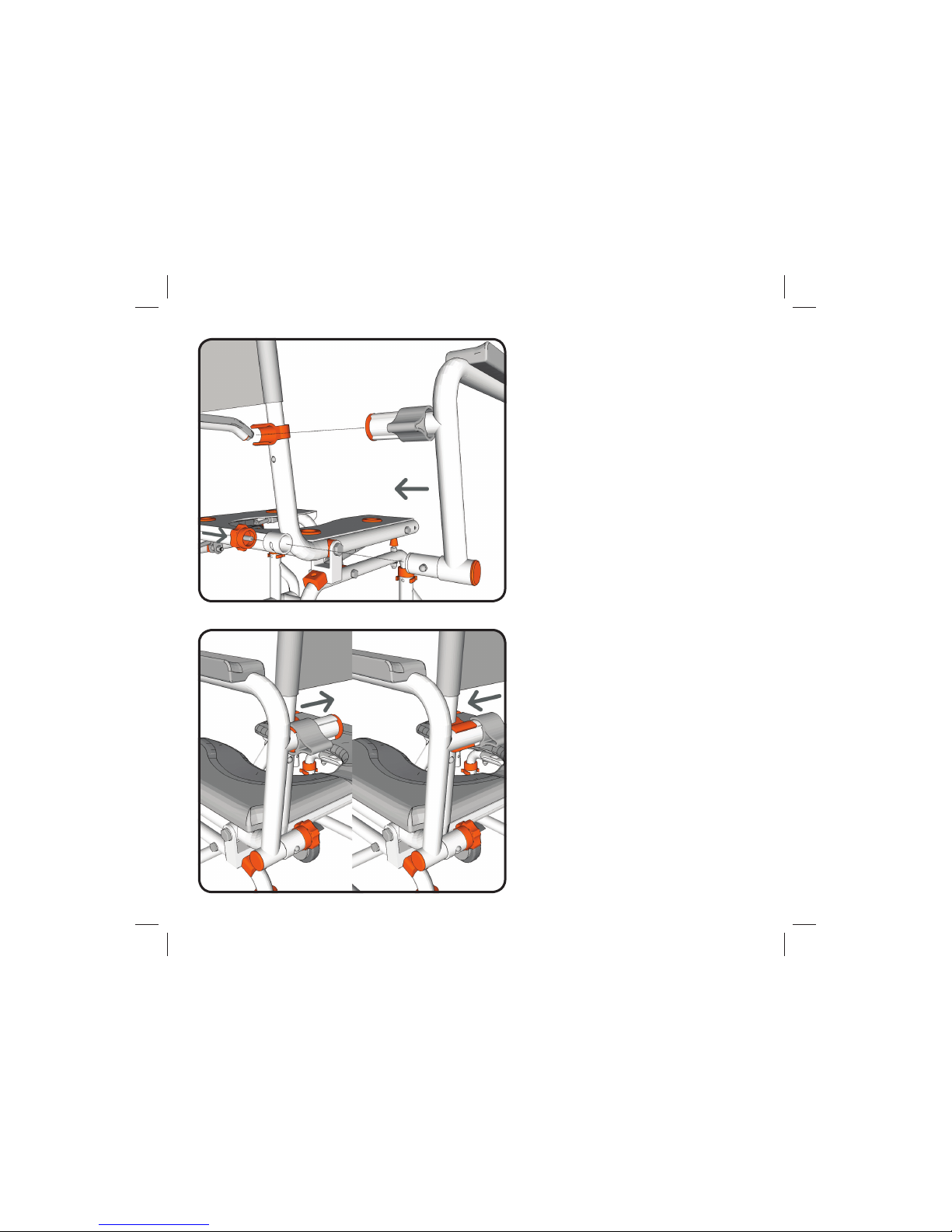

Insert the arm rests into the sockets on

the seat base until the clip pin clicks and

locates the arm rests in position.

Screw the arm rest knob into the arm rest

to firmly secure the arm rest in position.

Swing the arm rest forward so that it locks

into position in the arm rest clip.

Slide the arm rest lock over the arm rest

clip to lock the arm rest in position.

By sliding the armrest lock you can easily

swing the armrest out of the way or

secure the armrest in position.

To unlock the armrest slide the armrest

lock away from the armrest.

To lock the armrest slide the armrest lock

towards the armrest.

NOTE

- The armrest locks should always be used

when the armrests aren’t in the swing-

away position.

page6_SB3T_owners_manual_assembly3+4.indd 2 24/11/2009 1:43:52 p.m.

step 6

SB3T Roll-InBuddy + Tilt

page 7

step 5

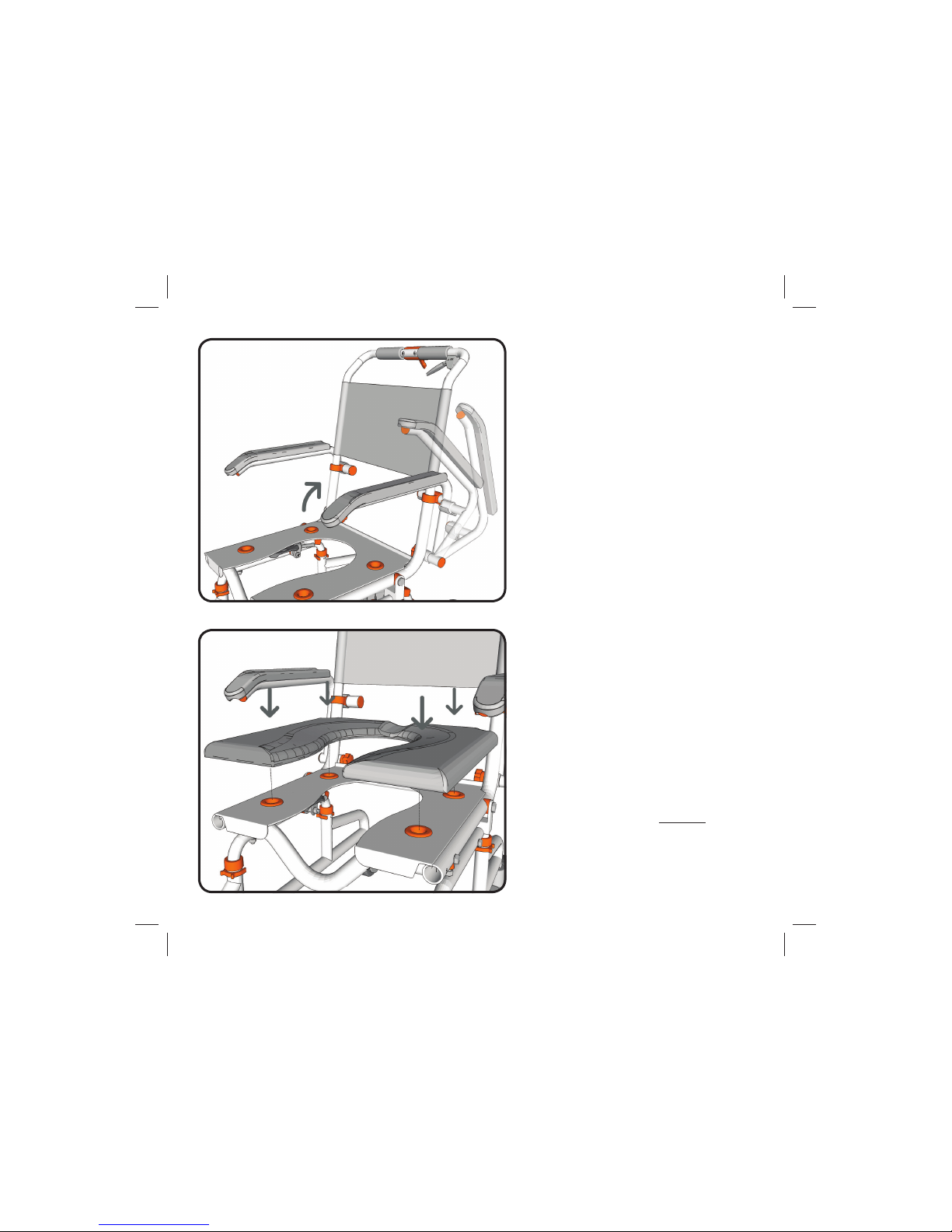

Ensuring the correct orientation attach

the seat cushion to the seat base by

pushing the 4 locating lugs on the

underside of the cushion into the

connectors on the seat base.

Firmly press the cushion into position

so that the 4 locating lugs are securely

located in the connectors.

NOTE

- To remove the cushion, carefully remove

one lug at a time from the connectors until

all 4 locating lugs are removed.

The armrests can be easily swung-away

when required.

Unlock the armrest by sliding the armrest

lock away from the armrest. Once this is

done the armrest can be swung away. The

clip pin which secures the armrest in

position stops the armrest from rotating

to far.

NOTE

- The armrest locks should always be used

when the armrests aren’t in the

swing-away position.

page7_SB3T_owners_manual_assembly5+6.indd 2 24/11/2009 1:45:58 p.m.

step 8

SB3T Roll-InBuddy + Tilt

page 8

step 7

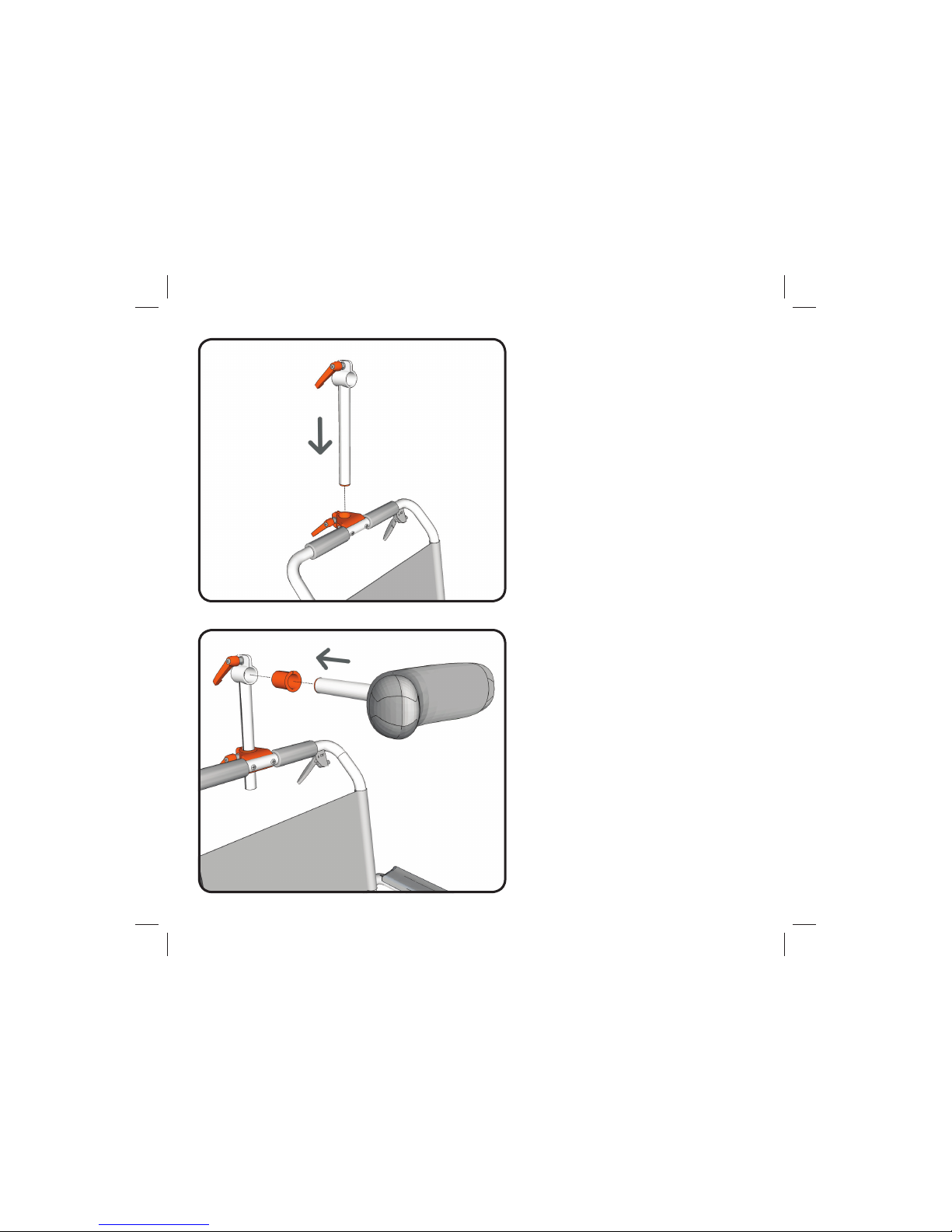

To attach the neck rest, insert the plastic

sleeve into the neck rest height

adjustment tube.

Insert the neck rest into the sleeve on the

neck rest height adjustment tube. Adjust

to the required length and secure in the

correct position. By screwing the neck

rest handle in a clockwise direction the

neck rest height adjustment tube

connector will tighten and secure the

neck rest in position.

NOTE

- The neck rest should always be used and

adjusted to suit the specific user.

Slide the neck rest height adjustment tube

into the neck rest attachment. Adjust to

the required height and secure in the

correct position.

By screwing the neck rest handle in a

clockwise direction the neck rest

attachment will tighten and secure the

neck rest height adjustment tube in

position.

page8_SB3T_owners_manual_assembly7+8.indd 2 24/11/2009 1:52:02 p.m.

step 10

SB3T Roll-InBuddy + Tilt

page 9

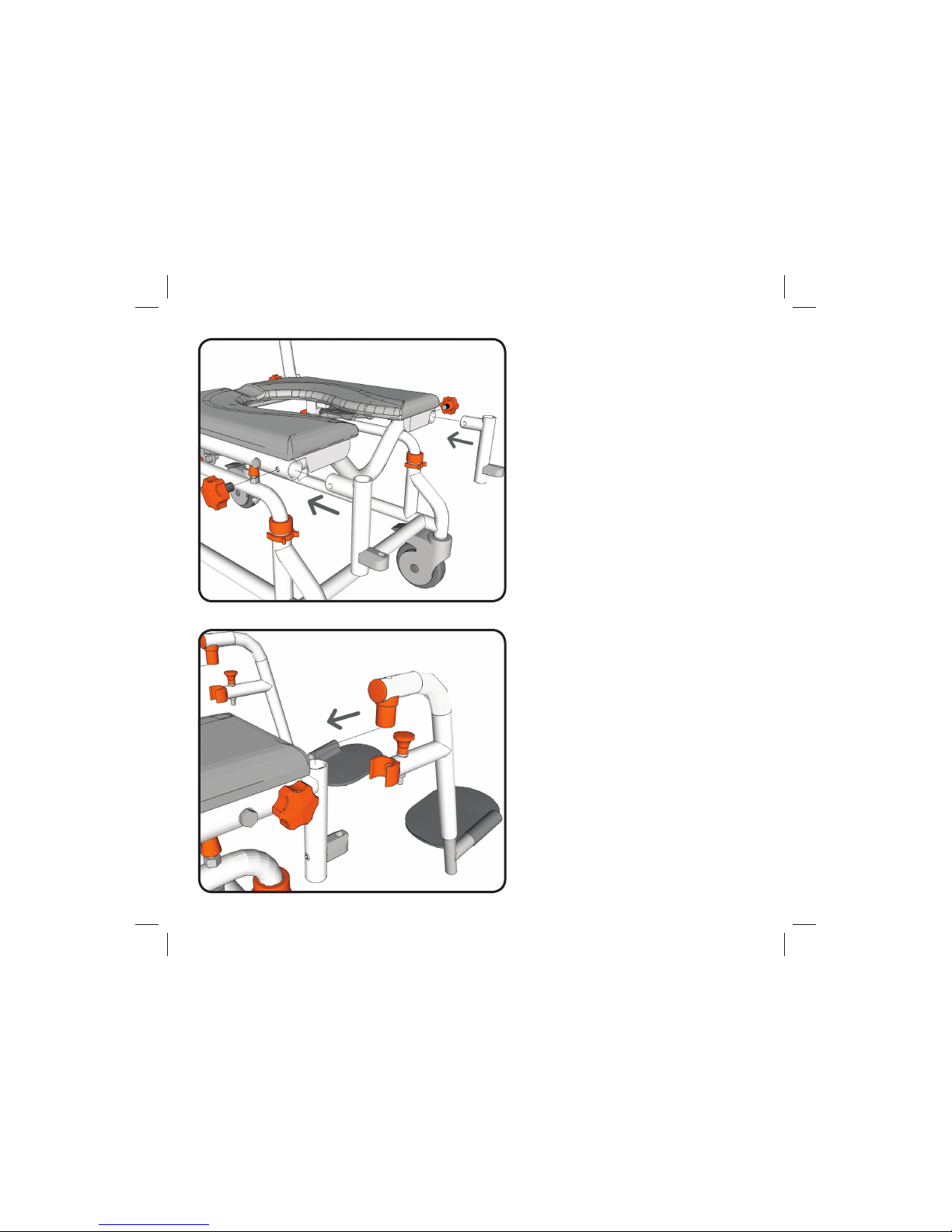

step 9

With the footrest connector secured in

position attach the footrest.

Insert the footrest into the top of the

footrest connector and slide downwards.

Push the footrest towards the footrest

connector so the clip secures the footrest

in position. Rotate the footrest slightly

so the locking pin clicks and secures the

footrest in position.

Insert the footrest connectors into the

tubes of the seat base.

Align the threaded hole on the footrest

connectors with the hole on the side of

the seat base. Screw the foot rest knob

into the thread on the footrest

connector. Tighten the foot rest knob until

the footrest connector is firmly secured in

position.

page9_SB3T_owners_manual_assembly9+10.indd 2 24/11/2009 1:55:29 p.m.
