USER MANUAL

ENGLISH

TR-512 Install

Product code: 50826

Preface

Thank you for purchasing this Showtec product.

The purpose of this user manual is to provide instructions for the correct and safe use of this product.

Keep the user manual for future reference as it is an integral part of the product. The user manual shall be

stored at an easily accessible location.

This user manual contains information concerning:

●Safety instructions

●Intended and non-intended use of the device

●Installation and operation of the device

●Maintenance procedures

●Troubleshooting

●Transport, storage and disposal of the device

Non-observance of the instructions in this user manual may result in serious injuries and damage of

property.

No part of this document may be copied, published or otherwise reproduced without the prior written

consent of Highlite International.

Design and product specifications are subject to change without prior notice.

For the latest version of this document, please visit our website www.highlite.com or contact us at

service@highlite.com.

Highlite International and its authorized service providers are not liable for any injury, damage, direct or

indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or

reliance on the information contained in this document.

 2



TR-512 Install
Product code: 50826
Table of contents
1. Introduction................................................................................................................................................... 4
 Before Using the Product ..................................................................................................................................4
 Intended Use.......................................................................................................................................................4
 Text Conventions................................................................................................................................................4
 Symbols and Signal Words................................................................................................................................5
 Symbols on the Information Label ..................................................................................................................5
2. Safety............................................................................................................................................................. 6
 Warnings and Safety Instructions ....................................................................................................................6
 Requirements for the User.................................................................................................................................7
3. Description of the Device............................................................................................................................. 8
 Front View ............................................................................................................................................................8
 Product Specifications ......................................................................................................................................9
 Dimensions.........................................................................................................................................................10
4. Installation................................................................................................................................................... 11
 Safety Instructions for Installation ..................................................................................................................11
 Installation Site Requirements ........................................................................................................................11
 DIN Rail Mounting.............................................................................................................................................11
 Connecting to Power Supply.........................................................................................................................12
5. Setup ........................................................................................................................................................... 13
 Warnings and Precautions .............................................................................................................................13
 DMX Connection..............................................................................................................................................13
 DMX-512 Protocol .......................................................................................................................................13
 DMX Cables .................................................................................................................................................13
 Setup Examples ................................................................................................................................................14
 Program Recording Setup ........................................................................................................................14
 Program Playing Setup ..............................................................................................................................15
 Connecting External Trigger Devices .............................................................................................16
 Connecting the TR-512 Install-Wall Panel ......................................................................................17
6. Operation.................................................................................................................................................... 19
 Safety Instructions for Operation...................................................................................................................19
 Start-up...............................................................................................................................................................19
 Control Panel ....................................................................................................................................................20
 Recording a Program......................................................................................................................................20
 Playing a Program............................................................................................................................................20
 Trigger Monitoring ............................................................................................................................................21
 LED Statuses.......................................................................................................................................................21
 Menu Overview ................................................................................................................................................22
 Main Menu Options .........................................................................................................................................23
 Play Show .....................................................................................................................................................23
 Show .....................................................................................................................................................23
 Mode ....................................................................................................................................................24
 Record Show ...............................................................................................................................................24
 Name....................................................................................................................................................24
 Mode ....................................................................................................................................................25
 Delete Show.................................................................................................................................................25
 Trigger Event ................................................................................................................................................26
 Status ....................................................................................................................................................26
 Rename................................................................................................................................................26
 Show .....................................................................................................................................................27
 Mode ....................................................................................................................................................27
 Delay.....................................................................................................................................................27
 Stop TR Event ...............................................................................................................................................28
 Device Settings............................................................................................................................................28

TR-512 Install

Product code: 50826

Device Label.......................................................................................................................................28

DMX Port Option.................................................................................................................................29

Display Option.....................................................................................................................................29

Version..................................................................................................................................................29

Save Configuration ....................................................................................................................................30

Load Configuration....................................................................................................................................31

Default Setting.............................................................................................................................................31

7. Troubleshooting .......................................................................................................................................... 32

8. Maintenance .............................................................................................................................................. 33

Preventive Maintenance................................................................................................................................33

Basic Cleaning Instructions .......................................................................................................................33

Corrective Maintenance................................................................................................................................33

9. Deinstallation, Transportation and Storage ............................................................................................... 34

10. Disposal ....................................................................................................................................................... 34

11. Approval ..................................................................................................................................................... 34

TR-512 Install

Product code: 50826

1. Introduction

Before Using the Product

Important

Read and follow the instructions in this user manual before installing, operating or

servicing this product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual.

After unpacking, check the contents of the box. If any parts are missing or damaged, contact your

Highlite International dealer.

Your shipment includes:

●Showtec TR-512 Install

●MicroSD card

●User manual

Fig. 01

Intended Use

This device is designed to be used as a professional DMX trigger/recorder. It is suitable for indoor

installation in an electrical enclosure.

Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

Text Conventions

Throughout the user manual the following text conventions are used:

●Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”

●References: References to chapters and parts of the device are in bold lettering, for example:

“Refer to 2. Safety”, “press the power switch (03)”

●0–255: Defines a range of values

●Notes: Note: (in bold lettering) is followed by useful information or tips

TR-512 Install

Product code: 50826

Symbols and Signal Words

Safety notes and warnings are indicated throughout the user manual by safety signs.

Always follow the instructions provided in this user manual.

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING

Indicates an imminently hazardous situation which, if not avoided, could result

in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in

minor or moderate injury.

Attention

Indicates important information for the correct operation and use of the

product.

Important

Read and observe the instructions in this document.

Provides important information about the disposal of this product.

Symbols on the Information Label

This product is provided with an information label. The information label is located on the bottom plate of

the device.

The information label contains the following symbols:

This device is designed for indoor use.

This device is IEC protection class III.

This device shall not be treated as household waste.

Read and observe the instructions in this document.

TR-512 Install

Product code: 50826

2. Safety

Important

Read and follow the instructions in this user manual before installing, operating or

servicing this product.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual.

Warnings and Safety Instructions

Attention

Power supply

This device falls under IEC protection class III. This device shall be connected to an external power

supply.

●Before connecting the device to the external power supply, make sure that the current, voltage and

frequency match the input voltage, current and frequency specified on the information label on the

device.

●Make sure that the cross-sectional area of the power cable is sufficient for the required power

consumption of the device.

Attention

General safety

●Do not block the ventilation openings. Without proper heat dissipation and air circulation, the

internal components may overheat. This can result in product damage.

●Do not shake the device. Avoid brute force when installing or operating the device.

Attention

For professional use only

This device shall be used only for the purposes it is designed for.

This device is designed to be used as a professional DMX trigger/recorder. It is suitable for indoor

installation in an electrical enclosure. Any incorrect use may lead to hazardous situations and result in

injuries and material damage.

●This device is not suitable for households.

●This device does not contain user-serviceable parts. Unauthorized modifications to the device will

render the warranty void. Such modifications may result in injuries and material damage.

TR-512 Install

Product code: 50826

Attention

Do not expose the device to conditions that exceed the rated IP class conditions.

This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater

than 12 mm, such as fingers, and no protection against harmful ingress of water.

Requirements for the User

This product may be used by ordinary persons. Maintenance, installation and service shall be carried out

only by instructed or skilled persons. Contact your Highlite International dealer for more information.

Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled

person, for specific tasks and work activities associated with the service of this product, so that they can

identify risks and take precautions to avoid them.

Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards

associated with the service of this product.

Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons

include not only users of the product but also any other persons that may have access to the device or

who may be in the vicinity of the device.

TR-512 Install

Product code: 50826

3. Description of the Device

The TR-512 Install is a compact but very powerful tool which can be used for triggering any light show or

scene in a simple way. It can record and play several DMX programs at the same time. Those programs

can be stored on a microSD card. Programs can be played by 6 external triggers or by the internal auto

trigger. Each trigger can start either a program or a scene. Each program can be played in a loop mode

or single play mode. It is also possible to set a delay, which enhances your control of the programs.

The TR-512 Install is suitable for a large range of venues, such as: theme parks, museums, shops and many

others.

Front View

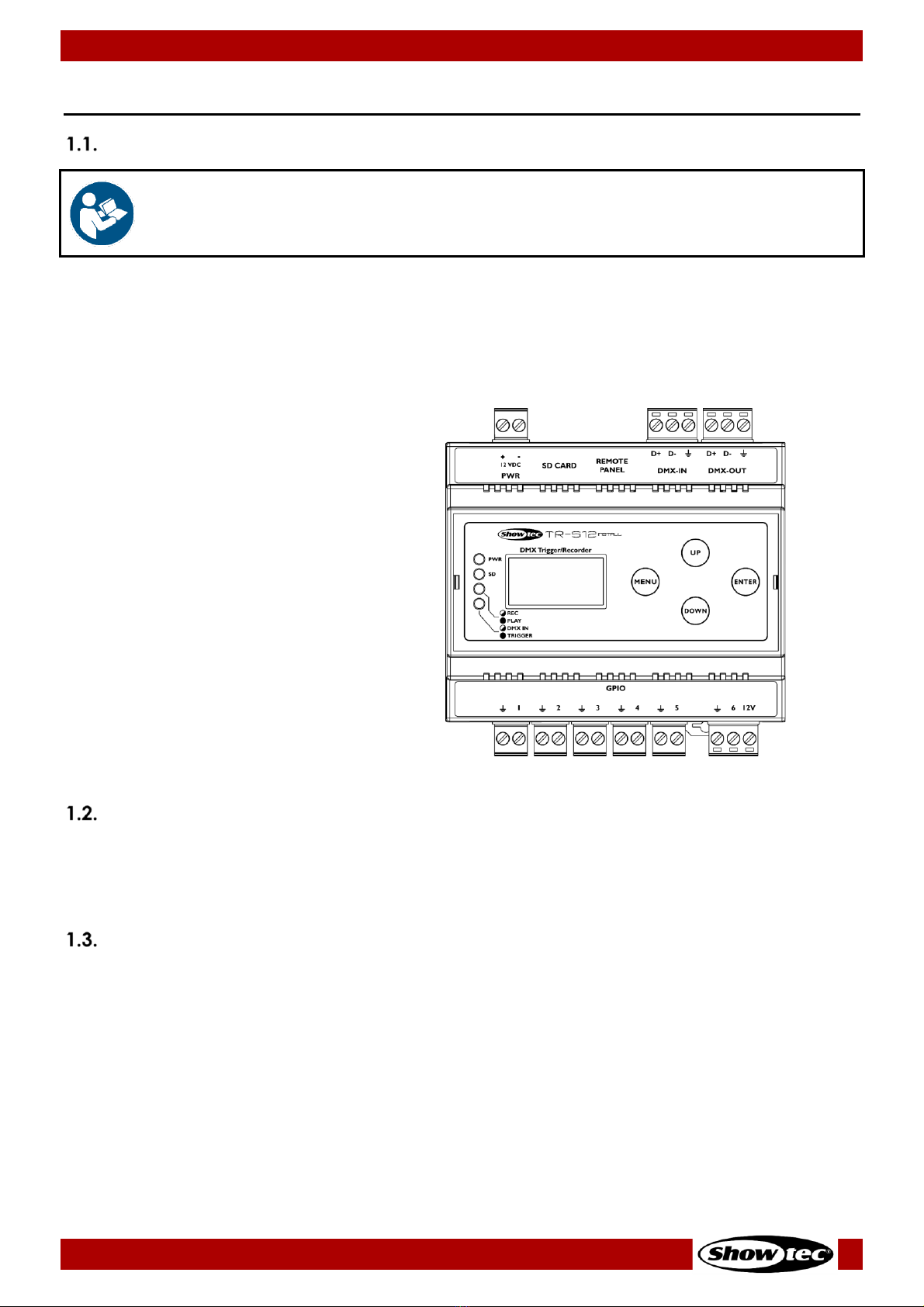

Fig. 02

01) 12 V DC 2-pin Phoenix terminal power connector IN

02) MicroSD card slot

03) RJ45 wall panel connector IN

04) OLED display + control buttons

05) 3-pin Phoenix terminal connector DMX IN

06) 3-pin Phoenix terminal connector DMX OUT

07) Optional 12 V output connector for external LED indicators

08) DIN rail lock

09) Triggers 1–5 (GPIO), 2-pin Phoenix terminal connector IN; Trigger 6 (GPIO), 3-pin Phoenix terminal

connector IN

10) DMX IN/Trigger LED indicator

11) Play/Record LED indicator

12) MicroSD LED indicator

13) Power LED indicator

TR-512 Install

Product code: 50826

Product Specifications

Model:

TR-512 Install

Electrical:

Power supply (external):

12 V DC

Power consumption:

6 W

Physical:

Dimensions:

105 x 110 x 58 mm (LxWxH)

Weight:

0,19 kg

Operation and control:

Control protocols:

DMX-512

Control panel:

OLED display and buttons

Control modes:

DMX-512A, Wall Remote, GPIO, Manual

MicroSD card capacity:

8 GB

Connections:

Power connections:

●12 V DC 2-pin Phoenix terminal power connector IN (maximum

cable gauge: 1,5 mm2/ AWG: 12)

●12 V Phoenix connector OUT (maximum cable gauge: 1,5 mm2/

AWG: 12)

Input connections:

●6 x 2-pin Phoenix terminal trigger GPIO connector IN (maximum

cable gauge: 1,5 mm2/ AWG: 12)

●3-pin Phoenix terminal DMX connector IN (maximum cable

gauge: 1,5 mm2/ AWG: 12)

●RJ45 wall panel connector IN

Output connections:

3-pin Phoenix terminal DMX connector OUT (maximum cable gauge:

1,5 mm2/ AWG: 12)

Construction:

Housing:

UL94-V0 flame retardant polycarbonate

Color:

Gray

Mounting:

35-mm DIN rail system (DIN EN43880 form factor; DIN EN60715 rail

system)

Mounting size:

6 TE

IP rating:

IP20

Thermal:

Maximum ambient temperature ta:

40 °C

Autres manuels pour TR-512

Ce manuel convient aux modèles suivants

Table des matières

Manuels Enregistreur vocal populaires d'autres marques

Sony

Sony ICD-UX533F Manuel utilisateur

RCA

RCA VR5230 Manuel utilisateur

Ramsey Electronics

Ramsey Electronics BULLSHOOTER ENDLESS LOOP BS2C Guide de l'utilisateur

Sony

Sony TCM-400DV Manuel utilisateur

LogTag

LogTag TREL30-16 Manuel utilisateur

SVAT

SVAT CVP800 Manuel utilisateur

Marantz

Marantz PMD620 Manuel utilisateur

Zoom

Zoom H4next Manuel utilisateur

Roland

Roland BR-900CD Manuel utilisateur

JVC

JVC ProHD GY-HMZ1U Manuel d'utilisation et d'entretien

Panasonic

Panasonic PQT8531-P Manuel utilisateur

Sanyo

Sanyo TRC-6400 Manuel utilisateur

Tascam

Tascam DR-07 Manuel utilisateur

Olympus

Olympus DW-90 Manuel utilisateur

Sanyo

Sanyo ICR-B150 Manuel utilisateur

Korg

Korg D4 Manuel utilisateur

Sony

Sony ICD-SX46 - Ic Recorder Manuel utilisateur

Olympus

Olympus DIGITAL VOICE RECORDER WS-200S Instructions de montage
