Show Tec DMX Tester Manuel utilisateur

1 Product Description

This is a Professional DMX Tester with many useful functions. There are 8 main function modes

provided for user’s application: DMX packet test, DMX data—RX, DMX data—TX, Moving light, Save

Cue (Scene), Cable test, MIDI data—RX and System setup. The unit also offers built-in chargeable

batteries for user’s convenient operation. To optimize the performance of this product, please read this

Manual carefully to familiarize yourself with the basic operations.

2Notice Information

 When unpacking, please check the unit is not damaged. If something wrong has happened to

this product, contact the local dealer immediately.



transmitted in any form, by any means or for any purpose, without authorized permission.

Warning

• Keep the unit dry, do not expose it to water or high levels of humid.

• Do not open this unit, there is no user serviceable part inside.

• Turn off the power if not using this unit for a long time.

• Any strong shocks or vibration may result in malfunction.

• Do not attempt to dismantle or modify the unit.

• This unit must only be operated by adults, do not allow children to play with it.

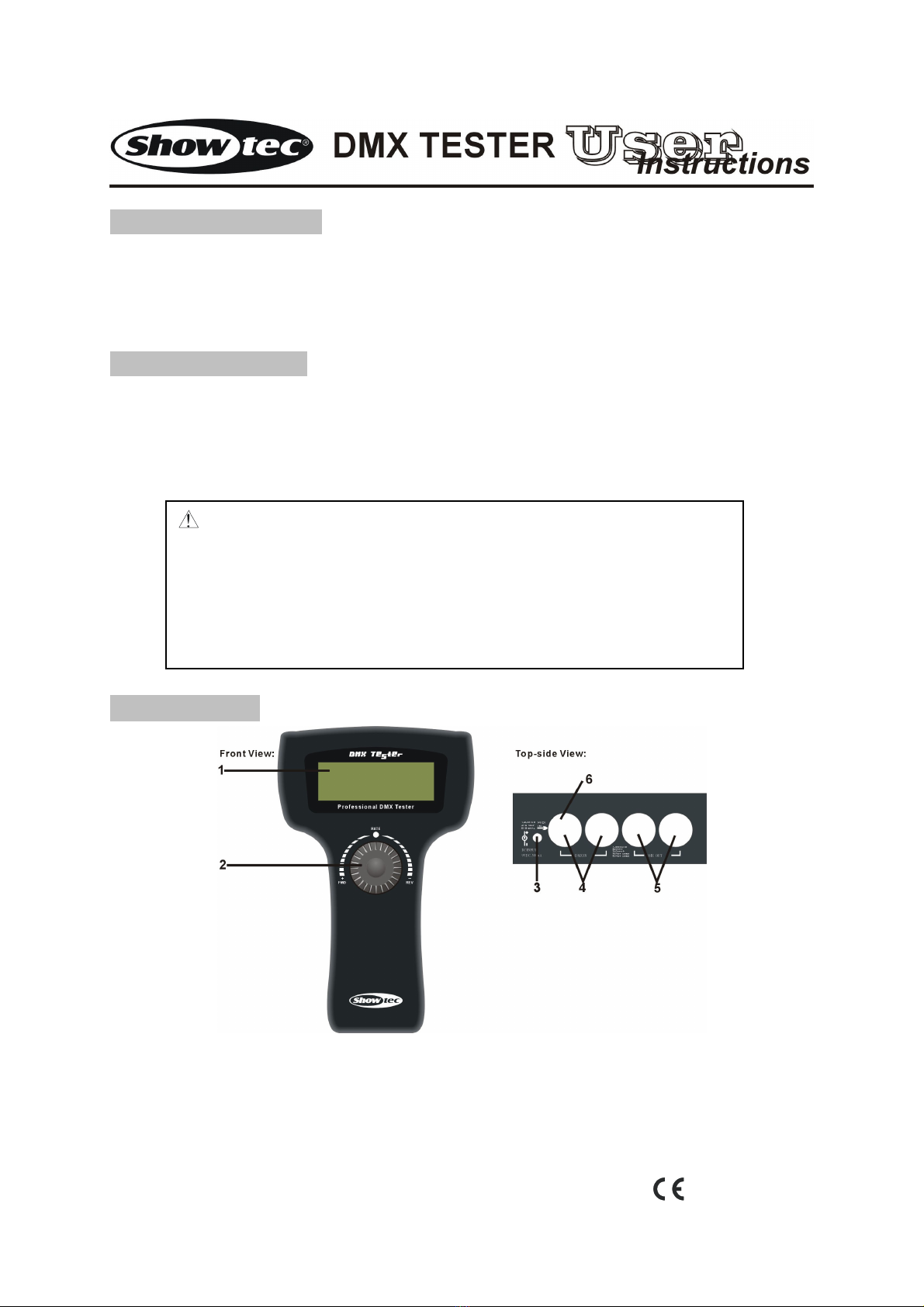

3Product View

1. LCD Display: To display relevant menus, settings or function modes.

2. Multi-Selector: To select desired menus, function modes or used to finish relevant settings.

3. Power Input: To input main power via this port.

4. DMX IN: 3-pin & 5-pin male XLR sockets.

5. DMX OUT: 3-pin & 5-pin female XLR sockets.

6. MIDI IN: MIDI signal can be input via this male socket.

24-004-1247 Rev 1.0

4OperationGuide

This product can be used in various lighting conditions to meet user’s requirement. It provides a 4×20

characters LCD which gives user more convenience for easier operation.

User can rotate the multi-selector gently to enter relevant function modes or to achieve desired

settings. Rotating the multi-selector clockwise can select further menu or increase relevant value,

while rotating the multi-selector anti-clockwise can select the previous menu or decrease relevant

value. Press the multi-selector can enter the selected menu or save your setting.

The power of this unit can be supplied by the built-in chargeable batteries or a DC 9V adapter. The

battery will be charged automatically when using the DC 9V adapter for power supply. Charging the

battery fully needs 3-5 hours or so, and the battery can supply the unit for almost 6-8 hours.

Turn on the power switch, the unit will be powered on and the LCD display will show you as below :

If there is no timely operation upon the multi-selector within about 5 seconds, the above menu will

automatically go forward to the main menu of function modes display:

Rotate the multi-selector

clockwisetoviewthe

Rotatethemulti-selector

anti-clockwise to return

4.1 DMX packet test

Use the multi-selector to select the DMX packet test item, then press the multi-selector to enter.

Pressthemulti-selector

Press again to return

• User can use the multi-selector to select and enter relevant submenus of Data format, Data

timing and Data level (volt). If there is no effective signal input, entering any one of these three

submenus, the LCD will show you the same information as below:

<DMX packet test:

Receive no signal

=== SHOWTEC ===

DMX TESTER

REV 1.23

↑Save Cue (Scene) >

Cable test >

MIDI data -- RX >

System setup >

< DMX packet test : >

1. Data format >

2. Data timing >

3. Data level (Volt) >

DMX data--RX >

DMX data—TX >

↓Moving light >

DMX data--RX >

DMX data—TX >

↓Moving light >

• Use the multi-selector to select the” ?”, then press the multi-selector, the LCD will show you details:

(If there is an effective input signal for this unit, user can then do some DMX packet tests as below)

4.1.1 Data format

• Use the multi-selector to select the Data format item, and press the multi-selector to view the

total channels of external operator and the states of BREAK when receiving signals. The LCD

will show you the channel information of the connected DMX operator.

(For example, here the connected external DMX operator is the DC-1216II of NCW )

<T-BOX 512 tester help

No signal or signal

not complying with

USITT DMX-512 (1990)

<Data format : ?

RX-Chan: 192

Break: --OK--

Signal present

total channels o

DC-1216II

• Use the multi-selector to select the” ?”, then press the multi-selector for help information, LCD

will show you as below:

<Data format :

Indication of --OK--

means: Received

signal is good

(Pressing the multi-selector again will return to the previous menu)

4.1.2 Data timing

• Use the multi-selector to select the Data timing item, and press the multi-selector to enter the

further menu. User can view relevant parameters, including BREAK, MaB, START CODE,

CHAN TIME and Period Time. The LCD will show you relevant information:

( Here the connected DMX operator is also DC-1216II. )

<Data timing: ?

BK: 135μS MaB: 016μS

StartCode : 000 dec

Chan. Time : 053μs >

All the parameters

can be shown here.

• Select the “>”, and press the multi-selector for further information, LCD-display will show you

“Period : 036 ms” on the fourth line of the current display.

• Use the multi-selector to select the” ?”, then press the multi-selector for help information, LCD

will show you as below:

4.1.3 Data level ( Volt )

• Use the multi-selector to select the Data level (Volt) item, and press the multi-selector to enter

further menu. LCD will show you the information about signal voltage.

( Here the connected DMX operator is also DC-1216II. )

• Use the multi-selector to select the” ?”, then press the multi-selector for help information, LCD

will show you as below:

( Press the multi-selector again to exit from the current menu. )

4.2 DMX data—RX

• Use the multi-selector to select the DMX data—RX item, and press the multi-selector to enter.

Three submenus are listed as below shows:

<DMX data RX

1. Barchart display

2. Value display

3. Min/ max display

<3. Data level

Reception may still

be possible with

lower level.

<Data level ( Volt ) ?

--good-->

█

▪▪▪

Level = 4.44 V

<2. Data timing :

Break min. 88μs

MaB min. 8μs

Chantime min. 44μs

• There are two display modes available: Normal mode and Hold Mode. This two modes can be

selected for application in the DMX setting item (submenu of System setup function mode).

For the Normal mode, when pushing the fader to the specific channel of the external operator (e.g.

DC-1216II ), relevant channel value will change temporarily on the LCD display, conforming with

the position of the fader.

For the Hold mode, when pushing the fader to the specific channel of the external operator (e.g.

DC-1216II ), only the adjustment of higher channel value can be held and displayed on the LCD.

Adjustment of lower value will be of no effect in this Hold mode.

4.2.1 Barchart display

• User can use the multi-selector to enter the Barchart display submenu. If there is no signal input,

the LCD will show you empty information like below:

<RX Channel : 000 ?

>001 : xxxxx xxxxx

011 : xxxxx xxxxx

021 : xxxxx xxxxx

Each line on the LCD display indicates the values of totally 10 channels. And user can use the

multi-selector to browse and view the values of other channels.

• If there is an effective input signal to this unit, the LCD will show as the following barchart display:

<RX Channel : 192 ?

>001 :

011 :

021 :

• Select the” ?”, then press the multi-selector for help information, LCD will show you as below:

<1. Barchart display

chan level

x = no signal

– = no data

(Eachbarchartindicatesdifferentvalues)

4.2.2 Value display

• Value display can be done in three patterns: Decimal, Hexadecimal or Percent. These three

patterns can be selected as user’s requirement in the Display setting item (submenu of the

System setup function mode).

• Use the multi-selector to enter the Value display menu. If there is no effective signal input, the LCD

will show you empty information as below:

< RX Channel 1 : 000 ?

Start Channel : 001 >

--- --- --- --- ---

>--- --- --- --- ---

The default channel value is 000 and the start channel is normally 001. To change the start channel,

user can select “>” at the right side of the LCD screen, press the multi-selector and then rotate it to

change the channels from 001 to 512. Press the multi-selector again to confirm your setting.

• If there is an effective input signal, the LCD display will show you like the following diagram:

<RX Channel : 192 ?

Start Channel : 001 >

253 255 255 000 000

>000 000 000 000 000

User can select the “>” at the left side of the LCD screen, and then press the multi-selector to

select decimal, hexadecimal or percent display mode as requirement. The displayed value of the

relative channel will be temporarily changed according to the new setting.

• Select the” ?”, then press the multi-selector for help information, LCD will show you as below:

<2. Value display

Display ten number

in decimal, hexadeci-

mal or percent

4.2.3 Min / max display

• In this menu, the minimum value, typical value and maximum value can be displayed on the screen.

Relevant values will comply with the decimal, hexadecimal or percent display mode, which you

have set for use.

Suppose that you have set the percent display mode, if there is no signal input, LCD will show you:

<RX Channel : 000

Chan. min typ max

>001 --- --- --- %

>Count at : xxxxx Sec

• If the signal input has been received correctly, LCD display will show you the follow diagram:

Time counter

for reference.

(Sec=second)

<RX Channel : 192

Chan. min typ max

>001 000 28 70 %

>Count at : 00010 Sec

Total channels

To browse and view the value of each channel, user can select the “>” at the third line on the LCD

display. press the multi-selector, and then rotate it to view desired values.

Note: Pressing the “>” near the Count at item, the time will return to 0 second level. The min value

and the max value will be changed to the same level as the present typ value (the present value of

relevant channel).

4.3 DMX data—TX

• In this function mode, relevant parameters can be set for data sending. While accessing this DMX

data—TX menu, the new coming DMX signal will be disabled. You will be allowed to set the levels

temporarily for the intended channels, and also have priority to transmit the Cue (Scene) at a set

rate. There are only 15 Cues available.

• User can use the multi-selector to enter the DMX data—TX function mode, LCD will show you:

<1. 512 Channel >

2. Single Channel >

3.Cue/Memory >

4. Run Cues (Scenes) >

4.3.1 512 Channel

• In this 512 Channel submenu, 512 channels can be displayed and be used for temporary

adjustment. The actual channel value can be held. User can use the multi-selector to enter this

item, LCD will show you like below:

<1. 512 Channel ?

Mode : Modify mode

Chan : 001 >

↓Data : 000 = 000 % >

To adjust the temporary value of the desired channel, first enable the multi-selector to “>” at the

third line on the LCD screen. Then adjust the "Data" at the fourth line. Relevant value can be

displayed in decimal and percent patterns.

• User can scroll the multi-selector to enter the next page. LCD will show you like below:

↑Channel : >[ 001 -- 010 ]

000 000 000 000 000

Clear All >

Channel 10

Channel 2

Channel 1

Relevant values can be set availably. Move the cursor to the desired channel, then use the multi-

selector to set the value. After your setting, press the multi-selector to confirm your operation.

• If user want to set all channels to be “000”, just activate the “Clear All” function by using the

multi-selector. Select the “>” at the bottom right corner of the screen, press the multi-selector, then

there will be a “Clearing” information appears on the LCD display. About 2 seconds later, all the

channel values will be changed as “000”.

• Select the” ?”, then press the multi-selector for help information, LCD will show you as below:

<1. 512 Channel

Modify = Each

channel will hold

its preset value

4.3.2 Single Channel

• In this Single Channel menu, there are Auto Speed, Channel, Mode and Level items which can

be set as user’s requirement. The Speed level can be set from 01 to 10. Fade Only, Fade Fine,

Auto On/ Off, Ramping and Stop functions can be selected in the Mode item. To be concerned.

Note: Only in the Auto On/Off mode, or in the Ramping mode can the Auto speed function be

available. When in other modes, the Auto speed function will be of no effect.

• When entered the Single channel menu, LCD will show you like the following diagram:

Chan : 001

Mode : Fader Only

Level : 000 = 000 %

• Select the” ?”, then press the multi-selector for help information, LCD will show you as below:

<2. Single Channel

512 data is same, or

one data is special

the other is zero

4.3.3 Cue /Memory

• In this Cue/Memory menu, the received data can be saved as Cues. There are 15 Cues available

for use. Using the multi-selector to enter this menu, LCD will show you like this:

<3. TX data as Cue ?

Cue number: 001 >

Use the multi-selector to change the Cue number from 001 to 015. After your setting, press the

multi-selector to confirm your operation.

• Select the” ?”, then press the multi-selector for help information, LCD will show you as below:

<The 512 data of cue

come from RX or from

old cue which can be

modified in ‘TX-512’

4.3.4 Run Cues ( Scenes )

• When entered this menu, user can transmit Cues continuously at a specific rate. LCD shows you:

<4. Run Cues(Scenes) ?

Total Cue : 1

End Cue: 15 >

Speed rate : 01 >

Default End Cue No.

Default Speed rate

The default start cue is Cue 1. User can adjust the end Cue No. and speed rate ( 01 -10 ) by the

multi-selector.

• Select the” ?”, then press the multi-selector for help information, LCD will show you as below:

<4. Run Cues(Scenes)

From cue 1 to the

end cue continually

in speed rate

4.4 Moving light

• When entered this Moving light function mode, the LCD-display will show you as below:

<Moving light :

1. Library setting ＞

2. Play mode ＞

• User can set the function of each fixture channel complying with the preset library. The library is

preset to meet your requirement in general. If you want to use your own library, please mail us an

attachment of the information for updating. For more tests, user can use the “library settings” and

can adjust relevant parameters of each channel in the Play mode.

4.4.1 Library setting

• To set the light function of desired channel, user can use the multi-selector to enter this menu. LCD

will show you the fixture number, name and functions of each channel. There are 36 channels and

10 kinds of fixtures in all for relevant settings. And each channel has 29 effect functions to be

selected availably.

<1. Library setting ＞

FX No. : 01 NAME_1 ＞

01 Color 02 Cyan

03 Dimmer 04 Effect

Library stored

• User can select desired fixture and set the fixture name. Relevant function of each channel can

also be set by using the multi-selector. After your setting, user can select the “>” at the top right

corner of the screen, then press the multi-selector to confirm.

• To change the fixture name, move the cursor to the“>” at the second line on the screen, and press

the multi-selector. Then user can use the multi-selector to set relevant characters as desire. After

that, press the multi-selector to confirm your setting.

• To change the lighting function of desired channel, for example, move the cursor to 01, and press

the multi-selector. Then use the multi-selector to set desired function item. After your setting, press

the multi-selector again to confirm your operation.

• User can rotate the multi-selector to view the next page:

05 Focus 06 Frost

07 Gobo 08 Gobo rot

09 Inten'ty 10 Iris

11 Lamp 12 Laser

21 Speed CG

23 Speed PT

25 Strobe

27 Tilt Fine

22 Speed P

24 Speed T

26 Tilt

28 Yellow

14 Pan

16 Prism

18 Rot spel

20 Special

13 Magenta

15 Pan fine

17 Reset

19 Shutter

30 --------

32 --------

34 Cyan

36 Frost

29 Zoom

-----------------

33 Color

35 Dimmer

If user want to set lighting function of this unit for testing other lighting equipments, you must make

sure the parameters you have set must be complying with the device to be tested.

4.4.2 Play mode

• In this menu, user can test the fixtures by using the previous library settings. Use the multi-selector

to enter the Play mode, LCD-display will show you like below:

<2. Play mode

FX No. : 01 NAME_1

Start address : 001

Func. : Color

>000

Part 2

Part 1

As the above diagram shows, user can move the cursor to “>” ( part 1) to select desired function

item with the multi-selector. Move the cursor to “>” ( part 2) to set desired value. The Start address

can be adjusted from 001 to 512. Suppose that the Start address is set as “001”, and the function is

selected as “Pan”, complying with the specific fixture. Then change the level, the fixture arms will

rotate horizontally at your disposal.

Note: User can move the cursor to the “>” at the second line, and use the multi-selector to select

relevant fixtures or to select the CH-TEST(channel test) item. If user have chosen the CH-TEST

item and have pressed the multi-selector to confirm. The information of “Func. : ch_01 >000>” will

appear at the fourth line of the screen. That means relevant channels (up to 36 channels) and

channel values can be set as user’s desire.

Table des matières

Autres manuels Show Tec Équipement de test

Show Tec

Show Tec RT-200 Manuel utilisateur

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur
