Show Tec Spectral PC 600Z IP Manuel utilisateur

Spectral PC 600Z IP V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 43551

MANUAL

ENGLISH

Ordercode: 43551

Spectral PC 600Z IP

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................5

Return Procedure..........................................................................................................................................................6

Claims..............................................................................................................................................................................6

Description of the device.................................................................................................................................................7

Frontside..........................................................................................................................................................................7

Backside .........................................................................................................................................................................8

Installation...........................................................................................................................................................................8

Set Up and Operation .......................................................................................................................................................8

Control Modes...............................................................................................................................................................9

One Spectral (Static Colors) ....................................................................................................................................9

One Spectral (Built-in programs) ............................................................................................................................9

Multiple Spectrals (Master/Slave control) .............................................................................................................9

Multiple Spectrals (DMX Control)..........................................................................................................................10

Fixture Linking...............................................................................................................................................................11

Data Cabling...............................................................................................................................................................11

Control Panel ...............................................................................................................................................................12

Control Mode ..............................................................................................................................................................12

DMX Addressing ..........................................................................................................................................................12

Menu Overview...........................................................................................................................................................13

Main Menu Options....................................................................................................................................................14

1. Static Colors..........................................................................................................................................................14

2. DMX Address ........................................................................................................................................................15

3. Built-in programs ..................................................................................................................................................15

4. Master/Slave Mode.............................................................................................................................................15

5. Zoom Mode ..........................................................................................................................................................15

6. Personality (DMX channel modes)...................................................................................................................16

7. Edit Mode..............................................................................................................................................................16

7.1. How to make your own custom program ...................................................................................................17

8. Settings...................................................................................................................................................................17

8.1. Upload ................................................................................................................................................................17

8.2. Reset ...................................................................................................................................................................17

8.3. Color ...................................................................................................................................................................18

8.4. Dimmer ...............................................................................................................................................................18

8.5. DMX Error............................................................................................................................................................18

8.6. PWM rate............................................................................................................................................................18

8.7. Color temperature ...........................................................................................................................................18

9. Safety lock ............................................................................................................................................................18

10. Calibration ..........................................................................................................................................................19

10.1. White color calibration..................................................................................................................................19

10.2. RGBW calibration ...........................................................................................................................................19

11. Software information ........................................................................................................................................19

DMX Channels .............................................................................................................................................................20

9 channels (HSIC).....................................................................................................................................................20

9 channels (SSP) .......................................................................................................................................................21

12 channels (TOUR) .................................................................................................................................................22

17 channels (TR16)...................................................................................................................................................24

Maintenance....................................................................................................................................................................26

Troubleshooting ...............................................................................................................................................................26

No Light.........................................................................................................................................................................26

No Response to DMX..................................................................................................................................................26

Product Specifications....................................................................................................................................................28

Dimensions........................................................................................................................................................................29

Ordercode: 43551

Spectral PC 600Z IP

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

Showtec Spectral PC 600Z IP

Safety cable

Schuko to IP rated power cable (1,3 m)

User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower

operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

be qualified

follow the instructions of this manual

Ordercode: 43551

Spectral PC 600Z IP

Before the initial start-up, please make sure that there is no damage caused by transportation.

Should there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes contained in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always

hold the fixture by the transport handles.

•Never place any material over the lens.

•Never look directly into the light source.

•Never leave any cables lying around.

•Do not connect this device to a dimmerpack.

•Do not switch the device on and off in short intervals, as this will reduce the device’s life.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

Allow the fixture to cool for at least 5 minutes before handling.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Only use the device indoors, avoid contact with water or other liquids.

•Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly

fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep the case closed while operating.

•Always allow a free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord holding it by the plug. Never pull out the plug by tugging the power cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

•If the lens is obviously damaged, it has to be replaced.

•If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit

running unattended.

•The user is responsible for correct positioning and operating of the Spectral. The manufacturer will not

accept liability for damages caused by the misuse or incorrect installation of this device.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

Ordercode: 43551

Spectral PC 600Z IP

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The minimum distance between light output and the illuminated surface must be bigger than 1

meter.

•The maximum ambient temperature ta= 40°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

•If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.

You endanger your own safety and the safety of others!

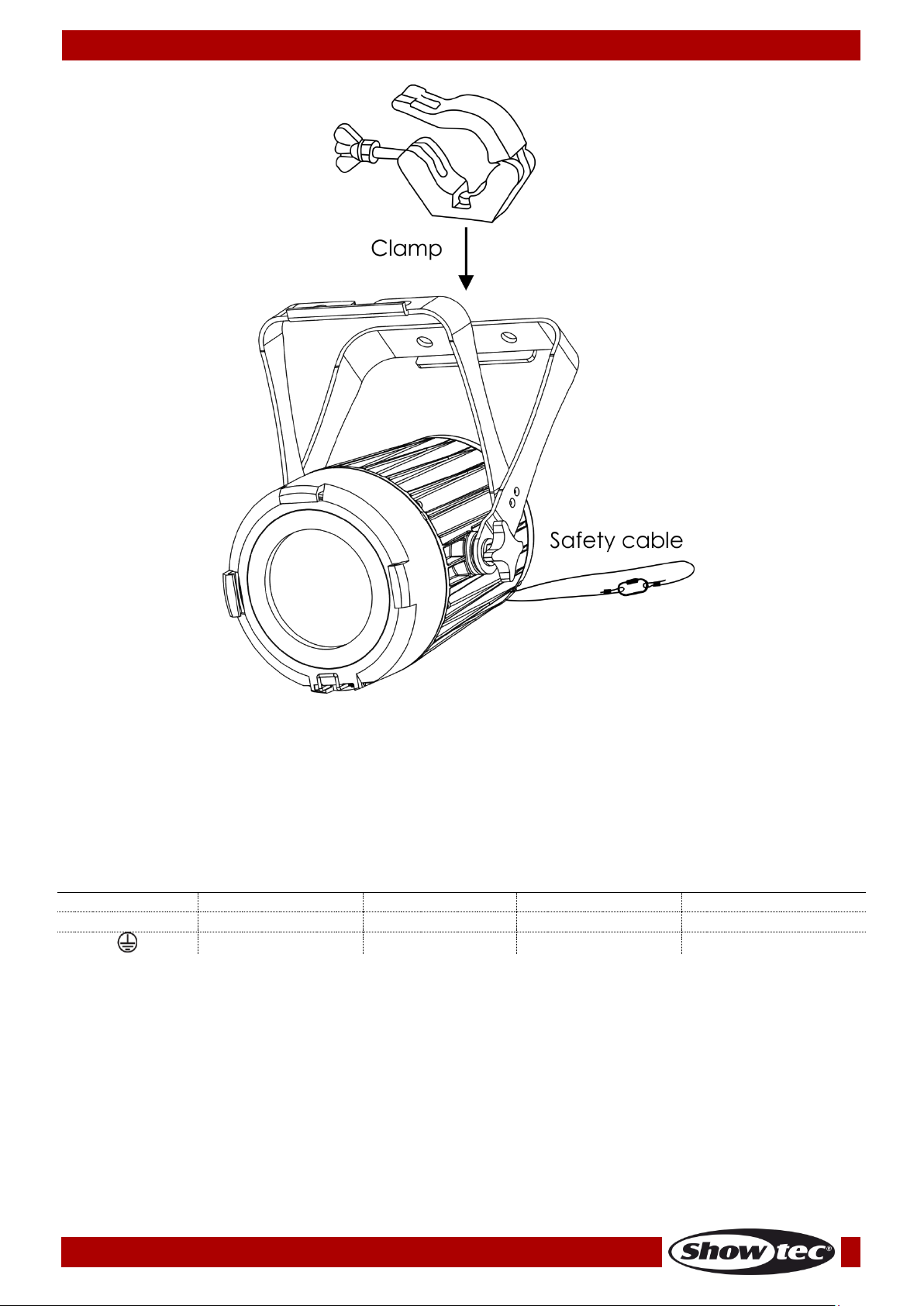

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used.

•Use a clamp to mount the projector, with the mounting bracket, to the trussing system.

•The projector must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety cable.

•When rigging, derigging or servicing the projector, always make sure, that the area below the

installation site is secured and that there are not any unauthorized people around.

Ordercode: 43551

Spectral PC 600Z IP

The Spectral can be placed on a flat stage floor or mounted to any kind of truss with a clamp.

Improper installation can cause serious injuries and/or damage of property!

Connection with the mains

Connect the device to the mains with the power-plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always properly connected to the earth!

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 43551

Spectral PC 600Z IP

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name

02) Your address

03) Your phone number

04) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of

the invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement from which the obligation is resulting.

Ordercode: 43551

Spectral PC 600Z IP

Description of the device

Features

The Spectral PC 600Z IP is a LED fixture with high output and great effects.

•Input voltage: 100-240V AC, 60/50Hz

•Power consumption: 85W

•Light source: 1 x Multichip RGBW LED

•Lux @ 2m: 19200

•Control protocol: DMX-512

•DMX personalities: 9, 9, 12, 17 channels

•LCD display

•Dimmer: 0-100%

•Strobe: 0-20Hz

•Beam Angle: 4,5° - 45°

•Control: Static Colors, Auto, Master/Slave, DMX-512

•Housing: Die-cast aluminum

•Connections: IP rated power connector IN/OUT, 3-pin XLR IN/OUT

•Cooling: Convection

•IP Rating: IP65

•Dimensions: 243 x 240 x 300 mm (LxWxH)

•Weight: 5,8 kg

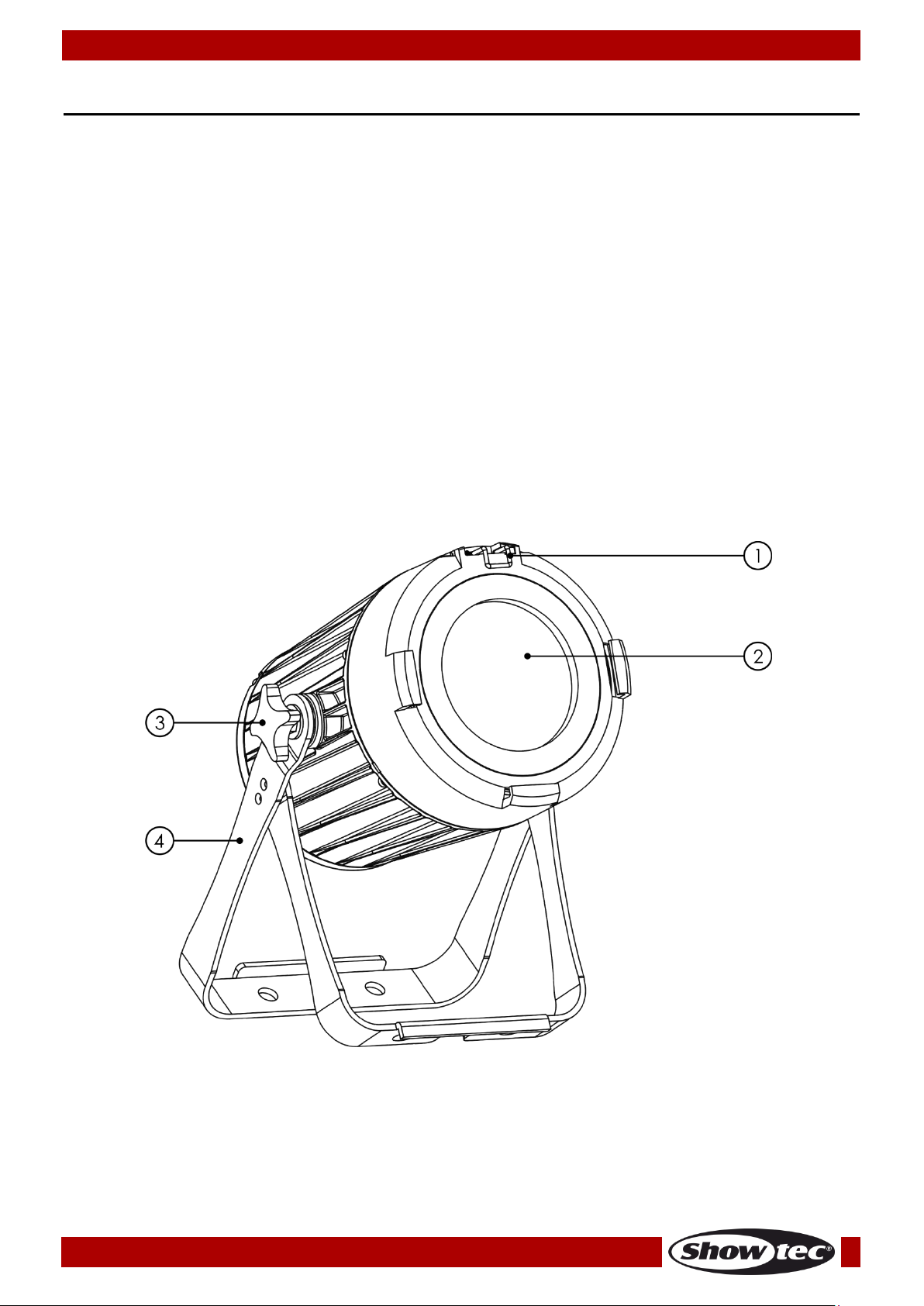

Frontside

Fig. 01

01) Color frame retaining clip

02) Multichip RGBW LED

03) Adjustment screw

04) Mounting bracket with inclination screw

Ordercode: 43551

Spectral PC 600Z IP

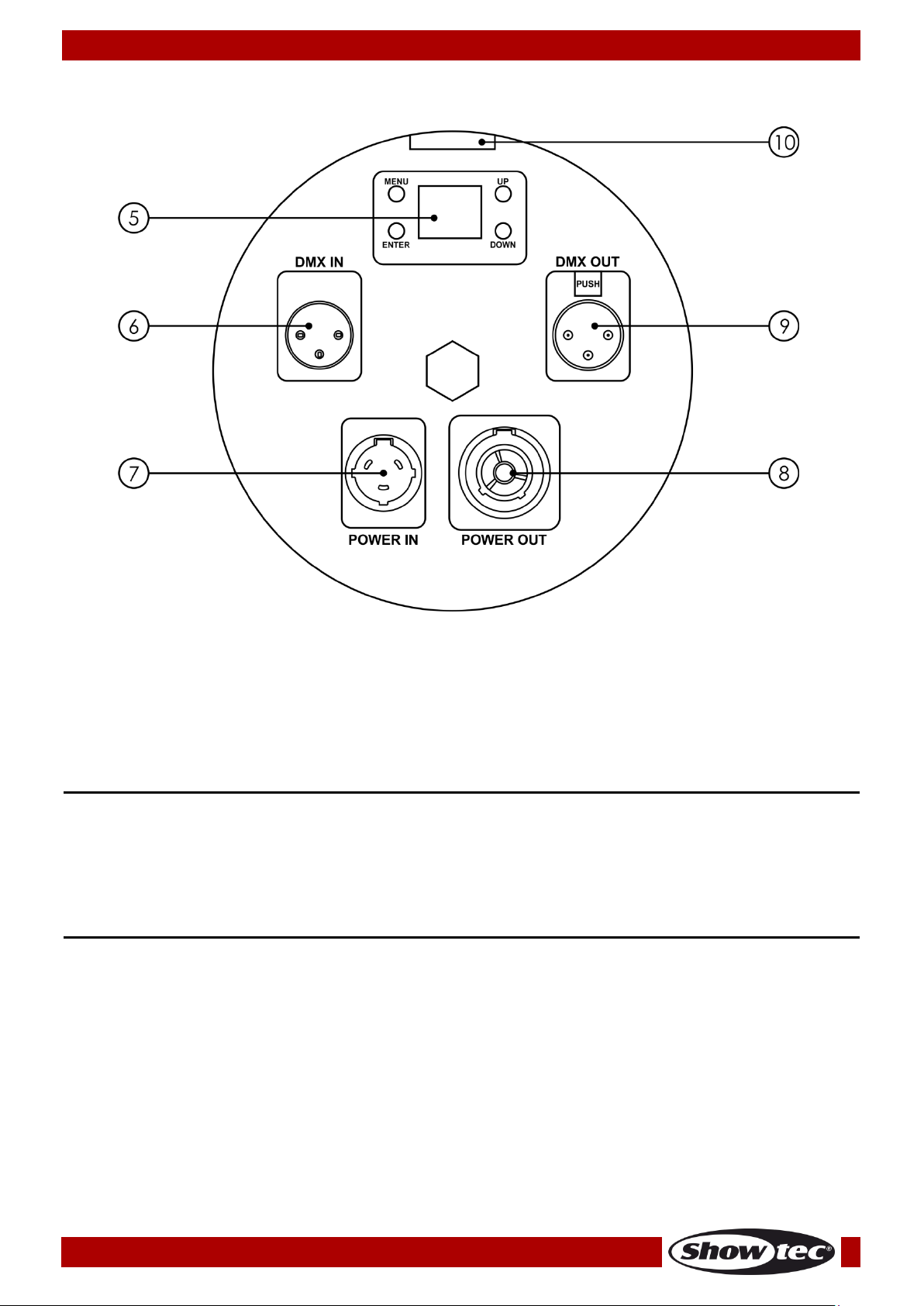

Backside

Fig. 02

05) LCD display + control buttons

06) 3-pin DMX signal connector IN

07) 100-240V IP rated power connector IN

08) 100-240V IP rated power connector OUT

09) 3-pin DMX signal connector OUT

10) Safety eye

Installation

Remove all packing materials from the Spectral PC 600Z IP. Check if all foam and plastic padding is

removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

Ordercode: 43551

Spectral PC 600Z IP

Control Modes

There are 4 modes:

•Static Colors (Manual)

•Built-in programs (Auto)

•Master/Slave

•DMX-512 (9CH, 9CH, 12CH, 17CH)

One Spectral (Static Colors)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Plug the end of the electric mains power cord into a proper electric power supply socket.

03) When the Spectral is not connected with a DMX cable, it functions as a stand-alone device.

Please see page 14 for more information about the static colors.

One Spectral (Built-in programs)

04) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.

05) Plug the end of the electric mains power cord into a proper electric power supply socket.

06) When the Spectral is not connected with a DMX cable, it functions as a stand-alone device.

Please see page 15 for more information about the built-in programs.

Multiple Spectrals (Master/Slave control)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Use a 3-pin XLR cable to connect the Spectral.

The pins:

01) Earth

02) Signal -

03) Signal +

03) Link the units as shown in fig. 03. Connect the first unit's DMX "out" socket with the second unit's "in"

socket, using a DMX cable. Link the second, third, and fourth units.

04) You can use the same functions on the master device as described on pages 14-15 (Static colors

and Built-in programs). This means that you can set your desired operation mode on the master

device and all slave devices will react the same as the master device.

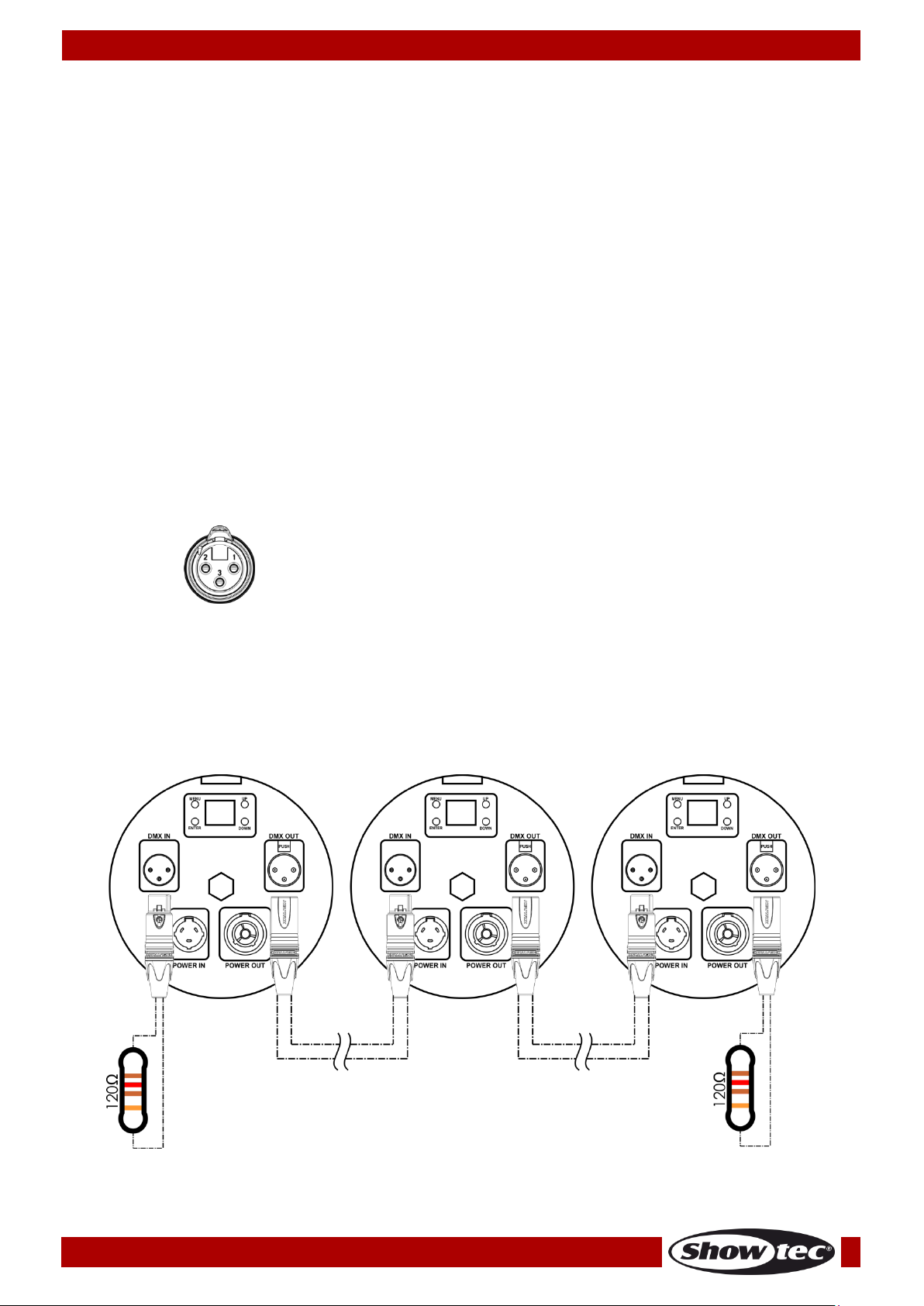

Multiple Spectrals (Master/Slave control)

Fig. 03

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Éclairage domestique

Show Tec

Show Tec Expression 600Z Manuel utilisateur

Show Tec

Show Tec Pixel Bar 18 Q4 Tour Manuel utilisateur

Show Tec

Show Tec Pixel Bar 8 COB Manuel utilisateur

Show Tec

Show Tec Adrenaline Manuel utilisateur

Show Tec

Show Tec LED Orbit I Manuel utilisateur

Show Tec

Show Tec Spectral M1000 Tour Q4 MKII Manuel utilisateur

Show Tec

Show Tec 40637 Manuel utilisateur

Manuels Éclairage domestique populaires d'autres marques

JONATHAN Y

JONATHAN Y JYL5019A Manuel utilisateur

JONATHAN Y

JONATHAN Y JYL6007A Manuel utilisateur

Philips

Philips Ledino 31606/11/16 Manuel utilisateur

Salus

Salus UG600 Manuel utilisateur

Safavieh Lighting

Safavieh Lighting CANDRI TBL4427A Manuel utilisateur

Hunter

Hunter Bullet Spotlight Kit Manuel d'instructions

Philips

Philips Ledino 16811/87/16 Manuel utilisateur

Philips

Philips 405441213 Manuel utilisateur

Philips

Philips Halogen Light Manuel utilisateur

Pentair

Pentair GLOBRITE Manuel utilisateur

Philips

Philips 55592-30-16 Manuel utilisateur

Livoo

Livoo Night light Manuel utilisateur

Schwaiger

Schwaiger NFL45 Manuel utilisateur

FRITZ HANSEN

FRITZ HANSEN AQ01 PLUG-IN Manuel utilisateur

MOOD

MOOD CORSIN JY-16 Manuel utilisateur

Safavieh Lighting

Safavieh Lighting KREMP TBL4409A Manuel utilisateur

JONATHAN Y

JONATHAN Y JYL8019 Manuel utilisateur

XTRASUN

XTRASUN XTDEOKT1 Manuel utilisateur
