Show Tec Booster 4 Manuel utilisateur
Service Manual
BOM code(26-024-0041-00)
Website:www.highlite.nl
E-male sales:[email protected]
E-mail export:[email protected]
Rev1.0
DMX BOOSTER / SPLITTER
Complete Exploded
View & Parts List

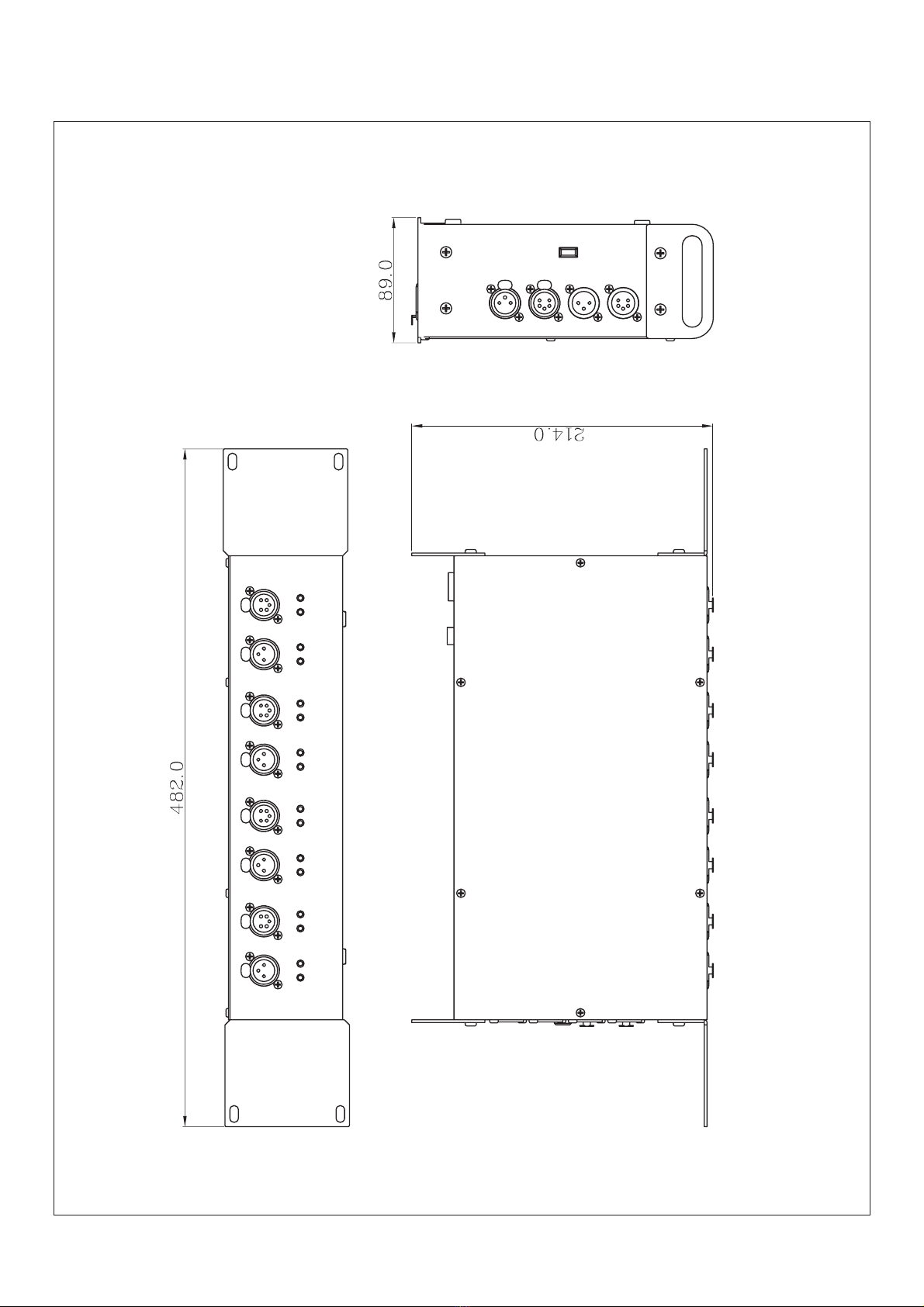

Physical Dimensions

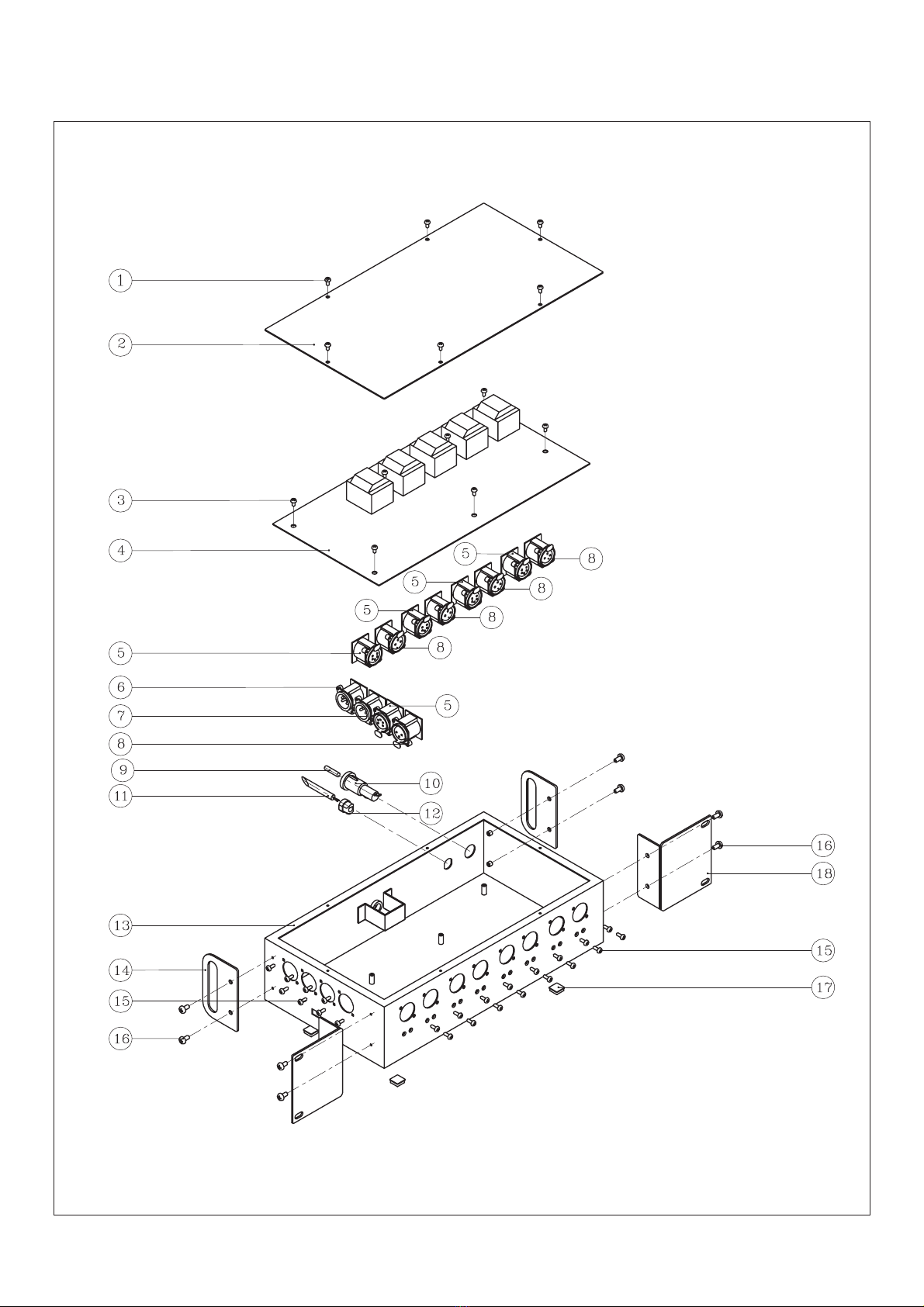

Complete Exploded View
Complete Exploded View Parts List
Item part Number Description Qty
1 22-003-0015-00 Screws 6
2 23-150-0030-00 Top Cover 1
3 22-001-0037-00 Screws 7
4 27-001-0290-00 KIT DD-4 1
5 27-001-0534-00 KIT DMX-F DMX SOCKET 5PIN 5
6 27-001-0533-00 KIT DMX-M DMX SOCKET 5PIN 1
7 27-001-0532-00 KIT DMX-M DMX SOCKET 3PIN 1
8 27-001-0531-00 KIT DMX-F DMX Socket 3PIN 5
9 20-001-0018-00 Fuse 1
10 20-002-0019-00 Fuse Holder 1
11 17-001-0007-00 Power Cable 1
12 25-003-0003-00 Cable NUT 1
13 23-001-0303-00 Chassis 1
14 23-001-0353-00 Mounting Holder 2
15 22-003-0003-00 Screws 24
16 22-001-0082-00 Screws 8
17 25-014-0002-00 Rubber Feet 4
18 23-001-0336-00 "L" Type Mounting Hinge 2

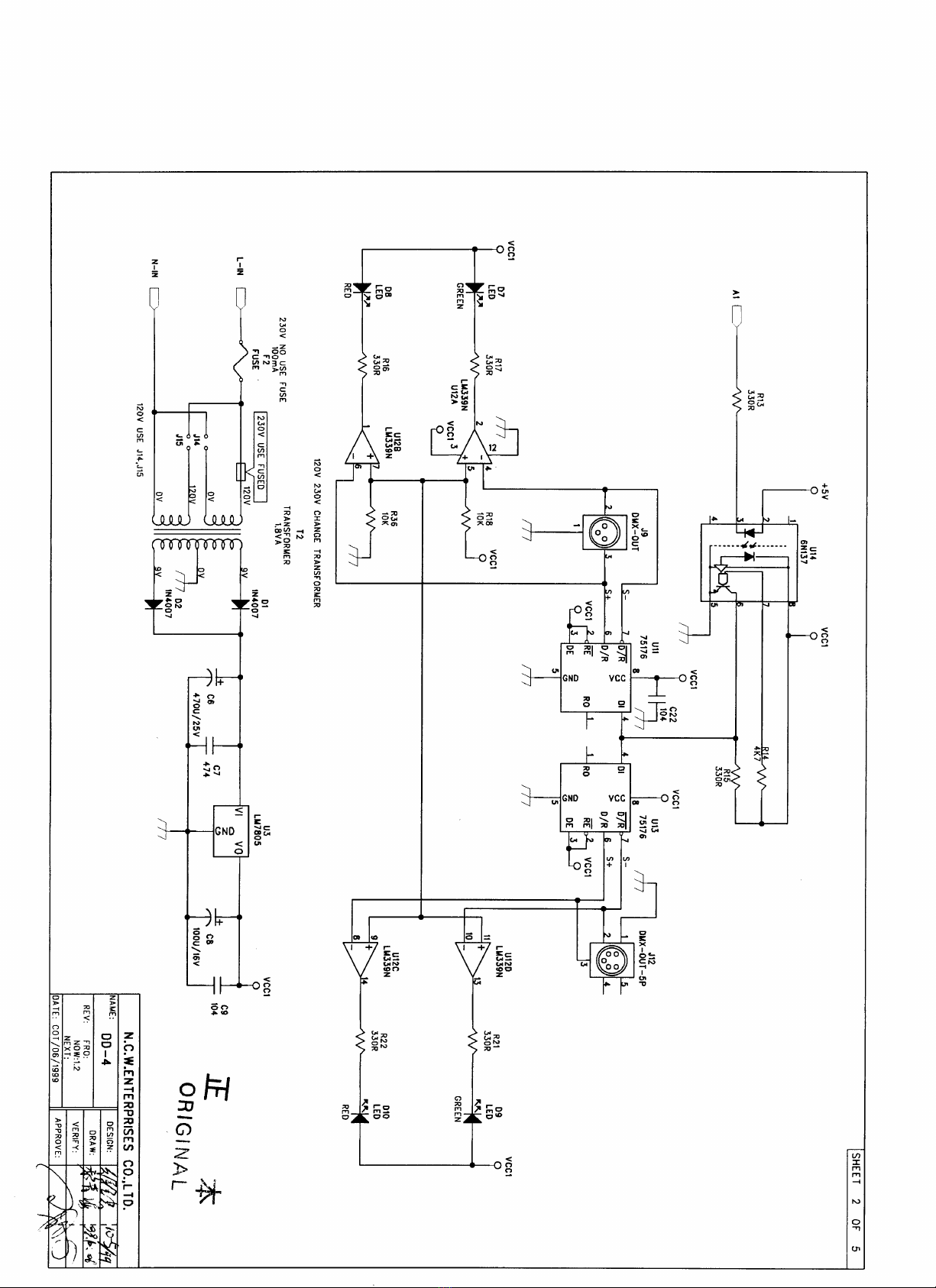

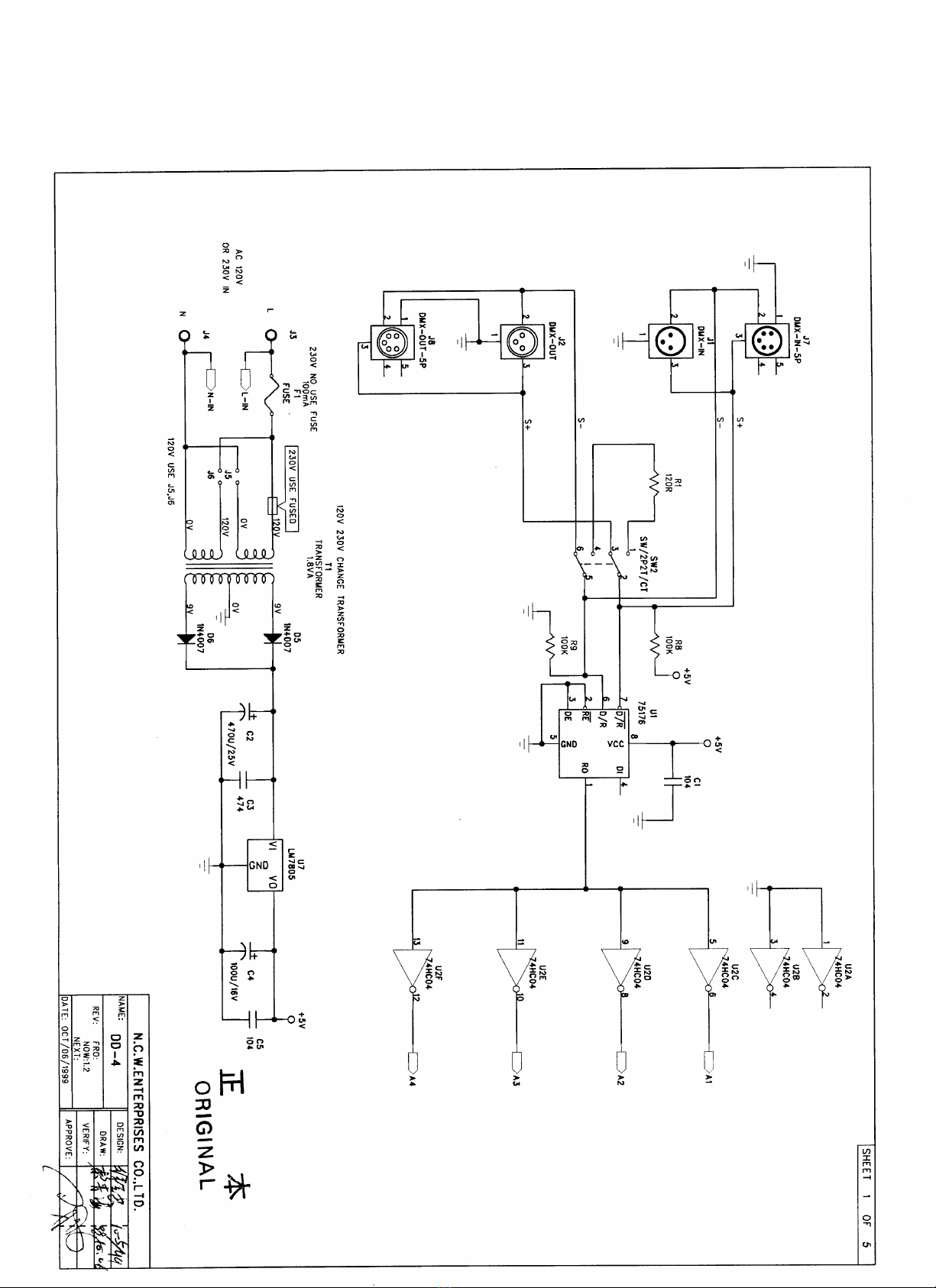

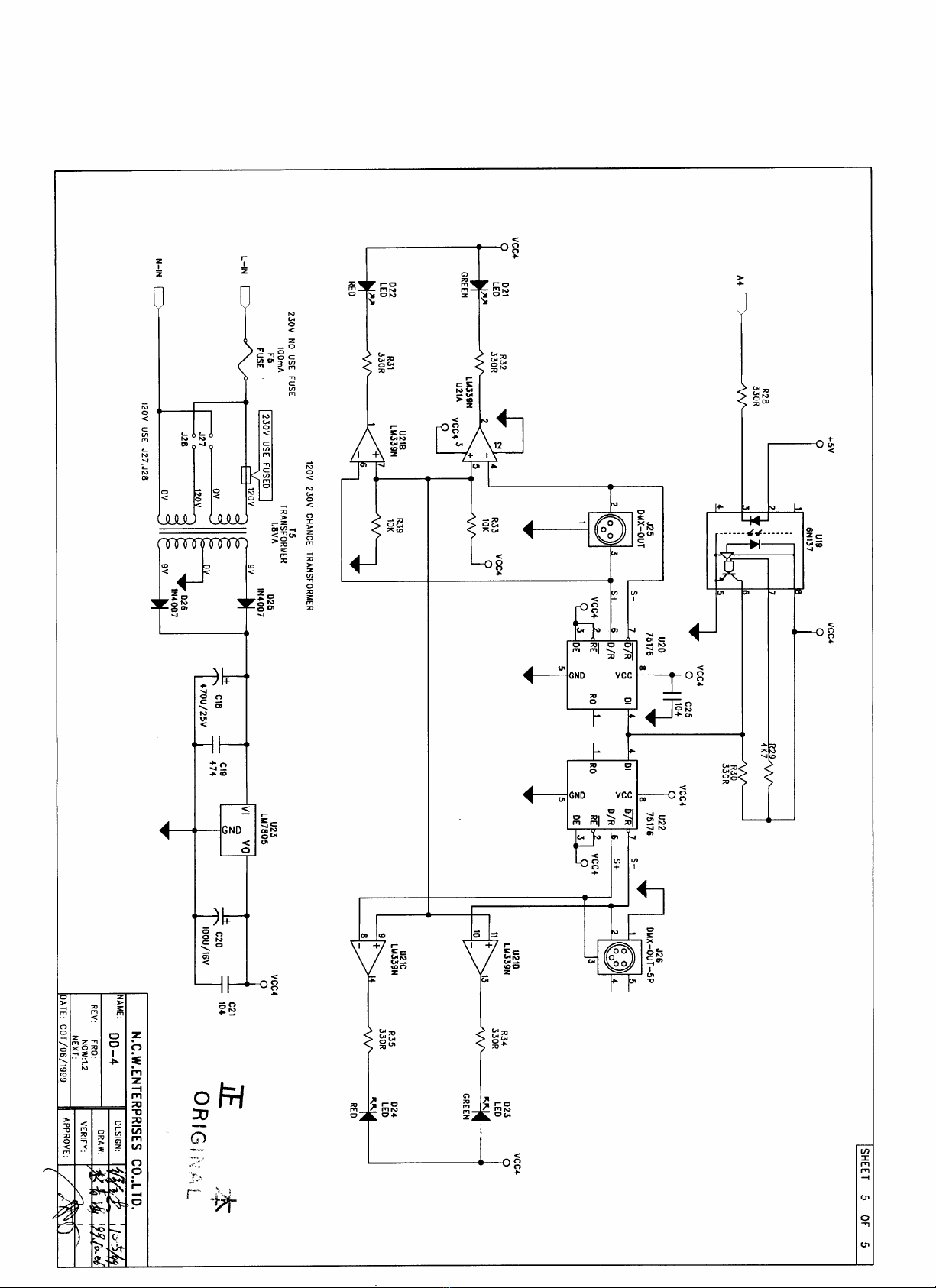

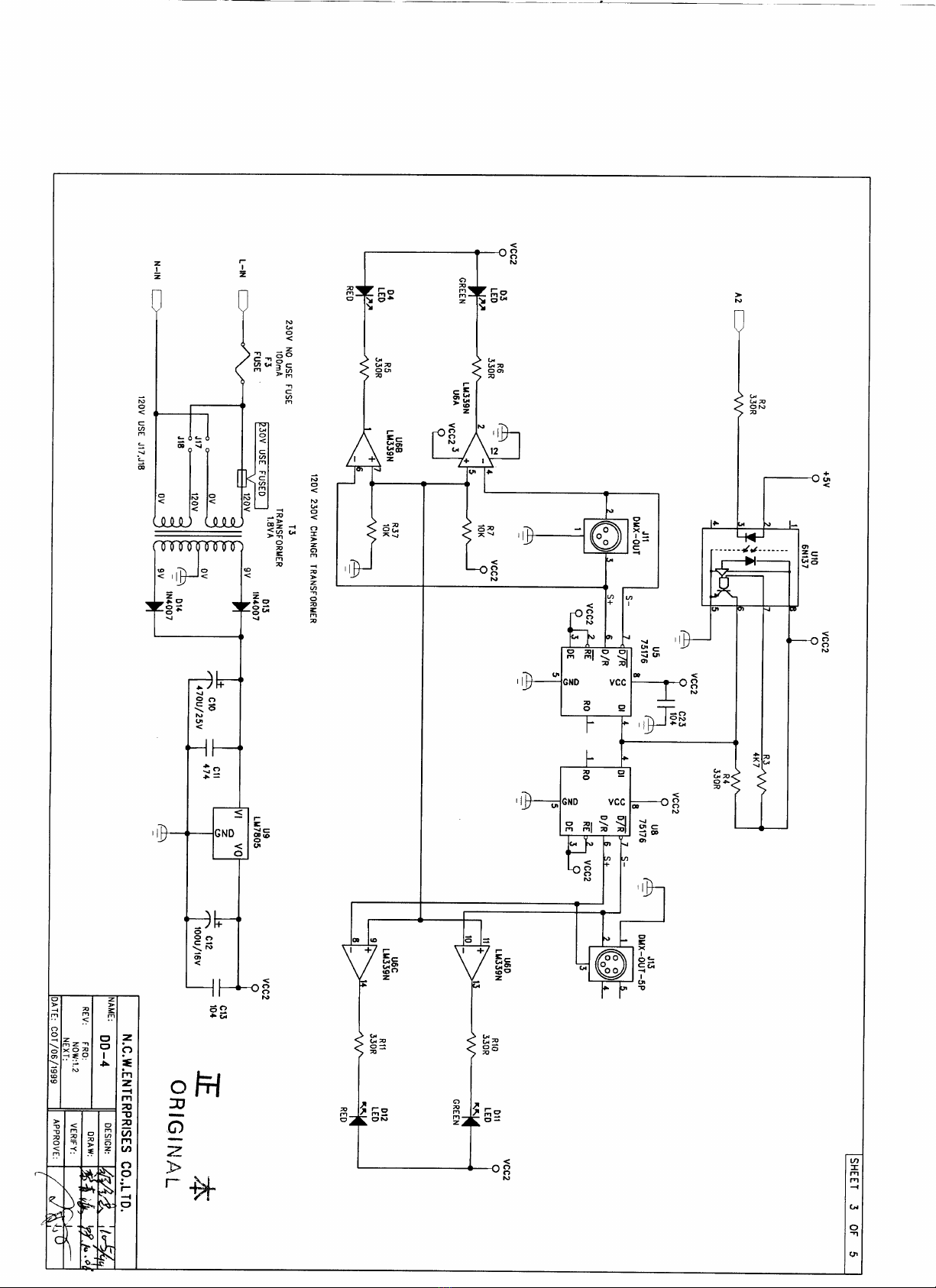

PCB Schematic
Diagrams
