Show Tec LED Foot 4 Manuel utilisateur

LED Foot 4

ORDERCODE 50719

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED-Foot 4 brings excitement to any venue. Whether you want simple plug-&-play action or

a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED-Foot 4 ™ Product Guide

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

Overview ........................................................................................................................................................................6

Top ...................................................................................................................................................................................7

Backside .........................................................................................................................................................................7

Set Up and Operation .......................................................................................................................................................8

1. Scenes.....................................................................................................................................................................8

1.1 Program Scene .............................................................................................................................................8

1.2 Playback Scene............................................................................................................................................8

1.3 Music or Auto mode ....................................................................................................................................8

1.4 Delete Scene.................................................................................................................................................8

2. Chases.....................................................................................................................................................................9

2.1 Program Chase .............................................................................................................................................9

2.3 Music or Auto mode ....................................................................................................................................9

2.4 Delete A Chase Step ...................................................................................................................................9

3. Channel Assignment..................................................................................................................................10

4. Factory Reset...............................................................................................................................................10

Maintenance....................................................................................................................................................................11

Troubleshooting ...............................................................................................................................................................11

No Light.........................................................................................................................................................................11

No Response to DMX..................................................................................................................................................11

Product Specification .....................................................................................................................................................13

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Showtec LED-Foot 4

• Incl. Power adapter 1,75m

•User manual

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Do not open the device and do not modify the device.

Never use anything to cover the ground contact.

Never leave a connected fixture run without a lamp!

Never look directly into the light source of the connected fixtures.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the device’s life.

Do not shake the device. Avoid brute force when installing or operating the device. The LED-Foot

4 reacts very sensitive to movement.

Never use the device during thunderstorms, unplug the device immediately.

Only use device indoor, avoid contact with water or other liquids.

Do not touch the device’s housing bare-handed during its operation.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the lens or glass from a connected fixture is obviously damaged, it has to be replaced. So that

its functions are not impaired, due to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Controller must be installed out of the reach of children. Never leave the unit

running unattended.

Allow time to cool down, before replacing a lamp on the connected fixture.

The user is responsible for correct positioning and operating of the LED-Foot 4. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The maximum ambient temperature ta= 45°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

•If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

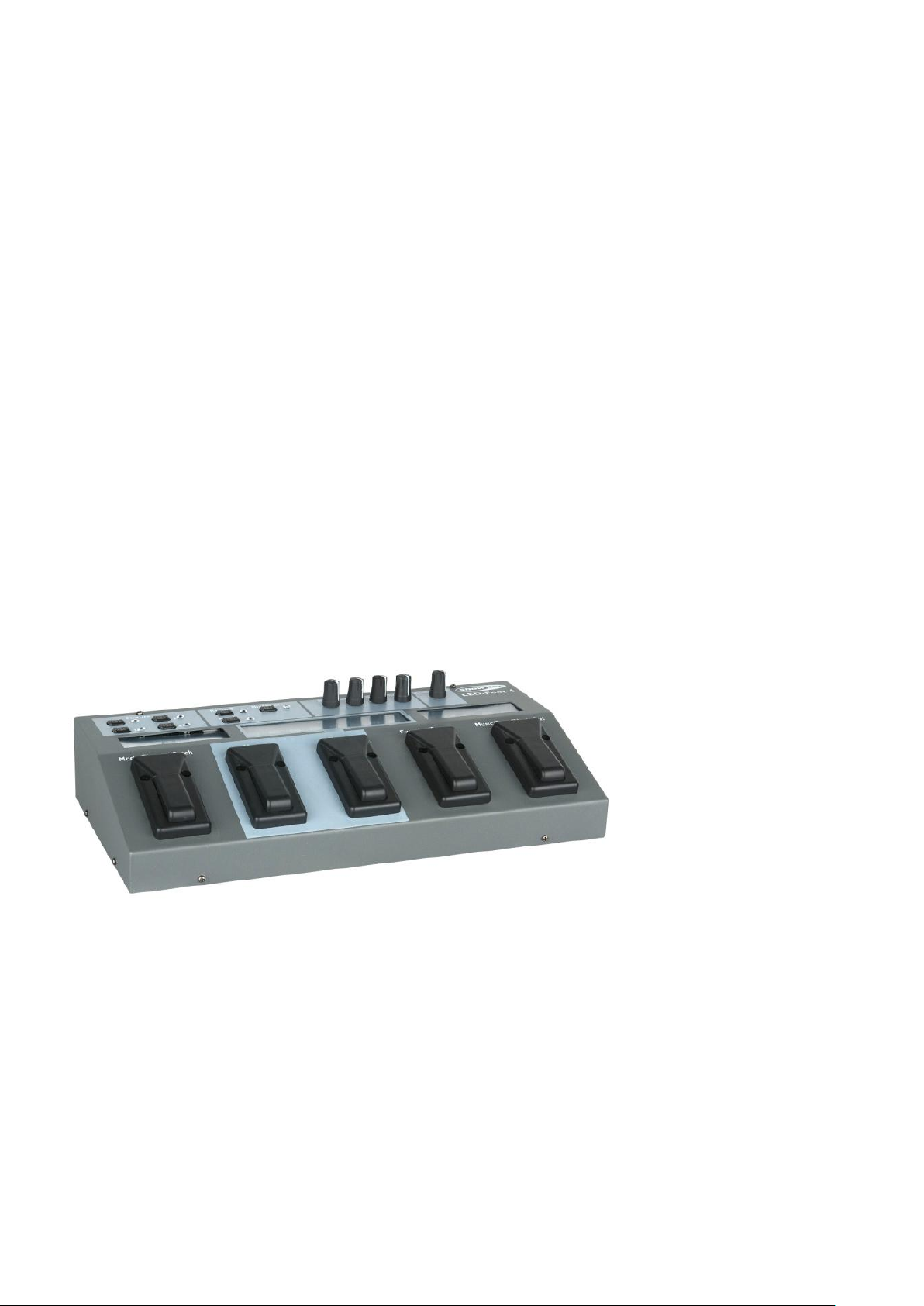

The LED-Foot 4 is a light controller from Showtec and features:

•4 Channel patchable LED par controller

•Can be used with any LED Parcan

•Patchable

•Music control

•Foot control

•Total control to 4 groups of LED Parcans

•LED-Foot can work with any LED fixture in the market

•Programming of programs is easy and simple

•Once the LED Foot is patched and programmed it can be controlled easily by your feet

•Scene selection, Chases selection, Function, it all can be controlled by your foot

•Ideal solution for musicians who do not have their hands free to control their lighting

•Power input: 100-240V - 500mA, Power output: DC 12V

•Power consumption: 20 Watt

•Power connector: Adapter (included)

•Chases: 16 with 99 steps

•Scenes: 16

•Fixtures: 4

•DMX-512: XLR 3 pole

•3 modes in playback mode: Blackout mode, Music mode, Auto Mode

•Dimensions: 360 x 183 x 69 mm (W x D x H)

•Weight: 1,5 kg

NOTE: Knowledge of DMX is required to fully utilize this unit.

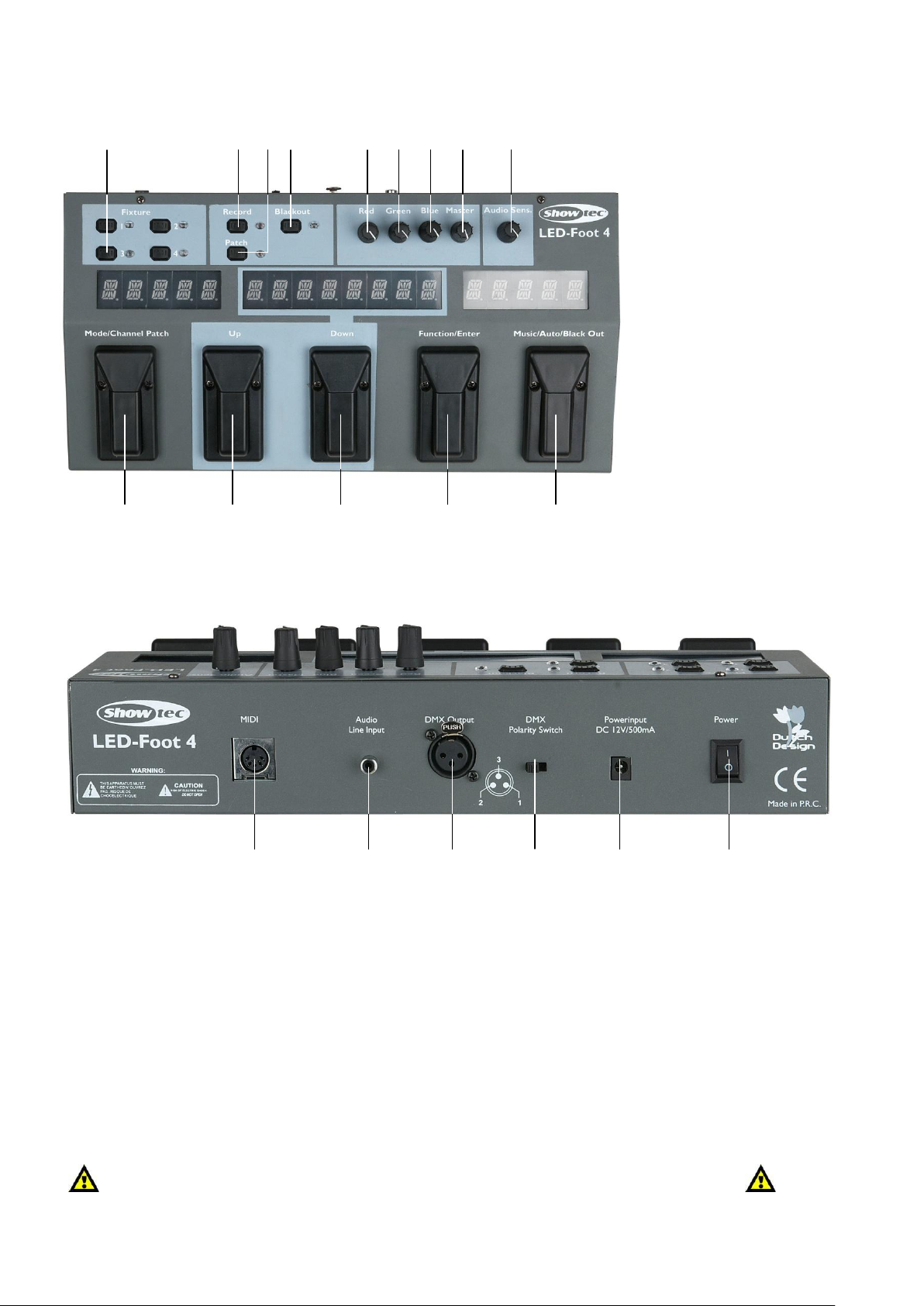

Overview

Top

1 2 3 4 5 6 7 8 9

10 11 12 13 14 Fig. 1

Backside

15 16 17 18 19 20

Fig. 2

1) Fixture 1-4 11) Up Foot pedal

2) Record button 12) Down Foot pedal

3) Patch button 13) Function/Enter pedal

4) Blackout button: to cut all output. 14) Music/Auto/Black Out pedal

5) Red control 15) Midi

6) Green control 16) Audio Line Input

7) Blue control 17) DMX Output

8) Master control 18) DMX Polarity Switch

9) Audio sensitivity control 19) Power input DC12V/500mA

10) Mode/Channel Patch Foot pedal 20) Power On/Off

Blackout button 10 sec return to factory default setting; everything will be deleted

Blackout pedal 3 sec blackout

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Remove all packing materials from the LED-Foot 4. Check that all foam and plastic padding is removed.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

1. Scenes

1.1 Program Scene

1. To enter the Program Mode, press and hold Record button (2) for 3 seconds, the record LED will light

up red.

2. To select the SCENE mode, press the Mode pedal (10). The LED display above the Mode pedal (10)

will show “SCENE”.

3. Use the UP and DOWN pedals (11+12) to select the scene you want to program.

4. Select a Fixture

Press a Fixture button (1) to select the fixture you want to set the DMX value for. When the fixture LED is

ON, the DMX values can be changed.

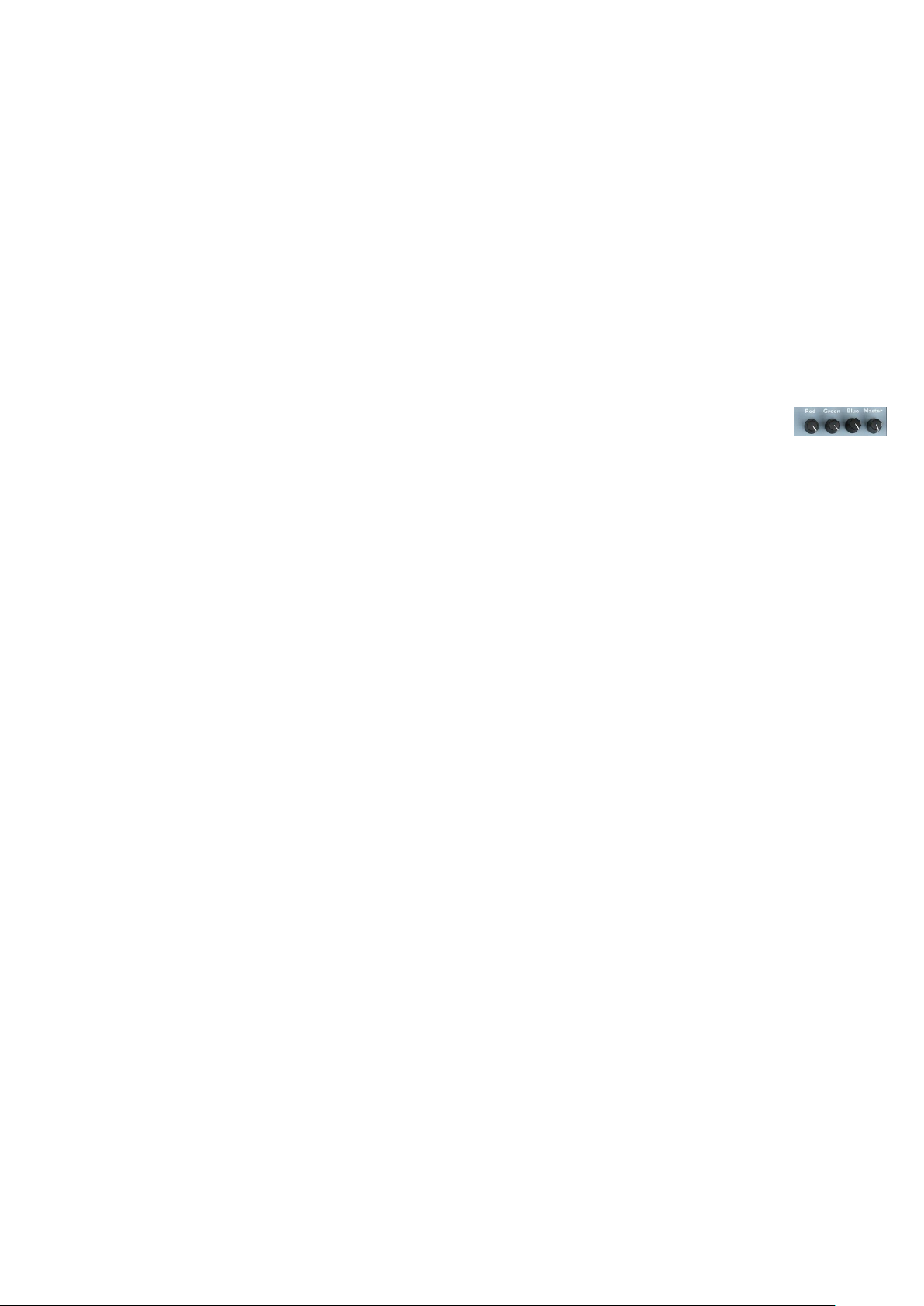

5. If you want to change the DMX values, use the rotary controls RED, GREEN, BLUE and MASTER.

6. To deselect a Fixture, press the specific Fixture button (1) to dim that fixture LED. When the LED is OFF,

this means the fixture is deselected.

7. Repeat step 5 - step 7 to set the DMX values for other fixtures.

8. To save the scene, press the Enter pedal (13). All LEDs will flash 3 times

9. To program other scenes, repeat step 3 - step 8 until you have completed your desired scenes.

10.If you want to exit program mode, press and hold the Record button (2) for 3 seconds, the record LED

will dim.

1.2 Playback Scene

1. To select the SCENE mode, press the Mode pedal (10) to select the SCENE mode. The LED display

above the Mode pedal (10) will show “SCENE”.

2. Press the FUNCTION pedal (13) to select the speed time setting mode. The LED display above the UP

and DOWN pedals (11+12) will show “SPEED 01”.

You can choose between SPEED 00 (slow)- SPEED 16 (fast). Speed 0 = hold scene

3. Press the UP and DOWN pedals (11+12) to set the desired speed time.

4. Press the FUNCTION pedal (13) to select the fade time setting mode. The LED display above the UP

and DOWN pedals (11+12) will show “FADE 01”.

You can choose between FADE 01-FADE 16.

5. Press the UP and DOWN pedals (11+12) to set the fade time.

1.3 Music or Auto mode

1. Press the MUSIC/AUTO/BLACKOUT pedal (14) to set the LED Foot-4 to Music or Auto Mode.

2. Blackout Mode: Press and hold the MUSIC/AUTO/BLACKOUT pedal (14) for 3 seconds to go to

blackout Mode.

3. To exit Blackout Mode, press the MUSIC/AUTO/BLACKOUT pedal (14) and your scene will run again.

1.4 Delete Scene

1. Enter Program Mode, press and hold the Record button (2) for 3 seconds, the record LED will light up

red.

2. Select the SCENE mode by pressing the Mode pedal (10). The LED display above the Mode pedal

(10) will show “SCENE”

3. Use the UP and DOWN pedals (11+12) to select the scene you want to delete.

4. To enter Modify Mode, press and hold the Patch button (3) for 3 seconds and the PATCH LED will start

flashing red.

5. Press the Enter pedal (13) to confirm. All LEDs will flash 3 times and the scene is deleted.

6. To delete other scenes repeat step 2 - step 5.

7. If you have deleted your scenes and you want to exit program mode, press and hold the Patch

button (3) for 3 seconds to leave the Modify Mode.

8. To exit program mode, press and hold the Record button (2) for 3 seconds, the record LED will dim.

Table des matières

Autres manuels Show Tec Accessoires

Show Tec

Show Tec 30235 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
