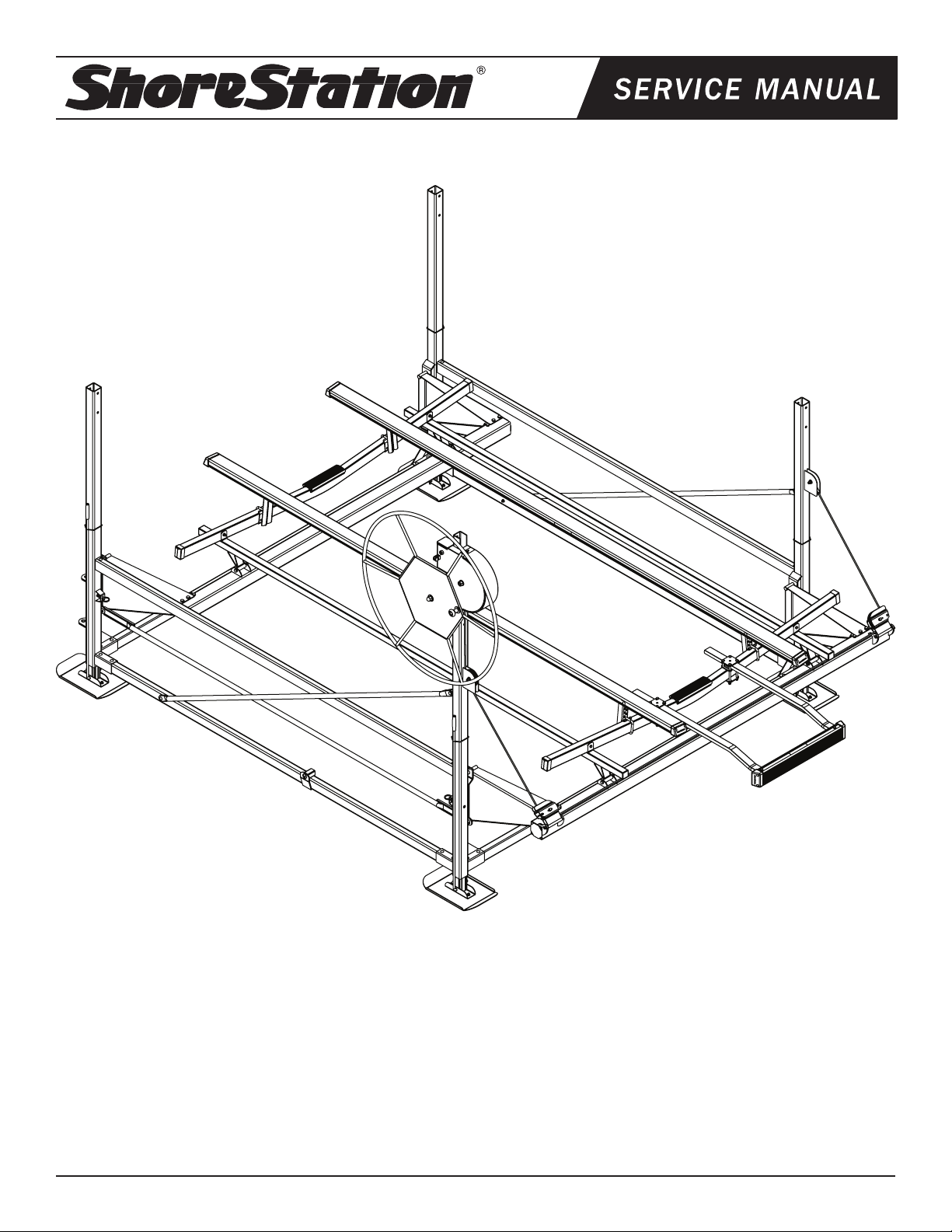

ShoreStation SSV45120 Manuel utilisateur
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003680
6/12/07
SSV45120
4500 lb. Steel Hoist - White

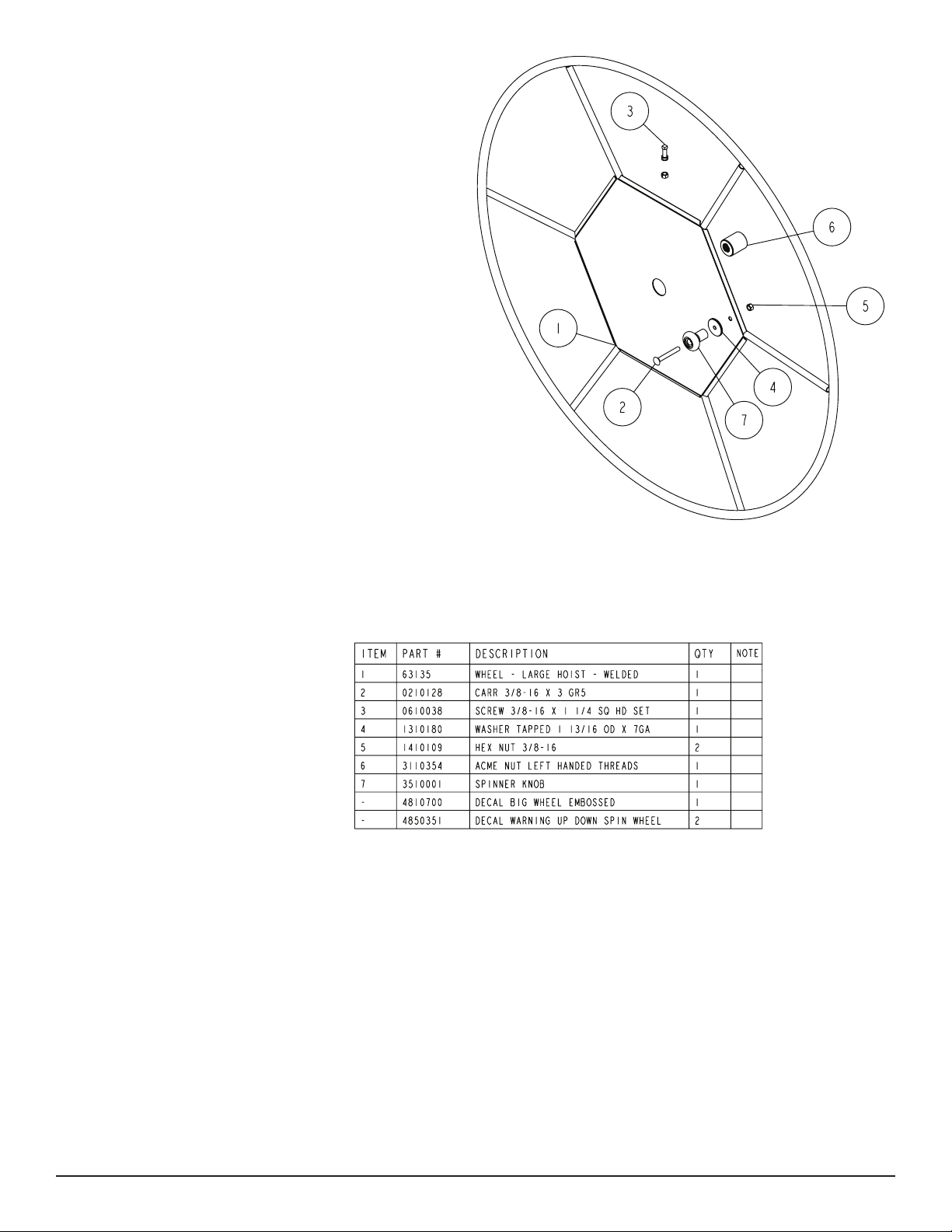

6243601 Big Wheel - Lift ShoreStation
6837201 Hardware Box - SSV45120 Hoist
6915401 Hoist Parts Bundle - 45120
Tools Required:
9/16” Wrench / Sprocket w/Ratchet
3/4” Wrench / Sprocket w/Ratchet
15/16” Wrench / Sprocket w/Ratchet
7” Side Cutter
Tape Measure (Bunk Adjustment)
NOTE: When referencing the front of hoist, this represents the winch end. When referencing the hoist end, this represents opposite of
the winch end. Which side is also referred to the right side of the hoist.

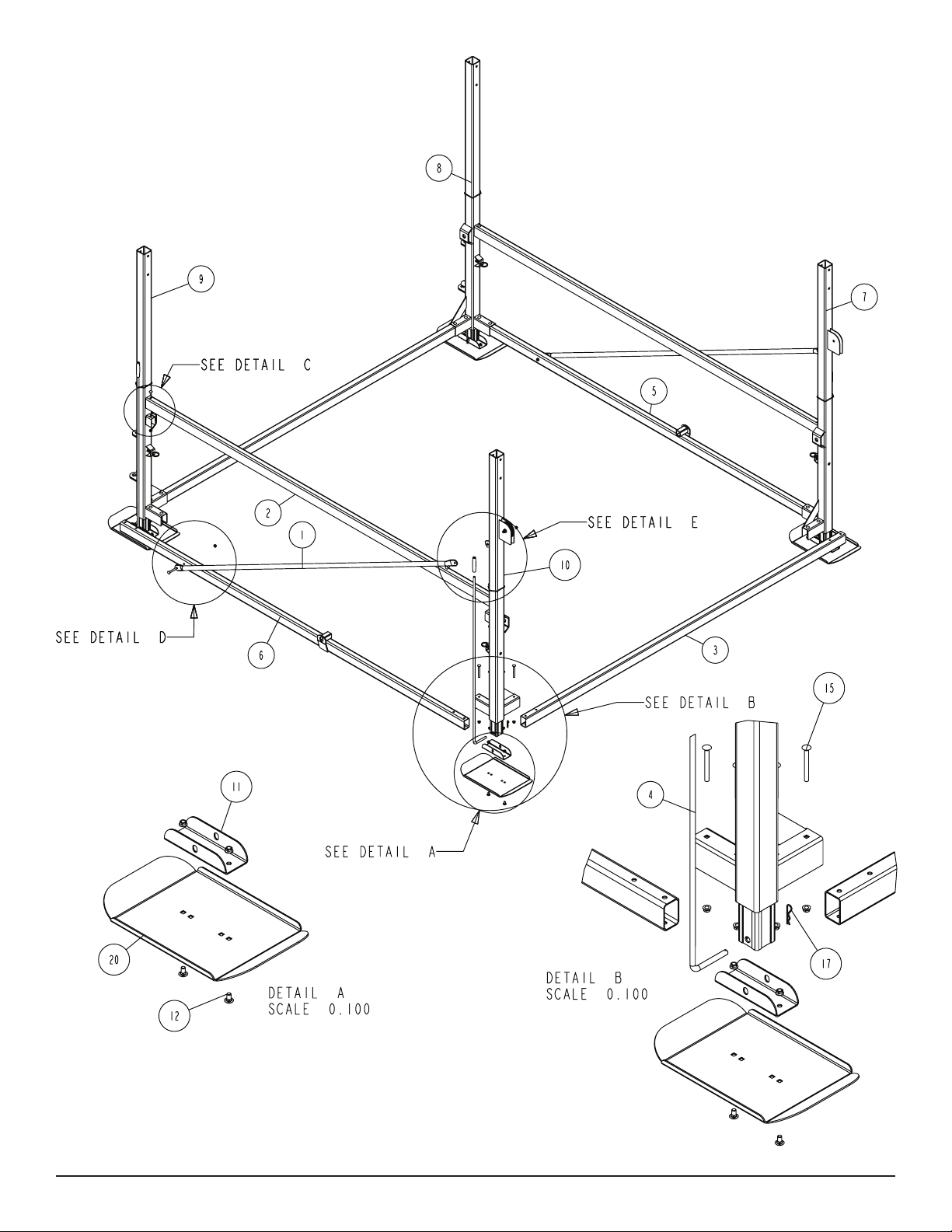

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003680
06/12/07

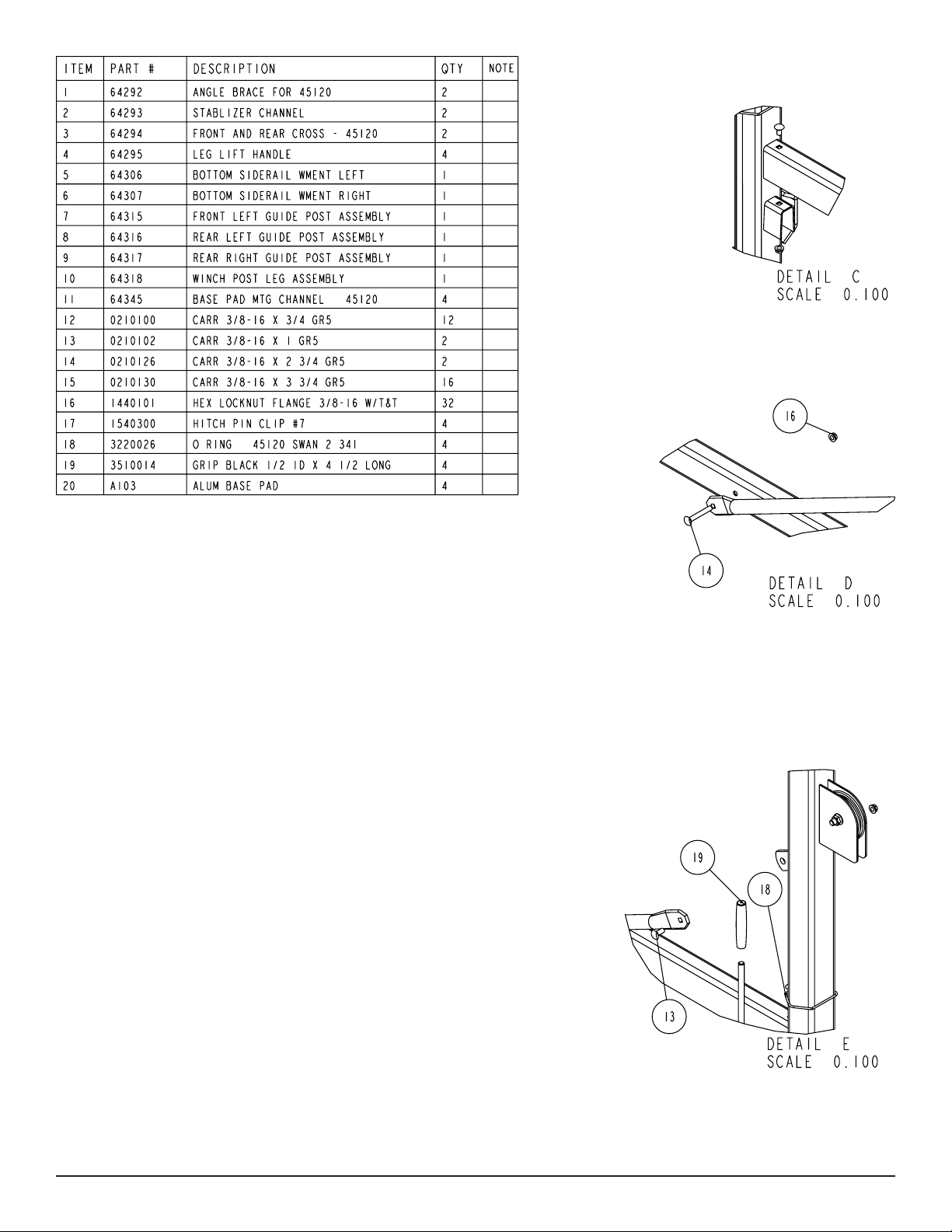

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003680
6/12/07

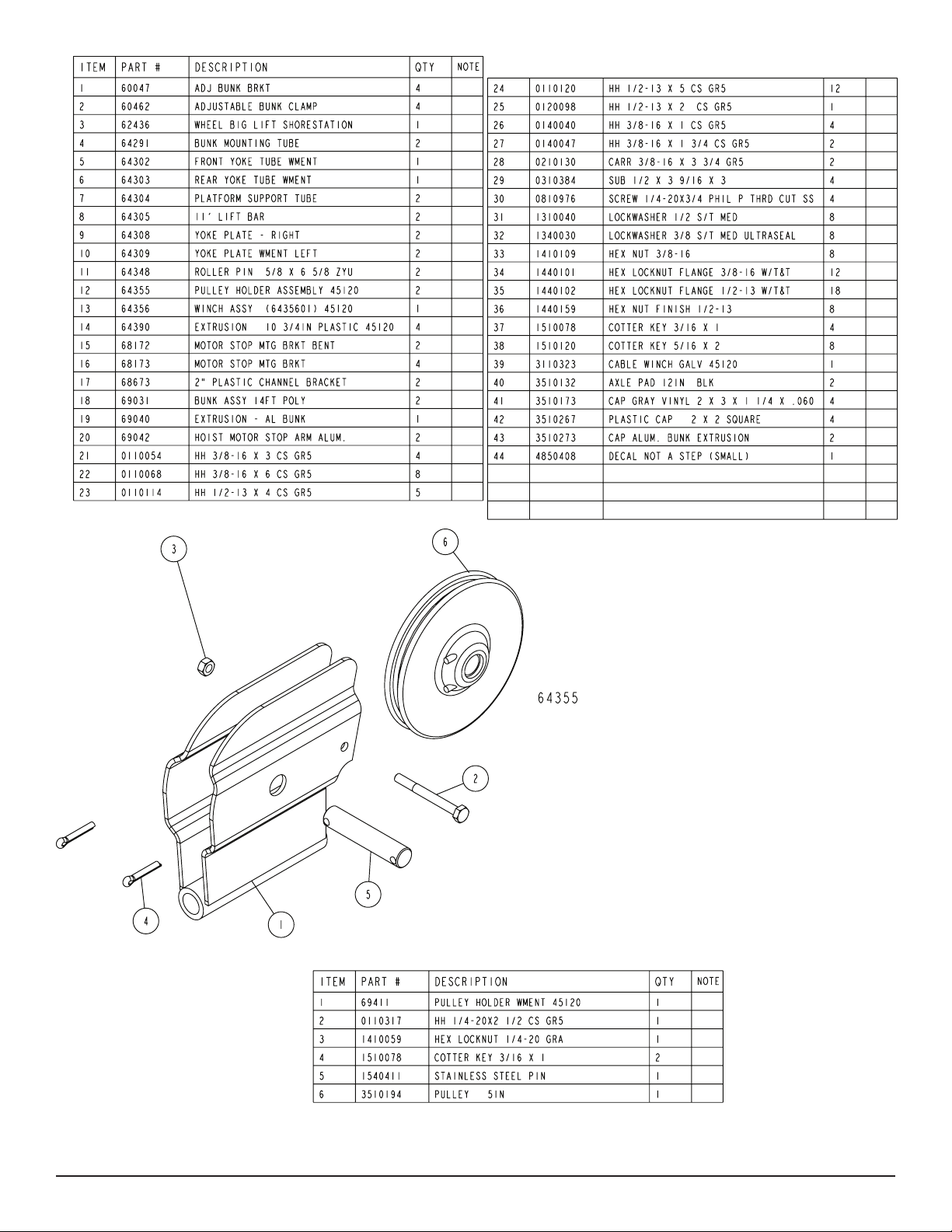

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003680
06/12/07

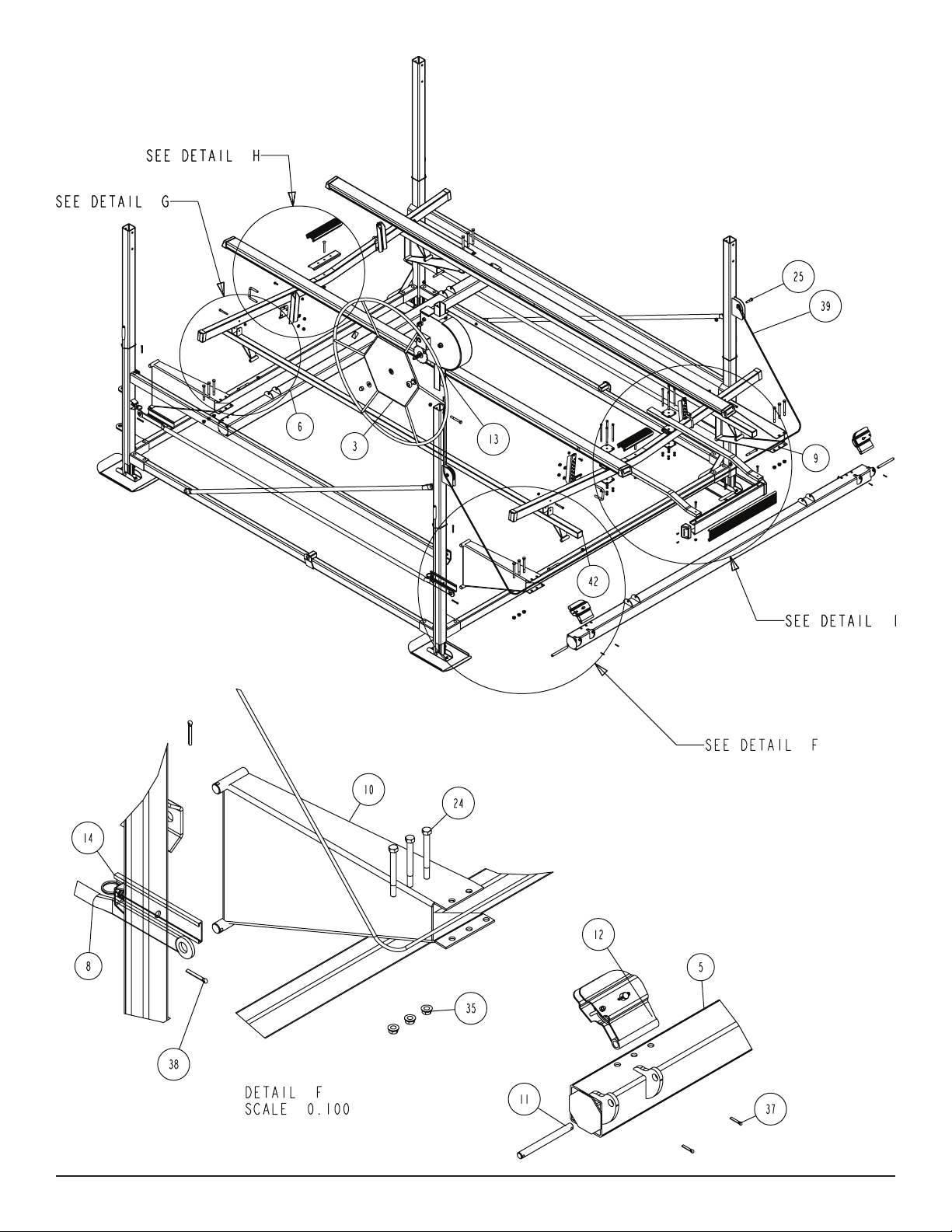

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003680
6/12/07

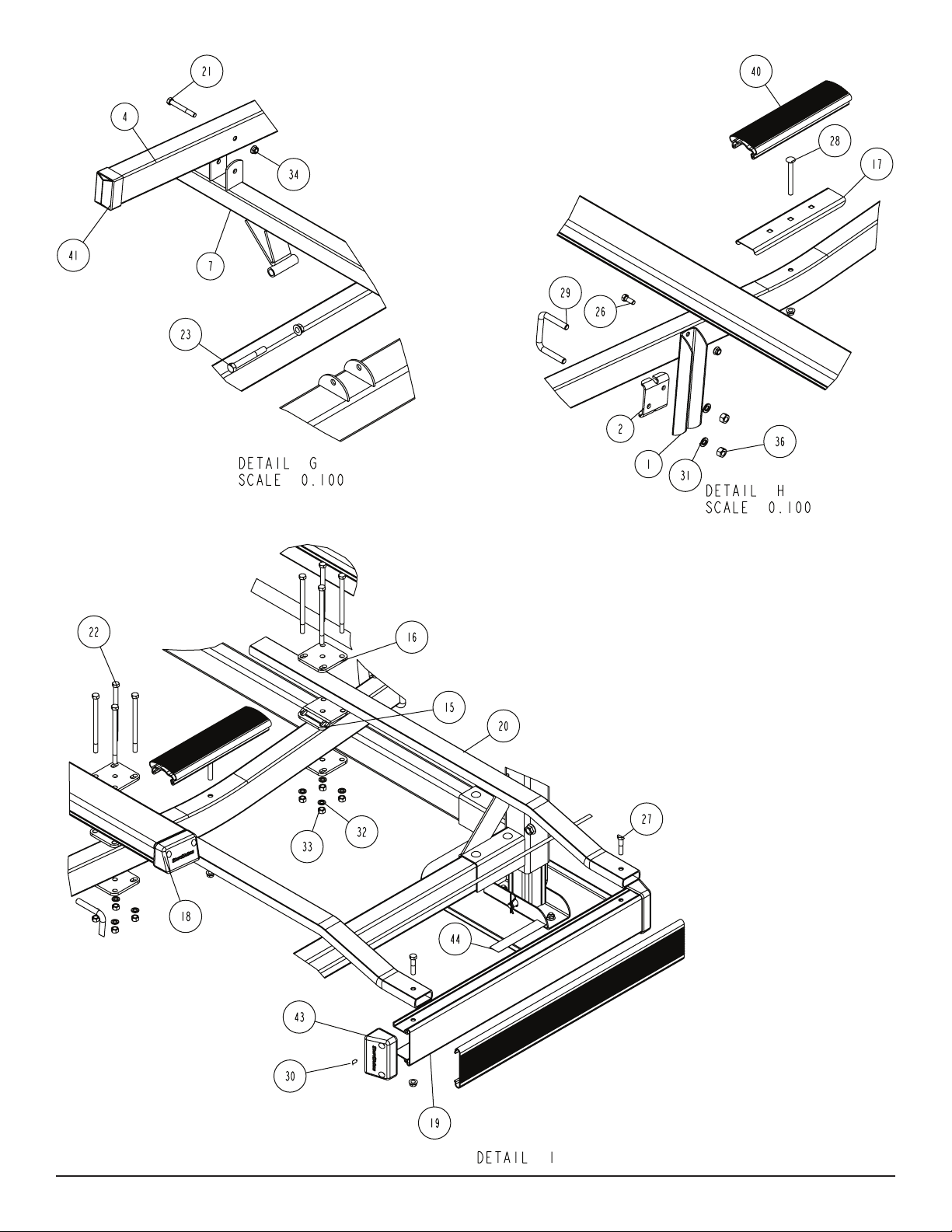

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003680
06/12/07

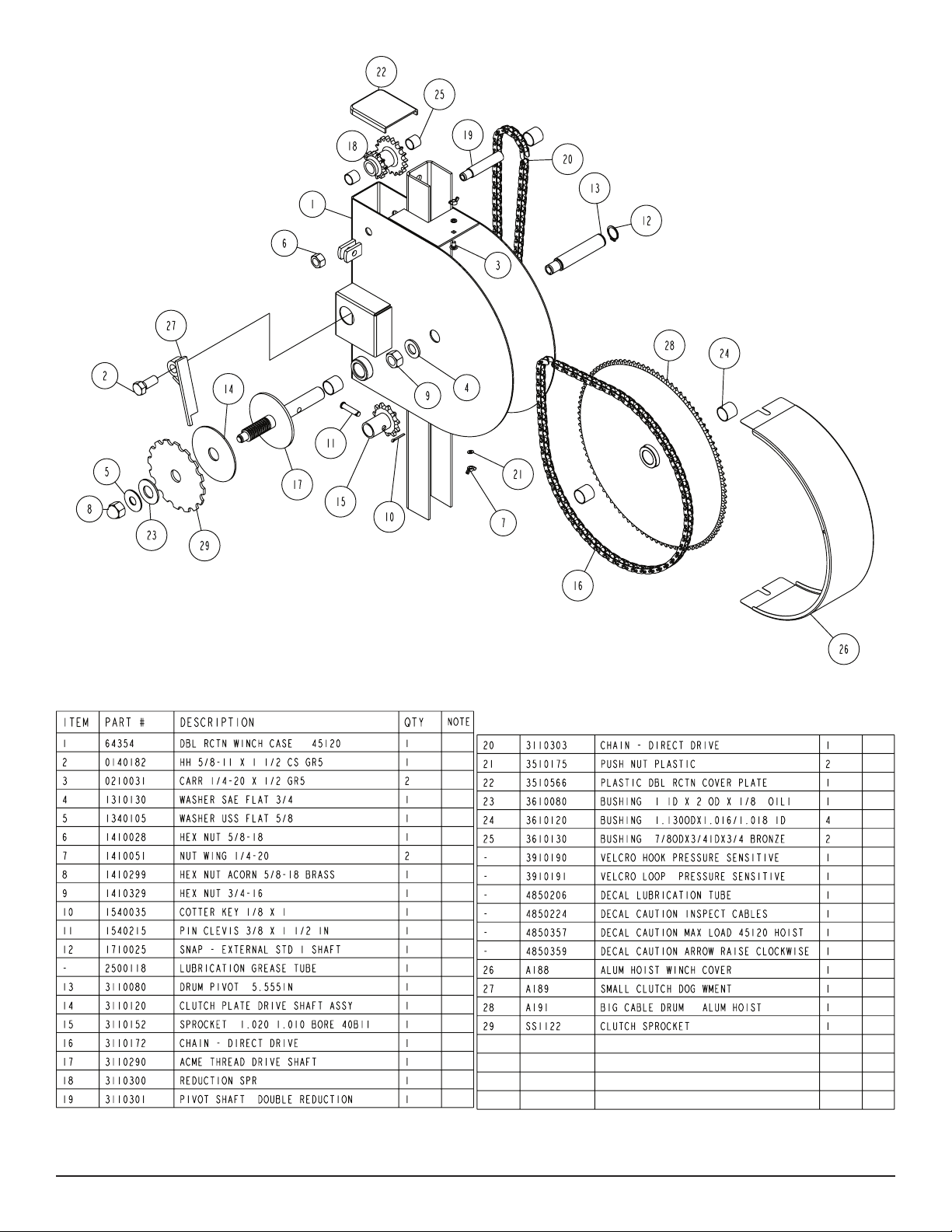

Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003680
6/12/07
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003680
06/12/07

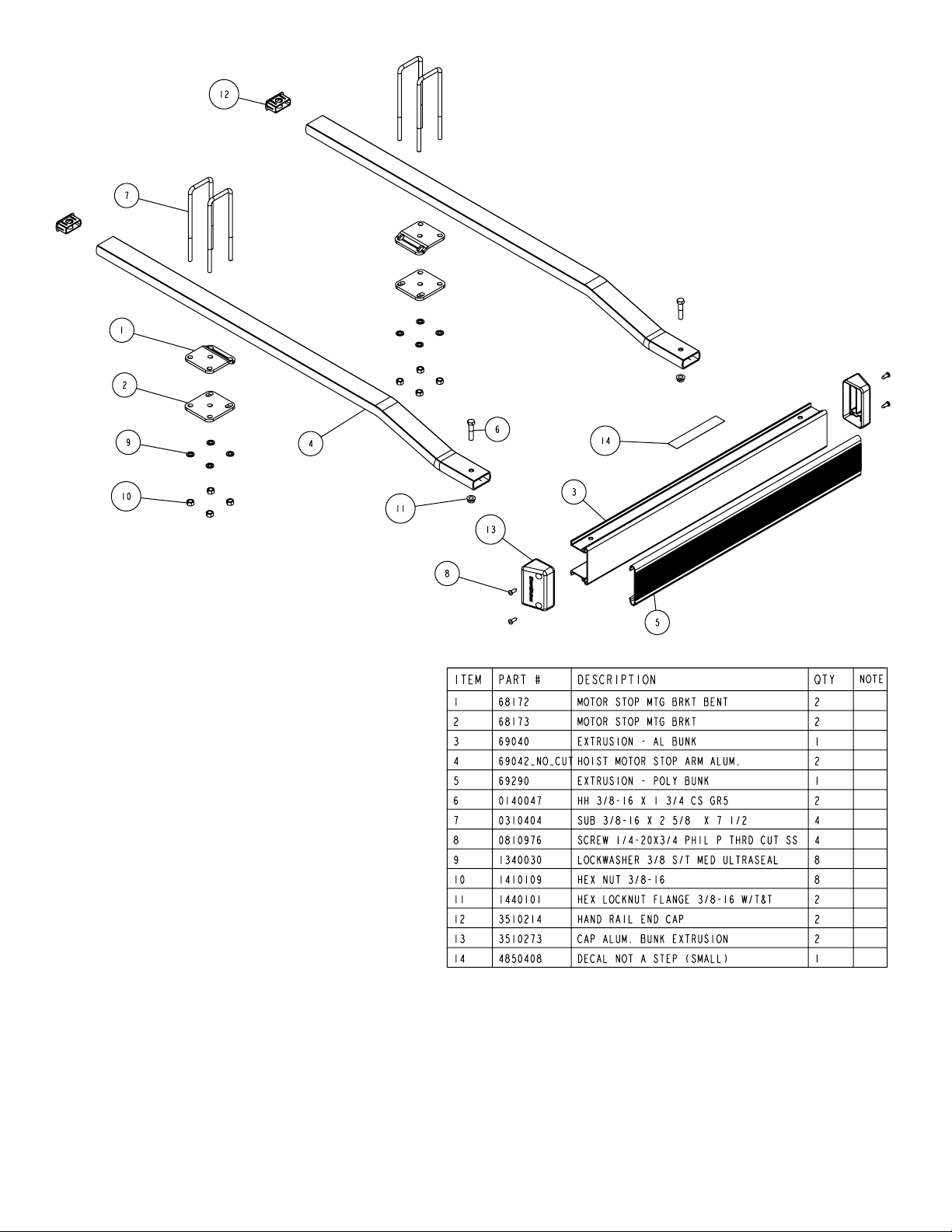

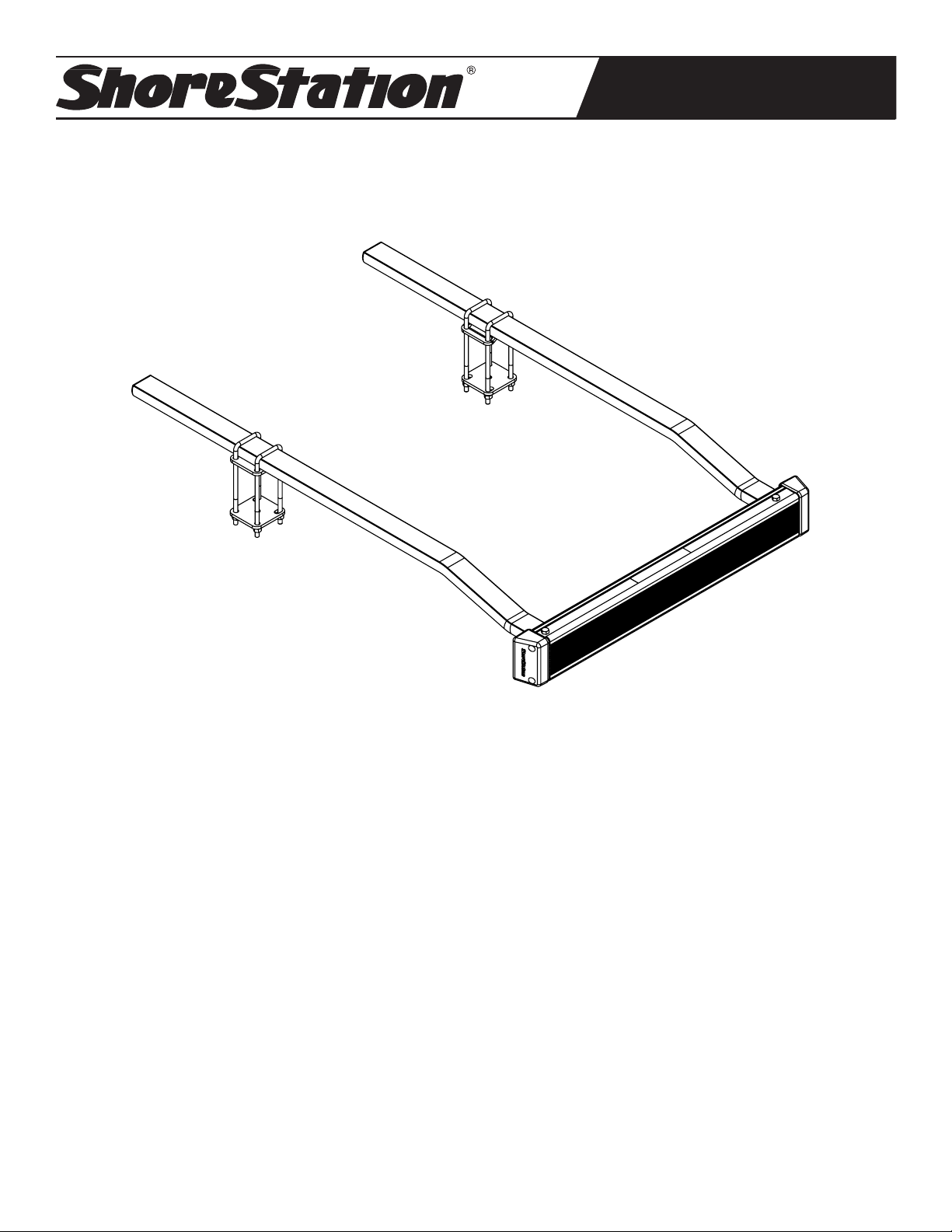

ACCESSORY
HA0024
Motor Stop Bundle for 5” V-Frame Hoists
(V30108, V30120, V40108, V40120, V50120, V60132)
Assembly Instructions
1. Brake the bundle and sort all parts and hardware by
size.
2. Locate the two motor stop mounting arms (Item #4) and
the motor stop assembly that is pre-assembled at the
factory.
3. Note that the aluminum extrusion in the motor stop
assembly has two holes pre-drilled in one leg of the
extrusion. Position the motor stop assembly so that the
drilled leg is to the top as shown. Locate a 3/8” x 1 ¾” hex
bolt and drop it into the hole in the top leg of the aluminum
extrusion. Position the motor stop mounting arm as shown
so that it is on the bottom side of the top leg of the
aluminum extrusion. Align the hole in the end of the
motor stop mounting arm with the bolt just installed. Insert
the bolt through the hole in the motor stop mounting arm.
Secure with a 3/8” flange lock nut. Tighten. Tap the black
plastic caps into the other end of the motor stop mounting
arms.
4. Repeat step three on the remaining motor stop mounting
arm.
Installation
5. Locate the two hoist motor stop U-bolt brackets with the
offset (Item #1) and position them as shown in the
diagram on the top side of the hoist platform so they are
spaced correctly to fit the motor stop assembly. The offset
must be placed as shown to compensate for the V-shape
in the platform.
6. Place the motor stop assembly on the two hoist motor
stop U-bolt brackets with offset just positioned. Drop the
3/8” x 2 5/8” x 7 ½” U-bolts over the motor stop mounting
arms, then down through the holes provided in the motor
stop U-bolt brackets with the offset.
7. Push the U-bolts all the way down until the tops of the
U-bolts are resting on the motor stop mounting arms.
Place a straight motor stop U-bolt bracket on the U-bolt
legs on the bottom side of the platform. Secure in place
with 3/8” lock washers and hex nuts. Hand tighten only at
this point.
8. Repeat steps 5, 6 and 7 on the other motor stop mounting
arm.
Adjustment
Position the hoist motor stop assembly on the hoist so it
is centered side to side on the hoist platform. Changing
the motor stop location front to rear is accomplished by
sliding the straight portion of the motor stop arm through
the U-bolts. This allows you to change the motor stop
location to best position your boat on the hoist. Once the
assembly is in the proper position, tighten the nuts on the
U-bolts.
Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003504
REV A 6/22/06
