Shoremaster SLIDE OFF-DECK Mode d’emploi
Phone: 218-739-4641
Fax: 218-739-4008
www.shoremaster.com
SLIDE OFF-DECK:
Instructions and Safety Tips
CAUTION - PUT SAFETY FIRST
Before attempting to install or use this slide, study and fully understand the proper operating
procedures and safety precautions outlined in this owner's manual.
NOT COMPLYING WITH THE PROCEDURES AND PRECAUTIONS OUTLINED IN THIS
MANUAL WILL INVALIDATE THE WARRANTY AND MAY RESULT IN PERSONAL INJURY OR
DEATH.
If you have any questions about assembly, installation, use or suitability of this product, contact
an authorized dealer or ShoreMaster directly at 1-800-328-8945.
1.
2.
3.
1
26
1 1 230006520 SLIDE LADDER
2 1 230006530 SLIDE PIVOT
3 1 230006550 SLIDE BASE FRONT
4 1 230006540 SLIDE LADDER BASE
51008006560 BOTTOM TUBE 116.5
6 1 LINDSLIDE POLY SLIDE
71WSBB00001 BOLT BAG SLIDE OFF DECK
7.1 4B380RGNUT NUT 3/8 BRASS
7.2 8B140RGNUT NUT 1/4 BRASS
7.4 8MS140114B BOLT 1/4 X 1.25
7.5 2MS380114B BOLT 3/8 X 1.25
7.6 2MS380212B BOLT 3/8 X 2.5
7.7 8S140LWSHR WASHER LOCK 1/4
7.8 16 S140WASHR WASHER FLAT 1/4
7.9 4S380LWSHR WASHER LOCK 3/8
7.10 8S380WASHR WASHER FLAT 3/8
9 4 BLUECAP20 BLUE CAP 20
10 2BLUECAP21 BLUE CAP 21

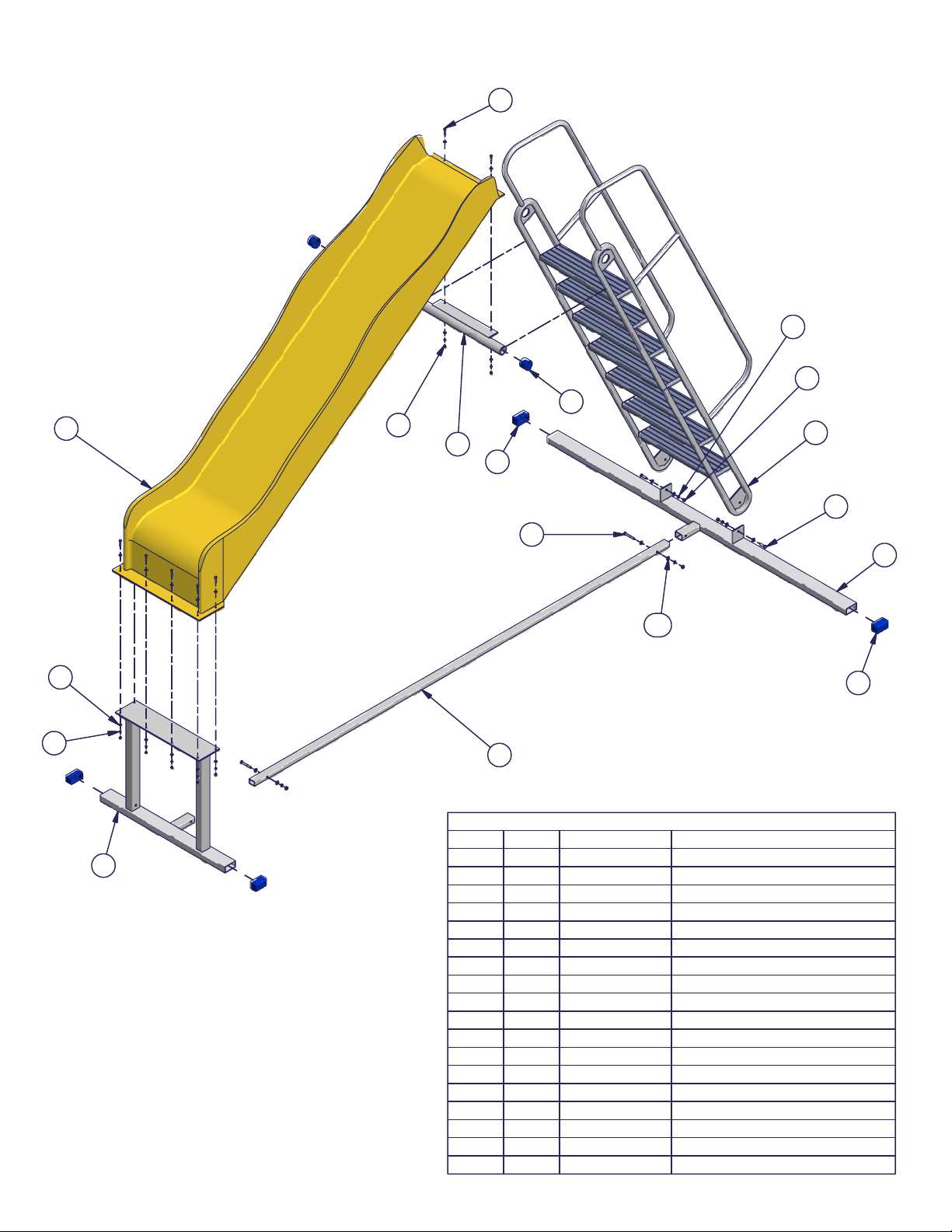

Parts List
ITEM QTY PART NUMBER DESCRIPTION
4
7.10
7.5
7.6
1
7.1
7.9
7.4
7.2
2
6
7.8
3
7.7 5
SLIDE -OFF DECK
9
10
9
26
DETAIL A
DETAIL A
DETAIL A
DETAIL A
A
A

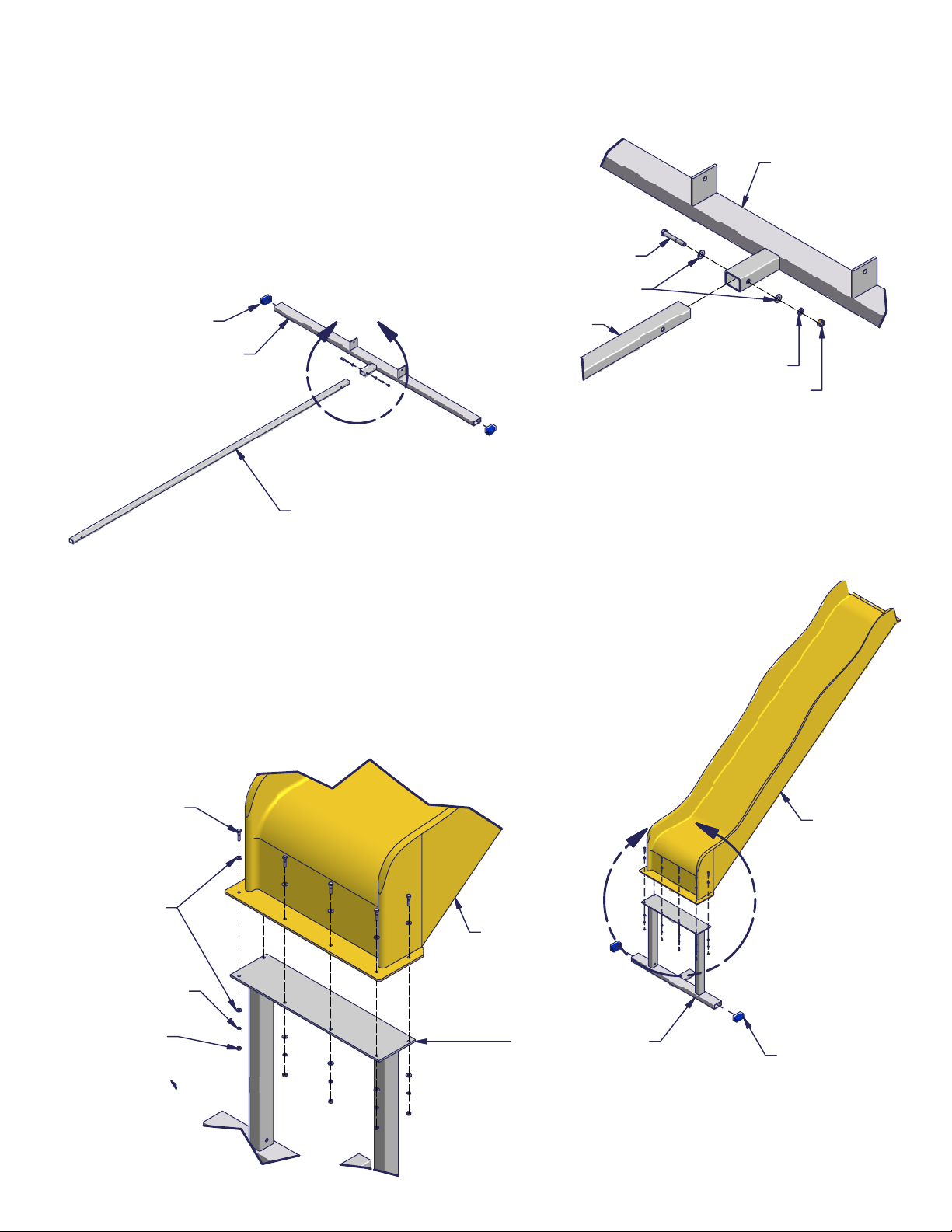

STEP 1
Slide one Blue Cap 20 on each side of the Ladder Base
as shown.
Attach the Bottom Beam 116.5 to the Ladder Base with
one Bolt 3/8 x 2.5, two Washers Flat 3/8 one Washer
Lock 3/8 and one Nut 3/8 Brass - as shown in Detail "A."
Bottom Beam 116.5
Blue Cap 20
Ladder Base
Ladder Base
Bolt 3/8 x 2.5
Washer Flat 3/8
Washer Lock 3/8
Nut 3/8 Brass
Bottom Beam 116.5
STEP 2
Slide one Blue Cap 20 on each side of the Slide Base Front - as
shown.
Attach the Poly Slide to the Slide Base Front with six Bolts 1/4 x
1.25, twelve Washers Flat 1/4, six Washers Lock 1/4, and six Nuts
1/4 Brass - as shown in Detail "A."
Poly Slide
Blue Cap 20
Slide Base Front
Poly Slide
Bolt 1/4 x 1.25
Washer Flat
1/4 x 1.25
Washer Lock 1/4
Nut 1/4 Brass
3
26
DETAIL A
DETAIL A
DETAIL B
DETAIL B
DETAIL A
DETAIL A
A
B
A

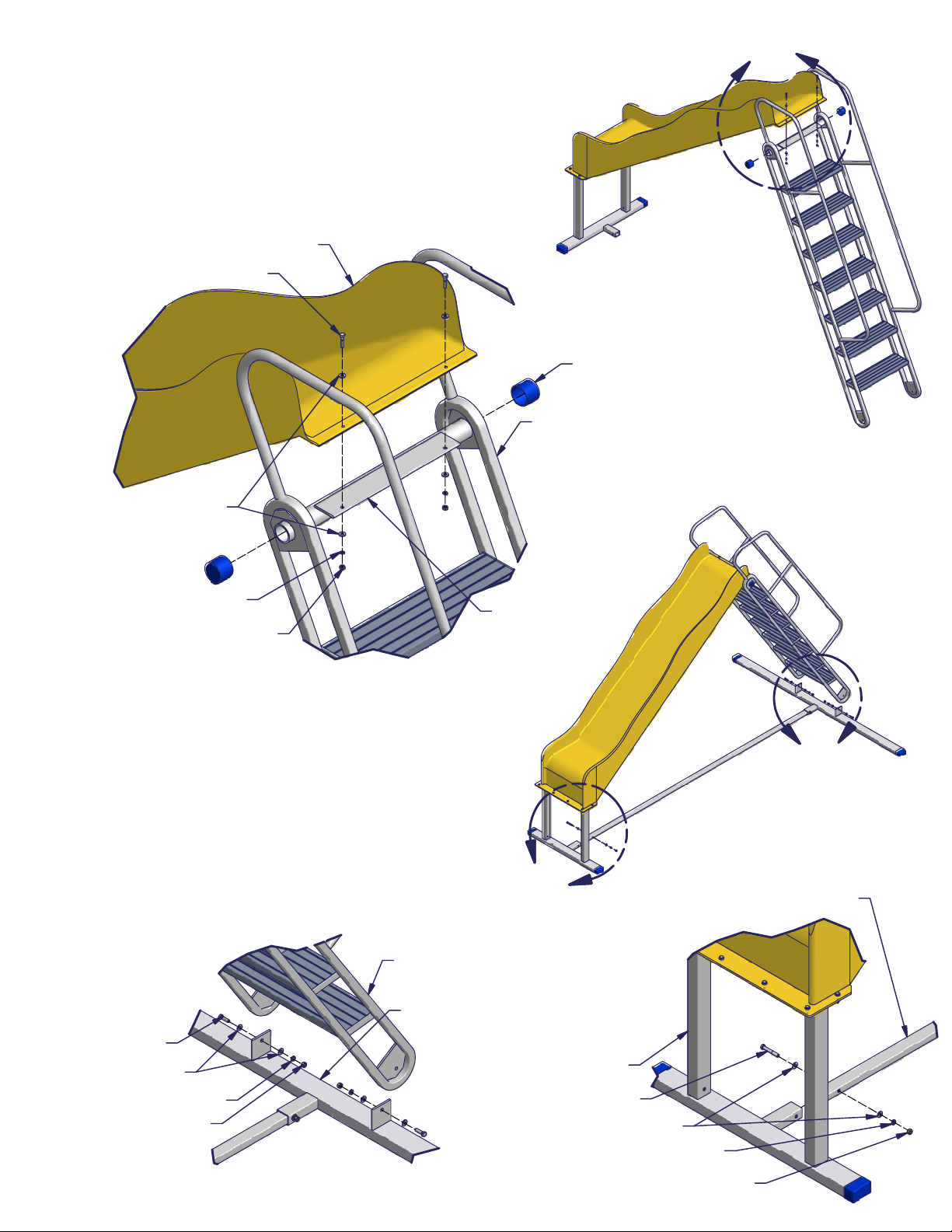

STEP 3
Insert the Slide Pivot into the top of the Slide Ladder.
Insert one Blue Cap 21 on each side of the Slide Pivot -
as shown in Detail "A."
Attach the Poly Slide to the Slide Pivot with two Bolts 1/4
x 1.25, four Washers Flat 1/4, two Washers Lock 1/4 and
two Nuts 3/8 Brass - as shown in Detail "A."
Poly Slide
Slide Ladder
Slide Pivot
Bolt 1/4 x 1.25
Washer Flat 1/4
Washer Lock 1/4
Nut 1/4 Brass
STEP 4
Attach the Slide Ladder to the Slide Ladder Base with
two Bolts 3/8 x 1.25, four Washers Flat 3/8, two Washer
Lock 3/8 and two Nuts 3/8 Brass - as shown in Detail
"A."
Connect the Bottom Tube 116.5 to the Slide Base Front
with one Bolt 3/8 x 2.5, two Washers Flat 3/8 one
Washer Lock 3/8 and one Nut 3/8 Brass - as shown in
Detail "B."
Slide Ladder
Slide Ladder Base
Bolt 3/8 x 1.25
Washer Flat 3/8
Washer Lock 3/8
Nut 3/8 Brass
Slide Base Front
Bottom Tube 116.5
Bolt 3/8 x 2.5
Washer Flat 3/8
Washer Lock 3/8
Nut 3/8 Brass
4
Blue Cap 21
26
