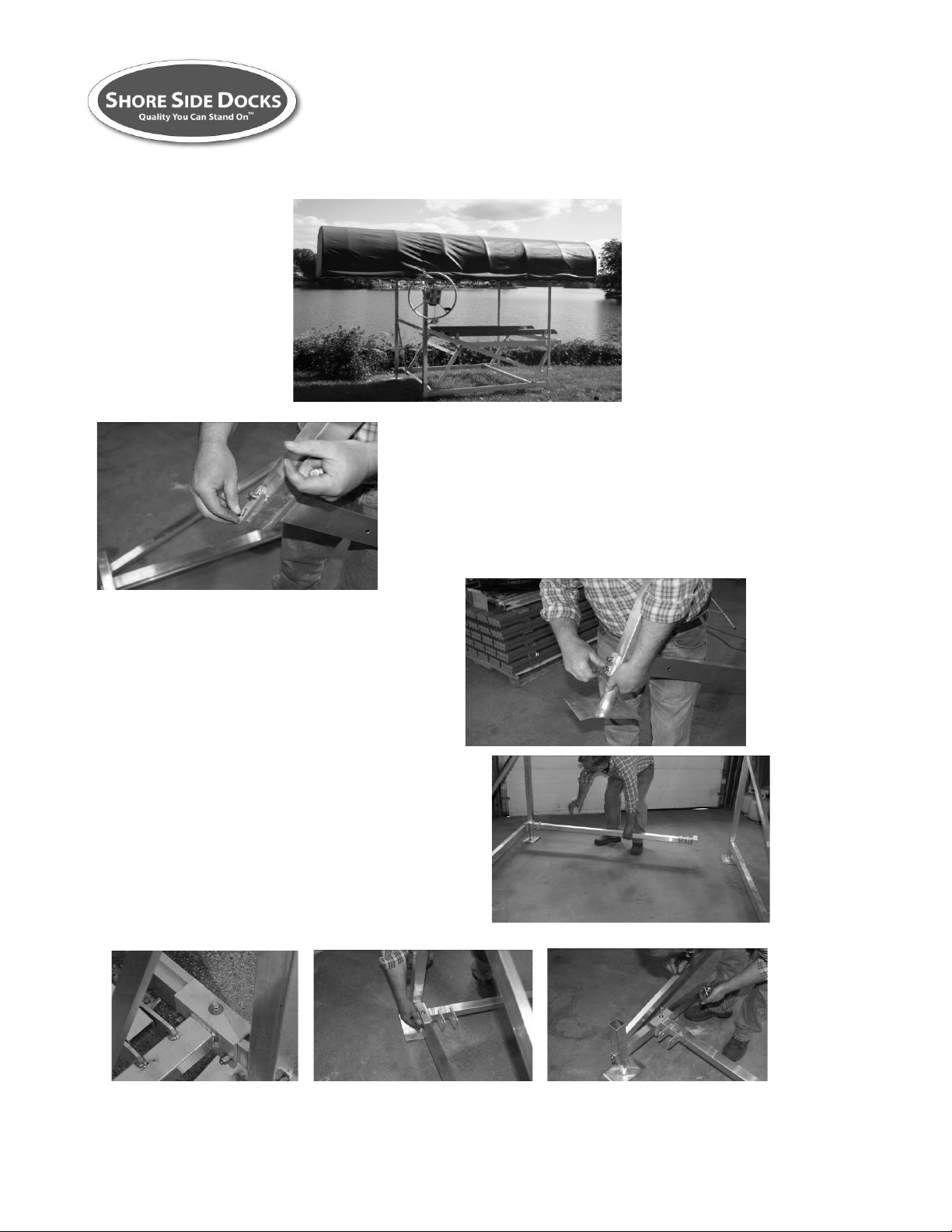

1200# PWC LIFT DIRECTIONS

LEG KIT

2 welded side frames

4 12" legs

8 3/8" x 1" hex head bolt

8 3/8" square galv. Nut

Slide legs into the leg pockets at bottom of frame.

Using the sq. nut and 1" bolts, slide

nuts into the channel and tighten

leg, measure legs so frames sit level

CROSS BAR

2 62" cross bar

8 3/8" x 2 1/2" hex head bolt

4 3/8" x 1 1/ 4" hex head bolt

12 3/8" brass nylock

20 3/8" flat washer

MAKE SURE THE TABS ON THE CROSS BAR ARE

FACING THE REAR OF THE LIFT

Position frames across from each other about 5' apart.

Slide 1 1/4" bolts into trac at each end, between the 3/8"

holes drilled in the frame. Place cross bars over the 1 1/4"

bolts and line up the holes on the side of the frame, insert

2 1/2" bolts thru holes. Tighten after all the bolts are in.

508-248-9933

R J INDUSTRIES

SHORESIDEDOCKS.COM

10/26/2021

FRONT BRACE

2 2" x 1" x 36" angle brace Position angle brace with holes in the front cross bar.

4 3/8" x 2 3/4" hex head bolts Insert bolts, repeat w/ holes in the side of the front

4 3/8" brass nylock 5' uprights. You may have to push or pull uprights

8 3/8" washer to get the holes to align.

LIFTING ARMS & BED

1 lifting bed

2 lifting legs

8 white 1/2" bushings

4 1/2" x 4" hex head bolt ( bottom lifting legs )

4 1/2" x 5" hex head bolt ( top lifting legs )

8 1/2" brass nylock

16 1/2" washer

Insert black bushings into lifting arms ( 8 per )

Place lifting arms, offset 3/8" hole facing the front of

the lift, between lifting tabs on cross

bar and insert 1/2" x 4" bolt, start nuts.

Take lifting bed and position so the lifting tabs

are facing the 5' uprights ( front ). Pull lifting arms

up to the bed between lifting tabs and insert 1/2" x

5" thru outside of frame and thru lifting legs. When

lifting bed is assembled tighten all bolts.

508-248-9933

R J INDUSTRIES

SHORESIDEDOCKS.COM

10/26/2021

PULLEY & WINCH

2 pulley block w/ 2 links Bolt pulleys w/ 2 chain links to the outside of the lifting

1 pulley block w/ 3 links arms using 3/8" x 3" bolts w/ larger washers on each

4 3/8" x 3" hex head bolt side of the chain. Bolt winch on the desired side of lift

4 3/8" brass nylock using 3/8" x 2 3/4" bolts, attach pulley w/ 3 links to the

12 3/8" washer outside of post 3/8"x3" bolt & large washer on each side

1 1200# D/L winch of chain. Bolt cable to opposite side w/ 3/8" x 3" bolt

1 19 X 7 s.s. 3/16 cable, 15' and large washer on the outside. Feed cable thru pulleys

2 3/8" x 2 3/4" hex head bolt up to the winch and attach to winch according to the

2 3/8" brass nylock winch directions. Spin winch wheel onto winch, holding

4 3/8" washer sprocket on the winch with a stop, so the wheel goes on

1 24" winch wheel all the way. Insert 5/16" x 2 machine bolt w/ spacer, 8

1 5/16" x 2 machine bolt 5/16" washers, spring and large washer and tighten.

8 5/16 washers

NOTE:READ WINCH MANUAL FOR PROPER WINCH

1 fender washer

OPERATION AND MAINTENANCE

1 spring, IN WINCH BOX

NOTE: DO NOT OVER TIGHTEN PULLIES!

1 spacer, IN WINCH BOX CHAIN SHOULD MOVE IF FIRMLY PULLED

508-248-9933

R J INDUSTRIES

SHORESIDEDOCKS.COM

10/26/2021

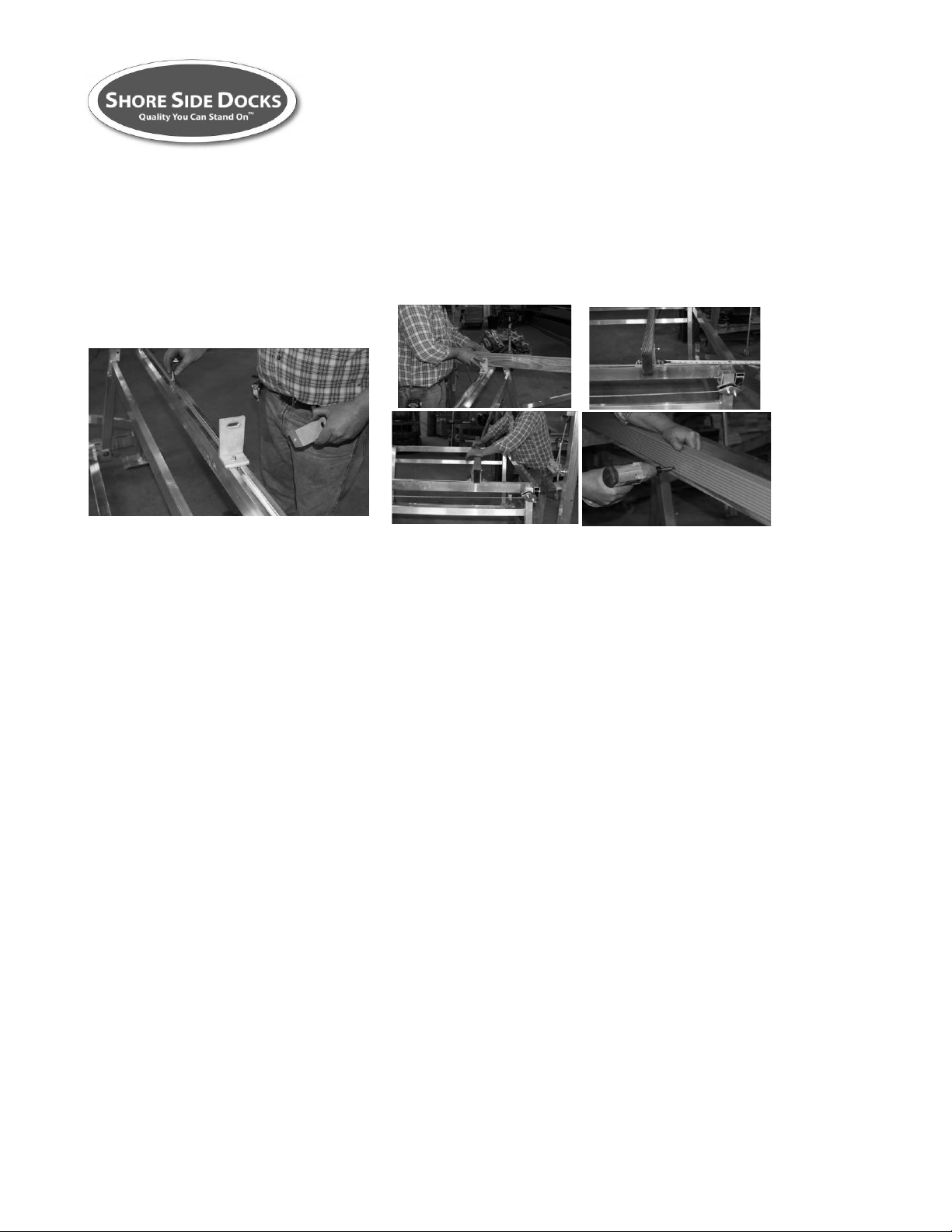

BUNKS

2 6' aluminum bunks

2 6' bunk covers Insert 3/8" x 1 1/4" bolts into trac on top of lifting bed.

8 bunk brackets Place bunk brackets over bolts and start nuts on them.

8 3/8" x 1 1/4" hex head bolts Measure frame side for bunk placement, place bunks

8 3/8" brass nylock between brackets and insert 5/16" x 3" thru predrilled

8 3/8" washers holes in the bunk. Make sure the heads of the bolts

4 5/16" x 3" machine bolts are on the inside of the lift. Slide covers over the bunks

4 5/16" brass nylock and attach w/ 12 x 3/4" s.s. screws.

8 5/16" washer

32 12 x 3/4" s.s. screws

1200# PWC LIFT HARDWARE

LEG KIT WINCH & WHEEL KIT

2 welded side frames 1 1200# D/L winch

4 12" legs 1 19 X 7 s.s. 3/16 cable, 15'

8 3/8" x 1" hex head bolt 2 3/8" x 2 3/4" hex head bolt

8 3/8" square galv. Nut 2 3/8" brass nylock

2 2" x 2" caps 4 3/8" washer

CROSS BAR KIT 1 24" winch wheel

2 62" cross bar 1 5/16" x 2 machine bolt

8 3/8" x 2 1/2" hex head bolt 8 5/16 washers

4 3/8" x 1 1/ 4" hex head bolt 1 5/16 X 1 fender washer

12 3/8" brass nylock 1 spring in winch box

20 3/8" flat washer 1 spacer in winch box

FRONT BRACE KIT 1 spinner konb w/ jam nut

2 2" x 1" x 36" angle brace

BUNK KIT

4 3/8" x 2 3/4" hex head bolts 2 6' aluminum bunks

4 3/8" brass nylock 2 6' bunk covers

8 3/8" washer 8 bunk brackets

LIFTING ARM KIT 8 3/8" x 1 1/4" hex head bolts

8 white 1/2" bushings 8 3/8" brass nylock

4 1/2" x 4" hex head bolt ( bottom lifting legs ) 8 3/8" washers

4 1/2" x 5" hex head bolt ( top lifting legs ) 4 5/16" x 3" machine bolts

8 1/2" brass nylock 4 5/16" brass nylock

16 1/2" washer 8 5/16" washer

PULLEY KIT 32 12 x 3/4" s.s. screws

2 pulley block w/ 2 links

1 pulley block w/ 3 links

4 3/8" x 3" hex head bolt

4 3/8" brass nylock

12 3/8" washer

508-248-9933

R J INDUSTRIES

SHORESIDEDOCKS.COM

10/26/2021
