Shoprider 6Runner 14HD Manuel utilisateur

Mid-wheel Powerchair

USER MANUAL

Model Name :

6Runner 14HD (888WNLLHD)

9/30/2011

Table of Contents

INTRODUCTION ................................................................................. 3

EMI WARNING ....................................................................................4

ELECTROMAGNETIC INTERFERENCE FROM RADIO WAVES ....................4

POWERED CHAIR ELECTROMAGNETIC INTERFERENCE (EMI)................. 5

SAFETY INSTRUCTIONS................................................................6-7

FEATURE GUIDE................................................................................ 8

GETTING TO KNOW YOUR SHOPRIDER………………………………..9-10

THE JOYSTICK CONTROLLER (VR2)......................................................11

LOCKING / UNLOCKING THE JOY STICK CONTROLLER……………………..12

DRIVE/FREEWHEEL MECHANISM..........................................................13

DRIVING YOUR POWERCHAIR .....................................................14

CARING FOR YOUR POWERCHAIR .............................................. 15

GENERAL MAINTENANCE AND LUBRICATION...........................16

BATTERIES AND BATTERY CHARGING..................................17-19

TROUBLESHOOTING ...................................................................... 20

SPECIFICATIONS............................................................................. 21

NOTE ................................................................................................. 22

DISCLAIMER................................................................................23-24

9/30/2011

INTRODUCTION

Congratulations on insisting on the best. Shoprider Powerchairs are the

ultimate combination of style and comfort. The 6Runner features support easy

maneuverability and smooth control for today’s active lifestyle.

The innovative design of the 6Runner includes articulating double frames that

move in any direction. This intelligent feature keeps all 6 wheels on the

ground at all times, even when driving on uneven terrain, hence the name

6Runner. Combine this with the programmable joystick controller, fully

adjustable footplate and arm assemblies, flat-free tires, deluxe (reclining)

captain seat, easy access batteries and quick-change color shrouds. For a

complete powerchair package we know that your 6Runner Powerchair will

provide, many years of mobility, and freedom to go out into the world.

This manual contains important information regarding the safe use of your

Shoprider Powerchair. Please read this manual carefully and thoroughly

before using your Powerchair and make sure you understand all the

instructions.

9/30/2011

EMI WARNING

Electromagnetic Interference (EMI) from Radio Wave Sources

Powered electric chairs may be susceptible to electromagnetic interference,

which is a kind of interfering electromagnetic energy (EM) emitted from sources

such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way

radios and cellular phones. The interference (from radio wave sources) can

cause the power chairs to release its brakes, move by itself or move in

unintended directions. This can also permanently damage the powered chair’s

control system.

The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transceivers (transmitters-receivers) with the antenna

mounted directly on the transmitting unit. Examples include: citizens band

(CB) radios, “walkie talkies”, security, fire and police transceivers, cellular

telephones and other personal communication devices

NOTE: Some cellular telephones and similar devices transmit signals

while they are ON, even when not being used.

2. Medium-Range mobile transceivers, such as those used in police cars, fire

trucks, ambulances and taxis. These usually have the antenna mounted

on the outside of the vehicle.

3. Long-Range transmitters and transceivers, such as commercial broadcast

transmitters (radio and TV broadcast antenna towers) and amateur (HAM)

radios.

NOTE: Other types of hand-held devices, such as cordless phones,

laptop computers, AM/FM radios, TV sets, CD players, cassette players

and small appliances such as electric shavers and hair dryers, so far, as

we know, are not likely to cause problems to your Powerchair.

9/30/2011

Powered Chair Electromagnetic Interference (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM fields from hand-held radio sources

(transceivers) are of special concern. It is possible to unintentionally bring high

levels of EM energy very close to the Powerchair’s control system while using

these devices. This can affect Powerchair movement and braking. Therefore,

the warnings listed below are recommended to prevent possible interference

with the control system of the Powerchair.

WARNINGS

1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens

band (CB) radios, or turn ON personal communication devices, such as cellular

phones, while the Powerchair is turned ON.

2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid

close contact.

3. If unintended movement or brake release occurs, turn the Powerchair OFF

as soon as it is safe.

4. Be aware that adding accessories or components, or modifying the Powerchair,

may make it more susceptible to EMI.

NOTE! There is no easy way to evaluate the overall immunity of the

Powerchair.

5. Report all incidents of unintended movement or braking to the Powerchair

provider, and note whether there are sources of EMI nearby.

9/30/2011

Safety Instructions

1. Do not drive the Powerchair without reading this manual.

2. Do not exceed the safe climbing maximum angle (Fig. 4).

3. Do not use the joystick in an erratic manner when going up or down an

incline.

4. Do not carry passengers or exceed the maximum weight limit (Table 2).

5. Do not turn off the joystick controller by switching the On/Off Button

when moving at any speed. This will bring the electromagnetic brakes on

immediately and could cause damage to the joystick controller.

6. Do not drive over uneven and soft terrain (soft dirt, loose gravel, deep

grass).

7. Do not attempt to mount a curb height above 2 inches.

8. Do not mount or dismount the Powerchair unless the electromagnetic

brakes are engaged and the joystick controller is off.

9. Do not operate the Powerchair if the unit is in freewheel mode.

10. Do not use on the road, except when crossing between sidewalks.

11. Do not sit on the Powerchair when in a vehicle, but transfer to a vehicle

seat.

12. Do not exceed any grade over 6 degrees (10%).

13. Always stop fully before changing forward or reverse direction.

14. Always engage a slow speed when going down gradients (move the

joystick slowly towards center position to reduce the speed).

15. Always approach and climb over curbs at slow speed.

16. Always approach curbs and gradients at 90 degrees.

17. Always use the safety belt.

18. Always keep feet on the footrest while driving.

19. Always make sure the batteries are fully charged before setting out on a

journey.

20. Always charge the Powerchair in a well ventilated area to prevent any

possible risk.

9/30/2011

21. Always check that the drive wheels are engaged. Someone may have

left the Powerchair in freewheel mode.

22. Always reduce your speed when turning sharply.

23. Avoid turning sharply on a slope or gradient.

24. To brake in an emergency simply release the joystick.

25. Always try to find a “dropped curb” or “curb cutout” whenever possible.

26. Always keep your Powerchair properly maintained.

27. Never try to use your Powerchair beyond it’s limitations as described in

this manual.

28. Always put seat in most upright position whenever driving up an incline.

Important Notes

The Shoprider Powerchair is designed to assist in your individual mobility needs.

Any usage outside of the guidelines in this manual may result in damage to the

chair or injury to the user or third party.

Please do not lift the wheelchair by the armrests.

First Time Use

Prior to using your 6Runner Powerchair for the first time, you must charge the

batteries fully (refer to Battery Charging Procedures). Charging may take up to

12 hours. Charging the batteries completely prior to first time use will benefit

battery efficiency and life of batteries.

9/30/2011

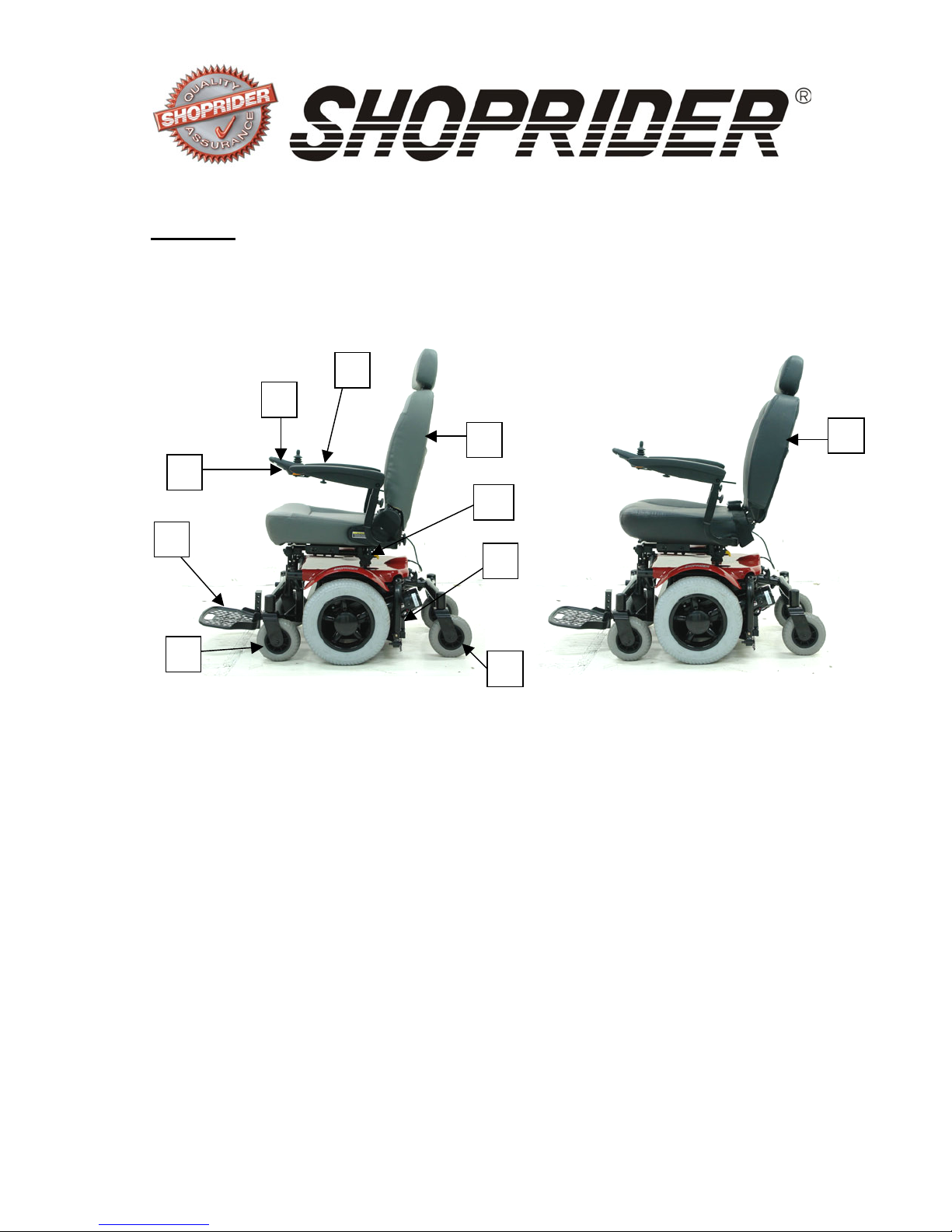

Feature Guide

(1) Removable Armrests with Width, Height & Angle Adjustment (Flips Up for

Easy Sideways Transfer)

(2) Programmable VR2 Joystick Controller with Adjustable speed & Battery

Life Indicator.

(3) Charging Port

(4) 21*21 Deluxe Reclining Captain Seat Deluxe Captain Seat (Option 1)

(5) 23*19.5 Deluxe Wider Captain Seat (Option 2)

(6) Adjustable Length, Height, Angle Foot Plate

(7) Front Castor Assy (7” flat free tire)

(8) Frame Serial Number (13 alphanumeric characters)

(9) Rear Castor Assembly (7” flat free tire)

(10)Adjustable Seat Height

Figure 1

9/30/2011

Getting to Know Your Shoprider Powerchair

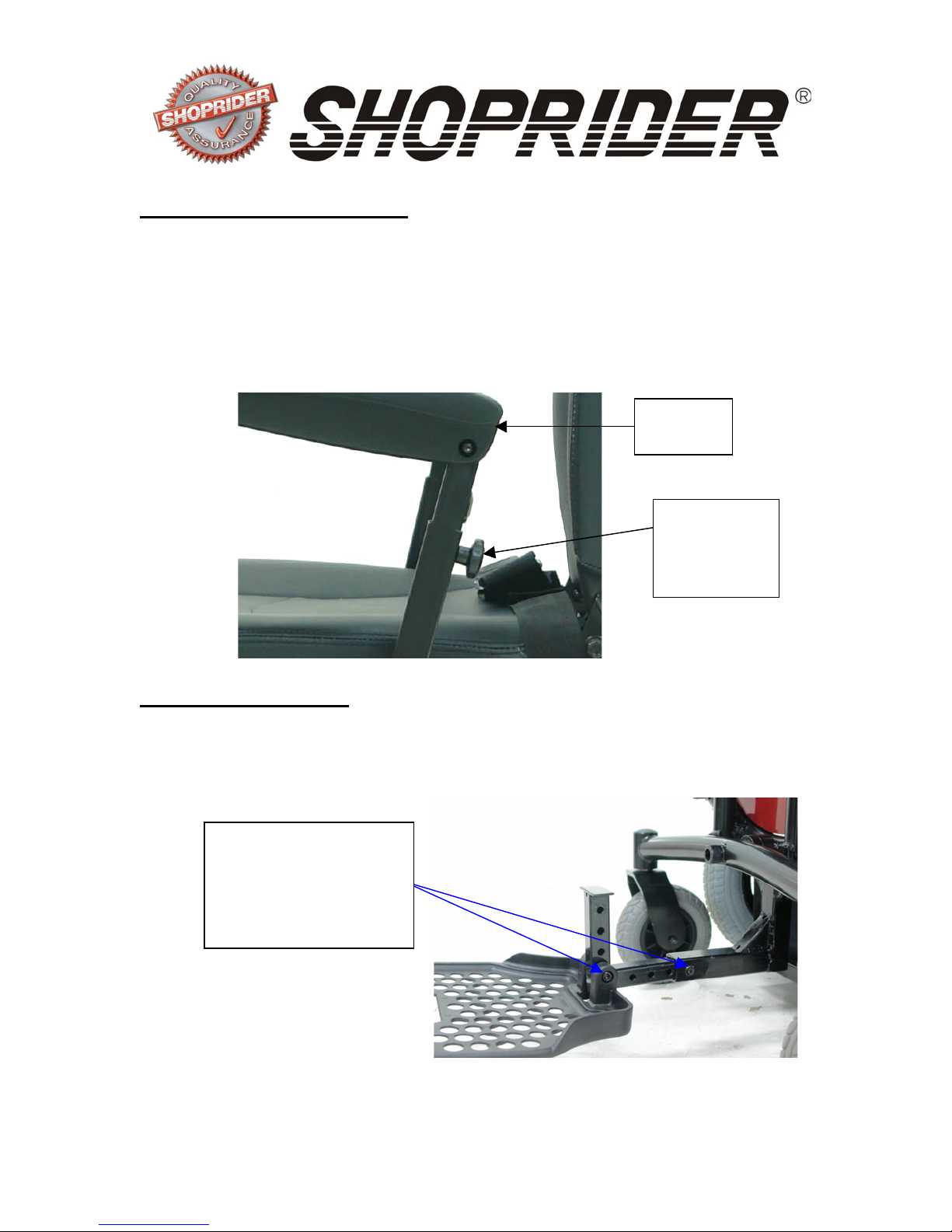

The Seat and Arm Assemblies

The seat is built for comfort, style, and stability. Your seat comes with a reclining

back for comfort. The flip-up arm-rests are especially built for easy side access

for getting in and out of your 6Runner, with the greatest of ease. The arm-rests

have a built in height adjustment knob, that adjusts the arm pad to a comfortable

level for the driver. The seat is covered in a durable long lasting black/grey vinyl

for comfort and style.

Adjustable footplate

The footplate adjusts to fit to the users size and comfort. It adjusts length and

height wise to help in comfort and stability for the user. Using hex key wrench

and stamped wrench to remove locking bolt and nut from the receiver.

Flip up

armrest

lever

Armrest

height

adjustment

lever

Remove locking bolt

and nut and make the

adjustments of the

length and height of

the footplate

9/30/2011

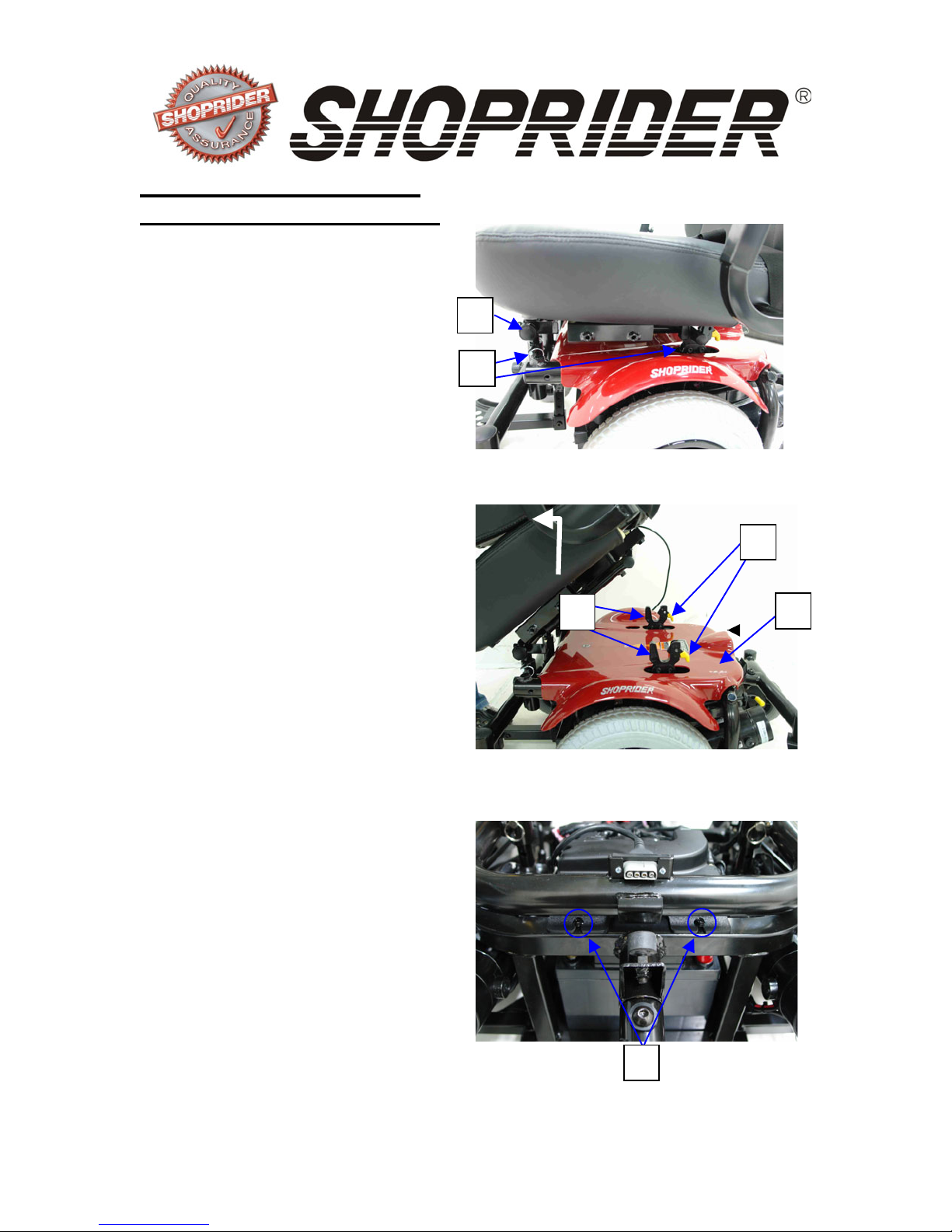

Seat Height Adjustment

And Easy Battery Access

1. Tightening knob that allows for

the seat to be removed if needed,

if not, there is a pivot point that

allows for the seat to move up

and away from the base.

2. Adjustment pins that can be

used to adjust the height of the

seat to fit the user.

3. Release levers; allow for the

rear of the seat to be lifted and

moved away from the base for

easy battery access, without

removing entire seat.

4. U-Hooks hold the seat in place.

5. Bottom shroud is easily

popped off, to allow for battery

access.

6. Hex head screws that are used

to fasten the mounting plate for

main controller. Batteries can be

easily accessed and changed after

the removal of main controller

assembly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shoprider Fauteuil roulant

Shoprider

Shoprider Sena 888WNLS Manuel utilisateur

Shoprider

Shoprider UL8W36 Manuel utilisateur

Shoprider

Shoprider 6Runner 10 Manuel utilisateur

Shoprider

Shoprider VENICE UL8-W Manuel utilisateur

Shoprider

Shoprider XLR14-SS Manuel utilisateur

Shoprider

Shoprider FPC none Manuel utilisateur

Shoprider

Shoprider UL8-W12 COMO Manuel utilisateur

Shoprider

Shoprider PHFW-1018 Manuel utilisateur

Shoprider

Shoprider UL7-WJ Jiffy Manuel utilisateur

Shoprider

Shoprider Streamer Sport 888WA Manuel utilisateur

Shoprider

Shoprider 888WNLL Manuel utilisateur

Shoprider

Shoprider ISO13485 Manuel utilisateur

Shoprider

Shoprider P424L Manuel utilisateur

Shoprider

Shoprider 888WNLLHD Manuel utilisateur

Shoprider

Shoprider XtraLite Jiffy UL7WR Manuel utilisateur

Shoprider

Shoprider SMARTIE UL8W Manuel utilisateur

Shoprider

Shoprider JIMMIE - UL8WPB Manuel utilisateur

Shoprider

Shoprider SMARTIE UL8W Manuel utilisateur

Shoprider

Shoprider 6Runner 14 Manuel utilisateur

Shoprider

Shoprider UL7WR/ULWR11 Manuel utilisateur

Shoprider

Shoprider 858WM Manuel utilisateur

Shoprider

Shoprider 6Runner 10 Manuel utilisateur

Shoprider

Shoprider 888WNLD Manuel utilisateur

Shoprider

Shoprider HD 888WHD Manuel utilisateur

Manuels Fauteuil roulant populaires d'autres marques

Otto Bock

Otto Bock Skippi plus Manuel utilisateur

Invacare

Invacare Action 4NG series Manuel utilisateur

SORG

SORG LoopSORG 802 Manuel utilisateur

Designability

Designability WizzyBug Instructions d'installation

Vermeiren

Vermeiren RAPIDO Manuel utilisateur

Excel

Excel G5 KIDS 0285 Manuel utilisateur

M. Bartels

M. Bartels SA-3 Manuel utilisateur

nino robotics

nino robotics NIno Manuel utilisateur

Vermeiren

Vermeiren Turios Manuel utilisateur

Invacare

Invacare MK5 EX Manuel utilisateur

Invacare

Invacare Solara Spree GT Manuel

Nova

Nova TKW-12 Manuel utilisateur

BCW

BCW Advantage Manuel utilisateur

You-Q

You-Q Luca Manuel utilisateur

interco

interco Ortolight Standard Mode d’emploi

Nova

Nova 7190L Manuel utilisateur

Vermeiren

Vermeiren EZ1 Manuel utilisateur

PaceSaver

PaceSaver Scout M-300 Manuel utilisateur
