Please read this UserManual carefully toensure proper useof this product andkeep

this manual for futurereference.

User Manual

of digital Set Top Box

T200sd

Important Safety Instructions

Warning: Toreduce the risk ofelectric shock, do notremove the coveror back. There areno

user-serviceable parts inside. Refer servicing to qualifiedpersonnel.

Warning: To prevent fireor electric shock hazard, do not exposethe unit to rain or

moisture.

Do not expose theAdaptor and Digital Photo Frame towater (dripping orsplashing) and

no objects filled withliquids, such as vases,should be placed onthe unit.

Keep the product away from directsunlight and heat sourcesuch as radiatorsor stoves.

Do not block theventilation openings. Slots andopenings on the unitare provided for

ventilation. The openingsshould never be blocked by placing yourproduct on a cushion,

sofa or other similarsurface.

Do not place theproduct on unstablecart, stand, tripod, bracket or table.The unit may

fall, resulting in possibledamage or injury.

Only use the ACadapter included with product.Using any other adapterwill void your

warranty.

Unplug the power from the outlet whenthe unit is notin use.

Attention should bedrawn to theenvironmental aspects ofbattery disposal.

WARNNING: The battery(battery or batteriesor battery pack) shallnot be exposed to

excessive heat suchas sunshine, fire orthe like.

WARNNING: Excessivesound pressure fromearphones or headphones cancause hearing

loss.

WARNNING: Only useattachments/accessories specified providedby the manufacturer,

the product is suppliedby AC adapter, the AC adapteris used as disconnectdevice, the

disconnect device shall remainreadily operable.

Important SafetyInstructions

The symbol indicatesthat dangerous voltagesconstituting a risk ofelectric shock are

present within this unit.

The symbol indicatesthat there areimportant operating andmaintenance instructions

in the literatureaccompanying this unit.

This symbol indicatesthat this product incorporates double insulation between

hazardous mains voltageand user accessible parts.when servicing use only identical

replacement parts.

CAUTION:

When the apparatus was in electrostaticcircumstance, it maybe malfunction and need

to rese t by use r.

The USB memory stickshould be plug inthe unit directly.USB extension cable should

not be used toavoid failing ofdata transferringand interference caused.

This marking indicatesthat this product shouldnot be disposed withother household

wastes throughout theEU. Toprevent possible harmto the environmentor human

health from uncontrolledwaste disposal, recycleit responsibly to promote the

sustainable reuse ofmaterial resources. To return your used device, please usethe

return and collection systems or contactthe retailer wherethe product was purchased.

They can takethis product forenvironmental saferecycling.

Table ofContents

Content

Front and RearPanel ...............................................................................................1

Remote Control.......................................................................................................2

1. Connections........................................................................................................4

2. Quick Start Guide................................................................................................5

2.1. First Time Installation ........................................................................................5

2.2. Auto Scan ..........................................................................................................6

2.3. Manual Scan ......................................................................................................6

3. TV/Radio Operation.............................................................................................7

3.1. TV Operation .....................................................................................................7

3.2. TV Channel List ................................................................................................8

3.3. Electronic Program Guide (EPG) .......................................................................8

3.4. Favorite Channel ............................................................................................ 10

3.5. Time Shift .......................................................................................................11

3.6. Instant Recording ............................................................................................12

3.7. Zoom In ..........................................................................................................12

3.8. Audio .............................................................................................................13

3.9. Subtitle/Teletext .............................................................................................13

3.10. Radio ............................................................................................................14

4. Multimedia and Miscellaneous Settings ..............................................................14

4.1. Main Menu......................................................................................................14

4.2. Channel Manager .............................................................................................15

4.3. Timer Manager ................................................................................................15

4.3.1. Program T imer .........................................................................................16

4.3.2. Sleep T imer..............................................................................................17

4.3.3. Auto Scan T imer........................................................................................17

4.4. Multimedia .....................................................................................................18

4.4.1. Music ......................................................................................................19

4.4.2. Photo ......................................................................................................20

4.4.3. Movie ......................................................................................................20

4.4.4. PVR .........................................................................................................21

4.5. Setting ............................................................................................................22

4.5.1. Display Setting..........................................................................................23

4.5.2. Language Setting ......................................................................................23

4.5.3. Recorder Setting.......................................................................................24

4.5.4. Parental Control .......................................................................................24

4.6. Tools ...............................................................................................................25

4.6.1. Storage Manager ......................................................................................26

4.6.2. Software Upgrade .....................................................................................26

4.6.3. Factory Reset ...........................................................................................27

4.6.4. Software Information ................................................................................28

Troubleshooting....................................................................................................29

Technical Specifications.........................................................................................30

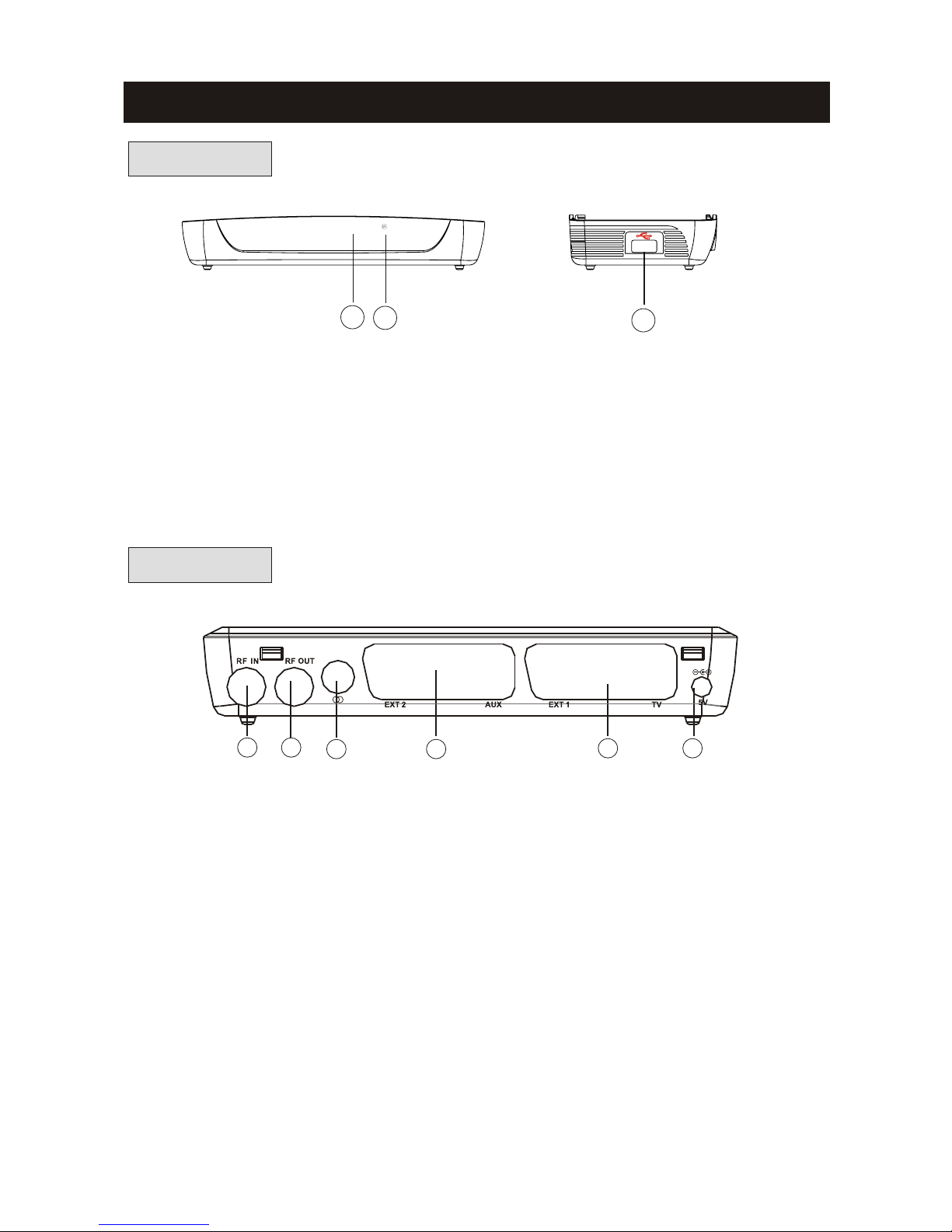

Front and RearPanel

Front panel

Rear panel

1.STANDBY INDICATOR: Used to visually show power state of the set top box, the green LED will be

light if turned on the set top box and the red LED will be light if the set top box entered standby

mode.

2. REMOTE CONTROL SENSOR: Used to receive the signal from the remote control.

3. USB JACK(Optional): Used to connect to an external USB 2.0 device.

Note: Not all receivers have the USB Jack.

1. RF IN: This socket connects to your external aerial.

2. RF OUT: This socket will bypass the RF signal to either your TV or another video system.

3.COAXIAL: This socket connects to a coaxial socket on your surround sound system.

4. VCR SCART: This socket connects to either a DVD or other video system.

5. TV SCART: This socket connects to your TV.

6. DC IN 5V: Used to connect the 5V DC adapter.

1346

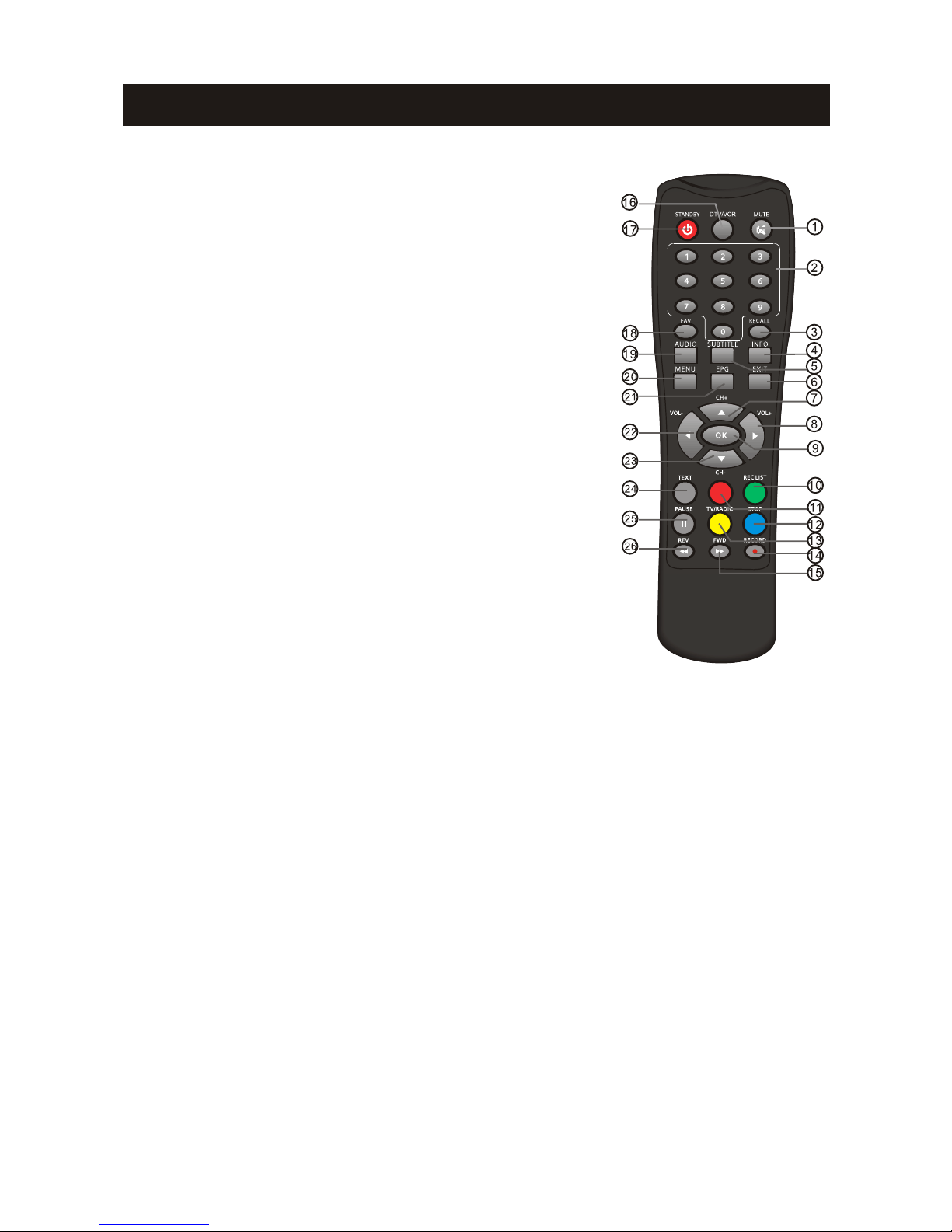

Remote Control

Remote Key Function:

1. MUTE:Used to turn the sound on oroff.

2. NUMBER KEYS:Used to select channel numbers orinput

numbers in menus.

3. RECALL: Used to switch between thelast two viewed channels.

4. INFO:Used to display informationabout the channel being

viewed or further information aboutthe program when in small

EPG screen.

5. SUBTITLE: Used to switch between different subtitles that are

broadcasted

6. EXIT:Used to return to the previousscreen or menu.

7. CH+: Used to move around the menuscreens or selecting the

channels in non-menu state.

8. VOL+:Used to move around the menuscreens or changing

the volume in non-menu state.

9. OK: Used to confirm a selection within amenu.

10. RECLIST:Used to show the recordedprograms list.

11. COLOR KEYS (RED/ GREEN/ YELLOW/ BLUE):Used to

operate different functions inTEXT screen or other menus.

12. STOP: Used to stop the current recording if exist or stop the

HDD playback back to DTV mode.

13.TV/RADIO:Used to switch between TVchannels and Radio

stations.

14. RECORD: Used to record the program manually, and select

the record duration ifpressed it again.

15. FAST FORWARD: Used to adjust the forwardspeed if in HDD

time shifting playback mode.

16. DTV/VCR:Used to switch between theVCR SCART input and

the DTV output mode.

17.STANDBY:Used to switch the set topbox to on or standby.

Note: SUBTITLE/TEXT/LANGUAGEmay not be available for all channels.

RED/GREEN/YELLOW/BLUE may has specifical function in different menus.

18. FAV:Used to switch access your favourite channels.

19. AUDIO:Used to set the sound output, the available settings Are STEREO,LEFT, RIGHT,

MONO.

20. MENU:Used to open the main menu window.

21. EPG: Used to display information aboutthe program being viewed and what'son next.

22. VOL-: Used to move around the menuscreens or changing the volume innon-menu state.

23. CH- :Used to move around the menuscreens or selecting the channels in non-menu state.

24. TEXT: Used to open teletext OSDdisplay if teletext available in the broad castestream.

25. PAUSE:Used to pause or playback theprogram being viewed .

26. FAST BACKWARD: Used to adjust the backward speed if in HDD time shifting playback mode.

Installing the Batteries

Remove the batterycover from theRemote Control andput 2xAAA size batteries inside the

compartment.

The diagram inside theBattery Compartment showsthe correct wayto install the batteries.

1.Open the cover 2.Install batteries 3.Closethe cover

Using the Remote Control

To usethe Remote Control,point it towardsthe front of theDigital Set Top Box. The Remote

Control has a range of up to7 metres fromthe Set Top Box at anangle of up to60 degrees.

The Remote Controlwill not operateif its path isblocked.

Sunlight or very brightlight will decrease thesensitivity of the Remote Control.

Connections

Caution: Make sure tocheck the voltage specification of the walloutlet is the samerating

with the receiver. Toprevent the risk ofelectric shock, do notopen the cover orthe back of

the receiver.

Note: Whenconnecting the receiverto otherequipm ent,e.g.,TV,VCR and am plifier,

makesure to referto relevantusermanualforinstru c tion.Also,m ake sure you

disconnectallthe equipm ents from the mains supply before the connection.

TV Aerial

VCR

Amplificador Digital

Coaxial Cable Coaxial Adapter

1. Connections

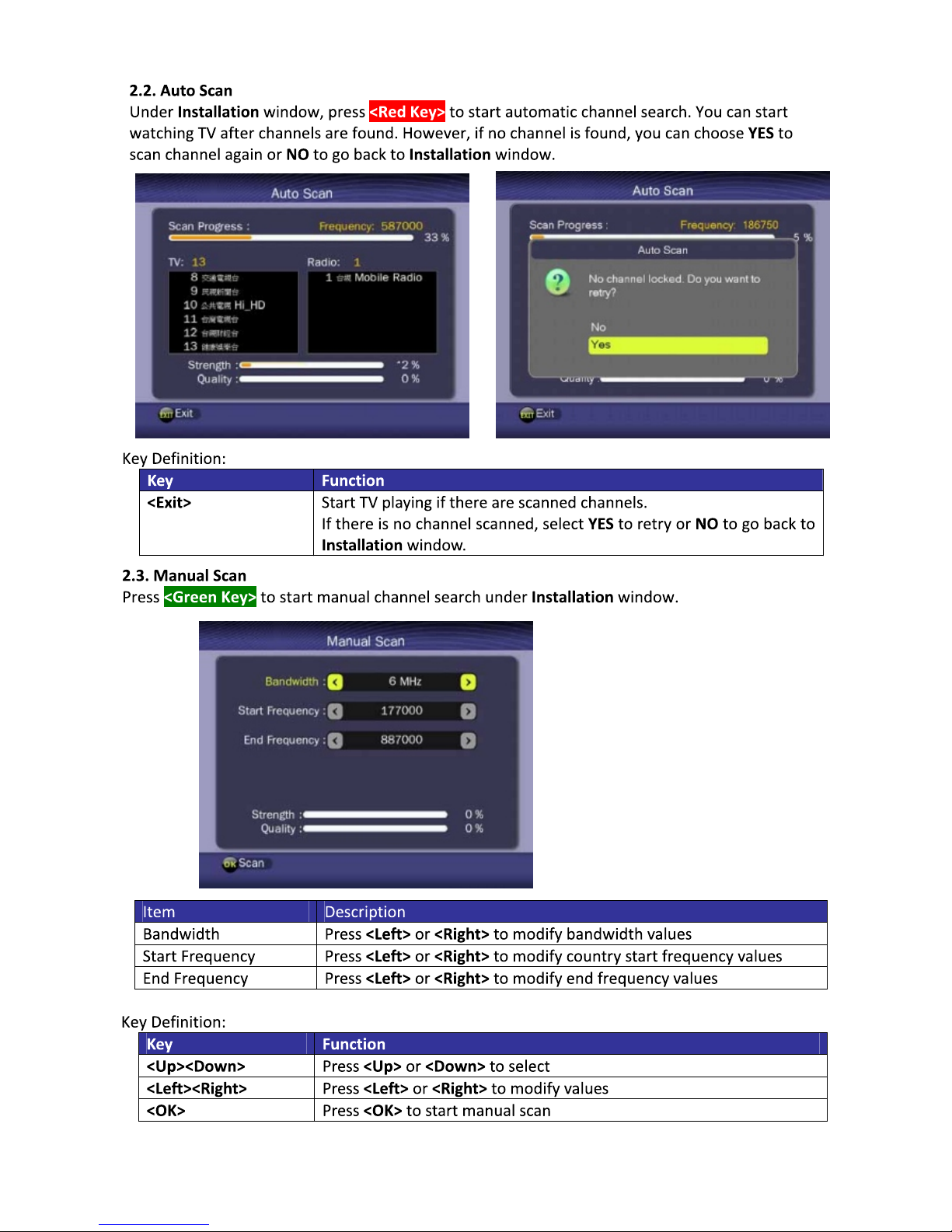

Quick Start Guide
