Shop fox W1734 Manuel utilisateur

Model W1734

Downdraft Sanding Table

Introduction

The Model W1734 is intended for use with a dust

collection system or a Shop Vac®-style vacuum

with at least a 21⁄2" inlet size. Note—Inlet sizes

smaller than this will not allow the Model

W1734 to work as designed.

Specifications

• Table Size ..............................15" x 25"

• Dust Port Size .............................. 21⁄2"

• Minimum Dust Collector Inlet Size ...... 21⁄2"

• Overall Size ...............15" D x 25" L x 5" H

• Weight ......................................8 LBS

Connection

Connect your downdraft sanding table to your

dust collection system or Shop Vac®-style vac-

uum with a 21⁄2" dust hose and hose clamp, as

shown in Figure 2.

Operation

To use the downdraft table, simply start your

dust collector or Shop-Vac®-style vacuum and

sand your workpiece on the table, as shown in

Figure 3.

Cleaning

Your table surface may be cleaned with a damp

rag. If your table surface gets gummy from wood

pitch, you can use a non-corrosive blade cleaner

like Oxisolv® to easily remove it without harming

the tabletop surface. DO NOT clean with prod-

ucts that will harm the paint on the table surface

like brake parts cleaner, acetone, or gasoline.

Customer Service

For questions contact Woodstock International

Technical Support at (360) 734-3482, or send e-mail

to: tech-support@shopfox.biz.

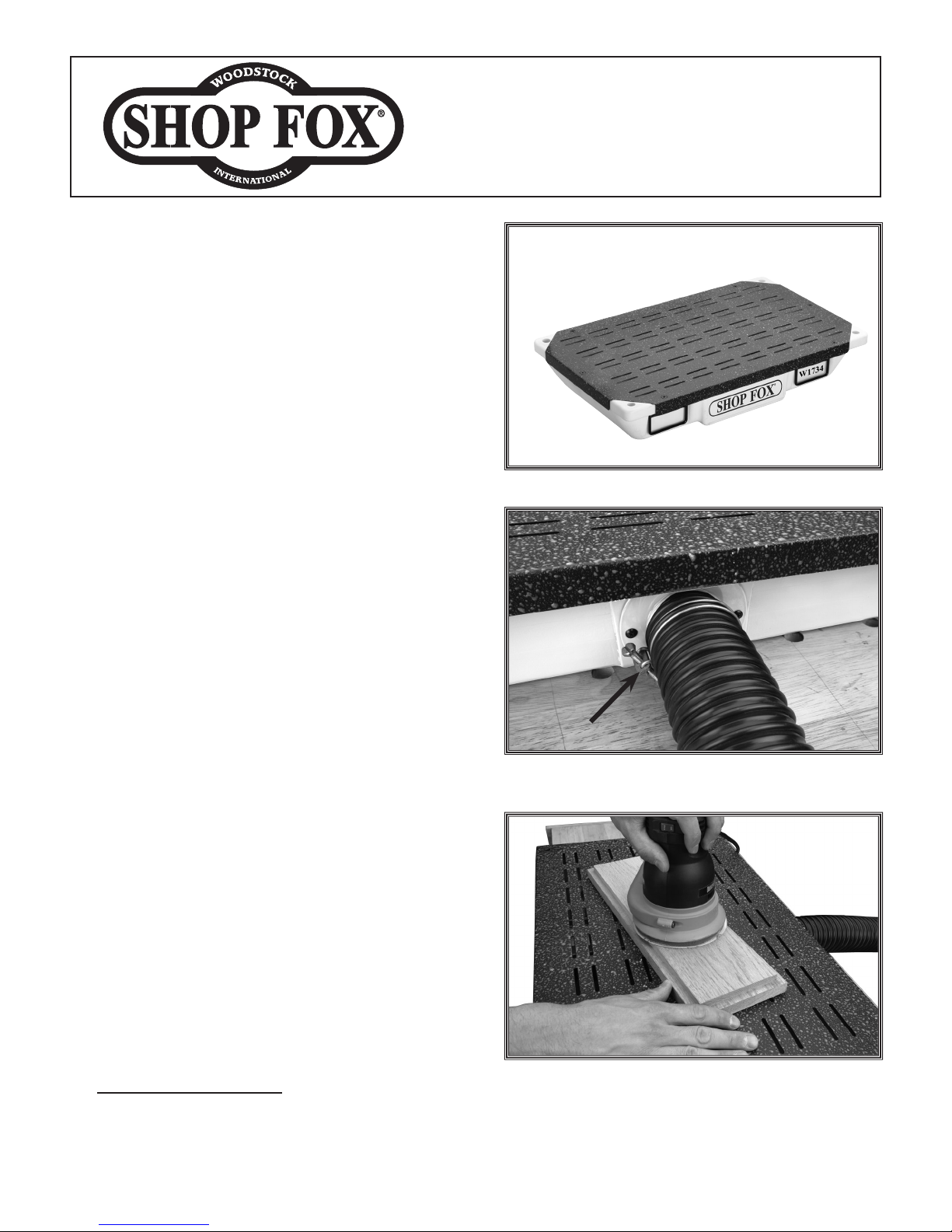

Figure 1. Model W1734.

Figure 2. Dust port connected to dust

collection system.

Figure 3. Sanding on the downdraft table.

WARNING: NO PORTION OF THIS DOCUMENT MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#6297TR. REVISED OCTOBER, 2004. PRINTED IN CHINA.































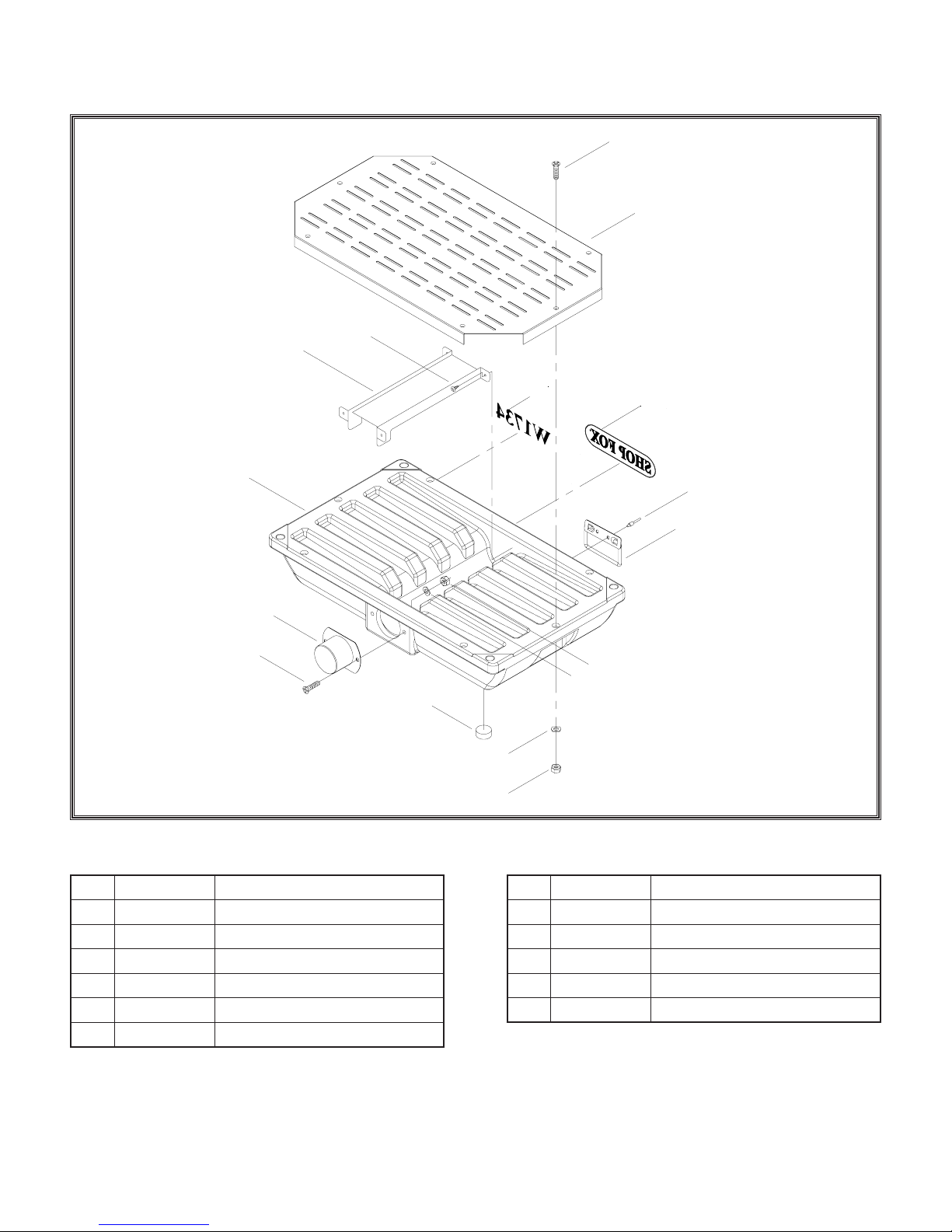

W1734 PARTS BREAKDOWN

REF PART# DESCRIPTION

1 XPFH12 FLAT HD SCR 1/4-20 X 1

2 X1734002 TABLETOP

3 X1734003 BASE

4 XPN05 HEX NUT 1/4-20

5 X1734005 DUST CHUTE

6 XPHTEK5M TAP SCREW M4.2 x 12

7 XPW06 FLAT WASHER 1/4"

REF PART# DESCRIPTION

8 X1734008 DUST PORT 2-1/2"

9 X1734009 BLIND RIVET

10 X1734010 FOOT PAD

11 X1733011 LABEL, SHOP FOX LOGO

12 X1734012 LABEL, MODEL NUMBER

14 X1734014 HANDLE
