SHM GERRR18NG Guide de démarrage rapide

WARNING: If the information in this manual

is not followed exactly, a ﬁre or explosion

may result causing property damage,

personal injury, or loss of life.

— Do not store or use gasoline or other

ﬂammable vapors and liquids in the

arosihtfoytiniciv ny other appliance.

— WHATTO DO IFYOU SMELL GAS

• Do not try to light any appliance.

• Donottouchanyelectricalswitch;do

not use any phone in your building.

• Immediately call your gas supplier

from a neighbor’s phone. Follow the

gas supplier’s instructions.

• Ifyoucannotreachyourgassupplier,

call the ﬁre department.

— Installation and service must be

performed by a qualified installer,

service agency, or the gas supplier.

Thisisanunventedgas-ﬁred heater.Ituses

air (oxygen) from the room in which it is

installed.Provisionsforadequatecombus-

tion and ventilation air must be provided.

Refer to page 4, Air for Combustion and

Ventilation.

INSTALLER: Leave this manual with the

appliance.

CONSUMER: Retain this manual for future

reference.

This appliance may be installed in an

aftermarket,* permanently located, manu-

factured (mobile) home, where not prohib-

ited by local codes.

This appliance is only forusewiththetypeof

gas indicated on the rating plate. This app-

liance is not convertible for use with other

gases.

* Aftermarket: Completion of sale, not for purpose of resale, from

the manufacturer

Thisappliancehasbeentestedandapproved

underANSI Z21.11.2–2011 Unvented Gas-

Fired Room Heaters.

WARNING: This appliance is for installation

only in a solid fuel burning masonry or UL127

factory-built fireplace or listed ventless fire-

box enclosure. It has been design certified for

these installations. EXCEPTION: DO NOT in-

stall this appliance in a factory-built fireplace

that includes instruction stating it has not

been tested or should not be used with un-

vented gas logs.

ANSI Z21.11.2 - 2013

Unvented Heaters

ANSI Z21.60 - 2012

Vented Decorative Appliances

VENT FREE GAS LOG SET

Owner’s Operation and Installation Manual

GERRR18NG, GERRR18LP

(Also Design Certified As Vented Decorative Appliances)

Remote Control Included

GOLDEN ECLIPSE

GERRR24NG, GERRR24LP

Do not place clothing or other ﬂammable

material on or near the appliance. Never

place any objects on the heater.

TABLE OF CONTENTS

Safety Information........................................................2

Local Codes ..................................................................3

Unpacking.....................................................................4

Product Features............................................................4

Qualiﬁed Installation Agency .......................................4

Air For Combustion and Ventilation ............................4

Installation.....................................................................7

Operating Log Set.......................................................15

Inspecting Burners......................................................

Cleaning and Maintenance..........................................18

Troubleshooting ..........................................................19

Speciﬁcations ..............................................................23

Parts List and Illustrated Parts Breakdown.................

Warranty Information ..................................Back Cover

SAFETY INFORMATION

DANGER: Carbon monoxide poisoning

may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon

monoxidepoisoningresemble the ﬂu, with headaches, diz-

ziness, and/or nausea. If you have these signs, heater may

not be working properly. Get fresh air at once! Have

heater serviced. Some people–pregnant women, persons

with heart or lung disease, anemia, those under the inﬂu-

ence of alcohol, those at high altitudes–are more affected

by carbon monoxide than others.

Propane/LP Gas:Propane/LP gas is odorless. An odor-

makingagentisaddedtothe gas.The odorhelps youdetect

a gas leak. However, the odor added to the gas can fade.

Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep

this manualforreference.Itisyourguidetosafeandproper

operation of this appliance.

WARNING: Any change to thisheater

or itscontrolscan be dangerous.

WARNING: Do not allow fans to blow

directlyintotheappliance.Avoidanydrafts

that alter burner ﬂame patterns. Ceiling

fans can create drafts that alter burner

ﬂame patterns.Alteredburnerpatterns can

cause sooting.

WARNING: Do not use a blower insert,

heat exchanger insert, or other accessory

not approved for use with this appliance.

Due to high temperatures, the appliance

should be located out of trafﬁc and away

from furniture and draperies.

WARNING: Improper installation, adjust-

ment, alteration, service, or maintenance

cancause injuryorpropertydamage.Refer

to this manual for correct installation and

operational procedures. For assistance or

additional information consult a qualiﬁed

installer, service agency, or the gas sup-

plier.

Carefully supervise young children when

they are in the room with ﬁreplace.

Fireplace front and screen become very

hot when running appliance. Keep chil-

dren and adults away from hot surfaces to

avoid burns or clothing ignition. Logs will

remain hotforatime aftershutdown. Allow

surfaces to cool before touching.

You must operate this heater with the fire-

place screen in place. Make sure the fireplace

screen is in place before funning this app-

liance.

Unless other provisions are made for comb-

ustion air, the screens shall have an opening

or openings for introduction of combustion

air into the fireplace

If this appliance is installed in a fireplace that

has glass doors, the doors must be left open

when the appliance is in use.

WARNING:This productcontains and/or

generates chemicals known to the state of

California to cause cancer or birth defects

or other reproductive harm.

1. This appliance is only for use with the type of gas

indicated on the rating plate. This appliance is not

convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any

structure. Locate propane/LP supply tank(s) outdoors

(propane/LP units only).

3. If you smell gas

•shut off gas supply

•do not try to light any appliance

•

do not touch any electrical switch; do not use any

phone in your building

•immediatelycallyour gassupplierfrom a neighbor’s

phone. Follow the gas supplier’s instructions

•if you cannot reach your gas supplier, call the

department

4. This appliance shall not be installed in a bedroom or

bathroom.

5. Do not use this appliance as a wood-burning ﬁreplace.

Use only the logs provided with the appliance.

6. Do not add extra logs or ornaments such as pine cones,

vermiculite or rock wool. Using these added items can

cause sooting and poor combustion. Do not add lava

rock around base. Rock and debris could fall into the

control area of heater.

7. Thisapplianceis designed tobesmokeless. Iflogsever

appear tosmoke, turn off appliance and call a qualiﬁed

service person. Note: During initial operation, slight

smoking could occur due to log curing and ﬁreplace

burning manufacturing residues.

8. To prevent the creation of soot, follow the instructions

in Cleaning and Maintenance section.

Keep the appliance area clear and free from

combustible materials, gasoline and other

ﬂammable vapors and liquids.

9. Before using furniture polish, wax, carpet cleaner, or

similar products, turn heater off. If heated, the vapors

fromtheseproductsmaycreate awhitepowderresidue

within burner box or on adjacent walls or furniture.

10. This appliance needs fresh air ventilation to run prop-

erly. This appliance has an Oxygen Depletion Sensing

(ODS) safetyshutoff system. The ODS shuts downthe

ﬁreplace if not enough fresh air is available. See Air

for Combustion and Ventilation, pages 4 through 6.

If appliance keeps shutting off, see Troubleshooting,

pages 17 through 20.

11. Do not run appliance

• whereflammable liquids or vapors are used or

stored

•under dusty conditions

12. Do not use this appliance to cook food or burn paper

or other objects.

13. Never place any objects in the heater or on logs.

14. Do not use appliance if any part has been exposed to

or under water. Immediately call a qualiﬁed service

technician to inspect the appliance and to replace any

part of the control system and any gas control which

has been under water.

15. Turn appliance off and let cool before servicing. Only

a qualiﬁed service person should service and repair

appliance.

16. Operating appliance above elevations of 4,500 feet

could cause pilot outage.

17. Topreventperformanceproblems,donotuse propane/

LP fuel tanks of less than 100 lbs. capacity.

18. Provide adequate clearances around air openings.

LOCAL CODES

Install and use appliance with care. Follow all local codes.

In the absence of local codes, use the latest edition of The

National Fuel Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

AmericanNational Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

State of Massachusetts: The installation must

be made by a licensed plumber or gas ﬁtter in the

Commonwealth of Massachusetts.

Sellers of unvented propane or natural gas-ﬁred

supplemental room heaters shall provide to each

purchaser a copy of 527 CMR 30 upon sale of

the unit.

Vent-freegasproductsareprohibitedforbedroom

andbathroominstallationintheCommonwealthof

Massachusetts.

Keeptheapplianceareaclearandfreefrom

combustiblematerials,gasoline,andother

ﬂammable vapors and liquids.

SAFETY INFORMATION

CONTINUED

1. Remove the carton and log wrap.

2. Remove all protective packaging applied to heater for

shipment.

3. Make sure your logset includes one hardware packet.

4. Check heater for any shipping damage. If heater is

damaged, call SHM International at (800) 229-5647

for replacement parts before returning to dealer.

UNPACKING

PRODUCT FEATURES

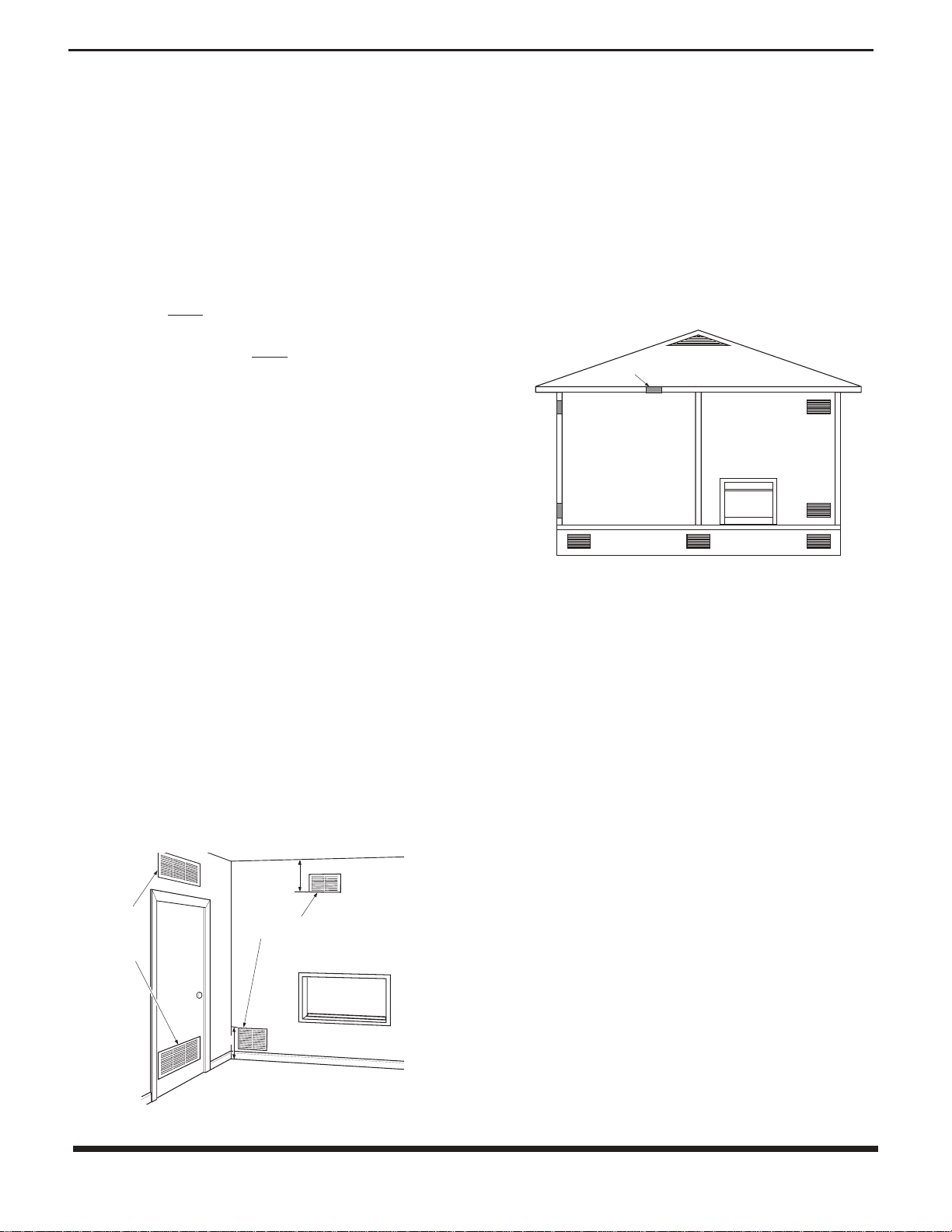

AIR FOR COMBUSTION

AND VENTILATION

Today’shomesarebuiltmoreenergy efficient thanever.New

materials,increasedinsulation,andnewconstructionmethods

help reduce heat loss in homes. Home owners weather strip

andcaulkaroundwindowsanddoorstokeepthecoldairout

and the warm air in. During heating months, home owners

want their homes as airtight as possible.

While it is good to make your home energy efﬁcient, your

homeneedsto breathe.Freshairmustenteryourhome. All

fuel-burning appliances need fresh air for proper combus-

tion and ventilation.

Exhaust fans, ﬁreplaces, clothes dryers, and fuel burning ap-

pliancesdrawairfromthehousetooperate.Youmustprovide

adequate fresh air fortheseappliances.Thiswillinsureproper

venting of vented fuel-burning appliances.

SAFETY PILOT

This heater has a pilot with an Oxygen Depletion Sensing

(ODS) safety shutoff system. The ODS/pilot is a required

feature for vent-free room heaters. The ODS/pilot shuts off

the heater if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no

matches, batteries or other sources to light heater.

THERMOSTATIC HEAT CONTROL

Thermostat-controlled models have a thermostat sensing

bulb and a control valve. The thermostat will automatically

modulate the heat output to maintain a consistent room

temperature. This results in greater heater comfort. This

can also result in lower gas bills.

PROVIDING ADEQUATE

VENTILATION

The following are excerpts from National Fuel Gas Code

ANSI Z223.1/NFPA 54,Section 5.3, Air for Combustion

and Ventilation.

All spaces in homes fall into one of the following

ventilation classiﬁcations:

1. Unusually Tight Construction

2. Unconﬁned Space

Theinformationonpages4through6willhelpyouclassify

your space and provide adequate ventilation.

WARNING: This heater shall not be

installed in a room or space unless the

required volume of indoor combustion air

is provided by the method described in

the National Fuel Gas Code, ANSI Z223.1/

NFPA 54,the International Fuel Gas Code,

or applicable local codes.

Read the following instructions to insure

proper fresh air for this and other fuel-

burning appliances in your home.

QUALIFIED

INSTALLATION AGENCY

Installation and replacement of gas piping, gas utiliza-

tion equipment or accessories and repair and servicing of

equipment shall be performed only by a qualiﬁed agency.

The term “qualiﬁed agency” means any individual, ﬁrm,

corporation, or company that either in person or through a

representative is engaged in and is responsible for:

A. Installation, testing or replacements of gas piping or

B. Connection, installation, testing, repair or servicing

of equipment that is experienced in such work; that

is familiar with all precautions required; and that has

complied with all requirement of the authority having

jurisdiction.

This heater shall not be installed in a confined space or unusually tight construction

unless provisions are provided for adequate combustion and ventilation air.

Unusually Tight Construction

The air that leaks around doors and windows may provide

enoughfreshairforcombustionandventilation.However,in

buildingsofunusuallytightconstruction,youmustprovide

additional fresh air.

Unusually tight construction is deﬁned as con-

struction where:

a. walls and ceilings exposed to the outside

atmosphere have a continuous water vapor

retarder with a rating of one perm (6 x 10-11 kg

per pa-sec-m2) orless with openingsgasketed

or sealed and

b. weatherstrippinghas beenaddedon openable

windows and doors and

c. caulking or sealants are applied to areas such

as joints around window and door frames,

between sole plates and ﬂoors,between wall-

ceiling joints,between wall panels,at penetra

tions for plumbing, electrical, and gas lines,

and at other openings.

If your home meets all of the three criteria above,

youmustprovide additionalfresh air.See Ventila-

tion Air From Outdoors, page 5.

If your home does not meet all of the three criteria

above, proceed to Determining Fresh-Air Flow for

Appliance Location, page 6.

VENTILATION AIR

Ventilation Air From Inside Building

Thisfresh air would come from an adjoining unconﬁned

space. When ventilating to an adjoining unconﬁned space,

you must provide two permanent openings: one within 12"

of the ceiling and one within 12" of the ﬂoor on the wall

connecting the two spaces (see Figure 1). You can also

remove door into adjoining room (see Figure 1). Follow

the National FuelGasCode ANSIZ223.1/NFPA 54, Sec-

tion 5.3, Airfor Combustion and Ventilationfor required

size of ventilation grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts.

You must provide two permanent openings: one within

12" of the ceiling and one within 12" of the ﬂoor. Connect

these items directly to the outdoors or spaces open to the

.secapslwarcdnascittaedulcnisecapse

sehT.sroodtuo

Follow the National Fuel Gas Code ANSI Z223.1/NFPA

54, Section 5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts.

IMPORTANT:Do not provide openings for inlet or outlet

airintoatticifattichasathermostat-controlledpowervent.

Heated air entering the attic will activate the power vent.

Remove

Door into

Adjoining

Room,

Option

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilation

Grills

Into Adjoining

Room,

Option 1

12"

Figure 1 - Ventilation Air from Inside Building

Outlet

Air Ventilated

Attic

Outlet

Air

Inlet

Air

Inlet Air Ventilated

Crawl Space

Crawl

Space

To Attic

Figure 2 - Ventilation Air from Outdoors

DETERMINING FRESH-AIR FLOW

FOR APPLIANCE LOCATION

Determining ifYou Have a Conﬁned

or Unconﬁned Space

Use this work sheet to determine if you have a conﬁned

or unconﬁned space.

Space: Includes the room in which you will install appli-

ance plus any adjoining rooms with doorless passageways

or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x

height).

Length x Width x Height = cu. ft. (volume of space)

Example: Space size 22 ft. (length) x 18 ft. (width) x

8 ft. (ceiling height) = 3168 cu. ft. (volume of space)

If additional ventilation to adjoining room is supplied

with grills or openings, add the volume of these rooms

to the total volume of the space.

2. Multiply the space volumeby 20to determinethe maxi-

mum Btu/Hr the space can support.

_______ (volume of space) x 20 = (Maximum Btu/Hr

the space can support)

Example: 3168 cu. ft. (volume of space) x 20 =

63,360

(maximum Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the

space.

Vent-free log set_______________ Btu/Hr

Gas water heater*______________ Btu/Hr

Gas furnace___________________ Btu/Hr

Vented gas heater______________ Btu/Hr

Gas ﬁreplace logs ______________ Btu/Hr

Other gas appliances* +________ Btu/Hr

Total =________ Btu/Hr

*Do notincludedirect-ventgas appliances.Direct-vent

draws combustion air from the outdoors and vents to

the outdoors.

Example:

Vent-free log set ______________ Btu/Hr

Gas water heater* _____________ Btu/Hr

Total =________ Btu/Hr

ComparethemaximumBtu/Hrthespacecansupportwith

the actual amount of Btu/Hr used.

____ Btu/Hr (max. the space can support)

____ Btu/Hr (actual amt. of Btu/Hr used)

Example: 63,300 Btu/Hr (maximum the space can sup-

port)

73,000 Btu/Hr (actual amount of Btu/Hr used)

Thespaceintheaboveexampleisaconﬁned spacebecause

the actual Btu/Hr used is more than the maximum Btu/Hr

the space can support. You must provide additional fresh

air. Your options are as follows:

Reworkworksheet,addingthespaceofanadjoiningroom.

If the extra space provides an unconﬁned space, remove

door to adjoining room or add ventilation grills between

rooms. See Ventilation Air from Inside Building,page 5.

B. Vent room directly to the outdoors. See Ventilation Air

from Outdoors, page 5.

C. Install a lower Btu/Hr appliance, if lower Btu/Hr size

makes room unconﬁned.

If the actual Btu/Hr used is less than the maximum Btu/Hr

the space can support, the space is an unconﬁned space.

You will need no additional fresh air ventilation.

39,000

40,000

79,000

AIR FOR COMBUSTION

AND VENTILATION WARNING: If the area in which the

heater may be operated does not meet the

required volume for indoor combustion

air,combustionandventilationairshallbe

providedbyoneofthemethodsdescribed

intheNationalFuelGasCode,ANSIZ223.1/

NFPA 54,the International Fuel Gas Code,

or applicable local codes.

CONTINUED

VENTED OPERATION

Note:

When used as a vented heater, appliance must be

installed only in a solid-fuel burning fireplace with a

working flue and constructed of noncombustible mat-

erial.

Area of Various Standard

Round Flues

Diameter (ins.) Area (sq. ins.)

5" 20 sq. inches

6" 29 sq. inches

7" 39 sq. inches

8" 51 sq. inches

Youmay alsouse thisheaterasaventedproduct. There are.

three reasons for operating your heater in the vented mode.

1. The fireplace does not meet the clearance to com-

bustibles requirements for vent-free operation.

2. State or local codes do not permit vent-free operation.

3. You prefer vented operation.

Ifreasonsnumber1or2aboveapplytoyou, you must per-

manently open chimney flue damper. Youmust installthe

damperclamp. This will insure vented operation (see Fig-

ure 10). The damper clamp will keep damper open.

See chart below for minimum permanent flue opening

you must provide. Attach damper clamp so the mini-

mum permanentflueopening willbe maintainedat alltimes.

Follow instructions Installing Damper Clamp on

page 8 for location of damper in the fireplace.

Damper

Clamp Damper

Chimney Minimum Permanent

Height (ft.) Flue Opening (sq. ins.)

6' to 15' 39 sq. inches

15' to 30' 29 sq. inches

The NationalFuelGasCode, ANSI Z223.1/NFPA 54 defines a confined space as a space

space whose volume is less than 50 ft3per 1000btu/hr (4.8 m3per kw) of the aggregate

input of all appliances installed in that space. Rooms communicating directly with the

space in which the appliances are installed, through openings not furnished with doors

are considered a part of the unconfined space.

INSTALLATION

WARNING:Aqualiﬁedservicepersonmust

install appliance. Follow all local codes.

WARNING: Never install in a bedroom

or bathroom. Any heating product with a

Btu/Hr rating over 10,000 cannot be used

in a bedroom. Any heating product with a

Btu/Hr rating over 6,000 cannot be used

in a bathroom.

WARNING: Before installing in a solid-

fuel-burning ﬁreplace, the chimney ﬂue

and ﬁrebox must be cleaned of soot,creo-

sote,ashes,and loose paint by a qualiﬁed

chimney cleaner.

WARNING: Never install the appliance

•in a recreational vehicle

•where curtains, furniture, clothing,

other ﬂammable objects are less than

36 inches (91.5 cm) from the front, top,

or sides of the appliance

•in a wood-burning stove

•in high areas

•in windy or drafty areas

NOTICE: This appliance is intended for

supplemental heating. Use this heater

along with your primary heating system.

Do not install this heater as your primary

heat source. If you have a central heating

system, you may run system’s circulating

blower while using heater. This will help

circulatetheheatthroughoutthehouse.In

the event of a power outage, you can use

this heater as your primary heat source.

CAUTION:This appliance creates warm

air currents. These currents move heat to

wall surfaces next to appliance. Installing

appliance next to vinyl or cloth wall cover-

ingsoroperatingappliancewhereimpurities

(suchastobaccosmoke,aromaticcandles,

cleaningﬂuids,oil or kerosene lamps,etc.)

in the air exist, may discolor walls.

IMPORTANT: Vent-free heaters add moisture to the air.

Although this is beneﬁcial, installing appliance in rooms

without enough ventilation air may cause mildew to form

from too much moisture. See Air for Combustion and

Ventilation, page 4.

CHECK GASTYPE

Use the correct gas type (natural or propane/LP) for your

appliance. If your gas supply is not correct or if you do not

know your gas type, do not install appliance.

INSTALLATION ITEMS NEEDED

Before installing appliance, make sure you have the items

listed below.

•external regulator for propane/LP unit only (supplied by

installer)

•piping (check local codes)

•sealant (resistant to propane/LP gas)

•equipment shutoff valve *

•test gauge connection *

•ground joint union

•sediment trap (optional)

•tee joint

•pipe wrench

approved flexible gas line (not provided), or provided

gasconnector(ifallowed by local codes)

* A CSA/AGA design-certiﬁed equipment shutoff valve

with 1/8" NPT tap is an acceptable alternative to test gauge

connection.PurchasetheoptionalCSA/AGAdesign-certiﬁed

equipment shutoff valve from your dealer.

Forpropane/LP units, theinstaller mustsupply anexternal

regulator. The external regulator will reduce incoming gas

pressure.Youmustreduceincominggaspressuretobetween

11 and 14 inches of water. If you do not reduce incoming

gas pressure, heater regulator damage could occur.

LOG SET PLACEMENT

Place the log set in the center of your ﬁreplace or ﬁre-

box.

CLEARANCES (Vent-Free Operation Only)

WARNING: Maintain the minimum clearances. If

you can, provide greater clearances from floor, ceil-

ing, and adjoining wall.

Minimum Fireplace Clearance To Combustible Materials

Log Size Side Wall Ceiling

18",24”

15.5" 42"

LOG SIZING REQUIREMENTS

Minimum Firebox Size

Log Front Rear*

Size Height Depth Width Width

18" 18" 12" 22" 18"

24" 18" 15" 28" 22"

*Measured at 14" Depth

•

CONNECTINGTO GAS SUPPLY

WARNING: A qualiﬁed service person

mustconnect logset togassupply.Follow

all local codes.

WARNING: Never connect natural gas

log set to private (non-utility) gas wells.

This gas is commonly known as wellhead

gas.

CAUTION: Never connect propane/LP

log set directly to thepropane/LP supply.

This appliance requires an external regula-

tor (not supplied). Install theexternal regu-

lator between theappliance andpropane/

LP supply.

Figure 4 - External Regulator with Vent Pointing

Down

Propane/LP

Supply Tank

External

Regulator

Vent

Pointing

Down

WARNING: This appliancerequires a

5/8” UNF (Uniﬁed National Fine Thread)

and 1/2" NPT (National Pipe Thread) inlet

connection and the gas connection tube

provided.

INSTALLATION

CONTINUED

IMPORTANT:For natural gas, check gas line pressure

beforeconnectingheaterto gas line.Gaslinepressuremust

be no greater than 10.5” of water. If gas line pressure is

higher, heater regulator damage could occur.

For propane/LP gas, the installer must supply an external

regulator. The external regulator will reduce incoming gas

pressure.Youmustreduceincominggaspressuretobetween

11” and 14” of water. If you do not reduce incoming gas

pressure, heater regulator damage could occur. Install the

externalregulator with theventpointing down asshown in

Figure4.Pointing the vent downprotectsitfrom freezing

rain or sleet.

INSTALLATION CLEARANCES

WARNING:Maintaintheminimumclear-

ances.

Mantel Clearances for Installation

If placing mantel above heater, you must meet the mini-

mum clearance between the mantel shelf and the top of

the ﬁrebox opening.

Figure 3 - Minimum Mantel Clearances for

Installation

NOTICE:Surfacetemperaturesofadjacent

walls andmantels becomehot during

operation. Walls and mantels above the

ﬁrebox may become hot to the touch. If

installedproperly,thesetemperaturesmeet

the requirement of the national product

standard. Follow all minimum clearances

shown in this manual.

Damper

Damper Clamp

Damper

Manufactured Fireplace

Masonry Fireplace

INSTALLING DAMPER CLAMP ACCESSORY FOR

VENTED OPERATION

8”

13”

CAUTION: Use only new, black iron or

steelpipe.Internally-tinnedcoppertubing

may be used in certain areas. Check your

local codes. Use pipe of 1/2" diameter or

greater to allow proper gas volume to ap-

pliance. If pipe is too small,undue loss of

pressure will occur.

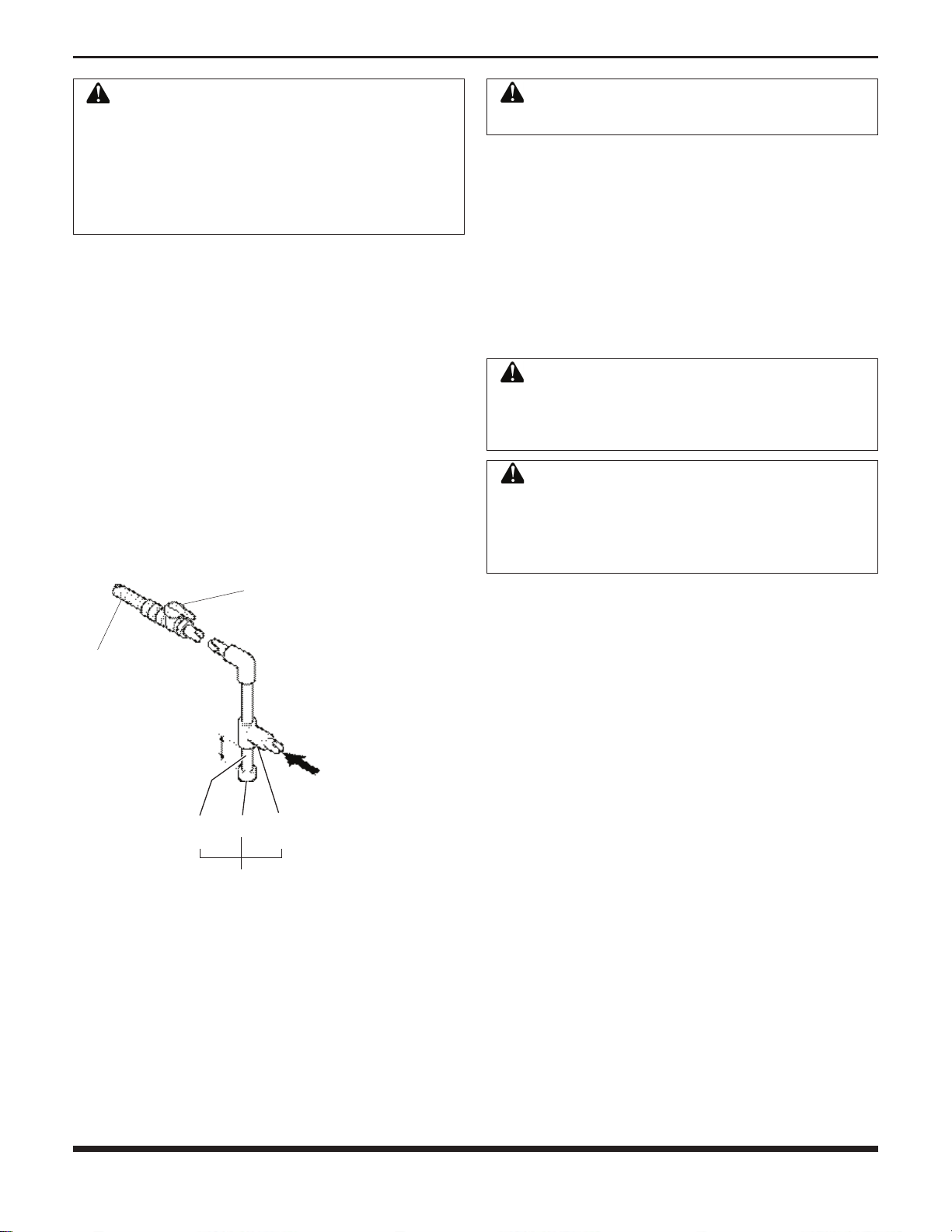

Figure 5 - Gas Connection

* Purchase the optional CSA/AGA design-certiﬁed equipment

shutoff valve from your dealer.

** Minimum inlet pressure for purpose of input adjustment.

CSA/AGA Design-

Certiﬁed Equipment

Shutoff Valve With

1/8" NPT Tap*

3" Minimum

Propane/LP

From External

Regulator (11”

W.C.** to 14”

W.C. Pressure)

Natural Gas

From Gas

Meter (7” W.C.**

to 10.5” W.C.

Pressure)

Sediment

Trap

Approved

Gas Line

Shutoff Valve

Installation must include an equipment shutoff valve,

union, and plugged 1/8” NPT tap. Locate NPT tap within

reach for test gauge hook up. NPT tap must be upstream

from appliance.

IMPORTANT: Install equipment shutoff valve in

an accessible location. The equipment shutoff

valve is for turning on or shutting off the gas to

the appliance.

Check your building codes for any special re-

quirements for locating equipment shutoff valve

to ﬁreplaces.

Apply pipe joint sealant lightly to male NPT threads. This

will prevent excess sealant from going into pipe. Excess

sealant in pipe could result in clogged ﬁreplace valves.

Never use sealant on ﬂare threads.

CAUTION:Usepipe jointsealant thatis

resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply

line as shown in Figure 5. Locate sediment trap where it is

withinreach forcleaning. Installin pipingsystem between

fuel supply and appliance. Locate sediment trap where

trapped matter is not likely to freeze. A sediment trap traps

moisture and contaminants. This keeps them from going

intoappliancegascontrols. If sedimenttrapisnot installed

or is installed wrong, appliance may not run properly.

Pipe

Nipple Tee

Joint

Cap

PressureTesting Gas Supply Piping

System

Test Pressures In Excess Of 1/2 PSI

(3.5 kPa)

1. Disconnect appliance with its main gas valve (control

valve) and equipment shutoff valve from gas supply

piping system.Pressuresinexcess of1/2psiwilldamage

appliance gas regulator.

2. Cap off open end of gas pipe where equipment shutoff

valve was connected.

3. Pressurize supply piping system by either opening

propane/LP supply tank valve for propane/LP gas or

opening main gas valve located on or near gas meter of

natural gas or using compressed air.

4. Check all joints of gas supply piping system. Apply

noncorrosive leak detection ﬂuid to all joints. Bubbles

forming show a leak.

5. Correct all leaks at once.

6. Reconnect appliance and equipment shutoff valve to

gas supply. Check reconnected ﬁttings for leaks.

CHECKING GAS CONNECTIONS

WARNING:Test all gas piping and con-

nections, internal and external to unit, for

leaks after installing or servicing. Correct

all leaks at once.

WARNING: Never use an open ﬂame

to check for a leak.Apply a mixture of liq-

uid soap and water to all joints. Bubbles

forming show a leak. Correct all leaks at

once.

POSITION

OFF

POSITION

GRH/OV 020MANUAL SHUT-OFF VALVE

Figure 6 - Equipment Shutoff Valve

Open

Closed

Equipment

Shutoff

Valve

PRESSURETESTING APPLIANCE

GAS CONNECTIONS

1. Open equipment shutoff valve (see Figure 14).

2. For natural gas, open main gas valve located on or near

gasmeter.Forpropane/LPgas,openpropane/LPsupply

tank valve.

3. Make sure control knob of ﬁreplace is in the OFF posi-

tion.

4. Check all joints from equipment shutoff valve to gas

control valve. Apply noncorrosive leak detection ﬂuid

to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light ﬁreplace (see Operating Log Set, page 13). Check

all other internal joints for leaks.

7. Turn off ﬁreplace (see To Turn Off Gas To Log Set, page

14).

INSTALLATION

Test Pressures Equal To or Less Than 1/2

PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 6).

2. Pressurize supply piping system by either opening

propane/LP supply tank valve for propane/LP gas or

opening main gas valve located on or near gas meter of

natural gas or using compressed air.

3. Check all joints from gas meter to equipment shutoff

valvefornaturalgasorpropane/LPsupplyto equipment

shutoff valve for propane/LP. Apply noncorrosive leak

detection ﬂuid to all joints. Bubbles forming show a

leak.

4. Correct all leaks at once.

CONTINUED

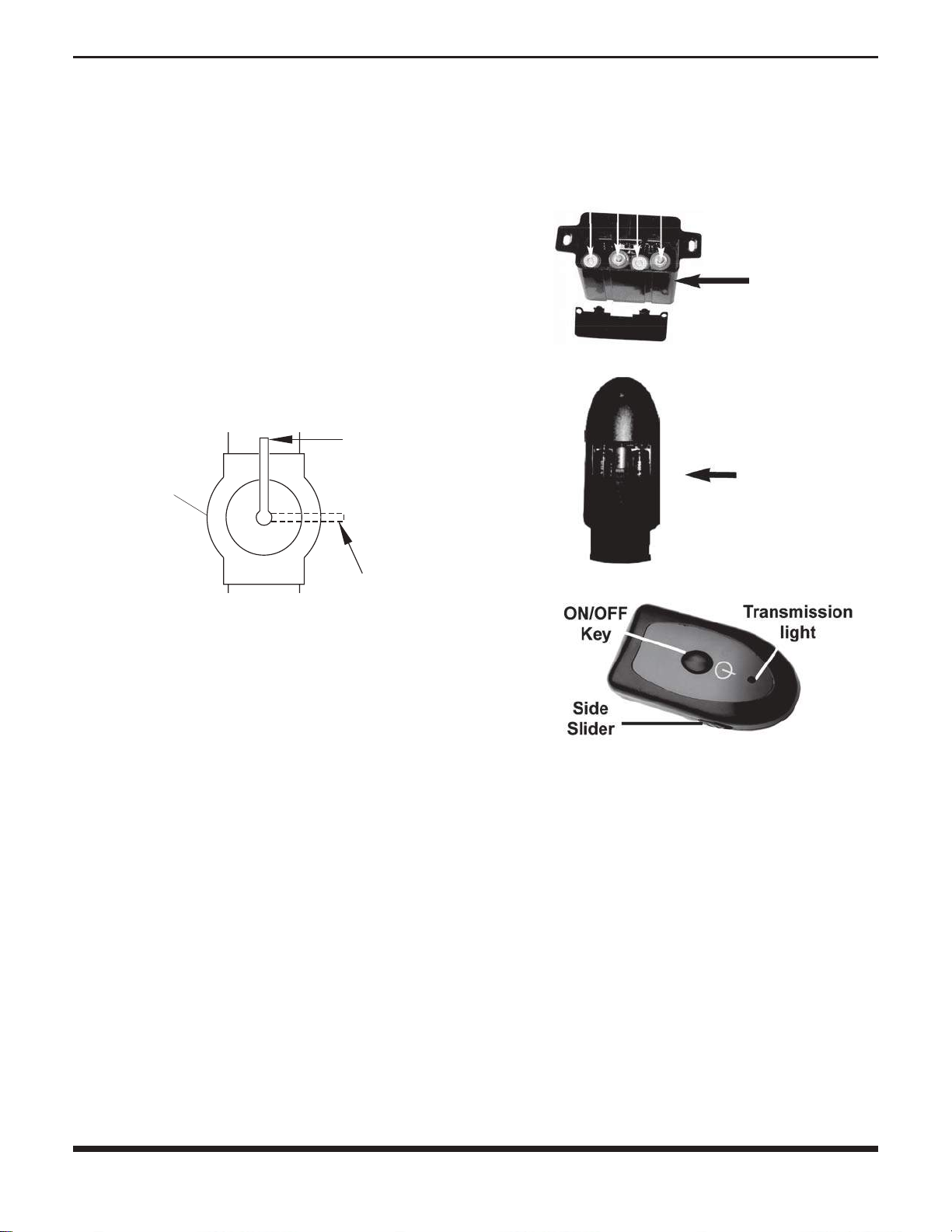

OPTIONAL REMOTE CONTROL SET

INSTALLATION AND OPERATION

- + - +

COMMUNICATION BETWEENTHE

REMOTE CONTROL TRANSMITTER

AND THE RECEIVER

To program the transmitter to the receiver, move

the three positions sliderof the receiver inthe

REMOTE position and depress the ON/OFF key

of the transmitter. TheSystem has an automatic

learning mode that allows the receiver tomate

with a new trans -mitter intheevent the trans

mitter must be replaced. Assoonas thereceiver

module receives thefirstcorrectcommand from

any remote control it captures the new address

and then"beeps"3 times toconfirm thesyncron-

ization and command execution.

Remote control set included with log set.

Install four (4) "AA"

batteries into the

remote receiver box

as shown on the left.

Install three (3) "AAA"

batteries into the

remotecontrol

as shown on the left.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SHM Cheminée intérieure

SHM

SHM GEORGIA REGAL Guide de démarrage rapide

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
