Assembly of 12x8 Bison Workshop

●Hammer

●Step ladder

●Sand paper

●Battery-powered drill/screwdriver

●8mm drill

●Pencil

●Tape measure

●Gloves

●Sharp knife and saw

IMPORTANT!

PLEASE READ PRIOR TO ASSEMBLY OF

THE BUILDING

EVERY PRECAUTION IS TAKEN TO

ENSURE THAT YOUR BUILDING HAS NO

ELEMENT INCORRECTLY PLACED OR

POSSIBLY HAZARDOUS, HOWEVER

PRIOR TO USE PLEASE CHECK ALL

SURFACES FOR THE FOLLOWING:

1 RAISED GRAIN, SPLINTERS: sand

down timber to smooth finish

2 NAIL/SCREW/PIN HEADS PROUD: tap

home to be flush with surface of timber

3 DAMAGED SCREW HEADS

RESULTING IN SHARP SPLINTERS OF

METAL: replace

4 SHARP ENDS OF NAILS/ SCREWS/

PINS PROTRUDING THROUGH THE

PANEL: remove and reposition.

5 ENSURE ALL PARTS ARE SECURED

AGAINST REASONABLE FORCE:

remove and refit

6 ENSURE THERE ARE NO LOOSE

PARTS: remove and refit/discard

We recommend that protective

gloves be worn throughout

Wood is a natural product and is therefore

prone to changes in appearance, including

some warping, movement and splitting,

particularly during unusual climatic conditions

(long hot or wet spells of weather). As a natural

occurrence this is not covered by a guarantee.

PLEASE NOTE

14/03/11

TOOLS REQUIRED

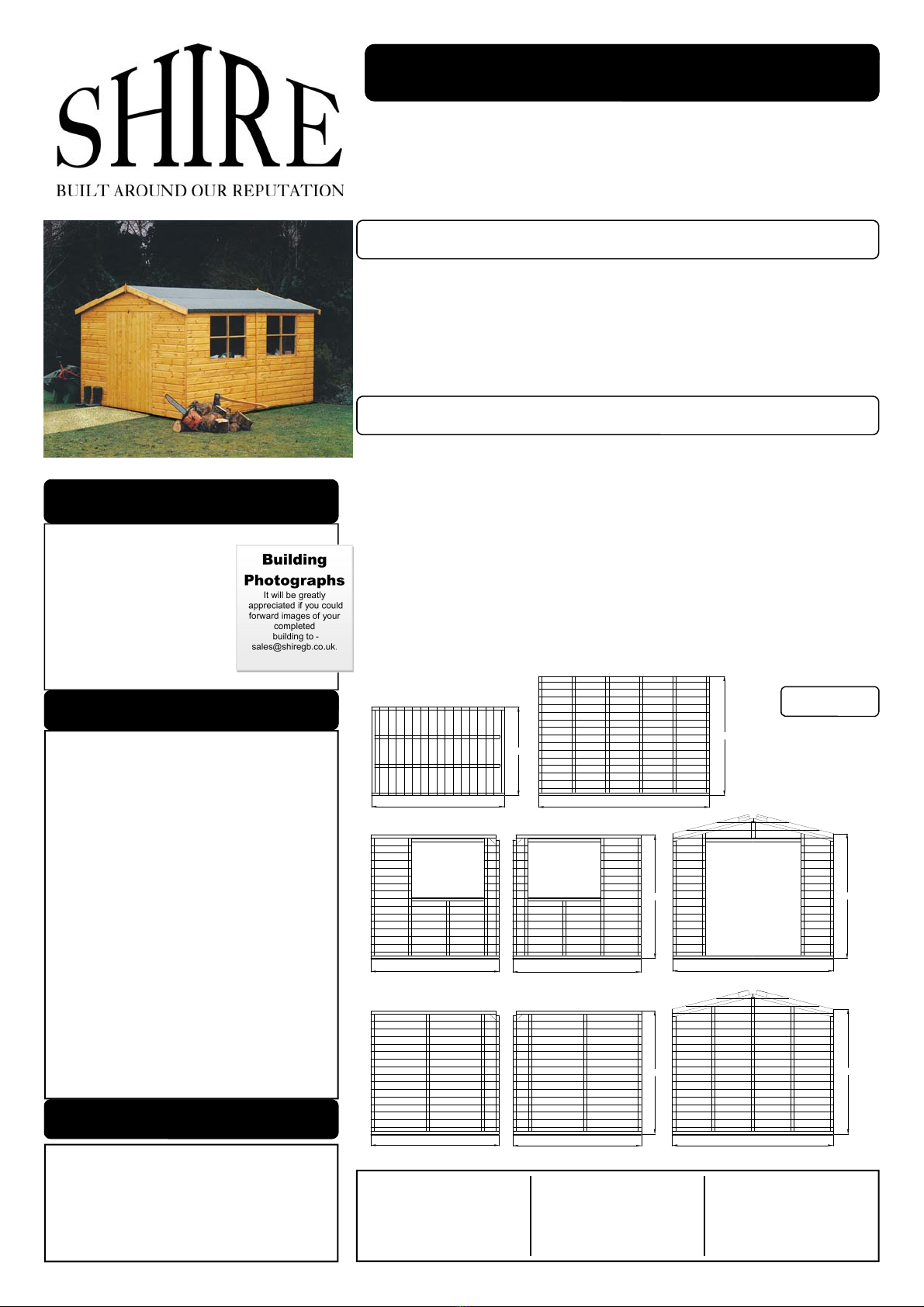

QTY DESCRIPTION

8 Panes of glazing 457x373

16 Beading 464mm

16 Beading 377mm

6 Cover strips 1875mm

4 Fascia 1420mm

2 Diamonds

66 80mm screws

40 40mm nails

148 Felt nails

64 15mm panel pins

3 Felt roll 4mtr x 1mtr

1 Double truss

1795

1858

ROOF PANEL - QTY 4

1851 1874

1874

1851

1795

BACK PANEL - 2 SECTIONS

2250

PLAIN PANEL

1795

FRONT PANEL - 2 SECTIONS

2250

DOOR PANEL

1330

1790

FLOOR PANEL - QTY 2

2390

Parts List

Thank you and congratulations on the purchase of your Shire garden building.

We believe that this product will give you many years of excellent service. This

is a natural product manufactured to a high standard therefore if you have any

queries or experience any difficulties then please contact our customer service

hotline on 01945 465 295. Normal office hours: 8.30 am to 5.00 pm Monday to

Friday.

Preparation of base

We recommendthat the base onto which your building will stand should beat least

75mm larger in each direction than the total floor size of the building.

Actual floor area of the building: 3590x2390 (12’x8’)

Total height clearance: 2270mm

The chosen position in your garden for the siting of the building should be

excavated to a depth of 75mm to allow a base of sand, on to which paving slabs

can be evenly laid - THEY MUST BE LEVEL AND FIRM.

Treatment/care of your Garden Building

Treat with a suitable decorative wood finishimmediately. We recommend that all

timber pieces be treated again prior to assembly and again within 3 months of

assembly. We further recommend that all pieces are treated again at least annually

or as frequently as the instructions on the product used recommends.

We would suggest that all wall panels be treated in an upside-down position to

allow the finish/treatment to ingress into the tongue and groove jointing.

We would also remind you that you would rarely (if ever) be able to re-treat the

underside of the floor following assembly. We strongly recommend that the under-

side of the floor is treated an absolute minimum of twice (not including pre-

treatment).

Garden buildings are not waterproof, therefore on assembling building we

recommend using a silicon based sealant between wall panels and wall

panels and floor.

EXTERNAL VIEW

OF PANELS

Remove all travel protection blocks from

bottom edge of panels.

1. Ensure that your base is firm and

absolutely level.

2. Lay floor of building on base. Make sure

the open ends of the floor are facing out-

wards. Join floor sections together through

the bearers using 4 x 80mm screws - you will

need to turn the floor over to do this.

3. Pre drill panels in 3 places, top, bottom and

middle.

4. Place plain panel onto the floor ensuring

the cladding has overhung the floor. Place

back panel next to this and join together from

the inside using 3 x 80 mm screws. The front

and back panels come in 2 sections. Make

sure the panels with the cut-outs meet each

other in the centre. The front and back panels

extend from floor edge to floor edge.

5. Place other back panel in position. Join

panels together from the inside using 3 x 80

mm screws.

6. Place door panel in position and join to

back panel from the inside using 3 x 80 mm

screws.

7. Place front panels in position and join to

door and plain panels and each other from

the inside using 3 x 80 mm screws per join.

1. On inside of building measure approx

120mm down from top of front and back

panel onto the framework underneath the cut-

out. Mark. Fix truss block, making sure the

angle of the block slopes down onto mark,

using 2 x 80 mm screws. Repeat for other

blocks. Place truss onto the blocks. Fix by

screwing down through truss into angled

block using 2 x 80 mm screws per side. Note:

double truss requires two blocks at each end.

2. Slide one panel into position using the cut-

out of the ridge as a guide. Repeat for the

other panels.

Please note that a small amount of planning

may be necessary to the tops of the walls to

ensure a snug fit.

3. Drill then screw roof sections together at

the ridge using 4 x 80 mm screws.

4. Once in position secure down from the

inside using 2 x 80 mm screws per wall, fixing

from the framework of roof to framework of

the gable walls.

5. Fix along the length of the building using

2 x 80 mm screws per panel.

1. Open roll of felt and lay out on an even

surface. Measure and cut the required 3

lengths allowing an overhang of approx 50

mm on all sides. Starting at the lower edge

(the eaves) place one piece of felt along the

length of the building. Secure the felt using

felt nails spaced at approx.100 mm intervals.

Repeat for other side, but do not nail along

centre of building until the piece of felt

covering the ridge is in place.

2. Place the last piece of felt at the ridge of

the building. This piece will overlap both of

the other pieces of felt. Nail into position

along both edges of this piece and at both

ends.

1. Fix the cover strips in position where the

panels meet using 4 x 40 mm nails per strip.

1, Secure wall panels to the floor on the

inside of the building through framework into

floor bearers using 2 x 80 mm screws per

panel.

1, Nail the 4 fascia boards to gable ends

using 3 x 40 mm nails per piece.

2. Trim of any excess felt with cutting knife

against the edge of the fascia board

3. Nail diamonds on top of and in the centre

of the fascia board using 2 x 40 mm nails per

diamond.

1. Place glazing material into the aperture of

each window.

2. Hold into position with four pieces of

beading. Secure into position using 2 x 15

mm panel pins per piece of beading. Repeat

for all window apertures.

A Floor & Walls

B Roof Assembly

C Felt Roof

D Cover strips

E Secure Walls to Floor

F Fascia & Diamonds

H Glazing

. Assembly Completion Checklist

1Check and ensure that no raised grain or

splinters are evident on timber components. Sand

down any raised grain or splinters using fine

grade sandpaper.

2Check that all screw, nail and pin heads are

properly tapped home and are not proud of the

timber surface.

3Check and ensure that no screws, nails or pins

protrude through any panel.

4 Check and ensure that all parts are properly

secured against reasonable force.

5Do not apply decorative wood finish/treatments to

wet or damp timber. Please observe the instruc-

tions of the wood finish/treatment manufacturer. 6
